Global Solutions GS1405 User manual

• Acrylic display
• Adjustable thermostat
• Temperature range to above 150 deg. F.
• Dual front doors
• Stainless steel base
• Overhead illumination
• 2 removable racks
FEATURES:
301 Meuse Argonne Hicksville, OH 43526 • P:800.782.6761 • F:419.542.6690
USER MANUAL
Visit us at www.nemcofoodequip.com for more information
ELECTRICAL DATA:
• Best when operated on an individual branch circuit
• ’ power cord length6
GS1405
FP140211 REV: ORIG
VOLTS:
120
AMPS:
2.5
WATTS:
300
DIMENSIONS:
SHIPPING INFORMATION:
• Outside: 13¼”W × 12¼”D × 18¼”H
• ½Upper Rack: 11 ”W × 9”D
• Lower Rack: 11½”W × 11½”D
• SHIPPING DIMENSIONS: × 16”W 16”D × 23”H
• SHIPPING WEIGHT: lbs.23

P.O. Box 305 • Hicksville, OH 43526 • Ph: 800.782.6761 • Fx: 419.542.6690 • nemcofoodequip.com
301 Meuse Argonne Hicksville, OH 43526 • P:800.782.6761 • F:419.542.6690
Visit us at www.nemcofoodequip.com for more information
IMPORTANT: Read the following safety and operation instructions to avoid injury and to avoid damage to equipment or property.
Plug unit into a properly grounded electrical outlet of the correct voltage, size, and plug configuration for
this unit. We recommend usage on an individual branch circuit of at least 15 amps for best results. Failure to
do so may result in decreased performance of the warmer.
Exterior surfaces on unit may get hot. Use caution when touching these areas to avoid injury.
Only shatter resistant light bulbs which meet or exceed NSF Standards specifically designed for food holding
units must be used. Breakage of bulbs not specially coated could result in personal injury and/or food
contamination.
Unplug warmer when not in use.
Unit is not waterproof. Do not submerge in water. Do not operate if unit has been submerged in water.
Unplug unit from power source, and allow to cool completely before performing any maintenance or cleaning.
The use of any type of ammonia, alcohol or chlorine based household cleaners will cause cracking of the
door/enclosure and is not covered under any warranty. Use warm soapy water and a soft cloth only.
Do not steam clean or use excessive water on unit to avoid personal injury or electrical shock.
It is recommended that the interior and exterior surfaces be cleaned daily with a mild soap and damp
cloth. Stubborn stains on base of unit and/or shelves may be removed with a non-abrasive cleaner and
a damp cloth. Usage of an abrasive cleanser could scratch or damage the finish of your unit.
STEP 1: Unplug unit from electrical supply
STEP 2: Let unit cool before cleaning
STEP 3: Clean with warm soapy water and a soft cloth only
CLEANING INSTRUCTIONS
EQUIPMENT SETUP
Once the unit has been taken out of the shipping carton and has been unpackaged, check to make sure
that all light bulbs are securely in their sockets.
OPERATION:
This warmer is designed to maintain food product at or above the optimum temperature. It is not designed
or intended to heat up or cook food to the serving temperature. Product is to be prepared to a temperature
of above 160°F before placing in the warmer.

P.O. Box 305 • Hicksville, OH 43526 • Ph: 800.782.6761 • Fx: 419.542.6690 • nemcofoodequip.com
301 Meuse Argonne Hicksville, OH 43526 • P:800.782.6761 • F:419.542.6690
Visit us at www.nemcofoodequip.com for more information
1. Plug unit in.
2. Before loading prepared food product into warmer, you must preheat the unit for 30 minutes at a setting
of 4 or 5 on the thermostat dial. After the preheat time has elapsed, you can then go ahead and place the
previously prepared food product inside.
3. Set thermostat to desired level.
OPERATING INSTRUCTIONS
TEMPERATURE
The amount of product placed in the warmer will affect the performance of the warmer. We suggest
periodically checking the internal temperature of the product and adjusting the temperature settings if
necessary. Keep door(s) closed when not serving.
The following temperatures are APPROXIMATE and can vary due to unit location, electrical supply, product
used, etc. Intended as a guideline only.
SETTING TEMPERATURE READING
1 85°F
2 105°F
3 140°F
4 165°F
5 Above 190°F
TO REPLACE DISPLAY LIGHT
Only shatter resistant light bulbs which meet or exceed NSF Standards specifically designed for food holding
units must be used. Breakage of bulbs not specially coated could result in personal injury and/or food
contamination.
Disconnect the power supply cord, and wait until unit has completely cooled. Unscrew light, and replace
with a new specially coated bulb of the same style and wattage.
MAINTENANCE:

P.O. Box 305 • Hicksville, OH 43526 • Ph: 800.782.6761 • Fx: 419.542.6690 • nemcofoodequip.com
301 Meuse Argonne Hicksville, OH 43526 • P:800.782.6761 • F:419.542.6690
Visit us at www.nemcofoodequip.com for more information
TROUBLESHOOTING:
NOTES:
Unplug unit from power source, and allow to cool completely before performing any maintenance or cleaning.
Unit not working:
• Check power switch position, power cord, and/or electrical circuit
Display light not working
• Tighten or replace bulb
Loud noise coming from unit:
• Check to see that blower motor is functioning properly
Unit not heating properly:
• Has food been prepared in advance and placed in warmer at proper serving temperature?
• Check heat settings. Is it at correct setting for your food product?
• Turn unit on, open door, and verify that hot air is being blown into unit from under the canopy. If not, your blower motor
may not be functioning properly.
• If the air being blown in is not hot, then the thermostat may not be functioning properly.
Food product drying out:
• Is your food product being left in the warmer past its shelf life?
◦ Shelf life is determined by personal preference and can vary greatly dependant upon the product, how it is
packaged, etc.

Rev. Date: 05/24/2012

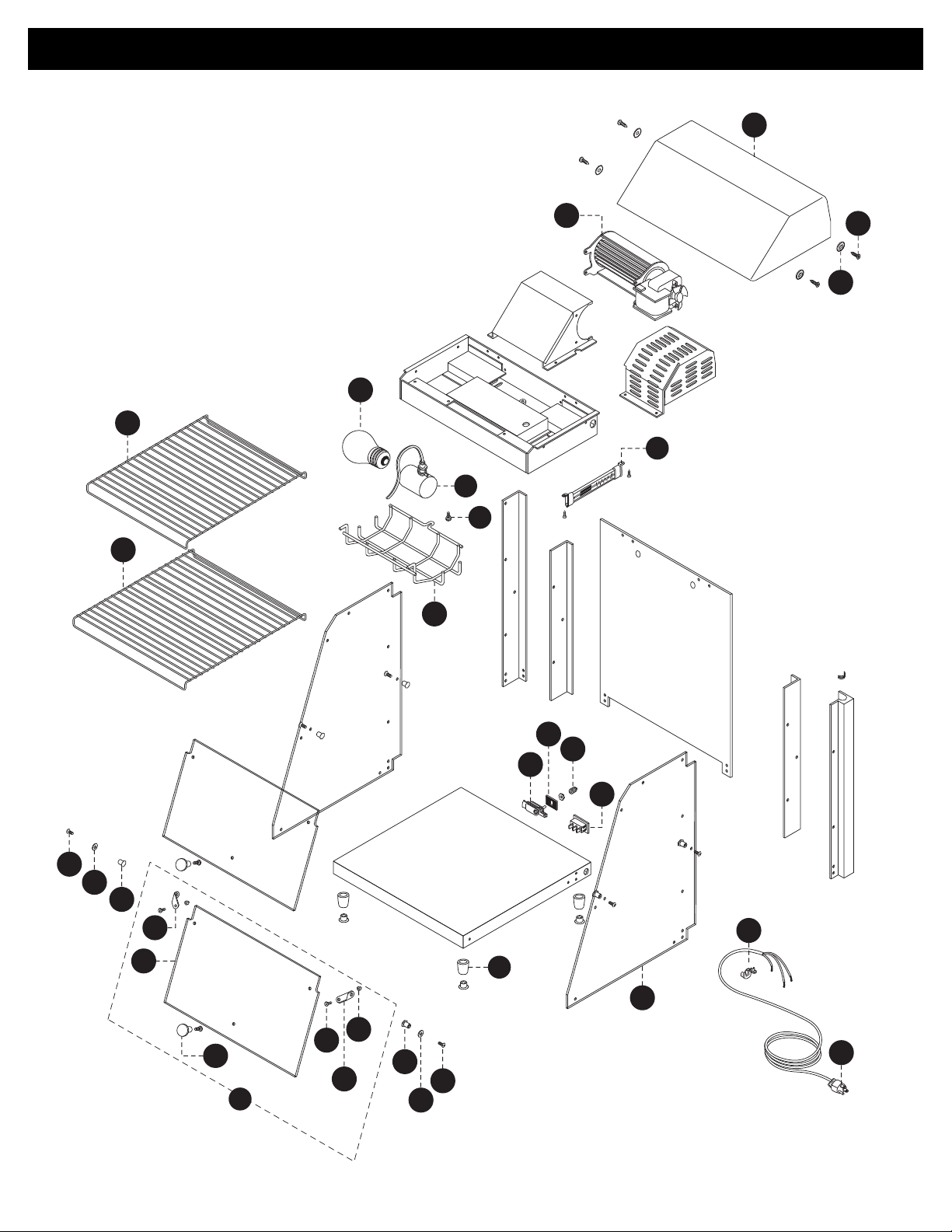

GS1405 Exploded View
Rev. Date: 05/24/2012Rev. Date: 05/24/2012
18
1
15
17
8
4
28
26
10
11
12
13
14
10
16
20 22
23
29
27
24
3
2
30
9
6
7
21
25
10
11 12

Rev. Date: 05/24/2012
7
6
20
23
26
27
30
31

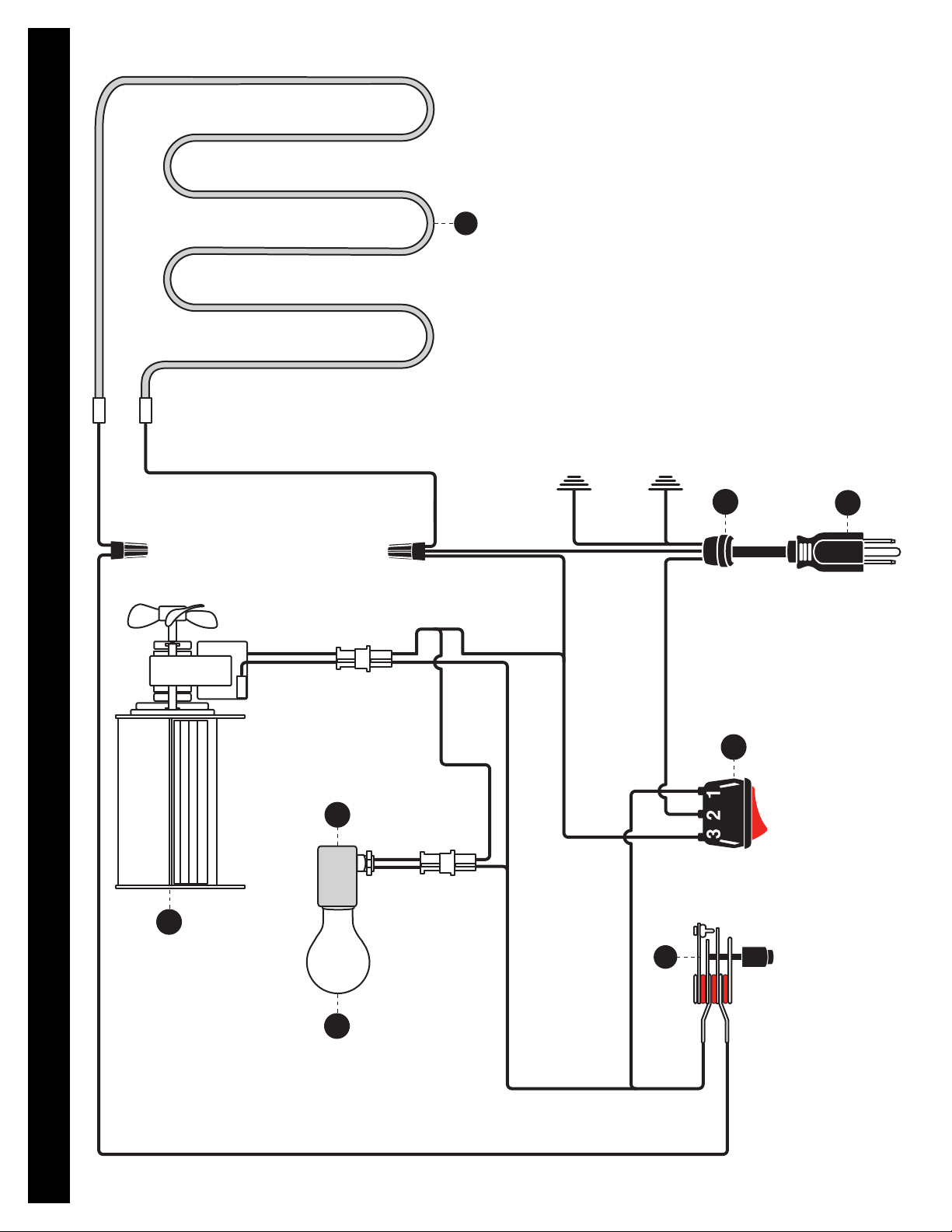

GS1405 Wiring Diagram
Rev. Date: 05/24/2012

P.O. Box 305 • Hicksville, OH 43526 • Ph: 800.782.6761 • Fx: 419.542.6690 • nemcofoodequip.com
301 Meuse Argonne Hicksville, OH 43526 • P:800.782.6761 • F:419.542.6690
Visit us at www.nemcofoodequip.com for more information
PARTS LIST:
GS1405
ITEM # PART # DESCRIPTION
1 10047 BLACK HOOD
2 47634 HOOD SCREWS
3 10164 CUP WASHERS
4 10017 THERMOMETER
6 10110 STRAIN RELIEF
7 10104 POWER CORD
8 10049 ACRYLIC SIDE
9 10126 BOTTOM FOOT SERVICE KIT
10 45141 #8-32 SCREW
11 67155 WASHER
12 48946 PEM STUD
13 46082 #8-32 ACORN NUT
14 10117 HINGE BRACKET (RIGHT)
15 10044 DOOR KNOB
16 10050 ACRYLIC DOOR
17 10116 HINGE BRACKET (LEFT)
18 10115 DOOR SERVICE KIT
20 10024 REGULATING THERMOSTAT
21 10137 THERMOSTAT DIAL
22 10023 THERMOSTAT KNOB
23 10005 POWER SWITCH
24 10052 BULB GUARD
25 10066 10-32 X 3/8 BRASS THUMB SCREW
26 10055 LIGHT SOCKET ASSY
27 10054 100 WATT INCANDESCENT LAMP
28 10086 RACK 12” x 11-1/4”
29 10057 RACK 12” X 9”
30 10048 BLOWER MOTOR
31 10045 HEATING ELEMENT 120W, 120V
* 45398-B 7” 16AWG WHITE 1/4FC-3/8ST 300V 200C
* 00140 WIRE NUT
* 47411-B 15” 18AWG GROUND WIRE
* 10053 WIRE HARNESS
* 47411-B GROUND WIRE
* 10157 QUICK EATS DECAL

P
PRODUCT SERVICE
Nemco has a staffed service department, and we believe prompt service is extremely important to our customers. Therefore, we request all product
service inquiries be handled in the following manner:
(1) The end user should call Nemco Customer Service with the company name, address, phone number, model number, serial number
(if applicable), Nemco Sales Order number or Dealer Purchase Order number and the nature of the problem (the “Claim Information”).
(2) The Nemco Customer Service Department will decide on the most appropriate course of action. If Nemco determines that it must inspect a
product, the following procedure will be followed:
The end user will obtain a Return Goods Authorization number from Nemco Customer Service to return the product to Nemco for inspection.
Please be sure to use this number on the box and on paperwork sent with the unit. Return the unit to Nemco. The Nemco Service Department
will determine if the problem is covered by the foregoing warranty. If so, Nemco will repair the unit and return it to the end user. If the unit is
determined not to be covered by the foregoing warranty, the dealer will be contacted to determine the next course of action. If the unit weighs
less than 70 lbs., it will be considered a carry-in warranty. The service agent performing the service must call Nemco Customer Service to obtain
a Service Authorization number and provide the Claim Information. If the unit weighs 70 lbs. or more, it will be considered an on-site warranty,
and the service agent performing the service must call Nemco Customer Service to obtain a Service Authorization number and provide the Claim
Information.
TERMS & CONDITIONS
• No merchandise shall be returned without prior written authorization.
• All returned merchandise must be unused, in original carton and shipped prepaid.
• All returned merchandise is subject to a 25% restocking charge.
• No returns will be accepted after 90 days of shipping date.
• Purchaser should make claim directly to carrier for any damages to merchandise
that occur in transit.
• This Price List supersedes all previous price lists.
• Orders with an invoice value of $2,100 net or more will be shipped freight prepaid
to one destination in the continental United States.
• Terms are COD, CIA or Net 30 days with approved credit.
• Buyer shall pay all applicable federal, state and municipal sales or use tax.
• No minimum order charge.
• Prices subject to change without notification.
PRODUCT WARRANTY
Except as otherwise provided below, Nemco Food Equipment, Ltd. (“Nemco”) warrants, to the original user, its electrical/pneumatic products (other
than blades and light bulbs) to be free of electrical and mechanical defects in material and workmanship under “normal use” (defined below) for the
shorter of the following periods: (a) one (1) year from the date placed in service by the original user, or (b) 18 months from the date of shipment from its
factory. Nemco also warrants its food preparation products (other than blades) to be free of mechanical defects in material and workmanship under
normal use for two (2) years from the date placed in service by the original user. In addition, Nemco warrants its Global Solutions food preparation
and electrical products (other than blades) to be free of mechanical defects in material and workmanship under normal use for one (1) year from the
date placed in service by the original user. The warranty provided for herein shall be limited to parts and labor. Any determination that a product is
defective or covered by this warranty, shall be made by Nemco, in its sole discretion. The determination of whether to repair or replace a defective,
covered product, or to refund the purchase price for the product, will be at Nemco’s sole discretion. This warranty does not cover products used
outside the United States, or damages caused by accident, misuse, negligence of any person other than Nemco, current or voltage other than stated
on the appliance, fire, flood or other casualty. Any alteration to the product or unauthorized repair voids this warranty. For purposes of this warranty,
the phrase, “normal use” shall mean the use of the product in connection with food in accordance with the product manual accompanying the product.
Nemco shall be responsible only for repairs or replacements of defective parts performed by Nemco’s authorized service personnel. Authorized
service agencies are located in principal cities throughout the continental United States, Alaska and Hawaii.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. NEMCO EXPRESSLY DISCLAIMS
ANY IMPLIED WARRANTY THAT ANY OF ITS PRODUCTS IS MERCHANTABLE, FIT FOR A PARTICULAR PURPOSE, OR DOES NOT INFRINGE ON THE
RIGHTS OF ANY THIRD PARTY. THE FOREGOING WARRANTY SHALL BE NEMCO’S SOLE AND EXCLUSIVE OBLIGATION. ANY PERSON’S (BUYER, USER
OR OTHERWISE) EXCLUSIVE REMEDY AGAINST NEMCO, AND NEMCO’S SOLE OBLIGATION, FOR ANY AND ALL CLAIMS, WHETHER FOR BREACH
OF CONTRACT, WARRANTY, TORT (INCLUDING WITHOUT LIMITATION NEGLIGENCE), OR OTHERWISE, SHALL BE LIMITED TO NEMCO REPAIRING
OR REPLACING THE PRODUCT, OR, AT NEMCO’S OPTION, REFUNDING THE PURCHASE PRICE THEREFOR. IN NO EVENT SHALL NEMCO HAVE ANY
LIABILITY FOR DAMAGES IN AN AMOUNT EXCEEDING THE PURCHASE PRICE OF THE PRODUCT, NOR SHALL NEMCO HAVE ANY LIABILITY FOR
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES. Any person desiring to make any claim against Nemco must do so within six (6) months after
expiration of the applicable warranty period, or such claim shall be forever barred.
NOTE: WARRANTY DOES NOT COVER DAMAGE TO THE GRID OR GRID COATING. IT IS NEMCO’S SOLE DISCRETION TO DETERMINE IF A GRID OR
GRID COATING CLAIM IS WARRANTED.
NOTE: WARRANTY DOES NOT COVER DAMAGE TO THE ROLLERS OR ROLLER COATING. IT IS NEMCO’S SOLE DISCRETION TO DETERMINE IF A
ROLLER OR ROLLER COATING CLAIM IS WARRANTED.
NOTE: PLEASE REVIEW YOUR PRODUCT MANUAL FOR SPECIFIC WATER REQUIREMENTS. DISTILLED OR TREATED WATER MAY BE REQUIRED.
