Global Surgical M 517HD Series User manual

110-013-070 REV K
ECO 203269 Date E󰀨ective: December 2020
HD COLOR VIDEO CAMERA
OWNER’S MANUAL
M 517HD AND M A517HD Series

When contacting Global Surgical Corporation for either Customer Service or
Technical Service, it will be helpful if you have your Customer Identication
Number and your Customer Order Number available. Please take a moment
to record these numbers (printed on invoice) in the spaces below.
Customer Identication Number: ___________________________________
Customer Order Number:__________________________________________
3610 TREE COURT INDUSTRIAL BLVD.
ST. LOUIS, MO 63122, USA
1-800-861-3585
IF OUTSIDE THE USA:1-636-861-3388
COPYRIGHT NOTICE
© COPYRIGHT 2020, GLOBAL SURGICAL CORPORATION. NO PART OF THIS PUBLICATION MAY BE
COPIED, PHOTOCOPIED, REPRODUCED, TRANSLATED, OR REDUCED TO ANY ELECTRONIC MEDIUM
OR MACHINE-READABLE FORM, IN WHOLE OR IN PART, WITHOUT THE PRIOR WRITTEN CONSENT OF
GLOBAL SURGICAL CORPORATION, 3610 TREE COURT INDUSTRIAL BLVD., ST. LOUIS, MO 63122, USA

Congratulations on your purchase of the
HD Color Video Camera.
We truly appreciate your business,
and we’re grateful for the trust you’ve placed in us.

TABLE OF CONTENTS
Section 1 Important Safety Instructions........................................................................................ 1-1
1.1 Symbol Denitions ............................................................................................................... 1-1
1.2 Warnings and Cautions........................................................................................................ 1-2
1.3 Product Precautions............................................................................................................. 1-2
Section 2 Product Information ....................................................................................................... 3-1
2.1 Included Components.......................................................................................................... 2-1
2.2 Specications ....................................................................................................................... 2-2
2.3 Features and Controls ......................................................................................................... 2-2
Section 3 Preparation for Use and Operation................................................................................ 3-1
3.1 Installation............................................................................................................................. 3-1
Section 4 Operating Instructions................................................................................................... 4-1
4.1 Operation............................................................................................................................... 4-1
4.1.1 White Balance....................................................................................................................... 4-1
4.2.1 Image Flip.............................................................................................................................. 4-1
Section 5 Care and Maintenance .................................................................................................... 5-1
5.1 Maintenance.......................................................................................................................... 5-1
5.2 Cable Managemant............................................................................................................... 5-1
Section 6 Troubleshooting .............................................................................................................. 6-1
6. Troubleshooting ........................................................................................................................... 6-1
Section 7 Service and Warranty..................................................................................................... 7-1
7.1 Warranty Information............................................................................................................ 7-1
7.2 Technical Services Department........................................................................................... 7-2

Section 1 Important Safety Instructions
1-1
1.1 Symbol Denitions
WARNING
!THE SAFETY AND SATISFACTION OF OUR CUSTOMERS AND THEIR PATIENTS
ARE THE HIGHEST PRIORITIES OF GLOBAL SURGICAL CORPORATION. THIS
MANUAL CONTAINS IMPORTANT INFORMATION REGARDING THE SAFE AND
PROPER USE OF THIS EQUIPMENT AND SHOULD BE READ THOROUGHLY BY
ALL OPERATORS PRIOR TO THEIR FIRST USE OF THE EQUIPMENT. FAILURE
TO READ AND UNDERSTAND THIS MATERIAL COULD RESULT IN INJURY TO
PATIENTS OR PERSONNEL OR IN DAMAGE TO THE EQUIPMENT.
This symbol on the product is an attention symbol, alerting the user to read the
Owner’s Manual for important installation, operating instructions or safety
information.
This symbol on the product indicates a potential electrical shock hazard and alerts the
user to read the Owner’s Manual for important safety information.
Symbol indicating do not expose to wetness or high moisture conditions
Interference may occur in the vicinity of equipment marked with the following
symbol:
Symbol indicating “not for general waste.” Recycle per the EUROPEAN WASTE
ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE.
For Professional Use Only.
WARNING
!This symbol indicates a situation in which incorrect handling through disregard of a
warning might result in death or serious personal injury.
CAUTION
!This symbol indicates a situation in which incorrect handling through disregard of a
caution might result in personal injury or may result in damage to property.
NOTE
!This symbol indicates a message to avoid property damage or additional information to
help complete a procedure.

Section 1 Important Safety Instructions
1-2
1.2 Warnings and Cautions
WARNING
ELECTRIC SHOCK HAZARD. DO NOT EXPOSE THE CAMERA TO WETNESS OR HIGH
MOISTURE CONDITIONS. DO NOT USE NEAR WATER. DO NOT HANDLE PLUGS OR
CAMERA WITH WET HANDS
WARNING ELECTRIC SHOCK HAZARD. DO NOT DISASSEMBLE OR MODIFY THE CAMERA OR
ACCESSORIES. REFER ALL REPAIRS TO QUALIFIED SERVICE PERSONNEL.
WARNING
DISCONNECT ALL ELECTRICAL POWER PRIOR TO CLEANING AND DISINFECTING.
RISK OF ELECTRIC SHOCK RESULTING IN DEATH OR INJURY IS POSSIBLE IF THE
ELECTRICAL POWER IS NOT DISCONNECTED PRIOR TO CLEANING THE UNIT.
WARNING
!NO MODIFICATION OF THE EQUIPMENT IS ALLOWED.
WARNING
!FAILURE TO FOLLOW THESE INSTRUCTIONS WILL RESULT IN DAMAGE TO THIS
SYSTEM OR POSSIBLE INJURY (RECEIVER’S RESPONSIBILITY).
CAUTION
!USE ONLY THE PROVIDED POWER SUPPLY TO ENERGIZE THE CAMERA, OTHER
POWER SUPPLIES MAY CAUSE DAMAGE TO THE CAMERA.
CAUTION
!BRIGHT LIGHT SHINING DIRECTLY INTO THE CAMERALENS CAN CAUSE DAMAGE TO
THE CCD.
CAUTION
!DO NOT PULL OR MOVE SYSTEM BY CORDS OR PULL CORDS AROUND SHARP
EDGES. KEEP CORDS AWAY FROM HEATED SURFACES.
CAUTION
!
THIS EQUIPMENT GENERATES AND USES FREQUENY ENERGY AND IS NOT
INSTALLED AND USED PROPERLY, I.E. IN STRICT ACCORDANCE WITH THE
INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS. IT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS A COMPUTING DEVICE PURSUANT TO SUBPART J OF PART 15 OF FCC
RULES, WHICH ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
SUCH INTERFERENCE WHEN OPERATED IN A COMMERCIAL ENVIRONMENT.
CAUTION
!
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
1.3 Product Precautions
• Handle the camera with care. Do not abuse the camera. Avoid striking or shaking it. Improper handling
or storage could damage the camera.
• Do not pull or damage the camera cable.
• During camera use, do not wrap the unit in any material. This will cause the internal temperature of the
unit to increase.
• Do not expose the camera to moisture, or do not try to operate it in wet areas.
• Do not operate the camera beyond its temperature, humidity and power source ratings.
• While the camera is not being used, keep the lens or lens cap on the camera to prevent dust or contamina-
tion from getting in the CCD or lter area and scratching or damaging this area.
• Do not keep the camera under the following conditions:
In wet, moist, and high humidity areas
Under hot direct sunlight
In high temperature areas
Near an object that releases a strong magnetic or
electric eld
Areas with strong vibrations

Section 2 Product Information
2-1
2 Product Information
The M 517HD and M A517HD Series high denition camera allows for the documentation of medical
procedures and examinations. It outputs HDMI video at true HD 1080p resolution. The 1/3" C-mount design
o󰀨ers a compact and lightweight HD video solution. The on-camera push-button is used for one-push white
balance and push-hold for image ip.
2.1 Included Components
Table 1-1 (below) identies the items packaged with the M 517HD Series HD color video camera.
Table 2-1 Included Components
•Included
-Not Included
Model Number
M 517HD1080
M 517HD1080-725
M 517HD1080-I
M 517HD1080-725I
M A517HD1080
HD Video Camera Head, 1080p
(028-008-046) •••••
HDMI Cable, 30’
(039-004-047) •••••
U.S. Power Supply,
100-240V~50/60 Hz input
(031-005-015) • • - - •
International Power Supply,
100-240V~47-63Hz input
(031-005-010) - - • • -
12VDC Extension Cable, 30’
(102-007-064) • - • - -
12VDC Extension Cable, 11’
(102-007-066) - • - • -
12VDC Extension Cable, 6.5’
(102-007-066) ----•
Cable Ties 4” Black, Qty 6
(018-006-037) •••••
Flexible Braided Sleeving
(123-006-208 - 6”)
(123-006-209 - 2’) •••••
HDMI Right Angle Adapter
(039-004-048) •••••

Section 2 Product Information
2-2

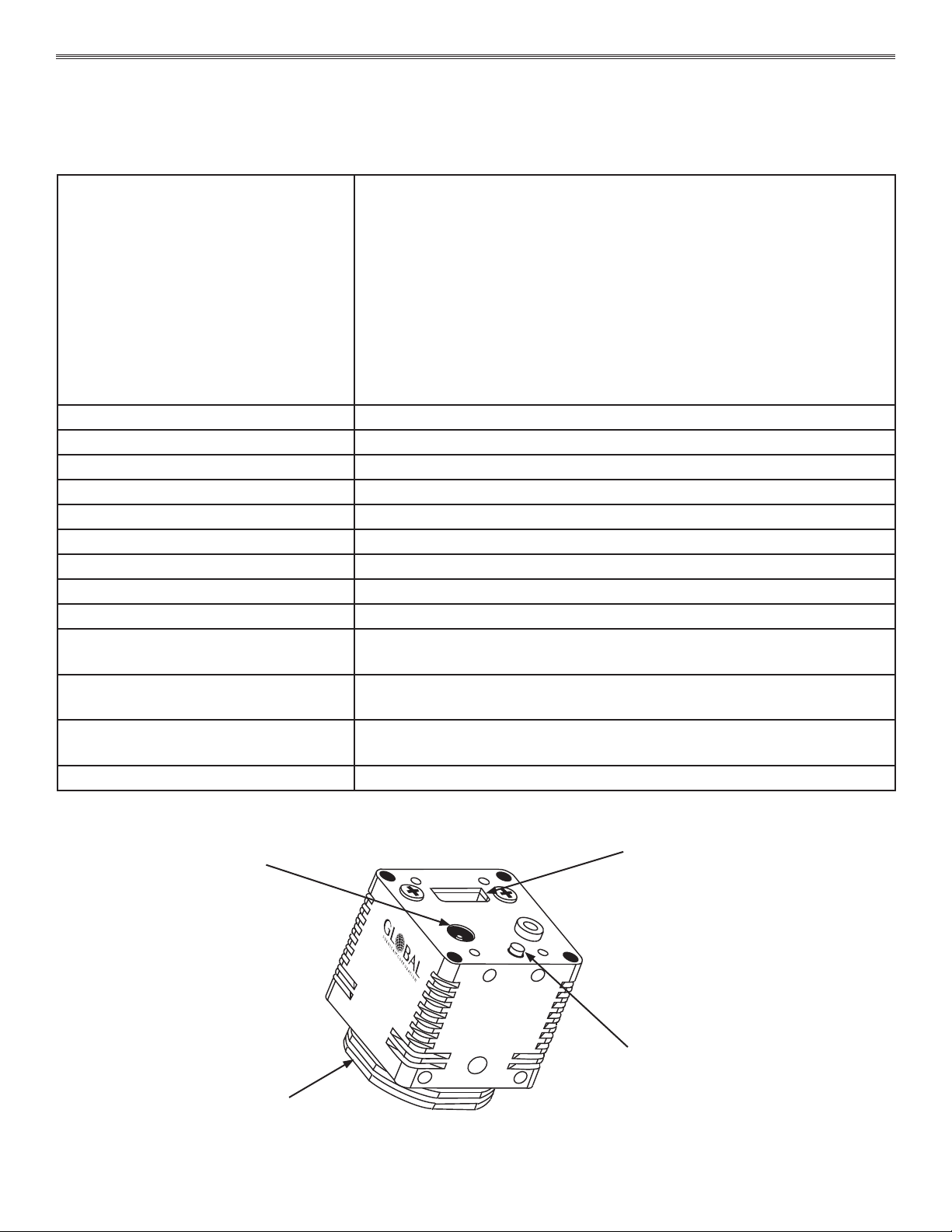

2.2 Specications
Table 1-2 (below) lists the general specications for the M 517HD Series HD color video camera.
Model Number
M 517HD1080
M 517HD1080-725
M 517HD1080-I
M 517HD1080-725I
M A517HD1080
Image Sensor 1/2.8” 230 Megapixel CMOS
Resolution 1920 (H) X 1080 (V), 16:9 Format 1080p
S/N Ratio 0 to 45 dB
Video Output DVI 1.0 compliant HDMI connector, RGB
Lens Mount C-mount
Dimensions (W x H x D) 40 x 40 x 51.1mm (1.6” x 1.6” x 2.01”)
Weight Approximately 116 g (4.09 oz)
Storage temperature -30°C ~ 65°C (-22°F~ +149°F)
Operating temperature 0°C ~ 45°C (32°F~ 113°F)
U.S. Power Supply Input: 100-240V~ 50/60 Hz
Output: 12VDC, 800 mA
International Power Supply Input: 90-264V~ 47 to 63 Hz 0.6A
Output: 12VDC 3.75A
Complies With Standards EN61000-6-2
EMI: EN55022 (Class B)
RoHS RoHS Compliant
Table 2-2 Specications
2.3 Features and Controls
Figure 1-1 (below) identies the location of important camera features and controls.
HDMI Video Output
Push-button
One-push white balance
Push-hold for image ip
Lens mount
(C-mount lens threads)
12VDC Power Input
Figure 2-1. Features and Controls

Section 3 Installation Instructions
3-1
Cable Bracket
Cable Tie
3 Preparation For Use And Operation
3.1 Installation
Installing the M 517HD Series camera to the microscope requires a C-mount camera adapter and beamsplitter.
These items are sold separately. Global’s patented virtual beamsplitter is the beamsplitter of choice as it will
provide excellent video depth of eld with minimal light loss to the user.
1. If the beamsplitter and/or the C-mount camera adapter have not been attached to the microscope, install
them now.
2. Thread the M 517HD camera onto the C-mount camera adapter until it is secure.
3. Route and connect power and video cables. Typical wire conguration is illustrated in Figure 3-1. Route
cables through arms in such a way that they are not likely to be pinched or stretched or otherwise dam-
aged. Microscope arm covers may have to be removed to route cables.
4. Neatly bundle external cables by using the supplied cable ties and sleeving as needed for cable
management.
5. Plug the camera power supply into an AC outlet.
HD Ready Display
HDMI Cable
HDMI Right
Angle Adapter
M 517HD Camera
12VDC Extension Cable
Camera Power Supply

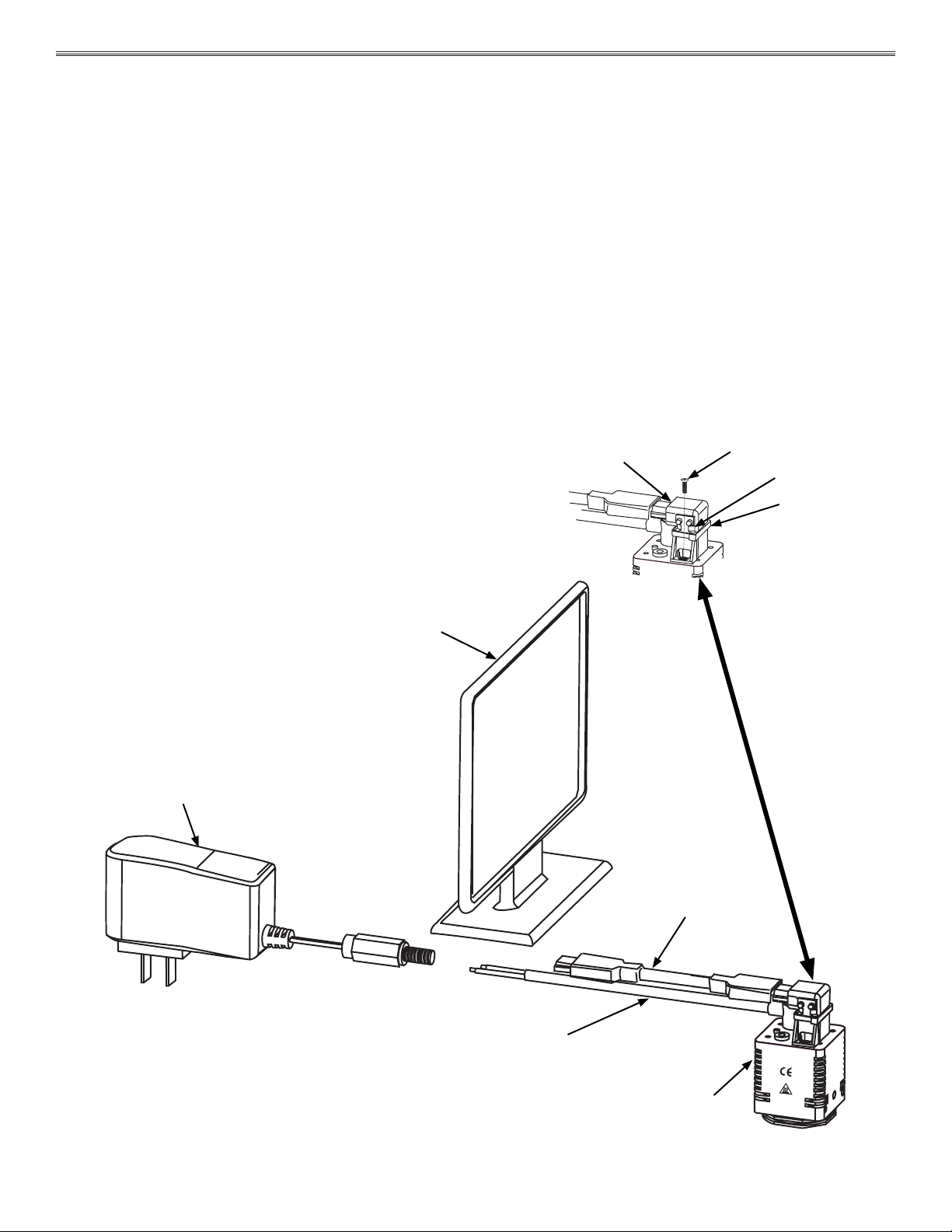

Figure 3-1. Typical Wire Conguration
Camera Screw
M
M
5
5
1
1
7
7
H
H
D
D
1
1
0
0
8
8
0
0
S
S
/
/
N
N
0
0
1
1
0
0
0
0
1
1
M
M
5
5
1
1
7
7
H
H
D
D
1
1
0
0
8
8
0
0
S
S
/
/
N
N
0
0
1
1
0
0
0
0
1
1

Section 3 Installation Instructions
3-2
1. Turn the HD-ready display on and select the proper HDMI source input for display.
2. Turn the microscope light source on.
3. Position and focus the microscope over an object. The object should be displayed on the
monitor. If the image is not displayed, refer to “Troubleshooting” in Section 6.
4. If the image is not oriented properly on the monitor (straight up), slightly loosen either the C- mount coupler
or the C-mount camera adapter and then rotate the camera for proper orientation. Once the image orienta-
tion is correct, tighten the C-mount coupler until secure. See Figure 3-2 for rotation adjustment locations.
5. Important! Do not skip this step. Perform the “Par-Focal Procedure” per the microscope owner’s
manual to ensure the video image and binocular image have the same focus.
6. Refer to “Operation” paragraph 4.1 for use. The camera power supply should be disconnected from the AC
outlet if the M 517HD camera is not going to be used for extended periods of time.
Figure 3-2. Rotation Adjustment Locations

Section 4 Operating Instructions
4-1
4.1 Operation
Follow the steps below after installation of the M 517HD camera. It is recommended to inspect cable condition
and routing before each use of the microscope.
1. Turn on the HD-ready display and microscope light source.
2. Apply power to the M 517HD camera by plugging the power supply into an AC outlet.
3. Perform WHITE BALANCE (paragraph 4.1.1) if the video image color does not seem accurate.
4. Perform IMAGE FLIP (paragraph 4.2.1) if the video image is reversed.
5. The camera power supply should be disconnected from the AC outlet if the M 517HD camera is not going
to be used for an extended period of time.
4.1.1 White Balance
Color accuracy is an important property of image quality. Cameras interpret the color of an object by
measuring the amount of red, green and blue light from the object. A white object will have equal amounts of
red, green and blue light. However, each light source emits di󰀨erent amounts of each color creating a specic
color temperature. The WHITE BALANCE procedure allows the camera to measure and adjust for the color
temperature of the light source.
1. Ensure the microscope light source is on.
2. Place a white sheet of paper under the objective lens to ll the M 517HD camera eld of view.
3. Press and release the on-camera push-button to set the white balance. If necessary, adjust the
color settings of the HD-ready display.
4.2.1 Image Flip
Di󰀨erent camera adapters my or may not optically ip (reverse) an image. This feature allows the M 517HD
camera to be used on a variety of adapters.
1. Press and hold the on-camera push-button until the image ips, then release the button. The hold time is
approximately 3 to 5 seconds.
NOTE
!This camera does not have a power “On / O󰀨” switch. The camera will be “On” when the power
supply is plugged in and all power cables are attached to the camera.

Section 5 Care and Maintenance
5-1
WARNING DISCONNECT ALL ELECTRICAL POWER PRIOR TO CLEANING AND
DISINFECTING. RISK OF ELECTRIC SHOCK RESULTING IN DEATH OR INJURY
IS POSSIBLE IF THE ELECTRICAL POWER IS NOT DISCONNECTED PRIOR TO
CLEANING THE UNIT.
NOTE
!Clean and disinfect after every patient according to CDC and OSHA requirements for
non-critical devices.
5 Maintenance
The M 517HD Series has no consumable parts (i.e. fuses, lters, etc.) to replace. The only necessary
maintenance includes cleaning (paragraph 5.1) and cable management (paragraph 5.2.) Any other
maintenance or service should be performed by qualied service personnel (see section 7 for service.)
Cleaning should be performed as needed. Cable management should be performed before each use of the
microscope.
5.1 Cleaning
See M A730 Series Surgical Operating Microscope System Owner’s Manual (110-013-079) Section 6 for
cleaning and disinfecting instructions.
5.2 Cable Management
1. Ensure all cables are free from defects. Replace damaged cables immediately.
2. Route all cables in such a way that they are not likely to be pinched or stretched or otherwise damage
3. Neatly bundle cables by using the supplied cable ties and sleeving as needed.
4. Ensure all cable connections are secure.
WARNING
!DO NOT USE AN AEROSOL SPRAY DIRECTLY ON THE M 517HD CAMERA. SPRAY
MAY CAUSE ELECTRICAL SHOCK AND/OR DAMAGE TO INTERNAL CIRCUITS

Section 6 Troubleshooting
6-1
6 Troubleshooting
Table 6-1 (below) lists some symptoms, possible causes, and solutions.
Symptoms Possible Causes Solutions
No Video
Display
The HDMI cable is loose or defective. Check all cable connections or replace cable.
The camera power supply is not plugged in
or is defective.
Plug the camera power supply into an AC
outlet or replace the camera power
supply.
The 12VDC extension cable is not connect-
ed to either to the M 517HD camera or the
camera power supply.
Check all cable connections.
The 12VDC extension cable is defective. Replace the 12VDC extension cable.
The HD-ready display is “o󰀨” or not set to the
correct video input.
Ensure the HD-ready display power is on and
that the video source is set to the
correct HDMI video input.
The microscope light source is o󰀨 or is de-
fective.
Ensure the microscope light source power is
on and working.
The microscope magnication changer is set
between magnication levels.
Turn the microscope magnication
changer until it stops at a magnication level.
Verify by looking through the microscope
binoculars.
The M 517HD camera is defective. Replace the M 517HD camera.
Dim Video
Display
Faulty camera power supply. Ensure camera power supply is supplying
12VDC.
The microscope light source is o󰀨 or
brightness setting is too low.
Ensure light source power is on and lamp is
working. Also, check the brightness control
on the light source.
12VDC extension cable is defective. Replace 12VDC extension cable.
Poor Focus
The HD-ready display requires settings
adjustments.
Ensure HD-ready display settings are set to
optimal viewing levels.
The M 517HD camera is out of focus Perform the “Par-Focal Procedure” per the
microscope owner’s manual.
Table 6-1 Troubleshooting

Section 7 Service and Warranty
7-1
7.1 Warranty Information
Global Surgical Corporation warranty information is located at:
http://www.globalsurgical.com/warranty.html
90-Day Money-back Guarantee on Microscopes and Accessories.
The microscope and microscope accessories you purchase will be unconditionally guaranteed and risk-free.
You may return a product to Global in good condition for any reason within 90 days of invoice and receive a full
product refund. Custom microscope parts are excluded from this policy. This money-back guarantee applies to
the U.S. and Canada only.
Microscope Limited Lifetime Warranty
Your microscope will include an unprecedented lifetime warranty, including parts and labor, for all optical and
support components. Please refer to detailed Limited Lifetime Warranty below.
Upgradeable
We will continue to do our best to design our microscopes to be modular and upgradeable, thus greatly mini-
mizing the possibility of obsolescence.
Microscope Limited Lifetime Warranty
Except as set forth in this Limited Lifetime Warranty, Global Surgical Corporation (the “Company”) hereby warrants that each micro-
scope product manufactured and sold by the company (“Product”) shall be free from defects in materials and workmanship under nor-
mal use and service for the life of the product. This warranty is non-transferable and is valid only with respect to the original purchase of
the product. The Company’s obligation under this warranty shall be limited to repairing or replacing at the Company’s facility and at the
Company’s expense, any parts of components that are demonstrated to be defective. The purchaser shall be responsible for shipment
of the product to and from the Company’s facility at 3610 Tree Court Industrial Boulevard, St. Louis, Missouri, 63122, Attention: Techni-
cal Service, or such other facility as the Company may otherwise designate. Under certain circumstances which are pre-approved by
the Company, necessary repairs may be made at the purchaser’s facility.
A return authorization is required before returning any product for warranty service by calling 1-800-861-3610. The customer is respon-
sible for all shipping expenses. Global Surgical suggests using a method that will allow you to track the package in the event it does not
arrive. Global also recommends you insure the package.
This warranty shall not be applicable to: (l) any electrically-driven products sold by the Company, (II) any products which are not manu-
factured by the Company which may be attached to the product, such as video equipment, camera equipment, recording devices, moni-
tors, printers (III) any components which are consumable or are required to be replaced or disposed of in connection with normal use of
the product, such as lamps, ber optic cables, rubber eyecups and drapes, or (IV) any product which was purchased prior to April 27,
1994.
This warranty shall be void and of no e󰀨ect: (I) if the product is damaged due to misuse, use in a manner other than pursuant to the
instructions for the use of Product, abuse, physical mishandling or natural causes such as ood, re, earthquake, or other perils, as
determined by the Company, or (II) if any repairs or replacements are made by persons not authorized by the Company to perform such
services.
The warranties set forth herein are in lieu of any and all other warranties, expressed or implied, including, without limitation, warranties
of merchantability and tness for a particular purpose. Purchaser’s rights thereunder are granted in lieu of any other rights purchaser
may have and purchaser hereby waives all other rights, warranties, remedies or guarantees whatsoever with respect to the product.
The Company shall not be liable for any third parties with respect to the product or its performance. Further, the Company shall not be
liable for, and purchaser hereby releases the Company from any direct, or indirect, consequential, special, and incidental or punitive
damages with respect to the product. In no event shall the Company be liable for any breach of warranty or other claim in an amount
exceeding the purchase price of the product.
Warranty for Microscope products not included in the Limited Lifetime Warranty:
Electrical and electronic components, except for the LED lightsource, have a one-year warranty. The LED lightsource has a three-year
warranty.
Consumables such as ber optic cables, eyecups etc., have a one-year warranty. Light bulbs have a warranty equal to that given by
the manufacturer.
This warranty applies to the U.S. and Canada only.
For international warranty information: Email: [email protected]
Phone: [phone], Fax: [phone]

Section 7 Service and Warranty
7-2
7.2 Technical Services Department
When contacting our Technical Services Department, you will be served by highly knowledgeable representatives in an
e󰀩cient manner. If service is required at your location, a skilled technician or sales representive will be dispatched within
24 hours.
If you have questions that are not covered in this manual, please call the Global Surgical Technical Services Department
as listed below:
Toll Free Number: 1-800-861-3610
Technical Services Representatives: 1-636-861-3388
Fax Number: 1-636-861-5284
Email: [email protected]
The sta󰀩ng hours for the Global Surgical Technical Services Department are Monday through Friday from 8:00 a.m. to
5:00 p.m. Central Standard Time.
Internet Access
The Global Surgical Technical Services website has information about additional products and services and can be
reached online at: http://www.globalsurgical.com.
Service Information
In the event of any malfunction, you should immediately contact the Global Surgical Technical Services Department for as-
sistance. A Customer Identication Number and Customer Order Number will be needed when contacting the Techni-
cal Services Department. These numbers are printed on your invoice. To save time in the event service is needed, record
these numbers in the spaces provided in the front of this manual.
A Return Material Authorization (RMA) number must be obtained from the Global SurgicalTechnical Services
Department prior to returning a product for repair. The following information must accompany all returned units:
1. Your name, address, and telephone number
2. The RMA number
3. A description of the problem
Ship or return the product to:
Global Surgical Corporation
3610 Tree Court Industrial Blvd.
St. Louis, MO 63122
Attention: Technical Services Department

Global Surgical Corporation
3610 Tree Court Industrial Blvd.
St. Louis, MO 63122, USA
EMERGO EUROPE
Prinsessegracht 20
2514 AP The Hague
The Netherlands
91613
