Global-Tek GT-U1M User manual

Global-Tek (Singapore) Pte Ltd
1 | P a g e
For ERP references :-
9U01-0000 (for S’pore, Malaysia, Indonesia w/o chemical pump) ) 9U01-0016 (for S’pore, Malaysia, Indonesia w/chemical pumps)
9U02-0000 (for Philippine, Guam w/o chemical pump) 9U02-0016 (for Philippines, Guam with chemical pumps)
Model: GT-U1M
Undercounter Glass & Dish Washer
Undercounter
Glass & Dish
Washer
Model : U1M
G-Tek

Undercounter Glass & Dish Washer, Model: U1M
2 | P a g e
Content
Parts Name Page
Wash and Rinse System 3
Wash Chamber 5
Wash Tank & Drain Assembly (9U01-0000)
(for Indonesia, Malaysia, S’pore etc, without chemical pump) 7
Wash Tank & Drain Assembly (9U01-0016)
(for Indonesia, Malaysia, S’pore etc, with chemical pumps) 9
Wash Tank & Drain Assembly (9U02-0000)
(for Philippines, Guam without chemical pump) 11
Wash Tank & Drain Assembly (9U02-0016)
(for Philippines, Guam with chemical pumps) 13
Pump & Booster Assembly 15
Door Lift 17

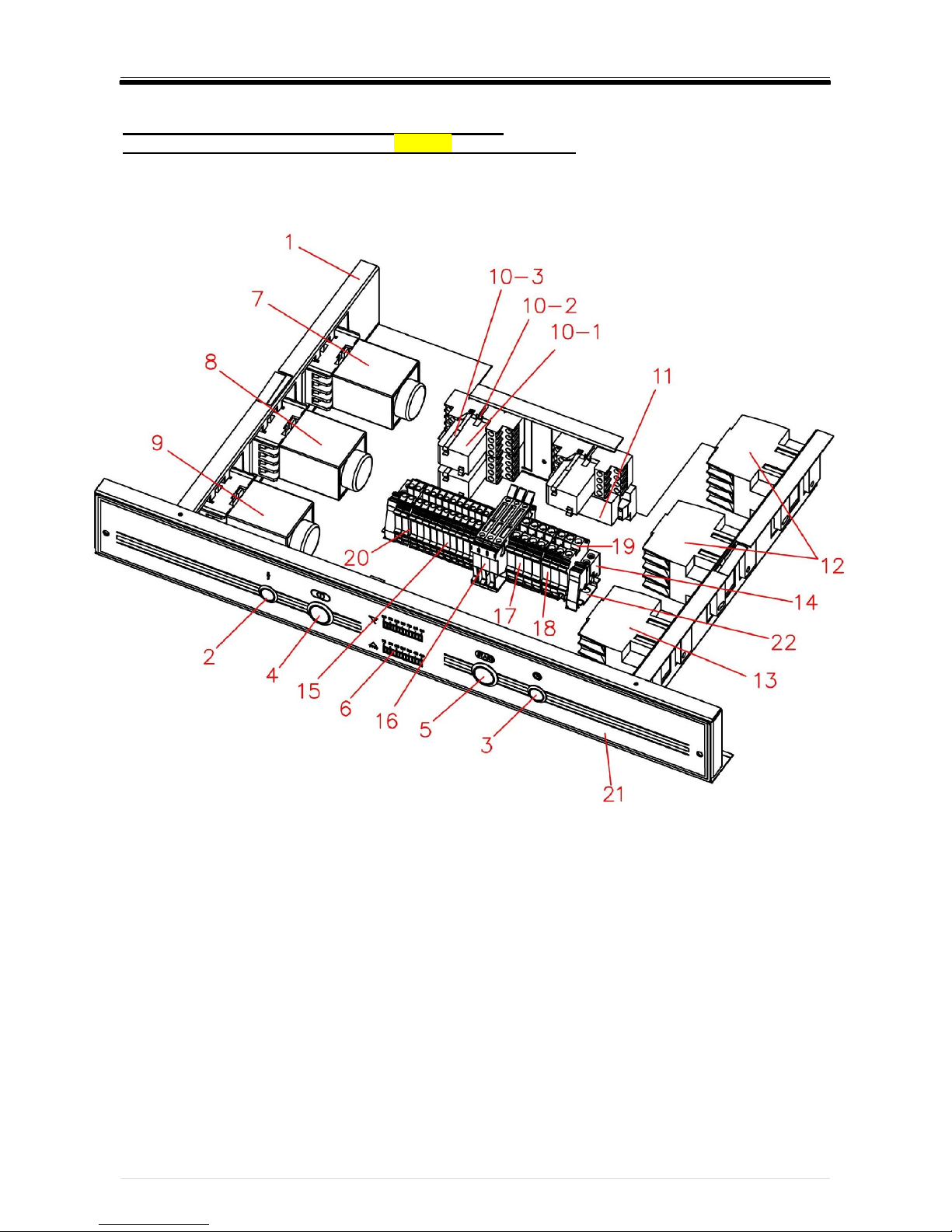

Control Panel (9U01-0000) 18
Control Panel (9U01-0016) 20
Control Panel (9U02-0000) 22
Control Panel (9U02-0016) 24
Door Panel Assembly 26

Undercounter Glass & Dish Washer, Model: U1M
3 | P a g e
Wash & Rinse Assembly

Undercounter Glass & Dish Washer, Model: U1M
4 | P a g e
Wash and Rinse Assembly
Location Series No. Parts Name Qty
1 0TX-07-6 Wash Piping Assy 1
2 0TX-07-5 Rinse Piping Assy 1
3 F021-07/4-01 Rubber Hose 2
4 F021-07/2-01 Rubber Hose 1
5 F021-D13-01 Rubber Hose 1
6 F021-D13-01 Rubber Hose 1
7 E018-32X57-01 Hose Clamp S.S. 4
8 E018-11X25-01 Hose Clamp S.S. 6
9 E018-32X57-01 Hose Clamp S.S. 2
10 F011-05/11/2-01 Upper Manifold 1
10-1 A012-05/11/1-01 Enchase nut 1
11 F002-02/10-01 O Ring 2
12 A012-05/19-01 Fixed Frame 1
13 A012-05/6-01 Washer 1
14 A012-05/9-01 Thread Bushing 2
15 F017-05/4-01 Washer 2
16 A012-05/3-01 Lock Screw 2
17 F017-05/10-01 Washer 2
（18-28） 0PJ-TX-QXG Wash Piping Assy 2
18 F011-05/2/6-01 Manifold 2
19 0TX-05-2-1 Wash Piping Assy 4
20 A012-05/1/3-01 Rinse Arm 2
21 A012-05/1/2-01 Rinse Nozzle 12
22 A012-05/1/1-01 Rinse Arm 2
23 F002-16X2.65-01 O-rings 4
24 F002-6.9X1.8-01 O-rings 4
25 F005-05/2/2-01 End Cap 4
26
F005
-
05
/
2
/
5
-
01
End Cap
4
27 A012-05/2/3-01 End Cap Crip 4
28 E001-M4X12-01 Sunk Screw 8
29 A012-05/20-01 Washer 1
30 F038-05/17-01 Wash Stand Column 1
31 A012-05/7-01 Water Inlet Nozzle 1
32 F011-05/18-01 Lower Manifold 1
33 F001-06/2/2-01 O-Ring 1
34 A012-05/8/1-01 Water Inlet Plinth 1
35 A012-05/8/2-01 Joint holder 1
36 F021-50310/3A-01 Connecting pipe 1

Undercounter Glass & Dish Washer, Model: U1M
5 | P a g e

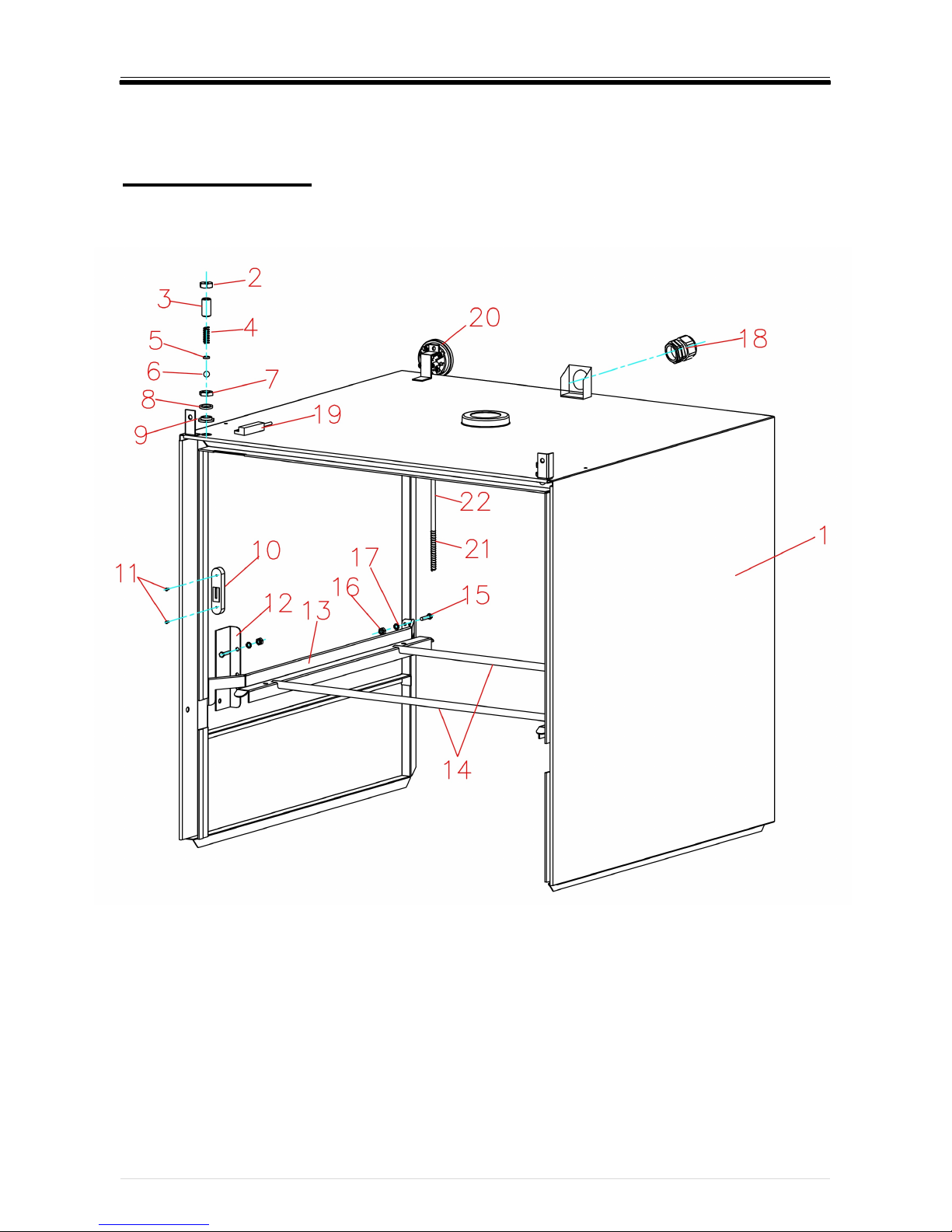

Wash chamber

Undercounter Glass & Dish Washer, Model: U1M
6 | P a g e
Wash chamber
Location Series No. Parts Name Qty
1 0TX-01 External Hood 1
2 A012-06/4/5-01 End Cap 2
3 A012-06/4/1-01 Double-Screw Bolt 2
4 A002-06/4/4-01 Door Spring 2
5 A012-06/4/3-01 Spacer 2
6 A012-06/4/2-01 Ball Bearing 2
7 A012-06/4/6-01 Up Locknut 2
8 A012-06/4/8-01 Washer 2
9 A012-06/4/7-01 Down Locknut 2
10 F018-01/8-01 Slide Block 2
11 E003-M2.9*9.5-01 Sunk Screw M2.9*9.5 4
12 0TX-01-7L Rail Bracket (left) 1
0TX-01-7R Rail Bracket (right) 1
13 0TX-01-5-1A Rack Rail 2
14 C004-D10-01 Supporting Bar 2
15 E002-M4X12-01 Thermostat Screw M4x12 10
16 E013-M4-01 Nut M4 10
17 E021-M4-01 Serrated lock Washers 10
18 G029-PG21/2-01 29mm Conduit 1
19
0JD
-
65998A
Magnet
switch
1
20 G019-52UN008-01 Pressure Switch 1
21 A002-D10X0.8X10-01 Spring 1
22 F022-D8X4-01 Air chamber rubber hose 1

Undercounter Glass & Dish Washer, Model: U1M
7 | P a g e

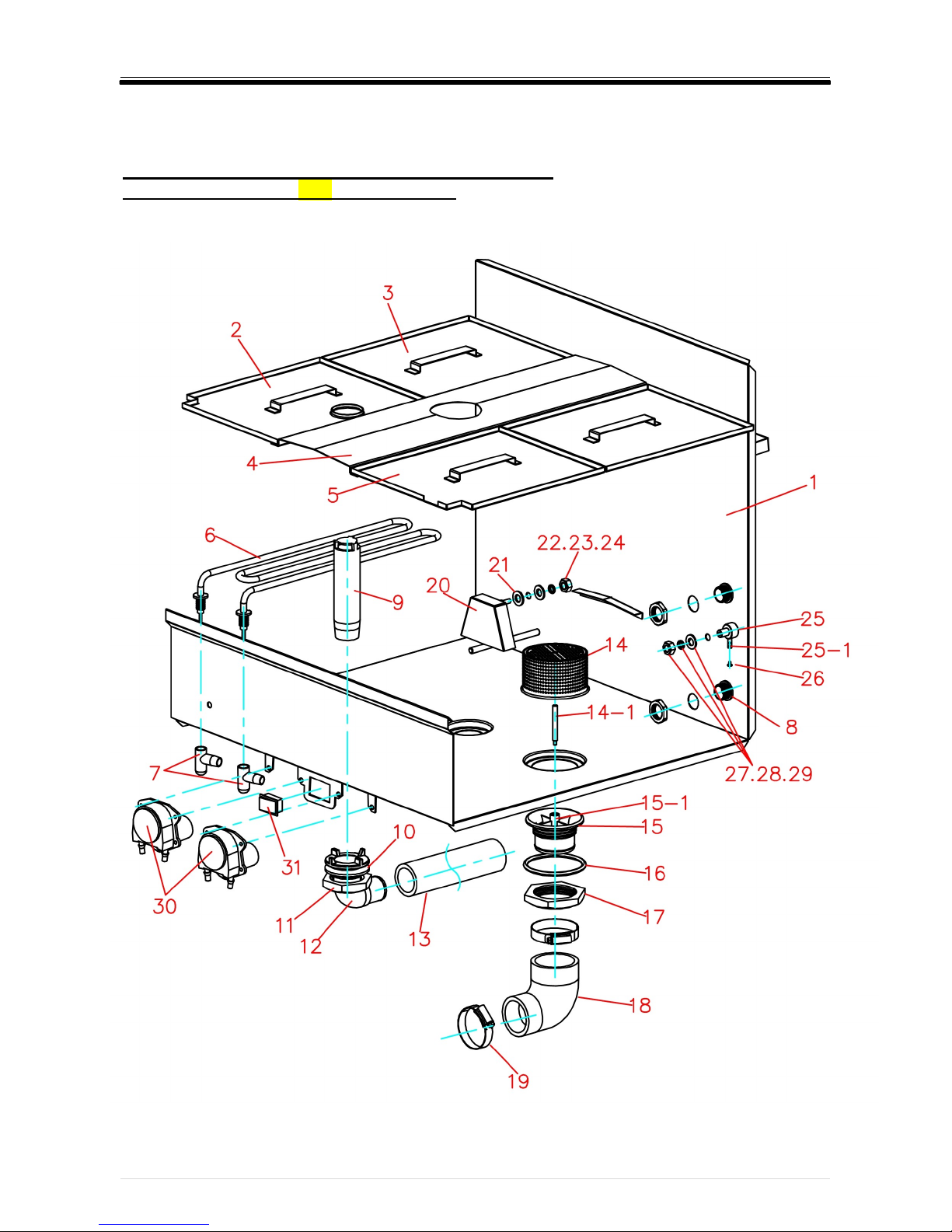

Wash Tank & Drain Assembly (9U01-0000)
(for Indonesia, Malaysia, Singapore etc, without chemical pump)

Undercounter Glass & Dish Washer, Model: U1M
8 | P a g e
Wash Tank & Drain Assembly (9U01-0000)
(for Indonesia, Malaysia, Singapore etc, without chemical pump)
Location Series No. Parts Name Qty
1 0TX-01-2 Wash Pan 1
2 0TX-01-12 Scrap Tray (front left) 1
3 0TX-01-14 Scrap Tray (rear left & right) 2
4 0TX-01-10 Scrap Tray Divider 1
5 0TX-01-13 Scrap Tray (front right) 1
6 G005-1KW-02 Tank Heater 3kW 3
7 F049-
13X27.5X19
-
01
Protective Rubber Casing 3
8 F005-M22-01 Hole Plug 2
9 F036-05/15-01 Drain Stand Pipe 1
10 F002-05/14/3-01 Gasket 1
11 F037-05/14/2-01 Nut 1
12 F011-05/14/1-01 Drain Elbow 1
13 F043-150-01 Drain Connecting Pipe 1
14 A012-06/1/1C-01 Pump Intake Screen 1
14-1 A012-06/1/3A-01 Pump Intake Screen Screw 1
15 F011-05/12/2-01 Pump Inlet 1
15-1 A012-05/12/1-01 Pump Inlet Nut 1
16 F002-02/8-01 O Ring 1
17 F037-05/13-01 Pump Pipe Nut 1
18 F021-07/3-01 Wash Pump Hose (Inlet) 1
19 E018-46X70-01 Hose Clamp S.S. 2
20 0TX-06-2-4 Air Chamber 1
21 F017-2XD8XD16-01 Washer 1
22 E013-M8-01 Nut M8 1
23 E011-M8-01 Lock Washer M8 1
24 E012-M8-01 Flat Washer M8 1
25 A012-06/7/1-01 Adapter Connector 1
25-1 A012-06/7/2-01 Detergent joint 1
26 F005-06/7/3-01 Choke Plug 1
27 E013-M10-01 Nut M10 3
28 E011-M10-01 Lock Washer M10 1
29 E012-M10-01 Flat Washer M10 3
30 G064-01/11/1-01 Adapter Connector 3
31 G064-01/11/2-01 Adapter Connector 3

Undercounter Glass & Dish Washer, Model: U1M
9 | P a g e

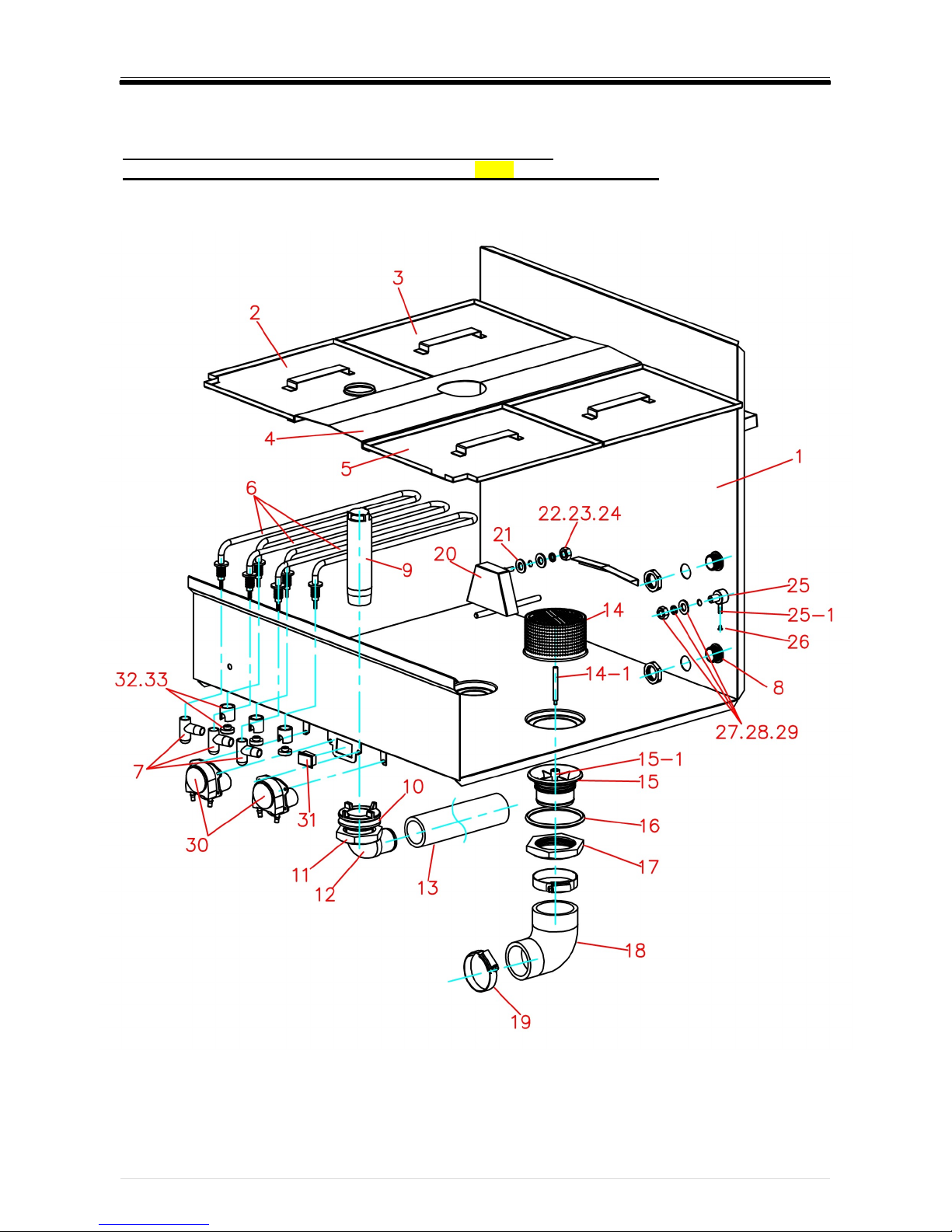

Wash Tank & Drain Assembly (9U01-0016)
(for Indonesia, Malaysia, Singapore etc, with chemical pump)

Undercounter Glass & Dish Washer, Model: U1M
10 | P a g e
Wash Tank & Drain Assembly (9U01-0016)
(for Indonesia, Malaysia, Singapore etc, with chemical pump)
Location Series No. Parts Name Qty
1 0TX-01-2 Wash Pan 1
2 0TX-01-12 Scrap Tray (front left) 1
3 0TX-01-14 Scrape Tray (rear left & right) 2
4 0TX-01-10 Scrap Tray Divider 1
5 0TX-01-13 Scrap Tray (front right) 1
6 G005-1KW-02 Tank Heater 3kW 3
7 F049-13X27.5X19-01 Protective Rubber Casing 3
8 F005-M22-01 Hole Plug 2
9 F036-05/15-01 Drain Stand Pipe 1
10 F002-05/14/3-01 Gasket 1
11 F037-05/14/2-01 Nut 1
12 F011-05/14/1-01 Drain Elbow 1
13 F043-150-01 Drain Connecting Pipe 1
14 A012-06/1/1C-01 Pump Intake Screen 1
14-1 A012-06/1/3A-01 Pump Intake Screen Screw 1
15 F011-05/12/2-01 Pump Inlet 1
15-1 A012-05/12/1-01 Pump Inlet Nut 1
16 F002-02/8-01 O Ring 1
17 F037-05/13-01 Pump Pipe Nut 1
18 F021-07/3-01 Wash Pump Hose (Inlet) 1
19 E018-46X70-01 Hose Clamp S.S. 2
20 0TX-06-2-4 Air Chamber 1
21 F017-2XD8XD16-01 Washer 1
22 E013-M8-01 Nut M8 1
23 E011-M8-01 Lock Washer M8 1
24 E012-M8-01 Flat Washer M8 1
25 A012-06/7/1-01 Adapter Connector 1
25-1 A012-06/7/2-01 Detergent joint 1
26 F005-06/7/3-01 Choke Plug 1
27 E013-M10-01 Nut M10 3
28 E011-M10-01 Lock Washer M10 1
29 E012-M10-01 Flat Washer M10 3
30 G003-DHK/JP24-01 Det & Rinse Pump 2
31 G034-KCD4-01 Prime Button 1
32 G064-01/11/1-01 Adapter Connector 3

Undercounter Glass & Dish Washer, Model: U1M
11 | P a g e
33 G064-01/11/2-01 Adapter Connector 3
Wash Tank & Drain Assembly (9U02-0000)
(for Philippines, Guam without chemical pump)

Undercounter Glass & Dish Washer, Model: U1M
12 | P a g e
Wash Tank & Drain Assembly (9U02-0000)
(for Philippines, Guam without chemical pump)
Location Series No. Parts Name Qty
1 0TX-01-2 Wash Pan 1
2 0TX-01-12 Scrape Tray (front left) 1
3 0TX-01-14 Scrape Tray (rear left & right) 2
4 0TX-01-10 Scrap Tray Divider 1
5 0TX-01-13 Scrap Tray (front right) 1
6 G005-2.8KW-01 Tank Heater 2.8kW 1
7 F049-13X27.5X19-01 Protective Rubber Casing 2
8 F005-M22-01 Hole Plug 2
9 F036-05/15-01 Drain Stand Plug 1
10 F002-05/14/3-01 Gasket 1
11 F037-05/14/2-01 Nut 1
12 F011-05/14/1-01 Drain Elbow 1
13 F043-150-01 Drain Connecting Pipe 1
14 A012-06/1/1C-01 Pump Intake Screen 1
14-1 A012-06/1/3A-01 Pump Intake Screen Screw 1
15 F011-05/12/2-01 Pump Inlet 1
15-1 A012-05/12/1-01 Pump Inlet Nut 1
16 F002-02/8-01 O Ring 1
17 F037-05/13-01 Pump Pipe Nut 1
18 F021-07/3-01 Wash Pump Hose (Inlet) 1
19 E018-46X70-01 Hose Clamp S.S. 2
20 0TX-06-2-4 Air Chamber 1
21 F017-2XD8XD16-01 Washer 1
22 E013-M8-01 Nut M8 1
23 E011-M8-01 Lock Washer M8 1
24 E012-M8-01 Flat Washer M8 1
25 A012-06/7/1-01 Adapter Connector 1
25-1 A012-06/7/2-01 Detergent joint 1
26 F005-06/7/3-01 Choke Plug 1
27 E013-M10-01 Nut M10 3
28 E011-M10-01 Lock Washer M10 1
29 E012-M10-01 Flat Washer M10 3

Undercounter Glass & Dish Washer, Model: U1M
13 | P a g e
Wash Tank & Drain Assembly (9U02-0016)
(for Philippines, Guam with chemical pump)

Undercounter Glass & Dish Washer, Model: U1M
14 | P a g e
Wash Tank & Drain Assembly (9U02-0016)
(for Philippines, Guam with chemical pump)
Location Series No. Parts Name Qty
1 0TX-01-2 Wash Pan 1
2 0TX-01-12 Scrap Tray (front left) 1
3 0TX-01-14 Scrap Tray (rear left & right) 2
4 0TX-01-10 Scrap Tray Divider 1
5 0TX-01-13 Scrap Tray (front right) 1
6 G005-2.8KW-01 Tank Heater 2.8kW 1
7 F049-13X27.5X19-01 Protective Rubber Casing 2
8 F005-M22-01 Hole Plug 2
9 F036-05/15-01 Drain Stand Pipe 1
10 F002-05/14/3-01 Gasket 1
11 F037-05/14/2-01 Nut 1
12 F011-05/14/1-01 Drain Elbow 1
13 F043-150-01 Drain Connecting Pipe 1
14 A012-06/1/1C-01 Pump Intake Screen 1
14-1 A012-06/1/3A-01 Pump Intake Screen Screw 1
15 F011-05/12/2-01 Pump Inlet 1
15-1 A012-05/12/1-01 Pump Inlet Nut 1
16 F002-02/8-01 O Ring 1
17 F037-05/13-01 Pump Pipe Nut 1
18 F021-07/3-01 Wash Pump Hose (Inlet) 1
19 E018-46X70-01 Hose Clamp S.S. 2
20 0TX-06-2-4 Air Chamber 1
21 F017-2XD8XD16-01 Washer 1
22 E013-M8-01 Nut M8 1
23 E011-M8-01 Lock Washer M8 1
24 E012-M8-01 Flat Washer M8 1
25 A012-06/7/1-01 Adapter Connector 1
25-1 A012-06/7/2-01 Detergent joint 1
26 F005-06/7/3-01 Choke Plug 1
27 E013-M10-01 Nut M10 3
28 E011-M10-01 Lock Washer M10 1
29 E012-M10-01 Flat Washer M10 3
30 G003-DHK/JP24-01 Det & Rinse Pump 2
31 G034-KCD4-01 Prime Button 1

Undercounter Glass & Dish Washer, Model: U1M
15 | P a g e
Pump & Booster Assembly

Undercounter Glass & Dish Washer, Model: U1M
16 | P a g e
Pump & Booster Assembly
Location Series No. Parts Name Qty
1 0TX-02-2 Base plate 1
2 0TX-02-4 Booster Tank 1
3 G005-4.5KW-01 Booster-Heater 4.5 kW 1
G005-3KW-05 Booster-Heater 3kW 1
4 F001-02/6-01 Heater Gasket 1
5 D026-1/8-01 Hole Plug 1
6 E013-M6-02 Nut M6 6
7 E011-M6-01 Lock Washer M6 8
8 E012-M6-01 Flat Washer M6 8
9 F016-TX/02/12-01 Heater Cover 1
10 0TX-02-5-1 Thermostat Bracket 1
11 0TX-02-5-2 Wash Motor Support 1
12 E013-M8-01 Nut M8 1
13 E011-M8-01 Lock Washer M8 1
14 E012-M8-01 Flat Washer M8 1
15 G021-82C-01 Wash Tank Thermostat 82℃ 1
16 G021-86C-01 Rinse Booster Thermostat 86℃ 1
17 F021-D13-01 Rubber Hose 1
18 G017-220V-01 Solenoid 220V 1
19 E002-M4X12-01 Thermostat Screw M4x12 8
20 E002-M5X12-01 Thermostat Screw M5x12 4
21
G003-TX/60-01 Wash Pump (9U02-0000,9U02-
0016)
1
G003-TX/50-02 Wash Pump (9U01-0000,9U01-
0016)
1
22 E007-M10-01 Flat head Riveted Nuts M10 4
23 A012-02/4/6-01 Rinse Aid Injection Tee 1
24 A012-07/5/3-01 Fill Inlet Connection 1
25 A012-50302/4-01 Booster Water Exit Connection 1
26 E018-11X25-01 Hose Clamp 2
27 E013-M6-01 Nut M6 2

Undercounter Glass & Dish Washer, Model: U1M
17 | P a g e
Door Lift
Location Series No. Parts Name Qty
1 0TX-03 Door 1
2 0TX-01-4 Door Draw Bar 2
3 A012-01/4/4-01 Draw Bar Gasket 2
4 E001-M4X12-01 Oval Head Screw M4x12 6
5 F039-03/6-01 Door Clapboard 2
6 0TX-03-4 Door Platen 2
7 A012-01/4/3-01 Door Spindle 2
8 E015-M4-01 Lock Nut M4 6
9 A005-10X17X51-
01
Magnet 1
10 0T2D-65318-8 Magnet Housing 1
11 0TX-01-4-2 Rod Baffle 2
12 0TX-03-7 Door plank of fasteners 2

Undercounter Glass & Dish Washer, Model: U1M
18 | P a g e
Control Panel Assembly (9U01-0000)
(for Indonesia, Malaysia, S’pore etc without chemical pump)

Undercounter Glass & Dish Washer, Model: U1M
19 | P a g e
Control Panel Assembly (9U01-0000)
(for Indonesia, Malaysia, S’pore etc without chemical pump)
Location Series No.
Parts Name Qty
1 0TX-04 Electrical Box 1
2 G035-E/5V-01 Indicator Light (Yellow) 1
3 G035-E/5V-02 Indicator Light (Green) 1
4 G036-11Z-01 On / Off Button 1
5 G036-11/TX-01 Start / Stop Button 1
6 G014-1020-01 Temperature Display 1
7 G011-180S/AC220V-01 Wash Timer (180S) 1
8 G011-10S/AC220V-01 Pause Timer (10S) 1
9 G011-30S/AC220V-01 Rinse Timer (30S) 1
10-1 G012-P7-02 Relay 3
10-2 G028-RXZE1M4C-01 Relay Stand 3
10-3 G012-RXZ410-01 Relay Clip 6
11 G024-220V/5V-03 Inverter (for temp display) 1
12 G008-E2501M5N-01 Wash Tank Heater & Wash Motor Contactor 2
13 G008-E0610M5N-01 Booster Tank Heater Contactor 1
14 G042-2G2-01 Track Holder 2
15 G041-4-01 Wiring Terminal 13
16 G041-4RD-01 Wiring Terminal 3
17 G041-6-01 Wiring Terminal 4
18 G041-6-02 Wiring Terminal 2
19 G041-6JD-01 Wiring Terminal 1
20 G032-G/DUK-01 The protective plate 2
21 G031-TX-01 Panel Sticker 1
22 G047-DG-01 Terminal Bracket (19 cm) 1

Undercounter Glass & Dish Washer, Model: U1M
20 | P a g e
Control Panel Assembly (9U01-0016)
(for Indonesia, Malaysia, Singapore etc, with chemical pumps)
