Global PACKAGED TERMINAL AIR CONDITIONER User manual

Before using your air conditioner, please read
this manual carefully and keep it for future reference.
PACKAGED TERMINAL
AIR CONDITIONER

1
CONTENTS
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or infirm persons
without supervision.
Young children should be supervised to ensure that they do not play with the air
conditioner.
If the power cord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work must be performed in accordance with the national wiring
standards by authorised personnel only.
!CAUTION
Read This Manual
1. SAFETY PRECAUTIONS..................................................................2
2. IMPORTANT SAFETY INSTRUCTIONS ..........................................4
3. AIR CONDITIONER FEATURES.......................................................5
4. CONTROL PANEL OPERATION.......................................................6

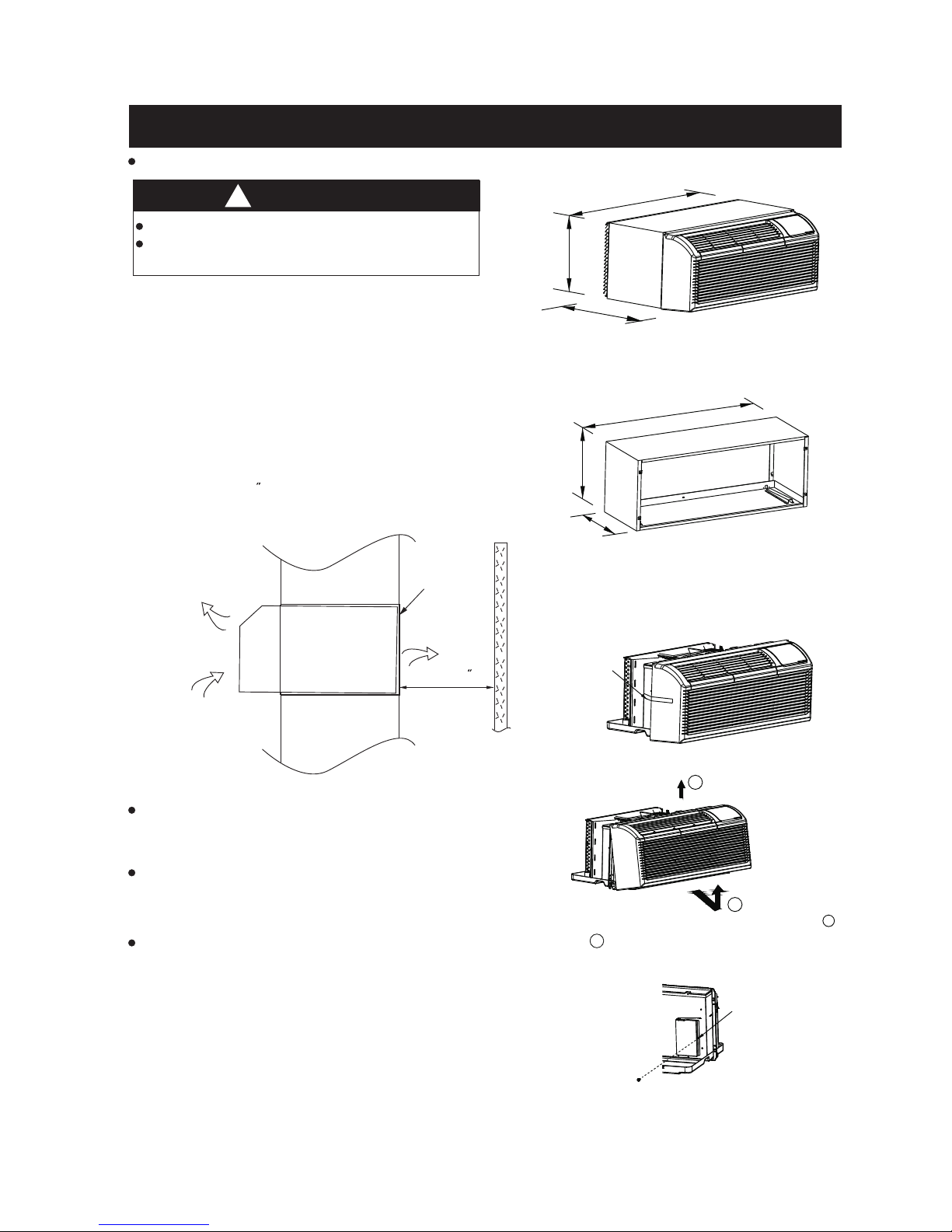

5. INSTALLATION .................................................................................7

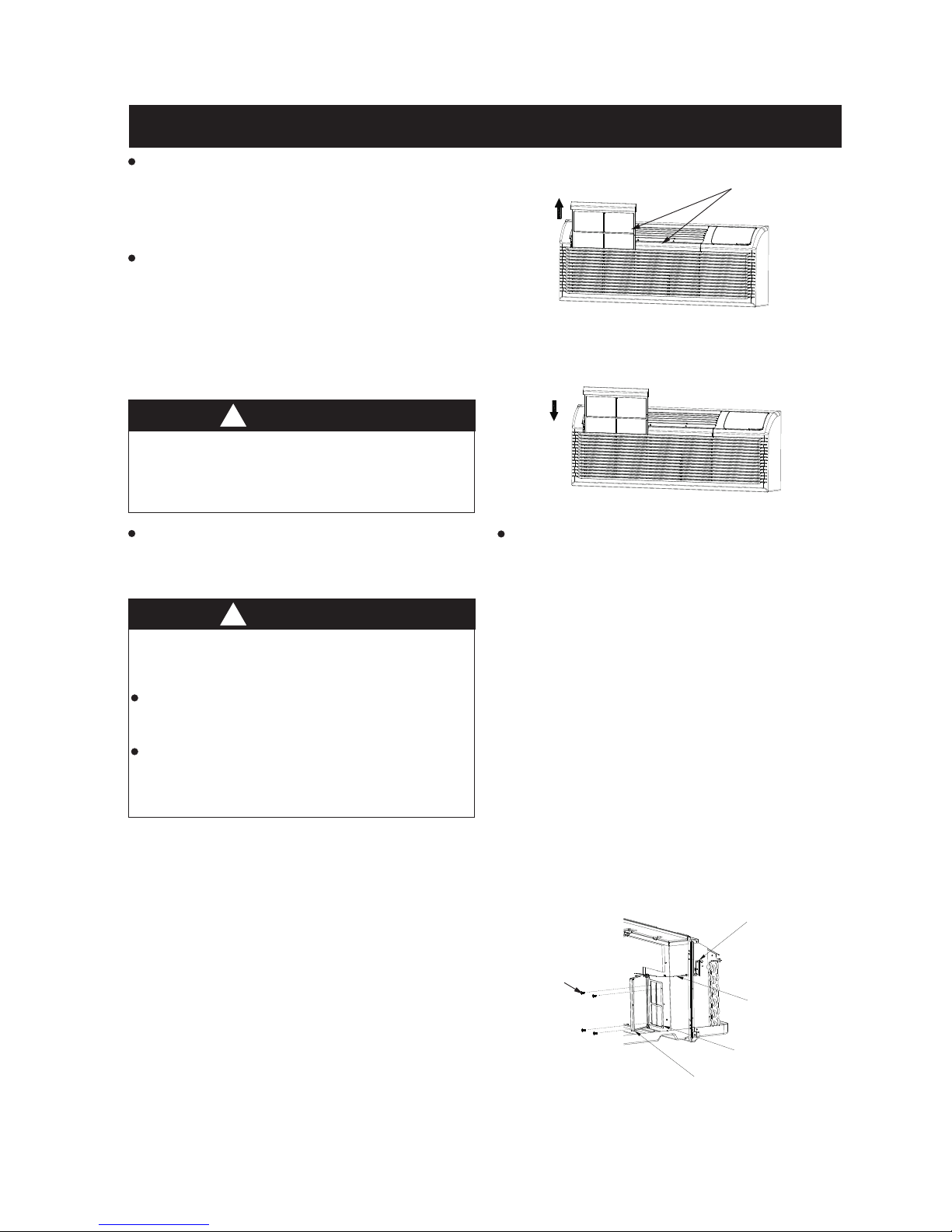

6. CARE AND CLEANING......................................................................9
All the illustrations in this manual are for explanation purpose only. Your air
conditioner may be slightly different. The actual shape shall prevail.
NOTE:
7. TROUBLESHOOTING.......................................................................10

To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
SAFETY PRECAUTIONS
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
!
WARNING
Always do this.
Never do this.
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug
properly.
Do not modify power cord
length or share the outlet
with other appliances.
Always ensure effective
earthing.
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
Keep firearms away.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
Incorrect earthing may cause
electric shock.
It may cause fire and electric
shock.
It may cause fire.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It may cause fire and electric
shock.
It may cause fire and electric
shock.
It may cause electric shock or fire.
If the power cord is damaged, it
must be replaced by the manufac-
turer or an authorised service
centre or a similarly qualified per-
son in order to avoid a hazard.
This could damage your health.
Incorrect installation may cause
fire and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!
!
!
!
!
!
WARNING
!
2
!!!

!
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking and
installing. Sharp edges could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
It may cause electric shock
and damage.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Hold the plug by the head
of the power plug when
taking it out.
Ventilate the room well when
used together with a stove,
etc.
An oxygen shortage may occur.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
It may cause failure of product
or fire.
Do not use for special
purposes.
Turn off the main power
switch when not using the
unit for a long time.
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
3
!
!
!
!
!
!
!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong deter-
gent such as wax or
thinner but use a soft cloth.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and ensure that the cord
is not compressed.
Operation without filters may
cause failure.
It contains contaminants and
could make you sick.
Always insert the filters
securely. Clean filter once
every two weeks.
Do not drink water drained
from air conditioner.
!
!

IMPORTANT SAFETY INSTRUCTIONS
Be sure the electrical service is adequate for the model you have
chosen. This information can be found on the serial plate, which
is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The power
cord is equipped with a three-prong grounding plug for protection
against shock hazards.
Your air conditioner must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or circuit breaker,
have a qualified electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.
This could result in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
WARNING For your safety
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an
adaptor plug. Do not remove any prong from the power cord.
WARNING Electrical Infor mation
NOTE The power supply cord with
this air conditioner contains a current
detection device designed to reduce
the risk of fire.
Please refer to the section Operation
of Current Device for details.
In the event that the power supply
cord is damaged, it cannot be
repaired-it must be replaced with a
cord from the Product Manufacturer.
,
,
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
Power supply cord
with 3-prong grounding plug
and current detection device
Operation of Cur rent Device
The power supply cord contains a current device that senses damage to the power cord. To test your power
supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head.
Press the TEST button, you will notice a click as the RESET
button pops out.
3. Press the RESET button, again you will notice a click as the button
engages.
4. The power supply cord is now supplying electricity to the unit.
(On some products this it also indicated by a light on the plug head.)
NOTES:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is pushed, or it cannot be
reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one obtained from the
product manufacturer.
4

This unit has many featrues.The servicer must be
familiar with these features in order to properly
service the unit.
AIR CONDITIONER FEATURES
Compressor Restart Delay
This feature extends the overall life of compre-
ssor by preventing the short-cycling of the air
conditioner.When the compressor restarts,the
unit is designed to give a minimum of three
minutes to have a time of equalizing the refrig-
erant pressures for optimizing cycling.
Memory
The unit has memory .If power is lost,all of the
control settings(mode,fan speed,on/off and
configuration) are remembered.So when power
is restored,the unit will start back up in the mode
(and configuration) it was in,when power was
lost.
Automatic Evaporator Freeze Protection
Automatically to keep the evaporator from
freezing,the compressor is tuuned off and the
indoor fan is turned on when the evaporator
temperature is too lower.If the evaporator
temperature is not too lower this function is off.
Automatic Quick Warm-up (for heat pump
models only)
O O
If the room temperature falls to 4.5 C/8 F
below the set point temperature,the reverse
cycle heat is shut off and the electric strip heat
is turned on for one cycle,until heating is
satisfied.

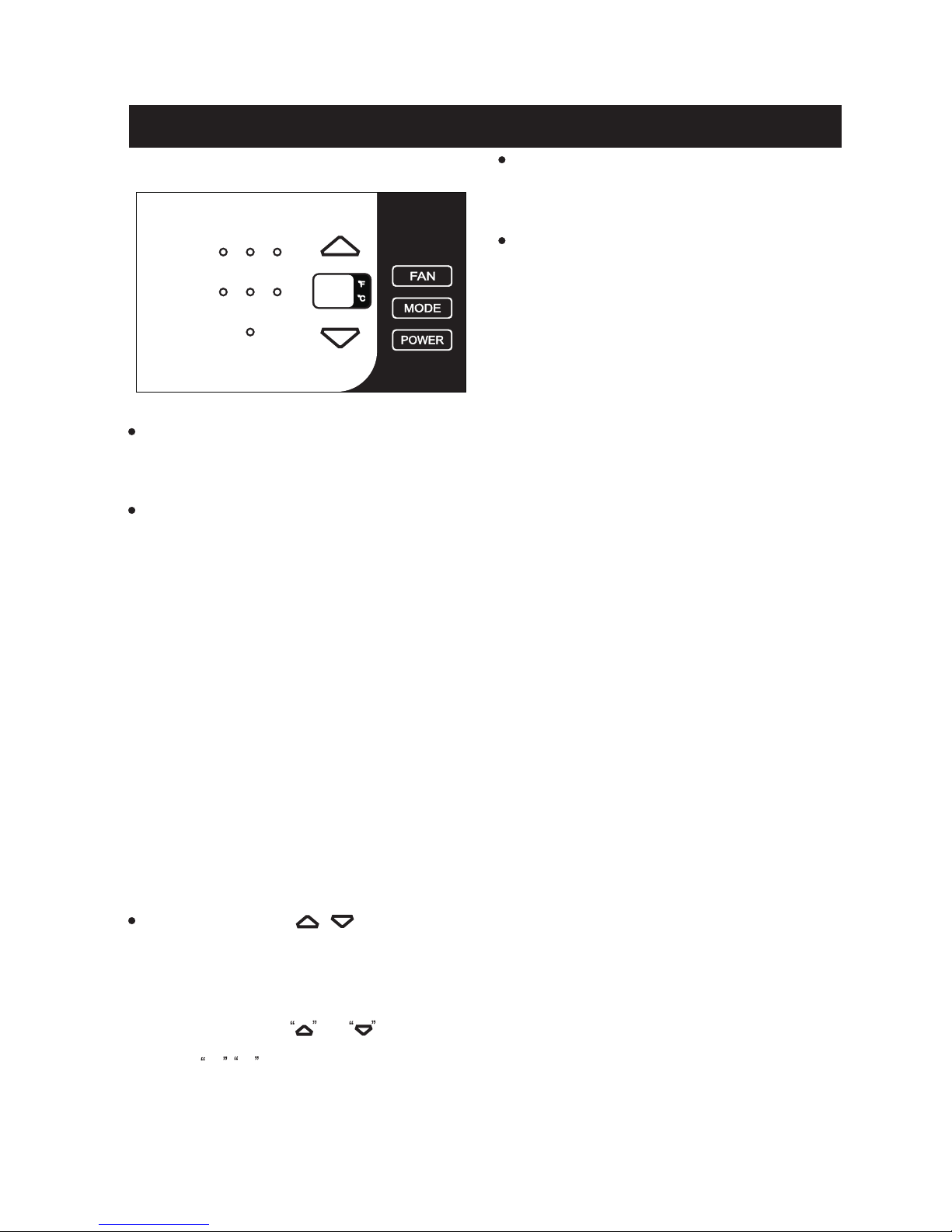

LED Indicators and Buttons
The touch pad has buttons for MODE,FAN,
POWER,SETPOINT UP and SETPOINT DOWN.
It also has LEDs that correspond to the mode,
fan speed,power and setpoint operation,to
indicate the unit s status.LEDs for HIGH,MED
and LOW indicate the fan speed that is selected.
LEDs for FAN,COOL and HEAT indicate what
operating mode is active.LED for POWER is the
unit ON/OFF status LED.If the unit is in ON mode,
the LED will be green.If the unit is OFF,the LED
will be off.
,
Unit Configuration
NOTE: HEAT mode is for Cooling & Heating models only.
O O
F or C
O O
The unit can display in either F or C.
High Temperature Protection In Heating
Operation
The compressor and(or) electric heater will be
switched off to prevent damage in high indoor
blow air temperature or error indoor temperature
sensor.
5

6
CONTROL PANEL OPERATION
The control panel keypad will look like the following
Fig.1:
HIGH MED LOW
FAN COOL HEAT
POWER
POWER
- Press the POWER button to turn the unit on or off.
When the unit is on,the power indicator light will be
green.When the unit is off,the light will go out.
MODE
- Push this button to cycle through the modes from
COOL-HEAT-FAN-COOL.The indicator light beside
the "MODE" option will illuminate, identifying the
mode selected.
O O
- COOL:The range of set temperature is 17 C/62 F
O O
~30 C/86 F.Cooling begins automatically when the
room temperature is above the set point,and stops
O O
when the room temperature is 2 C(4 F) below the
set point.But the compressor will run 5 minutes at
least in COOL mode before stoping. The fan runs
in continuous mode.
O O
- HEAT:The range of set temperature is 17 C/62 F
O O
~29 C/84 F.For heat pump models,the unit can
alternate to run between in reverse cycle heat mode
and electric heater mode according to the difference
between the setting temperature and the room
temperature.The fan motor cycles on and off
with the compressor and electric heater.
NOTE: The reverse cycle and electric heater can
not be run at the same time.
- FAN:Fan operation only without heating and cooling.
UP/DOWN BUTTONS ( / )
- Push the UP (or DOWN) button to increase (or
decrease) the set temperature of the unit in cooling
or heating mode.The temperature can be set by
O O
increments of 1 C (1 F).The setting temperature
appears in the display.
NOTE:Press and hold and buttons together
for 3 seconds will alternate the temperature display
O O
between C & F scale.
FAN (FAN SPEED)
- Every time you push this button,the fan speed
cycles through the settings as follows:HIGH-MED-
LOW-HIGH.
Fig.1
DISPLAYS:
O O
- Shows the set temperature in C or F. While on
Fan only mode,it shows the room temperature.
Control code (on some models):
LC-Pads on the control panel is not available.The
unit can be setted by using wire cotroller only.
Error codes:
AS-Room temperature sensor error;
ES-Evaporator temperature sensor error;
CS-Condenser temperature sensor error;
OS-Outside temperature sensor error;
HS-Exhaust temperature sensor error;
NOTE:When error occurs,unplug the unit and plug
it back in.If error repeats, call for service.
Other codes:
O O
LO-Room temperature is lower than 0 C/32 F;
O O
HI-Room temperature is higher than 37 C/99 F.

7
INSTALLATION
HOW TO INSTALL THE UNIT
- For existing sleeve,you should measure the wall
sleeve dimensions.
- Install the new air conditioner according to these
installation instructions to achieve the best performance.
All wall sleeves used to mount the new air conditioner
must be in good structural condition and have a rear
grille that securely attaches to the sleeve or the flange
of the sleeve to secure the new air conditioner.
- To avoid vibration and noise,make sure the unit is
installed securely and firmly.
- When installing the sleeve,make certain there is
nothing within 20 of the back that would interfere
with heat radiation and exhaust air flow. (See Fig.2)
!
CAUTION
There are sharp edges that can cause serious cuts.
When lifting the air conditioner,it is HEAVY.Use 2
people to lift.
COOLED
AIR
INTAKE
AIR
WALL
WALL
HEAT
RADIATION
SLEEVE
Over 20
Fig.2
PREPARATION OF SLEEVE ASSEMBLY(optional)
- Refer to the installation instruction of sleeve assembly
for details.
UNIT INSTALLATION
- Carefully remove shipping tapes from the front panel.
(See Fig.3)
Fig.3
Shipping
tape
- Remove the shipping screw from the vent door.(See
Fig.5)
Fig.5
- Remove the front panel. (See Fig.4) Shipping
screw
1067mm/42inch
408mm/16inch
606mm/23.9inch
Dimension of air conditioner
376mm/14.8inch
408mm/16inch
1067mm/42inch
Dimension of sleeve assembly (optional)
2
1
Fig.4
- Pull out at the bottom to release it from the tabs .
- Then lift up .
1
2
PREPARATION OF REAR GRILLE ASSEMBLY(optional)
- Refer to the installation instruction of rear grille
assembly for details.

8
INSTALLATION（CONTINUED）
UNIT INSTALLATION (CONTINUED)
- Rotate the vent control lever to either open or close
the vent door.(See Fig.6)
Vent control lever
Vent open
Vent closed
Fig.6
- Lift unit level and slide unit into wall sleeve until
firmly against front of wall sleeve and secure with
4 screws and washers (supplied in the SLEEVE
ASSEMBLY ) through the unit flange holes.
(See Fig.7 and Fig.8)
- Reinstall front panel.(See Fig.9)
Fig.7
Fig.8
1
2
Fig.9
Place tabs over top rail . Push Inward at bottom
until panel snaps into place .
1
2
NOTE:When vent control lever set at CLOSE,only
the air inside the room is circulated and filtered.
When set at OPEN,some outdoor air will be drawn
into room.This will reduce heating or cooling
efficiency.
!
CAUTION
Do not put obstacles around air-inlet or
inside of air-outlet of the unit, such as window
curtain etc.
Always insert the filter securely, clean filter once
every two weeks as required.

9
CARE AND CLEANING
FRONT PANEL AND CASE
- Turn unit off and disconnect power supply.To clean,
use water and a mild detergent.DO NOT use bleach
and abrasivers.Some commercial cleaners may
damage the plastic parts.
- Removing Air Filter
Fig.9
OUTDOOR COIL
- Coil on outdoor side of unit should be checked
regularly.Unit will need to be removed to inspect
dirt build-up that will occur on the inside of the coil.
If clogged with dirt and soot ,coil should be
professionally cleaned.Clean inside and outside of
outdoor coils regularly.
NOTE: Never use a high-pressure spray on coil.
!
CAUTION
Failure to follow this caution may result in
equipment damge or improper operation.
Airflow restriction may cause damage to the unit.
UNIT DAMAGE HAZARD
AIR FILTERS
IMPORTANT:TURN UNIT OFF BEFORE
CLEANING.
- The most important thing you can do to maintain
unit efficiency is to clean the filters once every
two weeks as required.
Clogged filters reduce cooling,heating and airflow.
!
CAUTION
Failure to follow this caution may result in
equipment damge or improper operation.
Do not operate unit without filters in place.If a filter
becomes torn or damaged,it should be replaced
immediately.
Operating without filters in place or with damaged
filter will allow dirt and dust to reach indoor coil and
reduce cooling,heating,airflow and efficiency of unit.
Airflow restriction may cause damage to unit.
UNIT DAMAGE HAZARD
- Keeping filters clean will:
Decrease cost of operation.
Save energy.
Prevent clogged indoor coil.
Reduce risk of premature component failure.
- To Clean Air Filters:
Vacuum off heavy soil.
Run water through filter.
Dry thoroughly before replacing.
Pull up
2 Air filters
- Replacing Air Filter
Fig.10
Push down
VENT DOOR FILTER
IMPORTANT:TURN UNIT OFF BEFORE
CLEANING.
- If the vent door is open,access requires the removal
of the unit from the wall sleeve.Clean the vent filter
twice a year or as required.
- Make sure to remove the shipping screw from the
vent door.(See.Fig.5)
- Rotate the vent control lever to open the vent door.
(See. Fig.6)
- Remove four screws from the vent door filter.
(See.Fig.11)
- First pull out the vent door steel wire from the hole
of the vent door, then take off the vent door and filter.
(See.Fig.11)
- Clean the filter.Dry thoroughly before replacing.
- Replac the vent door and filter,reinstall the four
screws.
- Reinsert the vent door steel wire into the hole of the
vent door.
.
Vent door
control lever
Vent door
steel wire
Vent door
filter
Screws
Fig.11 Vent door

10
TROUBLESHOOTING
SOLUTONSPOSSIBLE CAUSES
UNIT DOES NOT START
Unit may have become unplugged
Fuse may have blown
Circuit breaker may have been tripped
Unit may be off
Unit may be in a protection mode.
Check that plug is plugged securely in wall receptacle.
Note:Plug has a test/reset button on it.Make sure that the plug has
not tripped.
Replace the fuse.See Note 1.
Reset circuit breaker.See Note 1.
Turn unit on (bottom right button on keypad).
UNIT NOT COOLING/HEATING ROOM
Unit air discharge section is blocked
Temperature setting is not high or low
enough
Note:Setpoint limits may not allow the
unit to heat or cool the room to the
temperature desired.Check section on
dipswitch settings.
Unit air filters are dirty.
Room is excessively hot or cold when
unit is started.
Vent door left open.
Unit may be in a protection mode.
Compressor is in time delay.
Make sure that curtains,blinds or furniture are not restricting or
blocking unit airflow.
Reset to a lower or higher temperature setting.
Remove and clean filters.
Allow sufficient amount of time for unit to heat or cool the room.Start
heating or cooling early before outdoor temperature,cooking heat or
gatherings of people make room uncomfortable.
Close vent door.
Check dipswitch settings for desired comfort.
Wait approximately 3 minutes for compressor to start.
DISPLAY HAS STRANGE NUMBERS/
CHARACTERS ON IT
The unit may be in a protection mode.
O O
The unit may be set for C (instead of F).
UNIT MAKING NOISES Clicking,gurging and whooshing noises are normal during operation
of unit.
WATER DRIPPING OUTSIDE If a drain kit has not been installed,condensation runoff during very
hot and humid weather is normal.See Note 2.If a drain kit has been
installed and is connected to a drain system,check gaskets and
fittings around drain for leaks and plugs.
WATER DRIPPING INSIDE
Wall sleeve is not installed level
Wall sleeve must be installed level for proper drainage of
condensation .Check that installation is level and make any
necessary adjustments.
ICE OR FROST FORMS ON INDOOR
COIL
Low outdoor temperature
Dirty filters
When outdoor temperature is approximately 55OF or below,frost
may form on the indoor coil when unit is in Cooling mode.Switch unit
to FAN operation until ice or frost melts.
Remove and clean filters.
COMPRESSOR PROTECTION
Power may have cycled,so compressor
is in a restart protection.
Random Compressor restart-Whenever the unit is plugged in,or
power has been restarted,a random compressor restart will occur.
After a power outage,the compressor will restart after approximately
3 minutes.
Compressor Protection-To prevent short cycling of the compressor,
there is a random startup delay of 3 minutes and a minimum
compressor run time of 3 minutes.
NOTES:
1.If circuit breaker is tripped or fuse is blown more than once,contact a qualified electrician.
2.If unit is installed where condensation drainage could drip in an undesirable location,an accessory drain kit
should be installed and connected to drain system.

2020001B0025
The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details.
