Chapter1Basicinformationandpackaging
GTT-030networktimeserveristheprofessionalnetworkequipment,providinghighly-stabletimesource.
GTT-030networktimeserverreceivesGPSsatellitesignalsandextractsthetiminginformationtoadjust
theserver'slocaltime.ItdistributesstandardtimeviaNTPprotocol(NetworkTimeProtocol).Uponthe
PCorserverwhichneedtimesynchronizationservices,aclientprogramwillreadtheNTPprotocol,
derivetimeinformation,andmodifythetimeofrelatedequipment.Thenetworktimeserveriswidely
usedintelecommunications,finance,taxation,publicsecurityandotherspecialnetworkaswellas
commoncorporatenetworktounifythenetworktime.
1.1 Keyfeatures
lReceiveGPSsatellitesignalsorthedual-satellitesignalofGPSandGLONASS(optional)
lAdoptRFC1119/1305NTPprotocol(NetworkTimeProtocol)todeliverytime
lSupportRFC1769/2030SNTPprotocol(SimpleNetworkTimeProtocol)
lDifferentclientprogramssupportWindows98/2000/NT/XP,Linux,Unix,FreeBSDandother
operatingsystems,toadapttodifferentapplications
l10/100MBaseTadaptivenetworkinterface
lWaysofmaintenance:thelocalmaintenanceserialport;remotelogin;remotedial-up.
l2lampsdisplaythedeviceworkingstatus
1.2 Packaging
Pleasechecktheshippingpackagewhichshouldcontainthefollowingitems:
(1)GTT-030networktimeserver
(2)Powercable
(3)1metercable
(4)racksetscrews
(5)GPSsatellitereceivingantenna
(6)Antennacable
(7)Antennafixedaccessories
(8)Theusermanual
(9)ThesoftwareCD
(10)ThepackingList
1.3 Outline
Withtherapiddevelopmentofmodernsociety,higherdemandonthetimeprecisionandfrequencyis
putontheagenda.Nowadayswiththedevelopmentofmoderndigitalcommunicationnetworksandthe
informationsuperhighwayconstruction,thepolitical,cultural,technologicalandsocialinformation
coordinationisbasedonastrictsystemoftimesynchronization,especiallyinthecommunications,
electricity,financialsecurities,computernetworks,productionlineoperation,administrationandnational
defenseandotherfieldsurgentlyneedthetimesynchronizationequipment.

GlobalTimeNTPProducts
UsermanualofGTT-030
3
GlobalPositioningSatellite(GPS)signalsactasthereferencesourceofGTT-030networktimeserver.
ThetimereferencecontainedintheGPSsatellitesignalssynchronizeswiththeuniversaltime
coordinated(UTC).Thelong-termfrequencystabilityhasachievedthe10-13levelofmagnitudeof
cesiumatomicclock,whichisequivalenttobeonly1secondslowerduring30years.Toadjustlocaltime
withthisreferencesignalcaneliminatetheaccumulationofdeviationresultedfromthelowaccuracyof
localclocktimeandalsocangreatlyimprovethetimingprecisionoftheserver.GTT-030networktime
serveruseaprofessional12-channelGPSreceiver.Itcanreceiveandlockthesatellitesignalfastand
reliably.
NTPprotocol(NetworkTimeProtocol)isacommoninternationalnetworktimingprotocol.Itsprincipleis
throughtheclienttolaunchatimepollingtotheserverafteranintervaloftime.Accordingtoacertain
filteringalgorithmitcancalculatethetimedeviationbetweentheserverandtheclientaswellasthe
propagationdelaycausedbynetworktransmission.Thenaccordingtothesetwoparameterstoadjust
theclient'slocaltimeandmakeitconsistentwiththeserver.Comparedtoothertimecalibration
prorocols,NTPprotocolcaneliminatetheimpactcausedbynetworktransmissiondelay,soitcan
providehigh-precisiontimingservices.Detaileddescriptioncanbereferredtothelatestprotocol
standardsdocumentsRFC1305andRFC2030.GTT-030networktimeservercanbecompatiblewith
NTPv2/v3/v4invariousversions.
1.4 Thedevicedescription

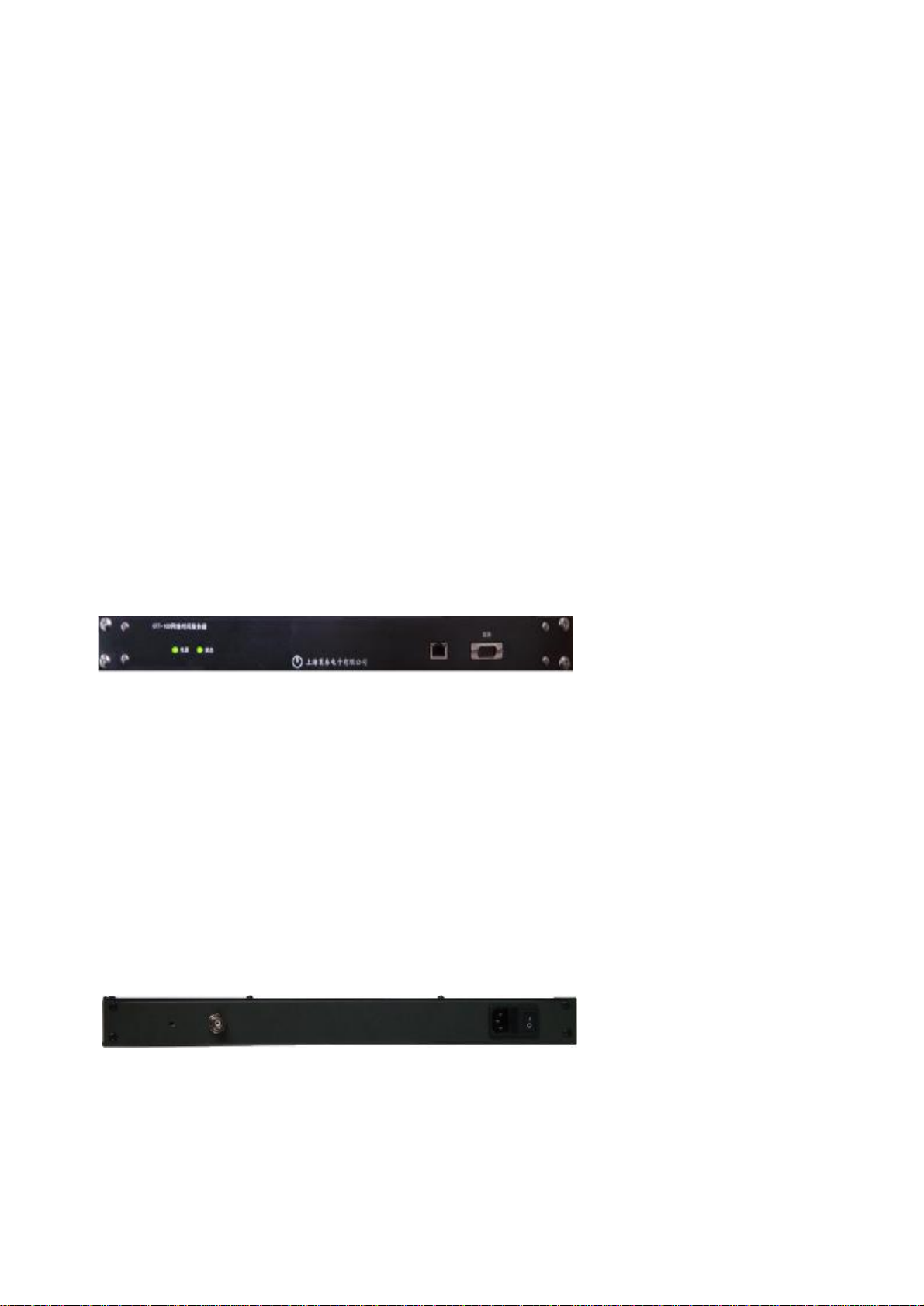

Figure1-1Thefrontpaneldescription
lThefrontpanelisasshownabove.Theinterfacefunctionsareasfollows:
lmonitoring:localmonitoringserialport,DB9publicoutlet,RS232electricallevel
lNetwork:10/100MBase-Tadaptivenetworkport,RJ45connector
l2Indicatorlights:oneindicatesthepowerwhiletheotherindicatesthestatus,bothofthem
indicatethedeviceworkingstate
Figure1-2Thebackpaneldescription

GlobalTimeNTPProducts
UsermanualofGTT-030
4
Thebackpanelisasshownabove.Thereisapowersocketwithafuseonthebackpanel.Afteropening
thefusebase,thereareaprimaryandareversefusewithspecificationof0.5Aoneachsidetofacilitate
users replacement.Inaddition,thereisalsoanantennaplugaswellas50ohmBNCSocket.
Chapter2Hardwareinstallationandcommissioning
2.1 Thedevicestructure
Figure2-1DeviceStructure
GTT-030networktimeserverconsistsoftheoutdoorpartandinteriorpart.Theoutdoorpartis
composedoftheGPSsatellitereceivingantenna,surgearresterandantennaamplifier(optional).The
functionistocompletethereceptionofsatellitesignals.
TheinteriorpartisthemasterdeviceofGTT-030networktimeservertocompletethefunctionsofthe
satellitesignaldemodulation,thelocalclockcalibration,achievingNTPprotocolandsoon.Itprovides
NTPtimingservicetoothernetworkequipmentbymeansof10/100MBase-Tadaptivenetworkports.
Thefollowingarethedetailinstallationdescriptionoftheoutdoorpartandtheinteriorpart.
2.2O
utdoorinstallation
TheoutdoorpartconsistsoftheGPSsatellitereceivingantenna,surgearresters,transmissioncables
andantennaamplifier.Theinstallationattentionsareasfollows:
Atfirst,theantennainstallationlocationneedstobecarefullyselected,whichwillsignigicantlyinfluence
theequipmentworking.Theantennashouldbeinstalledinhighplacesandcannotbeblocked,suchas
theroof,opentop,etc.Ifyouwanttoachievebetterresults,you dbetterkeeptheelevationangleof15
degreesnotblocked.ItisuselesstoinstalltheantennainsidetheroombecauseGPSsatellitesignalis
veryweakandcannotbereceivedindoors.Itisnomatteriftherearetreesorplasticrainshelterblocked
abovetheantenna,butotherblockwillinfluencethesignalsignificantly.Infact,onlyabookabovethe
antennacancompletelyblockoutthesatellitesignal.
GPSreceiving
antenna
Antennaamplifier
Lightingarrester
GTT-030

GlobalTimeNTPProducts
UsermanualofGTT-030
5
Antennainstallationshouldbelowerthanthelightningrodorotherconstructionsthatcanattract
thunderstrokeandtheinstallationlocationshouldbetterbe10-15metersawayfromthem.GPSantenna
itselfisrarelystruckbythunderblotbutisoftendamagedbythestonginducedelectricfieldresultedfrom
thestuckbuildings(thelightningrod,tower,etc)around.Inthiscircumstance,weshouldinstallthe
arresterinthecable.Normallythearresterwillbeinstalledneartheequipment.Tomakesurethatthe
arrestercanbewellearthed,thearrestershouldbeinstalledbetweenthefeederandtheequipment.
Thenleadthegroundingwirefromthearresterandconnectittotheearth.Theearthresistanceshould
beunder4ohmandmustbefirmlyconnectedtoensurethereliabledischargebylightning.
Sometimestheantennacanbeinstalledoutsidethewindow,butthebuildingmustbelocatedinthe
openfieldswithnocorner.Inthisway,itcanreceiveatleasthalfofthesatellitesignal.Butasa
long-termusingequipment,itisrecommendedthattheantennaisinstalledinhighplaces,whilethe
outsideinstallationcanbeonlyadoptedasatemporarytest.
Thehigh-powermicrowavetransmittingofthesamebandcannotbearoundwheretheGPSantennais
installed.Inaddition,weshouldtrytoavoidtheGPSantennafromthedirectirradiationofhigh-power
electromagneticradiation.
Ifthelengthofthefeederislessthan100meters,theantennaandequipmentcanbedirectlyconnected;
between100metersto200meters,onemorelineamplifierisneeded;rangingfrom200metersto300
meters,twomoreamplifiersareneeded.Ifyouneedlongerfeederlinks,pleasecontactus,GlobalTime
ElectronicCo.,Ltd.Wewillprovidethespecialprogramtoyou.Thefeederusuallyadopt1/2inchRF
cablewhoselossis12.8dB/100mfromtheUnitedStatesAndrew's.
Theprimaryconsiderationswhensettingupthefeeder:
1.Donotbendtoomuch,becauseitwillresultinabrokenfeederconductor.
2.Whenweconnectthefeederintotheinterior,itshouldbebentintoU-shapetopreventInthe
feedershouldbebentintotheinteriorU-,topreventwaterfromflowingbackward.
YoucanuseGPSsignaltranspondertoleadthesignaltotheinterior.Generallyspeaking,GPSsignals
canbewellreceivedwithin5mofthetransponderantenna.Becauseofthewayofforwarding,itismuch
effectiveforthepreventionoflightningandtheprotectionofthehost.Problemscausedbythelightning
isthetransponderdamaged.Duetoacertaintransmittingpower,itissuitableforsomeoccasions.

GlobalTimeNTPProducts
UsermanualofGTT-030
6
Table2-1AntennaSpecifications
Frequencyrange1575±5MHz;RFconnectorN-typeconnectors
Polarization Right-hand
circularpolarization Installation Thread(M24 ×1.5) connection
Antennagain ≥3.5dB；Volume φ96×126mm；
Amplifiergain ≥37dB；Operating
temperature -45 ～85 ；
Noisecoefficient ≤1.5dB；Storage
temperature -50 ～90 ；
Interference
suppression 25dB(f0±100MHz)；Humidity 0～100%
Powerconsumption 3V×20mA；
2.3Indoorinstallation
Afterconnecting220VACtothemasterdevice,theindicatorlight"Power"onthefrontpanelshouldbe
litandindicatethattherunningofpowersupplyisnormal.Thenthestatuslightstartstobeyellow(red
andgreen)andestinguishesin1minute.IfGPSreceiverisingoodrunning,itwillturngreenabout15
minuteslaterandthesystemstartstoworknormally.TomeasuretheBNCantennasocketwitha
mutimeter,thefeedvoltageshouldbeupto5V.Thenconnecttheantennacablewiththeantennasocket.
Next,useacomputertopassthroughtheIPaddressandnetworksettingsoftheserialportconfiguration
timeserver,saveandexit,thenrestartGTT-030Networktimeservertomakethenetworksettingstake
effect.Afterreboot,inputtheIPaddressofthePINGserverinanothercomputertocheckthenetwork
settingscorrectornot.ThenlogonthenetworktimeserverfromSSHclienttoobservethesatellite
receivingstate,theinformationontimetrackingstateoftheserverandsoon.Whentheserverlocksthe
satellitetime(Theindicatorlightonthepanelturnsgreen),GTT-030startstoprovidetimeinformation
tootherclientswithinthenetwork.Thespecificprocessofsoftwareconfigurationcanrefertothe
followingchapter.

GlobalTimeNTPProducts
UsermanualofGTT-030
7
Chapter3EquipmentMaintenance
3.1Indicatorstate
Table3-2IndicatorStatus
IndicatorStatusDescription
Powersupply onThepowersupplyisnormal
offThepowersupplyisabnormal
State
offTheserverisunlock
orange Theserverisinthemaintainingstateandcannot trackthesatellite,buttheoutputtimeoftheserver
isstillavailable
greenTheserverisinthenormaltrackingstate
3.2Serverconfigurationdebugging
GTT-030networktimeservercanconductmaintenanceandmanagementthroughthelocalserialcable
connectionortheremotetelnetconnection.Thelocalconnectionneedstouseacrossserialcablewith
connectorsonbothsides(thatis,2,3feetofthetwosidesarecrossconnected).Themanagementis
carriedoutonthesuperterminal.Theserialportconfigurationparametersofthesuperterminalareas
showninFigure3-1.Undertheremotetelnetconnection,youonlyneedtoenter:telnet<IPaddressof
theserver>underthecommand-line.Thefollowingexampledescribesthemaintenancemethodswith
localconnection,sodoesremotemaintenance.

GlobalTimeNTPProducts
UsermanualofGTT-030
8

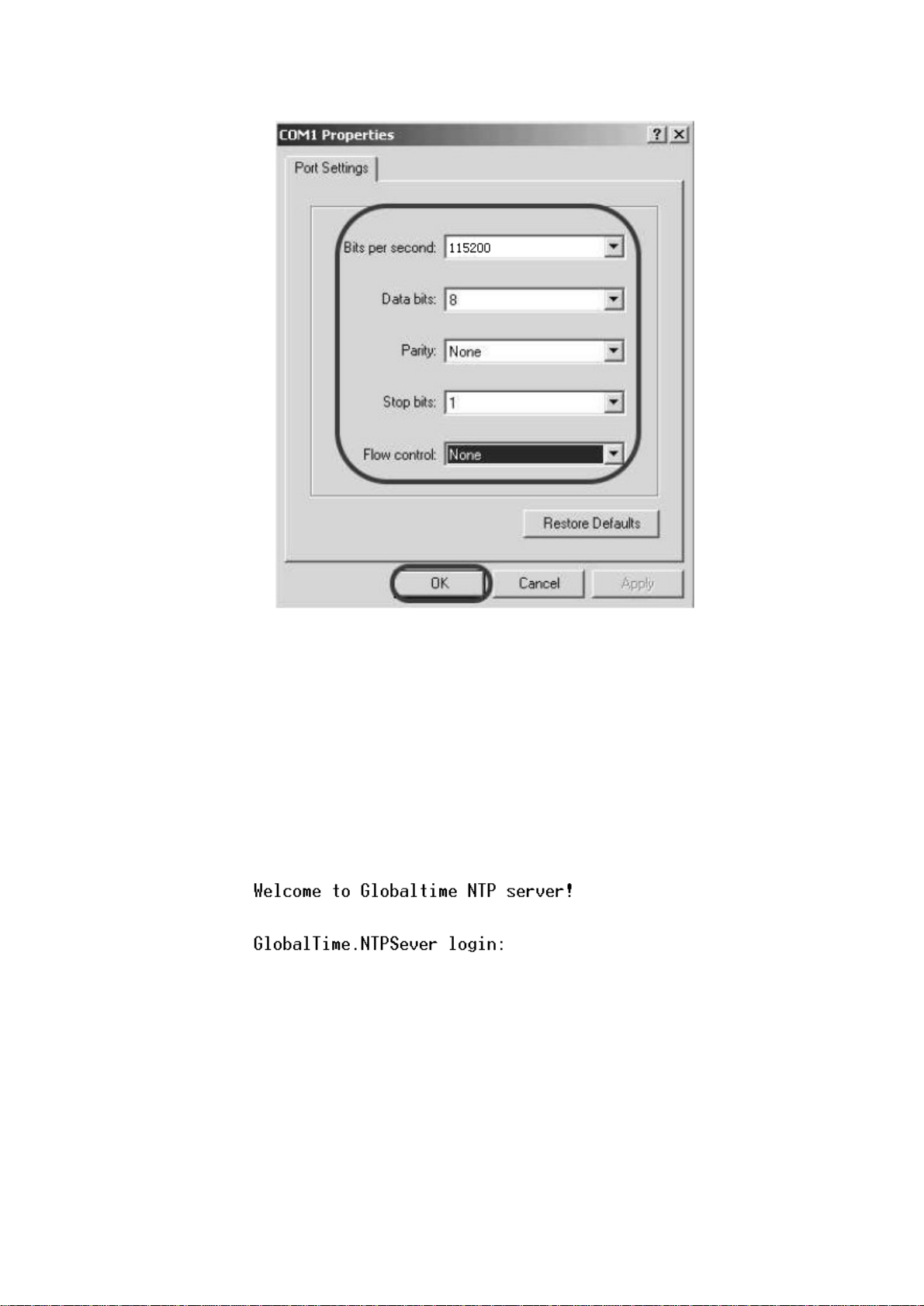

Figure3-1TerminalserialportDebuggingsettings
3.2.1UserLogin
Afterconnectingthehyperterminal,pressENTERandyouwillseetheloginscreenjustlike0.Then
entertheusername"ntpuser"andthepassword"Users.".
Note:Payattentiontothelast".".Whenyouhaveloginin,youcansetyourownpassword.
Loginwindow
Afterloggingin,therewillbeainterface,suchas0configurationinterface.Therearetotally5choices:
viewthenetworkstatus,changenetworksetting,displaythestatus,changethepasswordandexit.The
detaileddescriptionofeachfunctionisintroducedasfollow.

GlobalTimeNTPProducts
UsermanualofGTT-030
9
themainconfigurationwindow
3.2.2Viewthenetworkstatus
networkconfigurationwindow

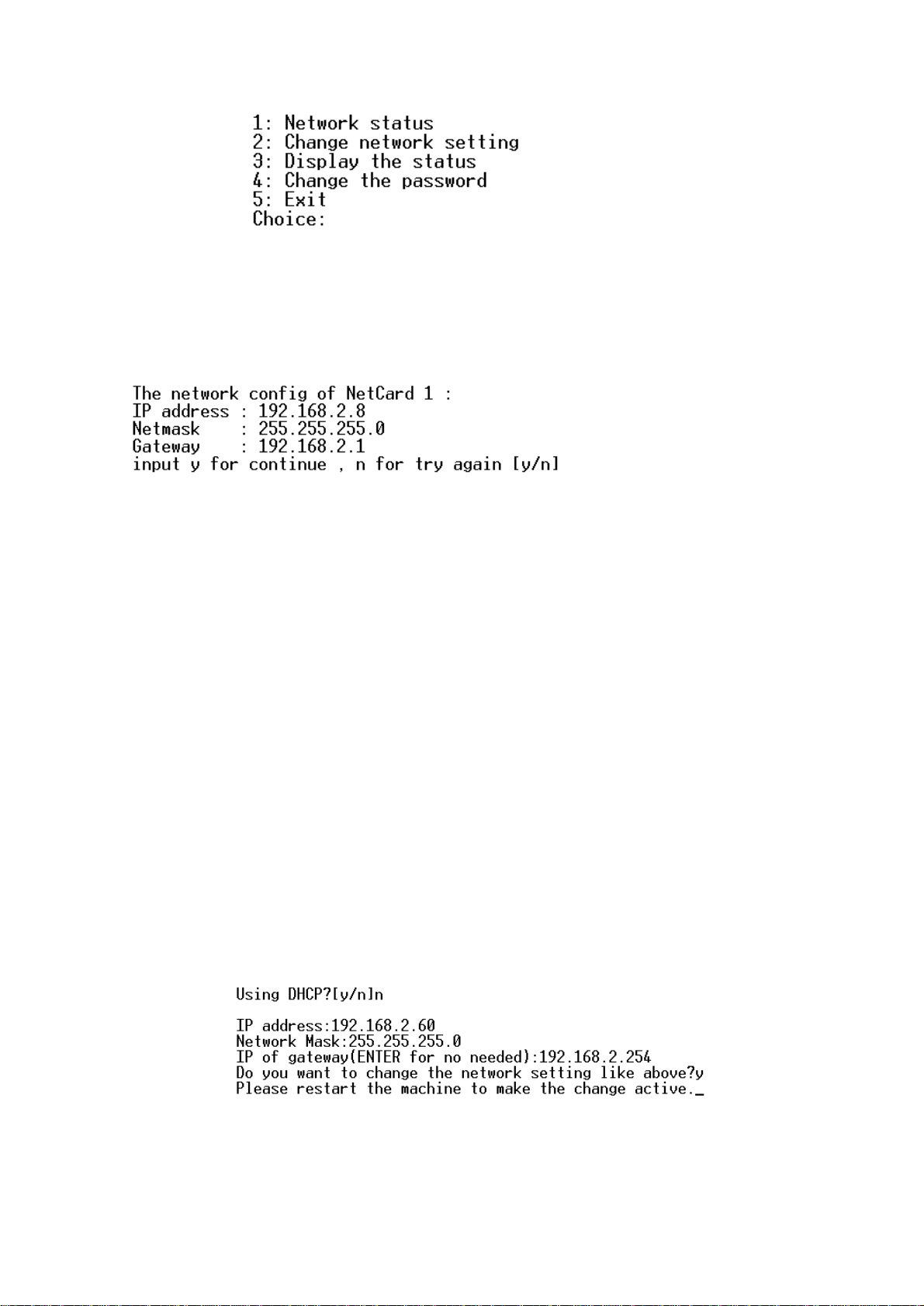

Press"2ENTER"andthepresentnetworksettingwillbedisplayed,includingIPaddress,subnetmask
andgateway.Ifyouenter"y",itwillreturntothepreviousmenu.
3.2.3Changenetworksetting
Whenyoupress"2ENTER"inthemainconfigurationinterface,initiallyitwillaskwhethertouseDHCP
protocoltoassignIPaddress.IfyouwouldliketouseDHCPprotocoltoassignIPaddress,thenselect
"Y".Otherwise,select"N".GTT-030supportgettingIPaddressthroughDHCP,butitalwaysneeda
staticIPaddressbecausetheserverneedstosupplythenetworktimingservicetootherdevices.Asa
result,inDHCPnetworksystem,therecommendedconfigurationistoassignastaticIPaddressfrom
theIPPoolofDHCPservertoGTT-030.OtherdevicescanusethestaticIPtoaccessGTT-030.
WhenitaskswhethertouseDHCP,Ifyouselect"N",itwillprompttoentertheserverIPaddress,subnet
maskandgatewayIPaddress.Finallyitwillpromptwhethertomodifythenetworkconfigurationin
accordancewithsettingsentered,thenselect"Y"anditwillchangetheequipmentconfiguration.This
configurationcannottakeeffectuntilrebootingtheserver.Soweneedtorestarttheserver.Wecan
modifythenetworkconfigurationformanytimesbeforerestartingtheequipment,butonlythelastone
cantakeeffect.TheconfigurationinterfaceisshowninFigure4.
Figure3-2Thenetworkparametersconfigurationinterface

GlobalTimeNTPProducts
UsermanualofGTT-030
10
Note:Whenitdisplays"Pleaserestartthemachinetomakethechangeactive.",press"ENTER"to
returntothepreviousinterface.Thenselect"4Exit",thesettingcantakeeffect.Ifdirectlyturnoffthe
computer,itwillresultintheconfigurationfailed.
3.2.4Displaythestatus

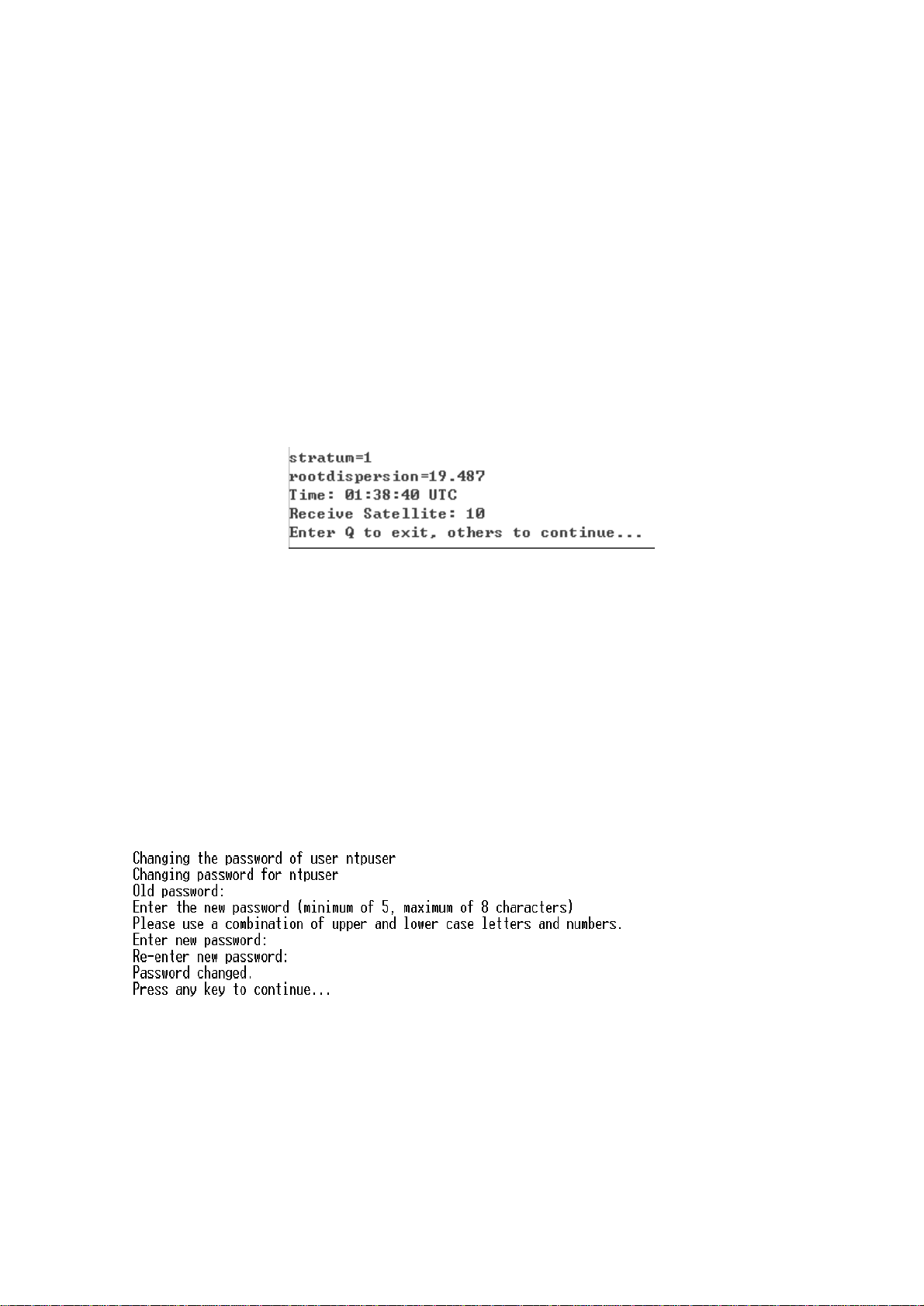

Byentering"3"inthemainconfigurationinterface,youwillenterthe"checktheworkstatus"interface
showninFigure3-3.Thefigureshowsthatthecurrenttimeofthetimeserverisoflevel1.Thetimeroot
deviationis19.487msandthecurrentUTCtimeis1:38:40.Thereare10satelliteswhichcanbetracked
inthesky.Note:thetimeshownisUTCtime,whichdiffersby8hoursfromChinaStandardTime(China
timezoneis+8).Entering"Q"willreturntothemainconfigurationscreenwhileenteringotherkeyswill
continuetothenextstep.WhenGTT-030networktimeserverworkproperly,thetimelevelis1,orelseit
is16.
Figure3-3Checktheworkstatus
3.2.5Chagethepassword
Iftype"4"inthemainconfigurationinterface,itwillenterintothe"changepassword"screen,shownas0.
Atfirst,youneedtotypetheoriginalpassword.Ifcorrect,itwillprompttotypeanewpassword.Theuser
passwordcontains5-8characters.Note:thepasswordcannotbetoosimple.Iftakesomemeaningful
wordsasthepassword,itwillprobablyberefusedbythesystem.Sothepasswordwithcombinationsof
upper-andlower-casestringsisappropriate.
Changethepassword

GlobalTimeNTPProducts
UsermanualofGTT-030
11
3.2.6Exit
Iftype"5"inthemainconfigurationinterface,itwillreturntotheuser-loginscreen.
3.2.7Timeserverlogonthroughthenetwork
Forthesakeofthesystemsecurity,thetimeserversupportsloginbySSH.TheCD-ROMis
accompaniedbyaSSHterminalsoftware:pietty.exe,whichcanbedirectlycopiedtothecomputerand
workproperly.Theloginconfigurationisasthefollowinginterface.Theinterfaceafterconnectingisthe
sameastheHyperTerminallogin.

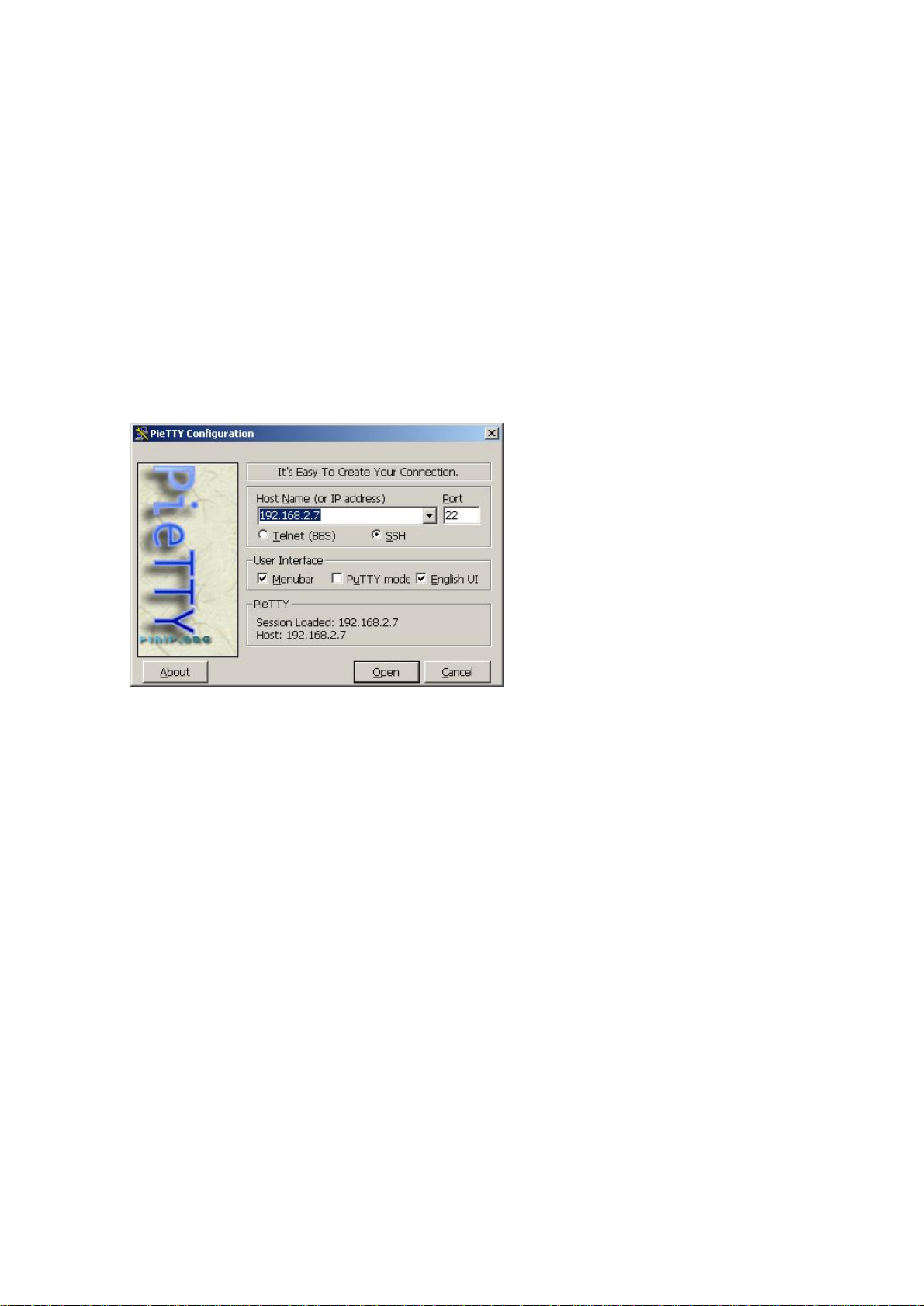

SSHloginconfigurationinterface
3.3Remotedial-upmaintenance
WecanusetheMODEMtoachieveremotedial-upmaintenancewiththeserialmonitoringportof
GTT-030networktimeserver.Inordertomakeit,pleasefollowthesesteps:
²Initially,settheMODEMtoautoanswermodeandconnecttheMODEMandacomputer
serialportwithaserialcable.TheconfigurationisshowninFigure3-1.Typethefollowing
threecommandsintheHyperTerminal:
atS0=1
at&W0
at&Y0
Note:Thecommandsarecasesensitive.

GlobalTimeNTPProducts
UsermanualofGTT-030
12
²ConnecttheMODEMandGTT-030networktimeservermonitoringportwithaserialcable.
Thenplugthetelephoneline.Finally,dialthisnumberthroughtheHyperTerminalofanother
computerwithMODEManditcanbeconnectedwiththeserver.Theconfigurationisas
introducedinsection3.2.
3.4Clientconfiguration
RegardingWinXP/2003system,itincludesNTPservicesandcanbedirectlyset.Thespecificsetting
methodsareasfollows:

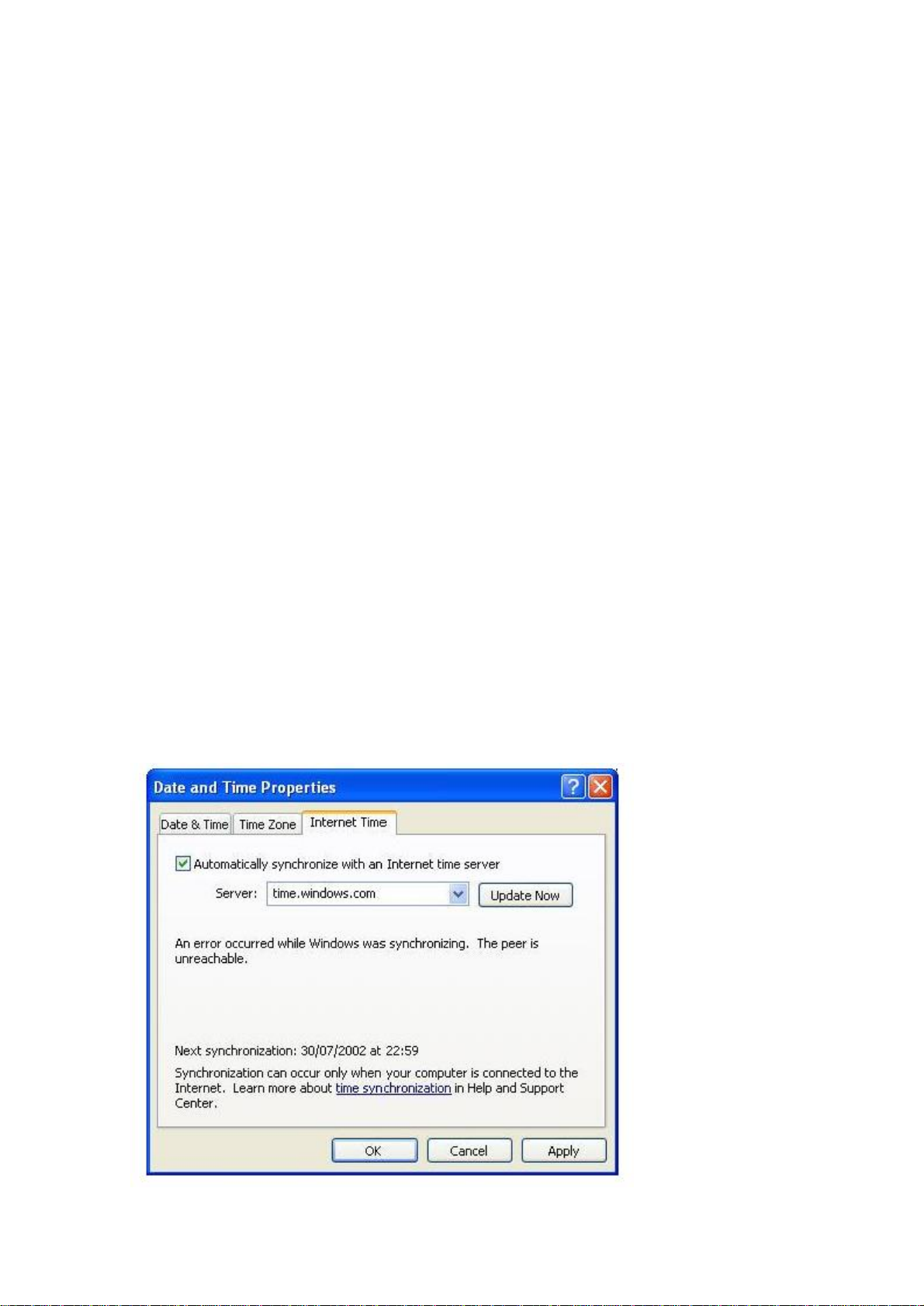

Firstly,doubleclickthetimemarkontherightsideofthewindowstaskbaranditwillpopupaninterface
withdateandtimeproperties.ThenselecttheInternettimescreen,whichisshownasthepictureinthe
nextpage.
Secondly,modifythewindowsdefaulttimeserver,suchasmodifyingto192.168.2.8.
Thirdly,click"Apply",andthen"UpdateNow".Afterasuccessfulsynchronization,itwillshowsuccessful
******synchronizationtimein**year,**hour,**minute.Thenextsynchronization:**year,**mounth
**Date,**hour,**minute.Windowsdefaultistosynchronizeonceaweek.IfthescreendisplaysRPCnot
available,youshouldopentheControlPanel,selectAdministrativeTools/Services,searchwindows
Timefromtheserviceslist,choosetoautomaticallyopentheserviceandrestartit.

GlobalTimeNTPProducts
UsermanualofGTT-030
13
Fourthly,ifyouconsiderthesynchronizationcycleistoolong,youcanmodifytheregistrytoshorten
thesynchronizationcycle.Thespecificregistrykeyisin:
\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\W32Time\TimeProviders\NtpClie
nt\SpecialPollInterval
Thedefaultis604800=60 ×60 ×24 ×7,namely,aweek.
synchronizationonceaday:Thedefaultis86400
synchronizationonceanhour:Thedefaultis3600
synchronizationoncetenminutes:Thedefaultis600
Fifthly,aftermodifyingtheregistry,youshouldstopwindowstimeserviceandrestartit.Thenthetime
intervalcanbeupdated.
Ifithasbeeninstalledwithothertimesynchronizationsoftware,youneedtouninstallthesoftwareand
restartthecomputer.Thewindowstimeservicecanworknormally.
ForWin2000/98operatingsystem,thetimesynchronizationsoftwareprovidedbyourfirmorprovidedby
thethird-partyarebothavailable.Thespecificconfigurationcanbereferredtotherespectiveuser
manual.
ForUNIXsystems,ingeneral,thereisntpddaemonorxntpddaemon.Createthentp.confconfiguration
fileunderthe/ETCdirectoryandtype"server******"(timeserverIP)init.Thenstartingthedaemonwill
do.
Regardingthedetails,pleaserefertotheusermanualorconsultusdirectly.
3.5Troubleshooting
3.5.1Allindicatorlightsareoffwhenpowerison
Checkwhetherthepoweroutletiswithelectricity.Thereisafusesocketinthedevice.Youneedto
unplugitandcheckwhetherthefuseisintact.
3.5.2Receivingnosatellitesignalsforalongtime
Emphasisshouldbeplacedonverifyingwhetherthefeedersystemisnormal.
Firstly,unplugthefeederonthesideatthedevice.ThenmeasuretheBNCsocketwithamultimeter.
Normallythereis5Vantennasupplyvoltage.Otherwise,itshowsthattheequipmenthasbeen
damaged.

GlobalTimeNTPProducts
UsermanualofGTT-030
14
Then,verifytheoutdoorantennaiswellconnected,suchasverifyingtheoutdoorjointsaretight,the
connectorsarewaterproof,theantennaisaleakandsoon.Youshouldtroubleshoottheobvious
problemsonebyone.
Last,disconnecttheantennaconnectorandmeasuretheresistanceofthefeeder.Whentheremoteend
isopen,thenear-endresistanceshouldbeinfinite.Besides,whentheremoteendisshorted,the
near-endresistancewillbeonlyafewohms.Ifitisshownabnormal,verifythefeederandtheconnctoris
intact.Thenormalfaults:thequalityofthelineisnotgood;theconnectorsarenotdonewell;linesare
scratchedorbittenbysmallanimals,etc.Ifthefeederisaddedalightningarresteroranantenna
amplifierinthemiddle,youstillneedtoverifythetwocomponentsisintact.
Aftereliminatingtheabovebreakdown,ifitstillcannotreceivethesatellitesignal,pleasecontactthe
servicehotlineofShanghaiGlobalTimeElectronicCo.,Ltd.Ourengineerswillhelpyouwiththefurther
processing.
3.5.3Cannotpingthetimeserverafterconfiguration
First,verifythephysicalnetworkconnection.Youcanseeifthecorrespondingconnection-statuslightis
normalbyobservingHUBorswitchconnectedwiththetimeserver.
Andthencheckifthereissomethingwrongwiththenetworksettings.Youcanuseacrossingcableto
connecttheservertothecomputerdirectlytoseeifpingisok.
ThenuseHUBtotestinthesamenetworksegment.Finallytestthedifferentsegments.Followingthese
steps,itiseasytotroubleshoot.Somefirewallsoftwareonyourcomputerwillprovideaprotective
screenfrompingoperation.Soit sbettertocheckthenetworkafterturningoffthefirewall.
YoumayalsoverifytheIPaddresswithoutdevicesandtheIPreplysetbythetimeserver.
3.5.4Instablestateofreceivingsatellitesignal/equipmentisinholdmode
Ingeneral,itiscausedbytheimpropersiteselectionofthesatellitereceiverantenna.Ifthisstateshows
often,youshouldconsidertoselectanothersitetoinstalltheantenna,thatis,aplacefreeofanything
overshadowedandthesurroundingmicrowaveinterference.
3.5.5Theclientcannotreceivetimingservice
NTPprotocolusuallyproceedstimingservicethroughport23withUDPprotocolandsometimeswith
TCPprotocol.Soport23serviceshouldbeallowedtogothroughtheintranetsgatewayandthefirewall.
Pleasecheckthegatewayandthefirewallconfiguration.

GlobalTimeNTPProducts
UsermanualofGTT-030
15
3.5.6Howtoconfigurethenetworkequipmenttoreceivetimeservice
NTPprotocolisaninternationalstandardprotocol.Thenetworkequipmentofmanymanufacturerscan
receiveNTPprotocoltoadjusttheirowntime.Forexample,theroutersofCisco,Avaya,Ascendand
HuaweicanallreceiveNTPservices.SomeseriesswitchesalsosupporttheNTPprotocol.Forinstance,
theconfigurationcommandofCiscorouteris:
ntpserver<IPaddress>
Regardingthespecificconfiguration,pleaserefertothemanualprovidedbythemanufacturers.To
unifythenetworktimebyNTPprotocolcaneffectivelyimprovethequalityofnetworkservice.Itcanalso
judgethecauseofthemalfunctionbycheckingtheunifiedtimeLogfileswhenthenetworkgoeswrong.

GlobalTimeNTPProducts
UsermanualofGTT-030
16
Chapter4Detailedperformanceindexoftheequipment
GPSreceiver
l12channelGPSreceiver
lL1-Band,C/ACode
lpositionhold-type
lCold-starttime:200seconds
lWarm-starttime:50seconds
lHot-starttime:25seconds
lPositionalAccuracy:100meters
Timingperformance
lServerTimeLevel:Stratum1
lServertimeprecision:1ms
lPrecisionofclienttime:10ms
lTimingcapacity:>100timespersecond
Networkprotocolsupport
üRFC1119/1305NTPv2/v3/v4
üRFC1769/2030SNTPv2/v3/v4
ü10/100MBase-TadaptiveEthernet
üSSH
üFTP
üDHCP
Powersupplyandtheenvironment:
lPowersupply:15W,220~240VAC(or-48VDC)
lEnvironment:
lTemperature:0~50 ℃
lRelativehumidity:0～90%

GlobalTimeNTPProducts
UsermanualofGTT-030
17
Chapter5Appendix
ShanghaiGlobalTimeElectronicCo.,Ltdisaleadingcompanythatfocusesonprofessionaltime
synchronizationproductsandservices.Weprovides7x24-hourhotlinefortechnicalsupport.Ifyou
haveanyquestionsaboutourproductsorthesolutions,pleasenothesitatetocontactusaccordingto
thefollowingaddress:
GlobalTimeElectronicCo.,LTD
Add:A2-1,No.399DakangRoad,DaliuIndustrialBuilding,Shanghai,China
ZipCode：200443
Tel：[phone]
Fax：[phone]
Mail:[e-mail]
Website:www.ntpclock.com
