GLP Impression X4 XL User manual

from software version: v1.47
[email protected]
www.glp.de
Instruction Manual

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 2
Notes:

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 3
Table of contents
1Description of Device..............................................................................................4
1.1 Safety Instructions ............................................................................................5
2Preparation and Installation...................................................................................6
2.1 Safety information.............................................................................................6
2.2 Mounting...........................................................................................................7
2.2.1 Mounting on the Floor (upright)............................................................8
2.2.2 Mounting in hanging position (Head down)..........................................9
2.3 Securing the Fixture..........................................................................................9
2.4 Connections....................................................................................................10
2.4.1 Power Supply.....................................................................................10
2.4.2 DMX...................................................................................................10
3The Menu Field......................................................................................................10
4DMX Channel Selection (DMX Protocol) .............................................................13
4.1 Normal-Mode (26 DMX channels) ..................................................................13
4.2 Compress-Mode (16 DMX channels)..............................................................16
4.3 High Resolution/Extended-Mode (27 DMX Channels)....................................18
5Maintaining and Cleaning.....................................................................................21
5.1 Safety regulations...........................................................................................21
5.2 Maintenance and Interval (rule-of-thumb).......................................................21
6Technical Specifications ......................................................................................22
7Dimensions............................................................................................................23
8Index.......................................................................................................................24

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 4
1 Description of Device
1. Moving head (actively and
passively cooled)
2. Arm with various cooling
vents
3. LCD-Display/Menu (data
entry)
4. Base with various
connectors and Camlock
mounting system
5. DMX- Output (5 pin)
6. DMX- Output (3 pin)
7. Micro-fuse: 5 x 20mm, T12A
8. Power Switch
9. Neutrik Powercon (Mains power
input)
10.Blank panel (primed for Ethernet)
11.DMX- Input (3 pin)
12.DMX- Input (5 pin)
13.2x Safety wire points
Note: Only connect one cable to the
DMX Input / Output at the same time!

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 5
1.1 Safety Instructions
The I IM MP PR RE ES SS SI IO ON N X X4 4X XL L is a High-Tech Product. To guarantee
a smooth operation, it is necessary to respect the following rules.
The manufacturer of this device will not take responsibility for
damages through any disregard of the information provided in
this manual. Warranty claims also will be voided in the case that
the fixture housing is opened.
1. Before powering on the fixture, make sure that the fixtures fans and air
inlets are clean and not blocked.
2. Ensure that the fixture head can rotate unhindered throughout its complete
range of pan and tilt movement. A safety distance of at least 0.5 m must be
maintained between the fixture and any easily inflammable material (e.g.
decoration material).
3. Attention! Don’t touch the fixture during the operation. This can cause
injuries and/or damages.
4. The fixture doesn’t contain any user serviceable parts. Opening the
fixture will void all warranties.
5. It is necessary to wait at least 15 minutes after disconnecting the mains
power before handling the fixture.. Pay attention to possible hot parts of the
fixture. -- Danger of BURNING --
6. Never look directly into the beam of light or into one of the LEDs.
Never use optical apertures to observe the beam of light. LED Class 2M.
You'll risk serious injury of your eyes and in particular of your retina.
Attention: LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Hence: Avoid direct radiation into your eyes!
7. To ensure safe operation, follow also the Installation guide described in
chapter 2. Operating the
I
IM MP PR RE ES SS SI IO ON N X X4 4X XL L
without suitable safety aids
like Safety cables or clamps/hooks can increase the risk of an accident and
must be avoided.
8. Repair, maintenance, and installation work shall be done by qualified or
GLP certified staff only. You need to pay attention to the common rules of
technology that are not explicitly mentioned in this manual.
9. Use only original GLP spare parts. Any structural modification of the
system will terminate all warranty claims.
10. Please keep this instruction manual for future reference.

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 6
2 Preparation and Installation
2.1 Safety information
The
I
IM MP PR RE ES SS SI IO ON N X X4 4X XL L

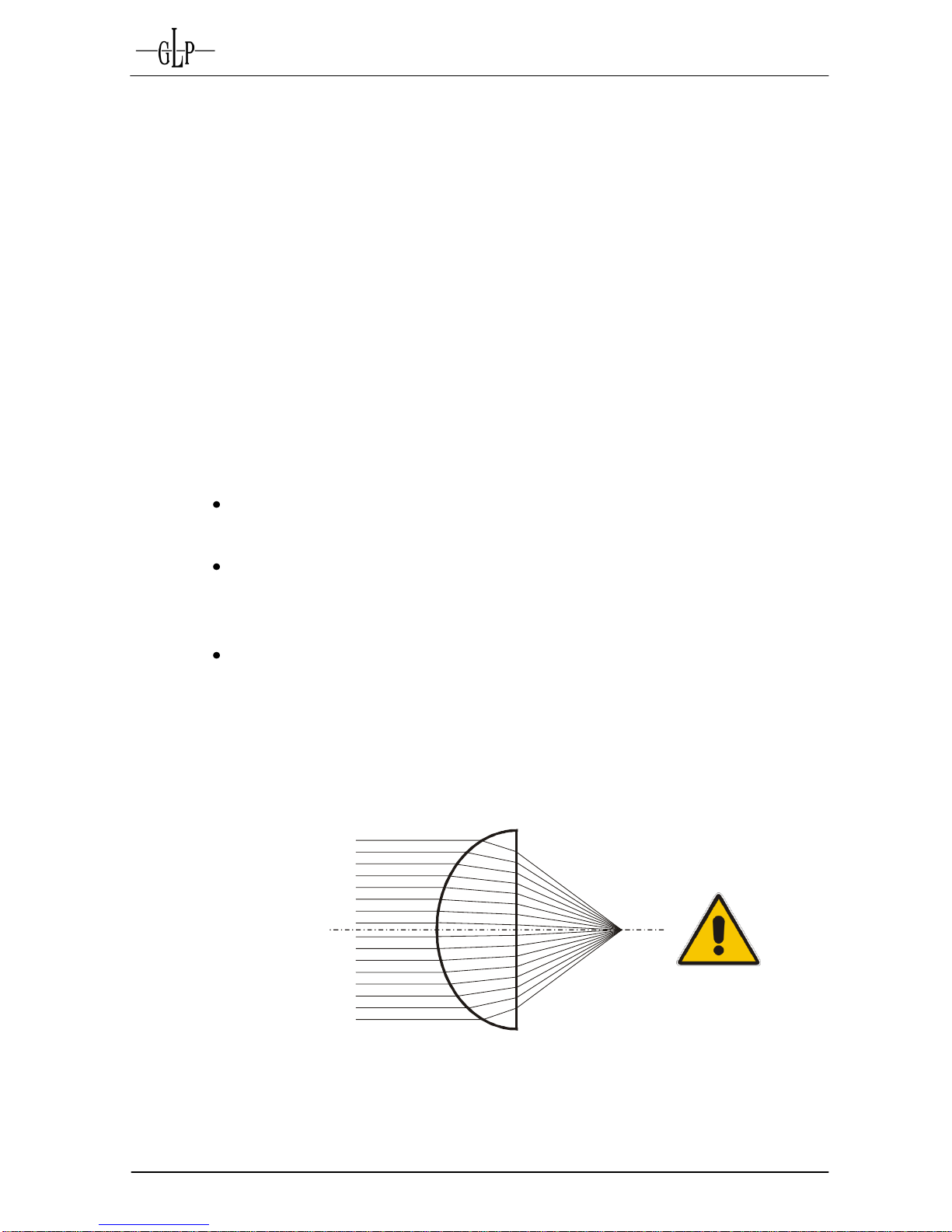

fixture from GLP is fitted with a number of plano-
convex lenses in a highly efficient collimator cluster. This type of lens can act as
a strong magnifying glass.
If the rays from a strong light source (such as the sun or another lighting fixture)
are directed towards the front of any of these fixtures, then internal damage
may occur. In a worst case scenario with a high power light source this can
happen very quickly, damaging the fixture internally, potentially melting
components or causing an internal fire within seconds.
In order to avoid these possible problems please adhere to the following
requirements:
Do not expose the front of a fixture to direct sunlight or any other strong
light sources.
For outdoor applications during daylight make sure that the front face of
any fixture is either shielded or points away from the sun, even when
fixtures are not in use.
Do not modify the front glass or lenses of any fixture.
These requirements have to be followed regardless of whether a fixture is
powered on or off as the magnifying effect is an optical effect and therefore
independent from the (electrical) state of the fixture.
Especially when working with high powered
b
be ea am m- -l li ig gh ht ts s
; extreme caution and
observance of these safety instructions is mandatory.
Should you have any questions about the operation of your fixture then please
contact your local GLP office, or their authorized distributor, a list of which can
be found at http://www.glp.de.

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 7
2.2 Mounting
The
I
IM MP PR RE ES SS SI IO ON N X X4 4X XL L
is fully operational whether it hangs or is mounted to
the wall. It can also be operated while standing on the floor. Keep a safety
distance of min. 0.5 m towards any easily inflammable materials (decoration
etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified staff only.
For the various mounting positions of the
I
IM MP PR RE ES SS SI IO ON N X X4 4X XL L
(standing on the
floor, sideways or hanging) different accessories kits are available. Through this
a safe and firm installation is assured. You'll find dedicated connectors on the
bottom side of the fixture which should be used. In addition the base is marked
with a FRONT arrow allowing consistent orientation during installation.

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 8
2.2.1 Mounting on the Floor (upright)
To operate the
I
IM MP PR RE ES SS SI IO ON N X X4 4X XL L
in an upright position, please use
the dedicated tri-legged floor stand supplied with your fixture. It is fixed
to the base of the fixture with fasteners called Camlock quick-release
connectors. Insert the two fasteners and turn each 90° to lock them. Do
the opposite to release them again. On both sides you'll find eyelets to
pull though a fixing strap. This allows for additional bracing of the fixture.

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 9

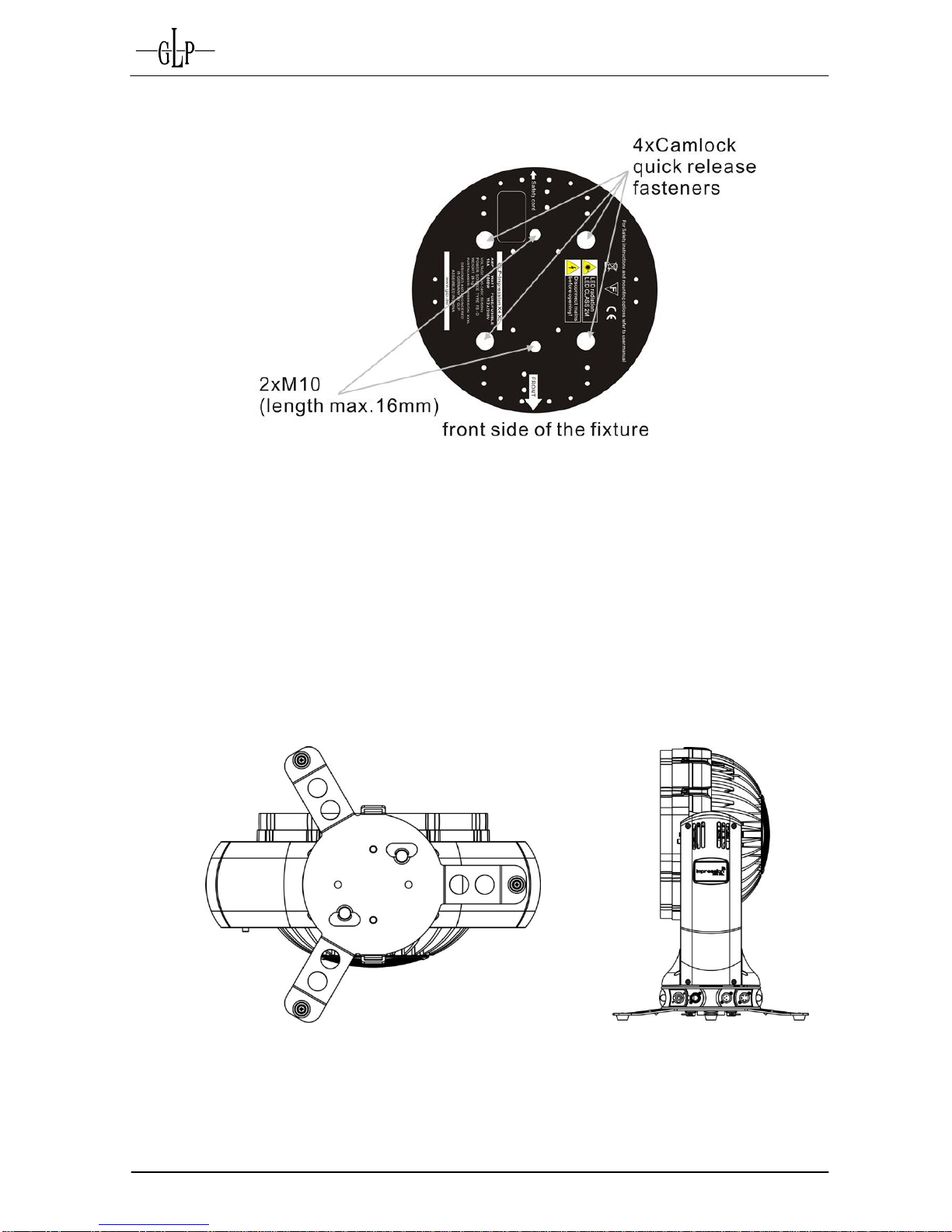

2.2.2 Mounting in hanging position (Head down)
To operate the
I
IM MP PR RE ES SS SI IO ON N X X4 4X XL L
in a hanging position two (2) omega
brackets can be mounted directly to the bottom of the base using the
four (4) Camlock connectors.
Alternatively two half-couplers (clamps) can be mounted directly to the
bottom side of the fixture using M10x16 mm thread bolts.
Attention: Never use a longer bolt as this may damage the interior
of the fixture.
2.3 Securing the Fixture
Regardless of the mounting method of the
I
IM MP PR RE ES SS SI IO ON N X X4 4X XL L
you'll have to
use a stipulated safety wire. Attach the safety wire through one of the two holes
provided on the base of the fixture and connect it to the primary support
structure. Pay attention to a safe and proper fastening. The safety cable must
comply with EN 60598-2-17 Section 17.6.6 and be capable of bearing a static
suspended load that is ten times the weight of the fixture and all installed
accessories.

GLP German Light Products GmbH
Impression X4 XL manual (v1.0) from software version: v1.47 10
2.4 Connections
2.4.1 Power Supply
~100-240 Volt AC, 50-60 Hz, earth contact type plug - Powercon
Connected load 1200 VA (W) T12A (micro-fuse 5x20mm)
Please see printing on the case for the right electronic supply!
Disconnect from the mains supply for changing the fuse and use
only the above described micro-fuse type.
2.4.2 DMX
USITT DMX-512 Standard input/output in 3/5 pin connectors.
Pin 1 = [Ground] / Pin 2 = [-]/Pin 3 = [+] / Pin 4&5 N.C.
The DMX- Addressing starts at the DMX- Address [001].

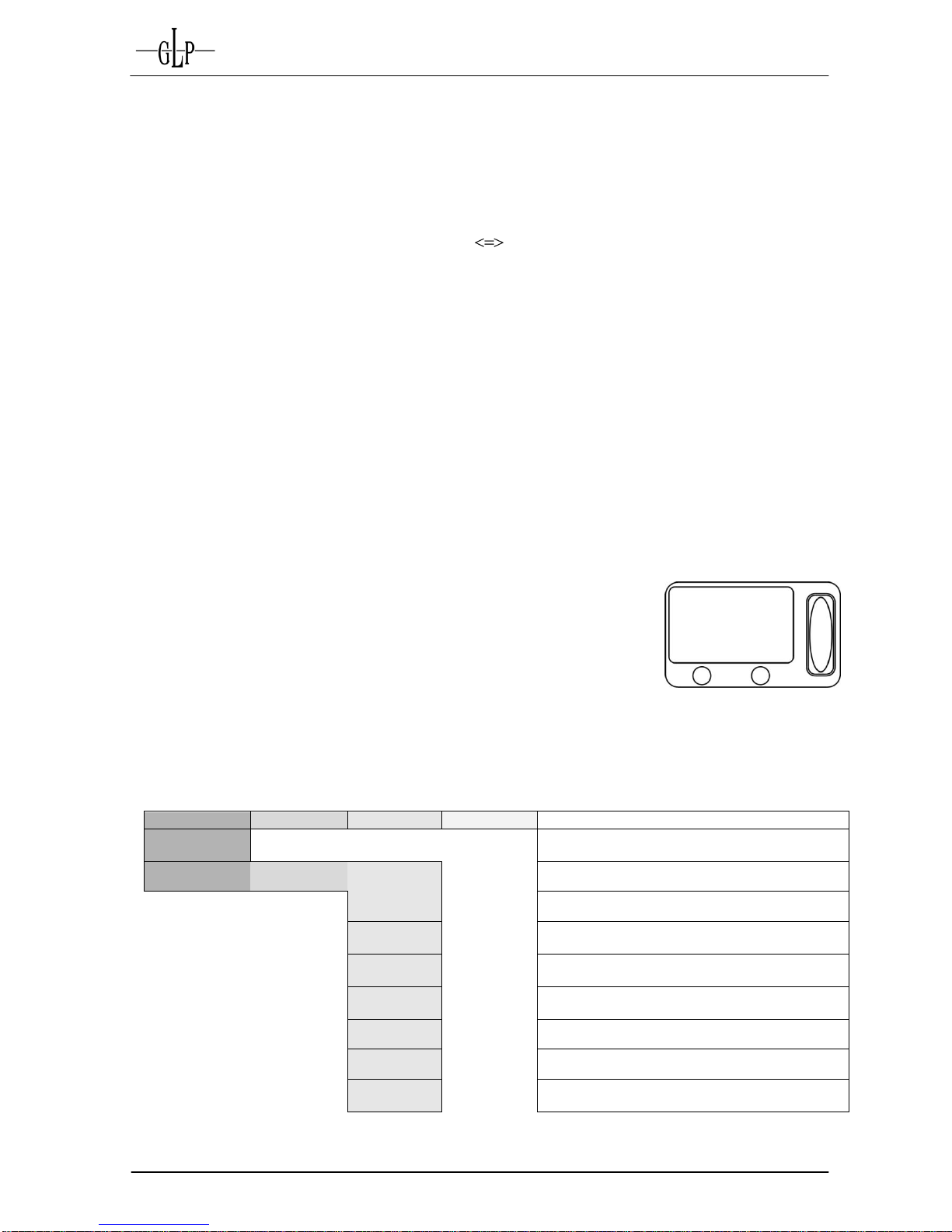

3 The Menu Field
You’ll find the control board on the side part of the arm. It allows you
to make all necessary adjustments of the I IM MP PR RE ES SS SI IO ON N X X4 4X XL L. .With
the Mode-key you get into the main menu. Afterwards you can navi-
gate through the menu with the Up/Down-keys. Push the Enter-key
to get in the next menu level or to confirm your settings. Make them
and set functions ON/OFF with the Up/Down-keys. Confirm and save
it with the Enter-key (the display shows OK). Push the Mode-key to
cancel the entry and go back to the main menu.
To lock or unlock the keys of the menu field press Mode+Enter+Up simultaneously.
DOWN - UP 
MODE - ENTER 
Level1
Level 2
Level 3
Level 4
Remark
DMX Start
Address 001
Set the DMX start address
Special
Manual DMX
Manual control of all fixture functions
Pan
Manual control for Pan (X-movement)
Pattern
Byte 3
Manual control for Pattern Byte 3 LED 17 -19
Pattern
Byte 2
Manual control for Pattern Byte 2 LED 9 - 16
Pattern
Byte 1
Manual control for Pattern Byte 1 LED 1 - 8
Pattern
Manual control for Pattern channel / bank
Zoom
Manual control for Zoom
Speed
Movements
Manual control for Pan/Tilt movements
