GM VENDING FUTURE User manual

FUTURE
Cod. 21206-00 1
The manufacturer, GMVENDING S.A., reserves the right to modify the product or its specifications without prior
notice. Also, it does not accept any liability for damages arising from improper use of the information included
in this manual.
This user manual is protected by international copyright laws. No part of this manual may be reproduced,
distributed, translated or transmitted in any form or by any means, electronic or mechanical, including
photocopying, recording, or storing in any information storage and retrieval without prior written consent by GM
VENDING S.A.
.
INSTRUCTION MANUAL
FUTURE

FUTURE
Cod. 21206-00 2
CONTENT
1.- INTRODUCTION …………………………………………..………………. 3
2.- SAFETY INSTRUCTIONS ……………..…………..……..………………. 3
3.- TECHNICAL SPECIFICATIONS …………………..……..………………. 4
3.1.- OPERATING SPECIFICATIONS ……………………..…………..……. 4
3.2.- DIMENSIONS AND CAPACITY …………………...…………......……. 4
4.- MACHINE DESCRIPTION ………………..………..……..………………. 5
5.- INSTALLATION AND START-UP ………..…..…..….…..………………. 6
5.1.- WALL ASSEMBLY.…………………...……………...……………………6
5.2.- ELECTRICAL INSTALLATION .…………………...……………...……. 7
5.3.- LEVELLING …..………………………………………………...………… 7
5.4.- START-UP …………….……………...……………...……………......…. 7
5.5.- RELATIONSHIP PRODUCT CHANNEL/SELECTIONS …….…….… 7
5.6.- MAKING A PURCHASE ………………...………………………...…..... 8
6.- PROGRAMMING …………………………..………………………………. 8
7.- MAINTENANCE ……………………...…………..……..……….……..….10
7.1.- DIAGNOSTIC OF MALFUNCTIONING ……….………...……........…10
7.2.- PRODUCT LABEL CHANGING .………………....…..……………......11
7.3.- CLEANING MACHINE EXTERIOR …..………...…….…................…11
7.4.- NOTES EXTRACTION FROM STACKER...……...………................ 12

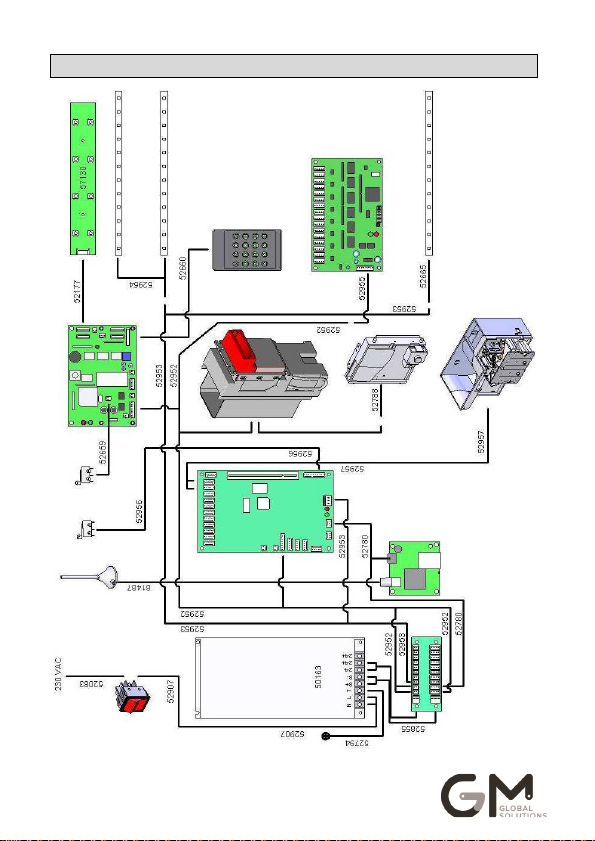

8.- ELECTRICAL DRAWING ……………………..…….…….…..……...…. 13
See online machine manuals:
Instruction Manual Programming Manual

FUTURE
Cod. 21206-00 3
1.- INTRODUCTION
•The machine is prepared to sell tobacco in different formats, from a
short format to an extra long format.
•The partitions and extractors are moveable, so they can be adjusted to
different tobacco formats.
•It is possible to modify the machine variables very easily to adapt it to
the needs of each customer.
•The machine is designed for indoor use.
2.- SAFETY INSTRUCTIONS
•The machine is both wall mounted and is also ready for use with a
stand. In both cases the machine must be attached to the wall as
instructed in the manual. Please refer to section 5.
•Check mains characteristics coincide with the machine’s and that the
machine is properly grounded.
•Access to the electrical parts of the machine only can be done by
authorized personnel.
•Before handling any component, disconnect the machine from mains.
•Should the mains cable be damaged call our technical support service.
•The machine should not be used for any purpose other than that
indicated by the manufacturer.
•The manufacturer shall not assume any liability for damages arising
from improper use of the machine.
•Always maintain the machine as indicated in the maintenance
instructions.
•This machine is not intended to be used by people (including children)
whose physical, sensory and mental abilities are reduced or do not
have the necessary experience or instructions about the use of the
machine by a person in charge of their security.
•Children should be supervised to be sure they do not play with the
machine.
•The installation of this machine is not suitable in or around areas
where there is a possibility of water contact.
•The machine is not designed to be cleaned with a stream of water.
Please refer to section 7.3.
Read these instructions carefully before
starting up the machine.

FUTURE
Cod. 21206-00 4
3.- TECHNICAL SPECIFICATIONS
3.1.- OPERATING SPECIFICATIONS
Voltage: 230 VAC
Maximum current: 0.4 A
Maximum power: 50 W
Temperature range: Between 0ºC and 55ºC
Humidity range: Between 35% and 95% relative humidity.

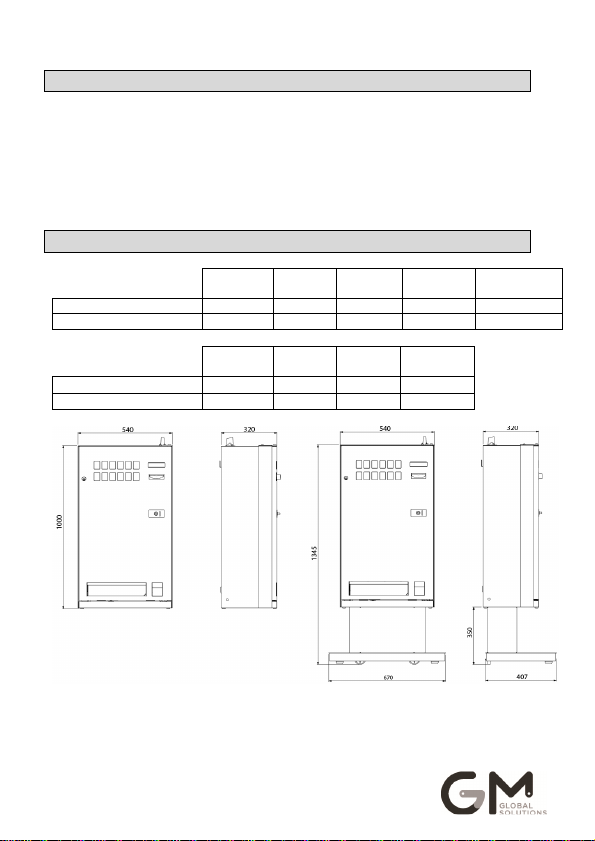

3.2.- DIMENSIONS AND CAPACITY
Unpacked (mm)
HEIGHT
WIDTH
DEPTH
WEIGHT
(Kg)
CAPACITY
(Packs)
FUTURE
1000 540 320 64.5 337
FUTURE
with
stand
1345 670 407 82 337
Packed (mm)
HEIGHT
WIDTH
DEPTH
WEIGHT
(Kg)
FUTURE
1140 630 410 72.5
STAND ONLY
(2pcs.) 365
675 410
19

FUTURE
Cod. 21206-00 5

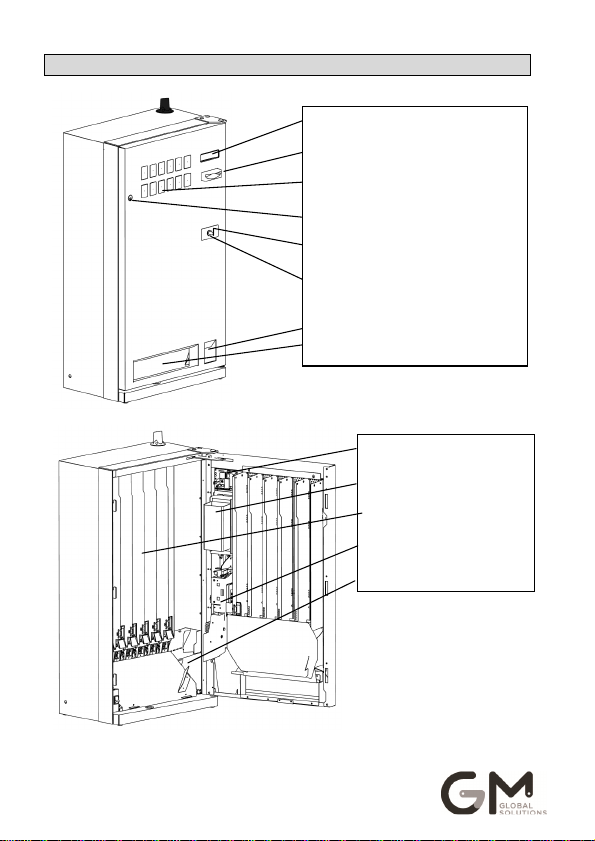

4.- MACHINE DESCRIPTION
A. Programming button
B. Note reader
C. Product channel
D. Change return
E.
Money box
1. Display
2. Note reader
3. Product selection buttons
4. Door lock
5. Coin slot
6. Coin return button
7. Coin return box
8. Tray for collecting product

FUTURE
Cod. 21206-00 6
5.- INSTALLATION AND START-UP
5.1.- WALL ASSEMBLY
•Use template which is located on the cardboard packaging to mark out
the hole positions. Make sure that the template is level and in the correct
position!
•Once the holes are made, secure the metallic support with the three
screws and gently hang the machine on the hooks of the plate.
•Drive in the last two screws to secure the machine firmly to the wall.

FUTURE
Cod. 21206-00 7
5.2.- ELECTRICAL INSTALLATION
•Ensure mains connection is 230 VACS, 50 Hz and 10 A, with a socket
with grounding (same type as machine plug).
•Installation should meet Low Voltage Installation Regulations.
•Once you have installed the machine, check the effectiveness of the
ground connection.
5.3.- LEVELLING
(ONLY WHEN STAND IS USED)
•Once the machine has been placed in
its final location, adjust the legs until it
is completely stable and level.
5.4.- START-UP
•Connect the machine to power point and turn
on the main switch. Make sure that there is at
least one tobacco packet in one of the
channels. The machine will carry out an
internal check and finally will appear on the
display “PLEASE INSERT TOKEN”
5.5.- RELATIONSHIP PRODUCT CHANNEL/SELECTIONS
•When loading product, note the relationship between product channels
and selection buttons.
•All machines have a label where the relationship between product
channels and selection buttons are indicated.
•If the machine has more
selection buttons than product
channels, you will need to
combine product channels. (See
Chapter 01.19 of the
programming options.).
•Place each product label on the
corresponding selection button.
•When loading the tobacco check
that the packets are not stuck to
one another.

FUTURE
Cod. 21206-00 8
5.6.- MAKING A PURCHASE
With the machine on standby, the display will show the following message:
1. Ask authorization to the responsible person in charge of the machine,
who will verify age and allow purchase. Once verified, via insertion of
token, the machine will activate to make a single purchase. If no
purchase is made, the machine will be inhibited again after 50 seconds.
2. Enter the money in the machine. As the money is entered, the display
will show the total of the accepted amount. Rejected coins will be placed
in the coin return box.
3. When the desired product price has been reached, press the
corresponding selection and it will soon be delivered through the tray for
collecting product. No change will be given from this machine!
4. Once the purchase has been made, the machine will be inhibited again.
6.- PROGRAMMING
•

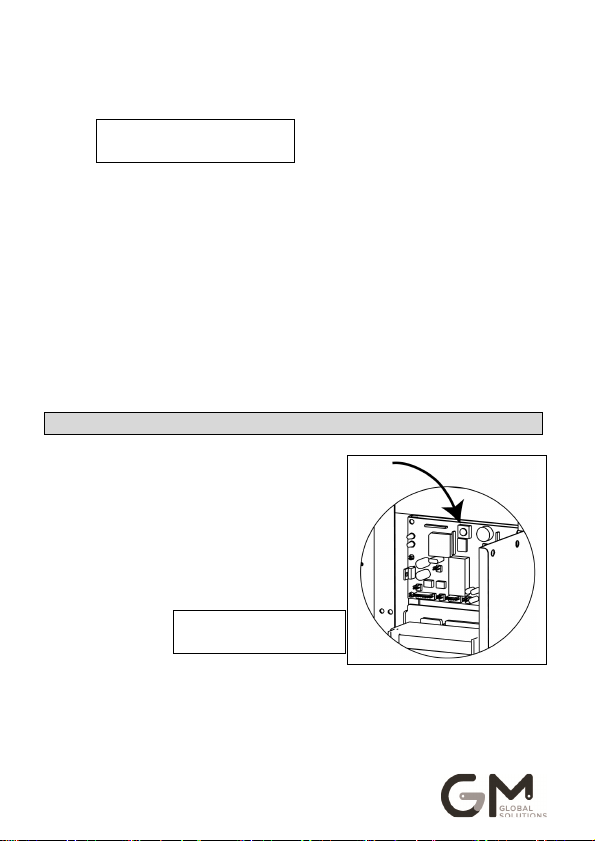

Access to programming options
Programming button (P-PROG)
To reprogram, press the programming button
shown in the image. The button is located on
the display card. The display will show the
current option name and number.
Message---------
Option-----------
•For some options, you will need special permission and will need to
access via option password 00:10.
DISPLAY 0000
00.02
PLEASE INSERT TOKEN

FUTURE
Cod. 21206-00 9
The programming options are shown using four-digit code:
YX.ZZ
ZZ: Option number. Value between 00 and 99.
X: Sub-option number. Value between 0 and 9. Option enabled (X=1) or
disabled (X=0).
Y: Sub-option number. Value between 0 and 9. Option enabled (Y=1) or
disabled (Y=0).
•Moving between options:
•Programming button (P-PROG): Enters and exits programming.
•( Programming keyboard): Changes to a superior option.
•( Programming keyboard): Changes to an inferior option.
•( Programming keyboard): Enters in the option.
•# (Programming keyboard): Changes to the desired option.
1. Enter the desired option (ZZ).
2. Press key #.
If you press #without entering any option, it will return to the previous option.
If you enter an option that does not exist or that cannot be accessed, the
program will go to the next accessible option or will exit programming.
•Programming of options:
•Selection buttons (P-SEL): (1)
Entering data within an option.
•Programming keyboard: (2)
Entering data within an option.
•Coin return button (P-REC): (3)
Enabling and validating options.
GO TO OPTCION
00.ZZ

FUTURE
Cod. 21206-00 10
7.- MAINTENANCE
7.1.- DIAGNOSTIC OF MALFUNCTIONING
Switch off and on the machine before
calling the Technical Service
In view of an error, press programming button and check if the
problem has disappeared.
If the error is still there, take a look at the list below which shows the
messages that the screen may display and the possible solutions.
ERROR in extractor number xx
The machine says product sold out when there is stock.
Error: Extractor out of order. The screen displays the extractor number.
ERR. Coin box flap
The machine does not accept any coin.
Error: The machine cannot activate the charging flap of the escrow.
ERR. return flap
The machine does not accept any coin.
Error: The machine cannot activate the devolution flap of the escrow.
ERR. Reject button
The machine does not accept any coin.
Error: The reject pushbutton is constantly pressed.
ERR. product push button
The pushbutton is invalid.
The program does not allow moving among options.
ERR. Tel dialling pad
The program does not allow moving among options.
Deprog. Prices
Error: Prices deprogrammed.
Solution: Program them again.
Option 01.03, 02.03

FUTURE
Cod. 21206-00 11
Deprog. codes
Error: Product code deprogrammed.
Solution: Program it again. Option 01.11
Deprog. links
Error: Link of channels deprogrammed
Solution: Program it again. Option 01.19
Deprog. machine
Error: Machine type deprogrammed.
Solution: Press programming button.
Deprog. sales
Error: Type of sale deprogrammed..
Solution: Program it again. Option X.12
Deprog. accounts
Error: Some accounts value deprogrammed.
Solution: Press programming.
When switching on the machine there will appear the following messages:
Bootloader ersion
Program ersion
Change giver ersion
eeprom Memory
MACHINE MODEL
PLEASE INSERT TOKEN
7.2.- PRODUCT LABEL CHANGING
The machine comes with an envelope containing a large set of product
labels. Choose the ones you need and insert them in the pushbutton panel
as follows.
•

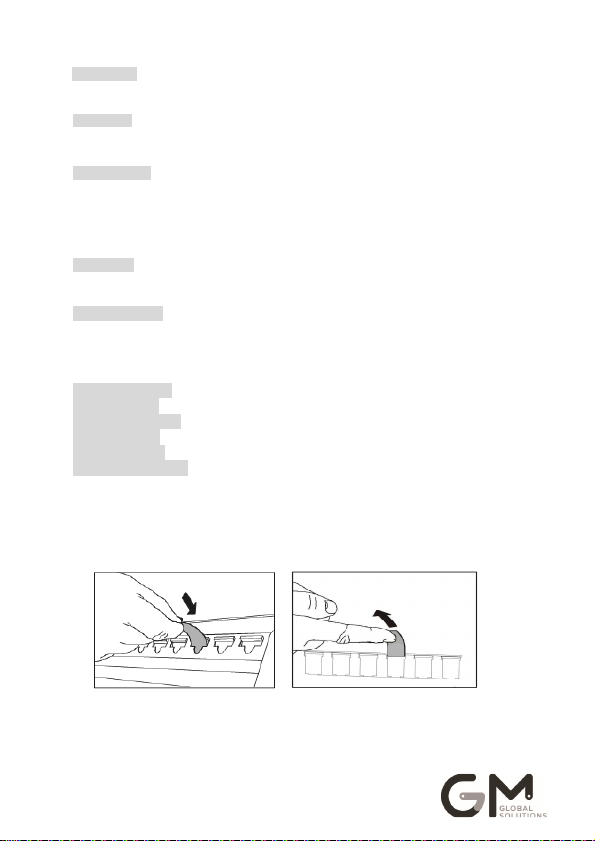

Inserting a label.
Insert the label through the slot as
shown.
•
Removing a label
Press the label with your fingertip
and pull upwards as shown.

FUTURE
Cod. 21206-00 12
7.3.- CLEANING MACHINE EXTERIOR
Do not use cleaning chemical products to clean the outside of the
machine. Use lukewarm water (between 20ºC and 40ºC) with dishwashing
liquid, shampoo or glass cleaner without bio alcohol.
To rinse the machine, use a 2% solution of vinegar (acetic acid) in
water and dry with a soft cloth.
For persistent stains use a 1% solution of sanitary alcohol in water

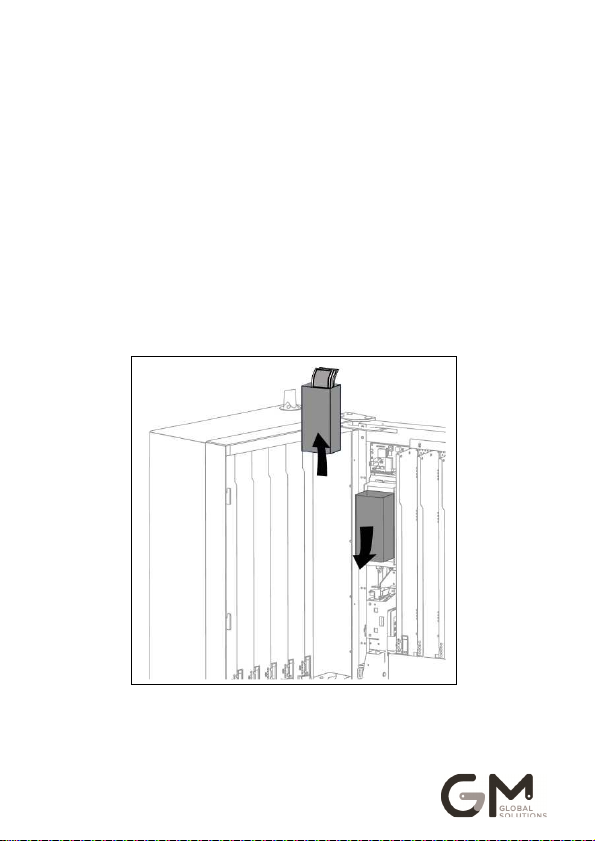

7.4.- NOTES EXTRACTION FROM STACKER
To access the bank notes, push the compartment downwards and
release the compartment from its housing.

FUTURE
Cod. 21206-00 13
8.- ELECTRICAL DRAWING
