PRESENTATION OF MANUAL
INSTRUCTIONS FOR USE
ATTENTION
Technical Name: Dental Chair
Trade Name: Dental Chair
Models: Syncrus G8
Brand: GNATUS
Manufacturer/ Distribuitor:
Alliage S/A Indústrias Médico Odontológica
C.N.P.J. 55.979.736/0001-45 - Insc. Est. 582.002.897.114
Rod. Abrão Assed , Km 53+450m - Cx. Postal 782 CEP 14097-500
Ribeirão Preto - S.P. - Brasil
Phone [phone]
Technical Duties: Ricardo J. Ravaneli
CREA-SP: 5060714523
Registration ANVISA #: 10069210062
For greater safety:
Read and understand all the instructions contained in these instructions for use before installing
or operating this equipment.
Note: These instructions for use must be read by all the operators of this equipment.

3
INDEX
02 PRESENTATION OF MANUAL
04 IDENTIFICATION OF EQUIPMENT
04 Indication of Equipment
04 Purpose of the equipment
05 Principles and fundamentals applied to the product functioning
05 Description of Equipment
06 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION
09 TECHNICAL SPECIFICATIONS
09 General features
11 Electromagnetic emissions
15 Dimensions
16 Packing symbols
16 Product symbols
18 INFRA-STRUCTURE SPECIFICATION
18 INSTALLATION OF EQUIPMENT
20 OPERATION OF EQUIPMENT
28 PRECAUTIONS, RESTRICTIONS AND WARNINGS
28 Recommendations for preserving the equipment
28 Transportation, storage and operation
29 Sensibility to predictable environmental conditions in regular use conditions
29 Precaution and warnings “during the installation” of the equipment
30 Precautions and warnings “during the use” of equipment
30 Precautions and warnings “after” the use of equipment
30 Precautions and warnings during the “cleaning and disinfection” of equipment
31 Precautions in case of alteration in the functioning of equipment
31 Precautions to be adopted against foreseeable or uncommon risks, related to the deactivation
and abandoning of equipment
31 CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION
31 Additional procedures for reuse
31 Cleaning
31 Disinfection
32 Preventive Maintenance
32 Corrective Maintenance
33 UNFORESEEN EVENTS – SOLUTION OF PROBLEMS
33 EQUIPMENT’S WARRANTY
33 FINAL CONSIDERATIONS

4
IDENTIFICATION OF EQUIPMENT
Dear Customer
Congratulations. You have made a good choice when you decided to buy a GNATUS QUALITY product
comparable to the best products available in the World. This manual is a general presentation of
your product and it will give you important details to help you to solve possible problems.
Please, read it and keep this with you.
Indication of Equipment
This equipment is for dental use use only. It must be operated and utilized by specialized professional
(certied professional, according to the legislation of the country) and following the instructions of
the manual. The operation of the equipment required, for the professional, the utilization of correct
instruments and it should to be in perfect conditions of the use, and to protect the professional,
the patients and others, in the eventual danger situation.
IDENTIFICATION
Purpose of the equipment
Chair for patient accommodation during dental treatment.
Technical Name: Dental Chair
Trade Name: Dental Chair
Models: Syncrus G8
Brand: GNATUS

5

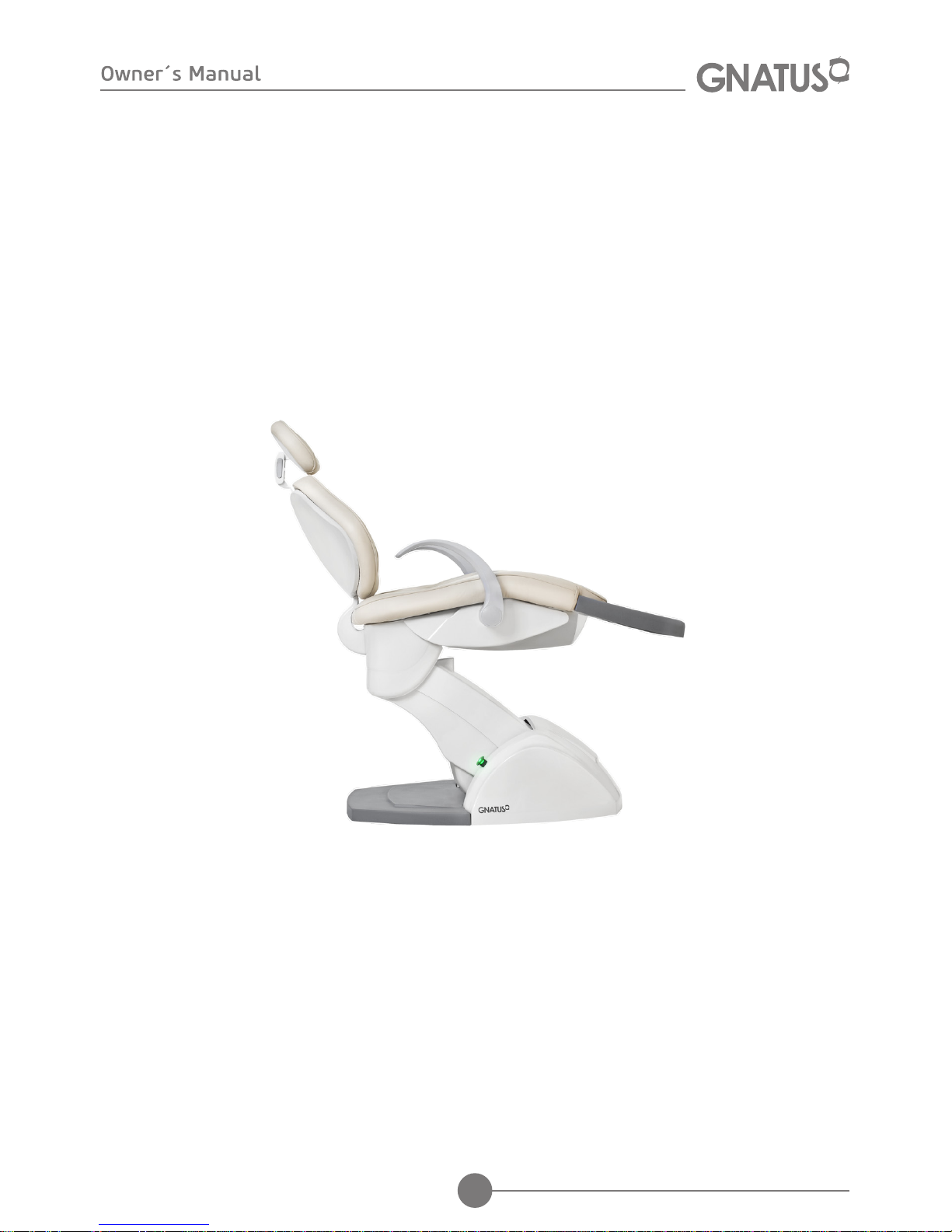

Description of Equipment
Chair for the patient´s accommodation during dental treatment, with automatic movements, driven
by a DC gear reducer with gradual starter. It has a bold design with rounded lines, providing a
harmonious and modern look.
Integrated pedal, join all foot commands, allowing chair activations, gear, water unit and reector,
with its distinctive chip-blower system.
It features two pedal options that can be adapted to the chair.
Option 1: Communication via cable. Option 2: Communication "wireless" (optional).
Synchronized movements between backrest and seat. At the end of the lowering course of the
backrest, it allows the Trendelemburg position (position adopted in which legs and pelvis are in a
higher level than chest and head).
Equipped with lower limbs anti-crush safety device.
Involving curved backrest, which provides comfort to the patience and also allows a closest approach
to the surgical eld. Convenience in removing the backrest of the chest, facilitating cleaning and
disinfection, through the Easy-Fix system.
Anatomical, removable, bi-articulated headrest with height adjustment, with anterior, posterior
and longitudinal movements.
Cervical support (optional), provides more comfort to the patient.
Seat xed at a tubular retractable steel structure, making the access easier in cases of maintenance
and cleaning.
Base with ergonomic design, built in steel, protected by anti-slip edging.
It has 2 holes which allow chair xation on the oor.
Structure in steel with nanotechnology supercial treatment. High-gloss at epoxybased paint,
polymerized in oven at 250 °C, resistant to corrosion and cleaning materials.
Equipped with an exclusive Robotic Massaging System with two massage point (chest and seat), with
3 programs (Wave, Continuous, and Pulse) with manual speed and intensity control. The Massager
provides great comfort to the patient, allowing them to relax during procedures, in addition to
being a luxury dierential.
Fixed armrest with rounded nish, dispense movement and make cleaning and disinfection easier.
Second arm (retractable), with device activated via equipment control panel, which allows "fall"
arm movement control, facilitating patient access and increasing worker productivity (optional).
Large padding, with lumbar support, assembled on a rigid structure recovered with injected high
strength polyurethane, with a jacket of ame-retardant, nontoxic, seamless and laminated material.
To guarantee the safe functioning of your equipment, use only the assemble congurations (Dental
Chair, Dental and Water Units and Dental Light) supplied by Gnatus authorized Dealers / Technical
Assistance.
EN ISO 9001/2000 and EN ISO 13485/2003 Quality System, assuryng the products are manufactured
under standart procedures.
Products manufactured in agreement with RDC 59/00 - ANVISA - (Sanitary Surveillance National
Agency).
Principles and fundamentals applied to the product functioning
Chair for patient accommodation during dental treatment, activated by foot control, where commands
are sent from the electronic board to two motors/engines responsible for mechanism movement of
seat and backrest of the chair.
*Items optional
IDENTIFICATION OF EQUIPMENT

6
MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON-
SUMPTION
The contents of this page are of an informative nature, the equipment being able to dier
from that illustrated. So, upon acquiring the product check the technical compatibilty
between equipment, coupling and accessories.

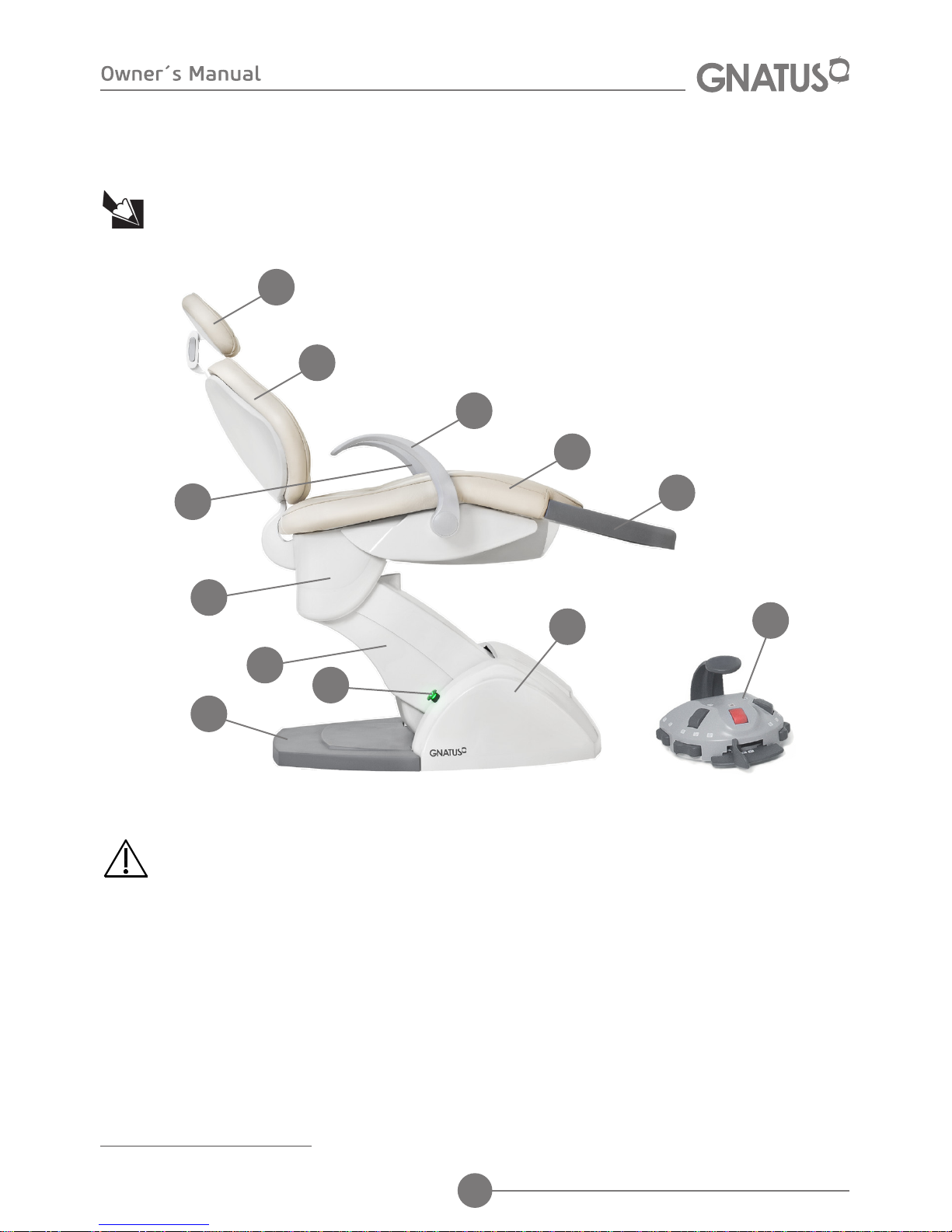

01 - Headrest
02 - Thorax/chest backrest
03 - Upper bearing cover
04 - Base
05 - Inferior Cover
06 - "Wired system" pedal
07 - General Key - On / O switch
08 - Cover motor nishing
09 - Footrest
10 - Retractable seat
11 - Fixed arm
*12 - Retractable arm
WARNING

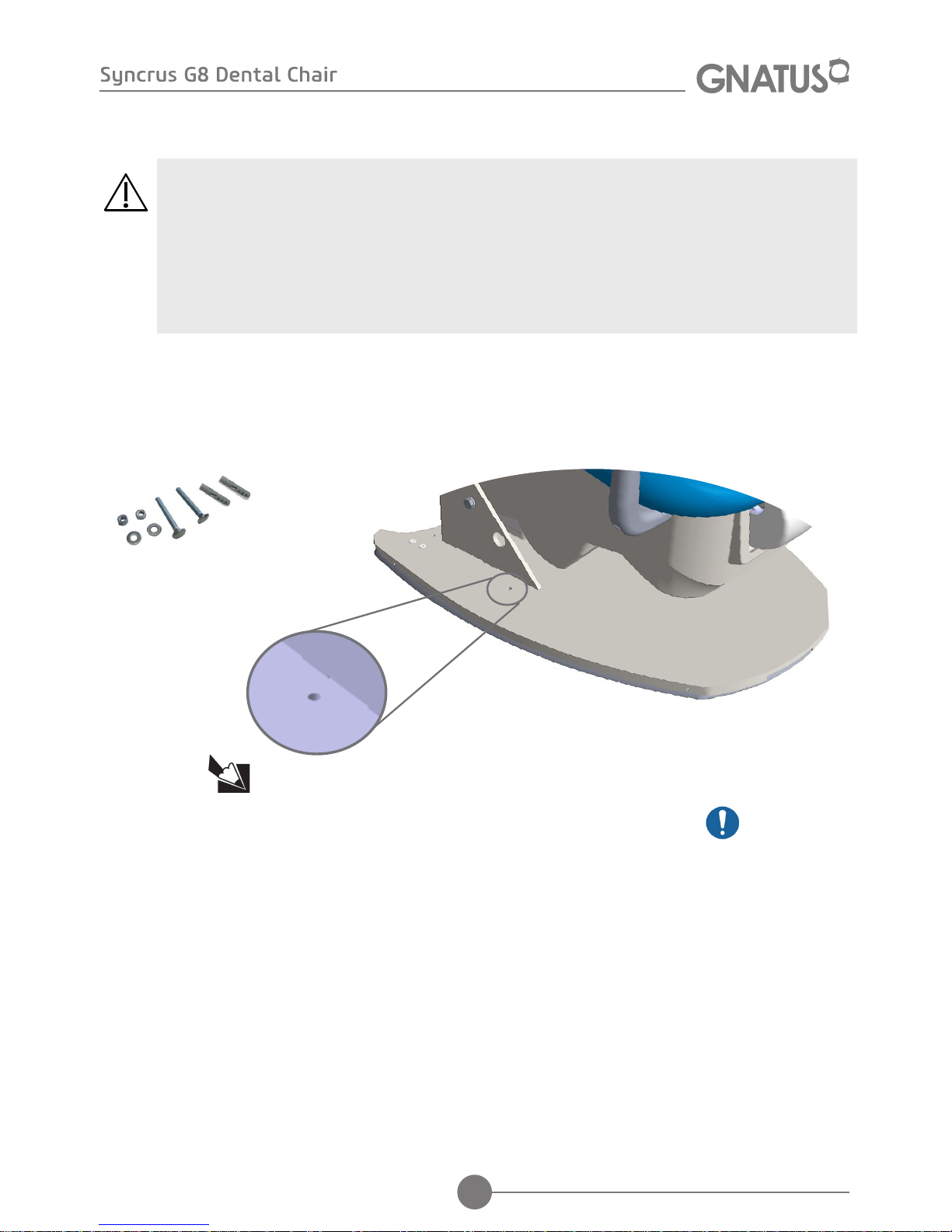

For the chair with integrated connection box is recommended to x the base of the chair to the
oor, as oriented under the item "Installation" of this guide.
01
02
12
10
09
06
08
03
11
05
04
07
*Items optional

7
04 05 06
01
09
02 03
07 08
MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON-
SUMPTION

8

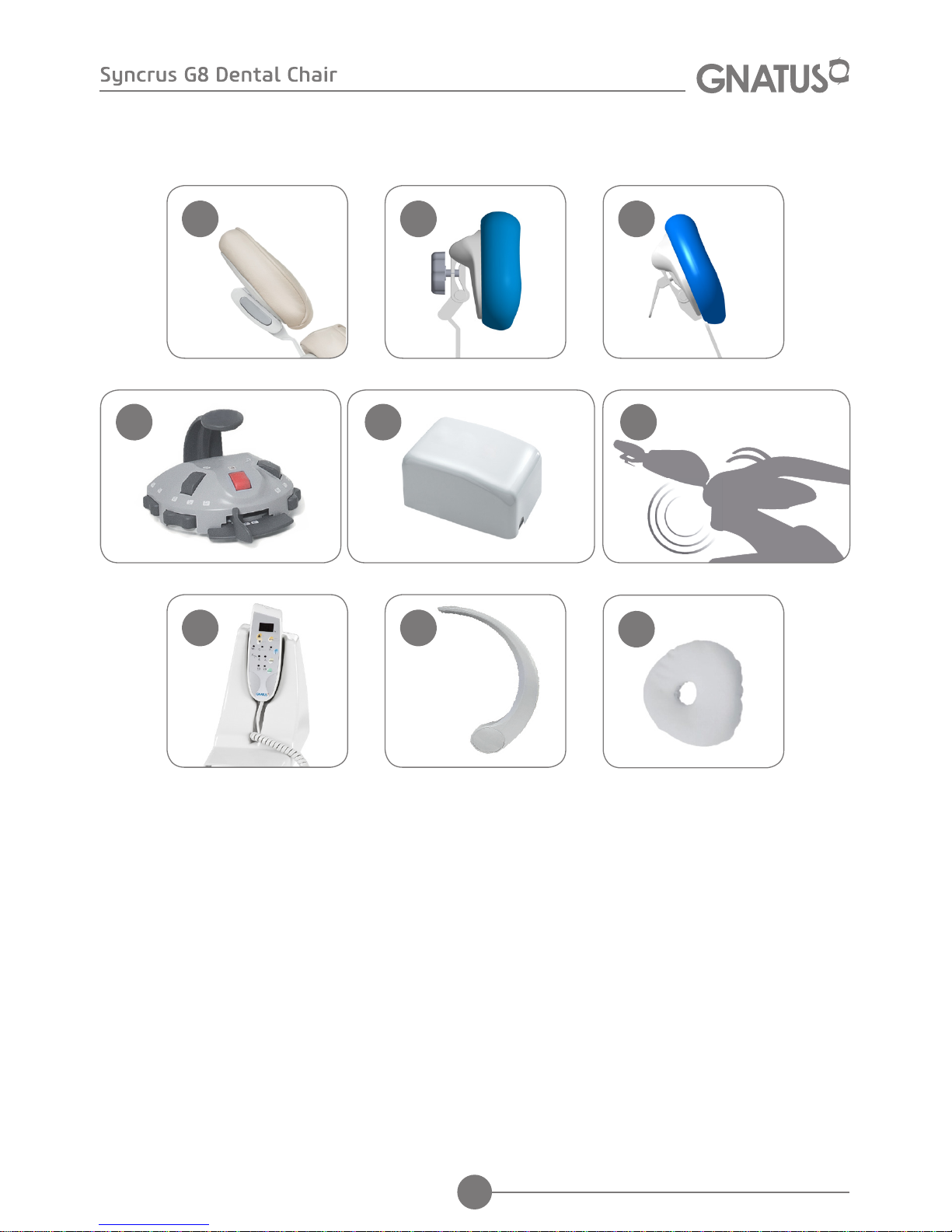

*01 - Bi articulated headrest ("click" system).
*02 - Bi articulated headrest (driven by knob).
*03 - Bi articulated headrest (driven lever).
*04 - "Wireless system" pedal
*05 - Spare bounding box kit.
*06 - Anti-smashing device.
*07 - Massager.
*08 - Retractable arm.
*09 - Cervical support.
Attention
- The drawing illustrates all the optional items (page 07), therefore, your equipment will
consist only of the chosen items selected during your purchase option.
- The use of any part, accessory or material not specied or provided in these use instructions
is of entire responsibility of the user.
*Items optional
MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON-
SUMPTION

9
TECHNICAL SPECIFICATIONS
General features
Models
Syncrus G8
Supply voltage
127/220 V~ (selectable internally)
Frequency
50/60 Hz
Electric shock protection type
Class one equipment - Applied Part Type B
Mode of Operation
Continuous with intermittent load: T-on 1min - T-o 4min
Protection against harmful water penetration or particulate material
IPX0 - All the chair, excepting foot control
IPX1 - Foot control
Input power
530VA
Protection fuses
F1 and F2 T8A/250V
Rising capacity
Distributed load of 200 kg (Patient mass + accessories and equipment)
Net Weight
127 Kg
Gross Weight
160 Kg

10
Soft start
The chair features a soft start device for seat and backrest up-down movements. This device provides
a better sensation for the patient, because it stops the of jolts happening at the beginning and at
the end of the movements and this also increases the useful life of the motor.
Emergency stop
An “emergency stop” key is provided. When pressed, all functions and movements are automatically
interrupted. When pressed again, unit returns to operation, keeping the programming and positions
previously preset.
Bump preventing device
Always having in mind the dentist’s security, we developed the leg bump preventing device. When
the chair were descending, any obstruction below the chair would trigger this device, interrupting
all functions and preventing further complications.
Current surge protection
The equipment is endowed with high current, safety device that uses 2 fuses and internal overpower
protection for the equipment that is attached to the chair.
Electronic system
Chair features an low-voltage electronic system which allows complete interface with Gnatus
reectors, equipment and electronic water units, not only providing security to both patient and
dentist but also extending the components life.
List of pieces and circuit scheme
Gnatus Company declares that the supply of the circuit scheme, list of pieces or any other information
that propitiate technical attendance for the user, can be request if there is an agreement between
the user and Gnatus Company.
Attention
The materials used to produce the equipment are Biocompatible.
Warning
Pay attention while using this equipment together with other movable equipment, in order
to avoid collisions.
*Items optional
TECHNICAL SPECIFICATIONS

11
TECHNICAL SPECIFICATIONS
Electromagnetic Emissions
The Syncrus G8 Dental Chair is made to be used in the electromagnetic environments specied
below. The client or the user of the Syncrus G8 Dental Chair must be sure that it is used in
such environment.
Emission test Compliance Eletromagnetic environment - Guide
RF emissions
ABNT NBR IEC CISPR 11
Group 1 This Syncrus G8 Dental Chair uses RF
energy only for internal functions.
However, its emissions are too low and it's
unlikely to cause any interference in the
equipments next to it.
RF emissions
ABNT NBR IEC CISPR 11
Class B
Emissions of harmonics
IEC 61000-3-2
Class A This Syncrus G8 Dental Chair is proper
to be used in all establishments; including
domestic settings and those directly
connect to a public low voltage distribution
which feeds domestic buildings.
Fluctuation of Voltage /
Emissions of icker
IEC 61000-3-3
As per
Electromagnetic emissions

12
Guidelines and manufacturer's declaration - electromagnetic immunity
The Syncrus G8 Dental Chair is made to be used in the electromagnetic environments specied
below. The client or the user of the Syncrus G8 Dental Chair must be sure that it is used in
such environment.
Immunity
test
ABNT Test level
NBR IEC 60601
Level of
compliance
Electromagnetic
environment Directives
Electrostatic
discharge (ESD)
IEC 6100-4-2
± 6 kV Contact
± 8 kV Air
± 6 kV Contact
± 8 kV Air
Floors should be wooden,
concrete or ceramic. If
the floor is covered with
synthetic material, the
relative humidity should be
at least 30%.
Quick electric
transitory phases
/ train of pulses
(”Burst”)
IEC 61000-4-4
± 2 kV in power
supply lines
± 1 kV in input /
output lines
± 2 kV in power
supply lines
± 1 kV in input /
output lines
It is advisable that the
quality of the power supply
should be that of hospital
or typical commercial
environment.
Surges
IEC 61000-4-5
± 1 kV lines (s) to
lines (s)
± 2kV lines (s) to
ground
± 1 kV lines (s) to
lines (s)
± 2kV lines (s) to
ground
It is advisable that the
quality of the power supply
should be that of hospital
or typical commercial
environment.
Reduction,
i n t e r r u p t i o n
and variance of
voltage in power
supply input lines
IEC 61000-4-11
< 5% Ut
(>95% drop in Ut)
for 0,5 cycle
40% Ut
(60% drop in Ut)
for 5 cycles
70% Ut
(30% drop in Ut )
for 25 cycles
< 5%Ut
(>95% drop in Ut )
for 5s
< 5% Ut
(>95% drop in Ut )
for 0,5 cycles
40% Ut
(60% drop in Ut)
for 5 cycles
70% Ut
(30% drop in Ut )
for 25 cycles
< 5% Ut
(>95% drop in Ut )
for 5s
The recommended power
supply quality is the same
as used for commercial or
hospital environment. If
is required a continuous
use during energy supply
outages, it is recommended
that the Syncrus G8
Dental Chair be feed by
an uninterruptible power
supply or a battery.
Magnetic eld in
f re q u e n c y o f
power supply
(50/60Hz)
IEC 61000-4-8
3 A/m 3 A/m If an image distortion occurs,
may be necessary place
the equioment far from
the supply frequency or to
installa magnetic armour.
The frequency magnetic
eld shall be measured at
the installment place to
assure that it is low enough.
NOTE Ut is the a.c. power supply voltage before the application of the test level
TECHNICAL SPECIFICATIONS

13
Guidelines and manufacturer's declaration - electromagnetic immunity
The Syncrus G8 Dental Chair is made to be used in the electromagnetic environments specied
below. The client or the user of the Syncrus G8 Dental Chair must be sure that it is used in
such environment.
Immunity
test
ABNT test level
NBR IEC 60601
Level of
compliance
Electromagnetic Environment
Directives
RF conducted
IEC 61000-4-6
RF radiated
IEC 61000-4-3
3 vrms
150 kHz up to 80 MHz
3 V/m
80MHz up to 2,5 GHz
3 Vrms
3 V/m
It is advisable that portable and mobile RF
communication equipment is not used
near any part of the Syncrus G8 Dental
Chair, including cables, with a separation
distance less than the one recommended,
calculated from the equation applicable to
the frequency of the transmitter.
Recommended separation distance:
d = 1,2√P
d = 1,2√P 80 MHz thru 800MHz
d = 2,3√P 800 MHz thru 2,5MHz
Where P is the nominal maximum power of
output of the transmitter in watts (W), as
per the manufacturer of the transmitter,
and d is the recommended separation
distance in meters (m).
It is advisable that the el intensity from
the RF, transmitter as determined by
means of electric inspection on-sitea,is
less than the level of compliance in each
frequancy rangeb.
There may be interference near the
equipment
marked with the following symbol:
NOTE 1 At 80MHz and 800MHz, the highest frequency range applies.
NOTE 2 These directives may not be applicable in every situation. The electromagnetic
transmission is aected by the absorption and reection of structures, objects and people.
a - The eld intensities set by the xed transmitters, such as radio base stations, telephones
(mobile phone, wireless) land mobile radio, amateur radio, AM and FM radio transmissions and TV
transmissions can not be predicted with accuracy. Due to the RF xed transmitters is recommended
to install an electromagnetic inspection at the local in order to evaluate the electromagnetic
environment. If at the place where the Syncrus G8 Dental Chair is be using the eld intensity
level exceeds the conformity level for the RF above, is recommended to observe if the operations
are normal. Whether abnormal operations are observed, additional procedures shall be necessary
such as reorientation or replace the Syncrus G8 Dental Chair.
b - Whether above the frequency range of 150kHz to 80 MHz is recommended a eld intensity
below than 3 V/m.
TECHNICAL SPECIFICATIONS

14
Recommended distances between portable and mobile RF communication equipments and the
Syncrus G8 Dental Chair
The Syncrus G8 Dental Chair is made to be used in an electromagnetic environment in which
RF disturbances are controlled. The client or the user of the Syncrus G8 Dental Chair may
help preventing electromagnetic interference by keeping a minimal distance between mobile
and portable RF communication equipment (transmitters) and the Syncrus G8 Dental Chair
as recommended below, in accordance with the maximal voltage output of the communication
equipment.
Transmitter Maximum
Output (W)
Separation distance according to transmitter frequency (M)
150 kHz to 80 MHz
d= 1,2√p
80 kHz to 800 MHz
d= 1,2√p
800 kHz to 2,5 GHz
d= 2,3√p
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters with a maximum nominal output power not listed above, the recommended d
separation distance in meters (M) can be determined using an equation applicable to the frequency
of the transmitter, where Pis the transmitter maximum nominal output in watts (W) according
to the transmitter manufacturer.
NOTE 1 At 80MHz and 800MHz, is applied the separation distance for the higher frequency range.
NOTE 2 These guidelines may not apply to all situations. The absorption and reection from
structures, objects and people aect the electromagnetic propagation.
TECHNICAL SPECIFICATIONS

15

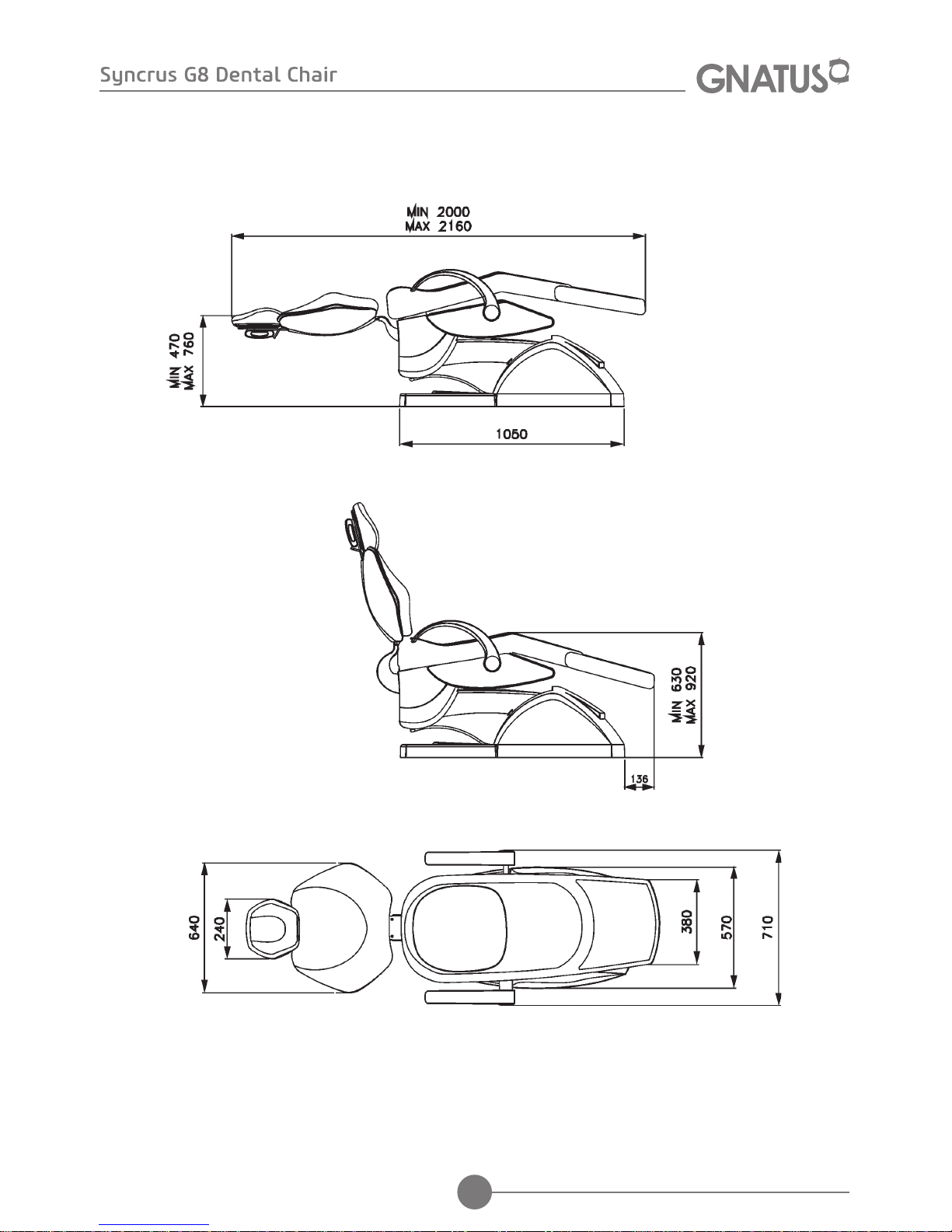

Dimensions (mm)
TECHNICAL SPECIFICATIONS

16

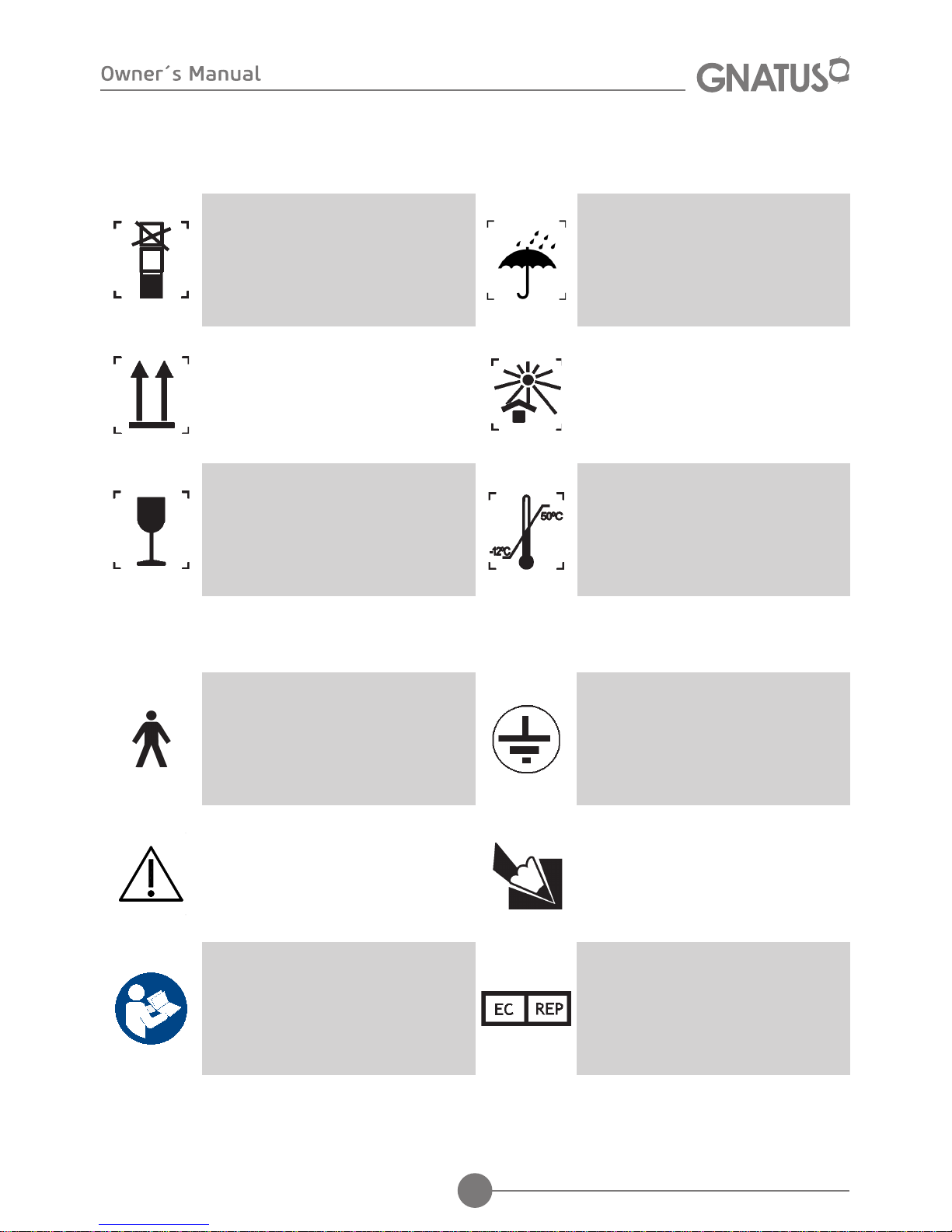

Packing symbols
Product symbols
It determines the maximum
quantity of boxes which can be
stacked during transportation and
storage “as per packaging”.
Packing to be transported and /
or stored avoiding humidity, rains
and wet oor.
Packing to be transported and /
or stored with the harrows up.
The packing must be stored and
transported away from direct sun
light exposure.
Packing to be transported and / or
stored with care (should not suer
drop and neither receive impact).
Temperature limit for the packing
to be stored or transported.
Applied part type B.
Grounding (at several points of the
equipment) indicates the condition
of being grounded.
Attention:
Check the working instructions.
Note:
It indicates useful information for
operation of the product.
Refer to the instruction manual. Authorized representative in the
European Community.
TECHNICAL SPECIFICATIONS

17

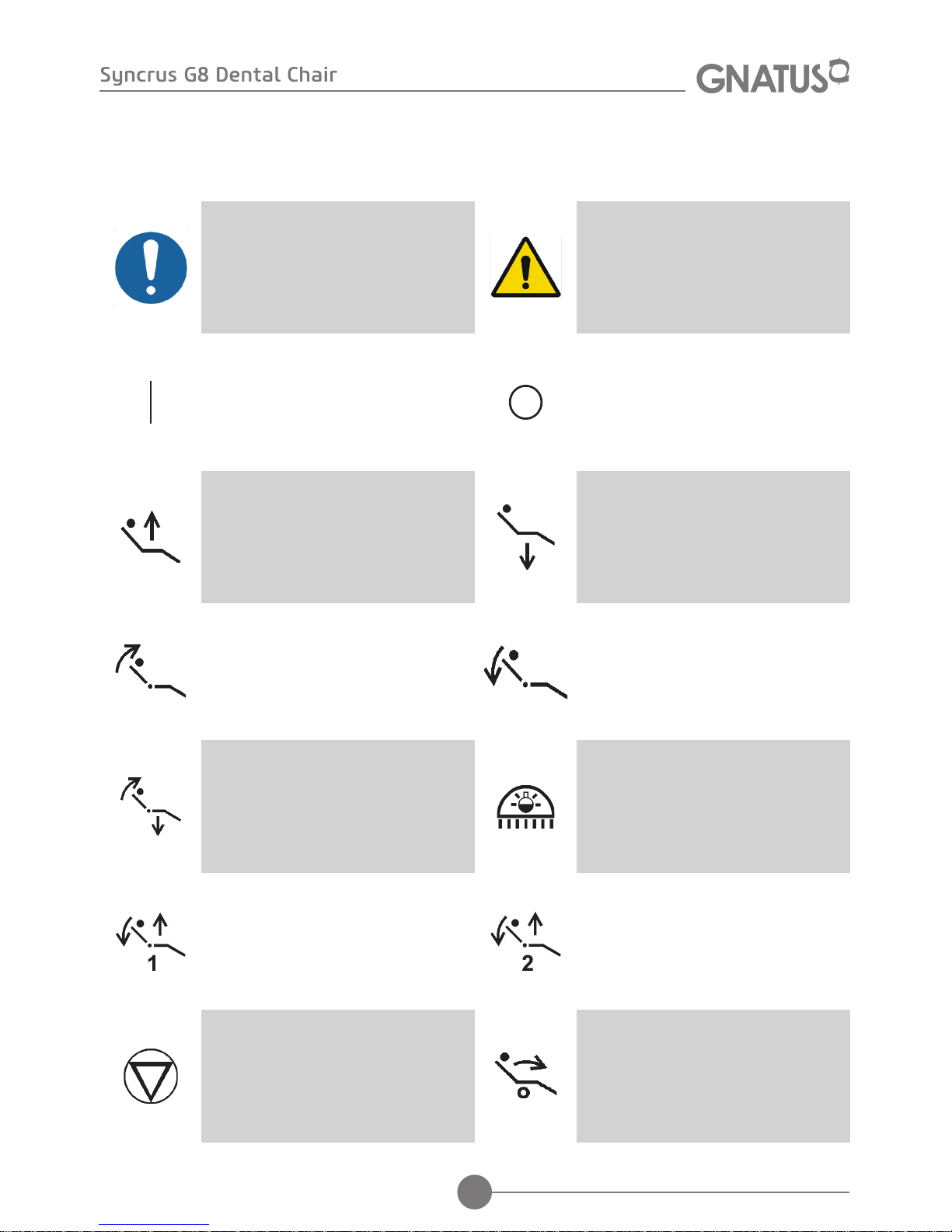

General sign for mandatory action.
General warning:
If the instructions are not properly
followed, the use can lead to
damage to the product, user or
patient.
Turned on position. Turned o position.
Lift seat. Lower seat.
Lift backrest. Lower backrest.
It determines the initial position. Activation of the dental light.
It determines the work position
“1 and 2”.
It determines the work position
“3 and 4”.
Emergency stop. It determines to spitting position /
last position.
Product symbols
TECHNICAL SPECIFICATIONS

18
INSTALLATION OF EQUIPMENT
The installation of this equipment requires the necessity of specialized technical assistance
(Gnatus). Ask for the presence of a Gnatus representative technician at the nearest seller, or
through the Gnatus Service Center: + 55 (16) 3512-1212.
Note
That information are also part of the Installation and Maintenance Manual of the equipment
that is found with the Gnatus authorized technical representative.
Warning
For your safety, the Dental Chair leaves the factory positioned at 220V~, so ensure that
your network is compatible before turning it on. If it is 127V~, request the presence of an
authorized GNATUS technician.
INFRA-STRUCTURE SPECIFICATION
The perfect functioning and the durability of the Gnatus dental set are directly linked to the
preinstallation, which must be carried out by duly trained professionals according to the instructions
contained in the "Pre installation plan" which is found with the Gnatus authorized technical
representative.

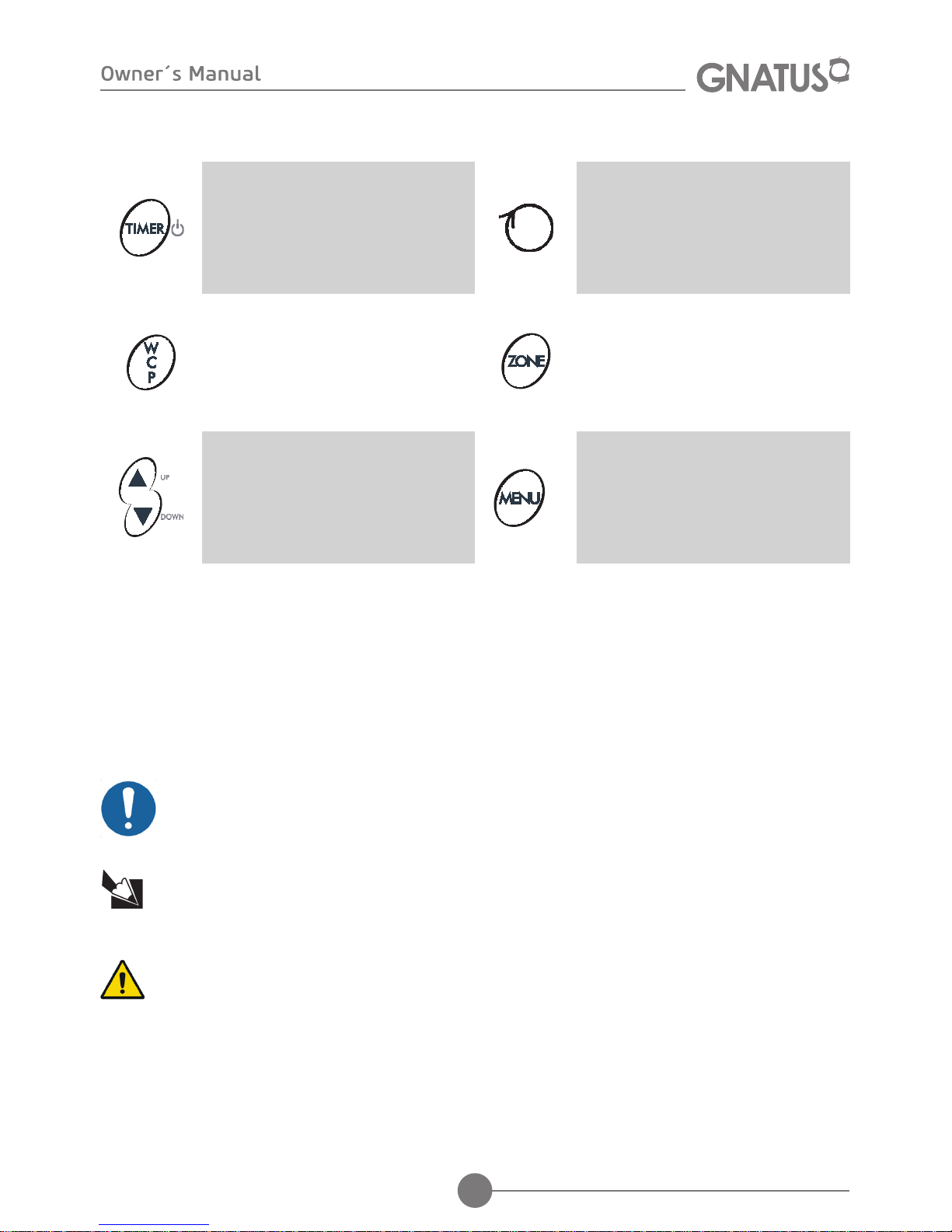

On/O - Massager. Electric low-speed-motor
rotation inverter.
Selection - Massager. Zone 1/2 - Massager.
Control + or - Speed /
Intensity - Massager. Speed/Intensity - Massager.
TECHNICAL SPECIFICATIONS

19
INSTALACIÓN DEL EQUIPAMIENTO
Attention
The Gnatus dental set is dimensioned so that the stability of the set composed of a Dental
Chair, Delivery Unit, Dental Light and Water Unit remains stable in normal conditions of use.
If, by option of the customer, it is necessary to install other accessories in the dental set.
Gnatus informs you that the evaluation of the stability is the customer’s responsibility, and
suggests that in this case the base of the dental chair is fastened to the oor by means of
the holes already furnished in its base. This means that the added weight does not jeopardize
the stability of the set.
How to x the dental chair base to the oor
Mark the oor, stick with 12mm drill, insert two S12 screw plastic plugs in the holes, place the chair
aligned to the holes and x it using 3/8” x 90mm hex head steel screws and washers.
Base pierced for option of fastening
the dental chair to the oor: 2 Holes
located on the side of the bearings
“outside” covered by the nishing
cover of the motor.
Minina area for the installation
of a dental set should be 10m ².
Warning: Screws, washers and
bushings with the product.

20
OPERATION OF EQUIPMENT

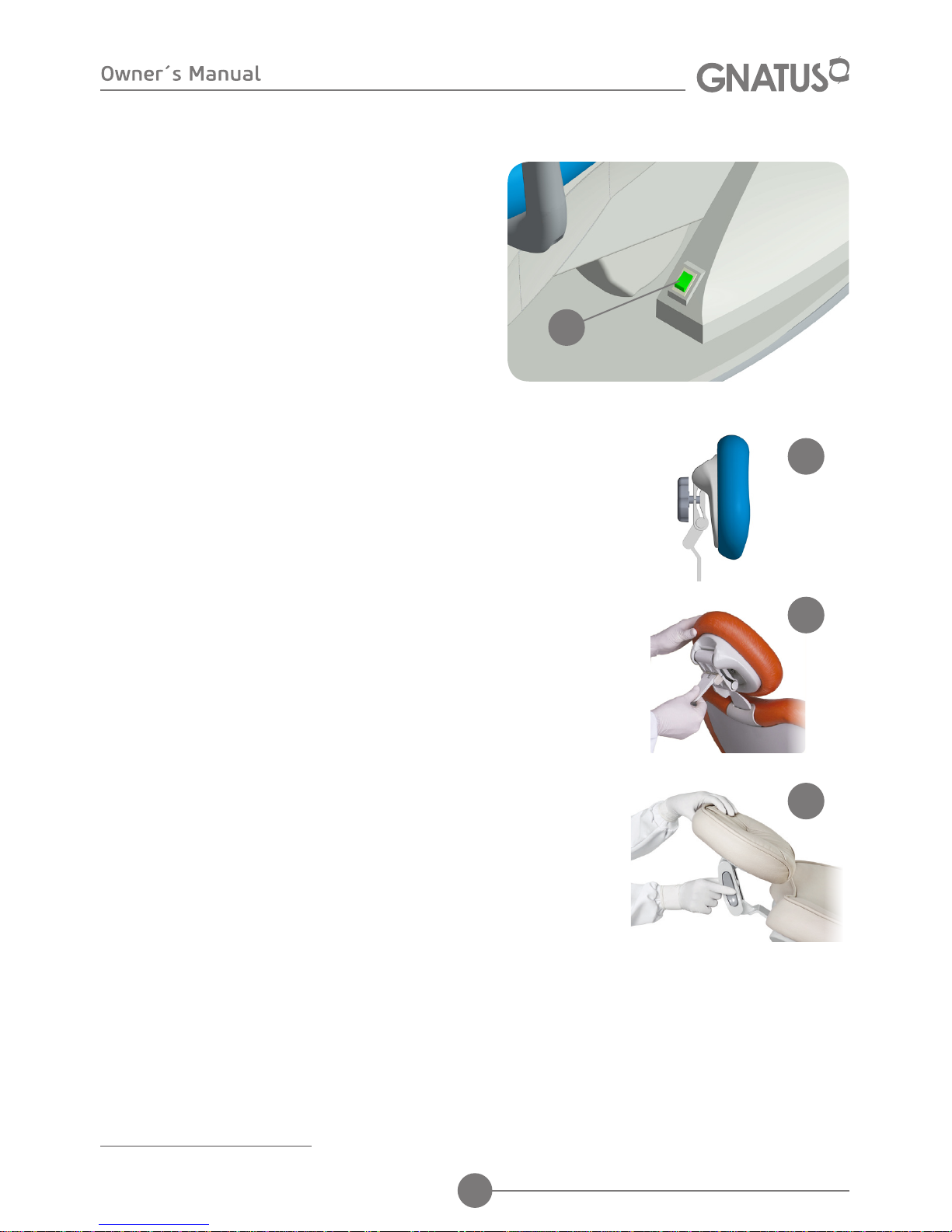

Bi-articulated head backboard activated by "knob,
lever or Click"
Actuated by handle*:
To move the articulated headrest, release the lever (b) turning in
counterclockwise direction, nd the desired position and tighten it,
turning clockwise to lock the mechanism.
Actuated by lever*:
To move the articulated headrest, release the lever (c) pulling it
up, nd the desired position and move the lever down to lock the
mechanism.
Click:
To move the headrest pivot/articulation, press the Hold Key (d).
Find the desired position and release the key to lock.
Initiating
After positioning the chair in the chosen place:
- Turn on the general key - on/o switch located on
the engine cover trim side (a).
- Thru the command pedal, adjust the chair to the
desired position.
- Adjust the headrest position.
a
d
b
c
*Items optional
