GOALRILLA B3100W User manual

MODEL NO.
BB3100W
GS-I BASKETBALL SYSTEM
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product. Ó2017 Escalade ÒSports
Please visit our World Wide Web site at: www.goalrilla.com
ON-LINE TROUBLE SHOOTING TECHNICAL ASSISTANCE
ON-LINE PARTS REQUESTS FREQUENTLY ASKED QUESTIONS
ADDITIONAL ESCALADE®
SPORTS PRODUCT INFORMATION
2L-7254-03
1. Read this manual carefully before starting assembly. Read each step completely
before beginning each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and
cartons before assembling or ordering parts.
3. To make assembly of your basketball system easier, use the Hardware Identifier on
page 3 and 4 to identify and sort all fasteners. Check all cartons for kits. All hardware
is not located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon,
mounting holes may not align and parts may not easily fit together. Leave locknuts slightly
loose until you are instructed to tighten them.
Please Do Not Return This Product to the Store!
Contact Escalade®®
®®
® Sports customer service department at:
Phone: 1-888-USA-GOAL Toll – Free !
Fax: [phone] Toll – Free !
E-mail: [e-mail]
Mailing Address:
Escalade Sports
PO Box 889
Evansville, IN 47706
5.
Save this instruction and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
O W N E R ' S M A N U A L

2

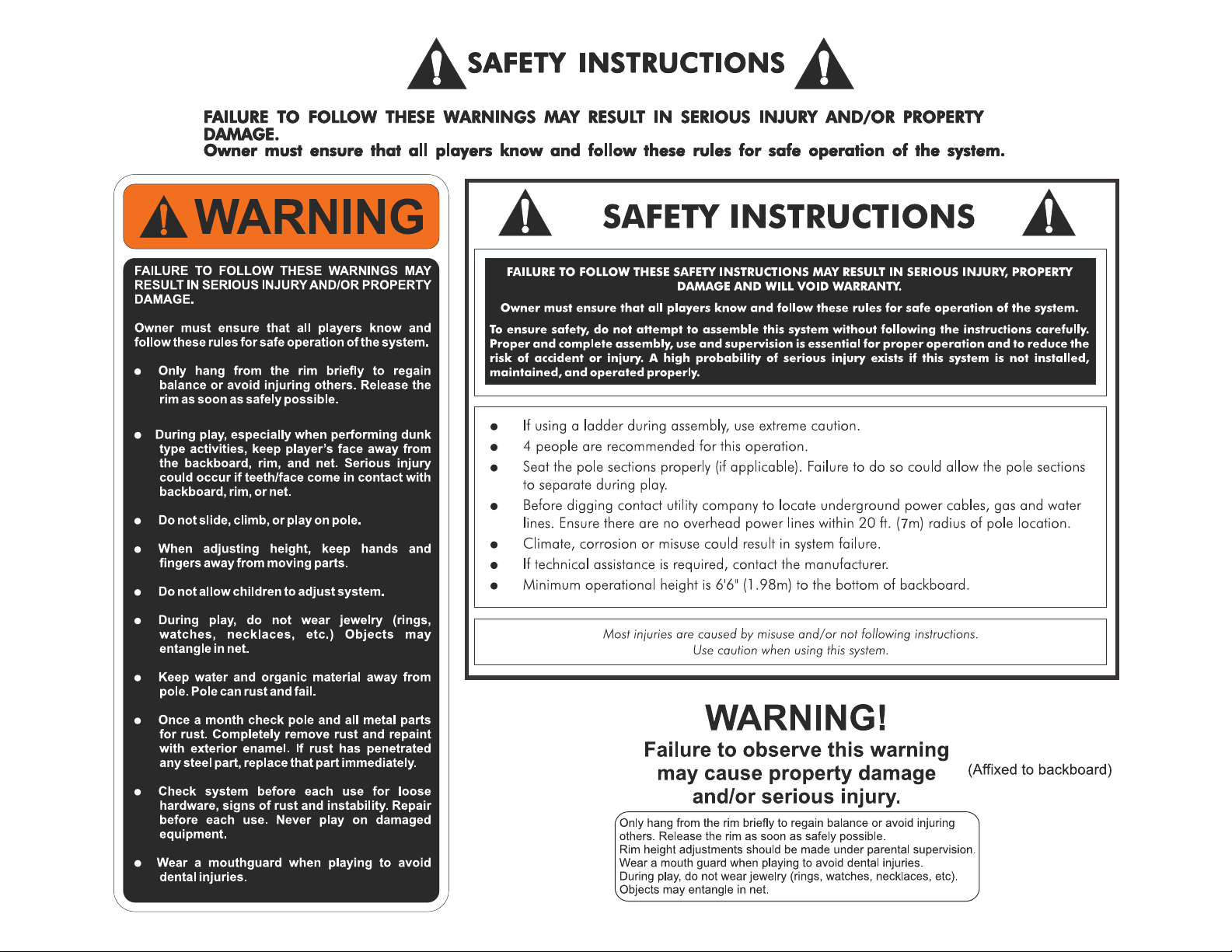

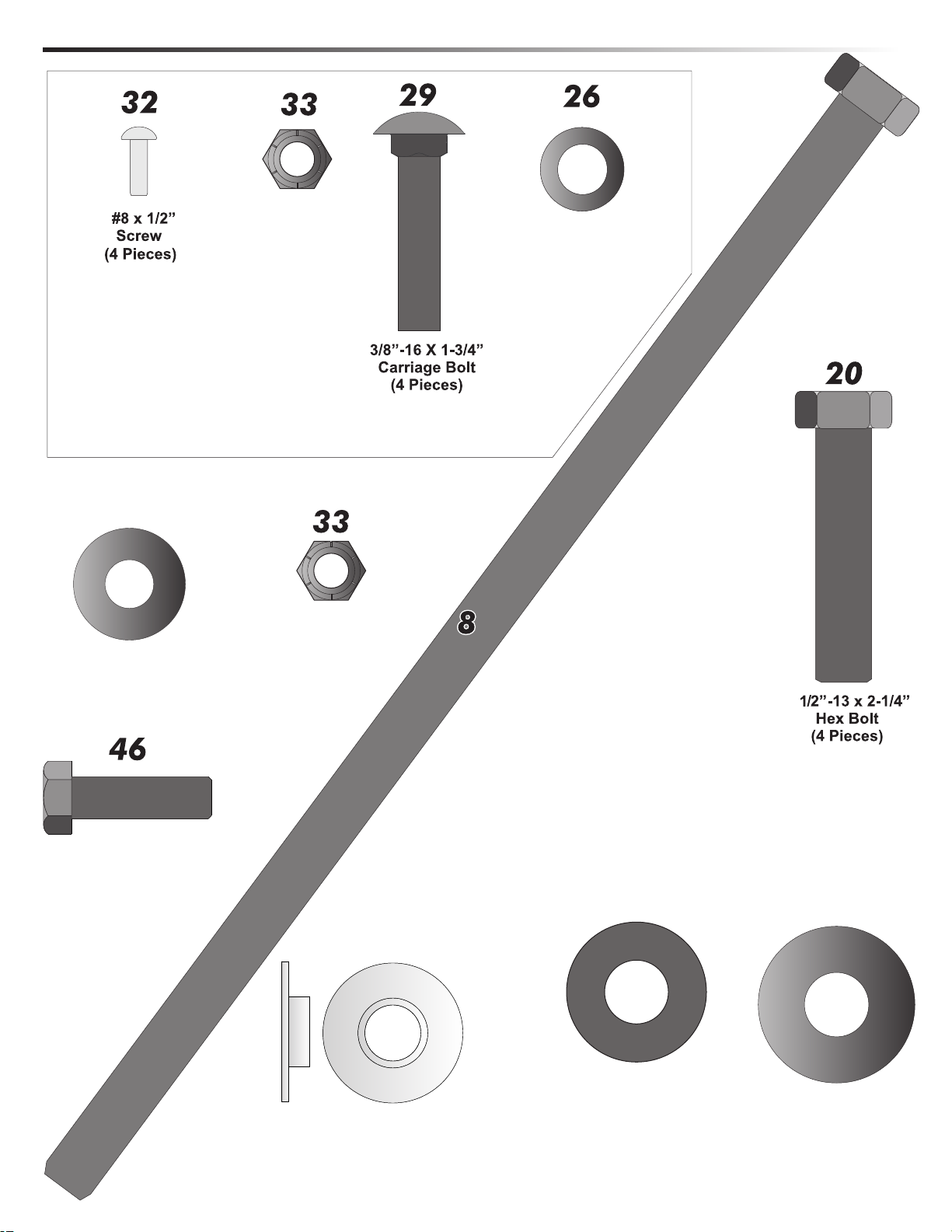

HARDWARE IDENTIFIER
1/2” Split
Lock Washer
(2 Pieces)
18
-13 x 1”
Hex Bolt
(2 Pieces)
19
Flat Washer
(2 Pieces)
3
/
12”
/
12”
Pull Pin
(1 Piece)
41
Hardware located in 4A-7081-00 box
5
1/2”X 1-1/4” Dia. Plastic-Washer
(4 Pieces)
5/8” Flat Washer
(8 Pieces)
37
5/8” Thread
Protector
(4 Pieces)
34
Hardware located in Anchor kit box
77
1/2”-13
Nylon Insert Locknut
(3 Pieces)
4
1/2”-13
Nylon Insert
Locknut (Thin)
(4 Pieces)
47
3/4” OD x 6-3/4
Pivot Tube (1 Piece)
14
14
1/2”-13 x 11”
Hex Bolt
(1 Piece)
1/2”-13 x 11”
Hex Bolt
(1 Piece)
3

3/8”-16 X 1-1/4”
Hex Bolt
(4 Pieces)
HARDWARE IDENTIFIER
3
Flat Washer
(14 Pieces)
/
12”
5
1/2”X 1-1/4” Dia. Plastic-Washer
(20 Pieces)
3/8” Flat Washer
(8 Pieces)
45
Hardware required for rim assembly
(4 pieces)
3/8” X 19mm Flat Washer
1/2”-13 x 12”
Hex Bolt
(2 Pieces)
1/2”-13 x 12”
Hex Bolt
(2 Pieces)
3/8”-16
Nylon Insert
Locknut
(4 Pieces)
3/8”-16
Nylon Insert
Locknut
(4 Pieces)
Step Bushing
(4 pieces)
22
4

Overhang when adjusted to 10 ft. =44 1/2”
INSTALLATION TIMELINE
1. Prior to anchor system and goal assembly, call utility services for location of underground utility lines before you dig.
2. Vertical main post assembly is a two part process.
ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1)
Before digging hole for anchor system, check for
buried power, gas, water, and telecommunication
lines! Failure to do so could result in serious or fatal
injury! Contact your local utility company if unsure.
PART 1
Day 1. Complete Anchor System Installation Instructions.
(Below)
Day 2-4. Allow concrete to cure.
PART 2
Day 5. Complete GoalrillaTM assembly instructions. (Requires
four adults)
Figure 1
Figure 2
2. Assemble anchor system as follows: Thread nut (#35) to bottom
of threads on anchor bolt (#39) insert threads of anchor bolt
(#39) through hole on anchor plate (#38) and secure with nut
(#35). Repeat this step for the remaining
anchor bolts. See
Figure 2. Note:
Each leg of
anchor bolts
should face the
anchor bolt to the
right. See Detail
A.

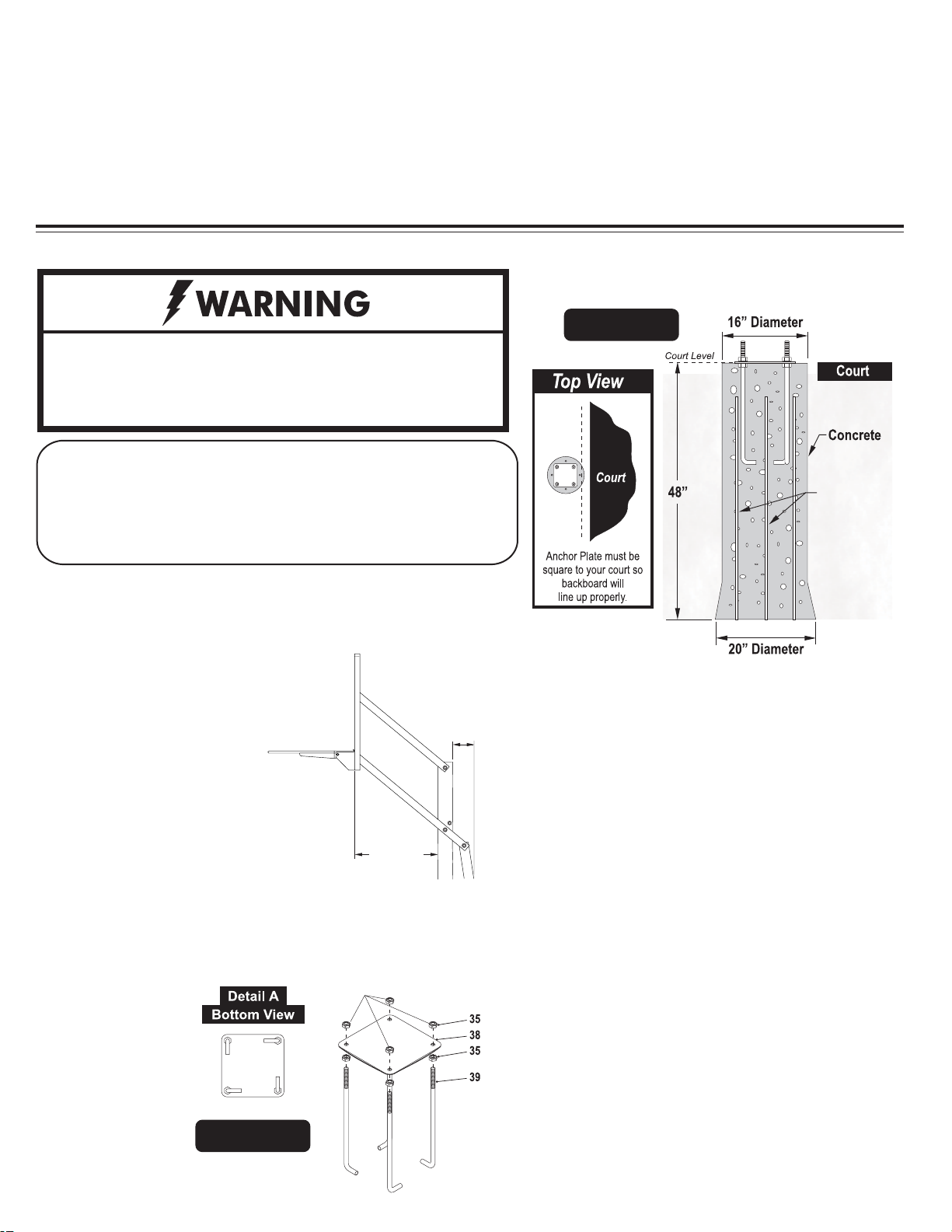

1. Determine the location of the anchor
system. The proper location is as close to
the court without making contact, as
shown in Figure 1. This,
however, is a general rule.
If you need to locate the
anchor system in a location other than
this, use the following dimensions as a
guide.
Note: For best results with less vibration, anchor system
should be independent of court. If pouring concrete for
both at same time, add an expansion joint in between.
THESE NUTS
USED FOR
LEVELING
OVERHANG
18 INCH
MINIMUM
REAR
CLEARANCE
REQUIRED
Note: When digging hole, if you hit rock
and cannot dig through contact a contractor.
Note: Minimum of 18” rear clearance is required behind pole.
Note: The bottom four nuts will be forever embedded in
concrete. The top four nuts remain on bolts and are
used for leveling. (See Step 11 on page 8)
Allow concrete to cure for a MINIMUM of 72 hours.
(Key #40)
Rebar
Note: Using a concrete form for the top 4" of the concrete
is recommended. Cardboard forms can be purchased at
some hardware and home stores or a wooden form can
be constructed out of 2 x 4's.
3. Mix and pour concrete into hole. Follow instructions on
concrete bag. Stop about 18" below court level.
4.
5. Place form in desired location and finish pouring concrete
up to court level.
6. Push anchor system into concrete and agitate to work out
voids in concrete. Immediately use a level to level and square
anchor plate to playing surface. Clean off any concrete that
may be on exposed threads.
Note: Failure to dig and fill hole as instructed will result
in increased system vibration.
Insert four reinforcement bars (Key #40) into concrete 8"
apart creating a square in center on hole.
*Tip: It is always a good idea to purchase one or two
extra bags of concrete, just in case you need them. If
extra bags are not used you can return them to the store.
5
Items needed for Anchor Installation (not included)
11 - 80 lb. bags of concrete (2-3 extra recommended)
1 - post hole digger (optional)
1 - 15/16” open end wrench
1 - 15/16” socket and ratchet (optional)
1 - wheel barrow
1 - garden hose
1 - level
1 - tape measure
1 - concrete form (see note after step 2)

5
5
15
3
3
16 18
18
19
19
1
2
Figure 4

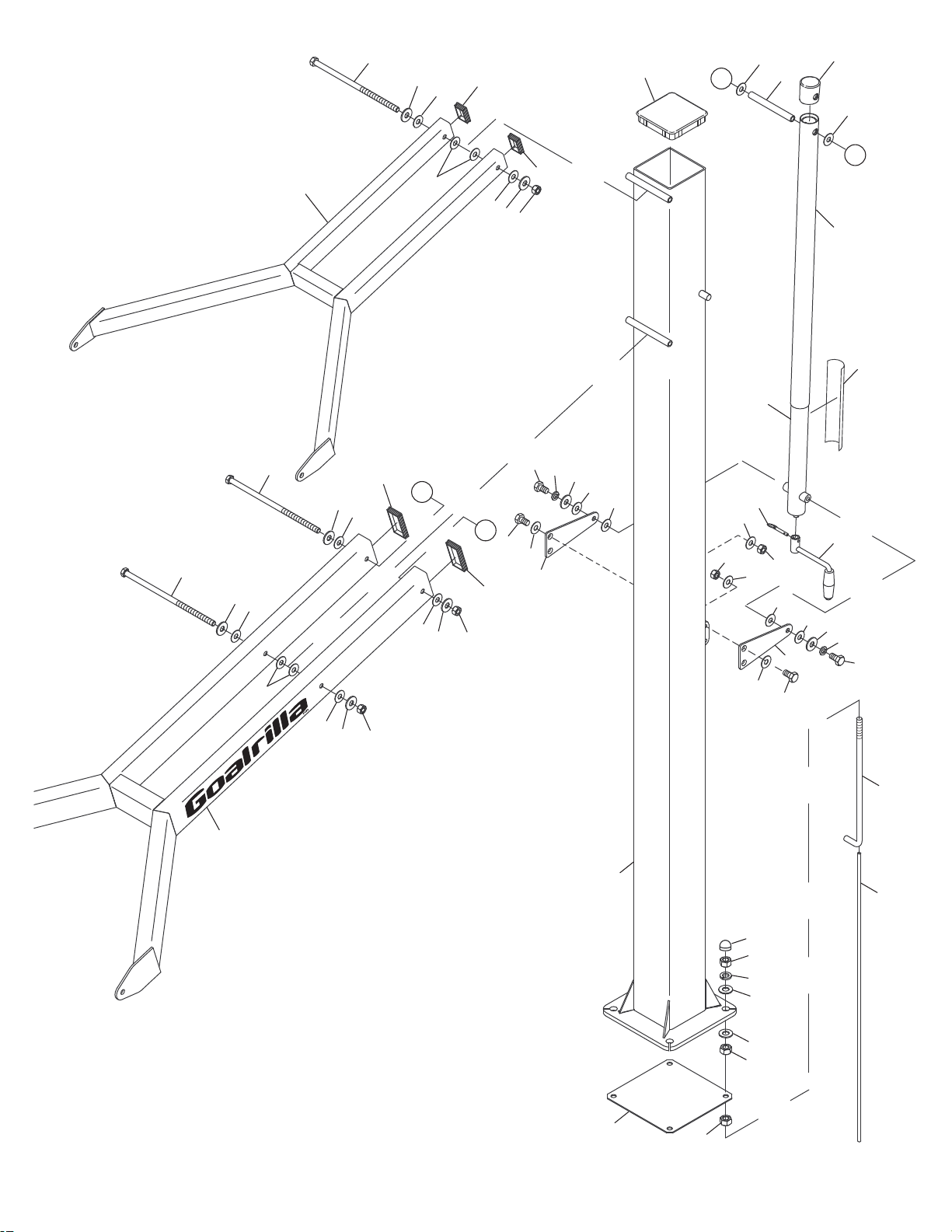

3. Lay Pole (#2) on its side on two padded saw horses. Secure
Actuator (#16) to Pole (#2) using one bolt (#19), split
lockwasher (#18), washer (#3) and two plastic washers (#5)
to thread into each side of Actuator. See Figure 4. Tighten
bolts tight.

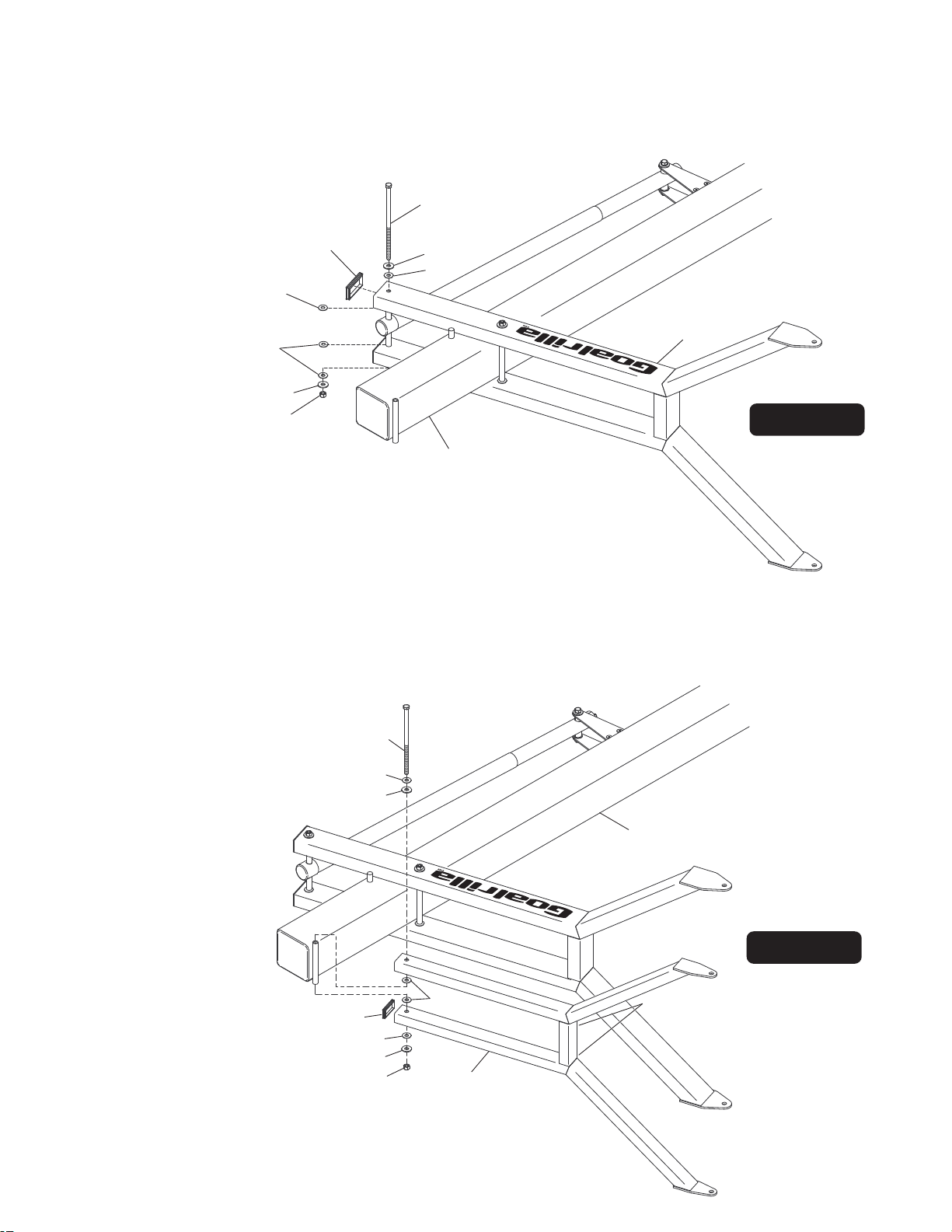

5. Attach lower arm (#11) to Pole (#2), as shown in Figure 5,
using a bolt (#8), two flat washers (#3), four plastic washers
(#5) and hex nut (#4).
Note: make sure "Goalrilla" lettering is right side up.
DO NOT tighten bolt (#8) at this time. See Figure 5..
Figure 5
8
3
5
5
5
3
4
11
2
ASSEMBLY INSTRUCTIONS (Day 5)
GOALRILLA
TM
TOOL REQUIRED FOR THE FOLLOWING STEPS
1 - 15/16" open end wrench
1 - 15/16” socket and ratchet (optional)
1 - Level
1 - Tape Measure
1 - Rubber Mallet
1 - Set of Padded Saw horses
1 - 9/16” Deep Well Socket & Ratchet
1 - 3/4” Socket & Ratchet
1 - 3/4” Open end Wrench
1 - Phillips Screwdriver
1 - Ladder
NOTE: It is important for the installer to understand
the necessity of the Plastic Washers (#5) provided.
These washers adequately space painted parts at all
pivot points. Neglecting the use of these washers will
result in rusted parts.
NOTE: All board arms are made of rectangular
tubing. Tightening hardware too tight may
damage tubing and make adjustment of system
difficult.
NOTE: It may be necessary to use a rubber mallet
to tap in Pivot Tube. Figure 3
Figure 3
Figure 3
33
44
45
2
2
44
46
46
45
1.
2.

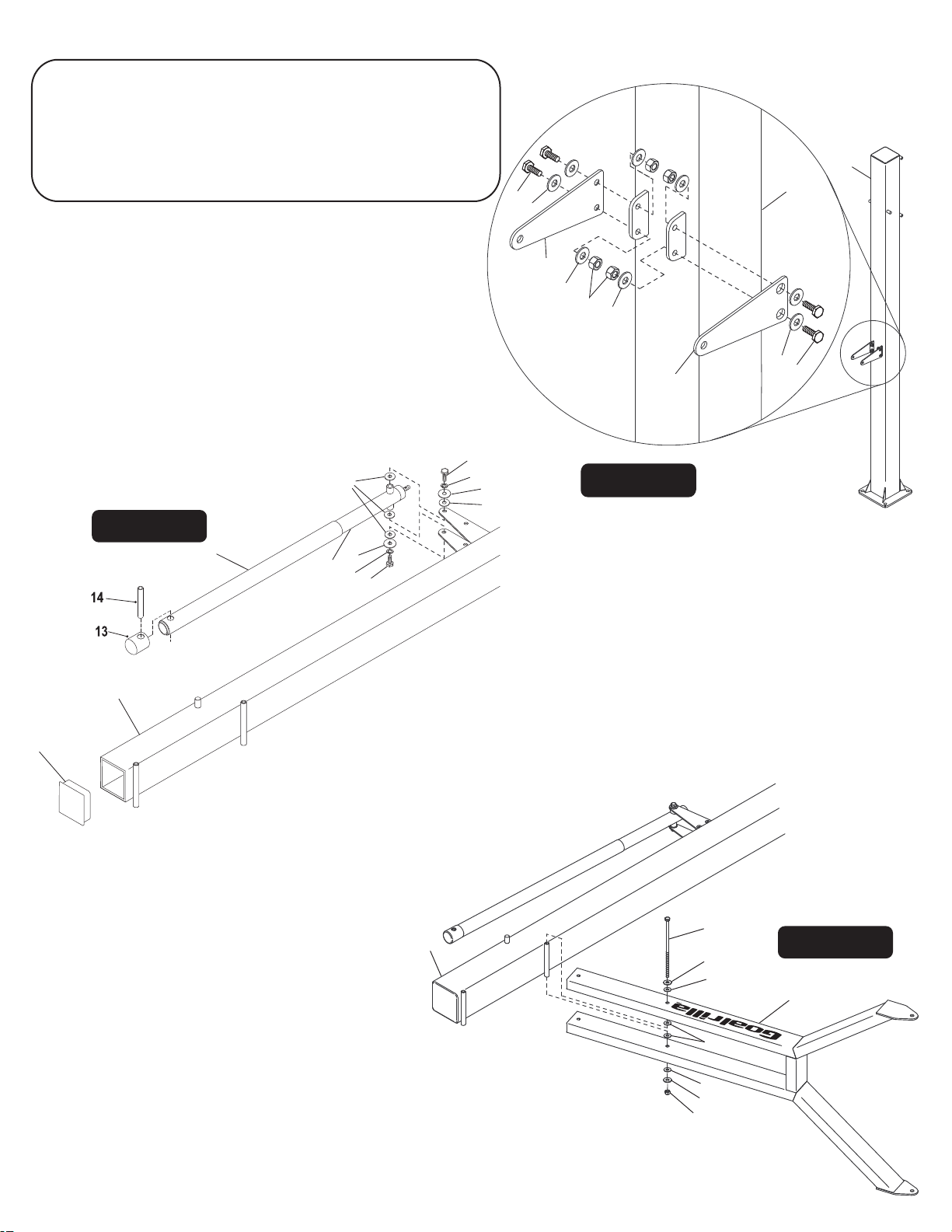

Attach Post Brackets (#44) to outside of brackets on back of Post
Assembly (#2). Secure with two Hex Head Bolts (#46), four
Wide Flat Head Washers (#45) and two Locknuts (#33) in each
Bracket (#44). See Figure 3.
If not already pre-assembled, slide Plastic Actuator Sleeve
(#15) over Steel Actuator (#16) and place Actuator Cap (#13)
on top. Align holes in all 3 parts and slide Pivot Tube (#14)
through holes in Actuator Cap (#13) Plastic Actuator Sleeve
(#15) and Steel Actuator (#16) until equal amounts stick out
through both sides of actuator. See Figure 4.
45
45
4. If not already pre-assembled, insert Pole Cap (#1) into top
of Pole (#2). It may be necessary to use a rubber mallet to
tap cap in. See Figure 4.
6

8. Attach Upper Arm (#6) to Pole (#2), as shown in Figure 7,
using a bolt (#7), two flat washers (#3), four plastic washers
(#5) and hex nut (#4).
Note: Tighten bolts snug but, do not over tighten.
Board Arms must pivot freely.
9. If the two Tube Plugs (#9) are not already installed insert them
into open ends of Upper Arm (#6). It may be necessary to use a
rubber mallet to tap plug in.
6. Secure Actuator (#16) to Lower Arm (#11) using one bolt
(#8), two flat washers (#3), four plastic washers (#5) and
one hex nut (#4). See Figure 6. Tighten both bolts (#8)
securing Lower Arm (#11).
Note: Tighten bolts snug but, do not over tighten.
Board Arms must pivot freely.
7. If the two Tube Plugs (#10) are not already installed insert them
into open ends of Lower Arm (#11). It may be necessary to use
a rubber mallet to tap plug in.
Figure 7
7
3
5
5
5
3
4 6
9
2
DRAIN HOLES
ON BOTTOM
8
3
5
10
5
5
4
3
11
2
Figure 6
7

Figure 8
10.
NOTE: Do not remove the nuts #35 you installed in step 2 (pg. 5).
Locate hardware needed to mount pole to anchor bolts. You will need, eight flat washers
(#37), four lock washers (#36), four hex nuts (#35) and four thread protectors (#34).
NOTE:
If basketball system needs to be
moved, do not try to salvage
caps. Caps (#34) will be tight,
please remove with plyers and
discard. New caps will come in
new anchor system.
NOTE:
If (#34) caps are missing for any
reason please call customer service.
DETAIL A

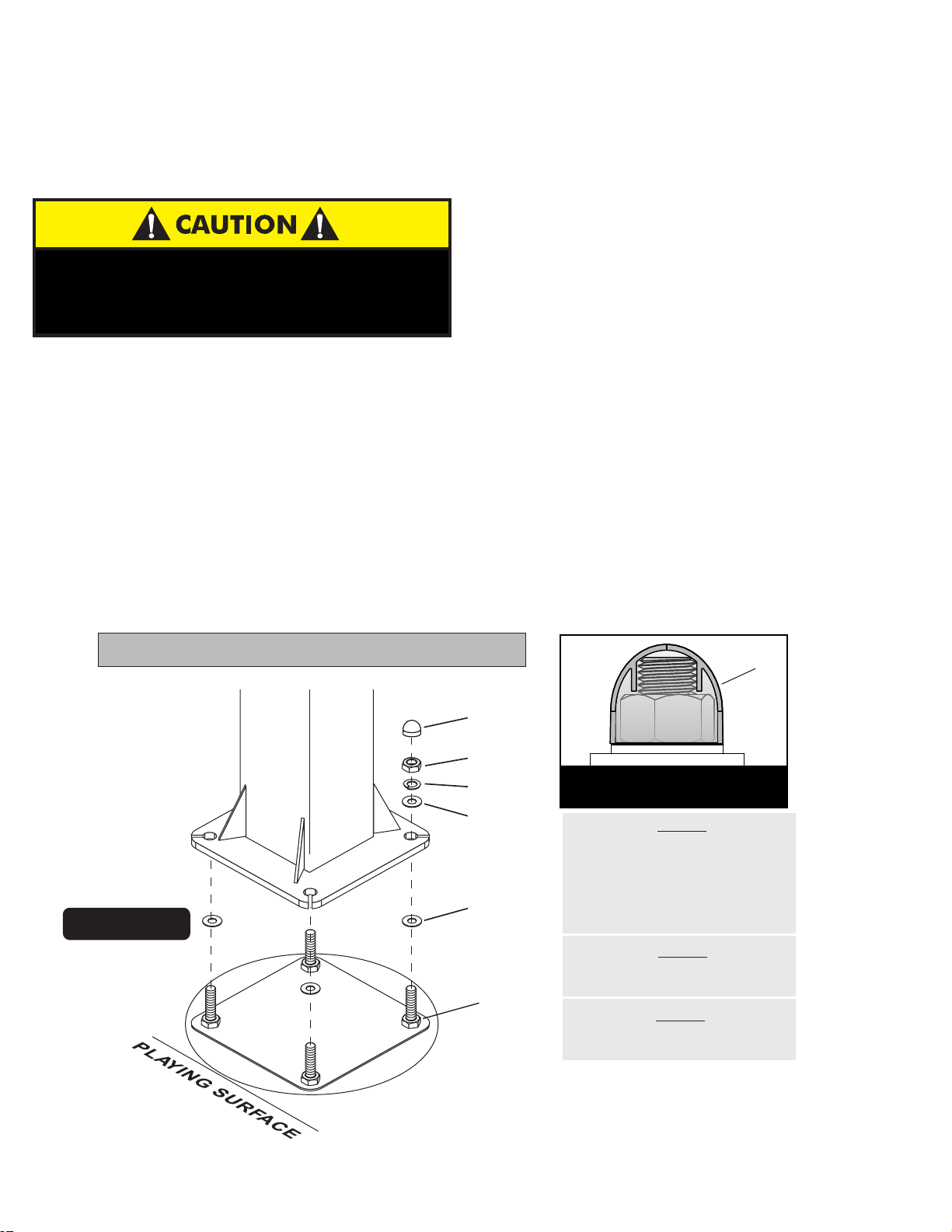

PLACING THE POST ON THE ANCHOR SYSTEM
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
POLE WILL WANT TO LEAN WHILE ATTEMPTING TO
STAND IT UP ON ANCHOR BOLTS.
Push on Thread Protector Cap (#34) until it is securely in place. Cap may be tight, push hard but DO NOT hit with
a hammer! See Figure 8 and Detail A.
Put a flat washer (#37) on each anchor bolt. Lift post onto anchor system and secure with one flatwasher (#37), one
lock washer (#36) and one hex nut (#35) for each anchor bolt. Tighten Fasteners finger tight, leave loose enough
to level pole. Place a level on pole and adjust bottom nuts #35 until pole is level (left to right and front to back).
Tighten top four hex nuts #35 tight. See Figure 8.
NOTE:
Bottom nuts #35 can be used for
leveling system. See Step 11.
11.
12.
34
34
35
36
37
37
35
(Bottom Nut)
Let concrete cure for a MINIMUM of 72 hours.
8

42
41
Safety Stop
Slide Actuator Handle (#42) onto shaft on the back of
Actuator (#16). Line up hole in shaft with hole in Actuator
Handle and insert Pull Pin (#41) to secure.
T
oaid in the assembly of the backboard lower the lower board
arm (#11), by turning the Actuator Crank, until the lower
arm makes contact with the Safety Stop.
13.
14.
Figure 9
9

17.
18. Place a level across rim assembly and adjust rim until it is level.
Finish tightening the four nuts.
Figure 10
Figure 11 19. Attach Rim Cover Plate (#31) using four screws (#32). See
Figure 11.
20.
NEVER USE RIM WITH COVERPLATE REMOVED!NEVER USE RIM WITH COVERPLATE REMOVED!
Check all nuts and bolts to make sure everything is tightened
properly. DO NOT over tighten pivot points, snug is tight
enough.
Pre-Installed
23
20
3
5
22
11
22
5
3
20
47
35
22
5
320
6
22
5
20 3
5
3
47
47
3
5
F
H
E
G
D
C
C
D
47
3
5
B
A
H
G
B
A
E
F
ATTACHING BACKBOARD TO BOARD ARMS
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
15. With at least three capable people, raise the backboard assembly
up and have the fourth attach Lower Board Arms to lower
mounting holes on backboard using two bolts (#20), two step
bushings (#22), (shipped already installed), four plastic
washers (#5), four flat washers (#3) and two thin
locknuts (#47). See Figure 10.
Note: DO NOT over tighten these bolts.
This is a pivot point. Snug is tight enough.
16.
Note: DO NOT over tighten these bolts.
This is a pivot point. Snug is tight enough.
Attach Upper Board Arms to upper mounting
holes on backboard using two bolts (#20), two
step bushings (#22) (if not pre-installed), four
plastic washers (#5), four flat washers (#3) and
two thin locknuts (#47). See Figure 10
Remove protective backboard covering and mount Goal
Assembly (#28) to Spacer Plate (#27 pre-installed) and
Backboard, as shown in Figure 11, using four bolts (#29), four
washers (#26), and four locknuts (#33). Tighten fasteners
finger tight, but leave them loose enough to level rim.
Note: Be sure to
install board arms
to the OUTSIDE of
tube as shown.
10

Figure 12
Two adults are recommended for
this step, one to level and one to
adjust the bottom #35 nuts.
If further leveling is required loosen top #35 nuts but do
not loosen past the top of #39 “J” Bolt. DO NOT
REMOVE NUTS #35 Place a level on pole and adjust .
bottom nuts #35 with a 15/16” open end wrench until
pole is level front to back and side to side. Tighten top
#35 hex nuts. See Detail A.
21.
Detail A
35
39
35
(Bottom)
11

15
Tape
Raise Backboard to 10 FT. regulation playing
height. Measure from top of rim straight down
to the playing surface.
Using tape - mark the side of the steel actuator
(#16) just under the plastic actuator sleeve
(#15) at this 10 ft rim height. See Figure 13.
Lower backboard all the way down. Do not force
actuator once backboard is in it's lowest position.
See Figure 14.
Do not remove adhesive backing from height
decal (#17) yet. Carefully place height decal on
backside of steel actuator (#16) and line up the
10 ft mark on the tape with the 10 ft mark on the
height decal. Decal should fit correctly onto the
backside of the steel actuator. ( If not , simply
trim to fit the top of the actuator decal).
22.
23.
24.
25.
26. Remove the adhesive backing from the Height Decal (#17).
Next, carefully align and stick decal to backside of steel
actuator (#16) starting at the 10 ft mark first. Be sure to
keep the height decal straight and rub out all air bubbles. See
Figure 15.
17
16
Figure 15
Lowered all
the way down
Tape at 10
feet
Figure 14
Figure 13
Set at 10 feet
Mark with
tape
15
12

LIMITED LIFETIME WARRANTY
This consumer warranty extends to the original consumer purchase of any Escalade® Sports Product (hereinafter referred to as
the “Product”).
WARRANTY COVERAGE: Escalade® Sports warrants to the original Consumer Purchaser that any Product of its manufacture is
free from defects in material and workmanship. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT,
UNREASONABLE USE, NEGLIGENCE, IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE PRODUCT
OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL OR WORKMANSHIP.
purchaser all structural components of the Goalrilla™ System to be free of defects in material and workmanship for the duration of
ownership by the original retail purchaser.
Merchandise must be shipped prepaid with a copy of proof of purchase to Escalade® Sports factory for examination to determine
if the basketball system needs to be repaired or replaced. Any labor costs, travel expenses and any other changes involved in the
removal, installation or replacement of the defective/repaired parts from/to your Goalrilla™ System will be the purchaser’s responsibility.
Shipping charges for replaced or warranted merchandise sent back to the customer from Escalade® Sports factory must be prepaid
by the customer in advance. If not, the replacement shipment will be sent out collect.
Escalade® Sports reserves the right to examine photographs or physical evidence of merchandise claimed to be defective, and to
recover said merchandise, prior to authorization of warranty claims. A “Returned Goods Authorization” number may be required,
please call for details prior to the return of any photographs or merchandise.
This limited lifetime warranty is expressly in lieu of all warranties, expressed or implied, including warranties of merchantability or fitness for
use. Escalade® Sports does not assume or authorize any person or representative to assume for us, any other liability in connection with the
sale of our products.
The remedy of repair or replacement stated above is Escalade® Sports exclusive remedy. Escalade® Sports will not be liable for any
other damages or expenses which may incur, including but not limited to incidental or consequential damages. Escalade® Sports
assumes no other obligations or liability on the part of the purchaser, and Escalade® Sports neither assumes nor authorizes any other
person to assume for it any other liability in connection with the goods sold.
This warranty shall not apply in any manner to parts or accessories not manufactured by Escalade® Sports.
NOT COVERED BY THIS WARRANTY
•
• Paint or rusted parts. If rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish
• Rims are not warranted for any defects other than workmanship. Torn back plates, damaged springs, bent rings, damaged eyebolts, and
torn or distorted rim supports result from hanging on the rim and are not warranted.
• Shipping charges both ways. Note: Any merchandise shipped to Escalade® Sports collect will be refused.
• Dealer service charges, labor charges and travel expenses associated with replacement of repair of warranty item.
WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF THIS SALE, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION.
ESCALADE® SPORTS SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER CONSEQUENTIAL OR INCIDENTAL
COSTS. EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY OTHER USE.
Some states do not allow the exclusion or limitation of implied warranties or consequential or incidental damages, so the above limitations
or exclusions may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.
WARRANTY GUIDELINES IS REQUIRED FOR ALL WARANTY CLAIMS
1. Proof of Purchase (original retail purchaser) is required for all warranty claims.
2. Call or write Escalade® Sports to receive a Return Authorization # and determine specific needs.
Phone: 1-888-USA-GOAL / Warranty Dept.
Or Write Escalade® Sports at: Escalade® Sports - P.O. Box 889, Evansville, IN 47706 - Attn: Warranty Dept.
Or E-mail us at: [email protected]
Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail
®
®
or any other events beyond the control of Escalade Sports.
Any merchandise subjected to Non-residential abuse, negligence, improper installation, vandalism, acts of God, alteration of product,
facilities.
•Merchandise not intended to be in places of public assembly, such as, but not limited to, schools, parks, public or private recreational
enamel paint.
13

1 3M-6468-00 6 X 6 Tube Plug 1
2 1A-6989-00 1
3 2B-6093-10 1/2 Flat Washer 16
4 2B-6095-10 1/2-13 Nylon Insert Locknut 3
5 3M-6245-00 1 1/4 Dia. Plastic Washer 24
6 1A-6990-00 Upper Board Arm 1
7 1B-6218-10 1/2-13 X 11 Hex Bolt - Grade 5 1
8 1B-6219-10 1/2-13 X 12 Hex Bolt - Grade 5 2
9 3M-6831-00 1 9/16 X 2 3/8 Tube Plug 2
10 3M-6464-00 2 X 4 Tube Plug 2
11 1A-6991-00 Lower Board Arm 1
12 Not Used
13 1
14 8S-6566-01 Pivot Tube 1
15 2M-6160-00 Actuator Sleeve 1
16 4A-6551-00 Actuator 1
17 4L-7831-01 Height Decal 1
18 2B-6094-10 1/2 Split Lock Washer 2
19 1B-6215-10 1/2-13 x 1 Hex Bolt 2
20 1B-6781-10 1/2-13 x 2 1/4 Hex Bolt 4
21 Not Used
22 7B-6391-00 Step Bushing 4
23 6A-7405-00 B3100- Backboard Assembly - 42” x 72” 1
25 Not Used
26 2B-6237-10 3/8 x 19mm Flat Washer 4
27
28 6A-6328-02 Goal Assembly 1
29 1B-6782-10 3/8-16 X 1 3/4 Carriage Bolt 4
30 3F-6010-00 Net 1
31 2S-6421-00 Rim Cover Plate 1
32 1B-6238-01 #8 X 1/2 Self Tapping Screw 4
33 2B-6238-10 3/8-16 Nylon Insert Locknut 8
34 3M-9040-00 5/8 Thread Protector 4
35 2B-6097-01 5/8-11 Hex Nut 12
36 2B-6099-01 5/8 Split Lock Washer 4
37 2B-6098-02 5/8 Flat Washer 8
38 2S-6494-01 Anchor Plate 1
39 2B-6096-01 5/8-11 X 18 “J” Bolt 4
40 1S-6152-00 #3 X 40 Rebar 4
41 7B-6255-00 Pull Pin 1
42 4A-6550-00 Actuator Handle 1
43 2L-7254-03 This Manual 1
44 2S-6794-00 Post Bracket 2
45 2B-6237-10 3/8 Flat Washer 8
46 1B-6936-10 3/8-16 X 1 1/4 Hex Bolt-Grade 5 4
47 2B-6242-10 1/2-13 Nylon Insert Locknut 4
Part # Description Qty.Key# Part # Description Qty.
2L-7254-03
Key#
CARE AND MAINTENANCE
GLASS BACKBOARD CARE AND MAINTENANCE
Items needed to clean backboard:
100% cotton soft cloth, (only) Glass cleaner
Clean backboard using only a 100% Cotton soft cloth and glass cleaner. Clean glass as you would clean household windows. Strong cleansers will
damage backboard and void warranty.
RIM
Only hang from the rim briefly to regain balance or avoid injuring others. Release the rim as soon as safely
possible. Rims are not warranted for any defects other than workmanship. Torn back plates, damaged springs, bent rings, damaged eye bolts, and torn
or distorted rim supports result from hanging on the rim and are not warranted.
The goal should not be cranked over 10'. Adjustments of the goal should be done under adult supervision.
When attempting slam dunk activity you should always wear a mouth guard to avoid dental injury.
RUST
MAINTENANCE
To ensure ease of operation, lubricate all pivot points at least every 6 months or as needed with a good lubricant such as WD-40.
Inspect your pole periodically, if rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish
enamel paint.
3M-8939-00 Actuator Cap (with hole)
24 Not Used
B3100W PARTS LIST
ACRYLIC BACKBOARD CARE AND MAINTENANCE
Rinse backboard with lukewarm water. Wash gently with a 100% Cotton soft cloth, lukewarm water and mild soap. Do not scrub. Rinse backboard
with lukewarm water again. Dry with 100% cotton soft cloth. To minimize scratches and minor abrasions to your backboard, apply a mild polish such
as, Novus Plastic Polish #1 or Mirror Glaze Plastic Polish. Strong cleansers will damage backboard and void warranty.
Items needed to clean backboard:
• 100% cotton soft cloth, (only) • Mild dish washing liquid for soap • Luke warm water • Mild plastic polish to minimize scratches
4A-7847-00 B3111 Post Assembly
B3100 Post Assembly
Not Used
14

28
32
31
29
30
23
20
3
5
22
11
22
5
3
20
47
35
22
5
320
6
22
5
20 3
5
3
47
26
33
47
3
5
F
H
E
G
D
C
C
D
47
3
5
B
A
H
G
B
A
E
F
2L-7254-03
15

2L-7254-03
6
7
5
39
9
5
534
5
14
5
15
19
18
3
5
5
44
46
44
46
5
5
3
18
19
42
41
39
40
35
35
37
34
35
36
37
38
2
10
10
534
534
5
5
3
8
5
3
8
1
17
11
45
33
33
45
16
A
B
B
A
45
45
13
16
