WARNING SYMBOLS

CHAPTER -1: BEFORE USING THE APPLIANCE
Safety Warnings
•
ventilation of its base.
• The appliance is not intended for use by people (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• Call the nearest authorized service for a replacement if the power cord
malfunctions.
• Use only the new water inlet hose coming with your machine while making
water inlet connections of your machine.never use old, used or damaged water
inlet hoses.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be carried out by children without
supervision.
Do not install your appliance on a carpet or any surface that would restrict the
Operating voltage / frequency: (V/Hz) (220-240) V~/50Hz
Total current (A): 10
Water pressure (Mpa)
Maximum: 1 Mpa / Minimum : 0.1 Mpa
Total power (W) : 2100
Maximum dry laundry capacity (kg): 7
1

CHAPTER -1: BEFORE USING THE APPLIANCE
Correct Use
• Please read the user's manual carefully.
• The appliance is designed for domestic use only. Using
the appliance for commercial purpose will qualify as
product misuse and may void your warranty.
• Keep your pets away from your machine.
• Please check the packaging of your machine before installation, and the outer
surface after the package is opened. Do not operate damaged machines or
machines with opened package.
• Have your appliance installed by authorized service personnel only. Any
interference to your machine by anyone other than authorized service
personnel shall cause your warranty to be void.
• Use your machine only for laundries that have been specified as suitable for
washing by the manufacturer.
• Before operating the washing machine, remove the 4 transportation
screws and rubber spacers from the back of the machine. If the screws
are not removed, it may cause heavy vibration, noise and product
malfunction which may void the warranty.
• Your machine is not covered under warranty for faults caused by any kind of
external factors (pesticides, fire, etc.).
• Please do not throw away this user manual; keep it for future reference. You or
somebody else might need it in the future.
Note: Machinery specifications may vary depending on the product
purchased.
2

CHAPTER -1: BEFORE USING THE APPLIANCE
General Warnings
• Frozen hoses can tear and explode. In regions where temperatures are below
zero, ambient temperature might endanger the safe operation of electronic
card.
• Please ensure that the clothes you will wash in your machine do not contain
any foreign substances such as nails, needles, coins, lighter, matches, clips
etc. in their pockets. These foreign substances can damage your machine.
• It is recommended to perform the first washing operation in “WHITES”
program and without laundry by inserting ½ scale of detergent in 2nd
compartment of the detergent drawer.
• As detergent or softener exposed to air for a long time may leave residues, put
your detergent or softener in the detergent drawer at the beginning of every
wash cycle.
• It is advised that you unplug your machine and close the water inlet tap if you
will not use your machine for a long time. Also, leaving the door of your machine
will prevent the formation of bad odours due to humidity.
• Some water might be left in your machine after the trials and tests conducted
due to Quality Control procedures. This will not damage your machine.
• Remember that packaging materials of your machine may be dangerous for
children.
• Store all packaging materials in a place where children cannot reach.
• Use pre-wash programs only for very dirty laundry.
3

CHAPTER -1: BEFORE USING THE APPLIANCE
General Warnings
• In case of any breakdown, unplug the appliance
first and then turn the tap off. Do not attempt to
repair by yourself, always contact for authorized
service advice.
• Never open the detergent drawer when the
appliance is running.
• The amount of laundry you put in your washing
machine should not exceed the maximum
amount indicated.
• Washing floury clothes in your machine
damages the machine. Do not wash floury
clothes in your machine.
• Never force the door open when the machine is
running.
• Please adhere to detergent/fabric conditioner
manufacturers' recommendation for the use of
fabric conditioner or similar products in your
machine.
• Set up your machine in a place where its door
can be completely opened.
• Set up your machine at locations that can be fully
ventilated and could have constant air
circulation.
4

CHAPTER -1: BEFORE USING THE APPLIANCE
Safety Warnings
Please read these warnings carefully in order to protect
yourself and your loved ones against fatal injuries.
Do not touch discharging hose and water during discharging
as the appliance may reach high temperatures when running.
DANGER OF GETTING BURNT!
DEATH RISK DUE TO ELECTRICAL CURRENT!
• Do not use multiple receptacles or
extension cord.
• Do not plug in damaged plug sockets
• Never pull the cable when unplugging – always grip
the plug itself.
• Do not plug-in or out the plug from the receptacle with
wet hands to prevent electrocution!
• Never touch the machine with wet hands or feet.
• Call the nearest authorized service for a replacement
if the power cord malfunctions.
5

CHAPTER -1: BEFORE USING THE APPLIANCE
Safety Warnings
• Check whether the water is flowing properly from the discharge hose before
placing it on the sink.
• Take necessary measures to prevent the slipping of your hose.
• The backfiring force of a hose that is not placed appropriately can displace the
hose. Prevent the stopper inside your sink from blocking the sink hole.
• Do not keep inflammable liquids near your machine.
• The sulphur content of paint removers might cause corrosion. For this
reason, never use paint-removing materials in your machine.
• Never use products that contain solvent material (like washing gas) in your
machine.
• Remove all the objects in the pockets of your laundries (needle, paperclip,
lighter, matches etc.) when placing them your machine.
Flooding risk!
Danger of Fire!
Fire and Explosion risk may occur.
6

CHAPTER -1: BEFORE USING THE APPLIANCE
Safety Warnings
Fall and injury hazard!
• Do not climb on your machine. The upper table of your machine may break and
you might get injured.
• Tidy the hose, cable and packaging of your machine during installation. You
might trip over and fall.
• Do not turn your machine upside down, or on its side.
• Do not lift your machine by holding it from extruding parts (detergent drawer,
door). These parts might break and cause injury.
• There's the risk of tripping and injury if the materials like hose and cables are
not properly stored after your machine is installed.
Machine must be carried by 2 people or more.
Child safety!
• Do not leave children unattended near the machine. Children might lock
themselves in the machine and risk severe injury or even death.
• Door glass and surface might be extremely hot while your
machine operates. Touching these surfaces might risk burns
or injuries to children.
• Keep packaging material away from children.
• Consumption of detergent or maintenance material can lead to poisoning.
Avoid contact of detergent with eyes or skin.
7

CHAPTER -1: BEFORE USING THE APPLIANCE
Packaging And Environment
CHAPTER -1: BEFORE USING THE APPLIANCE
Savings Information
• Packaging materials protect your machine from any damage that might occur
during transportation. Packaging materials are environment friendly as they
are recyclable.
• Recycling material provides both raw material savings and decreases waste
production.
• After installing the washing machine, recycle or reuse the corrugated box.
Fitments and polyethylene cover/strap should not be disposed off as garbage.
• This helps in conserving natural resources and prevents pollution.
Some important information to get more efficiency out of your machine:
• The amount of laundry you put in your washing machine should not exceed the
maximum amount indicated.
• Use the pre-wash feature only for very dirty laundry to save electricity and
water
Removal of packaging materials
Disposal of packaging material
8

CHAPTER -2: OVERVIEW OF YOUR DEVICE
General Appearance
9

CHAPTER -2: OVERVIEW OF YOUR DEVICE
General Appearance
10

CHAPTER -2: OVERVIEW OF YOUR DEVICE
Technical Specifications
Operating voltage / frequency (V/Hz) (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum: 1 Mpa
Minimum : 0.1 Mpa
Total power (W) 2100
Maximum dry laundry capacity (kg) 7
Spinning revolution (rev / min) 1000
Number of programs 15
Dimensions (Height x Width x Depth) (mm) 845 x 597 x 527
1 1
* In the view of Godrej policy of continuous development, specifications may
change without notice.

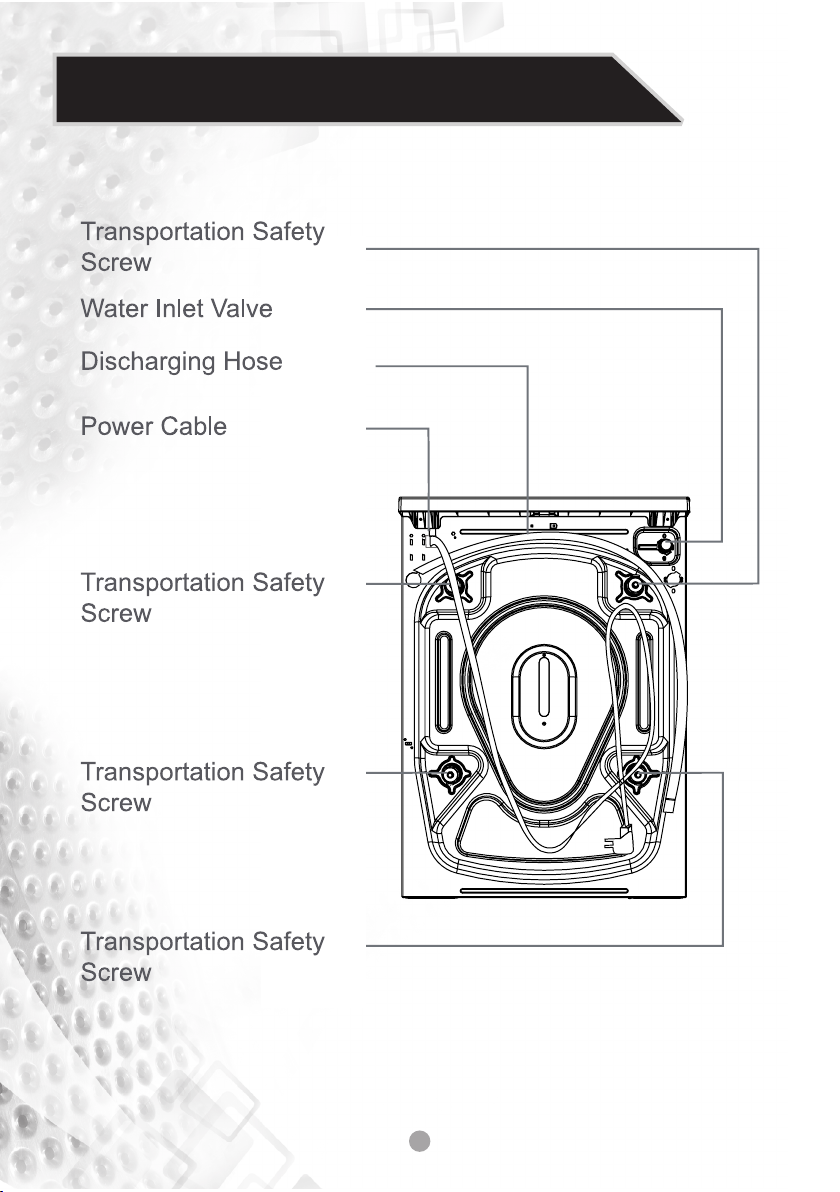

CHAPTER -2: INSTALLATION OF THE MACHINE
Removing Transportation Safety Screws
Before operating the washing
machine, remove the 4 transportation
screws and rubber spacers from the
back of the machine. If the screws are
not removed, it may cause heavy
vibration, noise and product
malfunction, voiding the warranty.
For this reason, transportation safety
screws shall be loosened by being
rotated counter-clockwise using an
appropriate wrench.
12

CHAPTER -3: INSTALLATION OF THE MACHINE
Removing Transportation Safety Screws
Transportation screws shall be
removed by pulling out.
Fit the plastic transportation screw
taps delivered in accessories bag to
the places where transportation
screws have been removed.
The transportation safety screws
should be stored to be used in case of
transportation.
NOTE: You should absolutely
remove the transportation
screws of your machine before
the first usage.
Faults occurring in the
machines operated with
transportation screw fitted
shall be out of scope of
warranty.
13

CHAPTER -3: INSTALLATION OF THE MACHINE
Adjusting Adjustable Stays
• Do not install your machine on a carpet or any surface that could
restrict the ventilation of its base.
• To ensure silent and vibration-free operation of your machine, place the
machine on a non-sliding and firm surface.
• You can adjust the balance of your machine through the stays.
• To adjust the stays, loosen the plastic adjustment nut.
14

CHAPTER -3: INSTALLATION OF THE MACHINE
Adjusting Adjustable Stays
• Adjust the stays upward and downward by
rotating them.
• After maintaining the balance, compress the
plastic adjustment nut upward again.
• Never put cardboard, wood or similar materials
under your machine.
• When cleaning the ground under the machine, be
careful not to misadjust the stays.
15
Installing the Rat Mesh
• Tilt the washer from front (door) side &
match the outline of the rat mesh with the
bottom front side of the machine as
shown in fig.1
• Insert the rat mesh as shown in Fig.2 &
screw it to the base as shown in the
picture or installation of rat mesh should
be done before the removal of
transportation bolts, wherein it can be
tilted on any side.
Fig.1
Fig.2

CHAPTER -3: INSTALLATION OF THE MACHINE
Electrical Connection
• Your washing machine is set to 220-240V and 50Hz.
• The mains cord of your washing machine is
equipped with a specific earthed plug. This plug
should always be inserted to a earthed socket of 10 amps.
• The current value of the fuse should be 10 amps. Fuse current value of the
power line connected to this plug should also be 10 amperes.
• If you don’t have such a receptacle and fuse confirming with this, please
have it done by a qualified electrician.
• We do not take the responsibility of the damages that occur due to
ungrounded usage.
NOTE: Operating your machine under low voltage will cause the life
cycle of your machine to be reduced and its performance to be
restricted.
16
