Panasonic NA-120VX7 Product guide

®
Operating & Installation
Instructions
Washing Machine
(Household Use)
Model No.
NA-120VX7
Thank you for purchasing this product.
- Read these instructions carefully for optimum
performance and safety before use.
- Keep this manual for future reference.
Contents
SAFETY P RECAUTIONS 4
Before Using 8
Washing 14
Optional Functions 22
Maintenance 27
Troubleshooting 30
Installation / Others 34
AWW9901A5MA0-0B0

2
Before Using
SAFETY PRECAUTIONS
Washing
Optional Functions
Safety Precautions ...........4
Checking Your Washing
Machine....................8
BeforeWashing..............9
ControlPanel...............10
Detergent..................12
Washing Basic Method ........14
ProgrammeList.............16
Details of Programmes .......18
Washing Tips...............20
Changing Programme
Settings ...................22
yChanging the temperature
[WaterTemp]...........22
yChanging the water level
[WaterLevel]...........22
yChanging the spin speed
[Spin Speed]...........23
ySetting the programme
end time
[Preset]................23
Washing with Optional
Functions..................24
ySelect and run processes
[Mode]................24
yPrewash
[Prewash].............24
yRinse thoroughly
[Extra Rinse]............25
ySterilise the laundry
[Blue Ag+ (Max. 3 kg)]....25
Contents
NA-120VX6_EN(HK).indd 2 2017-10-12 17:15:54

3
Maintenance
Troubleshooting
Installation / Others
(Ask the installation to service
person)
Changing Appliance
Settings...................26
yCancelling the buzzer .......26
ySetting the Child Lock
[Child Lock]...............26
yCancelling the “Active Foam”
function..................26
Maintenance ...............27
yWater supply filter..........27
yIf the water supply hose is
frozen...................27
yAppliance................28
yDrum....................28
yDetergentdrawer..........28
yDrain filter . . . . . . . . . . . . . . . . 29
Troubleshooting.............30
Error Display ...............33
Choosing the Right Location. . . 34
Moving and Installing.........35
Connecting the Hoses........37
Checking after Installation.....39
Power and Water
Consumption...............41
Specifications..............42
NA-120VX6_EN(HK).indd 3 2017-10-12 17:15:54

4
Safety Precautions
Read and follow these safety precautions.
May cause serious injury or death.
For the safety of you and your family
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
zChildren should be supervised to ensure that they do
not play with the appliance.
zKeep away from fire. Do not put flammable materials
or clothes with such things attached in the drum. Keep
them away from the appliance. (To prevent explosion
RU¿UH
For example: Kerosene, gasoline, benzine/thinner,
alcohol, etc.
zTo prevent injury, do not touch the drum until it com-
pletely stops.
Ground the appliance
zBe sure to have your dealer perform grounding work.
If not provided a ground, electric shock may occur in
electric leakage
WARNING
NA-120VX6_EN(HK).indd 4 2017-10-12 17:15:55

5
SAFETY PRECAUTIONS
To prevent electric shock, overheating,
FRPEXVWLRQRU¿UH
z8VHDVRFNHWWKDWVDWLV¿HVWKHUDWLQJUHTXLUHPHQWVROHO\
for this appliance. Do not use a plug adaptor or exten-
sion cord.
zDo not use a power cord or plug that is damaged. If
the power cord is damaged, it must be replaced by the
PDQXIDFWXUHULWVVHUYLFHDJHQWRUVLPLODUO\TXDOLILHG
persons in order to avoid a hazard.
zDo not plug in or unplug the power cord with wet
hands.
zAlways fully insert the power plug into the socket.
zDo not hold or pull on the cord when removing the plug
from the socket.
zUnplug the power cord before cleaning.
Repairs
zNever disassemble, repair or modify the appliance
yourself.
In case of malfunction or failure, immediately stop use,
unplug the power cord, and ask your nearest service
centre for repair.
WARNING
NA-120VX6_EN(HK).indd 5 2017-10-12 17:15:55

6
Safety Precautions(continued)
CAUTION
May cause injury or property damage.
Correct use
zThis appliance is only suitable for textiles labelled
washing machine washable.
zDo not connect to a hot water supply.
zDo not obstruct the openings of the bottom face with
carpet, etc.
To prevent water leaks
zNew hose-sets supplied with the appliance are to be
used and old hose-sets should not be reused.
zTurn off the tap if the appliance is not going to be used
for a prolonged period, such as during a holiday. Water
could leak while you are away and cause damage to
household goods.
To prevent injury and burns
z.HHS\RXU¿QJHUVDZD\IURPWKH
door hinge when opening and
closing the door.
zDo not climb onto the appliance. Hinge
NA-120VX6_EN(HK).indd 6 2017-10-12 17:15:55

7
SAFETY PRECAUTIONS
zWhen washing at high temperature, be careful not to
burn yourself. Drain hose, drum, door glass, and laun-
dry will be hot.
To prevent damage to the appliance and laundry
zDo not operate the appliance with the anchor bolts still
¿WWHG7KLVPD\FDXVHH[FHVVLYHYLEUDWLRQRIWKHDSSOL
ance.

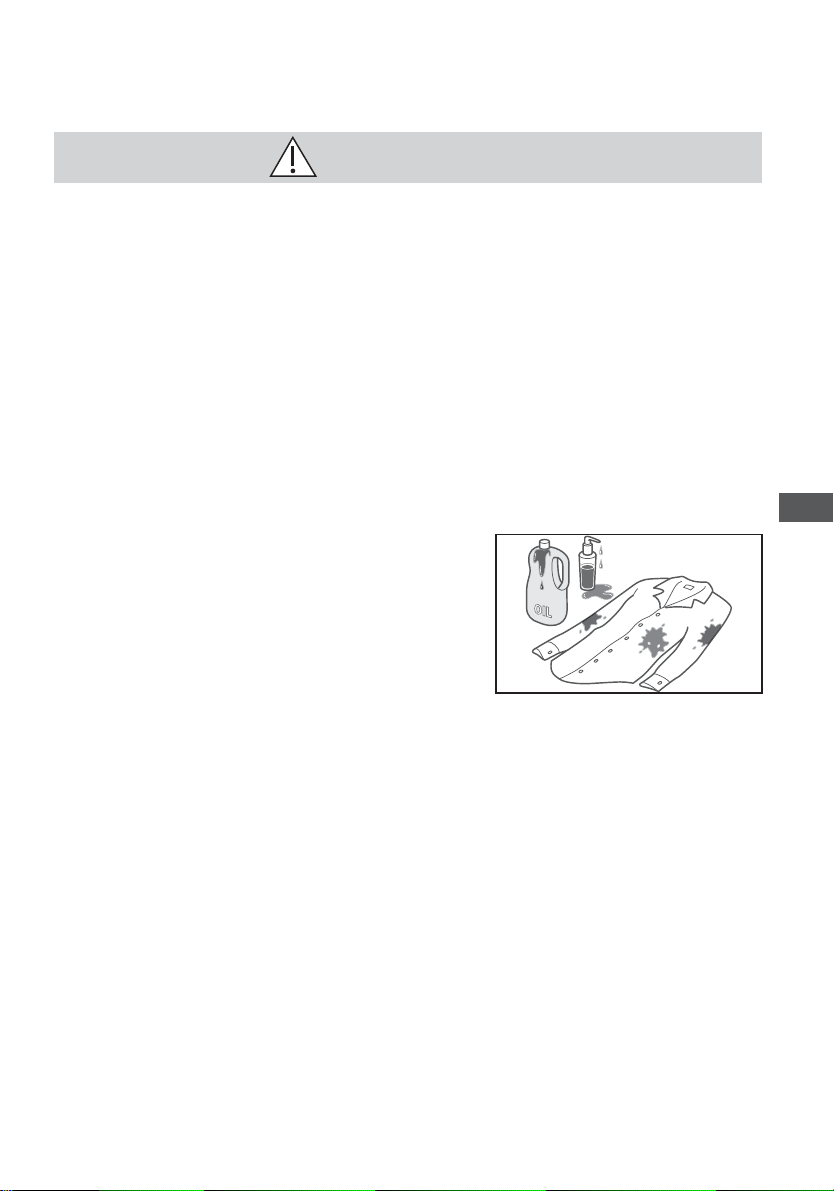

zDo not wash clothes that are
stained with a lot of vegetable
oil, cosmetic oil, etc. The oil can
get hot and deform the door
seal, leading to water leakage.
zDo not wash, rinse, or spin waterproof sheets or
clothes.Intense vibration during spin or falling of the
appliance may result in injury, damage to the main unit,
ZDOOÀRRUODXQGU\RUZDWHUOHDNDJH
For example: Raincoats, wet suits, etc.
CAUTION
NA-120VX6_EN(HK).indd 7 2017-10-12 17:15:55

8

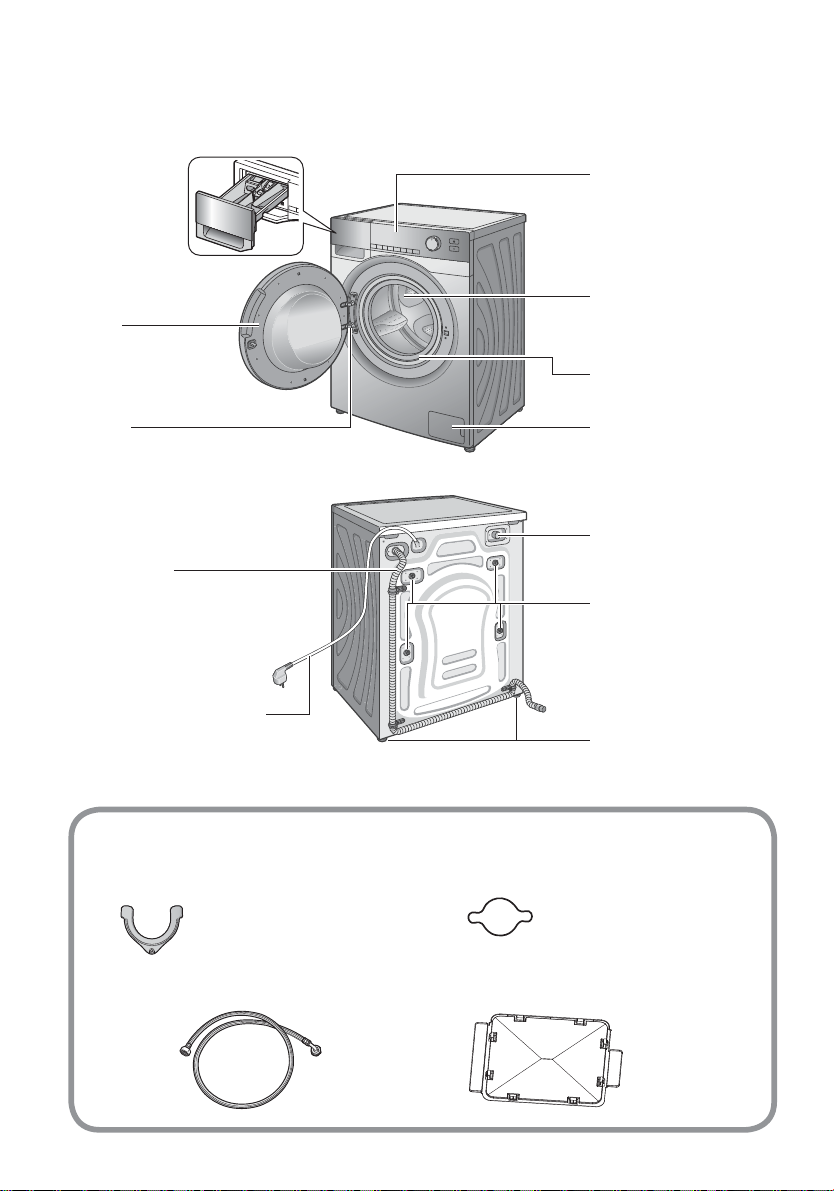

Checking Your Washing Machine
Adjustable feet
(P. 36)
Drain hose
(P. 37, 38)
Power cord and plug*
*The plug shape varies
with the region.
Water inlet (P. 38)
Anchor bolts
(P. 36)
(Rear of appliance)
Accessories
Detergent drawer (P. 12)
Hinge 'UDLQ¿OWHUFRYHU
(P. 29)
Door seal
Drum
(Washing/spin-drying
tub)
Control panel
(P. 10)
Door
Elbow (P. 38) Cover caps (4) (P. 36)
Water supply hose
(P. 37, 38)
Bottom plate (P. 35)
NA-120VX6_EN(HK).indd 8 2017-10-12 17:15:59

9
Before Using
Before Washing
Check before use
:KHQ¿UVWXVLQJRUDIWHUDORQJWLPHRI
idling, check the following.
zThe water supply hose and drain
hose are connected properly.
(P. 37, 38)
zThere is no problem in the water
supply hose connection, when
turning on the tap.
zThe power plug is plugged in.
%HIRUH¿UVWXVH
There may be drops of water, or
condensation, in the appliance due to
the factory inspection process before
shipment. To rinse away any residues
etc., operate as follows:
- “Cotton” programme
- Default setting 40 °C
- No detergent, no clothing
Preparing laundry
Read the washing labels of clothes,
and sort them by colour, fabric, and
degree of soiling. This helps you
choose a suitable programme and
temperature.
Stained items
zApply stain remover to any stains.
z“StainMaster+” programmes
(P. 17) are recommended for
removing stains.
Sorting
zWash separately clothes that
are not colour fast. (denim, dark
coloured items, etc.)
Before putting clothes in drum
To prevent damaging clothes or
malfunctioning of the appliance, carry
out the following steps.

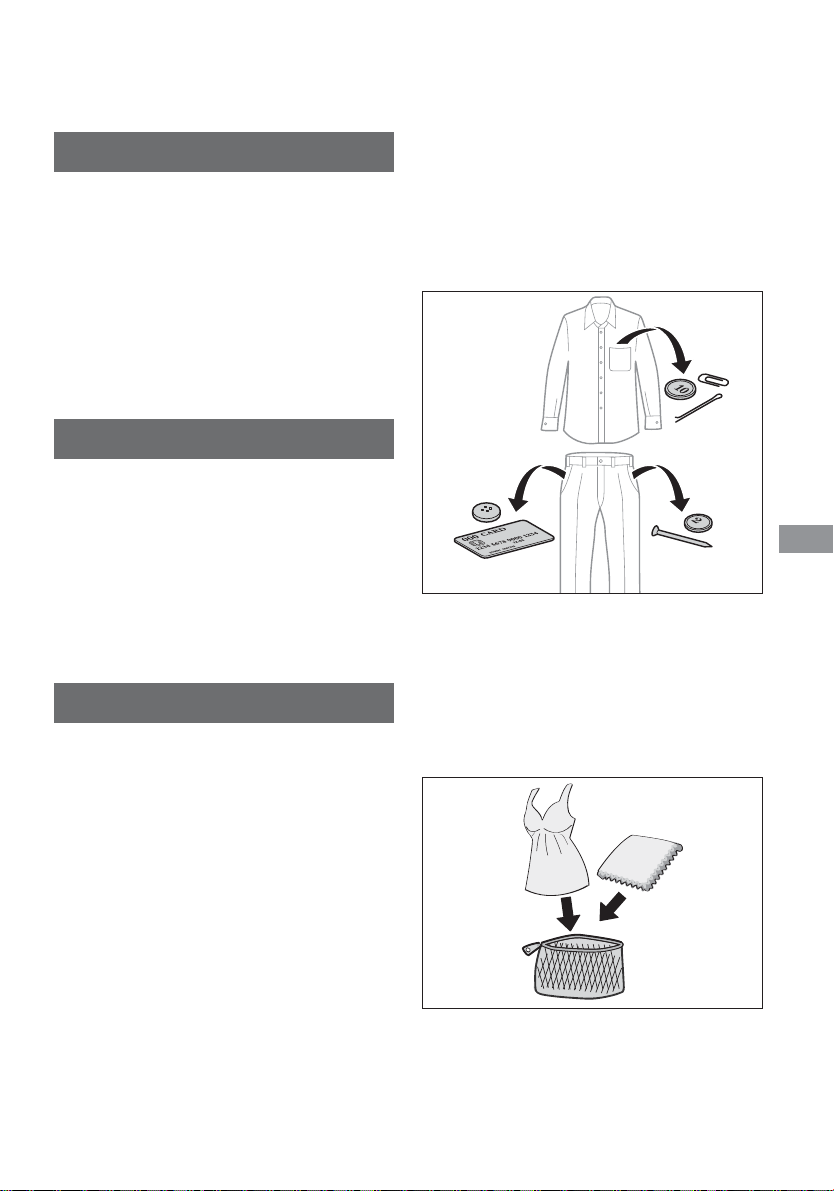

zRemove foreign objects (coins,
pins, clips, nails) from laundry.
zTie strings on aprons, etc.
zClothing with raised fabric: Turn
inside out.
zClothing with zippers: Pull up
zippers, and turn inside out.
zSmall items, wired bras, and lace
items: Put in a laundry net.
zBrush off hair, animal fur, sand etc.
before washing
zHeavy dirt or deep stains: Wash
OLJKWO\E\KDQG¿UVW
NA-120VX6_EN(HK).indd 9 2017-10-12 17:15:59

10
Control Panel
Controls
2354 1
1. Power button [Power ]
2. Start/Pause button [Start/Pause]
To start or pause the operation.
3. Programme selection dial
Use this dial to choose a
programme suitable for the
laundry. (P. 16)
4. Control buttons
To change washing settings or to
select optional functions.
Water temperature
(P. 22)
Child Lock*1 (P. 26)
Spin speed (P. 23)
Mode (P. 24)
Preset (P. 23)
Prewash (P. 24)
Extra Rinse (P. 25)
Water Level (P. 22)
Blue Ag+(P. 25)
5. Display (P. 11)
*1Child Lock: Press and hold the
button for at least 5 seconds to lock
the door and other buttons.
NOTE
zTo turn the power off and back on,
press “Power” to switch off and
make sure the display has gone off,
before turning back on.
For about
3 seconds Goes off
zIf you do not press “Start/Pause”
within 10 minutes of powering on
the unit, the appliance automatically
switches itself off.
NA-120VX6_EN(HK).indd 10 2017-10-12 17:16:00

11
Before Using

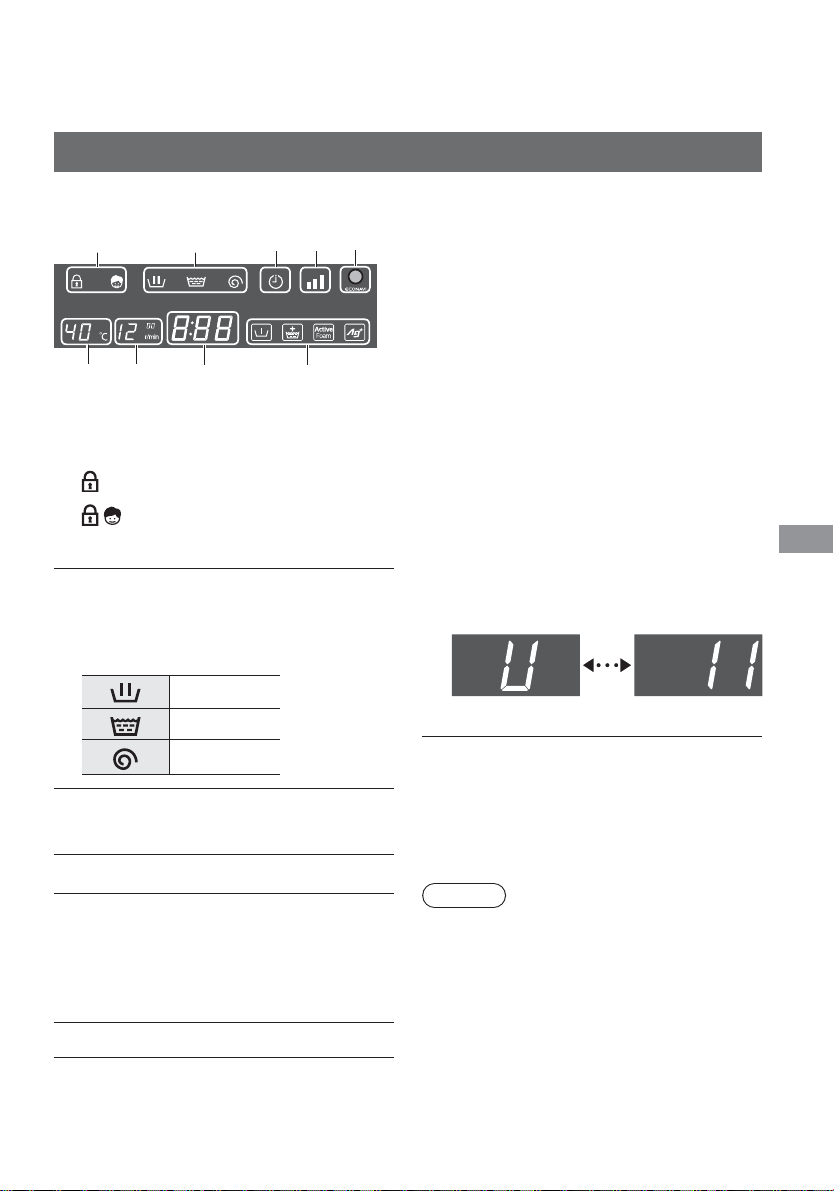

Display
This illustration shows all indications for explanation purposes.
67 8 9
12 435
1. Lock
: The door is locked
: The door and buttons are
all locked (Child Lock)
2. Process
(DFKLQGLFDWRUÀDVKHVWRVKRZWKH
current process, and goes off when
WKHSURFHVV¿QLVKHV
wash
rinse
spin
3. Preset
(P. 23)
4. Water level
5. ECONAVI lamp
Lights up while the “ECONAVI”
programme is selected. Flashes
during the ECONAVI detection.
(P. 21)
6. Water temperature
7. Spin speed
8. Remaining time
This indicator shows the
approximate time until the
RSHUDWLRQ¿QLVKHV
Error display
An error is displayed if the
appliance malfunctions. (P. 33)
(e.g. U11)
9. Optional functions
Selected optional functions are
displayed. (P. 24, 25)
NOTE
zIn case of a power failure during
operation, the appliance resumes
the process from the interrupted
point after the power comes back.
(Auto Restart)
NA-120VX6_EN(HK).indd 11 2017-10-12 17:16:01

12
Detergent
zAdd detergent, etc. before pressing “Start/Pause”.
zRead instructions on the packet of detergent or other agent, for correct
TXDQWLW\GHSHQGLQJRQWKHDPRXQWRIODXQGU\GHJUHHRIVRLOLQJDQGZDWHU
hardness.
Fabric softener
Detergent for prewashing
It’s automatically added
WRODXQGU\GXULQJ¿QDO
rinsing.
zDo not let it exceed
“MAX” (130 ml) line.
Detergent drawer
Foam generator
CAUTION
Do not operate this appliance
with detergent drawer detached.
It will leak water.
When using “Prewash”
function (P. 24)
zWhen using a tub cleaning detergent, also put it in this
compartment. (P. 28)
Detergent, water softener, bleach, stain remover
NA-120VX6_EN(HK).indd 12 2017-10-12 17:16:02

13
Before Using
Detergent
Use a low foam detergent.
zTo prevent powdered detergent
from remaining in detergent drawer:
Dry inside the detergent drawer
with a cloth.

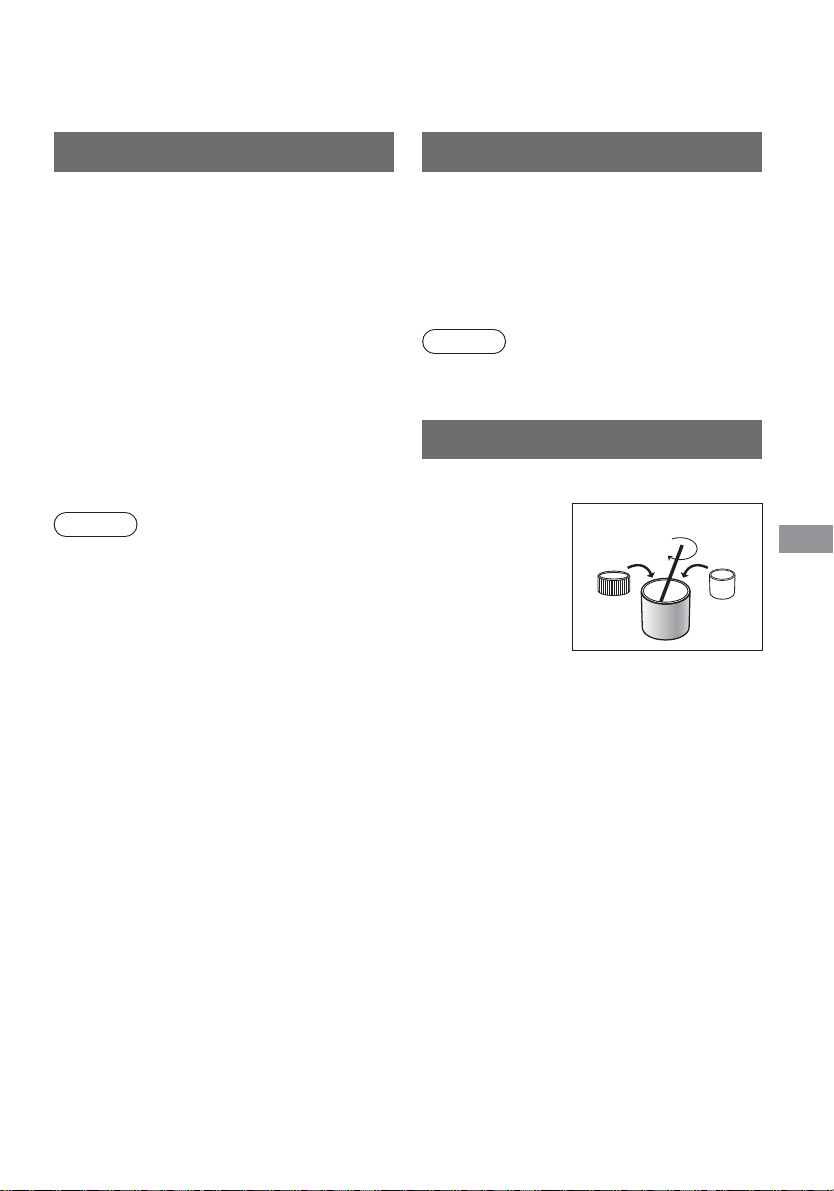

Break up lumps in powdered
detergent.
If powder still remains in drawer,
put it directly in drum instead.
z If you forget to add detergent before
starting a wash, drain water out of
the drum and start again.
NOTE
zDo not put detergent in the
detergent drawer, if the
instructions on the package
advise that it should be put
directly in the drum.
7KHGHWHUJHQWPD\QRWÀRZIUHHO\
and some may remain in the
GUDZHUFDXVLQJZDWHUWRRYHUÀRZ
from the drawer.
zDo not put detergent in the foam
generator.
Prewashing
zYou need separate detergent for
prewash and main wash.
zUse powdered detergent for main
ZDVK/LTXLGGHWHUJHQWZDVKHV
away in prewash.
Water softening agent
If you live in a hard water area
(1.3 mmol/L hardness or more), we
recommend using a water softening
agent. This reduces the detergent
UHTXLUHGDQGSUHYHQWVOLPHVFDOH
which damages the appliance.
NOTE
zFor information on water hardness,
contact a specialist near you.
Fabric softener
Prevents laundry static.
z If any softener
remains in
detergent
drawer after
operation,
dilute the
softener with
water before pouring into the drawer.
(do not exceed the max amount)
Softener left in drawer: You can wipe
it with a wet cloth.
Fabric
softener
Water
NA-120VX6_EN(HK).indd 13 2017-10-12 17:16:02

14
Washing
3
21
Changing settings,
using optional functions
NOTE
zDo not get laundry caught in the
door.
It can cause damage to the door
seal.
zDo not put too much laundry into
the drum.
It can cause excessive vibration or
damage to the appliance.
To open the door during
operation
(The door is locked during
operation)
Press “Pause”.
(The lock is released
with a click)
zDuring spinning process, it may
take about 1 minute for the drum to
stop rotating.
Basic Method
NA-120VX6_EN(HK).indd 14 2017-10-12 17:16:02

15
Washing
Preparing
zSort the laundry and put it into the
drum. (P. 9)
zAdd the detergent. (P. 12)
1Turn on the power.
2Select a programme.
(P. 16, 17)
7KHUHTXLUHGWLPHLVGLVSOD\HG
Changing settings
Using optional functions
3Start operation.
zWeighing (about 30 seconds)
Some programmes do
not weigh the laundry.
(P. 16, 17)
(Display of
weighing)
.............................X
z5HTXLUHGWLPHGLVSOD\
(recalculated) (e.g.)
................X
2SHUDWLRQ¿QLVKHV
(The buzzer sounds and the door
lock is released.)
NOTE
zColours can run between clothes,
so remove coloured laundry soon
DIWHUWKHSURJUDPPH¿QLVKHV
Changing settings
After selecting a programme, you
can change the following settings.
Water temperature (P. 22)
Spin speed (P. 23)
Preset timer (P. 23)
Water level (P. 22)
Using optional functions
After selecting a programme, you
can add the following optional
functions.
Mode (P. 24)
(Select and run the wash,
rinse or spin process)
Prewash (P. 24)
Extra Rinse (P. 25)
Blue Ag+ (P. 21, 25)
NOTE
zThe range of settings you
can change and the optional
functions you can add vary
depending on the programme.
(P. 18)
NA-120VX6_EN(HK).indd 15 2017-10-12 17:16:03

16

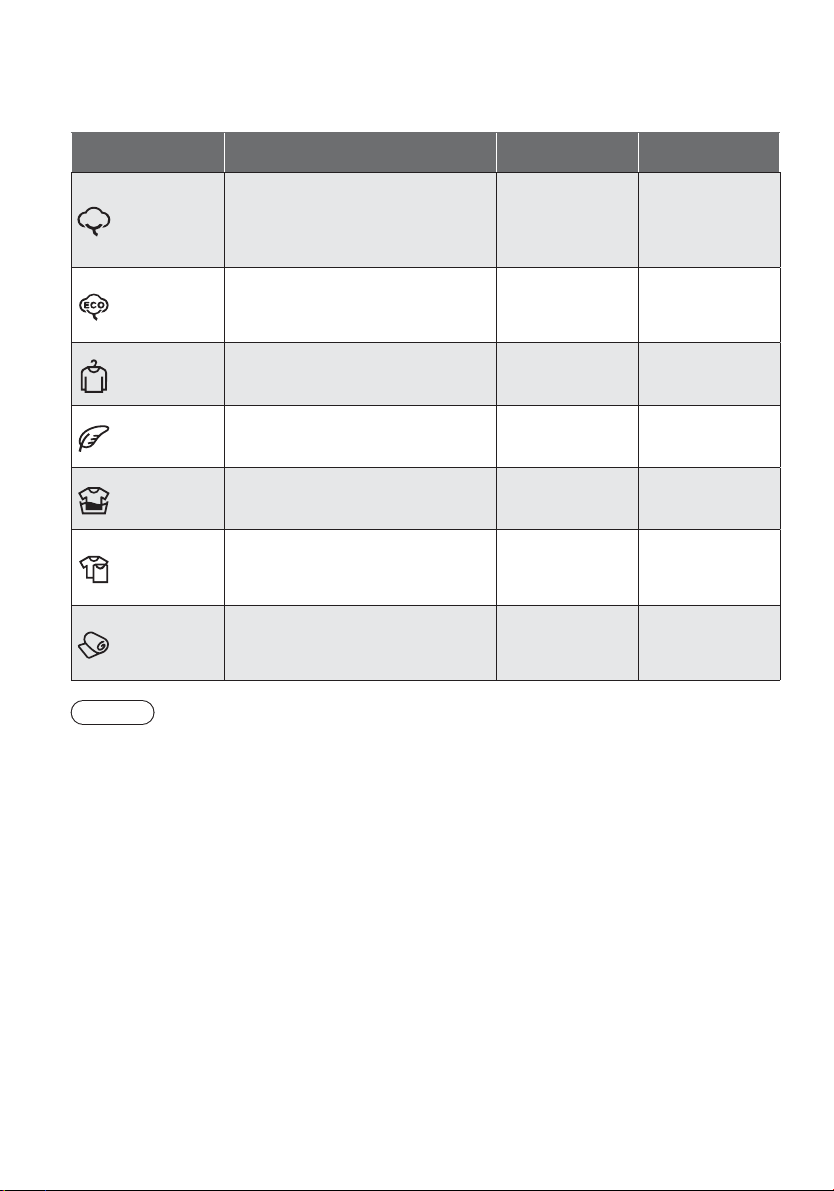

Programme Description Max load (kg) Time*1
Cotton
For daily items of cotton,
linen and cotton blends, e.g.
T-shirt, underwear, towel, and
tablecloth. 10.0 0:57 - 1:17
Cotton
Eco
Takes longer but consumes
less energy and water than the
Cotton programme. 10.0 1:00 - 1:20
Synthetic *2
:DVKHVFKHPLFDO¿EUHVJHQWO\
5.0 0:53
Delicates *2For underwear and machine-
washable silk clothes. 2.0 0:41
Soak For heavily-soiled clothes. 5.0 1:47
Mixed For blended fabrics, e.g.
cotton, linen, and synthetic
¿EUHV 10.0 1:12 - 1:47
Bedding*2For large items such as
blankets, curtains and
bedspreads. 3.0 1:21
NOTE
zThe reTXLUHGWLPHYDULHVGHSHQGLQJRQWHPSHUDWXUHZDWHUSUHVVXUHGUDLQDJH
condition, and load size.
Programme List
NA-120VX6_EN(HK).indd 16 2017-10-12 17:16:04

17
Washing
Programme Description Max load (kg)Time*
1
For items with mixed fabric,
for example, cotton, linen and
V\QWKHWLF¿EUHV)RUGHWDLOV
see page 21) 10.0 1:18 - 2:23
Active
Speed Washes faster than the Cotton
programme with small load. 5.0 0:49
Quick 30*2PLQTXLFNZDVKIRUOLJKWO\
soiled cotton and linen blends. 5.0 0:30
Rapid 15*215 min. full rapid wash for a
small amount of lightly soiled
items. 2.0 0:15
Hygiene Washes infants’ clothing,
tablecloths and sheets. 10.0 1:43 - 1:58
Tub Clean Cleaning the drum. No clothing 3:36
StainMaster+
Suitable for
removing stains.
Mud For mud
stains. 10.0 2:27 - 3:12
Oily
Sauce For stains of
oily sauce. 10.0 2:07 - 2:47
Collar &
Sleeve
For collar and
sleeve stains. 10.0 2:17 - 3:02
*1 For each programme’s default water temperature.
*2 The load is not weighed after “Start/Pause” is pressed. Operation starts
straight away.
NA-120VX6_EN(HK).indd 17 2017-10-12 17:16:05

18
Details of Programmes
Settings
Programme
Auto setting
Water Temp
(°C)*1Water level*2Spin speed (r/min) Water Temp (°C)*1
Cotton 40 900 Cold, 30, 40, 50,
60
Cotton Eco 40 1200 Cold, 30, 40, 50,
60
Synthetic 30 700 Cold, 30, 40
Delicates 30 500 Cold, 30, 40
Soak 40 900 Cold, 30, 40
Mixed 40 1000 Cold, 30, 40
Bedding Cold 700 Cold, 30
Cold 1000 Cold, 30, 40, 50,
60
Active Speed 40 900 Cold, 30, 40
Quick 30 Cold 900 Unchangeable
Rapid 15 Cold 900 Unchangeable
Hygiene 90 900 60, 90
Tub Clean 40 900 Unchangeable
Mud 40 900 Unchangeable
Oily Sauce 40 900 Unchangeable
Collar & Sleeve
40 900 Unchangeable
*1 When the “Cold” is selected, nothing is displayed on the temperature
indication.
*2 H: High, M: Medium, L: Low
³$FWLYH)RDP´ZRUNVDXWRPDWLFDOO\ZLWKWKHVSHFL¿HGSURJUDPPHV
NA-120VX6_EN(HK).indd 18 2017-10-12 17:16:10

19
Washing
Setting range Optional functions
Water
level*2Spin speed (r/min) Mode
Prewash
Extra
Rinse BlueAg+
(Max. 3 kg)Active Foam*3
H, M, L
500, 700, 900, 1000,
1200
999 9 9
H, M, L
500, 700, 900, 1000,
1200
999 9 9
H, M, L 500, 700, 900
999 9 9
Unchangeable Unchangeable
9–99 –
H, M
500, 700, 900, 1000,
1200
9–99 9
H, M, L
500, 700, 900, 1000,
1200
999 9 9
H, M 500, 700
9–99 9
Unchangeable 900, 1000, 1200 ––– 99
M, L
500, 700, 900, 1000,
1200
9–– 99
H, M, L 500, 700, 900
9–– – 9
H, M, L 500, 700, 900 ––– – 9
H, M, L 500, 700, 900 ––
99 –
Unchangeable Unchangeable ––– – –
Unchangeable
500, 700, 900, 1000,
1200
999 9 9
Unchangeable
500, 700, 900, 1000,
1200
999 9 9
Unchangeable
500, 700, 900, 1000,
1200
999 9 9
NA-120VX6_EN(HK).indd 19 2017-10-12 17:16:12

20
Washing Tips
“Delicates” programme
When washing
z3ODFHLWHPVÀDWRQWRSRIHDFKRWKHU
inside the drum.
zTo rinse fully, use the “Extra Rinse”
function. (P. 25)
When drying
z/D\RXWZRRODQGQ\ORQLWHPVÀDW
zHang out white or light-coloured
nylon items in the shade. (away
from direct sunlight)
zUse hangers for
shirts, blouses
and trousers.
If items shrink in the wash
1Spread the item to its original size
on an ironing board.
2Use dress pins
to hold the size
and shape.
3Iron using a lot
of steam and
then leave the
item to dry.
“Bedding” programme
Washable items
zItems with (Wash) or
(Handwash) on label.
zBlankets, 100 % synthetic and
100 % cotton
zSheets zBedspreads
zUndersheets, 100 % synthetic
NOTE
zYou can only wash 1 item at a time.
zYou cannot wash items made of
wool, silk or long-pile fake fur.
zYou cannot wash electric blankets.
zDo not use a laundry net. (It
prevents drum rotation.)
Putting blankets into the drum
Both ends at the back of the drum
NOTE
zDo not roll blankets or bedspreads
into balls or fold haphazardly.
This may cause excessive vibration,
damaging the appliance or laundry.
NA-120VX6_EN(HK).indd 20 2017-10-12 17:16:12
