JOB AID W10329932
L-84
Vertical Modular
Washer
L-89
SERVICE MANUAL
WHIRLPOOL & MAYTAG 6.2 CU FT
DIRECT DRIVE TOP LOAD WASHER
W10864849
WTW9500E* MVWB955F*
*All Colors and Versions
Multimedia
Enhanced

ii n Whirlpool & Maytag Direct Drive Top Load Washer
FORWARD
This Whirlpool Service Manual, (Part No. W10864849), provides the In-Home Service Professional with
service informaon for the “WHIRLPOOL & MAYTAG 6.2 CU. FT. DIRECT DRIVE TOP LOAD WASHER.”
The Wiring Diagram used in this Service Manual is typical and should be used for training purposes
only. Always use the Wiring Diagram supplied with the product tech sheet when servicing the washer.
For specic operang and installaon informaon on the model being serviced, refer to the “Use and
Care Guide” or “Installaon Instrucons” provided with the washer.
GOALS AND OBJECTIVES
The goal of this Service Manual is to provide informaon that will enable the In-Home Service
Professional to properly diagnose malfuncons and repair the “WHIRLPOOL & MAYTAG DIRECT DRIVE
TOP LOAD WASHER.”
The objecves of this Service Manual are to:
• Understand and follow proper safety precauons.
• Successfully troubleshoot and diagnose malfuncons.
• Successfully perform necessary repairs.
• Successfully return the washer to its proper operaonal status.
WHIRLPOOL CORPORATION assumes no responsibility for any repairs made on our
products by anyone other than authorized In-Home Service Professionals.
Copyright © 2016, Whirlpool Corporaon, Benton Harbor, MI 49022

Whirlpool & Maytag Direct Drive Top Load Washer n iii
TABLE OF CONTENTS
WHIRLPOOL & MAYTAG DIRECT DRIVE TOP LOAD WASHER
SECTION 1 — GENERAL INFORMATION
WASHER SAFETY.................................................................................................................................1-2
GENERAL THEORY OF OPERATION.....................................................................................................1-3
MODEL & SERIAL NUMBER LABEL LOCATION....................................................................................1-5
TECH SHEET LOCATION.......................................................................................................................1-5
MODEL AND SERIAL NUMBER NOMENCLATURE ..............................................................................1-6
PRODUCT SPECIFICATIONS ................................................................................................................1-7
NOTES .................................................................................................................................................1-8
SECTION 2 — DIAGNOSTICS & TROUBLESHOOTING
DIAGNOSTIC GUIDE............................................................................................................................2-2
DIAGNOSTIC LED - MAIN CONTROL...................................................................................................2-2
SELF DIAGNOSTIC MODE....................................................................................................................2-2
ACTIVATING SERVICE DIAGNOSTIC MODE ........................................................................................2-2
KEY ACTIVATION & ENCODER TEST....................................................................................................2-3
SERVICE TEST MODE...........................................................................................................................2-3
LOAD AND TEST CYCLE FUNCTION NUMBERS CHART.......................................................................2-4
SERVICE DIAGNOSTICS VERIFICATION CYCLE ....................................................................................2-5
SERVICE DIAGNOSTICS VERIFICATION CYCLE CHART........................................................................2-5
SOFTWARE VERSION DISPLAY............................................................................................................2-7
EXITING SERVICE DIAGNOSTIC MODE ...............................................................................................2-7
FAULT/ERROR CODES..........................................................................................................................2-7
FAULT/ERROR CODES TABLE...............................................................................................................2-9
TROUBLESHOOTING GUIDE .............................................................................................................2-12
SECTION 3 — COMPONENT TESTING
COMPONENT TESTING: SAFETY INFORMATION................................................................................3-2
WIRING DIAGRAM..............................................................................................................................3-3
COMPONENT TESTING .......................................................................................................................3-4
TEST #1: MAIN CONTROL (ACU) .........................................................................................................3-4
MAIN CONTROL BOARD / CONNECTORS & PINOUTS .......................................................................3-5
TEST #2: VALVES..................................................................................................................................3-6
TEST #3: DRIVE SYSTEM......................................................................................................................3-7
TEST #3A: DRIVE SYSTEM - SHIFTER ...................................................................................................3-7
TEST #3B: DRIVE SYSTEM - MOTOR ....................................................................................................3-9
TEST #4: KEYS AND ENCODERS.........................................................................................................3-10
TEST #5: TEMPERATURE THERMISTOR ............................................................................................3-11
TEST #6: WATER LEVEL......................................................................................................................3-12
TEST #7: DRAIN & RECIRCULATION PUMP .......................................................................................3-13
TEST #8: LID LOCK .............................................................................................................................3-14
TEST #9: HEATER ...............................................................................................................................3-15
TEST #10: SERVICE LEDS ...................................................................................................................3-16
TEST #11: BASKET LIGHT...................................................................................................................3-17
TEST#12: BULK DISPENSE PUMP AND RELAY EXPANSION BOARD .................................................3-18
RELAY EXPANSION BOARD / CONNECTORS & PINOUTS..................................................................3-18
NOTES ...............................................................................................................................................3-20

iv n Whirlpool & Maytag Direct Drive Top Load Washer
PRODUCT SPECIFICATIONS & WARRANTY INFORMATION SOURCES (inside back cover)
SECTION 4 — COMPONENT ACCESS
COMPONENT LOCATIONS ..................................................................................................................4-2
REMOVING THE ACCESS PANEL*........................................................................................................4-4
LIFTING THE TOP PANEL* ...................................................................................................................4.5

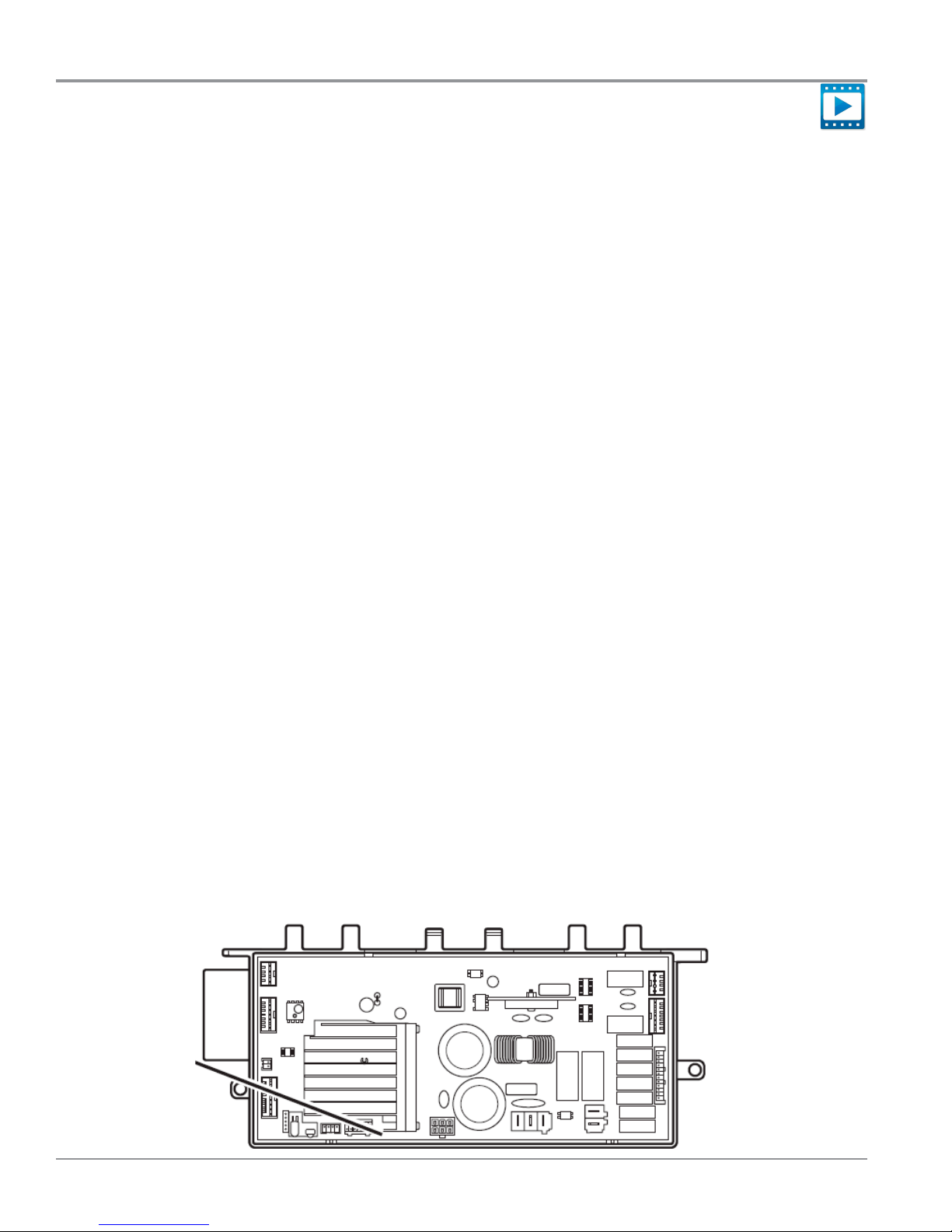

REMOVING THE MAIN CONTROL*.....................................................................................................4-6
REMOVING THE RELAY EXPANSION BOARD* ....................................................................................4-7
REMOVING THE LID ASSEMBLY*........................................................................................................4-8
REMOVING THE USER INTERFACE*....................................................................................................4-9
REMOVING THE WATER VALVE ASSEMBLY* ....................................................................................4-10
REMOVING THE BULK DISPENSE PUMP* ........................................................................................4-11
REMOVING THE TUB RING, IMPELLER, AND BASKET* ....................................................................4-12
REMOVING THE MOTOR AND DRIVE ASSEMBLY*...........................................................................4-14
REMOVING THE PUMPS* .................................................................................................................4-16
REMOVING THE HEATER*.................................................................................................................4-17
REMOVING THE LID LOCK* ..............................................................................................................4-18
REMOVING THE BASKET LIGHT* ......................................................................................................4-19
NOTES ...............................................................................................................................................4-20
* Video Available Look for this ICON throughout Secon 4

GENERAL INFORMATION
Whirlpool & Maytag Direct Drive Top Load Washer n 1-1
Section 1:
General Information
This secon provides general safety, parts, and informaon for
the “Whirlpool & Maytag Direct Drive Top Load Washer.”
nWasher Safety
nGeneral Theory of Operaon
nModel/Serial Number Locaon
nTech Sheet Locaon
nModel & Serial Number Nomenclature
nProduct Specicaons

1-2 n Whirlpool & Maytag Direct Drive Top Load Washer
GENERAL INFORMATION
Washer Safety
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING

GENERAL INFORMATION
Whirlpool & Maytag Direct Drive Top Load Washer n 1-3
General Theory of Operation
NEW COMPONENTS
Sleek Under Glass User Interface — the Whirlpool washer features a new sleek under glass capacive touch user interface
that asks “what’s being washed” followed by “how you want to wash.” First select a cycle from the “What to Wash” (Mixed,
Whites, Casuals, Jeans, Towels, Delicates, AcveWear, and Bulky Sheets) and then select the “How to Wash” (Normal, ColorLast,
HeavyDuty, Oxi Sanize, Deep Water, Cold Wash, and Quick). This new and improved input will help the customer achieve the
best combinaon cycle available for the type of items being washed.
Figure 1 - User Interface with Intuitive Touch Controls
INTRODUCTION
The new Whirlpool & Maytag Direct Drive, Top Load Washer
represents industry-leading innovaon with the new improved
direct drive system. The p revious generaon direct drive
washer operated using a oang basket to assist in the
switching between spin and agitate modes. The
new washer
operates with a clutch coil system that provides reliable,
immediate, and smooth shiing between the various wash
modes.
Basket — the Whirlpool & Maytag washer has an extra
large basket capacity of 6.2 cu.. Other than size, the major
dierence from the previous model is that this basket does not
have a otaon chamber to assist with changing between spin
and agitate modes.
Figure 2 - Basket
Motor — The motor is an electronically commutated direct-
drive 3-phase BPM (Brushless Permanent Magnet) variable
speed design that moves the impeller and spins the basket
without the use of a transmission. The motor is comprised of
a stator and rotor that are aached to the drive assembly. The
motor direcon and speed is controlled by the ACU (Appliance
Control Unit) or main control.
Figure 3 - Motor
Balance Ring
Basket
Balance Ring
Motor Drive
Assembly
What to Wash How to Wash
...connued on next page

1-4 n Whirlpool & Maytag Direct Drive Top Load Washer
GENERAL INFORMATION
General Theory of Operation (continued)
NEW COMPONENTS (Continued)
Clutch Coil and Clutch Assembly — the clutch coil on
the washer is a simple electromagnec coil, which when
energized, pulls the clutch into contact with the rotor. The
drive assembly contains an internal and external drive sha.
The internal sha, which is connected directly to the rotor,
agitates the impeller; whereas the external sha, which is
directly connected to the clutch, is able to spin the basket.
Therefore, when the clutch coil is energized, the resulng
magnec eld pulls the clutch out to engage with the rotor,
resulng in spinning both the basket and impeller together.
When the coil is de-energized, the clutch disengages the rotor
and the spring returns the clutch to its home posion. The
motor now controls only the impeller.
Figure 4 - Clutch Coil Assembly Figure 5 - Rotor
External
Drive Shaft
Clutch
Rotor Attaches to
Internal Drive Shaft
Clutch Engages w/
Rotor Gear
Clutch Coil
Automated Detergent Dispenser (Load & Go™ System) —
Skip adding detergent to every load with the Load & Go™
system. The Load & Go™ cartridge holds up to a month’s
worth of detergent so you can simply ll it and forget it.
Load & Go
Cartridge
Bulk Dispense
Pump
Figure 6 - Viewed from Top Figure 7 - Viewed from under top panel
During the wash cycle, the Control signals the Bulk Dispense
Pump (via the Relay Expansion Board) to pump detergent
from the Load & Go cartridge to the Single Dose detergent
dispenser. Next, the detergent water valve is acvated and
ushes the detergent into the basket.
Single Dose
Detergent
Dispenser
Detergent Valve
Single Dose
Detergent Fabric Softener
Oxi &
Bleach

GENERAL INFORMATION
Whirlpool & Maytag Direct Drive Top Load Washer n 1-5
Model/Serial Number Label & Tech Sheet Location
Model & Serial Number
Label Location
Tech Sheet Location
(Access Under Cabinet Top)
Figure 8 - Model / Serial Number Location
Figure 9 - Tech Sheet Location
Model # WTW9500EC1
Serial # C42510000

1-6 n Whirlpool & Maytag Direct Drive Top Load Washer
GENERAL INFORMATION
Model & Serial Number Nomenclature
MODEL NUMBER W T W 9500 E W 0
INTERNATIONAL SALES OR
MARKETING CHANNEL
BRAND
W = Whirlpool; M = Maytag
ACCESS
T or V = Top Load; F or H = Front Load
PRODUCT
W = Washer; D = Dryer
FEATURE SET
9500 = 6.2 Cu Ft/GBPM Drive (Cabrio)
B955 = 5.3 Cu Ft/GBPM Drive (Bravos)
YEAR OF INTRODUCTION
D = 2014; E = 2015; F = 2016
COLOR CODE
W = White; C = Chrome Shadow
ENGINEERING CHANGE
0 = Basic Release; 1 = First Revision; 2 = Second Revision
SERIAL NUMBER C 4 25 10000
PRODUCTION SITE
C = CLYDE, OH
YEAR OF PRODUCTION
4 = 2014
WEEK OF PRODUCTION
PRODUCT SEQUENCE NUMBER
