Godrej WSEDGE PRO 85 5.0 PB3 M User manual

WSEDGE PRO 85 5.0 PB3 M
Images shown are for representation purpose only.

8.1 Overflow rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.2 Rinsing with fixed amount of water . .. . . . . . . . . . . . . . . . . . . 12

*Features vary by models.
Water Selector

Model WSEDGE PRO 85 5.0 PB3 M
Capacity 8.5 Kg
Type Pulsator type
Power source 230 V,AC,50 Hz
Input wattage
Wash 460 W
Spin 200 W
Water consumption High 78 Ltr
Low 54 Ltr
Net dimension (WxDxH) mm 910x540x960
Net weight 27.3 Kg
In the view of Godrej policy of continuous development & improvement, specification may
change without prior notice.
Image shown in the user manual are for illustration purpose only.

, warranty stands cancelled if
if repairs are done by unauthorized personnel.
power cord.
during
wash & water.

5
* Features vary as per model.

During Active soak, pulsator will rotate for 1 minute followed by a 8 minutes pause.
This cycle will continue for the selected soak time.

Connect the drain hose to the machine outlet.
Always lower the drain hose to the floor. Make
sure that the drainage hose is not kept too high, else it
may not drain the water properly.

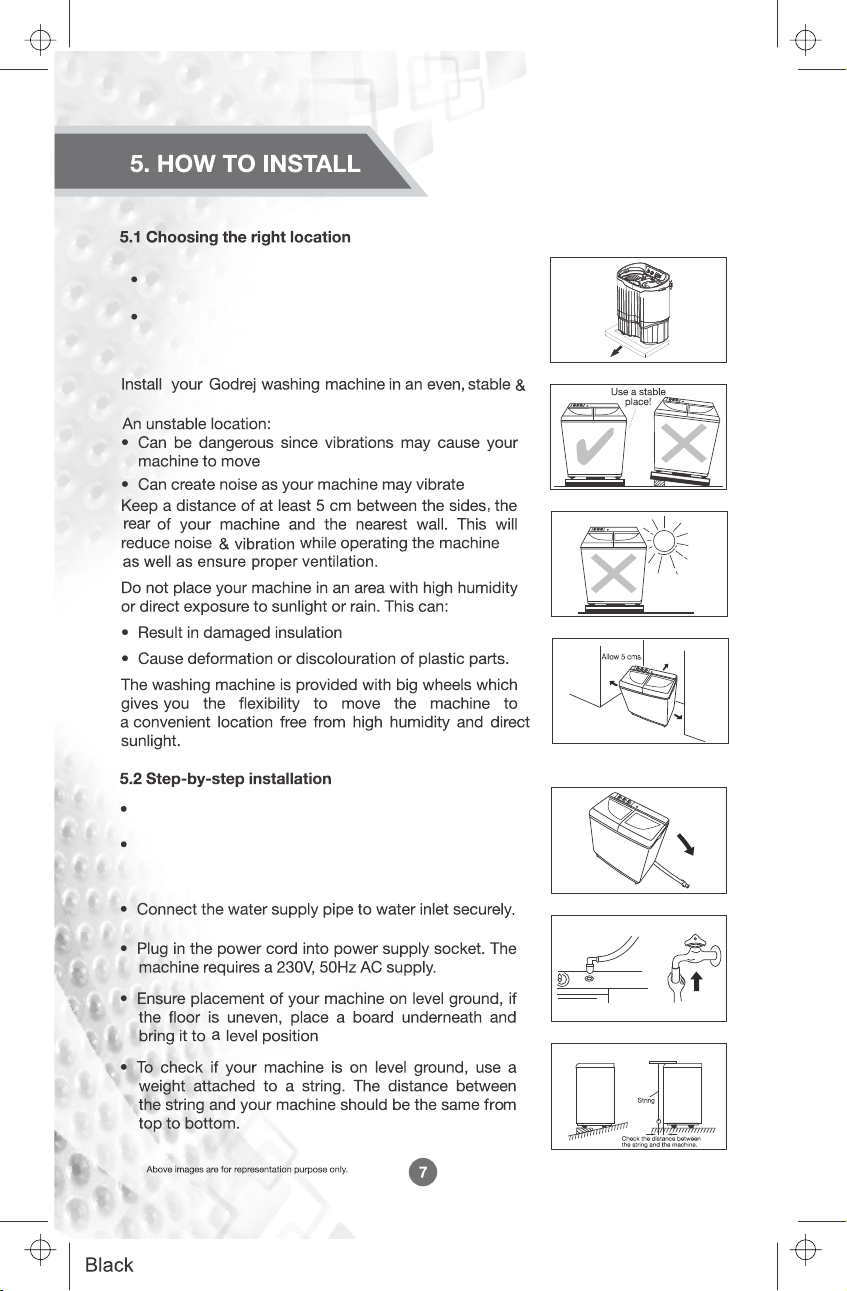

Removal of packaging materials
Please ensure all packaging/bottom cushion to be
removed from the machine before starting machine.
Caution: Operating the machine with the packaging
may cause movement/unbalanced condition and
can damage the machine parts.
levelled surface.
& shock hazard.

5.3 Ensuring Proper Earthing
Grounding Method
Earth wire must be connected in the wall socket.
If the Earth wire is not connected then there is a potential
hazard of electric shock caused by the current leakage.
Note that AC power outlet configurations may differ from country to country.
If the external socket does not have grounding terminal,
then a separate grounding is needed.
Other Grounding Methods (any one to be followed)
Burying copper plate:
Connect the Ground Wire to a Ground Copper
Plate and bury it more than 75cm in the ground.
(by a qualified Engineer)
Using a short-circuit breaker:
If Grounding methods described above
are not possible,a separate circuit breaker
should be employed and installed by
Never connect ground to:
A Gas pipe, Telephone Wire, lightening rod, Neutral,
Extension cords without ground terminals, plastic, etc.
a qualified Engineer.
Note: All electrical wirings & modifications must
be done by a qualified Engineer only.
Your washing machine has a three core power cord to connect the
Make sure that electrical and earthing connections are done properly in the wall
socket. Live and Neutral connections in socket should be as per standard.
Connect the power cord to Indian standard 3 pin power socket. Never plug it
into an ungounded power socket.
machine to the powerline.

Add the detergent and mix properly, so that detergent dissolves fully in water.
Now put the cloth load into wash tub and fill water up to water level selected.

1
2
3
4
5
Off
0

After the wash & intermediate spin cycle, use the rinse cycle.
This helps to remove detergent from the clothes and makes
them soap-free. Rinsing can be done in two ways,
8.1 Overflow Rinse
In this mode water is continuously supplied to wash tub during
rinsing and the dirty water flows out through the drain hose. In
this mode very efficient rinsing can be done since concentration
of detergent in water is lowered significantly.
 Transfer the wash clothes from spin tub to wash tub after
intermediate spin cycle .
 Shift the water selector knob to Wash position
 Ensure drain lever is closed .
 Start the flow of water & set the wash timer to 5-10 minutes
and rinse under continuous water flow.
 After rinsing cycle is over, pull up drain lever. This will drain
out the water from wash tub.
 Transfer the clothes to spin tub for intermediate spin.
 It is recommended to repeat this process two or three times
for best results.
Caution
 Adjust the water flow while looking at he water level or water
may spill out (Refer Image A).
 Cover the wash tub with wash lid while rinsing using Overflow
rinse option as this will prevent water spilling / splashing.
8.2 Rinsing with fixed amount of water
 Transfer the washes clothes from the spin tub to the wash tub
after intermediate spin cycle.
 Shift the water selector knob to Wash position.
 Ensure drain lever is closed.
 Maintain the water level to High (Refer Image A).
 Set the wash time to 5-10 minutes for rinsing.
 After rinsing cycle is over, pull up drain lever. This will drain
out the water from wash tub.
 Transfer the clothes to spin tub for intermediate spin.
 It is recommended to repeat this process two or three times
for best results.
Image A

1
2
3
4
5
Off
0

1 Minute 1-2 Minute 2-3 Minute 5 Minute

Regular
Regular
5.5-Max.
*For Energy saving course refer below instructions in Wash/Rinse/Spin function.
 Select Gentle wash program and fill water up to mark High in wash tub.
 Refer following function & time selection:
*Under test conditions, when tested in accordance with standard IEC 60456:2010
and BEE schedule-12 (Revision:03)
Actual performance of machine will depend on how the appliances is being used.
Spin
(5 min)
(Half capacity
load)
Spin
(5 min)
(Remaining
Half capacity
load)
Rinse
(5 min)
(Rated
capacity load)
(in Wash Tub)
Spin
(5 min)
(Half capacity
load)
Spin
(5 min)
(Remaining
Half capacity
load)
Wash
(15 min)
(Rated
capacity load)
Program

The washing machine
should be plugged into
separate power socket.
Do not take power supply
for other appliance from
the same source.
Do not spill water on
control panel, this may
lead to electric shock.
Do not rub the control
panel with chemicals like
benzene, thinner etc. This
may deform parts or the
colour may fade.
It is necessary to use
spin cap for the spinning
operation. The cap holds
the clothes in its place
during spinning and
prevents them from
flying off.
If the spin lid is open and rotations do not stop
within 15 seconds, it indicates that self-
acting brakes are malfunctioning. Call up the
Godrej Service helpline number and get the
machine repaired immediately by authorised
service personnel.
Switch off the power supply immediately
if the supply voltage drops abnormally.
Low Voltage power supply may result
in overheating of electric parts of the
machine
Never put organic
chemicals like
benzene, alcohol or
thinner or even
clothes stained with
such chemicals in the washing machine
as this may lead to fire hazard or damage
to the machine.
Never put your
hands in spin tub
while it is rotating.
Do not pour hot water
of temperatures above
50 degrees into wash
or spin tub as this may
result in deformation
& damage to plastic
parts.
Do not keep lit matches, cigarettes or
candles near or on the machine as plastic
parts in your machine may deform or
catch fire.
Avoid installation of the
machine in the area
exposed to high humidity,
snow, rain or direct sunlight.
It may cause electric shock,
discolour deformation in
the product.

A click sound of the catch will confirm lint filter is locked
in the tub.
