Golden Blount LFP7218 User manual

PFS APPROVED FOR NATURAL GAS OR PROPANE GAS
Z21.50 - 2014
If your plans do not allow for the venting system as outlined
previously in the “installing chimney/vent system” section, you may
contact ENERVEX, Inc. (formerly EXHAUSTO) at 800-255-2923.
They will design an approved venting system to suit your venting
needs. These power vented systems follow the standards and codes
as outlined under the NFPA 54/ANSI Z223.1 Nation Fuel Gas Code.
Please check with the local authority having jurisdiction in your area.
The engineers at ENERVEX are familiar with Golden Blount
fireplaces and their systems will allow you to minimize the amount of
vent pipe exposed outside of your home. Fireplaces may also be
horizontally vented with these systems.
10/17
MODELS LFP4218/LFP6018/LFP7218 TOP VENT GAS FIREPLACE
fire-parts.com

TABLE OF CONTENTS
Section
Layout Options ................................................................................................................ 2
of Parts ................................................................................................... 3-4
Building Codes and Safety Standards ............................................................................ 5
Piping and Gas Pressure Requirements ......................................................................... 6
Installation Instructions ...............................................................................................7-10

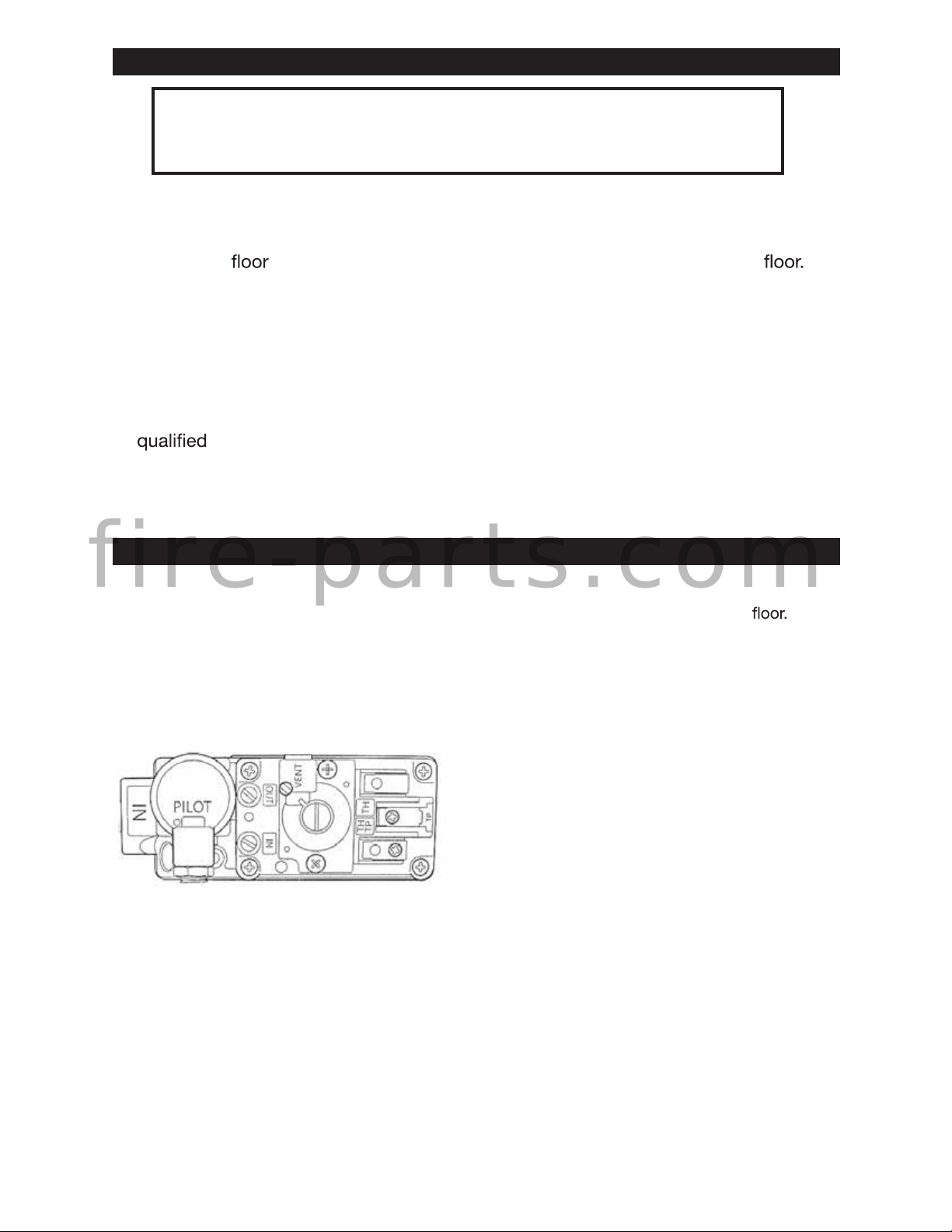

Lighting Instructions ..................................................................................................14-15

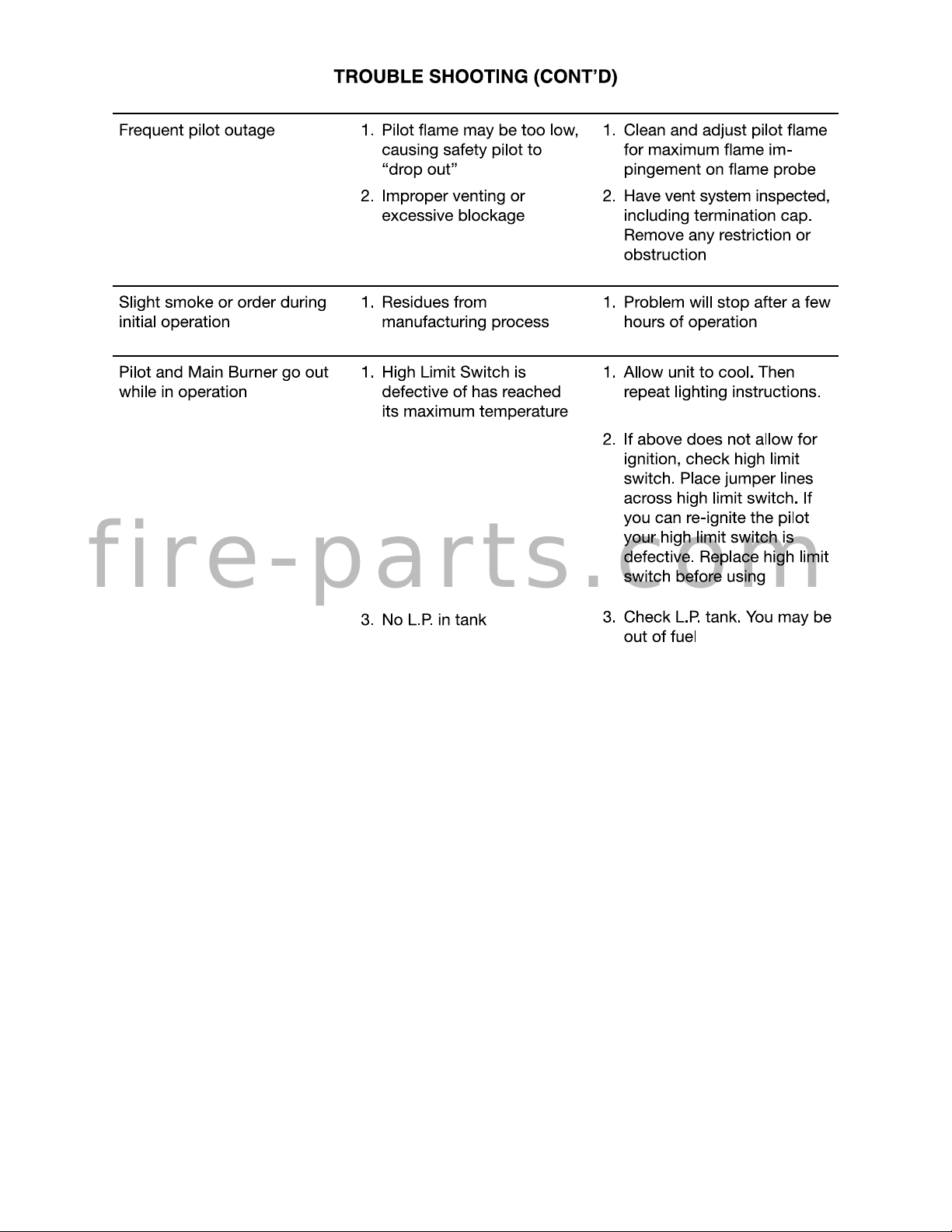

Trouble Shooting .......................................................................................................16-17

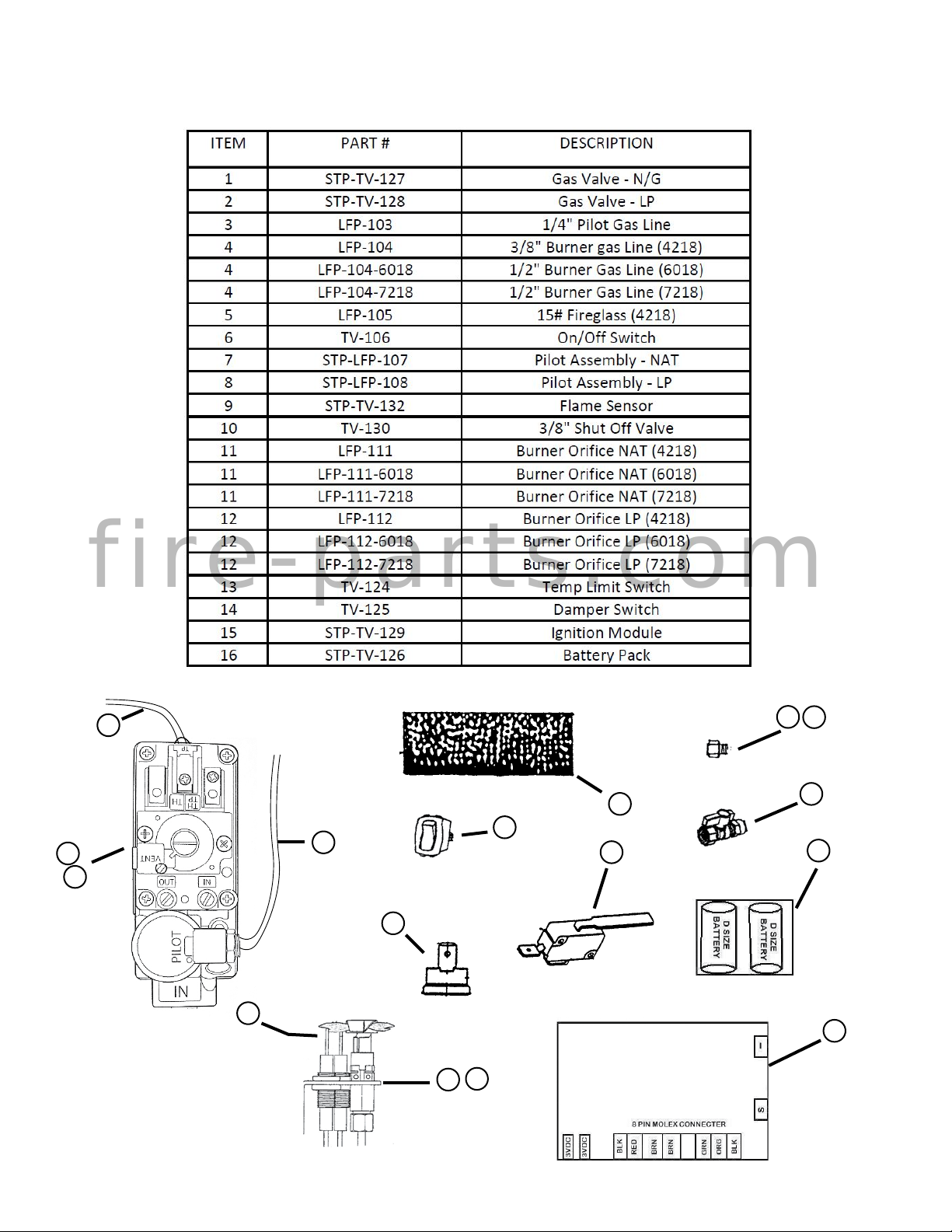

Replacement Parts ........................................................................................................ 18
2
INSIDE
ROOM
FLUSH MOUNT CHASE
CORNER MOUNT
61"
86.5"
44"
INSTALLATION OPTIONS
Figure 2.1
A
B
C
A B C
LFP4218TV 61” 86.5” 44”
85” 117.5” 61.5”
LFP6018TV

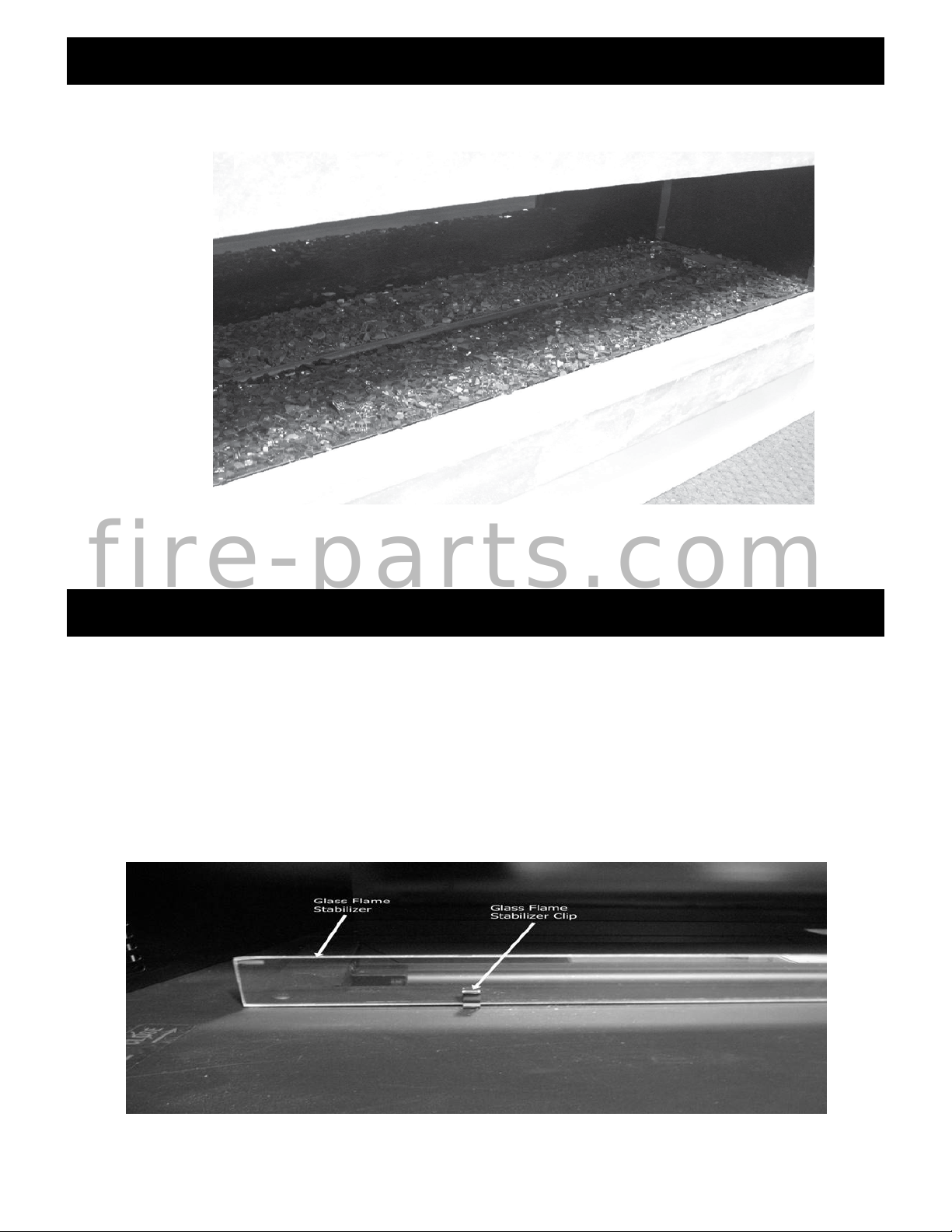

Glass Installation / Flame Stabilizer Installation......................................................10-12
Maintenance Instructions/Wiring Diagram.................................................................... 13
Operating Guidelines ................................................................................................... 12
LFP7218TV 89.75" 127" 72"
fire-parts.com

LFP4218 TOP-VENT FIREPLACE
INTERIOR VIEW
Outside Air
Control Knob
Damper Control
Lever
Pilot Assy/
Flame Sensor
On/Off Switch
Outside Air
Connection
3
Valve Access Door
Stand Off
Stand Off
Burner
fire-parts.com

INTERIOR VIEW
Left Outside
Air Control
Damper Control
Lever
Pilot Assy/
Flame Sensor
Right Outside
Air Control
On/Off Switch
LEFT RIGHT
4
Valve Access Door

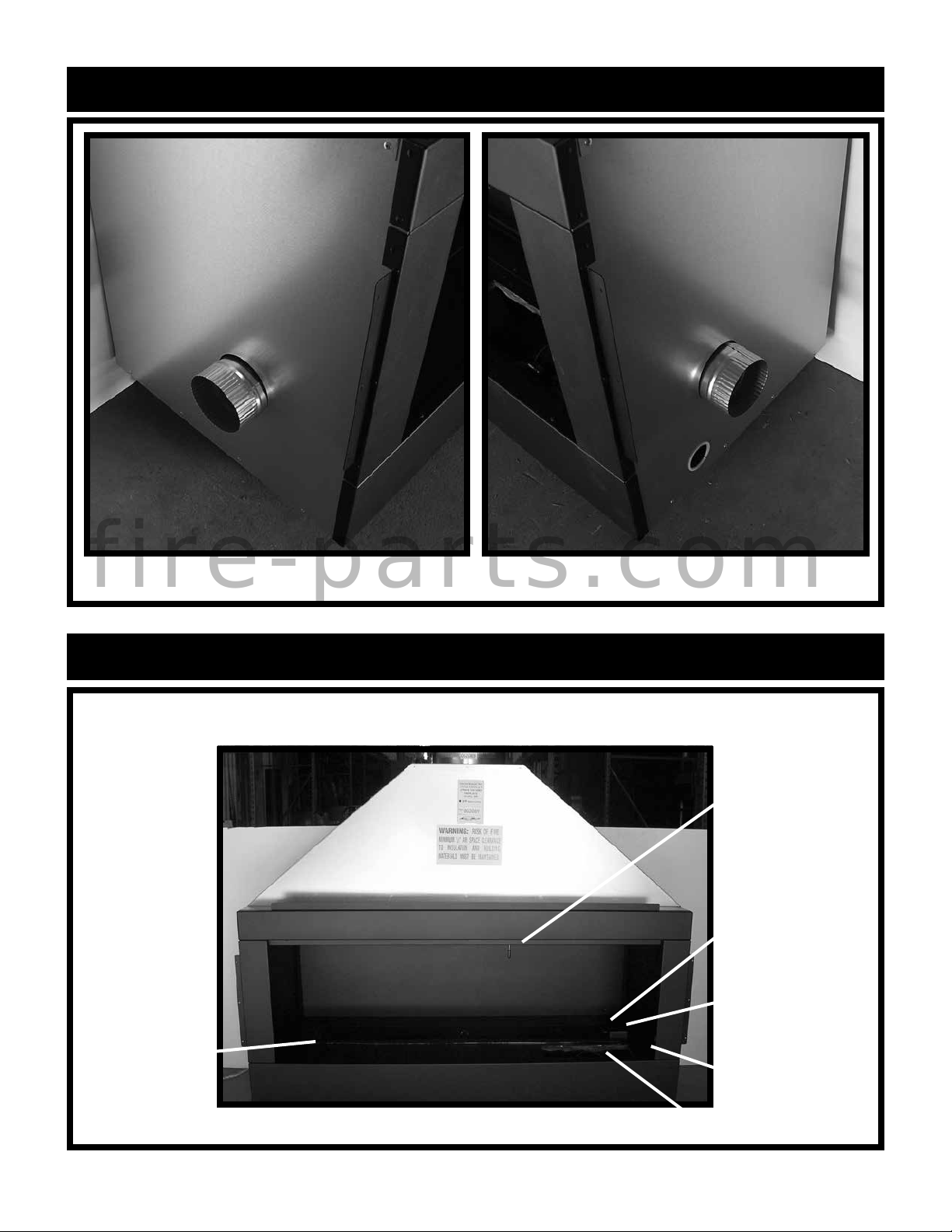

OUTSIDE AIR CONNECTIONS
LFP6018/7218 TOP-VENT FIREPLACES
fire-parts.com

BUILDING CODES AND SAFETY STANDARDS
The design of this FIREPLACE has been tested and is listed with PFS CORPORATION
in accordance with THE AMERICAN NATIONAL STANDARDS INSTITUTE —
ANSI Z21.50-2014.
This manual serves only as a basic guideline for installation and use of this
and gas piping. The complete installation must be in accordance with local codes and
ordinances, or, in the absence of local codes, with the American National Standards
Institute National Fuel Gas Code Z223.1 latest edition.
GENERAL INFORMATION
DESIGNED TO BURN BY DRAWING COMBUSTION AIR FROM THE OUTSIDE AIR KIT THAT
ATTACHES TO THE SIDE (SIDES) OF THE FIREPLACE.
THE EXHAUST FLUE GASES ARE TO BE VENTED THROUGH THE TOP-VENT USING
8" OR 10” B-TYPE GAS VENT PIPE.
THE CONTROL SYSTEM IS A (3V) SPARK TO PILOT TYPE THAT INCLUDES A
ON-OFF SHUTOFF VALVE, A GAS CONTROL VALVE, A SPARK TO PILOT LIGHT
ASSEMBLY, AND ON-OFF ROCKER SWITCH.
WARNING: THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
NOTE: INSTALLATION AND REPAIR SHOULD BE DONE BY A QUALIFIED SERVICE
PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST
ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING
MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE THAT THE UNITS CONTROL COMPARTMENT,
BURNERS, AND CIRCULATING AIR PASSAGE-WAYS BE KEPT CLEAN TO PROVIDE
ADEQUATE COMBUSTION AND VENTILATION AIR.
CLEARANCES REQUIRED
MINIMUM CLEARANCES FOR THE FIREBOX ARE:
1/2" ON THE SIDES AND BACK AND 0 AT THE BOTTOM. TOP CLEARANCE IS 3"
NOTE: PROVIDE ADEQUATE CLEARANCES AROUND AIR OPENINGS INTO THE
COMBUSTION CHAMBER.
NOTE: ADEQUATE ACCESSIBILITY CLEARANCES FOR SERVICING AND PROPER
OPERATION MUST BE PROVIDED IN ACCORDANCE WITH ANSI Z21.50-2014.
5
MODELS LFP4218,6018 & 7218 ARE TOP VENTED GAS FIREPLACES. THEY ARE
WHICH IS THE HEIGHT OF TOP STANDOFFS, (LFP4218), 3” (LFP6018/7218).
fire-parts.com

Allgaspipingmustbeinstalledtocomplywithlocalcodes,or,intheabsenceoflocal
codes,withthelatesteditionoftheNationalFuelGasCodeANSIZ223.1.
Unionsingaslinesshallbeofgroundjointtype.Compoundsusedonthreadedjointsof
gaspipingmustberesistanttotheactionofliqueedpetroleumgas.Gaspipingmustbe
ofsufcientsizetoprovideaminimumnaturalgaspressureattheapplianceof7"water
columnor11"forL.P.gasesforthepurposeofinputadjustment.Themaximuminletgas
pressuretotheunitmustnotexceed10"fornaturalgas,and13"forL.P.gases.Ifthis
unitistobesuppliedwithL.P.gas(bottledpropane)thetankorbottlesupplyingthegas
musthavearegulatorthatreducesthegaspressuretobetween11and13incheswater
column.Thecontrolwillnotoperatewithgaslinepressuredirectlyfromthetankandmay
leakgasduetothisexcessivepressure.
DANGER:OPERATIONOFTHISUNITONL.P.GASWITHOUTANAPPROVED
REGULATORATTHESUPPLYCONTAINERWILLLEADTOGASLEAKSATTHE
CONTROLWITHPOSSIBLEFIREOREXPLOSION.
Includeamanualshut-offvalveandunioninthelinesothecontrolorheatermaybe
disconnectedforservicing.Includeadriplegandaplugged1/8"N.P.T.tappingintothe
linealso.Thetappingmustbeaccessibleforthetestgaugeconnectionimmediately
upstreamofthegassupplyconnectiontotheunit.Useasoapandwatersolutionor
liquidgasleakdetectortocoateachjointinthepipingsystemandlookforbubbles
whichindicategasleaks.Repairallgasleaks.
CAUTION: THE APPLIANCE AND ITS APPLIANCE MAIN GAS VALVE MUST
BE DISCONNECTED FROM THE GAS SUPPLY PIPING SYSTEM DURING ANY
PRESSURE TESTING OF THAT SYSTEM AT TEST PRESSURES IN EXCESS OF
1/2PSI(3.5KPA).
THE APPLIANCE MUST BE ISOLATED FROM THE GAS SUPPLY PIPING SYSTEM BY
CLOSING THE EQUIPMENT SHUTOFF VALVE DURING ANY PRESSURE TESTING OF
THE GAS SUPPLY PIPING SYSTEM AT TEST PRESSURES EQUAL TO OR LESS THAN
1/2PSI(3.5KPA).
DANGER:DONOTUSECANDLES,MATCHESOROTHERIGNITIONSOURCESWHEN
CHECKINGFORLEAKS.FUELGASESAREVERYFLAMMABLEANDINCERTAIN
CONCENTRATIONS,EXPLOSIVE.CHECKINGFORLEAKSWITHANOPENFLAMEMAY
LEAD TO FIRE OR EXPLOSION.
GAS PIPING AND GAS PRESSURE REQUIREMENTS
6
fire-parts.com

INSTALLATION INSTRUCTIONS
In planning the installation for the it is necessary to determine where the
unit is to be installed, the routing of the B-type vent system, and whether optional
accessories are to be used gas supply piping should also be planned.
(in the United States) which has a total volume of space appropriate to
the particular installation. Refer to the National Fuel Gas Code ANSI Z223.1/NFPA
54 - (current edition), the Uniform Mechanical Code - (current edition), and Local
Building for the options allowed in obtaining an effective bedroom volume
of space.
The can be mounted on any of the following surfaces:
1. A combustible surface.
2. A raised wooden platform.
3. Four (4) corner supports.
(Example: four (4) concrete masonry blocks.) These supports must be positioned so
they contact all four corner edges on the bottom of the unit.
If the is installed directly on carpeting, tile, or other combustible material
other than wood the appliance shall be installed on a metal or wood panel
extending the full width and depth of the unit.
Fireplace framing can be built before or after the is set in place. Framing
should be positioned to accommodate wall covering and facing material.
The framing should be constructed of 2 x 4 lumber or heavier. The framing
headers may rest on the standoffs. Refer to Figure 8.1 for and
framing reference dimensions.
CAUTION: VERIFY FIREPLACE DIMENSIONS, FRAMING METHODS AND WALL
COVERING DETAILS BEFORE FRAMING CONSTRUCTION BEGINS.
Determine the exact position of the so that the vent run can be planned.
Figure 2.1 shows possible locations for the inside of a room, mount
in a chase, or installed in a corner. Using a level, make sure the is properly
positioned and squared.
WARNING: DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE
LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON
OR NEAR THE APPLIANCE.
Please note: B-Vent appliances are not designed to operate in negatively pressured
environments (pressure within the home is less than pressure outside).
negatively pressured environments caused by weather, home design or other devices
may impact the operation of this appliance. Negative pressures my result in poor
appearance, sooting, damage to property and/or severe personal injury. Do not operate
this appliance in negatively pressured environments.
7
Models LFP4218,6018 & 7218 (with the use of the Outside Air Kit ) can be installed in a bedroom
fire-parts.com

Installing Chimney/Vent System
fireplace system will draw properly if the chimney height is determined in accordance with the following guidelines:
Note: (90-degree elbows are not approved! Maximum offset angle must not exceed 45 degrees.) Many
manufacturers of B-Type gas vent offer “High Performance,” or “High Wind” caps. These caps limit the
outlet area for flue gasses to expel and should not be used with this fireplace. In the event of draft related
problems due to extreme wind conditions, a special wind ring is available.

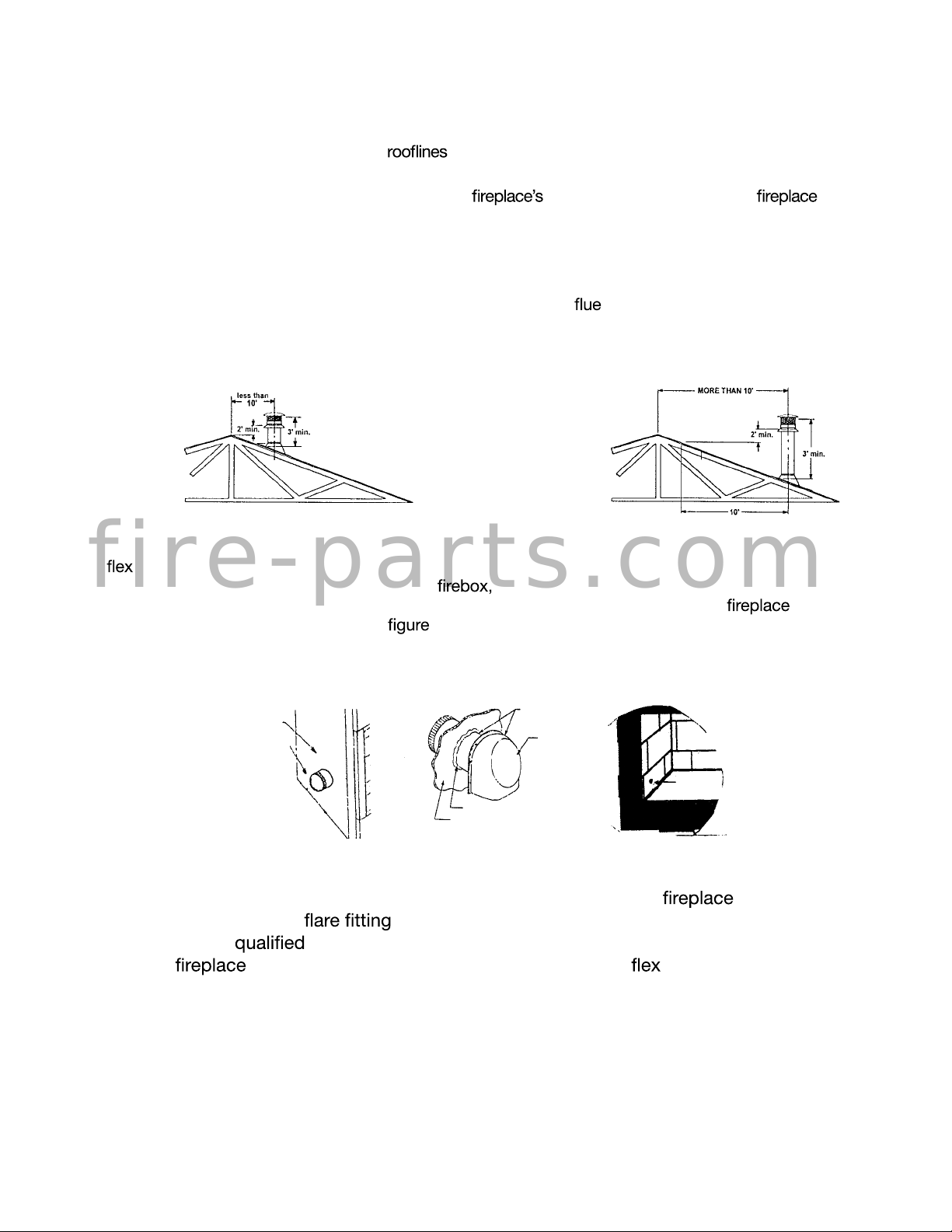

1. If your chimney penetrates the roof within 10' of its peak, it must be extended at least 24" above your roof’s
peak and be at least 36" above the highest point of the roof opening, (see below).
2. If the chimney penetrates the roof farther than 10' from its peak, measure from the centerline of the chimney to
a point 10' away, between the chimney and the peak of the roof. The top of the chimney must be at least 36"
above the highest point of the roof opening, (see below).
8
MINIMUM
FRAMING
DIMENSIONS
52"
36"
24"
31"
23 1/2"
35"
6"
7"
18"
42"
51"
2.5"
6.5"
FRONT OF
APPLIANCE
FRONT VIEW
TOP VIEW
SIDE VIEW
OPENING
HEIGHT
HOLE FOR GAS LINE
UNIT DIMENSIONS FOR
CONSTRUCTION PLANNING
Figure 8.1
10 1/2"
4"
MINIMUM FRAMING DIMENSIONS LFP4218
MINIMUM FRAMING DIMENSIONS PRIOR TO POSITIONING UNIT
FINISHED FRAMING DIMENSIONS WITH UNIT IN POSITION
NOTE: DIMENSIONS PRIOR TO POSITIONING FIREPLACE ALLOWS
CLEARANCE FOR OUTSIDE AIR COLLARS AS WELL AS FIREPLACE
HEADER TO BE NAILED AT CORRECT HEIGHT AFTER BOX HAS
BEEN SET.
11” TOP
VIEW
FIREPLACE IS
POSITIONED
MINIMUM
FRAMING
DIMENSIONS
52 1/2"
5 2"
30 1/2"
76 1/2"
INSTALLED AFTER
INSTALLED AFTER
FIREPLACE IS
POSITIONED
24”
32”
52”
Figure 8.1
18”
48 11/16”
18 7/8”
4 1/8”
29”
2 1/2”
6 1/2”
23 1/2”
4”
7”
LFP6018 75”W X 52”H X 24” D
LFP6018 70”W X 32”H X 24”D
A
B
C
D
LFP6018/7218 LINEAR TOP VENT ROUGH FRAMING DIMENSIONS
Models LFP4218,6018 & 7218 are approved to be used with 8” or 10” B-Type Gas Vent. Under most conditions the
MIN. FRAMING DIMENSIONS LFP6018/7218
LFP7218 87"W X 52"H X 24" D
LFP7218 82"W X 32"H X 24"D
LFP 6018 LFP7218
A 70" 82"
B 75" 87"
C 60" 72"
D 68 3/4" 80 3/4"
fire-parts.com

Installing Chimney/Vent System Continued
3. The 10' Rule of Thumb is a guide for calculating chimney height that works under most conditions. However,
many factors can cause the need for additional chimney height beyond what 10' Rule of Thumb would indicate.
Topographical factors can cause high-pressure zones, which prevent a chimney from drawing. This can occur if
the house is located in a low-lying area, in a valley or near the base of a cliff or hillside. The same situation can
occur if the chimney is near other steep or tall buildings. Areas with high winds also frequently require
higher than normal chimneys.
Certain styles of architecture tend to interfere with a draw. If the room in which the is located
has a very high ceiling, smoke may enter the room unless the chimney is terminated at a level higher than that
of the ceiling, even if the 10' Rule of Thumb indicates a shorter chimney height.
Note: Installations which will not allow the 10' rule to be followed must be submitted to Golden Blount Inc. for
approval. 1-800-833-1139.
Warning! This gas appliance must not be connected to a chimney serving a separate solid-fuel
burning appliance.
Note: A draft hood is installed and is in the same atmospheric pressure zone as the combustion air inlet to the
appliance and is located so that the relief opening is accessible for checking vent operation.
9
Installing Outside Air Kit
Models LFP4218/6018 are supplied with the component parts for outside combustion with the exception of the
4"
duct. It is recommended that the outside air system be used whenever possible. Connect 4" Class-1
Flex duct or Metal Vent to duct collar on side of run duct to fresh air source and terminate using duct
termination cap. The Outside air can be opened by pulling control knob toward front of and
closed
one on each side.
by pushing towards rear (Refer to 9.1). NOTE: Model LFP6018 supplied with two duct collars,
CONTROL
KNOB
DUCT
TERMINATION
LEFT SIDE LFP4218
LEFT AND RIGHT
LFP6018
RAIN CAP
CAULKING
WALL
OUTER
CASING
DUCT
COLLAR
TWO
SUPPLIED
WITH
LFP6018
Figure 9.1 Connecting the Gas Line
Consult local building codes before gas line installation. This gas is designed
to accept a 3/8" male attached to a 1/2" supply line. Have the gas line
installed by a service person in accordance with all building codes. Install gas
line to on the right side attaching gas line to the gas line inside the control
box accessed by opening the control box door.
fire-parts.com

Finishing the Wall
Finish the wall with the material
of your choice. Do not install a
combustible mantle or other
combustible projection above the
opening unless it is a
minimum of 12 inches above top
of opening. (Figure 10.1)
CAUTION: All joints between the wall and the surround (Top and
Sides) can only be sealed with non-combustible material. Only non-combustible
material can be applied as facing to the surround. (Figure 10.1)
Hearth Extension
A Hearth Extension may be installed. But it is not required for vented gas
Glass Installation LFP4218
1. Model LFP4218 is supplied with 15 lbs of that is used to burner
tray and be distributed around the surrounding area of the
2. Fill burner tray with glass even with or slightly above of (Figure 9.1).
3. Distribute remaining glass around front, sides and rear of burner tray covering
area. (Figures 10.2-11.1)
STUD
2X4
HEADER
FINISHED
WALL
NON-COMBUSTIBLE
SEAL JOINT
MANTLE
12" MIN
TOP OF
OPENING
Figure 10.1
Figure 10.2
10
GLASS INSTALLATION (optional)
1. All LFP MODELS can be used with approved Fireglass to enhance the overall appearance.
2. Fill the burner tray below and up to the top of the burner ports. Do not cover burner ports.
3. Distribute additional glass around front, sides and rear of burner tray, covering floor area.
(Figures 10.2-11.1)
Note: Model LFP4218 Includes 15 Lbs. of Fireglass
fire-parts.com

11
GLASS INSTALLATION CONT.
Figure 11.1
FLAME MAINTAIN A VERTICAL POSITION.
GLASS FLAME STABILIZER INSTALLATION
1. ALL LFP MODELS ARE SUPPLIED WITH A GLASS FLAME STABILIZER THAT HELPS BURNER
2. LOCATE GLASS FLAME STABILIZER CLIPS AND INSERT GLASS FLAME STABILIZER INTO
BOTH. CENTER GLASS FLAME STABILIZER SO THAT THERE IS SAME CLEARANCE ON LEFT
AND RIGHT SIDES.
fire-parts.com

12
Upon completing the gas line connection, a small amount of air will be in the lines.
When lighting the pilot light, it will take a few minutes for the lines to purge
themselves of this air. Once the purging is complete, the pilot and burner will light and
operate as indicated in the instruction manual. Subsequent lighting of the appliance
will not require such purging.
WARNING:CHILDREN AND ADULTS SHOULDBE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY
SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.
IMPORTANT: TURN OFF GAS BEFORE SERVICING APPLIANCE.IT IS RECOMMENDED
THAT A COMPETENT SERVICE TECHNICIAN PERFORM THESE CHECKUPS AT
THE BEGINNING OF EACH HEATING SEASON.
WARNING: THE FLOW OF COMBUSTION AND VENTILATION AIR MUST NOT
BE OBSTRUCTED.
When lit for the time, the appliance
will emit a slight odor for an hour or two.
This is due to paint and lubricants used
in the manufacturing process. The main
burner characteristics are steady,
not lifting or Typically, the top
1/4 inch of the sensor should be
engulfed in the pilot A periodic
check of these characteristics is
necessary (Figure 12.2).
Figure 12.2
OPERATING GUIDELINES
Flame
Sensor
GLASS FLAME STABILIZER INSTALLATION CONT.
3. GLASS FLAME STABILIZER SHOULD BE SEATED AGAINST FIREPLACE FLOOR AS SHOWN
fire-parts.com

MAINTENANCE INSTRUCTIONS
IMPORTANT: THE APPLIANCE AREA MUST BE KEPT CLEAR AND FREE FROM
COMBUSTIBLE MATERIALS, GASOLINE AND OTHER FLAMMABLE VAPORS AND
LIQUIDS.
Visually inspect pilot periodically. Brush or blow away any dust or linen accumulations.
If pilot is plugged, disassembly may be required to remove any foreign material
from or tubing.
Venting system should be periodically examined by a service technician or
agency to ensure proper air
13
WIRING DIAGRAM
FLAME SENSOR
REMOTE/WALL SWITCH
CONNECTION
fire-parts.com

14
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY,
A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance is equipped with an ignition device which automatically lights the
pilot. Do not light pilot by hand.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell
next to the because some gas is heavier than air and will settle on the
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance
• Do not touch any electric switch:
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions
C. Do not use this appliance if any part has been under water. Immediately call a
service technician to inspect the appliance and to replace any part of
the gas control system which has been under water.
LIGHTING INSTRUCTIONS ELEC. SPARK TO PILOT
1. “STOP” Read the safety information on
page 11.
2. Set the switch to “OFF”.
3. Remove batteries from battery pack.
4. This appliance is equipped with an ignition
device which automatically lights the burner.
Do not try to light the burner by hand.
5. Wait (5) minutes to clear out any gas. Then
smell for gas, including near the If you
smell gas, STOP! Follow “B” in the safety
information on page 11. If you don’t smell
gas, go to next step.
6. Install (2) D batteries in battery pack.
7. Turn ON/OFF rocker switch to “ON”.
8. If the appliance will not operate, follow the
instructions “To turn Off Gas To Appliance”
and call your service technician or gas supplier.
NOTE: DAMPER CONTROL LEVER MUST
BE IN THE “OPEN” POSITION TO IGNITE.
GAS VALVE
fire-parts.com

15
TO TURN OFF GAS TO APPLIANCE
1. Turn ON/OFF rocker switch to “OFF”
2. Remove batteries from appliance if service is to be performed.
LPG (PROPANE) WARNING
THE FOLLOWING WARNING APPLIES TO INSTALLATIONS USING L.P. (PROPANE GAS):
WARNING: To avoid possible injury, and explosion, please read and follow these precautions
and all instructions of this appliance before operating. This appliance uses L.P. (Propane)
gas which is heavier than air and will remain at the level is there is a leak. Before lighting,
smell at level and/or use other means (such as using a soap solution on all piping and
connections, using a gas detector, etc.) to check for gas leaks. NOTE: L.P. (Propane) gas can
become odorless and CANNOT always be detected by smell. If you smell gas, detect a gas leak or
suspect that a gas leak exists, follow these rules:
1. Get all people out of building.
2. DO NOT light matches. DO NOT turn electric lights or switches on or off in area. DO NOT use
an electric fan to remove gas from area. DO NOT use a telephone inside of building.
3. Shut off gas at L.P. tank outside of building.
4. Telephone gas company and department. Ask instructions. Before hanging up, give your
name, address and phone number. DO NOT go back into building.
If your L.P. tank runs out of fuel, turn off gas at the appliance. After L.P. tank is appliance
must be re-lit according to manufacturer’s instructions. If The gas control has been exposed to
WATER in any way, DO NOT try to use it. It must be replaced. DO NOT attempt repair on gas
control or appliance.
Tampering is DANGEROUS and voids all warranties. Any component that is found to be faulty,
must be replaced with an approved component.
TO TURN OFF GAS TO APPLIANCE
IMPORTANT: Always keep the appliance area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
Never obstruct the flow of combustion and ventilation air. Keep the front of the appliance
clear of all obstacles and materials.
To obtain proper operation, it is imperative that the pilot and main burner flame
characteristics are steady, not lifting or floating. Typically the top 1/4 Inch of the flame
sensor should be engulfed in the pilot flame. (Figure 12.2)
fire-parts.com

16
fire-parts.com

17
fire-parts.com

REPLACEMENT PARTS
THE FOLLOWING REPLACEMENT PARTS ARE AVAILABLE FROM YOUR GOLDEN BLOUNT DEALER
1
2
36
510
11 12
16
15
4
14
13
ITEM PART # DESCRIPTION
1
2
3
4
4
5
6
7
7
8
8
9
10
11
11
12
12
13
14
15
16
STP-TV-127
STP-TV-128
LFP-103
LFP-104
LFP-104-6018
LFP-105
TV-106
STP-LFP-107
STP-LFP-107-6018
STP-LFP-108
STP-LFP-108-6018
STP-TV-132
TV-130
LFP-111
LFP-111-6018
LFP-112
LFP-112-6018
TV-124
TV-125
STP-TV-129
STP-TV-126
Gas Valve - N/G
Gas Valve - LP
1/4” Pilot Gas Line
3/8” Burner Gas Line (4218)
1/2” Burner Gas Line (6018
15# Fireglass (4218)
On/Off Switch
Pilot Assembly - NAT (4218)
Pilot Assembly - NAT (6018)
Pilot Assembly - LP (4218)
Pilot Assembly - LP (6018)
Flame Sensor
3/8” Shut Off Valve
Burner Orifice NAT (4218)
Burner Orifice NAT (6018)
Burner Orifice LP (4218)
Burner Orifice LP (6018)
Temp Limit Switch
Damper Switch
Ignition Module
Battery Pack
18
78
9
fire-parts.com

19
, Inc.
fire-parts.com
