Golden Blount SF3624-TV User manual

INSTALLATION AND OPERATING INSTRUCTIONS
GOLDEN BLOUNT
SUPER-FIRE
MODELS SF3624-TV / SF4224-TV TOP-VENT FIREPLACE
PFS APPROVED FOR NATURAL GAS OR PROPANE GAS
IMPORTANT! Read all instructions carefully before starting
installation. Failure to follow these instructions may result in
property damage, personal injury or possible loss of life.
WARNING: If the information in these
instructions is not followed exactly, a
fire or explosion may result causing
property damage, personal injury or
death.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL
GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your
building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas
supplier, call the fire department.
– Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
■The Flue Damper must be in the
full open position when burning the
gas logs.
■This fireplace is to be burned only
with the gas log set supplied with the
fireplace. Burning other items could
cause a fire hazard or injury.
■For best results, Natural Gas pressure
should be 7" to 12" W.C. and 11" W.C.
for Propane Gas.
■To simulate real wood burning, the gas
burner is designed to burn a yellow
flame. It is normal for the logs to soot
up. The soot can be easily removed
with a vacuum cleaner or soft brush.
■Check the label on the firebox to
assure the proper gas type. Never
use anything but the correct gas type
for your fireplace.
This appliance complies with National
Safety and is tested and listed to ANSI
Z21.50 - 2014 as Vented Gas fireplaces.
Installation must conform to local codes.
In the absence of local codes, installation
must conform with the current National
Fuel Gas Code, ANSI Z223.1.
6/16 REV
MANUFACTURED BY:
4301 WESTGROVE DRIVE
ADDISON TX. 75001
INSTALLER/CONSUMER RETAIN THIS APPLIANCE
MANUAL WITH THE INSTALLED APPLIANCE
fire-parts.com

2
TABLE OF CONTENTS
SECTION
Layout Options .............................................................................................................. 2
Identification of Parts ..................................................................................................... 3
Building Codes and Safety Standards............................................................................ 4
Piping and Gas Pressure Requirements ........................................................................ 5
Installation Instructions................................................................................................... 6
Brick Panels, Exhaust and Downdraft Diverter Instructions (Refractory Models) .......... 9
Log Placement...............................................................................................................11
Operating Guidelines (Millivolt Models) ........................................................................ 12
Lighting Instructions (Millivolt Models).......................................................................... 13
Trouble Shooting (Millivolt Models) .............................................................................. 15
Operating Guidelines (Spark to Pilot Models) .............................................................. 18
Lighting Instructions (Spark to Pilot Models) ................................................................ 20
Trouble Shooting (Spark to Pilot Models)..................................................................... 21
Replacement Parts............................................................................................... 23, 24
INSTALLATION OPTIONS
Figure 2.1
INSIDE
ROOM
FLUSH MOUNT CHASE
CORNER MOUNT
B
A
C
A B C
SF3624TV 81” 55” 40”
SF4224TV 86.5” 61” 44”
3
SUPERFIRE TV TOP-VENT FIREPLACE
INTERIOR VIEW
Pan Burner
Outside Air
Control Knob
Damper Control
Lever
Pilot Light
On/Off Switch
Stand Offs
Outside Air Port
Damper Control Lever
Valve Access Panel
(Side Steel Model)
Valve Access Panel
(Refractory/
STP Models)
fire-parts.com

3
SUPERFIRE TV TOP-VENT FIREPLACE
INTERIOR VIEW
Pan Burner
Outside Air
Control Knob
Damper Control
Lever
Pilot Light
On/Off Switch
Stand Offs
Outside Air Port
Damper Control Lever
Valve Access Panel
(Side Steel Model)
Valve Access Panel
(Refractory/
STP Models)
fire-parts.com

4
BUILDING CODES AND SAFETY STANDARDS
The design of this FIREPLACE ACCESSORY has been tested and is listed with PFS
CORPORATION in accordance with THE AMERICAN NATIONAL STANDARDS
INSTITUTE - ANSI Z21.50, PFS File Number F15-047.
This manual serves only as a basic guideline for installation and use of this firebox
and gas piping. The complete installation must be in accordance with local codes and
ordinances, or, in the absence of local codes, with the American National Standards
Institute National Fuel Gas Code Z223.1 latest edition.
GENERAL INFORMATION
MODELS SF3624/4224-TV ARE TOP-VENTED DECORATIVE GAS APPLIANCES. THEY ARE
DESIGNED TO BURN BY DRAWING COMBUSTION AIR FROM THE ROOM THEY ARE
INSTALLED IN OR THE OUTSIDE AIR KIT THAT ATTACHES TO THE SIDE OF THE UNIT.
THE EXHAUST FLUE GASES ARE TO BE VENTED THROUGH THE TOP-VENT
USING 8" B-TYPE GAS VENT PIPE. ALL-FUEL CLASS A CHIMNEY PIPE MAY ALSO
BE USED.

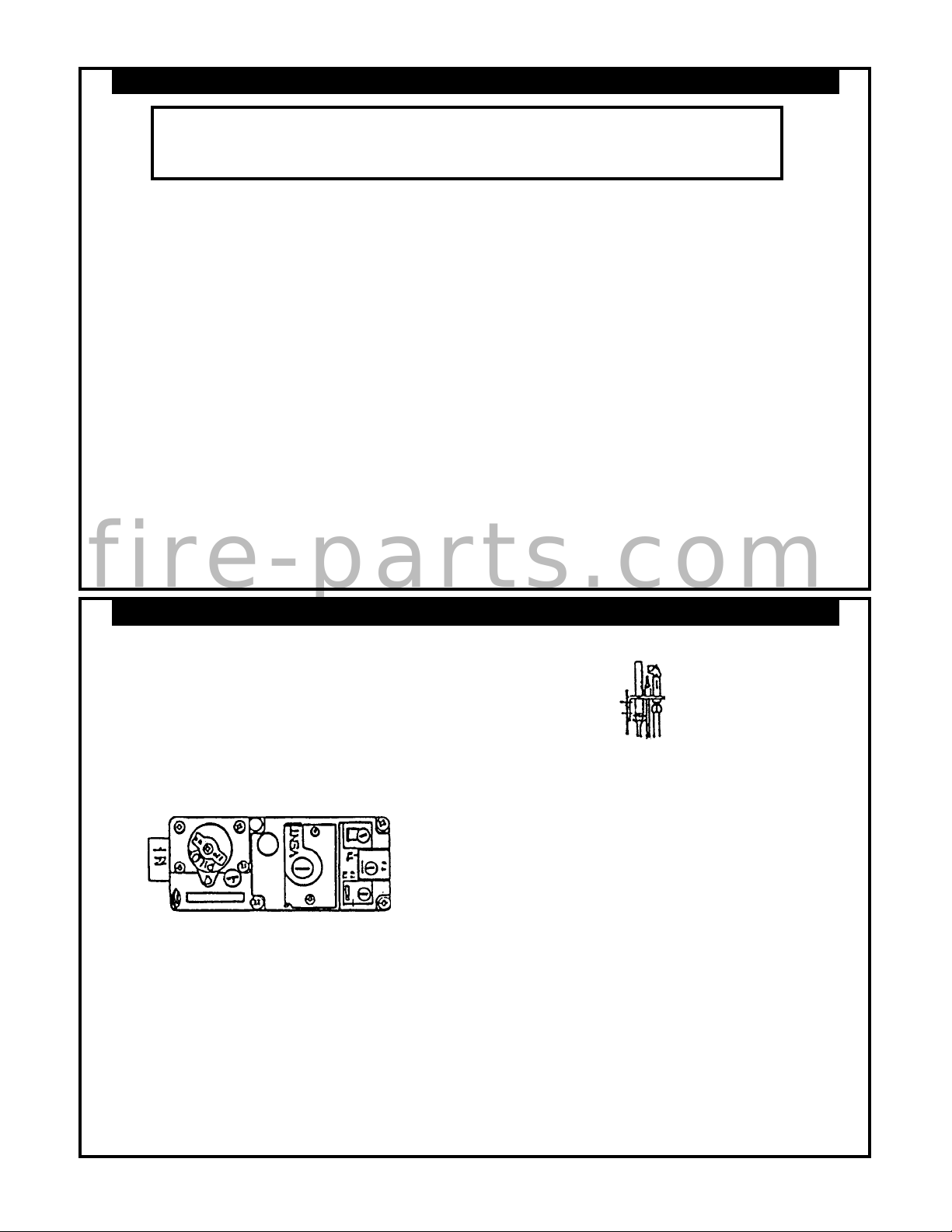

THE CONTROL SYSTEM IS A MILLIVOLT OR SPARK TO PILOT TYPE THAT
INCLUDES AN ON-OFF SHUT-OFF VALVE, A GAS CONTROL VALVE, A STANDING
PILOT LIGHT ASSEMBLY, PIEZO IGNITOR AND ON-OFF ROCKER SWITCH.
WARNING: THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
NOTE: INSTALLATION AND REPAIR SHOULD BE DONE BY A QUALIFIED SERVICE
PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT
LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT
CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING,
BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT THE UNITS CONTROL
COMPARTMENT, BURNERS, AND CIRCULATING AIR PASSAGE WAYS BE KEPT
CLEAN TO PROVIDE ADEQUATE COMBUSTION AND VENTILATION AIR.
CLEARANCES REQUIRED
MINIMUM CLEARANCES FOR THE FIREBOX ARE:
1/2" ON THE SIDES AND BACK AND 0 AT THE BOTTOM. TOP CLEARANCE IS 3"
WHICH IS THE HEIGHT OF TOP STANDOFFS, SEE FIGURE 7.1 FOR FRAMING
DIMENSIONS:
NOTE: PROVIDE ADEQUATE CLEARANCES AROUND AIR OPENINGS INTO THE
COMBUSTION CHAMBER.
NOTE: ADEQUATE ACCESSIBILITY CLEARANCES FOR SERVICING AND PROPER
OPERATION MUST BE PROVIDED IN ACCORDANCE WITH ANSI Z21.50 - 2014.
fire-parts.com

4
BUILDING CODES AND SAFETY STANDARDS
The design of this FIREPLACE ACCESSORY has been tested and is listed with PFS
CORPORATION in accordance with THE AMERICAN NATIONAL STANDARDS
INSTITUTE - ANSI Z21.50, PFS File Number F15-047.
This manual serves only as a basic guideline for installation and use of this firebox
and gas piping. The complete installation must be in accordance with local codes and
ordinances, or, in the absence of local codes, with the American National Standards
Institute National Fuel Gas Code Z223.1 latest edition.
GENERAL INFORMATION
MODELS SF3624/4224-TV ARE TOP-VENTED DECORATIVE GAS APPLIANCES. THEY ARE
DESIGNED TO BURN BY DRAWING COMBUSTION AIR FROM THE ROOM THEY ARE
INSTALLED IN OR THE OUTSIDE AIR KIT THAT ATTACHES TO THE SIDE OF THE UNIT.
THE EXHAUST FLUE GASES ARE TO BE VENTED THROUGH THE TOP-VENT
USING 8" B-TYPE GAS VENT PIPE. ALL-FUEL CLASS A CHIMNEY PIPE MAY ALSO
BE USED.
THE CONTROL SYSTEM IS A MILLIVOLT OR SPARK TO PILOT TYPE THAT
INCLUDES AN ON-OFF SHUT-OFF VALVE, A GAS CONTROL VALVE, A STANDING
PILOT LIGHT ASSEMBLY, PIEZO IGNITOR AND ON-OFF ROCKER SWITCH.
WARNING: THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
NOTE: INSTALLATION AND REPAIR SHOULD BE DONE BY A QUALIFIED SERVICE
PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT
LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT
CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING,
BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT THE UNITS CONTROL
COMPARTMENT, BURNERS, AND CIRCULATING AIR PASSAGE WAYS BE KEPT
CLEAN TO PROVIDE ADEQUATE COMBUSTION AND VENTILATION AIR.
CLEARANCES REQUIRED
MINIMUM CLEARANCES FOR THE FIREBOX ARE:
1/2" ON THE SIDES AND BACK AND 0 AT THE BOTTOM. TOP CLEARANCE IS 3"
WHICH IS THE HEIGHT OF TOP STANDOFFS, SEE FIGURE 7.1 FOR FRAMING
DIMENSIONS:
NOTE: PROVIDE ADEQUATE CLEARANCES AROUND AIR OPENINGS INTO THE
COMBUSTION CHAMBER.
NOTE: ADEQUATE ACCESSIBILITY CLEARANCES FOR SERVICING AND PROPER
OPERATION MUST BE PROVIDED IN ACCORDANCE WITH ANSI Z21.50 - 2014.
5
GAS PIPING AND GAS PRESSURE REQUIREMENTS
All gas piping must be installed to comply with local codes, or, in the absence of local
codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1.
Unions in gas lines shall be of ground joint type. Compounds used on threaded joints of
gas piping must be resistant to the action of liquefied petroleum gas. Gas piping must
be of sufficient size to provide a minimum natural gas pressure at the appliance of 7"
water column or 11" for LP gases for the purpose of input adjustment. The maximum
inlet gas pressure to the unit must not exceed 10" for natural gas, and 13" for LP gases.
If this unit is to be supplied with LP gas (bottled propane)the tank or bottle supplying the
gas must have a regulator that reduces the gas pressure to between 11 and 13 inches
water column. The control will not operate with gas line pressure directly from the tank
and may leak gas due to this excessive pressure.
DANGER: OPERATION OF THIS UNIT ON LP GAS WITHOUT AN APPROVED
REGULATOR AT THE SUPPLY CONTAINER WILL LEAD TO GAS LEAKS AT THE
CONTROL WITH POSSIBLE FIRE OR EXPLOSION.
Include a manual shut-off valve and union in the line so the control or heater may be
disconnected for servicing. Include a drip leg and a plugged 1/8" N.P.T. tapping into the
line also. The tapping must be accessible for the test gauge connection immediately
upstream of the gas supply connection to the unit. Use a soap and water solution or
liquid gas leak detector to coat each joint in the piping system and look for bubbles
which indicate gas leaks. Repair all gas leaks.
CAUTION: THE APPLIANCE AND ITS APPLIANCE MAIN GAS VALVE MUST
BE DISCONNECTED FROM THE GAS SUPPLY PIPING SYSTEM DURING ANY
PRESSURE TESTING OF THAT SYSTEM AT TEST PRESSURES IN EXCESS OF
1/2 PSI (3.5 KPA).
THE APPLIANCE MUST BE ISOLATED FROM THE GAS SUPPLY PIPING SYSTEM
BY CLOSING THE EQUIPMENT SHUTOFF VALVE DURING ANY PRESSURE
TESTING OF THE GAS SUPPLY PIPING SYSTEM AT TEST PRESSURES EQUAL
TO OR LESS THAN 1/2 PSI (3.5KPA).
DANGER: DO NOT USE CANDLES, MATCHES OR OTHER IGNITION SOURCES
WHEN CHECKING FOR LEAKS. FUEL GASES ARE VERY FLAMMABLE AND IN
CERTAIN CONCENTRATIONS, EXPLOSIVE . CHECKING FOR LEAKS WITH AN
OPEN FLAME MAY LEAD TO FIRE OR EXPLOSION.
fire-parts.com

6
INSTALLATION INSTRUCTIONS
In planning the installation for the fireplace it is necessary to determine where the unit is
to be installed, the routing of the B-type vent system, and whether optional accessories
are to be used gas supply piping should also be planned.
Models SF3624/4224-TV (with the use of the Outside Air Kit) can be installed in a bedroom
(in the United States) which has a total volume of unconfined space appropriate to the
particular installation. Refer to the National Fuel Gas Code ANSI Z223.1/NFPA 54 -
(current edition), the Uniform Mechanical Code - (current edition), and Local Building
Officials for the options allowed in obtaining an effective bedroom volume of unconfined
space.
The fireplace can be mounted on any of the following surfaces:
1. A flat combustible surface.
2. A raised wooden platform.
3. Four (4) corner supports.
(Example: four (4) concrete masonry blocks.) These supports must be positioned so they
contact all four corner edges on the bottom of the unit.
If the fireplace is installed directly on carpeting, tile, or other combustible material other
than wood flooring, the appliance shall be installed on a metal or wood panel extending
the full width and depth of the unit.
Fireplace framing can be built before or after the fireplace is set in place. Framing should
be positioned to accommodate wall covering and fireplace facing material. The fireplace
framing should be constructed of 2 x 4 lumber or heavier.The framing headers may
rest on the fireplace standoffs. Refer to Figures 7.1-7.2 for fireplace and framing reference
dimensions.
CAUTION: VERIFY FIREPLACE DIMENSIONS, FRAMING METHODS AND WALL
COVERING DETAILS BEFORE FRAMING CONSTRUCTION BEGINS.
Determine the exact position of the fireplace so that the vent run can be planned. Figure
2.1 shows possible locations for the inside of a room, mount in a chase,
or installed in a corner. Using a level, make sure the fireplace is properly positioned
and squared.
WARNING: DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE
LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR
NEAR THE APPLIANCE.
Please note:B-Vent appliances are not designedto operate in negativelypressured
environments (pressure within the home is less than pressure outside).Significant negatively
pressuredenvironments causedbyweather,homes built airtight or other devices mayimpact
the operation of this appliance. Negative pressure my result in poor flame appearance,
sooting, damage to property and/or severe personal injury. Do not operate this appliance in
negatively pressured environments.
fire-parts.com

6
INSTALLATION INSTRUCTIONS
In planning the installation for the fireplace it is necessary to determine where the unit is
to be installed, the routing of the B-type vent system, and whether optional accessories
are to be used gas supply piping should also be planned.
Models SF3624/4224-TV (with the use of the Outside Air Kit) can be installed in a bedroom
(in the United States) which has a total volume of unconfined space appropriate to the
particular installation. Refer to the National Fuel Gas Code ANSI Z223.1/NFPA 54 -
(current edition), the Uniform Mechanical Code - (current edition), and Local Building
Officials for the options allowed in obtaining an effective bedroom volume of unconfined
space.
The fireplace can be mounted on any of the following surfaces:
1. A flat combustible surface.
2. A raised wooden platform.
3. Four (4) corner supports.
(Example: four (4) concrete masonry blocks.) These supports must be positioned so they
contact all four corner edges on the bottom of the unit.
If the fireplace is installed directly on carpeting, tile, or other combustible material other
than wood flooring, the appliance shall be installed on a metal or wood panel extending
the full width and depth of the unit.
Fireplace framing can be built before or after the fireplace is set in place. Framing should
be positioned to accommodate wall covering and fireplace facing material. The fireplace
framing should be constructed of 2 x 4 lumber or heavier.The framing headers may
rest on the fireplace standoffs. Refer to Figures 7.1-7.2 for fireplace and framing reference
dimensions.
CAUTION: VERIFY FIREPLACE DIMENSIONS, FRAMING METHODS AND WALL
COVERING DETAILS BEFORE FRAMING CONSTRUCTION BEGINS.
Determine the exact position of the fireplace so that the vent run can be planned. Figure
2.1 shows possible locations for the inside of a room, mount in a chase,
or installed in a corner. Using a level, make sure the fireplace is properly positioned
and squared.
WARNING: DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE
LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR
NEAR THE APPLIANCE.
Please note:B-Vent appliances are not designedto operate in negativelypressured
environments (pressure within the home is less than pressure outside).Significant negatively
pressuredenvironments causedbyweather,homes built airtight or other devices mayimpact
the operation of this appliance. Negative pressure my result in poor flame appearance,
sooting, damage to property and/or severe personal injury. Do not operate this appliance in
negatively pressured environments.
7
Installing Chimney/Vent System
Models SF3624/4224TV are approved to be used with 8" B-Type Gas Vent or 8" class-A All Fuel Chimney. Under most
conditions the fireplace system will draw properly if the chimney height is determined in accordance with the following
guidelines:
Note: (90-degree elbows are not approved! Maximum offset angle must not exceed 45 degrees.) Many
manufacturers of B-Type gas vent offer “High Performance,” or “High Wind” caps. These caps limit the outlet area
for flue gasses to expel and should notbeused with this fireplace. In the event ofdraft related problems due to
extreme wind conditions a special wind ring is available.
1. Ifyour chimney penetrates the roofwithin 10' of its peak, it must be extended at least 24" above your roof’s peak and be at
least 36" above the highest point ofthe roof opening, (see below).
2. Ifthe chimney penetrates the rooffarther than 10' from its peak, measure from the centerline ofthe chimney to a point 10'
away, between the chimney and the peak of the roof. The top of the chimney must be at least 36" above the highest point
ofthe roofopening, (see below).
3. The 10' Rule of Thumb is a guide for calculatingchimney height that works under most conditions. However, many factors
can cause the need for additional chimney height beyond what 10' Rule ofThumb would indicate. Topographical factors
can cause high-pressure zones, which prevent a chimney from drawing. This can occur ifthe house is located in a low-
lyingarea, in a valley or near the base of a cliff or hillside. The same situation can occur ifthe chimney is near other steep
rooflines or tall buildings. Areas with high winds also frequently require higher than normal chimneys.
Certain styles ofarchitecture tend to interfere with a fireplace’s draw. If the room in which the fireplace is located has a very
high ceiling, smoke may enter the room unless the chimney is terminated at a level higher than that ofthe ceiling, even if
the 10' Rule of Thumb indicates a shorter chimney height.
Note: Installations which will not allow the 10' rule to be followed must be submitted to Golden Blount Inc. for
approval. 1-800-833-1139.
Warning! This gas appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
MINIMUM
FRAMING
DIMENSIONS
52"
42"
24"
37"
23 1/2"
41 3/16"
6"
7"
24"
42"
51"
10"
14"
FRONT OF
APPLIANCE
FRONT VIEW
TOP VIEW
SIDE VIEW
OPENING
HEIGHT
HOLE FOR GAS LINE
UNIT DIMENSIONS FOR
CONSTRUCTION PLANNING
Figure 7.2
10 1/2"
SF4224-TV
SF3624-TV
MINIMUM
FRAMING
DIMENSIONS
46"
42"
24"
31"
23 1/2"
41 3/16"
6"
7"
24"
36"
45"
2.5"
14"
FRONT OF
APPLIANCE
FRONT VIEW
TOP VIEW
SIDE VIEW
OPENING
HEIGHT
HOLE FOR GAS LINE
UNIT DIMENSIONS FOR
CONSTRUCTION PLANNING
Figure 7.1
10 1/2"
SIDE DOOR MODEL
REFRACTORY MODEL
6.5"
fire-parts.com

8
Connecting the Gas Line
Consult local building codes before gas line installation.
This gas fireplace is designed to accept a 3/8" male flare
fitting attached to a 1/2" supply line. Have the gas line
installed by a qualified service person in accordance
with all building codes. Install gas line to fireplace on the
right side attaching gas line to the gas flex line inside the
control box accessed by opening the control box door.
Finishing the Wall
Finish the wall with the material of your choice. Do
not install a combustible mantle or other combustible
projection above the fireplace opening unless it is a
minimum of 12 inches above top of fireplace opening.
*Non-combustible material used between top of opening
and mantle must not exceed 3" in depth. (Figure 8.2)
CAUTION: All joints between the finished wall and the fireplace surround (Top and Sides) can
only be sealed with non-combustible material. Only non-combustible material can be applied as
facing to the fireplace surround. (Figure 8.2)
Figure 8.2
Hearth Extension
A Hearth Extension may be installed, but it is not required for decorative gas appliances.
Gas Log Installation
1. Fill burner pan with vermiculite supplied with log set. Note! On L.P. models be careful not
to pour vermiculite over brass air mixer attached to burner pan. Air mixer holes must not be
obstructed!
2. Spread the ember material over the vermiculite.
3. At this time, we suggest you test fire the burner. Refer to start up instructions on page 13 (MV) Model
and page 20 (STP) Model. Important! The fireplace damper must be in full open position.
4. Place the grate over the burner and install the logs as illustrated on page 11.
5. The last step is to cover floor of fireplace with volcanic rock around the sides and in front
of burner pan to enhance overall appearance. Note: On L.P. models be careful not to
pour black cinders over brass air mixer attached to burner pan. Air mixer holes must not
be obstructed!
STUD
2X4
HEADER
FINISHED
WALL
NON-COMBUSTIBLE
SEAL JOINT
MANTLE
12" MIN
TOP OF
OPENING
CONTROL
KNOB
DUCT
TERMINATION
RAIN CAP
CAULKING
WALL
OUTER
CASING
DUCT
COLLAR
Figure 8.1
Installing Outside Air Kit
Models SF3624/4224-TV are supplied with the component parts for outside combustion with the
exception of the 4" flex duct. It is recommended that the outside air system be used whenever
possible. Connect 4" Class-1 Flex duct or Metal Vent to duct collar on side of firebox, run duct
to fresh air source and terminate using duct termination cap. The Outside air can be opened
by pushing control knob toward back of fireplace and closed by pulling towards front (Refer to Figure 8.1)
If your plans do not allow for the venting system as outlined
previously in the "Installing chimney/vent system" section, you may
contact ENERVEX, Inc. (formerly EXHAUSTO) at 800-255-2923.
They will design an approved venting system to suit your venting
needs. These power vented systems follow the standards and codes
as outlined under the NFPA 54/ANSI Z223.1 Nation Fuel Gas Code.
Please check with the local authority having jurisdiction in your area.
The engineers at ENERVEX are familiar with Golden Blount
fireplaces and their systems will allow you to minimize the amount
of vent pipe exposed outside of your home. Fireplaces may also be
horizontally vented with these systems.
fire-parts.com

8
Connecting the Gas Line
Consult local building codes before gas line installation.
This gas fireplace is designed to accept a 3/8" male flare
fitting attached to a 1/2" supply line. Have the gas line
installed by a qualified service person in accordance
with all building codes. Install gas line to fireplace on the
right side attaching gas line to the gas flex line inside the
control box accessed by opening the control box door.
Finishing the Wall
Finish the wall with the material of your choice. Do
not install a combustible mantle or other combustible
projection above the fireplace opening unless it is a
minimum of 12 inches above top of fireplace opening.
*Non-combustible material used between top of opening
and mantle must not exceed 3" in depth. (Figure 8.2)
CAUTION: All joints between the finished wall and the fireplace surround (Top and Sides) can
only be sealed with non-combustible material. Only non-combustible material can be applied as
facing to the fireplace surround. (Figure 8.2)
Figure 8.2
Hearth Extension
A Hearth Extension may be installed, but it is not required for decorative gas appliances.
Gas Log Installation
1. Fill burner pan with vermiculite supplied with log set. Note! On L.P. models be careful not
to pour vermiculite over brass air mixer attached to burner pan. Air mixer holes must not be
obstructed!
2. Spread the ember material over the vermiculite.
3. At this time, we suggest you test fire the burner. Refer to start up instructions on page 13 (MV) Model
and page 20 (STP) Model. Important! The fireplace damper must be in full open position.
4. Place the grate over the burner and install the logs as illustrated on page 11.
5. The last step is to cover floor of fireplace with volcanic rock around the sides and in front
of burner pan to enhance overall appearance. Note: On L.P. models be careful not to
pour black cinders over brass air mixer attached to burner pan. Air mixer holes must not
be obstructed!
STUD
2X4
HEADER
FINISHED
WALL
NON-COMBUSTIBLE
SEAL JOINT
MANTLE
12" MIN
TOP OF
OPENING
CONTROL
KNOB
DUCT
TERMINATION
RAIN CAP
CAULKING
WALL
OUTER
CASING
DUCT
COLLAR
Figure 8.1
Installing Outside Air Kit
Models SF3624/4224-TV are supplied with the component parts for outside combustion with the
exception of the 4" flex duct. It is recommended that the outside air system be used whenever
possible. Connect 4" Class-1 Flex duct or Metal Vent to duct collar on side of firebox, run duct
to fresh air source and terminate using duct termination cap. The Outside air can be opened
by pushing control knob toward back of fireplace and closed by pulling towards front (Refer to Figure 8.1)
If your plans do not allow for the venting system as outlined
previously in the "Installing chimney/vent system" section, you may
contact ENERVEX, Inc. (formerly EXHAUSTO) at 800-255-2923.
They will design an approved venting system to suit your venting
needs. These power vented systems follow the standards and codes
as outlined under the NFPA 54/ANSI Z223.1 Nation Fuel Gas Code.
Please check with the local authority having jurisdiction in your area.
The engineers at ENERVEX are familiar with Golden Blount
fireplaces and their systems will allow you to minimize the amount
of vent pipe exposed outside of your home. Fireplaces may also be
horizontally vented with these systems.
9
Some Golden Blount Top Vent Fireplace models are supplied with high quality realistic
Refractory Brick Panels. These panels are massive and must be field-installed to
prevent damage to panels or fireplace during shipping. The field installation of panels
also requires the Downdraft Diverter, and Exhaust Diverter to be installed in the field
as well.
REFRACTORY PANEL INSTALLATION
The Refractory Brick Panels should be carefully
removed from shipping sleeve and positioned
upright against a stable object.
1. Look into fireplace opening and locate back
panel retaining clip positioned against rear
wall of fireplace. (Figure 1). Remove (2)
screws attaching clip to rear wall and set
clip and screws aside. Position rear panel
against rear wall and reattach clip with (2)
screws.
2. Locate left panel retaining clip and remove
(2) screws and set clip and screws aside.
Position left panel against left wall and
reattach clip with (2) screws.
3. Repeat Step 2 for right panel installation.
DOWNDRAFT DIVERTER INSTALLATION
The Downdraft Diverter prevents heavy
downdrafts from altering pilot and main
burner operation.
1. Look inside fireplace opening and locate (2)
screws in roof of interior firebox. Remove
screws and position Downdraft Diverter as
shown in Figure 2. Attach Diverter with (2)
screws removed earlier.
Figure 1
Figure 2
fire-parts.com

10
EXHAUST DIVERTER INSTALLATION
The Exhaust Diverter prevents exhaust gasses
from entering the room.
1. Locate screws attached to front side top of
interior firebox and remove. (Figure 3).
2. Position Exhaust Diverter into fireplace
and attach Diverter using screws removed
earlier. Diverter should be positioned as
shown. (Figure 4).
Figure 4
Figure 3
fire-parts.com

11
LOG PLACEMENT FOR MODEL# SF3624/4224TBF LOG SET
1
23
45
67
Placement Instructions
• Place the back bottom log (log #1) as shown in the
Illustration above. It should be positioned on the
back of the grate.
• Place the front bottom log pieces (logs #2 and #3)
as shown. They should be positioned on the front of
the grate.
• The front bottom log pieces (logs #2 and #3) should
be touching each other in order to form what will
look like a rotten or burned out chamber in the front
log section (see bottom left picture).
• Log #4 and #5 should be placed on top of bottom
logs as shown in bottom left picture.
• Log #6 and #7 should be placed on top as shown in
top right picture.
• Bottom right picture shows log arrangement.
NOTE: STACK/HICKORY LOG PLACEMENT, SEE SHEET IN LOG CTN.
fire-parts.com

12
When lit for the first time, the appliance will emit a
slight odor for an hour or two. This is due to paint
and lubricants used in the manufacturing process.
The main burner flame characteristics are steady,
not lifting or floating. Typically, the top 3/4 inch of
the pilot generator should be engulfed in the pilot
flame. A periodic check of these characteristics is
necessary.
CAUTION: THE LOGS CAN GET VERY HOT!
HANDLE ONLY WHEN COOL
MAINTENANCE INSTRUCTIONS
Visually inspect pilot periodically. Brush or blow away any dust or lint accumulations.
If pilot orifice is plugged, disassembly may be required to remove any foreign material
from orifice or tubing.
Venting system should be periodically examined by a qualified service technician or
agency to ensure proper air flow.
WIRING DIAGRAM (MILLIVOLT MODEL)
Figure 11
OPERATING GUIDELINES (MILLIVOLT MODEL)
Upon completing the gas line connection,a small
amount of air will be in the lines. When first
lighting the pilot light, it will take a few minutes
for the lines to purge themselves of this air.
Once the purging is complete, the pilot and
burner will light and operate as indicated in the
instruction manual. Subsequent lighting of the
appliance will not require such purging.
CAUTION: DURING THE INITIAL PURGING
AND SUBSEQUENT LIGHTING, NEVER
ALLOW THE GAS VALVE CONTROL KNOB
TO REMAIN DEPRESSED IN THE “PILOT”
POSITION WITHOUT PUSHING THE RED
IGNITOR BUTTON AT LEAST ONCE EVERY
SECOND.
WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION. YOUNG CHILDREN
SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
IMPORTANT: TURN OFF GAS BEFORE
SERVICING APPLIANCE. IT IS
RECOMMENDED THAT A COMPETENT
SERVICE TECHNICIAN- PERFORM THESE
CHECKUPS AT THE BEGINNING OF EACH
HEATING SEASON.
fire-parts.com

12
When lit for the first time, the appliance will emit a
slight odor for an hour or two. This is due to paint
and lubricants used in the manufacturing process.
The main burner flame characteristics are steady,
not lifting or floating. Typically, the top 3/4 inch of
the pilot generator should be engulfed in the pilot
flame. A periodic check of these characteristics is
necessary.
CAUTION: THE LOGS CAN GET VERY HOT!
HANDLE ONLY WHEN COOL
MAINTENANCE INSTRUCTIONS
Visually inspect pilot periodically. Brush or blow away any dust or lint accumulations.
If pilot orifice is plugged, disassembly may be required to remove any foreign material
from orifice or tubing.
Venting system should be periodically examined by a qualified service technician or
agency to ensure proper air flow.
WIRING DIAGRAM (MILLIVOLT MODEL)
Figure 11
OPERATING GUIDELINES (MILLIVOLT MODEL)
Upon completing the gas line connection,a small
amount of air will be in the lines. When first
lighting the pilot light, it will take a few minutes
for the lines to purge themselves of this air.
Once the purging is complete, the pilot and
burner will light and operate as indicated in the
instruction manual. Subsequent lighting of the
appliance will not require such purging.
CAUTION: DURING THE INITIAL PURGING
AND SUBSEQUENT LIGHTING, NEVER
ALLOW THE GAS VALVE CONTROL KNOB
TO REMAIN DEPRESSED IN THE “PILOT”
POSITION WITHOUT PUSHING THE RED
IGNITOR BUTTON AT LEAST ONCE EVERY
SECOND.
WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION. YOUNG CHILDREN
SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
IMPORTANT: TURN OFF GAS BEFORE
SERVICING APPLIANCE. IT IS
RECOMMENDED THAT A COMPETENT
SERVICE TECHNICIAN- PERFORM THESE
CHECKUPS AT THE BEGINNING OF EACH
HEATING SEASON.
13
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR
LOSS OF LIFE.
A. This appliance has a pilot. When lighting
the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around
the appliance area for gas. Be sure to
smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand don’t try to repair it, call a
qualified service technician. Forced or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the gas control system which has been
under water.
❒Do not try to light any appliance.
❒Do not touch any electric switch.
Do not use any phone in your
building.
❒Immediately call your gas supplier.
from a neighbor’s phone. Follow
the gas supplier’s instructions.
❒If you cannot reach your gas supplier,
call the fire department.
LIGHTING INSTRUCTIONS
1. “STOP” Read the safety information
above first.
2. To access controls, open valve access
panel.
3. Turn the control to the “OFF” position. To
do this, you must turn the knob clockwise
to the pilot position and then press in and
continue turning clockwise to the “OFF”
position.
4. WAIT FIVE (5) MINUTES TO CLEAR OUT
ANY GAS. If you then smell gas, STOP!
Follow “B” in the safety information above.
If you don’t smell gas, go to next step.
5. The pilot should not require accessing
for lighting purposes. The pilot is located
inside the combustion chamber.
6. To put the control in the pilot position turn
the control knob counter-clockwise to the
pilot position.
7. To light the pilot depress the control knob
and then depress the red piezo button
until it makes a clicking sound. It may be
necessary to repeat this step. If the pilot
does not light after Ten seconds, go back
to step 3. The control knob should be held
Down for a MINUTE after pilot ignition. If
the pilot lights, but will not stay lit after two
tries, turn the gas control knob to the “OFF”
position and call your service technician
or gas supplier. If the control knob does
not pop out when released, STOP - shut
off the gas supply to the fireplace control
valve and immediately call your service
technician or gas supplier.
8. After the pilot has been lit, the Burner can
be turned on by turning the knob counter-
clockwise to the “ON” position. Then turn
the ON/OFF switch to the “ON” position.
Note: Damper control lever must be in
the “open” position to ignite.
GAS VALVE
THERMOPILE PILOT BURNER
fire-parts.com

14
TO TURN OFF GAS TO APPLIANCE
1. Open valve access door panel
2. Turn knob clockwise to pilot position then depress and continue turning to “OFF”
3. Close access door panel
LPG (PROPANE) WARNING
THE FOLLOWING WARNING APPLIES TO INSTALLATIONS USING LP (PROPANE GAS):
WARNING: To avoid possible injury, fire and explosion, please read and follow these precautions
and all instructions of this appliance before lighting the pilot. This appliance uses LP (Propane) gas
which is heavier than air and will remain at the floor level is there is a leak. Before lighting, smell
at floor level and/or use other means (such as using a soap solution on all piping and connections,
using a gas detector, etc.) to check for gas leaks. NOTE: LP (Propane) gas can become odorless
and CANNOT always be detected by smell. If you smell gas, detect a gas leak or suspect that a gas
leak exists, follow these rules:
1. Get all people out of building.
2. DO NOT light matches. DO NOT turn electric lights or switches on or off in area. DO NOT use
an electric fan to remove gas from area. DO NOT use a telephone inside of building.
3. Shut off gas at LP tank outside of building.
4. Telephone gas company and fire department. Ask instructions. Before hanging up, give your
name, address and phone number. DO NOT go back into building.
If your LP tank runs out of fuel, turn off gas at the appliance. After LP tank is refilled, appliance
must be re-lit according to manufacturer’s instructions. If the gas control has been exposed to
WATER in any way, DO NOT try to use it. It must be replaced. DO NOT attempt repair on gas
control or appliance.
Tampering is DANGEROUS and voids all warranties. Any component that is found to be faulty,
must be replaced with an approved component.
IMPORTANT: Always keep the appliance area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
Never obstruct the flow of combustion and ventilation air. Keep the front of the appliance
clear of all obstacles and materials.
To obtain proper operation, it is imperative that the pilot and main burner flame
characteristics are steady, not lifting or floating. Typically the top 3/4 Inch at the pilot
generator should be engulfed in the pilot flame. (Figure 11)
TO TURN OFF GAS TO APPLIANCE
➤
IMPORTANT - PLEASE NOTE LP GAS MODELS
MODERATE SOOT ACCUMULATION IS CONSIDERED NORMAL
FOR LP GAS LOGS. TO KEEP THIS SOOT ACCUMULATION TO
A MINIMUM, REDUCE THE FLAME IMPINGEMENT BY SPACING
FRONT AND BACK LOGS AS FAR APART AS POSSIBLE.
fire-parts.com

14
TO TURN OFF GAS TO APPLIANCE
1. Open valve access door panel
2. Turn knob clockwise to pilot position then depress and continue turning to “OFF”
3. Close access door panel
LPG (PROPANE) WARNING
THE FOLLOWING WARNING APPLIES TO INSTALLATIONS USING LP (PROPANE GAS):
WARNING: To avoid possible injury, fire and explosion, please read and follow these precautions
and all instructions of this appliance before lighting the pilot. This appliance uses LP (Propane) gas
which is heavier than air and will remain at the floor level is there is a leak. Before lighting, smell
at floor level and/or use other means (such as using a soap solution on all piping and connections,
using a gas detector, etc.) to check for gas leaks. NOTE: LP (Propane) gas can become odorless
and CANNOT always be detected by smell. If you smell gas, detect a gas leak or suspect that a gas
leak exists, follow these rules:
1. Get all people out of building.
2. DO NOT light matches. DO NOT turn electric lights or switches on or off in area. DO NOT use
an electric fan to remove gas from area. DO NOT use a telephone inside of building.
3. Shut off gas at LP tank outside of building.
4. Telephone gas company and fire department. Ask instructions. Before hanging up, give your
name, address and phone number. DO NOT go back into building.
If your LP tank runs out of fuel, turn off gas at the appliance. After LP tank is refilled, appliance
must be re-lit according to manufacturer’s instructions. If the gas control has been exposed to
WATER in any way, DO NOT try to use it. It must be replaced. DO NOT attempt repair on gas
control or appliance.
Tampering is DANGEROUS and voids all warranties. Any component that is found to be faulty,
must be replaced with an approved component.
IMPORTANT: Always keep the appliance area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
Never obstruct the flow of combustion and ventilation air. Keep the front of the appliance
clear of all obstacles and materials.
To obtain proper operation, it is imperative that the pilot and main burner flame
characteristics are steady, not lifting or floating. Typically the top 3/4 Inch at the pilot
generator should be engulfed in the pilot flame. (Figure 11)
TO TURN OFF GAS TO APPLIANCE
➤
IMPORTANT - PLEASE NOTE LP GAS MODELS
MODERATE SOOT ACCUMULATION IS CONSIDERED NORMAL
FOR LP GAS LOGS. TO KEEP THIS SOOT ACCUMULATION TO
A MINIMUM, REDUCE THE FLAME IMPINGEMENT BY SPACING
FRONT AND BACK LOGS AS FAR APART AS POSSIBLE.
15
TROUBLESHOOTING ( MILLIVOLT MODEL)
With proper installation and maintenance, your new Gas Fireplace should
provide years of trouble-free service. If you do experience a problem, refer
to the trouble shooting guide shown below. This guide will assist a qualified
service person in the diagnosis of problems and the corrective action to
be taken.
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
1. Spark ignitor will not light A. Defective ignitor (no 1. Check for spark at
pilot after triggering spark at electrode). electrode and pilot; if no
spark exist and electrode
wire is properly connected,
replace ignitor.
B. Defective or misaligned 1. Using a match, light
electrode at pilot (spark pilot. If pilot lights, turn
at electrode) off pilot and trigger the
red button again. If pilot
lights, an improper gas/
air mixture caused the
bad lighting and a longer
purge period is recom-
mended. If pilot will not
light - check gap at
electrode and pilot
should be 1/8 inch to
have a strong spark. If
OK, replace pilot.
C. No gas or low gas 1. Check remote shut off
pressure valves from fireplace.
usually there is a valve
near the fireplace and
sometimes there is a
valve near the main.
There can be more than
one valve between the
fireplace and main.
2. Low pressure can be
caused by a variety of
situations such as a
bent line, too narrow
diameter of pipe or even
low line pressure.
Check for kinked lines.
If none, consult with
plumber or gas supplier.
If LP Gas is used you
may be out of fuel.
fire-parts.com

16
TROUBLESHOOTING (CONT’D)
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
2. Pilot will not stay lit A. Defective pilot 1. Check pilot, flame must
after carefully following generator impinge on pilot generator.
lighting instructions. Clean and or adjust pilot for
maximum flame impingement
on generator.
2. Be sure wire connections
from generator at gas valve
terminals are tight and
generator is fully inserted into
pilot bracket.
3. Check thermogenerator
with millivolt meter. Take
reading at “TH-TP” and “TP”
terminals of gas valve.
Should read 325 millivolts
minimum, while holding valve
knob depressed in pilot
position, pilot lit, and ON/OFF
switch “OFF”. Replace faulty
generator if reading is below
specified minimum.
B. Defective valve 1. Connect the millivolt
meter probes to the “TH-TP”
and “TP” terminals on the gas
valve. Turn knob to
pilot position, depress and
light pilot light. If meter
reading is greater than 325
m.v. after 30 seconds, the
pilot generator is good. If
pilot does not stay lit, the
valve is defective. If the
meter reading is less than
325 m.v., the thermo-
generator is defective.
C. Open wire connection 1. Check wire continuity and
in pilot circuit connections in pilot circuit.
fire-parts.com

16
TROUBLESHOOTING (CONT’D)
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
2. Pilot will not stay lit A. Defective pilot 1. Check pilot, flame must
after carefully following generator impinge on pilot generator.
lighting instructions. Clean and or adjust pilot for
maximum flame impingement
on generator.
2. Be sure wire connections
from generator at gas valve
terminals are tight and
generator is fully inserted into
pilot bracket.
3. Check thermogenerator
with millivolt meter. Take
reading at “TH-TP” and “TP”
terminals of gas valve.
Should read 325 millivolts
minimum, while holding valve
knob depressed in pilot
position, pilot lit, and ON/OFF
switch “OFF”. Replace faulty
generator if reading is below
specified minimum.
B. Defective valve 1. Connect the millivolt
meter probes to the “TH-TP”
and “TP” terminals on the gas
valve. Turn knob to
pilot position, depress and
light pilot light. If meter
reading is greater than 325
m.v. after 30 seconds, the
pilot generator is good. If
pilot does not stay lit, the
valve is defective. If the
meter reading is less than
325 m.v., the thermo-
generator is defective.
C. Open wire connection 1. Check wire continuity and
in pilot circuit connections in pilot circuit.
17
TROUBLESHOOTING (CONT’D)
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
3. Pilot burning, no gas to A. Damper control lever is in 1. Set damper control lever
burner, valve knob closed position to open position.
“ON”, “ON/OFF” switch
“ON”. B. “ON/OFF” switch or 1. Check ON/OFF switch
wires defective and wires for proper connections.
Place jumper wires across
terminals at switch-if burner
comes on, replace defective
switch. If OK, place jumper wires
across switch wires at gas valve-
if burner comes on, wires are
faulty or connections are bad.
C. Thermogenerator 1. re-check symptom #2
may not be generat-
ing sufficient milli- 2. Pilot flame not physically close
voltage. (325 m.v.) enough to thermogenerator .
D. Defective valve 1. Turn valve knob to “ON”,
Place ON/OFF switch to “ON”
Check with millivolt meter at
generator terminals. Millivolt
meter should read greater than
100 m.v. If the reading is OK,
and the burner does not come
on, replace the gas valve.
E. Plugged burner orifice 1. Check burner orifice for
stoppage and remove.
F. Wall switch or wires 1. Follow corrective action in A.1
defective above; check switch and wiring.
Replace where defective.
4. Pilot and Main Burner A. High Limit Switch is 1. Allow unit to cool. Then repeat
go out while in operation defective or has reached lighting instructions.
its maximum temperature
2. If above does not allow for
ignition, check high limit switch.
Place jumper lines across high
limit switch. If you can re-ignite
the pilot your high limit switch
is defective. Replace high limit
switch before using.
B. No L.P. in tank 1. Check LP tank.You may be out
of fuel.
C. Bad Thermogenerator Replace if necessary.
fire-parts.com

18
TO TURN OFF GAS TO APPLIANCE
Upon completing the gas line connection, a small amount of air will be in the lines.
When first lighting the pilot light, it will take a few minutes for the lines to purge
themselves of this air. Once the purging is complete, the pilot and burner will light and
operate as indicated in the instruction manual. Subsequent lighting of the appliance will
not require such purging.
WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TOTHE HAZARDS OF
HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.
IMPORTANT: TURN OFF GAS BEFORE SERVICINGAPPLIANCE. IT IS RECOMMENDED
THAT A COMPETENT SERVICE TECHNICIAN PERFORM THESE CHECKUPS AT
THE BEGINNING OF EACH HEATING SEASON.
WARNING: THE FLOW OF COMBUSTION AND VENTILATION AIR MUST NOT
BE OBSTRUCTED.
When lit for the first time, the appliance will emit
a slight odor for an hour or two. This is due to
paint and lubricants used in the manufacturing
process. The main burner flame characteristics
are steady, not lifting or floating. Typically, the top
1/4 inch of the flame sensor should be engulfed
in the pilot flame. A periodic check of these
characteristics is necessary (Figure 10).
MAINTENANCE INSTRUCTIONS
IMPORTANT: THE APPLIANCE AREA MUST BE KEPT CLEAR AND FREE FROM
COMBUSTIBLE MATERIALS, GASOLINE AND OTHER FLAMMABLE VAPORS
AND LIQUIDS.
Visually inspect pilot periodically. Brush or blow away any dust or lint accumulations.
If pilot orifice is plugged, disassembly may be required to remove any foreign material
from orifice or tubing.
Venting system should be periodically examined by a qualified service technician or
agency to ensure proper air flow.
OPERATING GUIDELINES (STP-SPARK TO PILOT MODEL)
Figure 10
FLAME SENSOR
fire-parts.com

18
TO TURN OFF GAS TO APPLIANCE
Upon completing the gas line connection, a small amount of air will be in the lines.
When first lighting the pilot light, it will take a few minutes for the lines to purge
themselves of this air. Once the purging is complete, the pilot and burner will light and
operate as indicated in the instruction manual. Subsequent lighting of the appliance will
not require such purging.
WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TOTHE HAZARDS OF
HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.
IMPORTANT: TURN OFF GAS BEFORE SERVICINGAPPLIANCE. IT IS RECOMMENDED
THAT A COMPETENT SERVICE TECHNICIAN PERFORM THESE CHECKUPS AT
THE BEGINNING OF EACH HEATING SEASON.
WARNING: THE FLOW OF COMBUSTION AND VENTILATION AIR MUST NOT
BE OBSTRUCTED.
When lit for the first time, the appliance will emit
a slight odor for an hour or two. This is due to
paint and lubricants used in the manufacturing
process. The main burner flame characteristics
are steady, not lifting or floating. Typically, the top
1/4 inch of the flame sensor should be engulfed
in the pilot flame. A periodic check of these
characteristics is necessary (Figure 10).
MAINTENANCE INSTRUCTIONS
IMPORTANT: THE APPLIANCE AREA MUST BE KEPT CLEAR AND FREE FROM
COMBUSTIBLE MATERIALS, GASOLINE AND OTHER FLAMMABLE VAPORS
AND LIQUIDS.
Visually inspect pilot periodically. Brush or blow away any dust or lint accumulations.
If pilot orifice is plugged, disassembly may be required to remove any foreign material
from orifice or tubing.
Venting system should be periodically examined by a qualified service technician or
agency to ensure proper air flow.
OPERATING GUIDELINES (STP-SPARK TO PILOT MODEL)
Figure 10
FLAME SENSOR
19
WIRING DIAGRAM (STP-SPARK TO PILOT MODEL)
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY,
A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance is equipped with an ignition device which automatically lights the
pilot. Do not light pilot by hand.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell
next to the floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch:
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
C. Do not use this appliance if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and to replace any part of
the gas control system which has been under water.
FLAME SENSOR
REMOTE/WALL SWITCH
CONNECTION
fire-parts.com

20
LIGHTING INSTRUCTIONS ELEC. SPARK TO PILOT
1. “STOP” Read the safety information on
page 20.
2. Set the switch to “OFF”.
3. Remove batteries from battery pack.
4. This appliance is equipped with an ignition
device which automatically lights the burner.
Do not try to light the burner by hand.
5. Wait (5) minutes to clear out any gas. Then
smell for gas, including near the floor. If you
smell gas, STOP! Follow “B” in the safety
information on page 19. If you don’t smell
gas, go to next step.
6. Install (2) D batteries in battery pack.
7. Turn ON/OFF rocker switch to “ON”.
8. If the appliance will not operate, follow the
instructions “To Turn Off Gas To Appliance”
and call your service technician or gas supplier.
NOTE: DAMPER CONTROL LEVER MUST
BE IN THE “OPEN” POSITION TO IGNITE.
GAS VALVE
TO TURN OFF GAS TO APPLIANCE
1. Turn ON/OFF rocker switch to “OFF”.
2. Remove batteries from appliance if service is to be performed.
LPG (PROPANE) WARNING
THE FOLLOWING WARNING APPLIES TO INSTALLATIONS USING LP (PROPANE GAS):
WARNING: To avoid possible injury, fire and explosion, please read and follow these precautions
and all instructions of this appliance before operating. This appliance uses LP (Propane)
gas which is heavier than air and will remain at the floor level is there is a leak. Before lighting,
smell at floor level and/or use other means (such as using a soap solution on all piping and
connections, using a gas detector, etc.) to check for gas leaks. NOTE: LP (Propane) gas can
become odorless and CANNOT always be detected by smell. If you smell gas, detect a gas leak or
suspect that a gas leak exists, follow these rules:
1. Get all people out of building.
2. DO NOT light matches. DO NOT turn electric lights or switches on or off in area. DO NOT use an
electric fan to remove gas from area. DO NOT use a telephone inside of building.
3. Shut off gas at LP tank outside of building.
4. Telephone gas company and fire department. Ask instructions. Before hanging up, give your
name, address and phone number. DO NOT go back into building.
If your LP tank runs out of fuel, turn off gas at the appliance. After LP tank is refilled, appliance
must be re-lit according to manufacturer’s instructions. If the gas control has been exposed to
WATER in any way, DO NOT try to use it. It must be replaced. DO NOT attempt repair on gas
control or appliance.
Tampering is DANGEROUS and voids all warranties. Any component that is found to be faulty,
must be replaced with an approved component.
TO TURN OFF GAS TO APPLIANCE
fire-parts.com
