Archgard 27-DVIM22 Owner's manual

200-1227
MAY 2014
27-DVIM22
Gas Fired Vented Room
Heater (Direct Vent)
S/N 260000 And up
USERS’ INSTALLATION
OPERATION and
MAINTENANCE MANUAL
7116 Beatty Dr
Mission, BC V2V 6B4
Canada
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by local
codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This appliance
is not convertible for use with other gases, unless a
certified kit is used.
*Conversion kit required for Propane use
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use
any phone in your building.
 Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
 If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
Tested and
listed by
LABTEST Certification Inc
Richmond, British Columbia
ANSI Z21.88-2009/CSA 2.33-2009

27-DVIM22 2

27-DVIM22 3
INTRODUCTION
Congratulations on choosing an Archgard Gas Fireplace!
The 27-DVIM22 is one of the most advanced Direct Vent Insert heaters available today. It is
solidly designed using the latest technology and manufactured to the highest quality. It is our
aim to provide you with an appliance for many trouble-free years of reliable service.
Some of the many features of your 27-DVIM22 are:
 Heater Classification The 27-DVIM22 is classified as a heating appliance.
Therefore, it uses Direct Vent safety technology and it is
suitable for continuously operated zone heating.
 High Efficiency The 27-DVIM22 has one of the highest efficiencies of any
Direct Vent gas insert, which means that it is less expensive
to operate.
 Adjustable Fan Speed Each 27-DVIM22 comes complete with an adjustable speed
temperature controlled circulation fan.
 Adjustable Flame The flame aesthetics and heat output can be adjusted to suit
the owner’s liking and heating needs.
 Solid Construction The 27-DVIM22 is mainly constructed of 16 and 18 gauge
galvanized and aluminized coated steel for long life and
durability.
 Optional Accessories Check with your Authorized Archgard Dealer for a full
complement of decorative accessories to suit your home’s
décor and your tastes.
 Mill volt Control System The gas control system is “thermostat” ready for any optional
mill volt wall thermostat or wireless remote control.
Fireplace Model Number: 27-DVIM22 Serial Number:
Date of Installation:
Type of Gas Used by the Fireplace: Natural Gas Propane
Dealer’s Name & Address:
Dealer’s Phone Number:

27-DVIM22 4
TABLE OF CONTENTS
Caution and Safety Instructions 5
Appliance Certification, Installation Codes and Specifications 6
Rating Plate 7
Configuring the Fireplace and Control Panel Locations 8
Minimum Fireplace Opening Dimensions and Sealing the Vent 9
Factory Built (metal) Fireplace Requirements 10-11
Mantle and Sidewall Clearance to Combustibles 12
Gas Connections 13
Conversion Kit Instructions 14-15
Appliance Description, Leveling the Appliance and Electrical Requirements 16
Venting Instructions 17-18
Optional Wall Switch/Thermostat and Fan Wiring Diagrams 19
Surround Installation and Rocker Switch Wiring 20
Log Placement 21-25
Glass Door Removal / If Your Glass Should Break 26
Final Installation Check and Initial Operation 27
First Fire and Lighting Instructions (CAUTION) 28
Lighting Instructions on Rating Plate 29
Maintenance and Cleaning the Appliance 30
Servicing Under Warranty and Adjusting Primary Air 31
Checking Inlet/Outlet gas pressures, Adjusting Pilot and Convertible Pilot Orifice 32
Replacing Convection Blower 33
Troubleshooting 34-35
Warranty 36
Frequently Asked Questions 37
Replacement Parts 38
Warranty Registration Card 39

27-DVIM22 5
Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
Children and adults should be alerted to the hazards of high surface temperature and stay away to
avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace
or stove, install an adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
Clothing or other flammable material should not be placed on or near the appliance.
Do not operate with cracked or broken glass. Be careful not to strike or slam the glass.
Any safety screen or guard removed for servicing an appliance must be replaced prior to operating.
Installation and Repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
may be required due to excessive lint from carpeting, bedding materials, etc. It is imperative that the
control compartments, burners and circulating air passageways of the appliance are kept clean.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
which has been under water.
SAFETY
F O R Y O U R S A F E T Y
Do not install or operate your Archgard 27-DVIM22 without reading and understanding this manual.
Any installation or operational deviation from this instruction manual voids the Archgard Industries
Warranty and may prove hazardous.
C A U T I O N
 This appliance must be installed by a qualified gas installer and the installation must conform to
the installation codes.
 Provide adequate clearance around air openings. Never obstruct front openings.
 Ensure adequate clearances for proper operation and servicing of the appliance.
 This appliance must be properly connected to an approved venting system and must not be
connected to a chimney flue serving a separate solid fuel burning appliance.
 Provide adequate clearance around the intake and exhaust openings
A T T E N T I O N
We recommend that our gas hearth products be installed and serviced by professionals who
are certified in the U.S. by the National Fireplace Institute®(NFI) as NFI Gas Specialists.

27-DVIM22 6
This appliance was listed by LABTEST Certification Inc to the following USA and Canadian gas
appliance standards.
- ANSI Z21.88-2009/CSA 2.33-2009 Vented Gas Fireplace Heaters
- CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes
-CSA P.4.1-09 testing method for measuring annual fireplace efficiency.
The listing label is attached to the appliance on the bottom right side of the appliance.
A copy is shown on page
Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this
appliance.
APPLIANCE CERTIFICATION
INSTALLATION CODES
This appliance must be installed by a qualified gas appliance installer. The installation must conform
with the local codes or, in the absence of local codes, with the current National Fuel Gas Code ANSI
Z223.1/ NFPA 54, or the Natural Gas and Propane nstallation Code CSA-B149.1 in Canada.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code ANSI/NFPA No. 70,or the Canadian
Electrical Code CSA C22.1.
Natural Gas (NG) Propane (LP)
Manifold Pressure 3.5 in. W.C. (0.9 kPa) 10.0 in. W.C. (2.5 kPa)
Min. Supply Pressure
Max Supply Pressure
5 in. W.C. (1.2 kPa)
14.0 in. W.C. (3.5 kPa)
11.0 in. W.C. (2.8 kPa)
14.0 in. W.C. (3.5 kPa)
Orifice Size #43 DMS (2.25 mm dia) #54 DMS (1.36 mm dia)
Nominal Input Rating 15,000 - 22,400 BTU/h(4.5 - 6.56kW) 16,500 - 21,000 BTU/h (4.8 -6.15kW)
Electrical Rating 120 VAC, 60Hz less than 2 A. 120 VAC, 60Hz less than 2 A.
Gas Control SIT 820 Nova SIT 820 Nova
Altitude 0 - 4,500 ft. (0 - 1372 M) 0 - 4,500 ft. (0 - 1372 M)
Primary Air Opening 1/4” (6 mm) OPEN FULLY OPEN
HIGH ALTITUDE INSTALLATION
When installing this appliance beyond 4500 ft. (1372 M) above sea level, the appliance must be
properly de-rated and installed according to local codes, in the absence of local codes, with the
current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code, CAN/CGA-
B149, in Canada.
SPECIFICATIONS
A manufactured home or mobile home OEM installation must conform with the Manufactured Home Construc-
tion and safety Standard, Title 24 CFR, Part 3280, or, when such a standard is not applicable, the Standard for
Manufactured Home Installations, ANSI/NCSBCS A225.1, or Standard for gas Equipped Recreational Vehicles
and Mobile Housing, CSA Z240.4.

27-DVIM22 7

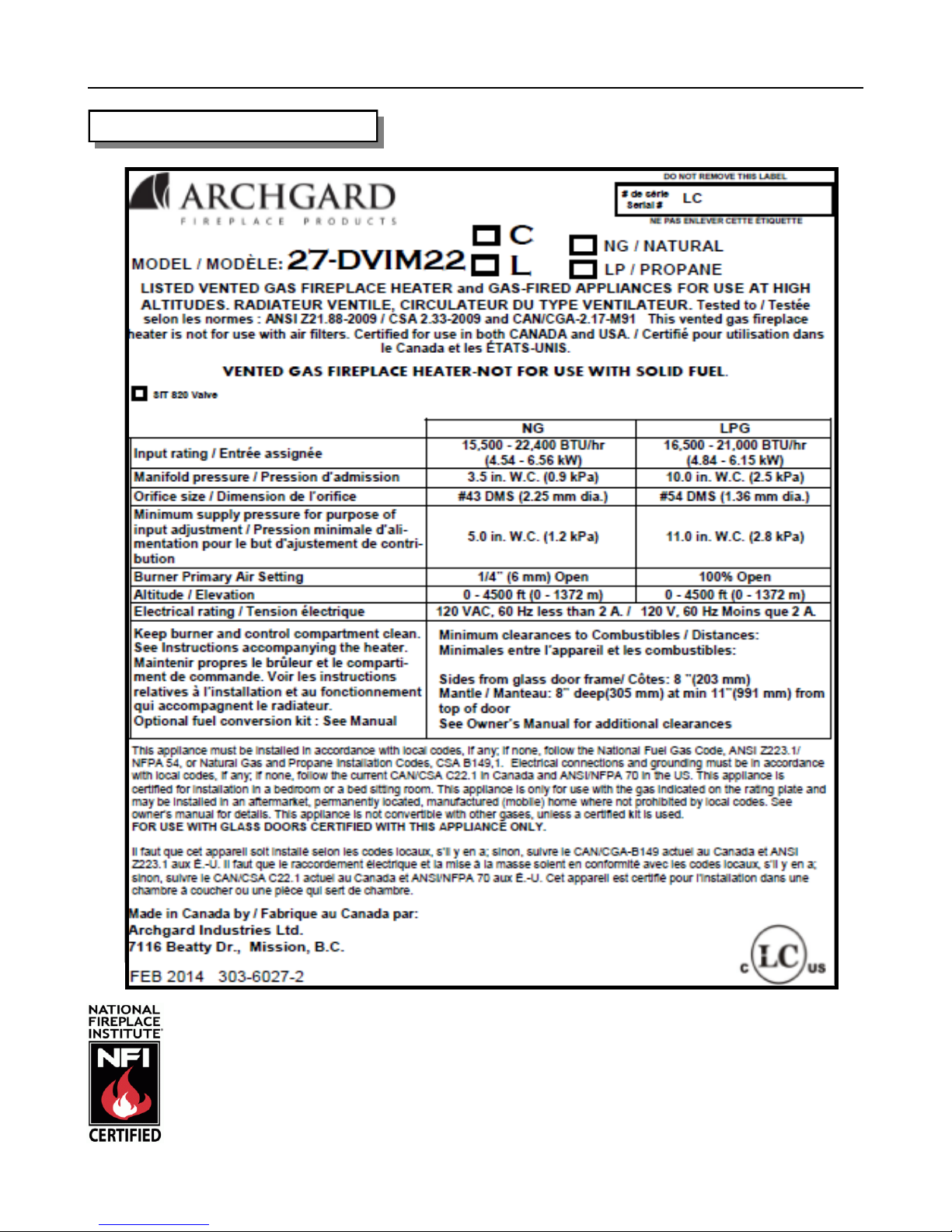

RATING PLATE
We recommend that our gas hearth products be installed and serviced by
professionals who are certified in the U.S. by the National Fireplace Institute®
(NFI) as NFI Gas Specialists.

27-DVIM22 8

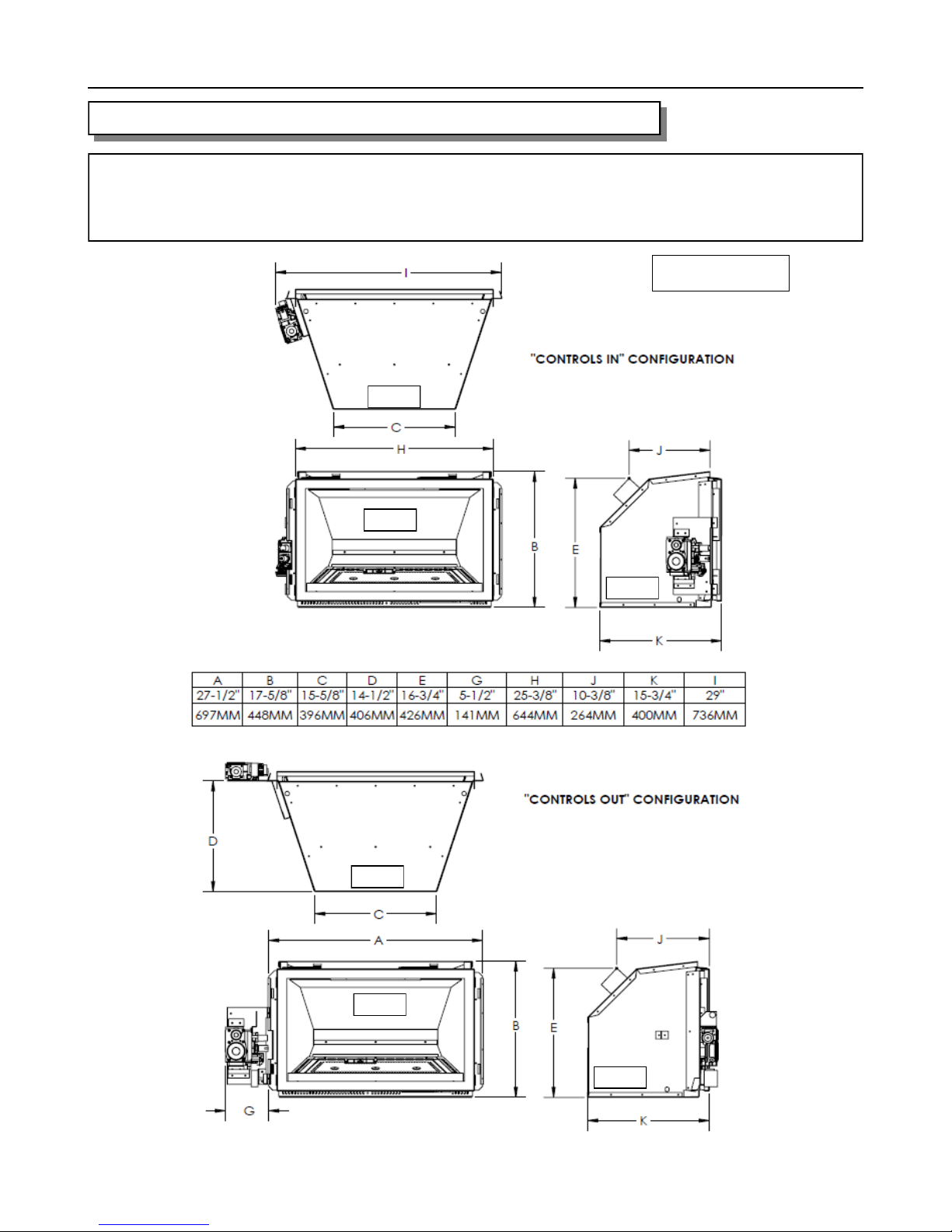

The control panels can be mounted in the following different ways. They are shipped in the “Controls In” configuration. They can be
moved to the “Controls Out” configuration by removing the two mounting screw on each side and swinging the panels out and re-
instaling the screws. They can also be disconnected and placed remotely within the limits of the gas connections and electrical wiring
making sure to place them away from any heat source over 150 degrees Fahrenheit or 65 degrees Celsius
CONFIGURE THE FIREPLACE - CONTROL PANEL LOCATIONS
27-DVIM22
Use Shallow Trim
Use Deep Trim
LEFT RIGHT
FRONT
FRONT
FRONT
Fig. 8-A
Fig. 8-B
Fig. 8-C
Fig. 8-D
Fig. 8-E
Fig. 8-F

27-DVIM22 9

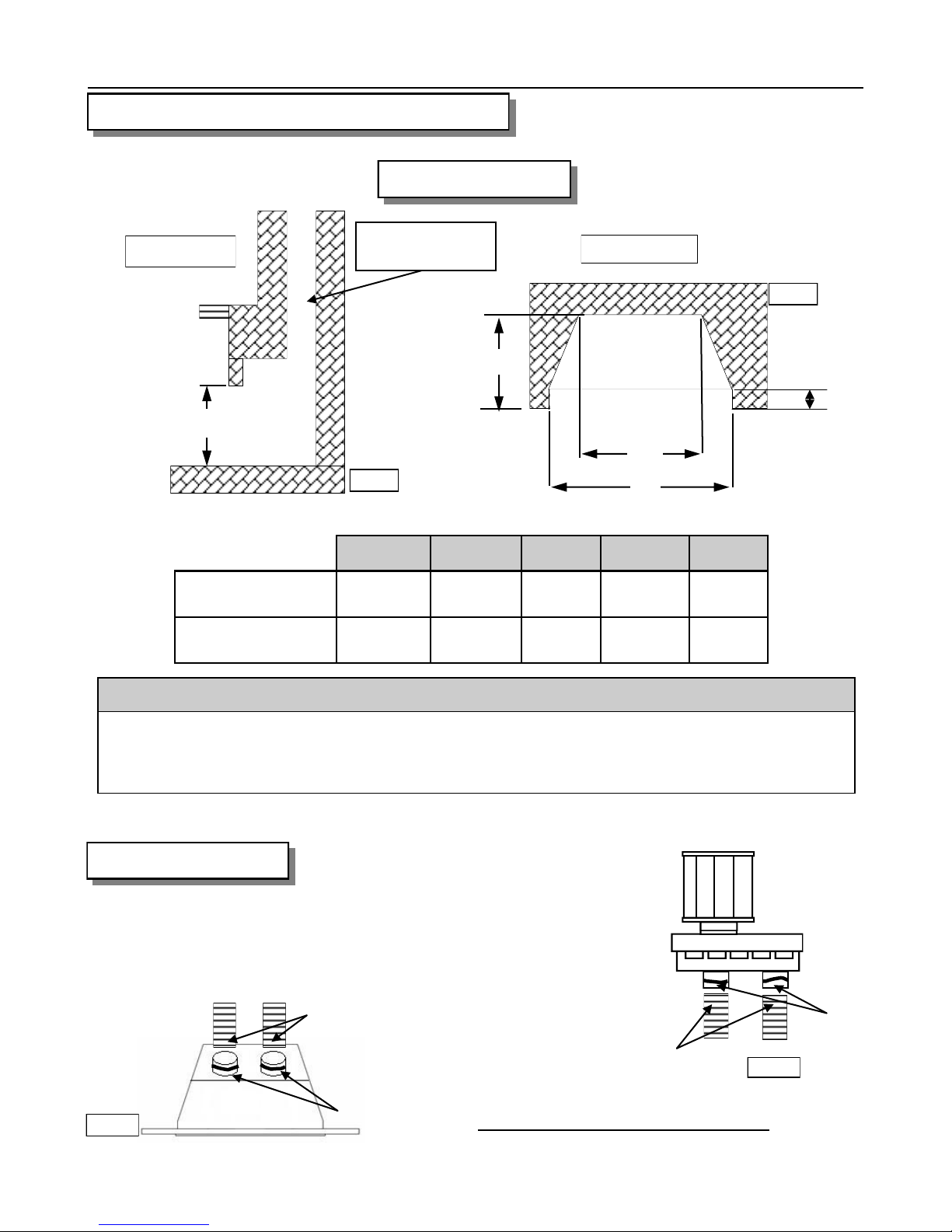

MINIMUM FIREPLACE OPENING DIMENSIONS
J K L M N
DIMENSIONS
“Controls Out”
17-3/4”
(451 mm)
15”
(381 mm)
16”
(406 mm)
25 1/2”
(648 mm) 0”
DIMENSIONS
“Controls In”
17-3/4”
(451 mm)
15 1/2”
(381mm)
16”
(406 mm)
29 1/2”
(749 mm)
3”
(76mm)
Masonry Fireplace
A T T E N T I O N
This fireplace has been designed to be installed into a Masonry or Factory Build Wood Burning Fireplaces
ONLY. Never attempt to install the appliance into a combustible enclosure.
If the information in these instructions are not followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
J
SIDE VIEW Min flue size required
4” (102) x 7” (178)
Fig. 9-A
TOP VIEW
L
M
K
N
Fig. 9-B
Secure the flexible liner at the top of the fireplace and at the termination. DO
NOT use silicone as this will void the flame sensor warranty. Use mil-pac or
other non silicone sealant and three (3) screws or gear clamps to seal the
liner at each end.
Mil-pac
Mil-pac
SEALING THE VENT Roof Termination
Fig. 9-C
Fig. 9-D
Screws or
gear clamp
Screws or
gear clamp
DO NOT USE SILICONE TO SEAL VENT

27-DVIM22 10

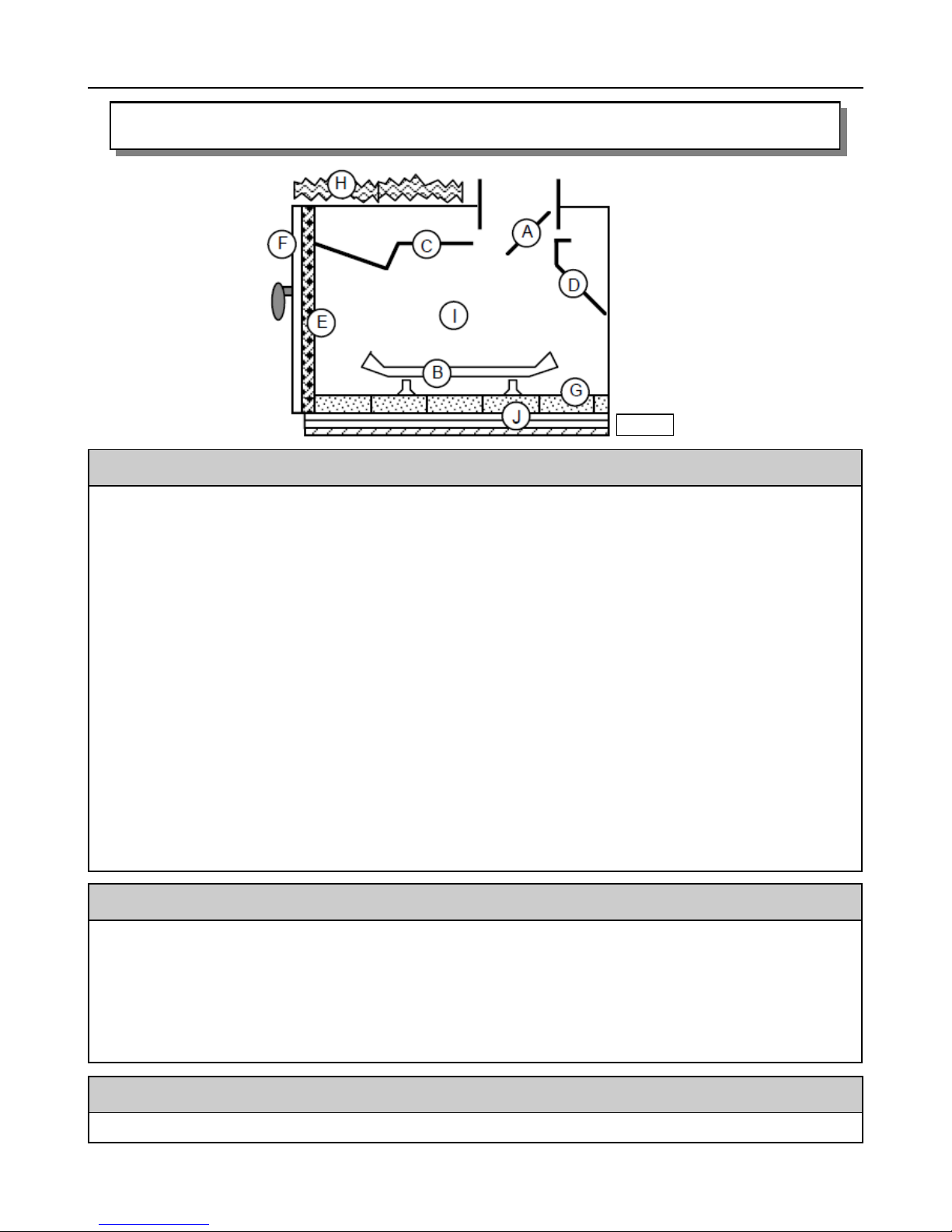

Factory –Built (metal) Wood-Burning Fireplace Opening Requirements
A T T E N T I O N
Any parts that are removed must be saved and re-installed if the insert is ever removed.
N O T E
The metal floor of the firebox may be removed only if the following is
strictly adhered to.
The metal floor (J) may be removed to allow additional room for installation of the insert. If
the floor is removed the insert must be placed directly on the metal base of the metal fire-
place. Under no circumstance can it be placed directly on a combustible material.
I N S T A L L E R N O T E S
The installer must mechanically attach a marking (supplied in the manual bag) to the inside of the firebox of the
fireplace into which the gas fireplace insert is installed indicating that it has been altered and is no longer suit-
able for burning the original fuel unless the removed parts are reinstalled
Cutting of any sheet-metal parts of the fireplace, in which the gas fireplace insert is to be installed, is prohibited
unless following the directions below.
If the factory-built fireplace has no gas access hole (s) provided, an access hole of 1 1/2” (38.1 mm) or less
may be drilled through the lower sides or bottom of the firebox in a proper workmanship-like manner. This ac-
cess hole must be plugged with non-combustible insulation after the gas supply line has been installed.
The fireplace flue damper (A) must be fully blocked open or removed for installation of the gas fireplace insert.
The fireplace and fireplace chimney must be clean and in good working order and constructed of non-
combustible materials. The chimney cleanouts must fit properly.
Refractory (G & I), glass doors (F), screen rails & screen mesh (E) and log grates (B) can be removed from the
fireplace before installing the gas fireplace insert.
Smoke shelves (C) and baffles (D) may be removed if attached by mechanical fasteners. Trim panels must not
seal ventilation openings in the fireplace.
Fig. 10-A

27-DVIM22 11
Non–Combustible Zone
7”
16”
N O T E
If existing wood fireplace hearth protection is removed it must
be replaced by a non-combustible hearth protection 7” thick,
extending a minimum of 16” (406 mm) from the front of the
fireplace insert or have a minimum 7” (178 mm) clearance
below the level of the bottom of the insert.
C A U T I O N
This appliance is designed for use in any masonry or factory-built, wood-burning fireplace. It cannot
be enclosed by combustible material and used as a built-in gas fireplace.
W A R N I N G
Any hearth extending out in front of the insert must not
have any portion above 7” below the bottom of the unit
made from combustible materials. This includes any
type of framing underneath a non-combustible material
such as tile, marble or stone. Any material below 7” can
be combustible.
Fig 11-B
N O T E
All specified clearances must be maintained
from the top surface of carpeting, tile, etc.
N O T E
All specified clearances must be maintained
from the top surface of carpeting, tile, etc.
Non–Combustible Zone
7”
16”
Fig. 11-A
W A R N I N G
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved
with this appliance may result in property damage or personal injury.

27-DVIM22 12
MANTLE CLEARANCES
W A R N I N G
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved
with this appliance may result in property damage or personal injury.
N O T E
Mantle depth of less than 1” is not considered a mantle
8”
Clearances to Door Frame
Sidewalls or Mantle Supports
Minimum 8” (204 mm)
clearance is required from the
glass door frame to a sidewall or
mantle support.
8”
(204 mm)
SIDEWALL CLEARANCES
Fig. 12-B
12”
8”
5”
3”
1”
28.5”
25”
27”
30”
33”
Based on
LARGE SURROUND 28” H Based on
SMALL SURROUND 24” H
28.5”
30”
33”
12”
8”
1 - 5”
Fig. 12-A

27-DVIM22 13
Before connecting the appliance to the gas supply line, double check that the appliance you have
purchased is designed for the gas type you are using. The gas type markings are located on the
certification label and also on the appliance’s gas valve.
Adequate clearance for proper installation and checking of the gas connections must be provided. All
gas connections must be checked for gas leaks.
GAS CONNECTIONS
Have your gas supplier or a qualified gas fitter run a gas supply line into the fireplace. The line must
be properly sized and fitted according to the installation codes. Immediately upstream of the supply
connection, the fitter shall provide an accessible manual shut-off valve. When connecting the supply
line to the gas valve, the installer shall brace the gas valve to ensure that the gas valve is not moved
from its bracket. If the valve is not braced when the supply line is connected, the valve may be
moved and cause a “break” in the main burner supply line. Such damage is not covered by the
manufacturer’s warranty.
Natural Gas Pressure Settings:
The inlet supply or line pressure must be a minimum of 5” W.C. (1.2 kPa) and a maximum of 14”
W.C. (3.5 kPa). The orifice is a #43 DMS (2.25mm) drill size.
ELEVATION INPUT RATING
0-4500 ft (0-1372 M) 22,400 BTU/hr (9.6 kW)
4500 ft (1372 M) and above. 22,400 BTU/hr (9.6 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orifice size you require.
Propane Pressure Settings:
The inlet supply or line pressure must be a minimum of 11” W.C. (2.8 kPa) and a maximum of 14”
W.C. (3.5 kPa). The orifice is a #54 DMS (1.36 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft. (0-1372 M) 21,000 BTU/hr (9.02 kW)
4500 ft. (1372 M) and above. 21,000 BTU/hr (9.02 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orifice size you require.
To do this, reduce the background flow rate, time the meter.
Light the fireplace and take another reading after 15 minutes of operation.
Check with your gas supplier for the gas BTU content at your elevation.
Input is the rate of flow multiplied by the heating value of the gas (3600 x Calorific Value) divided by
the time (in seconds) it takes for (1) rotation of the 1 cubic foot dial on the meter.
Adjust the manifold pressure so that the unit does not operate above the rated input.
I N S T A L L E R S N O T E
THE INPUT RATING SHOULD BE CHECKED ON INITIAL START-UP OF THIS APPLIANCE.
C A U T I O N
The appliance and its individual shutoff valve must be disconnected from the gas supply piping
system during any pressure-testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure-testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5 kPa). Failure to do so will damage the appliance’s gas valve. Such damage
is not covered by the manufacturer’s warranty.

27-DVIM22 14

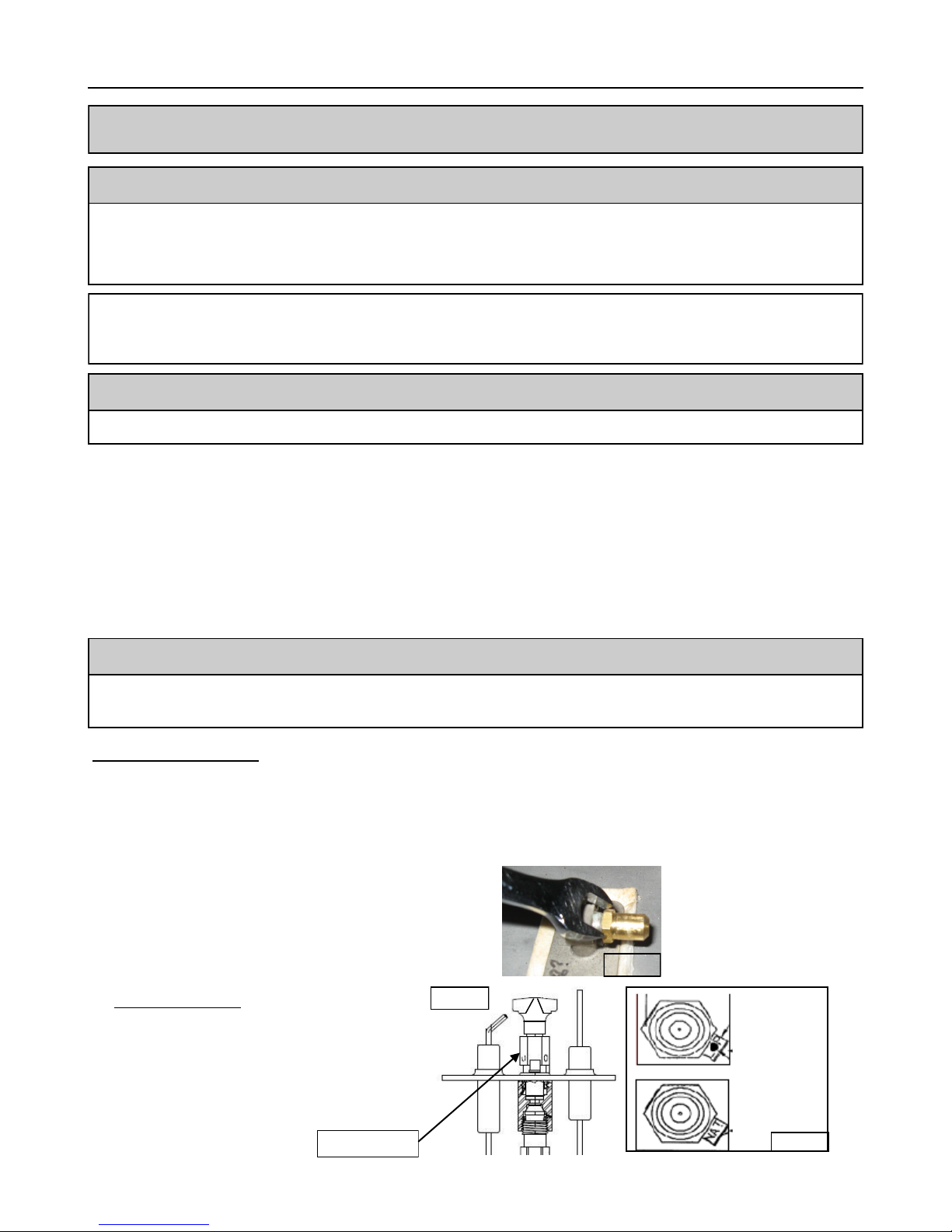

CONVERSION KIT INSTRUCTIONS
The installation is not proper and complete until operation of the converted appliance is checked as specified in the instructions sup-
plied with the kit. Refer to appliance owner’s manual or product data plate for proper inlet and manifold pressure adjustments and ori-
fice sizing.
PREPARE THE FIREPLACE
 Remove the surround, glass door assembly, logs/media and brick/panels (if applicable).
 Remove the burner side brackets and the front ember ledge. The ledge lifts up and out.
 Remove burner . Three screws along the top edge of the burner secure it to in place.
KIT NUMBERS: 27-CKMLP for LP gas and 27-CKMNG for Natural Gas
KIT INCLUDES:
 1- Gas conversion label (303-0128)
 1- Burner orifice (301-0068) (#54 DMS for LPG) (#43 DMS for NG)
 1- Instruction Sheet
 1- SIT 820 Valve conversion regulator c/w instructions & gas type label (0.907.202 ) LPG
(0.907.201 ) NG
PILOT CONVERSION
Using a 7/16” wrench and loosen the pilot hood 1/4
turn. Slide the tab at the bottom of the orifice hood all
the way so the red side (propane) with the hole in it is
showing. Tighten the pilot hood back up so that it is
lined up with the two probes on both sides of the pilot
assembly.
F O R Y O U R S A F E T Y
SHUT OFF GAS SUPPLY AND ELECTRICAL POWER TO FIREPLACE BEFORE BEGINNING THE GAS
CONVERSION
Remove the burner orifice using a 1/2” wrench. Replace with the
orifice supplied with the conversion kit. Use a small amount of
pipe sealant on the threads of the orifice holder.
Fig. 14-A
LP has hole
and red dot
Natural Gas
Fig. 14-B
Wrench here Fig. 14-C
W A R N I N G
The conversion kit shall be installed by a qualified service agency in accordance with the manufacturers instructions and all applicable
codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explo-
sion or productions of carbon monoxide may result, causing property damage, personal injury or loss of life. The qualified service
agency is responsible for proper installation of this kit.
I M P O R T A N T
This fireplace is Natural gas ready. If converting to LP gas, follow instructions below

27-DVIM22 15
COMPLETE THE CONVERSION
Turn on the gas and electrical supplies.
Turn on the fireplace so the burner is on
Check for leaks at all connections.
Test inlet and outlet pressure. Visually check pilot flame. Flame should envelope top of the flame sensor and extend forward onto the
burner. To adjust pilot turn the pilot adjustment screw on the control valve clockwise to decrease or counter clockwise to increase pilot
flame.
Turn fireplace off
Affix gas type label to the rating plate label. (Bottom right side, under the door frame of insert on pull chain)
Complete the conversion label and affix to valve assembly plate.
Re-install the burner, brick, logs, embers and door. (per the instructions starting on pg. 19)
I M P O R T A N T
For high altitude installations above 4500 ft (1372 meters), consult local gas distributor or
the authority having jurisdiction for proper de-rating methods.
CONVERT THE GAS VALVE
CONVERSION KIT INSTRUCTIONS, cont.
On the SIT valve, use an Allen key or a slotted screwdriver to remove
and discard the three pressure-regulator mounting screws the pressure
regulator tower and the spring diaphragm assembly.
Install the LP identification label
to the valve (found in kit).
Affix Archgard Manufacturer’s label (part # 303-0128)
in a conspicuous location. We suggest a location
close to the gas control valve.
I M P O R T A N T
Ensure that the rubber gasket is properly positioned and install the new
modulating pressure regulator assembly to the valve using the screws
provided in the conversion package.
W A R N I N G
This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer's instruc-
tions and all applicable codes and requirements of the authority having jurisdiction. If the information in these
instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing prop-
erty damage, personal injury or loss of life. The qualified service agency is responsible for the proper installation
of this kit. The installation is not proper and complete until the operation of the appliance is checked as specified
in the manufacturer's instructions supplied with the kit.

27-DVIM22 16
Before placing the appliance into the fireplace, check the hearth of the fireplace to see if it is level
with the front of the fireplace. If it is not, measure the depth of the hearth. Loosen the three screws of
the leveling “L” bracket at the back of the appliance. Lower it to the measurement obtained and
tighten the screws.

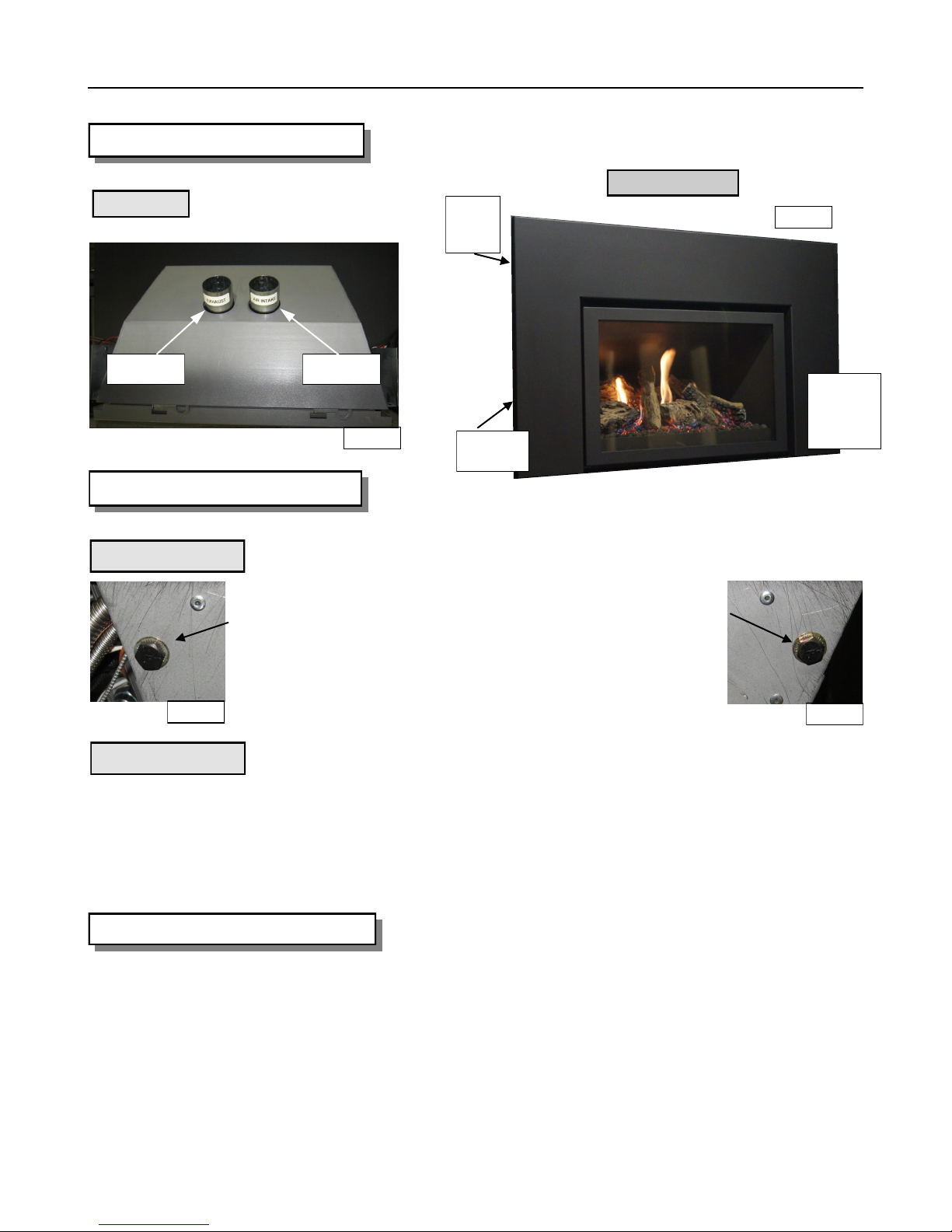

APPLIANCE DESCRIPTION
ELECTRICAL CONNECTIONS
The 27-DVIM22 comes complete with an thermally controlled variable speed fan equipped with a
solid state speed control.
Do not cut or remove the grounding prong from this plug.
NOTE: This appliance, when installed, must be electrically grounded in accordance with local codes
or, in the absence of local codes, with the National Electrical Code, ANSI / NFPA 70, or the
Canadian Electrical code, CSA C22.1.
TOP VIEW
IntakeExhaust
FRONT VIEW
LEVELING THE 27-DVIM22
Rear Level
On/Off
Rocker
Switch
Front Level
Located slightly in from the front edge of the fireplace is the new level-
ing feature. Leveling bolts can be installed to enable you to raise the
front of the firebox if necessary. If you need higher adjustment you only
need to change to a longer bolt. If no rise is required simply leave
empty.
Fig. 16-A
Fig. 16-B
Fig. 16-C Fig. 16-D
Ceramic
Glass w/
standard
black door
Surround
Faceplate
Shown with 27-SKSBS Trim

27-DVIM22 17

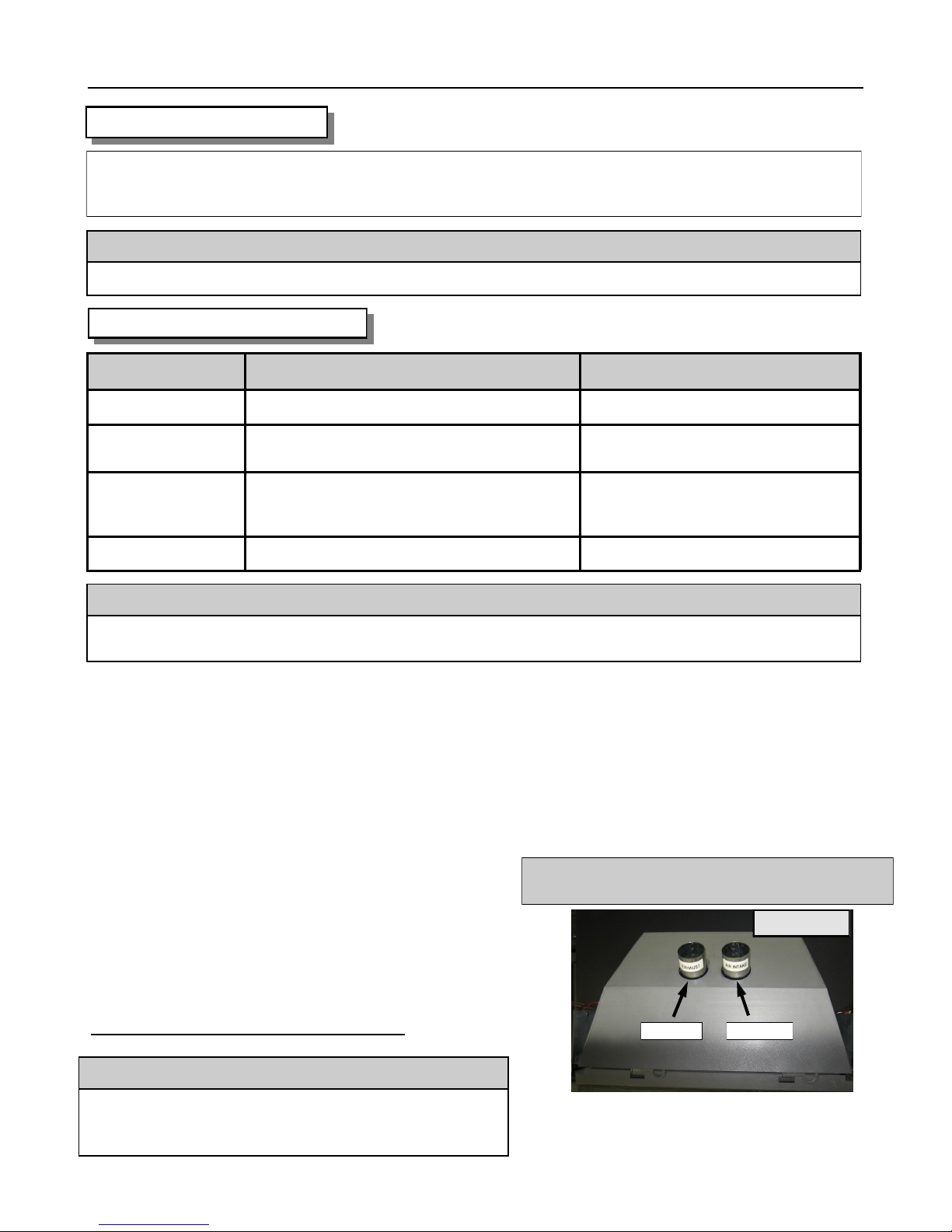

VENTING INSTRUCTIONS
WARNING: Operation of this heater when not connected to a properly installed and maintained venting
system can result in carbon monoxide (CO) poisoning and possible death. The appliance must not be
connected to a chimney flue serving a separate solid fuel burning appliance.
The 27-DVIM22 requires (2) flexible flue liners:
INLET Collar - 3” (76 mm) diameter
OUTLET Collar - 3” (76 mm) diameter
The 27-DVIM22 showing the Fresh Air Intake and
Exhaust locations. These connections are labeled.
The Air intake and Exhaust connections are marked
on the gas appliance. See picture.
DO NOT REVERSE THESE CONNECTIONS
Manufacturer Vertical Termination Termination Adapter
Archgard 999-INS-TK N/A
Dura Vent 980 - Co-Axial Cap (requires adapter)
991 - Co-Axial High Wind (requires adapter) 923GK (Co-Axial to Co-Linear)
ICC/Excel IVT - Co-Linear
VT - Co-Axial (requires adapter)
SVT- Co-Axial (requires adapter)
N/A
CTA or CAA (Co-Axial to Co-Linear)
CTA or CAA (Co-Axial to Co-Linear)
Ameri-vent DVC - Co-Axial Cap (requires adapter) DCAT (Co-Axial to Co-Linear)
APPROVED TERMINATIONS
C A U T I O N
Only 3” (76mm) double wall aluminum flex liner and approved vent terminals are to be used for this appliance.
A T T E N T I O N
NO OTHER VENTING SYSTEM OR COMPONENTS MAY BE USED. Follow manufacturer instructions for
installation of termination.
This appliance is designed for dual 3” (76 mm) double wall aluminum flex liner, running the entire length of the
chimney.
The flue length must be a minimum of 10’ (3.05 M) and a maximum of 40’ (12.2 M)
The exhaust vent restrictor provided with this appliance must only be used by installing it onto the
front of the baffle when the vent height is over 18’ (5.5 M) if required.
The minimum (chimney) flue size is 4” x 7” (102 mm X 178 mm).
Masonry chimneys may take various contours which the flexible liner will accommodate, however, keep the
flexible liner as straight as possible, avoiding unnecessary bending but at all times keep a minimum of 3” (76
mm) inside bend radius.
The Air Intake Flex Liner must be connected to the inlet
air collars of the termination cap and the appliance.
The Exhaust Flex Liner must be connected to the ex-
haust collars of the termination cap and the appliance.
Exhaust Fresh Air
TOP VIEW
C A U T I O N
To ensure that the venting is not accidentally obstructed or punctured,
the damper of the host fireplace must be permanently disabled.
Either complete removal of the damper, or welding it in its “open”
position. Temporarily disabling the damper is not permissable.

27-DVIM22 18
Instructions for use with Archgard vertical termination cap. Part # 999-INS-TK
Install the termination cap being sure to provide sufficient space (around and on top) so as not to impede the flow of air, both
into and out of the cap. This cap is only to be used for non combustible installations. Do not recess into the top of the chim-
ney.
1. Mark each end of one liner with “Air Intake”.
2. Mark each end of the second liner with “Exhaust”.
3. Pull the liner through the chimney.
4. Install the flashing.
5. Seal and attach the liner marked “Air Intake” to the vent terminal pipe marked “Air Intake” with the collar clamp provided.
6. Seal and attach the liner marked “Exhaust” to the vent terminal pipe marked “Exhaust” with the collar clamp provided.
7. Seal and attach the end of the flex marked “Air Intake” to the collar marked “Air Intake” on the appliance with the collar clamp
provided with the unit.
8. Install exhaust vent restrictors provided with the unit if required. Seal and attach the end of the flex marked “Exhaust” to
the collar marked “Exhaust” on the appliance.
9. Caulk all joints using a high temperature sealant such as milpac. DO NOT USE SILICONE SEALANTS. Use of silicon sealants
voids the warranty of the pilot assembly.
NOTE: The vertical termination cap must be sealed to the liner with suitable high temperature sealant, such as milpac and with the hose
clamps fasteners provided. DO NOT USE SILICONE SEALANTS (Use of silicon sealants voids the warranty of the pilot assem-
bly) The liners must form a complete connection from the appliance flue collars to the vertical termination cap.
VENTING INSTRUCTIONS 999-INS-TK
The minimum flue (chimney) size required to run the two 3” (76 mm) is 4” x7” (100 mm X 178 mm)
Front view of
DV Insert
Exhaust
Collar
Air Intake
Collar
3” (76 mm) Flex Liner
Fresh Air Intake
Min. vent height 10’(2.54 M)
Max. vent height 40’ (12.2 M)
Vertical Termination cap
Part # 999-INS-TK
Place Vent Restrictor in
the position shown when
operating with a vent over
18’ (5.5 Meters)
Firebox baffle with
restrictor
Firebox baffle with-
out restrictor
Fig. 18-A
N O T E
Seal and secure liners on unit
and at roof termination

27-DVIM22 19
If a wall mounted switch or a wall mounted thermostat is desired, Archgard recommends that the device be
wired as shown in the diagram below.
NOTE: Archgard Industries does not manufacture or sell any type of wall switch or wall thermostat and will not
extend warranty to them
OPTIONAL WALL SWITCH OR THERMOSTAT
A ELECTRODE N/A
B THERMOPILE # 308-0056
C PILOT HOOD N/A
D THERMOCOUPLE # 308--0122
PILOT ASSEMBLY
Thermostat/wall switch wire table
Recommended max length for two wires.
Wire Size Max. Length
14 GA. 50’ (15.24 M)
16 GA. 32’ (9.75 M)
18 GA. 20’ (6.9 M)
20 GA. 12’ (3.65 M)
22 GA. 9’ (2.74 M)
M
SPEED
110F (43ºC) N.O.
THERMAL SNAP
CONVECTION BLOWER
LINE
GROUND
NEUTRAL
To Appliance
120 VAC
white
black
SPEED
LINE
GROUND
NEUTRAL
110ºF (43ºC)
N.O.
CONVECTION
BLOWER
white black
green
OPTIONAL
REMOTE SWITCH
ON / OFF
SWITCH
WIRE TO
PIEZO
B
A
C
D
SUPPLY TUBE
THERMOCOUPLE
T
THT
TH
FAN WIRING DIAGRAM
The 27-DVIM22 comes complete with:
 Temperature activated fan - (#RF-305-0024)
 Solid State speed control. - (#305-0013)
 6ft power cord
NOTE: This appliance, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code,
CSA C22.1.
The fan disc is factory set to close
the circuit to the fan speed control at
1100F (430 C) and will turn off the
fan when the temperature falls below
800 F (270 C).
Fig. 19-B
Fig. 19-A

27-DVIM22 20

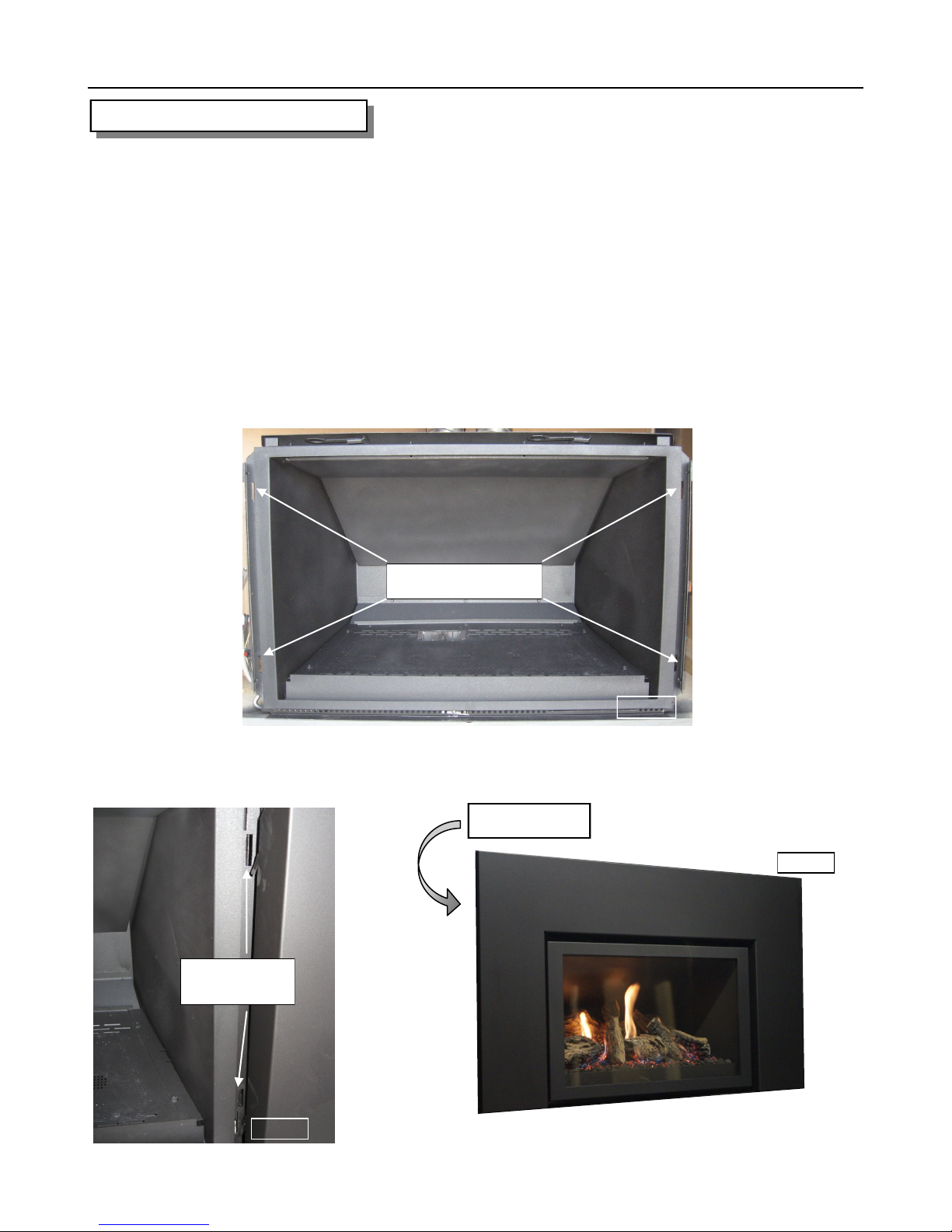

SURROUND INSTALLATION
Surround options available are dependent upon the control panel configuration. (See Control Panel Locations
regarding configuration.) Shallow surround options are not available on a unit with ‘Controls Out’ configuration.
Make sure the gas and electrical lines are properly connected to the appliance. Slide the unit into the fireplace
and slide the excess flue liner material back onto the chimney. Before the appliance is fully recessed into the
fireplace, attach the surround onto the appliance.
Attach the surround to the appliance at the locations shown by lining up the tabs on the surround with the slots
on the unit. Make sure the surround drops down and fully engages. Then finish with the wiring connection to
the on/off switch on the side of the trim. Now fully “seat” the unit into its final position.
Care must be taken that Trim Panels or Surrounds shall not seal ventilation openings in the fireplace.
Surround
Mounting tabs
Fig. 20-B
Fig. 20-A
Surround Mounting
ON/OFF Switch
Shown with 27-SKSBS Trim
Fig. 20-C
