Golden Technologies Compass Sport GP605 User manual

Compass Sport
Service Guide
This Service Guide contains:
Troubleshooting
Replacement Instructions
Illustrated Parts Breakdown
Model: GP605

Compass Sport_SG_REVA_101014
1

Compass Sport_SG_REVA_101014
2
Table of Contents
Nomenclature and Contact Information...........................................................................................3
ABOUT THE COMPASS SPORT SERVICE GUIDE...................................................................4
Compass Sport Components.........................................................................................................4-6
The LiNX Battery Gauge.................................................................................................................7
SCENARIO 1: Press the on/off button and the LED array does not light up (LiNX).................8-9
SCENARIO 2: Batteries will not charge. (LiNX Charging Test)...................................................9
LiNX CONNECTIONS.................................................................................................................10
Cabling...........................................................................................................................................10
Remote User Interface Connections..............................................................................................10
Power Module Connections...........................................................................................................11
Connector Key (LiNX Controller).................................................................................................11
Wiring Diagrams and Battery Placement.................................................................................12-13
TROUBLESHOOTING GUIDE for (LiNX)...........................................................................14-18
Step 1: Checking Battery Voltage..................................................................................................14
Step 2: Checking “Flash Codes”..............................................................................................15-18
Flash Code #1 - Remote / Joystick Error.......................................................................................15
Flash Code #2 - Network or Configuration Error..........................................................................15
Flash Code #3 - Left Motor Error.............................................................................................15-16
Flash Code #4 - Right Motor Error................................................................................................16
Flash Code #5 - Left Park Brake Error..........................................................................................17
Flash Code #6 - Right Park Brake Error........................................................................................17
Flash Code #7 - Module Error (other than Remote)......................................................................18
Step 3: Check for other conditions displayed by the LiNX Control Unit......................................18
Drive Inhibit...................................................................................................................................18
OONAPU (Out of Neutral At Power Up)......................................................................................18
REPLACEMENT INSTRUCTIONS.......................................................................................19-21
Drive Wheel...................................................................................................................................19
Front Caster....................................................................................................................................19
Drive Train (motor / brake and gearbox).......................................................................................20
Power Module................................................................................................................................21
APPENDIX A - HOW TO USE A VOLTMETER……………………………………………..22
APPENDIX B - HOW TO USE AN OHM METER……………………………………………23
ILLUSTRATED PARTS BREAKDOWN...............................................................................24-51

Compass Sport_SG_REVA_101014
3
Compass Sport Nomenclature
Contact Information
Golden Technologies
401 Bridge Street
Old Forge, Pa. 18518
Toll-free: 800-624-6374
Fax: [phone]
Email: [e-mail]

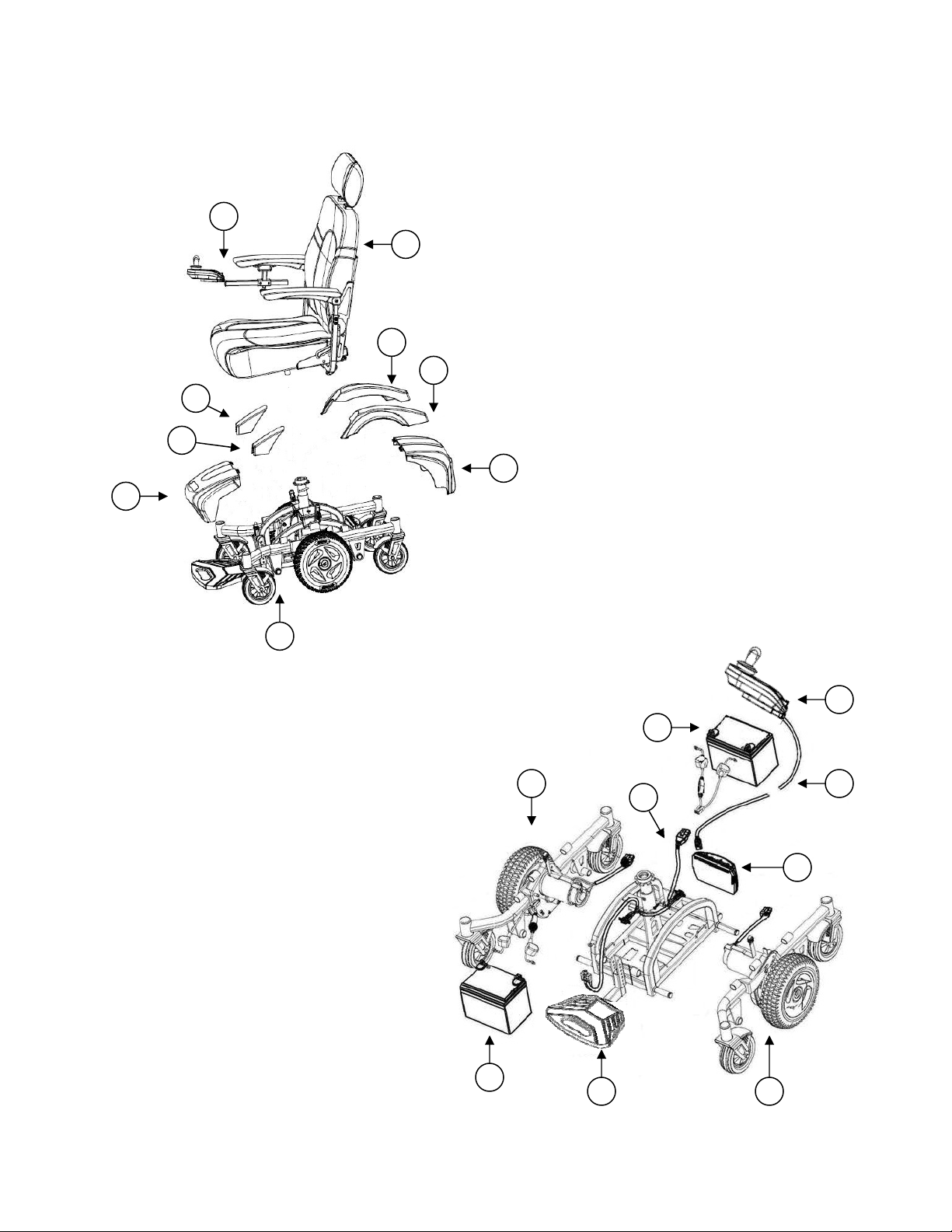

1. Seat Assembly
2. Control Assembly (LiNX)
3. Right Forearm Cap
4. Left Forearm Cap
5. Right Fender
6. Left Fender
7. Front Battery Cover
8. Rear Battery Cover
9. Base
10. Right-side Drive Train
11. Front Battery
12. Footplate
13. Power Harness with Circuit Breaker
14. Left-side Drive Train
15. Power Module (LiNX)
16. Bus Cable (LiNX)
17. Rear Battery
18. Control Unit (LiNX)
1
2
3
4
5
6
7
8
9
12
10
11
13
14
15
16
17
18

Compass Sport_SG_REVA_101014
4
About the Compass Sport Service Guide
This service guide provides you with the information necessary to troubleshoot the Golden Technologies
Compass Sport equipped with the Dynamic LiNX controller. The troubleshooting scenarios in this manual
consist of procedures that enable you to systematically trace and correct faults in the system.
Before troubleshooting, check the following:
•Make sure that the circuit breaker is reset.
•Visually check terminals for corrosion. Check wires for missing insulation.
•Make sure that the batteries are fully charged and in good working order. When possible, keep sets of
known good batteries of various ratings in your shop at all times. The Compass Sport uses 35AH (U1)
batteries. Problems that surface during troubleshooting are often due to the fact that the batteries are not
fully charged or can not hold their charge.
•Make sure that the electrical connections are secure. Unplug the connectors and make sure all of the
pins are seated properly. Push the pins back into the connector housing if necessary. Make sure that the
battery terminals are tight.
If you get to a point during troubleshooting where you cannot continue, call tech support at
800-624-6374.
COMPASS SPORT COMPONENTS
The Compass Sport is a battery-operated power chair controlled by a Dynamic control system. The control
system monitors and displays flash codes on the status indicator when it detects a fault in the system. The
Compass Sport was designed to operate with between 18 - 32 volts (V) of direct current (DC).
The Compass Sport control system is made up of the following components. Refer to page 3 and figures 1 and 2
on pages 10.
•12V/(35AH) Batteries (2)
•Battery Harnesses (2)
•Main Circuit Breaker
•Battery Charger
•Power Harness
•Motors (2) (left/right)
•Park Brakes (2) (left/right)
•LiNX Dynamic Power Module
•LiNX Dynamic Control Unit (Joystick)
•LiNX Bus Cable
Parts and service must be authorized by the Golden Technologies Service Department.
Unauthorized parts or service may void the warranty. For more information, contact the Golden Technologies
Service Department at 800-624-6374 or [email protected].
Component: 12VDC (35AH) Batteries (2)
Location: Connected in series under the front and rear battery covers.
Function: Supply 24VDC to the power module. (12VDC x 2).
Connections: Front Battery and Rear Battery.
Failure Signs: Batteries drain quickly. Power chair runs slowly or not at all. Batteries will not charge, but
charger is working properly. Flash Code #2 or #7.
Tests: Load test. Fully charge the batteries first. Make sure charging system is working.
Expected Readings: 12 - 14VDC each when fully charged.
Serviceable: Replace batteries as necessary.

Compass Sport_SG_REVA_101014
5
Component: Park Brake (2)
Location: End of each motor.
Function: Park Brake for the motor.
Connections: Each park brake has a 2 pin male connector, which connects to each motor harness.
Failure Signs: Power chair will not move or moves sluggishly. No audible click when the chair stops.
Tests: Test for open. See Flash Codes #5 and #6.
Expected readings: Less than 80 ohms, but not shorted.
Serviceable: Replace if outside this range.
Component: Circuit Breaker
Location: Mounted on the front of the power base.
Function: Protects battery circuit from current overload. When the current draw exceeds the breaker rating, the
circuit breaker will open.
Connections: Terminals on the circuit breaker are connected to the batteries through the power harness.
Failure Signs: Opens repeatedly. This may indicate a failed circuit breaker or short in the wiring. Also, may
open if the motors are overloaded (from excessive weight, short in system, etc.)
Test: Measure the resistance across the circuit breaker. Also check for continuity across the power harness from
the circuit breaker to each battery. Refer to the power harness wiring diagram on page 12.
Expected reading: Less than 10 ohms.
Serviceable: Circuit breaker must be replaced with exact current rating. Replace power harness if no
continuity.
Component: Battery Charger
Location: Stored inside a pouch on the seatback.
Function: Recharges batteries.
Connections: XLR connector connects to the charger port on the front of the control unit (joystick).
Failure Signs: Charger power LED does not go on. Charging LEDs do not illuminate. Batteries will not charge.
Tests: Measure voltage across the rear battery negative (black) terminal and the front battery positive (red)
terminal. Meter reading should be 24VDC. While observing the meter reading, turn the charger on, the voltage
reading should increase. Note: The charger must see greater than 18VDC before charging will occur.
Expected reading: Greater than 24VDC when the charger is switched to the on position.
Serviceable: Replace if necessary.
Component: Motors (2)
Location: Left and right sides of the power base.
Function: Drives the power chair.
Connections: The right motor harness connects to M1 on the power module and the left motor harness connects
to M2 on the power module.
Failure Signs: Power chair runs slowly or not at all.
Tests: Test for internal resistance in motor. Test motor wires for continuity. See Flash Codes #3 and #4.
Expected readings: Internal resistance is less than 5 ohms but not shorted. Note: Can be as low as 0.3 ohms.
Serviceable: Replace motor if outside range.

Compass Sport_SG_REVA_101014
6
Component: LiNX Power Module
Location: Rear of the power base.
Function: Monitors the system and displays faults when something in the system is out of range. These faults
are displayed as a series of flashes by the status indicator and/or the
b
attery meter.
Connections: Control unit (joystick), M1 (right motor), 24V (power harness from batteries), M2 (left motor).
Refer to figure 3 (power module connections) on page 11.
Failure Signs: Flash Code #7.
Tests: Measure voltage at LiNX Bus Connector pin 1 (battery negative) and pin 4 (battery positive).
Expected readings: Battery voltage.
Serviceable: Replace as necessary.
Component: LiNX Control Unit (Joystick)
Location: End of the armrest.
Function: Provides user interface to the power chair. Also, shows battery charge and status of control system.
Connections: XLR charger/programming port on the outside of the control module. Bus cable connection on
the back of the control module.
Failure Signs: Flash Code #1, and 2.
Tests: Measure voltage at pin 1 (battery positive) and pin 2 (battery negative).
Expected readings: Battery voltage.
Serviceable: Replace as necessary.
Component: LiNX Bus Cable
Location: Rear of LiNX Control Unit (Joystick).
Function: Provides connectivity to the LiNX power module.
Connections: 4 pin quick connect bus cable.
Failure Signs: Flash Code #1, 2, and 7.
Tests: Measure continuity.
Expected readings: Less than 10 ohms.
Serviceable: Replace if open.

Compass Sport_SG_REVA_101014
7
The LiNX Battery Gauge
The battery gauge comprises five different LEDs (1 x RED, 2 x AMBER, 2 x GREEN), located above the horn
button. The number of LEDs lit depends on the status of the battery, as shown below. The battery gauge LEDs
are also used to display charging information.
Battery Gauge Battery Level
Battery Gauge
Battery Charging

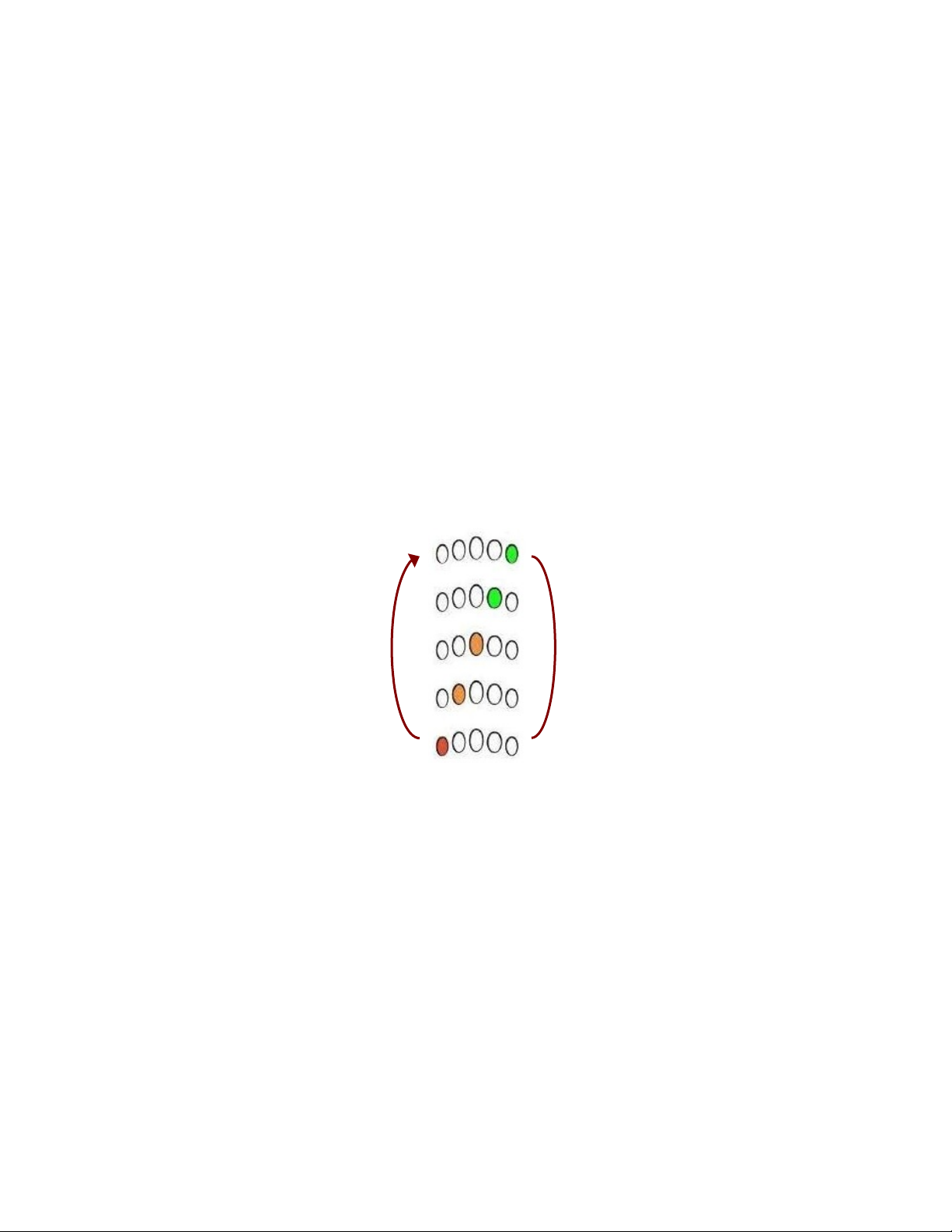

The battery gauge will indicate the system is being charged by cycling between a
left-to-right chase sequence and then display the approximate battery charge state at
the end of the chase sequence.
Driving is prevented (inhibited) while the system is being charged.
The system does not have to be powered up when charging the battery, however, if it is
not powered up, then the battery gauge will not display the charging state/chase sequence.
The following indicates what the gauge will display for any given state.
High voltage warning
A high voltage warning is indicated by all LEDs on, and the green LEDs flashing. This occurs
when the battery voltage level has risen above the high voltage warning set-point.
Low voltage warning
A low voltage warning is indicated with the left-most LED flashing. This occurs when the
battery voltage level has dropped below its low voltage warning set-point. Charge the batteries immediately.
Cut-off voltage
When the battery voltage drops below the battery cut-off voltage:
The first (red) LED will flash on the battery gauge.
The status indicator (under the power button) will display a flash code 2 or 7.
The horn will sound once every 10 seconds.
Fully charged
Consider charging the battery
Battery needs charging
Start
Charge State

Compass Sport_SG_REVA_101014
8

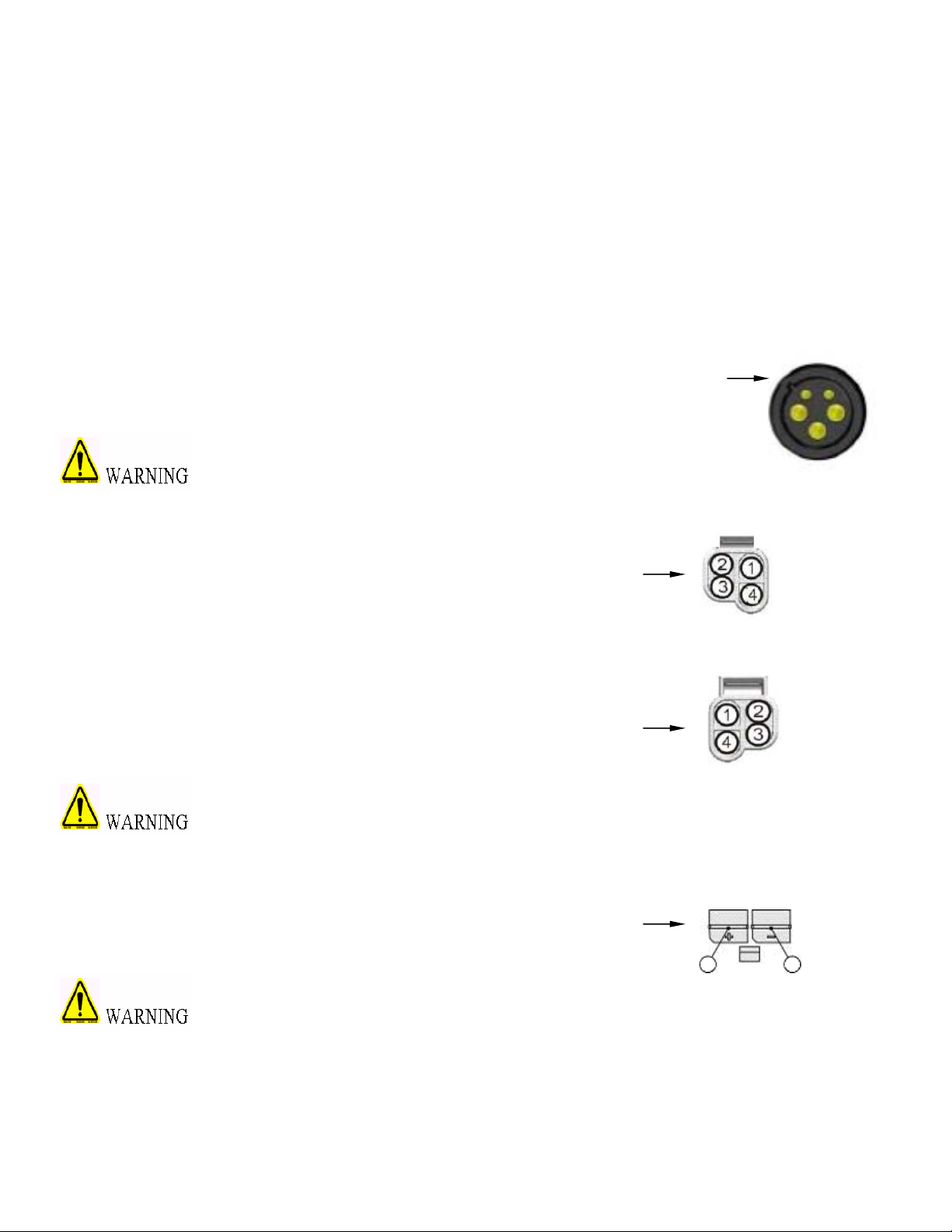

SCENARIO 1: Press the on/off button and the LED array does not light up.
Before attempting to troubleshoot the power chair, make sure all connectors are connected and seated properly.
Make sure that the batteries are connected properly and fully-charged. Refer to the wiring diagrams on pages
12 and 13 for the correct wiring. If the batteries are not fully charged or connected properly, then voltage
measurements may produce faulty readings. Measure the voltage across the rear battery negative (black)
terminal and the front battery positive (red) terminal to get battery voltage. If the batteries will not charge, go to
“Scenario 2: Batteries will not charge.”
1. Check the circuit breaker.
•If it is tripped – Reset it.
•Not tripped – Go to the next step.
•Tripped but does not reset – Remove the seat and front battery box cover. Go to step 12.

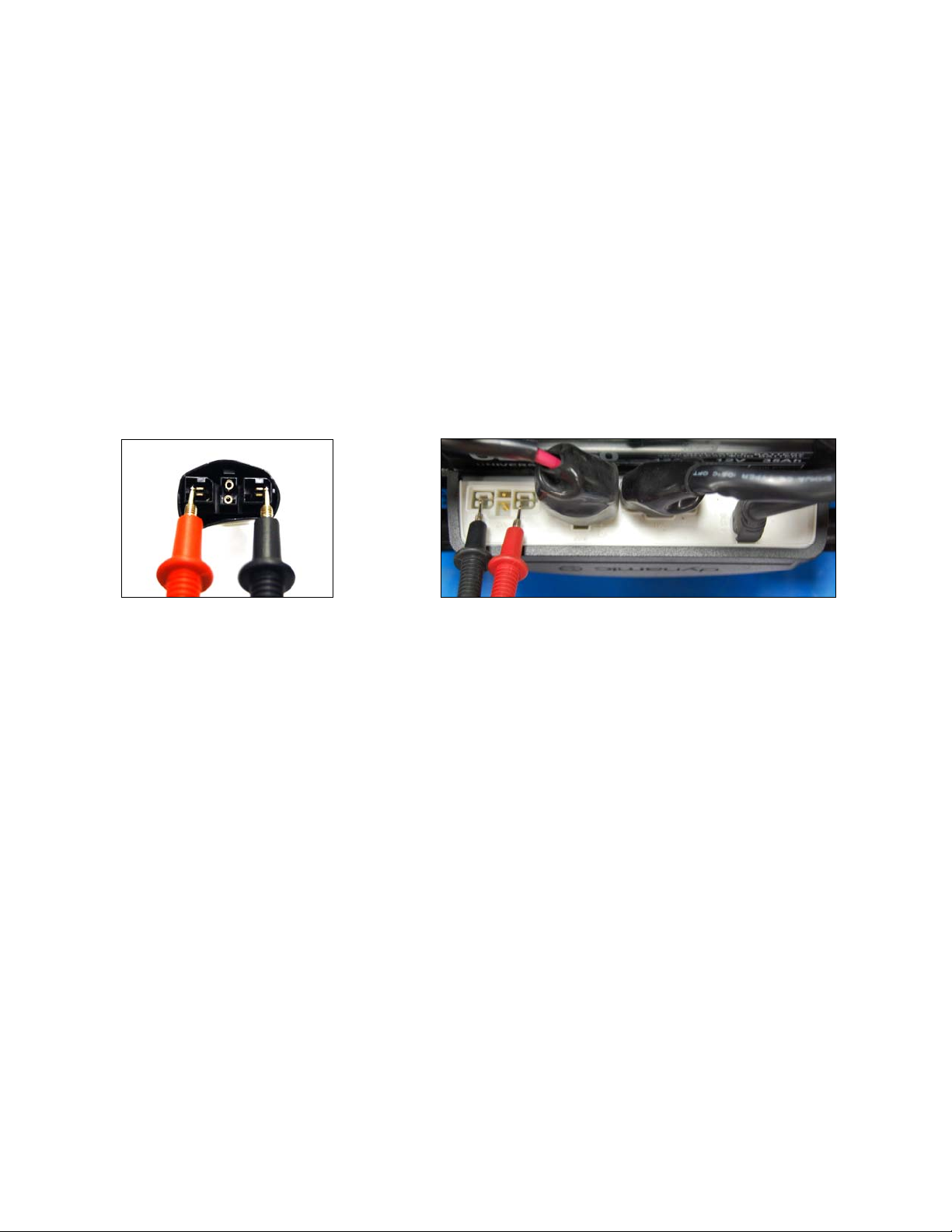

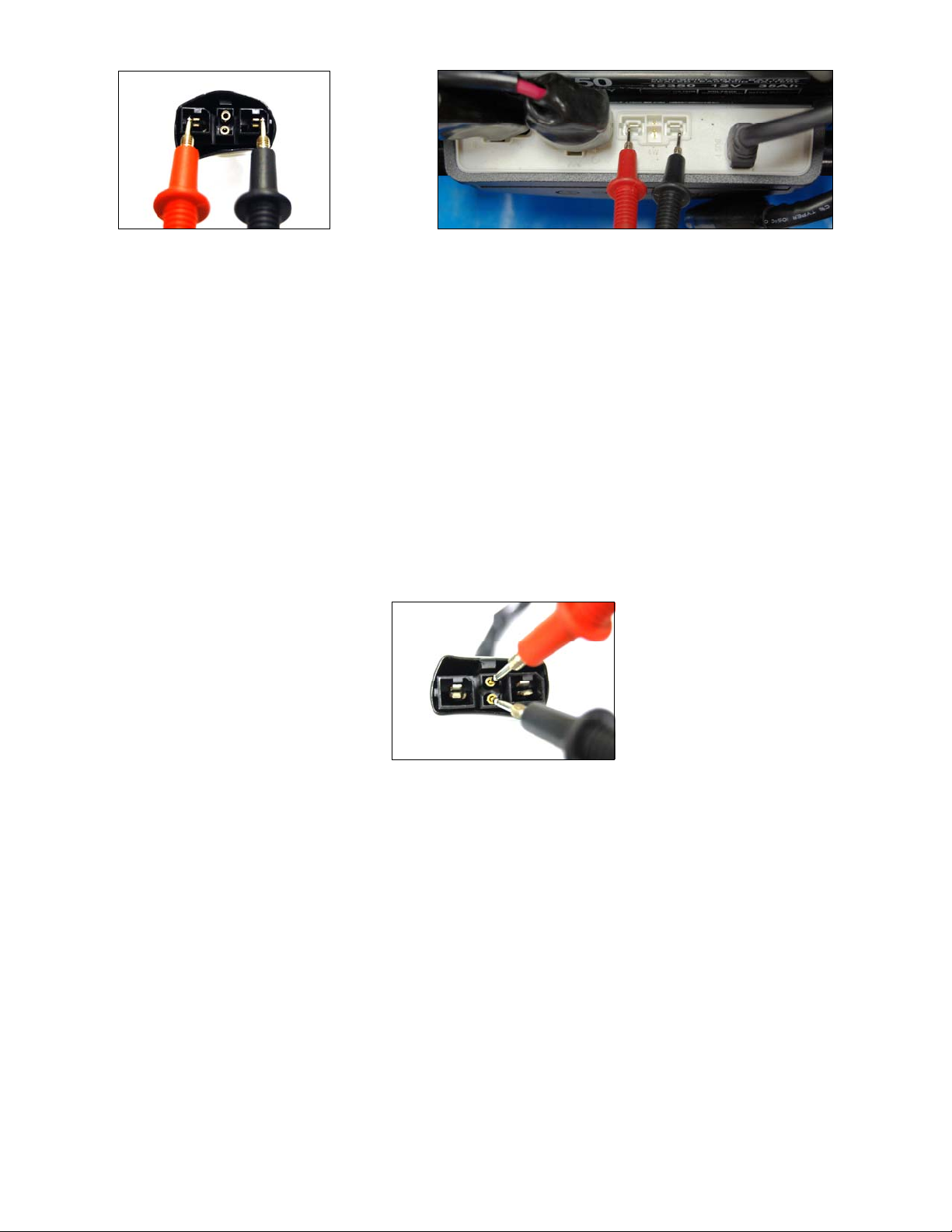

2. Measure voltage across pin 1 and pin 2 on the control unit (Joystick) charging socket.
•0VDC – Go to the next step.
•25VDC or (battery voltage) – Replace the control unit.
Prevent damage to the Joystick. Be careful when inserting the meter leads into the charging
socket. Do not allow the meter leads to touch each other, which will cause a short.
3. Disconnect the bus cable from the control unit (Joystick).
4. Measure voltage across pin 1 (-) and pin 4 (+) on the bus cable.
•0VDC – Go to the next step.
•25VDC or (battery voltage) – Replace the control unit (Joystick).
5. Remove the seat.
6. Remove the rear battery box cover.
7. Disconnect the bus cable from the power module.
8. Measure voltage across pin 1 (-) and pin 4 (+) on the power module.
•0VDC – Go to the next step.
•25VDC or (battery voltage) – Replace bus cable.
Prevent damage to the (LiNX) power module. Be careful when touching the leads on the
power module. Do not allow the meter leads to touch each other, which will cause a short.
9. Disconnect the power harness from the power module.
10. Measure voltage across the pin 1 (+) and pin 2 (-) on the power harness.
•0VDC – Go to the next step.
•25VDC or (battery voltage) – Replace the power module.
Before attempting to measure resistance, make sure there is no power to the circuit. Unplug
the front and rear battery harnesses from the power harness
11. Measure Resistance across the terminals on the circuit breaker.
•Less than 10 ohms – Go to the next step.
•Open – Replace the circuit breaker.
1 2
2 1
3

Compass Sport_SG_REVA_101014
9
SCENARIO 1 - Continued
12. Check continuity across the circuit breaker wires of the power harness and across the battery wires of the
power harness. Repair or replace the power harness as necessary.
13. Check continuity across both the front and the rear battery harnesses. If open, check in-line fuse and replace
fuse or harness as necessary. Fuses must be replaced with exact type and rating.
Note: When checking continuity, visually inspect wires, connectors, and pins for any damage and to make sure
the pins are seated properly in their connectors.
SCENARIO 2: Batteries Will Not Charge (LiNX Charging Test)
NOTE: Battery chargers will not charge the batteries unless the battery voltage is 18VDC or above and there is
a closed circuit between the batteries. The circuit breaker completes that circuit. Make sure that the circuit
breaker is reset. If necessary, use a set of known good batteries.
1. Make sure the AC wall outlet the battery charger is plug into is not controlled by a light switch, causing the
battery charger to be turned-off inadvertently.
2. Remove the seat and the battery box covers.
3. Make sure that the batteries are connected according to the battery connection diagram on the inside of the
battery cover and/or figure 7 on page 13. Check the batteries and cables for corroded or loose terminals. Clean
and tighten if necessary.
4. Measure voltage across the rear battery negative (black) terminal and the front battery positive (red) terminal.
•Less than 18VDC – Load test and replace batteries as necessary.
•Greater than 18VDC – Go to next step.
5. Plug the charger in. Does the voltage reading increase?
•Yes – Greater than 24VDC – the charger is working – Go to the next step.
•No – Replace the charger.
Note: The charger must be plugged in and turned to the on position to perform the testing procedure.
6. With the charger plugged in and turned on, unplug the power harness from the power module. Measure
voltage across the pin 1 (+) and pin 2 (-) on the power module.
•Greater than 24VDC – Test the power harness for continuity and replace as necessary.
•0VDC – Go to the next step.
Prevent damage to the (LiNX) power module. Do not allow the meter leads to touch each
other while taking the meter reading, which will cause a short circuit.
7. With the charger plugged in and turned on, reconnect the power harness to the power module.
Disconnect the bus cable from the power module. Measure voltage across pin 1 (-) and pin 4 (+) on the bus
cable.
•Greater than 24VDC - Replace the power module.
•0VDC – Go to the next step.
8. Reconnect the bus cable to the power module. Disconnect the bus cable from the joystick.
Measure voltage across pin 1 (-) and pin 4 (+) on the joystick.
•Greater than 24VDC - Replace the control unit.
•0VDC – Replace the bus cable.

Compass Sport_SG_REVA_101014
10
LiNX CONNECTIONS

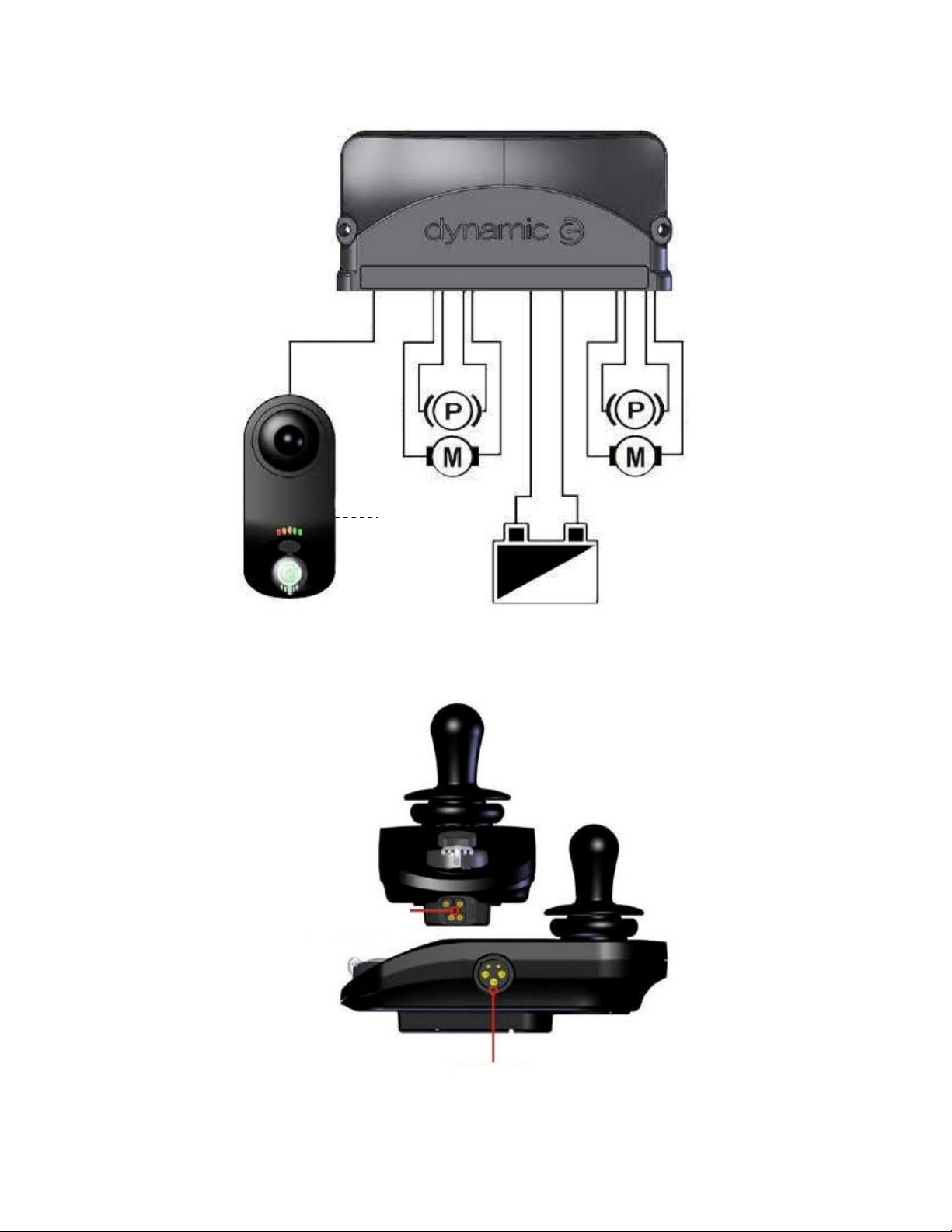

Figure 1. Cabling Connections (LiNX)
Figure 2. Remote User Interface Connections
XLR Charger
Connector
24V Battery Supply
LINX
Communication
Bus
Power Module
Park
brake 2
Park
brake 1
Motor 2Motor 1
Communication
Bus Connector
XLR Charger Port
Control Unit
(
Jo
y
stick
)

Compass Sport_SG_REVA_101014
11
Power Module
Figure 3. Power Module Connections (LiNX)
Connector Key for LiNX Controller
Note: The LiNX controller and the controller harnesses are keyed, eliminating the possibility of the
cables from being incorrectly connected to the controller.

Compass Sport_SG_REVA_101014
12
Wiring Diagrams

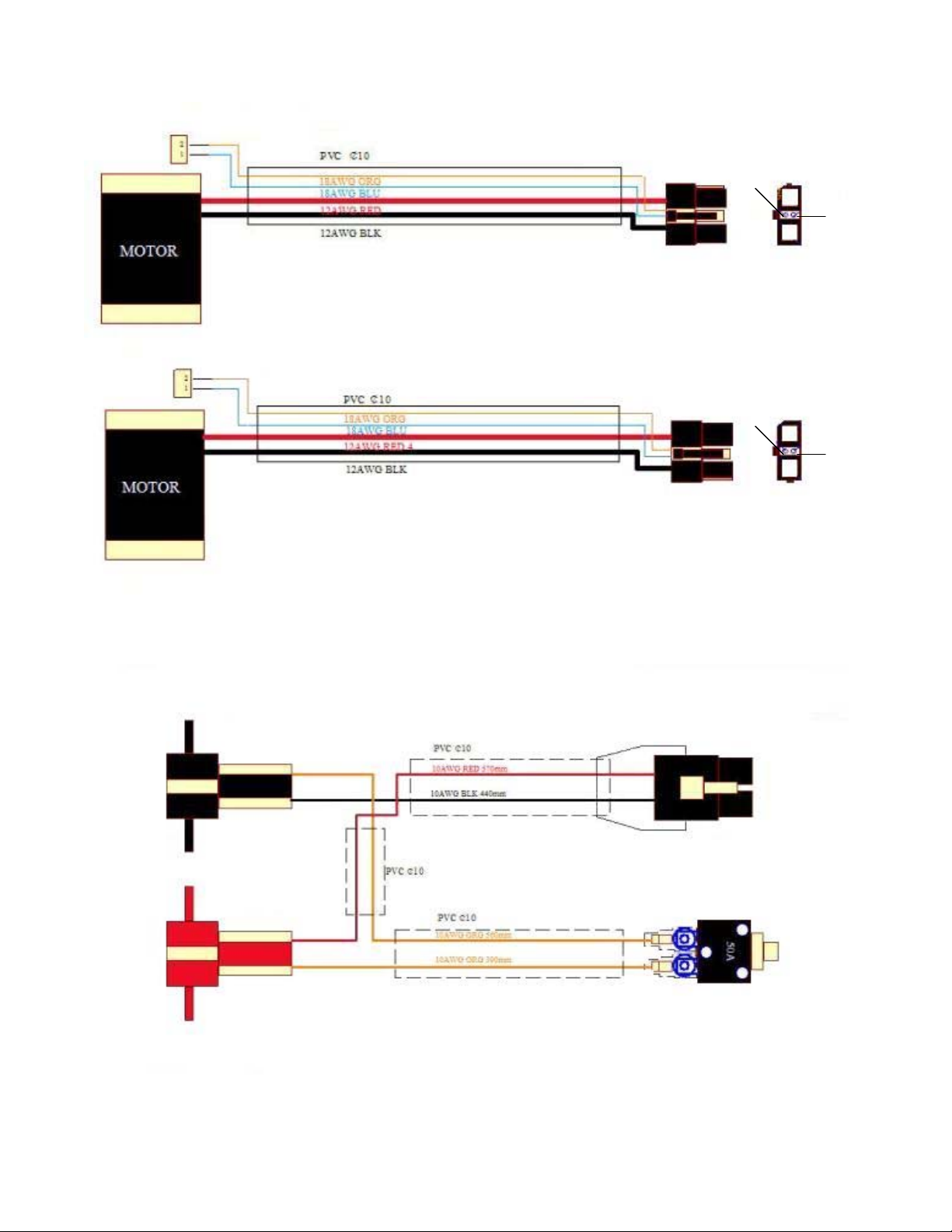

Figure 4. Motor/Brake Wiring Harnesses
Figure 5. Power Harness
+
_
2 pin connector (female)
2 pin connector (female)
Lef
t
Right
orange
orange red
blue
black
red
blue
black
To D
y
namic LiNX Controlle
r
To Brake
To Brake
M2
M1
To D
y
namic LiNX Controller Power In
p
u
t
Circuit Breaker
To Batter
y
Harness Connecto
r
To Batter
y
Harness Connecto
r
RED
BLACK

Compass Sport_SG_REVA_101014
13
Wiring Diagrams – continued
Figure 6. Battery Harnesses
Figure 7. Correct Battery Placement
To Power Harness Connectors
To Battery Terminals
To Battery Terminals
BLACK
RED
Orange
Battery Battery
Orange
Fuse
Fuse
REAR
FRONT
Red Red
Red
Black Black
Black

Compass Sport_SG_REVA_101014
14
Troubleshooting Guide for the LiNX Power System
Step 1: Battery voltage is always the first thing to check.
A. Check the battery voltage at the XLR battery charger port located on the side of the controller See figure 8.
Set voltmeter to the 50 VDC scale.
Place the meter leads into the two outside pins of the battery charger port.
Meter should read approximately 25 VDC.
B. If the voltage is below 25 VDC:
Recharge the batteries for 8 hours.
Check wiring for any visible damage and make sure all the cables are connected properly.
Make sure that the pins are seated in the connectors properly and the fuses are good.
C. If the voltage is 20 VDC or less:
The battery charger may not recognize a low voltage and thus will not charge the batteries.
Boost charge the batteries to bring the voltage up to a level that the charger will see, then plug the battery
charger into the charger port and charge for 8 hours.
If the batteries will not charge, replace both batteries.
D. If the voltage is dropping too quickly, perform a load test on the batteries using a load tester. If you do not
have access to a load tester, you can load test by performing the follow steps.
Place the meter leads into the outside pins of the battery charger port.
Sit in the power chair and drive it.
After an initial drop, the voltage should hold steady at approximately 24VDC or higher when driving with a
load on the chair.
If the voltage continues to drop while driving, replace BOTH batteries.
Figure 8 XLR Port Close-up
XLR Battery Charger Port
Measure hereMeasure here
2 1
3

Compass Sport_SG_REVA_101014
15
Step 2: Check for “FLASH CODES”
If, when powered up, there is an error with the system, then the status
indicator will flash red. The number of flashes will indicate the type of error.
These are described in the table below.
Status Indicator
Flash
Code Description
1 Remote / joystick error Check LiNX connections and wiring.
Replace the LiNX Control Unit.
2 Network or configuration error
Check LiNX connections and wiring.
Check the battery voltage. Replace the
LiNX Control Unit.
3 Left motor error Check the left motor, connections and
cabling.
4 Right motor error Check the right motor, connections and
cabling.
5 Left park brake error Check the left park brake, connections
and cabling.
6 Right park brake error Check the right park brake, connections
and cabling.
7 Module error (other than Remote)
Check LiNX connections and wiring.
Check the battery voltage. Check the
LiNX power module connections. Replace
the Power Module.
The LiNX modules are not user serviceable. Do not attempt to repair LiNX
modules.
Flash Code 1: Remote / Joystick Error
A. Check the LiNX connections and wiring.
B. Replace the LiNX control unit (joystick).
Flash Code 2: Network or Configuration Error
A. Check the LiNX connections and wiring.
B. Check the battery voltage and cabling.
C. If the battery voltage fault persists, replace the batteries.
D. Replace the LiNX control unit (joystick).
Flash Code 3: Left Motor Error
A. Check the resistance of the left motor to determine if the fault is in the motor or the controller.
Set your meter to the 20 Ohm scale.
Touch the leads together to make sure the ohm meter is accurate. You should have 0 ohms at this point. If
not, your meter needs to be calibrated.
Place the red and black meter leads on the two outside pins of the connector on the motor as shown in
figure 9 on page 16.

Compass Sport_SG_REVA_101014
16
Meter reading should be between 0.3 and 5 ohms.
Any reading outside this range, replace the motor.
B. Check the resistance of the M2 motor connector on the controller.
Disconnect the battery from the controller.
Set your meter to the 200k ohm scale.
Touch the leads together to make sure the meter is accurate. You should have 0 ohms at this point. If not,
your meter needs to be calibrated.
Place the red and black meter leads on the two outside pins of the M2 motor connector on the controller as
shown in figure 10.
Meter reading should be 40k ohms.
Any reading outside this range, replace the controller.
C. If the reading is within range, and the controller still displays a flash code, check the wiring for visible
damage and that all cables are connected properly. Make sure all connectors are seated properly in their
connectors.
Figure 9 Figure 10
Flash Code 4: Right Motor Error
A. Check the resistance of the right motor to determine if the fault is in the motor or the controller.
Set your meter to the 20 Ohm scale.
Touch the leads together to make sure the ohm meter is accurate. You should have 0 ohms at this point. If
not, your meter needs to be calibrated.
Place the red and black meter leads on the two outside pins of the connector on the motor as shown in
figure 11 on page 17.
Meter reading should be between 0.3 and 5 ohms.
Any reading outside this range, replace the motor.
B. Check the resistance of the M1 motor connector on the controller.
Disconnect the battery from the controller.
Set your meter to the 200k ohm scale.
Touch the leads together to make sure the meter is accurate. You should have 0 ohms at this point. If not,
your meter needs to be calibrated.
Place the red and black meter leads on the two outside pins of the M1 motor connector on the controller as
shown in figure 12 on page 17.
Meter reading should be 40k ohms.
Any reading outside this range, replace the controller.
C. If the reading is within range, and the controller still displays a flash code, check the wiring for visible
damage and that all cables are connected properly. Make sure all connectors are seated properly in their
connectors.

Compass Sport_SG_REVA_101014
17
Figure 11 Figure 12
Flash Code 5: Left Park Brake Error
A. Make sure the left park brake lever is engaged.
If disengaged, re-engage the park brake lever and turn the power off and back on to reset flash code.
B. Check the resistance of the left park brake, to determine if the fault is in the park brake or in the controller.
Set your meter to the 200 ohm scale.
Touch the leads together to make sure the meter is accurate. You should have 0 ohms at this point. If not,
your meter needs to be calibrated.
Place the red and black meter leads on the two middle pins of the motor connector as shown in figure 13.
Meter reading should be 80 ohms or less, but not shorted.
Any reading outside this range, replace the park brake.
C. If the reading is within range, and the controller still displays a flash code, check the wiring for visible
damage and that all cables are connected properly. Make sure all connectors are seated properly in their
connectors.
Figure 13
Flash Code 6: Right Park Brake Error
A. Make sure the right park brake lever is engaged.
If disengaged, re-engage the park brake lever and turn the power off and back on to reset flash code.
B. Check the resistance of the right park brake, to determine if the fault is in the park brake or in the controller.
Set your meter to the 200 ohm scale.
Touch the leads together to make sure the meter is accurate. You should have 0 ohms at this point. If not,
your meter needs to be calibrated.
Place the red and black meter leads on the two middle pins of the motor connector as shown in figure 13.
Meter reading should be 80 ohms or less, but not shorted.
Any reading outside this range, replace the park brake.
C. If the reading is within range, and the controller still displays a flash code, check the wiring for visible
damage and that all cables are connected properly. Make sure all connectors are seated properly in their
connectors.

Compass Sport_SG_REVA_101014
18
Flash Code 7: Module Error (other than Remote)
A. Check the LiNX connections and wiring.
B. Check the battery voltage.
C. Check that the wiring is not damaged and that all cables are connected properly.
D. Make sure all pins are seated properly in their connectors.
E. If after performing the previous tests and the fault still persists, replace the LiNX power module.
Step 3: Check for other conditions displayed by the LiNX Control Unit.
Drive Inhibit
Drive inhibit mode is indicated by the battery gauge with a right-to-left light sequence.
The light sequence starts with the green LED on the right-hand side, and one-by-one, each LED will switch on
and then off. When the sequence completes at the left-most red LED, it begins again at the right-hand side.
The light sequence continues until the error condition has been cleared.
OONAPU
OONAPU (“Out of Neutral At Power Up”) is a safety feature that prevents accidental of the wheelchair, either
when powering up, or when the wheelchair comes out of an inhibit state.
If the LiNX LE System is turned on (or comes out of an inhibit state) while the joystick is not in the centre
position, an OONAPU warning is displayed. During an OONAPU warning, the battery gauge LEDs will flash
continually to alert the user, and the chair will not drive. If the joystick is returned to the centre position within
five seconds, the warning will clear and the wheelchair will drive normally.
However, if the joystick remains out of neutral for longer than five seconds, an OONAPU error will occur; the
error is displayed by the Status indicator flashing red, and the chair will not drive. To clear the error, return the
joystick to the neutral position and power the unit off and then on again.
Start

Compass Sport_SG_REVA_101014
19
REPLACEMENT INSTRUCTIONS
DRIVE WHEEL
1. Turn off power.
2. Place the power chair in drive mode.
3. Place a support under the frame so that the drive wheel is off the ground.
4. Remove the drive wheel. Note: Make sure to retain the axle key. See figure 14.
5. Install the new drive wheel. Note: Make sure the axle key is installed correctly in the axle slot. Also, make
sure the washer is installed facing in the correct direction, with the dimples facing toward the hub cap.
6. Remove the frame support.
7. Power on and test the power chair.

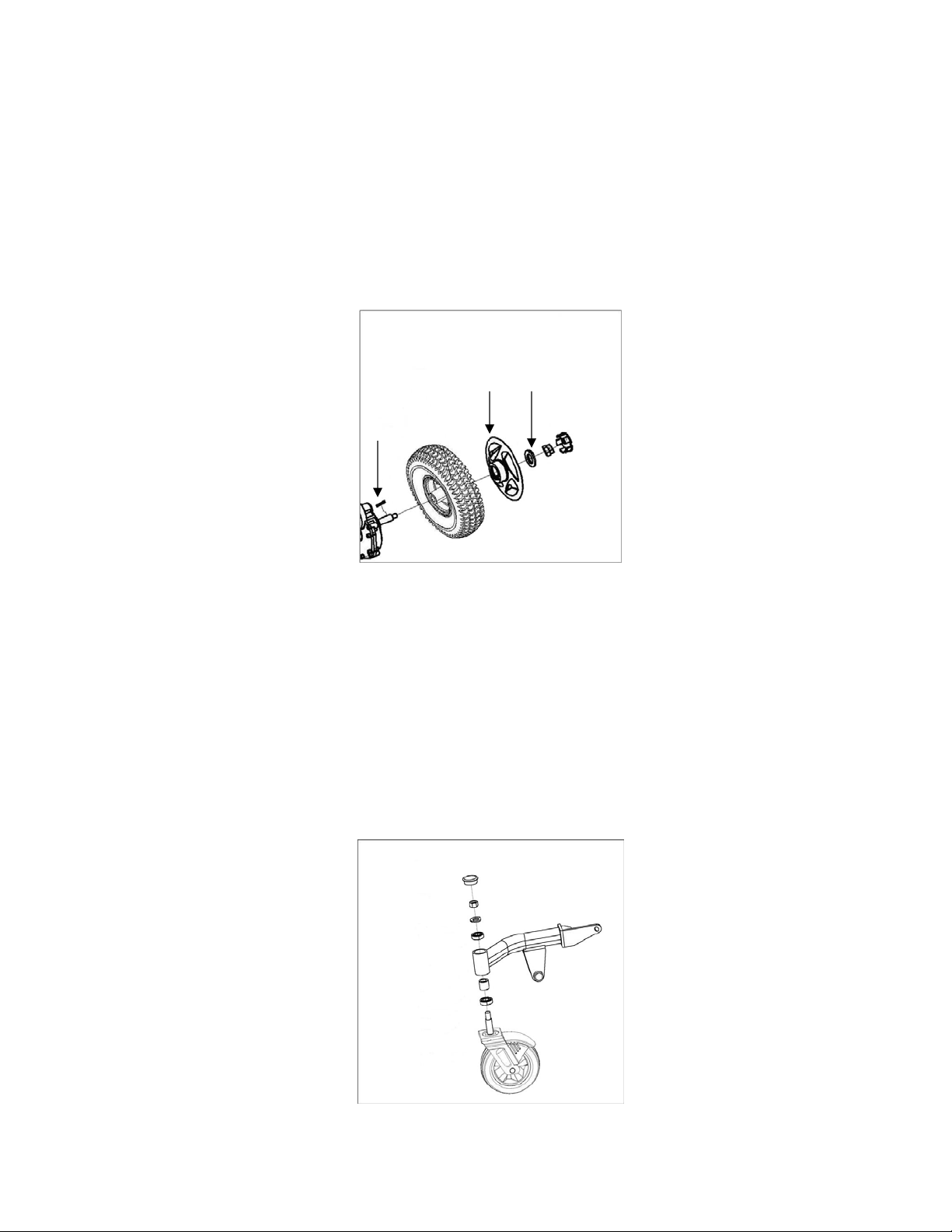

Figure 14. Drive Wheel Assembly
CASTER
1. Turn off power.
2. Place the power chair in drive mode.
3. Place a support under the frame so that the caster wheel is off of the ground.
4. Remove the cap from caster arm. See figure 15.
5. Remove the nut that fastens the caster wheel to the caster arm. See figure 15.
Note: Make sure you retain the hardware used to secure the caster assembly.
6. Install the new caster assembly.
7. Remove the frame support.
8. Power on and test the power chair.

Figure 15. Front Left Caster Assembly shown
Axle Key
Washe
r
Hub Ca
p
