Golfboard 2014 User manual
OWNER’S MANUAL
2014
Surf the Earth
Ver. 2.0 08/2014
Welcome to GolfBoarding
Thank you for your GolfBoard purchase! The GolfBoard is going to change the
way you experience the game of golf forever. From now on, when you “Surf
the Earth” from shot-to-shot, you will enjoy golf in a whole new way - we call it
GolfBoarding.
Young or old, first time surfer or avid board sports enthusiast, anyone can
learn to GolfBoard. Now it’s possible to enjoy the unique experience of Surfing
the Earth at your local course, or in the convenience of your own back yard.
Follow our new user on-boarding procedures, watch our brief safety video, and
you will quickly feel like and expert GolfBoarder.
The GolfBoard is environmentally friendly and easy to learn. Built from the
ground up specifically for golf course use, we have designed the GolfBoard to
meet the demands of even the hilliest golf course terrain. Our military grade
engineering and construction ensures the high performance and durability of
every GolfBoard.
The first product of its kind, the GolfBoard sets the standard for land-based
surfing. With the design influence of blue water surfing icon Laird Hamilton, the
GolfBoard is the original, authentic, and only way to ‘Surf the Earth.’
Please take the time to closely familiarize yourself with this Owner’s Manual,
as it will help you get the most enjoyment from your new GolfBoard.
Thanks again for your purchase!
–The GolfBoard Team
Table of Contents
TABLE OF CONTENTS .......................................................................................................................................1
1INTRODUCTION ..........................................................................................................................................3
1.1 WELCOME ..............................................................................................................................................3
1.2 USING THIS MANUAL ..........................................................................................................................3
1.3 NOTICES, CAUTIONS, WARNINGS, AND DANGERS .....................................................................4
1.4 ABOUT THIS MANUAL.........................................................................................................................5
1.5 GENERAL INFORMATION .................................................................................................................6
1.6 TECHNICAL SPECIFICATIONS......................................................ERROR!BOOKMARK NOT DEFINED.
1.7 INCLUDED COMPONENTS ................................................................................................................8
2SAFETY INFORMATION .............................................................................................................................9
2.1 GENERAL SAFETY WARNINGS..........................................................................................................9
2.2 GENERAL ...............................................................................................................................................9
2.3 SAFETY VIDEO .................................................................................................................................... 10
2.4 WARNING LABELS AND PICTOGRAMS.......................................................................................... 11
2.5 IN THE EVENT OF AN ACCIDENT .................................................................................................14
2.6 EMI WARNING..................................................................................................................................... 14
2.7 MOTOR VEHICLE TRANSPORT ...................................................................................................... 16
2.8 INCLEMENT WEATHER PRECAUTIONS ...................................................................................... 17
2.9 PRESCRIPTION DRUGS/PHYSICAL LIMITATIONS .................................................................... 17
2.10 ALCOHOL ............................................................................................................................................. 17
2.11 BRAKING INFORMATION................................................................................................................. 18
2.12 OUTDOOR DRIVING SURFACES...................................................................................................... 18
2.13 PUBLIC STREETS AND ROADWAYS ................................................................................................ 18
2.14 MODIFICATIONS ................................................................................................................................ 18
3OPERATING INSTRUCTIONS..................................................................................................................20
3.1 GENERAL OPERATING INSTRUCTIONS ......................................................................................20
3.2 LIFTING AND TRANSPORTING ......................................................................................................20
3.3 GETTING READY TO RIDE...............................................................................................................20
3.4 STARTING AND OPERATING...........................................................................................................26
3.5 WIRELESS REMOTE ...........................................................................................................................26
3.6 WIRED THUMB THROTTLE CONTROLS ......................................................................................28
3.7 PREVENTING UNINTENDED MOVEMENT ................................................................................30
3.8 REACHING AND BENDING..............................................................................................................30
4MAINTENANCE.......................................................................................................................................... 31
4.1 NECESSARY MAINTENANCE EQUIPMENT AND TOOLS ......................................................... 31
4.2 WINTER INACTIVITY GUIDELINES...............................................................................................32
4.3 TIRE INFLATION AND REPLACEMENT .......................................................................................32
4.4 HARDWARE ADJUSTMENTS ............................................................................................................33
4.5 BATTERY PACK CHARGING AND REPLACEMENT.....................................................................33
4.6 CLEANING ...........................................................................................................................................34
4.7 DECK WEAR..........................................................................................................................................34
4.8 LUBRICATION.....................................................................................................................................35
4.9 BUMPER PAD REPLACEMENT ........................................................................................................35
4.10 MOTOR MAINTENANCE ..................................................................................................................36
4.11 TROUBLESHOOTING ........................................................................................................................37
5WARRANTY AND CUSTOMER INFORMATION ...................................................................................38
5.1 WARRANTY ..........................................................................................................................................38
6APPENDIX ....................................................................................................................................................44
6.1 ADDENDUM I–STABILITY BAR REFUSAL................................................................................................44
6.2 ADDENDUM II –HELMET REFUSAL........................................................................................................45
6.1 SUPPLEMENT –NEW USER ON-BOARDING PROCESS .............................................................................46
GOLFBOARD OWNER’S MANUAL 3
1INTRODUCTION
1.1 WELCOME
Playing golf with a GolfBoard is new. It's fun, easy, and with just some simple
instructions most anyone can quickly learn how to properly operate a GolfBoard. To
ensure all new users have a safe and enjoyable experience, we have developed this
comprehensive Owner’s Manual, which includes detailed operating instructions and
safety information.
A comprehensive understanding of your GolfBoard and all its features will give you
greater control and enjoyment when you ride. Please take the time to read this Owner’s
Manual and familiarize yourself with all of the information that we have prepared for you
before riding your new GolfBoard. This manual contains important operating instructions
and maintenance information that will help ensure safe and proper use.
1.2 USING THIS MANUAL
All users must follow the instructions and warnings contained in this manual for their
safety. Do not attempt to operate the GolfBoard until you have attained adequate
knowledge of its control and operating features. Damage caused by failing to follow
instructions is not covered by the GolfBoard warranty and could result in personal injury
to you or others, as well as damage to your GolfBoard.
This manual contains operating procedures to help you make informed decisions about
safety. All GolfBoard owners that have either purchased or leased a GolfBoard assume
the full responsibility and all liability for use of their GolfBoard, including by any
additional user, and agree to instruct additional users they must watch the GolfBoard
safety video located at: http://ow.ly/yzZtm, or read the GolfBoard New User on-boarding
procedures (included in the back this owner’s manual), or both; in order to become
familiar with how to properly and safely operate the GolfBoard prior to use.
GOLFBOARD OWNER’S MANUAL 4
1.3 NOTICES, CAUTIONS, WARNINGS, AND DANGERS
This Owner’s Manual uses NOTICE, CAUTION, WARNING, and DANGER throughout.
Please pay close attention to the following alerts emphasizing specific information.
Print this manual and keep it with your GolfBoard as a reference for safe and enjoyable
riding. Please pass this manual onto the next owner in case you transfer ownership.
It is not possible or practical to warn you about all hazards associated with operating
and maintaining the GolfBoard – you must use your own good judgment.
NOTICE
Statements on practices not related to personal injury. May be used to indicate
important operational characteristics or ways to optimize the use of your GolfBoard.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in minor
to moderate injury.
WARNING
Indicates an imminently hazardous situation, which, if not avoided, could result in
death or serious injury. Always heed this information.
DANGER
Indicates an imminently hazardous situation, which, if not avoided, could result
in death or serious injury. Always heed this information.
GOLFBOARD OWNER’S MANUAL 5
1.4 ABOUT THIS MANUAL
All specifications and descriptions are accurate at the time of publishing. SolBoards Inc.
continually modifies material to be current and accurate and we reserve the right to
make changes at any time, without notice and without obligation.
Copyright © 2014 SolBoards Inc.
All material in this manual, including, but not limited to, text, data, graphics, logos, and
images, is owned and controlled by SolBoards Inc., and is protected by copyright,
trademark, and other intellectual property rights. Material in the manual is made
available solely for your personal, non-commercial use and may not be copied,
reproduced, republished, modified, uploaded, posted, transmitted, or distributed in any
way, including by e-mail or other electronic means, without the express prior written
consent of SolBoards, Inc., for each instance. You may use material made available
from the manual for your personal, non-commercial use only, provided that you keep
intact any and all copyright and other proprietary notices that may appear on such
materials.
GOLFBOARD OWNER’S MANUAL 6
1.5 GENERAL INFORMATION
1.5.1 IDENTIFICATION NUMBERS

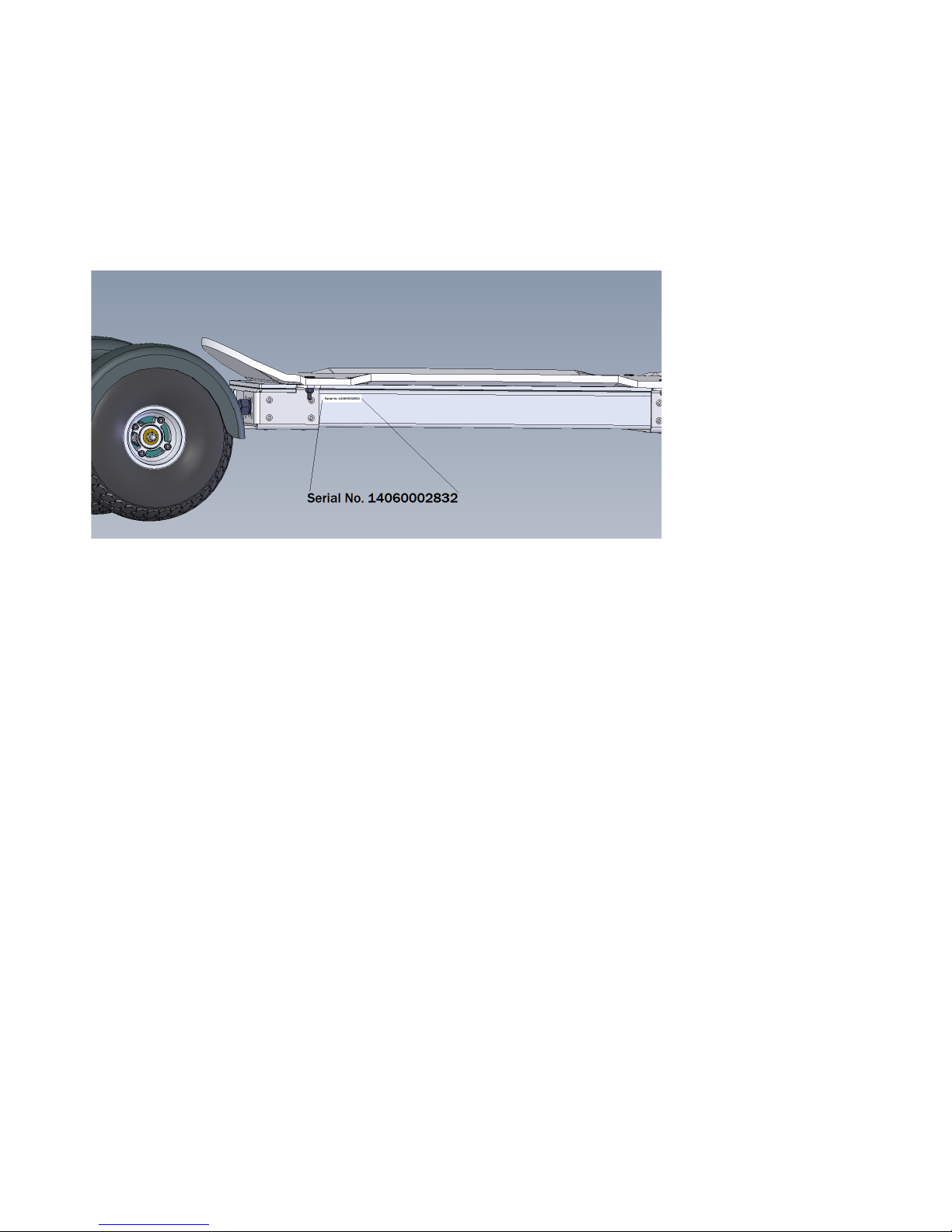

The VIN is an 11-digit number located on the front left tray of the frame. Do not alter or
remove this label as it is the identifier of your GolfBoard for purposes of registration,
identification, and service.
GOLFBOARD OWNER’S MANUAL 7
GOLFBOARD 1
GOLFBOARD
TECHNICAL SPECIFICATIONS 8/20/14
BATTERY PACK
Li-ion
NOMINAL VOLTAGE
44 V
FULLY CHARGED VOLTAGE
50.4 V
BATTERY CAPACITY
1 kWh
MAX INPUT POWER
5 kW
MAX PROPULSIVE POWER
2.5 kW
AC ADAPTER
External
CHARGE TIME (AFTER 18 HOLES)
1 Hour
CHARGE TIME (COMPLETE CHARGE)
2.2 Hours
AC ADAPTER AC INPUT VOLTAGE
110/220 V
AC ADAPTER AC INPUT FEQUENCY
50/60 Hz
AC ADAPTER CURRENT (110/220V)
10/5 A
ECONOMY
Approximately $0.10 per 18 holes
RANGE(ESTIMATED)
18+ Holes/15 miles
MOTOR TYPE
Dual 4 pole brushed DC
GEARING
Hardened machined steel gears
GEARCASE
No maintenance sealed and lubricated
AXLE
Hardened steel alloy
MOTOR CONTROLLER
High efficiency 250 amp industrial motor control
DRIVETRAIN
Proprietary 4 wheel posi-traction
TIRES
11x4.00-4 Kenda K500 turf specific
SPEED CONTROL
Rechargeable remote with variable speed trigger
HIGH SPEED LIMIT
10 mph
LOW SPEED LIMIT (REMOTE LIMITING SWITCH)
5 mph
LENGTH
56’’(142cm)
WIDTH
20’’(51cm)
HEIGHT
12’’(30cm)
STABILITY BAR HEIGHT
42’’(107cm)
WEIGHT (WITHOUT STABILITY BAR)
97 Pounds (44 kg)
STABILITY BAR WEIGHT
18 Pounds (8 kg)
CARRYING CAPACITY
280 lb. (127 kg)
OPERATING/STORAGE TEMPERATURE
-4°F to 120°F (-20°C to 50°C)
AMBIENT TEMP WHEN CHARGING
32°F to 113°F (O°C to 45°C)
GRADE
Maximum 25% grade (14 degree slope)
BRAKING
4 wheel electronic braking
SUSPENSION
Adjustable preload stainless steel flex ends
GOLFBOARD OWNER’S MANUAL 8
1.6 INCLUDED COMPONENTS
1.6.1 Standard GolfBoard
•GolfBoard
•Stability bar/bag holder
•AC Adapter
•Warranty certificate
•Packaging
•Key
1.6.2 Wireless remote package additional components:
•Wireless remote
•Wireless remote micro-USB charging cord
1.6.3 Wired throttle package additional components:
•Stability bar with throttle control, key switch, fwd/rev switch, high low switch and
battery gauge.
GOLFBOARD OWNER’S MANUAL 9
2SAFETY INFORMATION
2.1 GENERAL SAFETY WARNINGS
• Before using, read operating instructions and thoroughly review safety
information.
• Keep both feet on deck and hold stability bar tightly at all times while moving.
• 1 rider per board maximum.
• Drive slowly in turns and keep board straight up and down all slopes.
• Never operate under the influence of alcohol or drugs.
• Reduce speed and proceed with extra caution in crowded areas, when driving on
wet, rough, or loose surfaces, and when traveling in reverse.
• Do not travel at speeds too fast for your experience, terrain, or visibility
conditions.
• Allow at least 20 feet to stop when traveling at full speed.
• Do not follow to closely to other GolfBoarders or golf carts.
2.2 GENERAL
MANDATORY!
Do not operate your new GolfBoard for the first time without
completely reading and understanding this owner’s manual.
Your GolfBoard is a state-of-the-art personal low speed transportation device
designed to increase mobility.
Please be aware that the final selection and purchasing decision regarding the type of
GolfBoard and optional features to be used is the responsibility of the user.
To the fullest extent permitted by applicable law, User releases, Sol Boards, Inc., an
Oregon corporation (“Sol Boards”) (the maker of the GolfBoard), GB Leasing Capital,
LLC, an Oregon limited liability company (“GB Leasing”) (owner or previous owner of
the Board), and each of their present and future successors, assigns, directors, officers,
members, managers, employees, agents, representatives and other personnel
(collectively, the “Additional Released Parties”), from and against any and all claims,
actions, proceedings, damages, liabilities, and expenses of every kind, whether known
GOLFBOARD OWNER’S MANUAL 10
or unknown and whether or not foreseeable, including, without limitation, those for or
relating to bodily injury, property damage or loss of life, that in any way relates to,
results from or arises out of the Board or its use by User, or any and all Additional Users.
SolBoards, Inc. recommends that User (and any and all Additional Users) operate
the board with the stability bar in place at all times (subject only to certain
exceptions for qualified riders who agree to all terms of the Stability Bar Refusal –
Addendum I attached hereto), and if User chooses to remove the stability bar,
then user should wear a helmet. If user chooses to remove the stability bar, and
not wear a helmet, then user agrees to all terms of the Helmet Refusal –
Addendum II, attached hereto.
As you begin using your GolfBoard, you will probably encounter situations in which you
will need some practice. Simply take your time, and always first practice on an open, flat
and grassy area. You will soon be in full and confident control as you maneuver up and
down hills, and over moderate terrain.
There are certain situations, including some medical conditions, where the user will
need to practice operating the GolfBoard in the presence of a trained attendant. A
trained attendant can be defined as a family member or a professional specially trained
in assisting a user in various activities.
If at any time a user feels that special situations or medical conditions makes instruction
by a trained attended necessary, then contact SolBoards, Inc. to be directed to a golf
course or representative where such professional supervision may be available (Sol
Boards makes no guarantees regarding the convenient availability of professional
supervision, or any additional fees which may be applicable).
Below are some precautions, tips, and other safety considerations that will help you
become accustomed to operating the GolfBoard safely.
2.3 SAFETY VIDEO
NOTICE
All riders are required to watch the safety video before first operating. A link
to our Safety Video can be found at: http://ow.ly/yzZtm
Jim Black6/28/14 4:53 AM
Comment:(I don’t understand this Trained
Attendant language. So if someone
purchases a GolfBoard, but needs a
‘Trained Attendant’ and the nearest one is
two states away (inconvenient) then the
person shouldn’t use their GolfBoard?
Who trains the ‘Trained Attendant?’
Will we (SolBoards) have a list of Trained
Attendants?
GOLFBOARD OWNER’S MANUAL 11
2.4 WARNING LABELS AND PICTOGRAMS

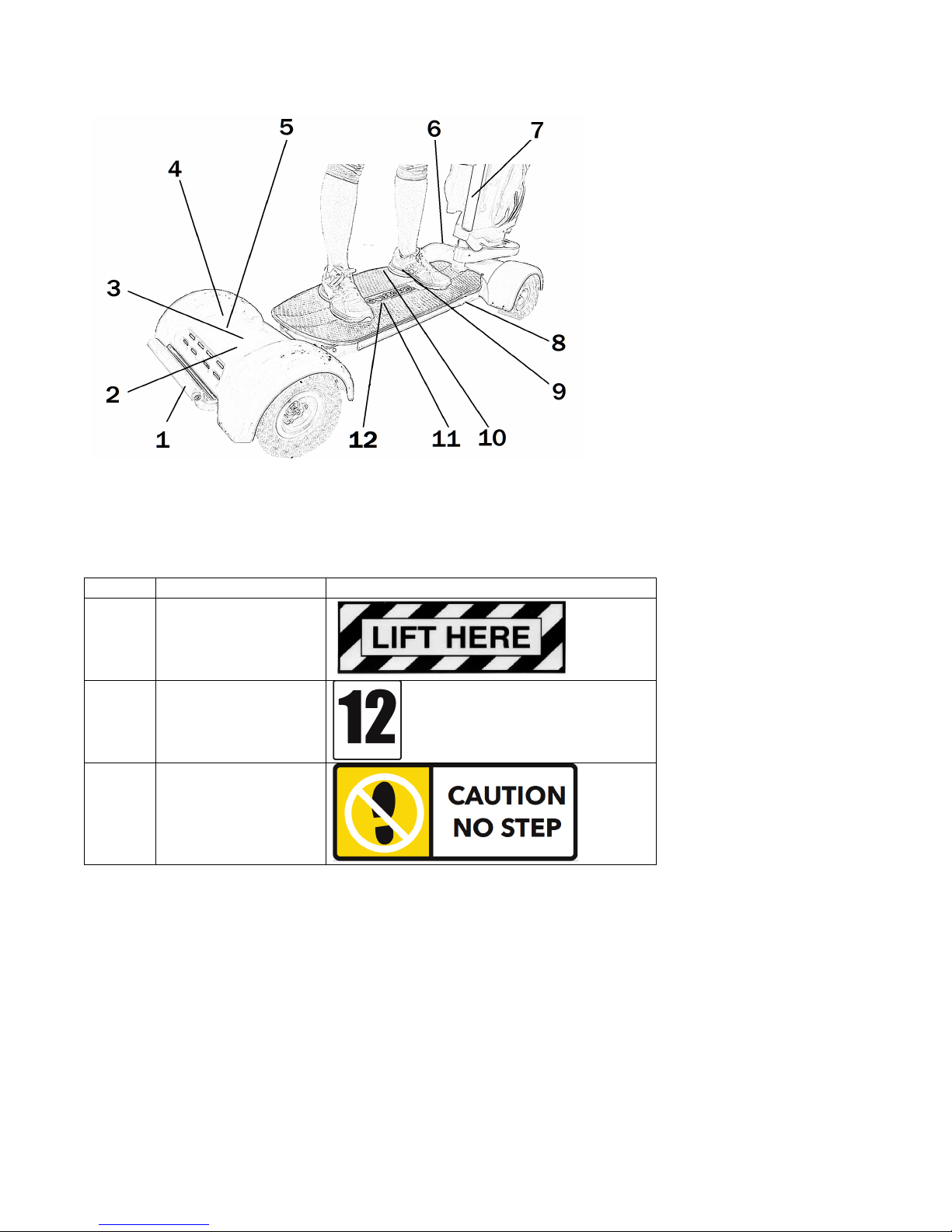

2.4.1 Location of important labels
2.4.2 Description of Important Labels
Number
Description
Label
1
Designated lift spot.
2
Fleet number.
3
Do not step area. Only
step on the traction
deck of the GolfBoard.
GOLFBOARD OWNER’S MANUAL 12
4
Basic operating
instructions.
5
General warnings.
6
Do not step area. Only
step on the traction
deck of the GolfBoard.
GOLFBOARD OWNER’S MANUAL 13
7
General warnings.
8
Unique board serial
number for
identification.
9
On/off switch.
10
Weight limit warning.
11
Electrical hazard
danger.
12
General warnings.
GOLFBOARD OWNER’S MANUAL 14
2.5 IN THE EVENT OF AN ACCIDENT
If the GolfBoard is involved in any kind of an accident in which it appears
parts have been damaged, it is necessary have the vehicle checked by a
qualified technician before further use.
2.6 EMI WARNING
Electromagnetic and Radio Frequency Interference can come from sources such as
cellular phones, mobile two-way radios (such as walkie-talkies), radio stations, TV
stations, amateur radio (HAM) transmitters, wireless computer links, microwave signals,
paging transmitters and medium-range mobile transceivers used by emergency vehicles.
In some cases, these waves can cause unintended movement or damage to the control
system. Every electrically-powered mobility vehicle has an immunity (or resistance) to
EMI. The higher the immunity level, the greater the protection against EMI.
There are a number of sources of relatively intense electromagnetic fields in everyday
environment. Some of these sources are obvious and easy to avoid. Others are not
apparent and exposure is unavoidable. However, we believe that by following the
warning listed below, your risk of EMI will be minimized.
The sources of radiated EMI can be broadly classified into three types:
1. Hand-held portable transceivers (transmitters-receivers) with the antenna
mounted directly on the transmitting unit. Examples include: citizen band (CB) radios,
“walkie talkies”, security, fire and police transceivers, cellular telephones and other
personal communication devices. ** NOTE: some cellular telephones and similar
devices transmit signals while they are ON, even when not being used.
WARNING
Laboratory tests have show that electromagnetic and radio frequency waves can
have an adverse affect on the performance of electrically powered mobility
vehicles.
WARNING
The addition of accessories or components to the electrically-powered mobility
vehicle can increase the susceptibility of the vehicle to EMI. Do not modify your
GolfBoard in any way not authorized by the manufacturer.
GOLFBOARD OWNER’S MANUAL 15
2. Medium-range mobile transceivers Such as those used in police cars, fire trucks,
ambulances and taxis. These usually have the antenna mounted on the outside of the
vehicle.
3. Long-range transmitters and transceivers such as commercial broadcast
transmitters (Radio and TV broadcast antenna towers) and amateur (HAM) radios.
NOTE: Other types of hand held devices, such as cordless phones, laptop computers,
AM/FM radios, TV sets, CD players, cassette players and small appliances such as
electric shavers and hair dryers, as far as we know, are not likely to cause EMI
problems to your powered vehicle.
2.6.1 Powered Vehicle Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to the
transmitting antenna, the EM field from hand-held radio wave sources (transceivers) are
of special concern. It is possible to unintentionally bring high levels of EM energy close
to the powered vehicle’s control system while using these devices. This can affect
powered vehicle movement and braking. Therefore, the warnings listed below are
recommended to prevent possible interference with the control system of the powered
vehicle.
GOLFBOARD OWNER’S MANUAL 16
2.6.2 WARNINGS
Electromagnetic interference (EMI) from sources such as radio and TV stations,
amateur radio (HAM) transmitters, two-way radios and cellular phones can affect
powered vehicles.
2.7 MOTOR VEHICLE TRANSPORT
The GolfBoard should be stowed in the trunk of a car or in the back of a truck or van
and properly secured. In addition, all removable GolfBoard parts should be removed
and/or properly secured during motor vehicle transport.
WARNING
Following the warnings listed below should reduce the chance of unintended brake
release or powered vehicle movement which could result in serious injury:
1) Do not operate hand-held transceivers (transmitters-receivers) such as
citizen band (CB) radios, or turn ON personal communication devices such as
cellular phones, while the powered vehicle is ON;
2) Be aware of nearby transmitters, such as radio or TV stations and try to
avoid coming close to them.
3) On appearance of unintended movements or brake release occurrences,
switch the powered vehicle OFF as soon as it is safe.
4) Be aware that adding accessories or components, or modifying the
powered vehicle, may make it more susceptible to EMI (Note: there is no easy way
to evaluate their effect on the overall immunity level of the powered vehicle).
5) Please report to us all incidents of unintended movement or brake release
and note whether there is a source of EMI nearby. Report by calling 1-888-328-
2841.
WARNING
Always be sure your GolfBoard is properly secured when it is being transported.
GOLFBOARD OWNER’S MANUAL 17
2.8 INCLEMENT WEATHER PRECAUTIONS
Exposure of your GolfBoard to inclement weather conditions should be avoided
whenever possible. If suddenly caught up in rain, snow, severe cold or heat while
operating your GolfBoard, proceed to shelter at the earliest opportunity. Thoroughly dry
your GolfBoard before storing, charging, or operating.
2.9 PRESCRIPTION DRUGS/PHYSICAL LIMITATIONS
The GolfBoard user must exercise care and common sense when operating his/her
GolfBoard. This includes awareness of safety issues when taking prescribed or over-
the-counter drugs or when the user has specific physical limitations.
Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your
ability to operate your GolfBoard in a safe manner.
2.10 ALCOHOL
The GolfBoard user must exercise care and common sense when operating his/her
GolfBoard. This includes awareness of safety issues while under the influence of
alcohol, or while smoking.
WARNING
Operating in rain, snow, salt, mist/spray conditions, and on icy slippery surfaces
can have an adverse affect on the electrical system. Maintain and store your
GolfBoard in a dry and clean environment at all times.
WARNING
Do not operate your GolfBoard while under the influence of Alcohol, as this may
impair your ability to operate the GolfBoard safely.
Table of contents
