GoMax Electronics CV-5005ZG-PT User manual

HDMI 2.0a 4K EDID Management with
Retimer/Repeater & Pigtail Cable
CV-5005ZG-PT
User Manual

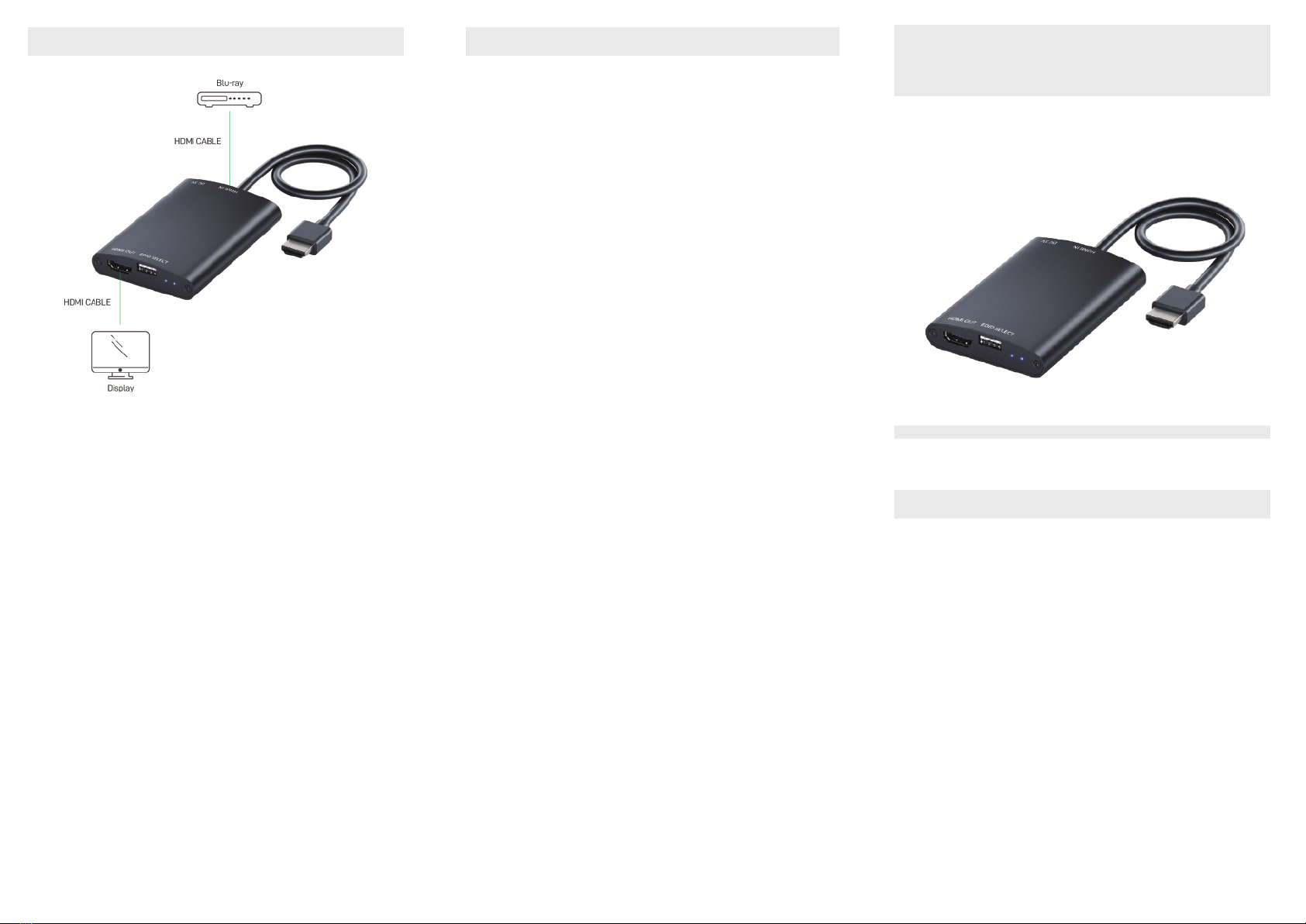

CONNECTION DIAGRAM
rev: 200504
Made in Taiwan
INTRODUCTION
The CV-5005ZG-PT HDMI 2.0a 4K EDID
Management with Retimer /Repeater & Pigtail Cable
boosts up your HDMI extension transmission over
long cable and makes multiple layers cascading of
HDMI products possible. With built-in EDID
management, the EDID information can be provided
to a connected HDMI source device. EDID includes
critical information about the capabilities of the
connected display, including audio & video format
support, HDMI feature support. This device can use
not only built-in defult EDIDs and pre-made EDIDs,
but also the EDIDs copied from other displays. The
CV-5005ZG-PT amplifies and equalizes the HDMI
signal to provide high quality audio and video. The
power can be provided by HDMI source which follows
HDMI spec to provide 5V. If the source cannot provide
enough power, the external power can be added to
extend HDMI2.0a signal.
The SELLER warrants the CV-5005ZG-PT HDMI
2.0a 4K EDID Management with Retimer /Repeater
& Pigtail Cable to be free from defects in the
material and workmanship for 1 year from the date
of purchase from the SELLER or an authorized
dealer. Should this product fail to be in good
working order within 1 year warranty period, The
SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to
accident, disaster, abuse or any unauthorized
modifications including static discharge and power
surge. This warranty is offered by the SELLER for its
BUYER with direct transaction only. This warranty is
void if the warranty seal on the metal housing is
broken.
Unit that fails under conditions other than
those covered will be repaired at the current price
of parts and labor in effect at the time of repair.
Such repairs are warranted for 90 days from the day
of reshipment to the BUYER. If the unit is delivered
by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under
no circumstances will a unit be accepted without a
return authorization number.
The warranty is in lieu of all other warranties
expressed or implied, including without limitations,
any other implied warranty or fitness or
merchantability for any particular purpose, all of
which are expressly disclaimed.
Proof of sale may be required in order to claim
warranty. Customers outside Taiwan are
responsible for shipping charges to and from the
SELLER. Cables and power adapters are limited to a
30 day warranty and must be free from any
markings, scratches, and neatly coiled.
The content of this manual has been carefully
checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any
inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect,
incidental, special, or consequential damages
resulting from any defect or omission in this
manual, even if advised of the possibility of such
damages. Also, the technical information contained
herein regarding the CV-5005ZG-PT features and
specifications is subject to change without further
notice.
WARRANTY

1x CV-5005ZG-PT
1x DC 5V 1A power supply
1x User Manual
SPECIFICATIONSFEATURES
PACKAGE CONTENTS
!
PANEL DESCRIPTIONS
DIP SWITCH SETTING
HDMI2.0a compliant
Supports 4K2K@60 4:4:4 8bits
Supports HDR1, which is 4K2K@60 4:2:0 10bits2
HDCP 2.2 compliant
Supports CEC bypass
Supports default EDID and EDID learning from
display
Supports LPCM 7.1 audio, Dolby TrueHD, Dolby
Digital
Technical
Role of usage
HDMI compliance
HDCP compliance
Input Video bandwidth
Video support
Audio support
ESD protection
PCB stack-up
CEC Channel
Input
Output
HDMI connector
Model Name CV-5005ZG-PT
HDMII to HDMI Retimer/Repeater
HDMI 2.0a
Yes
Single-link 594MHz [18Gbps]
Up to HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Bypass
Human body model - ±15kV [air-gap discharge] &
±8kV [contact discharge]
4-layer board [impedance control — differential 100Ω; single 50Ω]
Bypass
1x HDMI
1x HDMI
Type A [19-pin female]
Metal enclosure
85 x 60 x 15mm [3.1 x 2.4" x 0.6"]
140 x 113 x 24mm [5.5" x 4.4" x 0.9"]
405 x 275 x 255mm [1'3" x 10.8" x 10"]
91g [3.2 oz]
146g [5.1 oz]
5V 1A DC
2 Watts [max]
0~40°C [32~104°F]
-20~60°C [-4~140°F]
20~90% RH [no condensation]
Mechanical
Housing
Dimensions
[L x W x H]
Weight
Power supply
Power consumption
Operation temperature
Storage temperature
Relative humidity
Model
Package
Carton
Model
Package
HDR = High Dynamic Range.
The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384
MHz, and the 4K2K@60 4:4:4 8bits is 594MHz.
i1.
2.
1.
2.
3.
4.
5.
6.
7.
8.
1 53
4 7
6 82
HDMI OUT: Connect to an HDMI display with an HDMI
male-male cable here
EDID MODE: See more detail in the DIP SWITCH SETTING
section
LED: Link indicator LED
LED: Learning EDID indicator LED
HDMI IN: Connect to an HDMI source
LED: Input signal indicator LED
Micro USB: Connect to a 5V DC power supply / FW update
LED: Power indicator
1. Only Supports 8K4K@30 4:2:0 8bits
1
2
3
4
5
6
7
8
OFF[] OFF[]
OFF[]
OFF[]
OFF[]
OFF[]
OFF[]
OFF[]
OFF[]
OFF[]
OFF[]
OFF[]
ON[]
ON[]
ON[]
ON[]
ON[]
ON[]
ON[]
ON[] ON[]
ON[]ON[]
ON[]
Mode PIN#2 PIN#3 PIN#4
DIP Switch Position
Use learning EDID
Full HD(1080p@60) – 8bit 2D video & 7.1ch audio
Full HD(1080p@60) – 8/10/12bit 2D video & 7.1ch audio
Ultra HD(4K2K@60 4:2:0) – 8/10/12bit 3D video & 2ch audio
Ultra HD(4K2K@60 4:2:0) – 8/10/12bit 3D video & 7.1ch audio
Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio
Ultra HD(8K4K@30)¹(4K2K@60) – 8/10/12bit 3D HDR video &
7.1ch audio
User define mode(need to use software)
Description
OFF[]
ON[]
PIN#1
DIP Switch Position Description
HDMI Mode
DVI Mode
