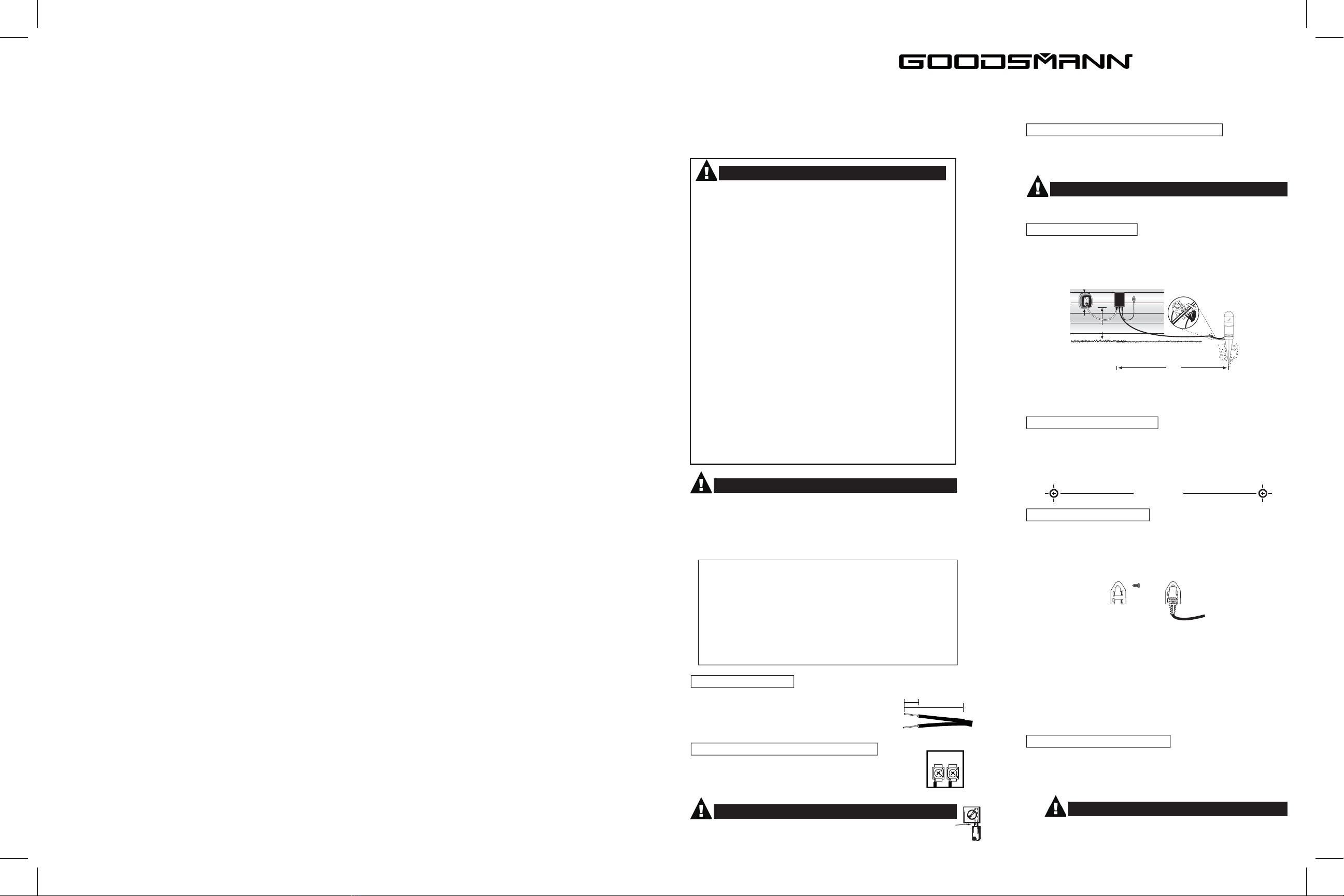

3. Place Fixtures and Route Cable
6. Mount Photo Eye
5. Mount Power Pack
4. Attach Fixtures
• Install OUTDOORS ONLY. Use ONLY with 12 volt low voltage outdoor
landscape lighting products.
• Add up all bulb wattages for a maximum total of 300 watts.
• Mount power pack at least 10 feet (3 m) from pool or spa.
• Mount power pack vertically at least 12 inches (30 cm) above ground.
Do not lay on the ground.
• Mount the power pack with the back against a flat vertical wall surface.
The back of the power pack must be covered by the wall.
• Plug power pack directly into an outdoor GFCI outlet with a weatherproof
cover marked “wet location.”
• Do not use extension cords.
• Keep a minimum of 10 feet (3 m) of wire between the power pack
and the first fixture.
• Do not coil extra cable around the power pack. Leave extra cable at the
end away from the power pack.
• Do not repair or tamper with cord or plug.
• Do not submerge power pack.
• Do not connect two or more power packs in parallel.
• Do not use with a dimmer.
• If house circuit breaker trips when power pack is turned on, unplug
power pack from AC outlet, correct fault, and restore power. Plug power
pack back into AC outlet.
• Power pack and fixtures must be installed in compliance with national
and all local electrical codes and ordinances.
• If necessary to splice cable, carefully follow instructions that came with
the connector you have purchased.
LED fixtures
• Do not use with fixtures that carry a Class 2 rating.
• Do not modify fixtures.
• Must follow all of manufacturers individual instructions.
Be sure to leave a minimum of 10 feet (3 m) of wire between
the power pack and first fixture.
Lay the fixtures out where you want to locate them. Be sure
they do not exceed the 300 watt rating of the power pack.
Route the low voltage cable to fixtures. If there is extra cable,
coil after the last fixture.
Order missing, damaged, or defective parts for new purchases
only at:
www. goodsmanngroup .com
For customer service or to purchase replacement parts or
additional low voltage cable please call Monday – Friday,
8:30 a.m. - 5:00 p.m. (CST)
972 -2 68 - 6420
IMPORTANT: Please have product model
number available when ordering.
YOU MUST KEEP YOUR RECEIPT FOR PROOF OF PURCHASE
• Use only CSA or UL approved low-voltage cable.
• Failure to use at least 12 gauge minimum cable or
install it as directed in these instructions may result
in Risk of Fire or Electric Shock.
Turn power pack on. Attach fixtures to cable using cable
connectors as shown. Place one connector on each side of
the cable, then press together to lock. Prongs will pierce
the cable to make contact and fixture should light up.
NOTE: When power pack is on, you may hear a hum
This sound is considered normal, and does not affect the
performance of the unit.
To mount directly to a wall surface use included screws as
shown, a minimum 12 inches (30 cm) off the ground. When
installing the screws, the spacing between the screw centers is
2.8 in. (71.5 mm). See template for correct spacing. Hang Power
Pack onto screws.
Mount the photo eye bracket on a wall or other solid
surface with the screw provided. Snap the sensor into the
bracket. Route or coil the excess wire to protect it from
lawn mowers, trimmers, etc. Avoid pointing the sensor at
nighttime light sources such as windows, porch lights, and
street lights.
The position of the photo eye can influence at what light
level the power pack will turn on in the AUTO, 4-6-8-10, and
PHOTO ON TIMED OFF modes. Placing the sensor in areas
receiving less sunlight at dusk (east side of house, behind
trees and bushes, under a deck) will have the power pack
come on earlier in the evening. Mounting the photo eye in
brighter locations will have the power pack come on when
it has become darker out. The location, position and
orientation of the photo eye can be adjusted until the power
pack turns on at the desired light level.
7. Protect or Hide Cable
Once all fixtures are in place and you are satisfied with their
locations, cable may be covered with mulch or buried up to
6 in (15 cm) deep. Leave about 12 in (30 cm) of cable after
the last fixture.
WARNING: Risk of Fire or Electrical Shock
WARNING: Risk of Fire
WARNING: Risk of Fire
WARNING: Risk of Fire
SAVE THESE INSTRUCTIONS
TECHNICAL SPECIFICATIONS: 12 V ~ 300W
Power pack IS SUITABLE FOR USE
with submersible luminaires and pumps.
For dependable performance, use genuine Goodsmann replacement parts.
300 Watt POWER PACK
READ INSTRUCTIONS BEFORE
USING THIS PRODUCT
9920-0300-01
5/8 inch
3 inch
1.6 cm
7.6 cm
Terminal Blocks
AB
1. Prepare Cable
2. Connect Cable to Power Pack
Split one end of cable for about 3 inches (7.6 cm)
being careful when splitting NOT to expose
the copper wire. Then strip 5/8 inch (1.6 cm)
of insulation from the end. Also, refer to strip
length guide on the power pack.
Lay power pack on a flat, stable surface and insert
the stripped end of one wire under terminal clamping
plate A. Then tighten the screw. Repeat this
procedure for clamping plate B.
Make sure there is no wire insulation under the clamping plate,
and firmly tighten the terminal screws.
Do not coil cable around power pack.
Total bulb wattages must not exceed a maximum of 300 watts.
WARNING: Risk of Fire or Electrical Shock
12" (30 cm)
GFCI
10 ft
(3m)
2.8 in
(71.5 mm)
TM

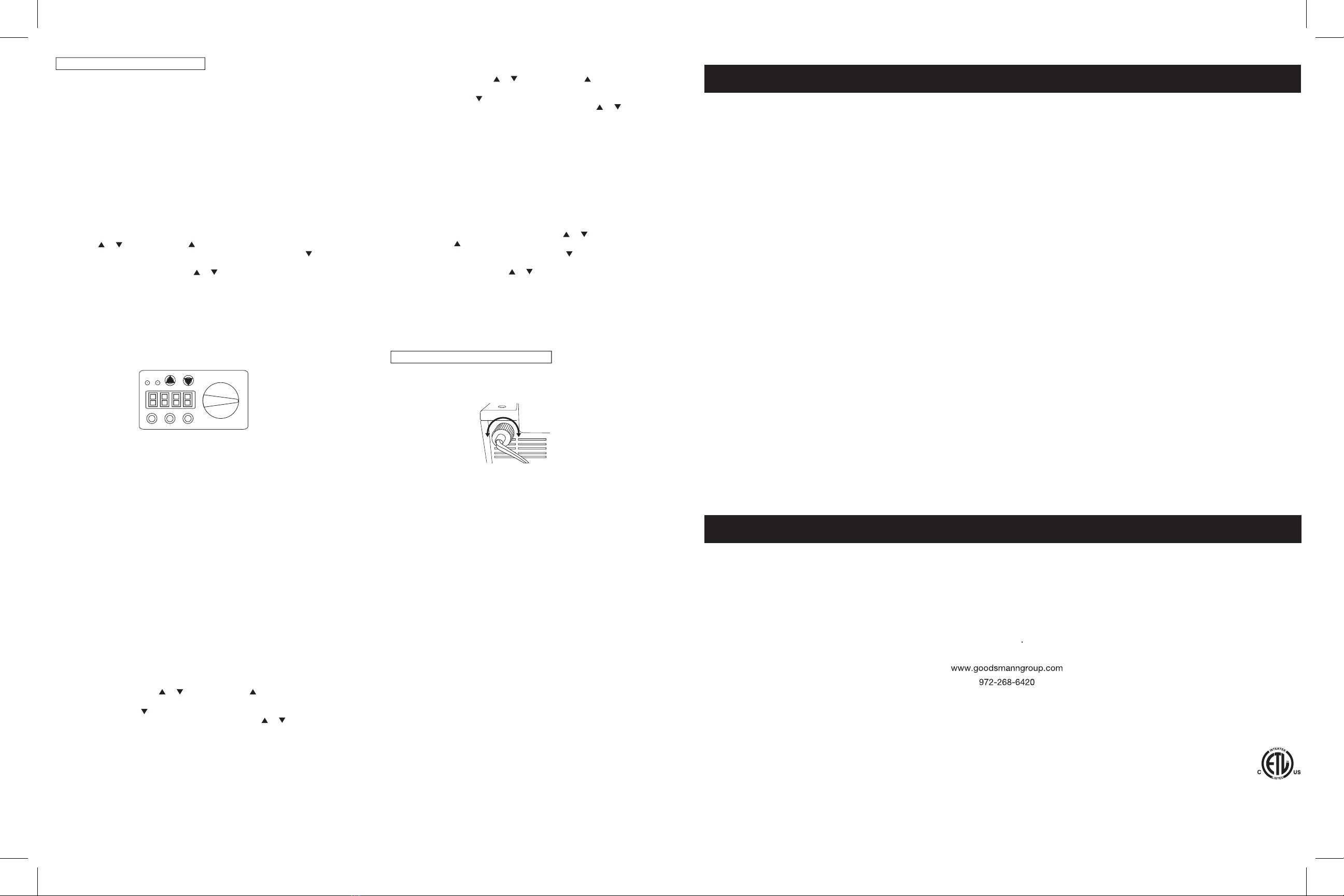

8. Power Pack Operation
This power pack features three automatic methods to turn on
and off:
1. A remote photo eye that senses the light level. There is
a 15 second delay built into the photo eye to avoid being
triggered by lightning or other light sources.
2. A timer.
3. A clock.
The power pack operation modes use these three methods in
different combinations. To set the mode, open the door to the
power pack controls. The LED clock display and the AM/PM
indicator will be lit if the power pack is plugged in. If the LEDs
are not lit, then plug in the power pack cord into the GFCI
outlet.
The clock is only required for the TIMER and PHOTO ON
TIMED OFF modes. The clock is ignored for any of the other
modes and does not need to be set. To set the clock:
Hold down the CLOCK button while pressing either
the or button. Pressing while holding down the
CLOCK button will advance the displayed time. Pressing
while holding down the CLOCK button will decrease the
time displayed. Holding the or button down for several
seconds will speed up the change in the display. Releasing
the CLOCK button will set the clock time. Note the AM/PM
LED indicators to get the correct time of day. This clock
does NOT have a daylight savings time function. The clock
time will manually need to be adjusted twice a year for
those changes.
To change the operation modes of the power pack, turn the
knob to point at the desired mode. The selected mode will
light up.
OFF - Power Pack is off. Lights are off.
ON - Power pack is on all the time. Use this mode when
installing the light fixtures to ensure a good connection.
AUTO - Power pack turns on at dusk, turns off at dawn. The
lights will be on all night. There is a 15 second delay from
when the photo eye determines darkness and the power pack
turns on.
4 – 6 – 8 – 10 - Power pack turns on at dusk and turns off
automatically after 4, 6, 8 or 10 hours. There is a 15 second
delay from when the photo eye determines darkness and the
power pack turns on.
TEST - Use this mode to test the photo eye and power pack
operation. Covering the photo eye turns on the power pack.
Uncovering the photo eye during the daytime or shining a
bright light onto the photo eye will turn off the power pack.
Note that there is no 15 second delay in this mode.
TIMER - The power pack turns on when the clock reaches the
TIMED ON time. The power pack will turn off when the clock
reaches the TIMED OFF time. This mode will turn the power
pack on and off at the same times everyday regardless of
how light or dark it is. The power pack and lights will be on
from the TIME ON time to the TIMED OFF time.
To set the TIMED ON clock, the knob needs to be turned
to TIMER, then hold down the TIMED ON button while
pressing either the or button. Pressing while holding
down the TIMED ON button will advance the displayed
time. Pressing while holding down the TIMED ON button
will decrease the time displayed. Holding the or button
down for several seconds will speed up the change in the
display. Releasing the TIMED ON button will set the time.
Note the AM/PM LED indicators to get the correct time of
day.
T
I
M
E
D
O
F
F
P
H
O
T
O
O
N
T
I
M
E
R
T
E
S
T
O
N
O
F
F
A
U
T
O
4
6
8
1
0
AM PM
CLOCK TIMED ON TIMED OFF
To set the TIMED OFF clock, the knob needs to be turned
to TIMER, then hold down the TIMED OFF button while
pressing either the or button. Pressing while holding
down the TIMED OFF button will advance the displayed
time. Pressing while holding down the TIMED OFF button
will decrease the time displayed. Holding the or button
down for several seconds will speed up the change in the
display. Releasing the TIMED OFF button will set the time.
Note the AM/PM LED indicators to get the correct time of
day.
PHOTO ON TIMED OFF - The power pack turns on at dusk.
The power pack will turn off when the clock reaches the
TIMED OFF time. This mode will turn the power pack off at
the same time every night regardless of how light or dark it
is. The power pack and lights will be on from dusk to the
TIMED OFF time.
To set the TIMED OFF clock, the knob needs to be turned
to PHOTO ON / TIMED OFF, then hold down the TIMED
OFF button while pressing either the or button.
Pressing while holding down the TIMED OFF button will
advance the displayed time. Pressing while holding
down the TIMED OFF button will decrease the time
displayed. Holding the or button down for several
seconds will speed up the change in the display. Releasing
the TIMED OFF button will set the time. Note the AM/PM
LED indicators to get the correct time of day.
The TIMED ON clock does not work in the PHOTO ON TIMED
OFF mode. It does not matter what time it is set at. Close the
door to the control panel after the mode has been selected.
9. Replacing the Photo Eye
If the wires to photo eye are cut or broken, the photo eye can
be replaced. Unscrew the connector cover from the power
pack and pull the bi-pin connector out of the mating socket.
The replacement part is inserted into the socket and the cap
is screwed back onto the socket to provide a water tight
connection. Note that the bi-pin connector is polarized and
can be inserted into the socket only one way. The photo eye
operation can be tested by turning the power pack mode to
TEST.
The replacement photo sensor part can be ordered by
calling 972-268-6420 from 8:30 a.m. – 5:00 p.m. (CST).
NOTE: Circuit breaker may need to be reset if the power
pack is not working.
2
For one year from date of purchase, Goodsmann Group LLC warrants the Gooodsmann Power Pack against defects due to workmanship
or materials to the original purchaser. The Goodsmann Lighting Corporation’s obligations under this warranty are limited to the
following guidelines:
• This warranty does not cover units that have been altered/modified or damaged due to: normal wear, rust, abuse, improper
maintenance and/or improper use.
• This warranty does not cover surface scratches to fixtures or transformer, which is considered normal wear.
• Goodsmann Group LLC may elect to repair or replace damaged units covered by the terms of this warranty.
• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.
Goodsmann Group LLC requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales receipt
or invoice. To obtain repair or replacement of your Goodsmann Power Pack under the terms of this warranty, please call Customer
Service Department at 972-268-6420 for a Return Authorization Number and further instructions. A receipt or proof of purchase will
be required. Goodsmann Group LLC will not be responsible for a ny units forwarded to us without a Return Authorization Number.
EXCEPT AS ABOVE STATED, THE GOODSMANN GROUP LLC MAKES NO OTHER EXPRESS WARRANTY.
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO ONE YEAR
FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE GOODSMANN POWER
PACK TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED. CUSTOMER ACKNOWLEDGES THAT THE PURCHASE
PRICE CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY SET OUT ABOVE. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
1 YEAR LIMITED WARRANTY
1100-0300-40
0510 3194702
©2017 Goodsmann Group LLC
2425 Mclver Lane, Suite 160
Carrollton, TX 75006 USA
