USER'S MANUAL
MOTORIZED TREADMILL
SP36602

1. CAUTION
To avoid any hurts, please read this manual carefully before using.
◼For safety purpose, do not stand on running belt while start.
◼Please stop immediately if you experience any kind pain, including but not limited to chest pains,
nausea, dizziness, or cramp.
◼Please speed up slowly if needed.
◼Adjustment of belt is prohibited during using.
◼It is suggested to wear sports shoes while using this equipment.
◼Children, the elder, the pregnant, and patients are prohibited from using this machine.
◼Please clip the safety key on your clothing during using.
◼Please firmly hold the handle bars during using.
2. SAFETY AND NOTIICE
◼Please put the machine on flat ground. It is unsuitable to put the machine at following places:
①Outdoors.(The machine is specially designed for indoor use only)
②Slant ground or slant places on balcony.
③Sunlight area or near heater.
④Noisy places.
◼The proper power for the machine is A.C 110V.
◼Error may appear on display if the power is not stable. Please do not use the same socket
together with computer, air conditioner etc.
◼It is suggested to wear sports shoes and gym suit while use the machine.
◼Please speed up or speed down slowly.
◼Make sure no child or other object is near while folding or unfolding the machine.
◼The treadmill should not be located near water or wet object. Error or damage may be caused if
water or other liquids drop into the equipment.

5. PRODUCT SPARE PARTS
6. PRODUCTS MAIN PARTS

7. ASSEMBLY

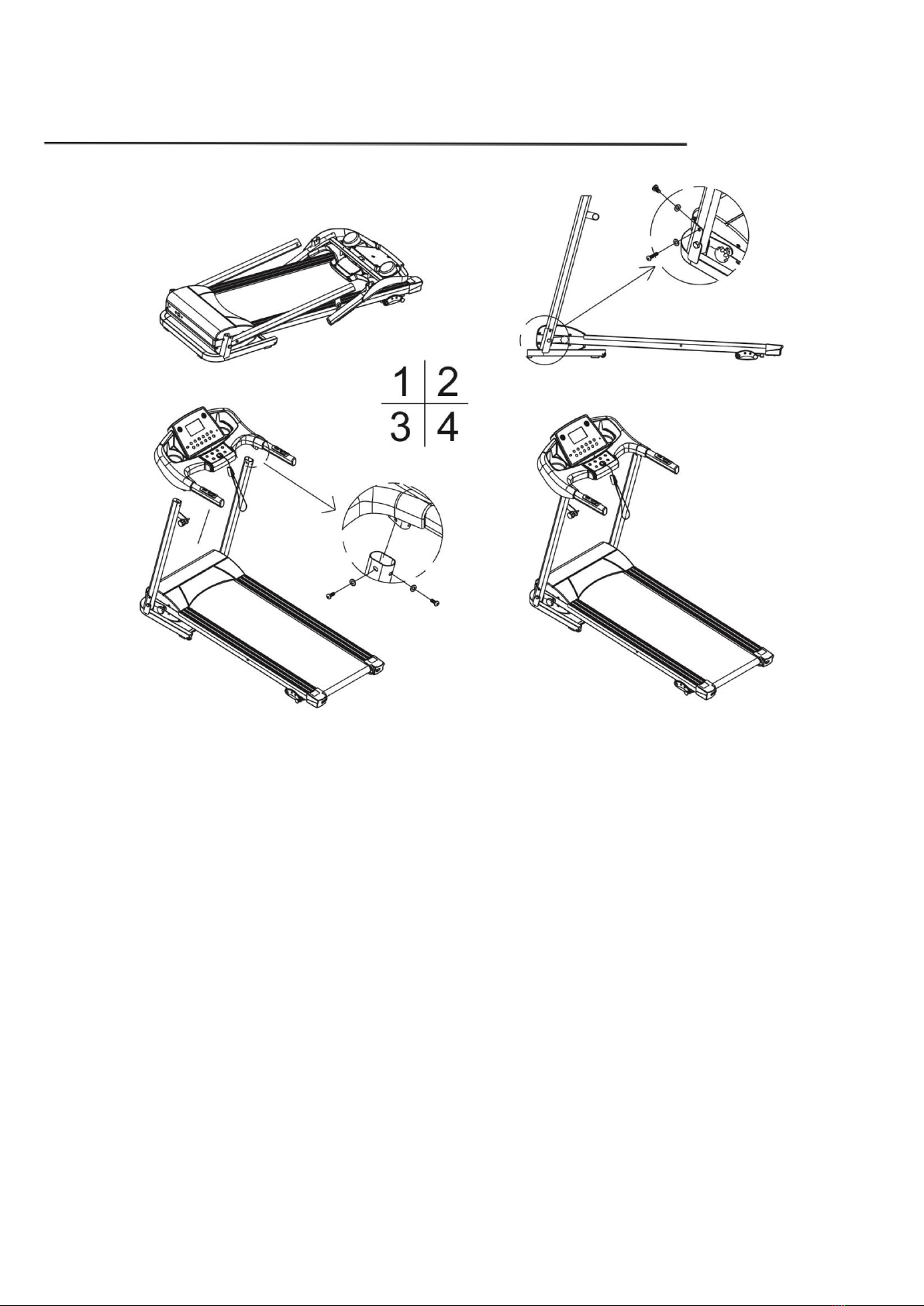

①Place the treadmill on level ground, unfold the treadmill by hand carefully. (See Fig 1)
②Fix the frame to the base with 1 x M8*40 screw and 1 x M8*16 screw on each side, do
not tighten them in this step(See Fig 2)
③Connect the signal cable from the console and supporting frame and fix the panel to the
supporting frame with the pre-installed screws on the support tube on the console. (See Fig 3)
④Tighten all the screws, [ Important ] Put safety key on the console and finish the
assembly(See Fig 4)

8. CONSOLE INSTRUCTON
1. “START” key: During STAND BY or COUNTDOWN mode(H1~H3), press “START” key, SPEED
window will show “3 2 1 0” to start working. TIME starts counting from 0:00~99:59 and restart.
The default speed is 1.0KM/H.
2. “STOP” key: During working, press “STOP” key and the machine will be stopped. Press “STOP”
key for 2 seconds, the system will reboot.
3. “SPEED +”, “SPEED -” is the key for increasing or decreasing speed. Press shortcut key of
speed +- can also adjust the speed.
4. “MODE(M)” key: During STAND BY, you can change the following setting by pressing MODE,
including TIME count down (setting range 5:00~90:00), Distance count down (setting range
1.0~99.0), Calorie count down (setting range 10~999), 12 programs (P01-P12), Pulse Program
Hr1~2, Body Fat testing MODE etc.
5. “SHORTCUT” Key: Press , , , to set the speed quickly.
6. “PULSE PROGRAM” Hrc: Continue press “PROGRAM(P)” key to select Hr1~2 mode, press
“MODE(M)”key to set age, adjust by pressing speed +- (default setting is 35, can select between
10~99). After setting the age, press “MODE(M)”key to change preset pulse data (Hr 1 default
pulse = (220-age) × 60%, Hr 2 default pulse = (220-age) × 80%), adjust by pressing speed+- to
select between 70~199 time/minute.
7. “BMI” MODE: Press BMI key to enter into FAT mode. Press “MODE(M)” to set gender (F-1),
age(F-2), height(F-3), and weight(F-4). After selecting one of the parameter category, press
2 4 6 8

speed +- to adjust the data. With all the data being set up, press Mode Key, and the display will
show “---”. Put your hand on touch heart frequency key, and the program can calculate your body
index.
Default
data and setting range
Parameter
Category
Default Data Setting Range Note
Gender F-1
2
1/2
1 is male, 2 is female
Age F-2
35
10~99
Height F-3
170
50~250
Unit: CM
Weight F-4
60
20~200
Unit: KG
Body Mass
I
ndex Chart
Body Mass Index (BMI) BMI Categories
<19 Slim
19~26 Normal
26~30 Overweight
>30 Fat
8. “SLEEP” Mode: During Standby mode, if the console is let sit idle (without pressing any key) for
10 minutes, it enters into Sleep Mode automatically, and no display will show. To resume or wake
up the machine in Standby mode, you can press any key on console.
9. “SAFETY” Mode: In case of emergency, pull off the safety key, the machine will stop immediately,
and the display window shows “---”.
AUTO PROGRAM
10. Press Reset key, all data will cleared to standby status.

9. FOLDING UP AND SETTING DOWN
Fold：
Turn on the fixed knob then lift the running board to assemble the machine.Pull out the tension
knob,aimed at the platform then release the knob to fix the machine.Move the machine.
Unfold：
Pull out the tension knob then fall down the running board and fix the machine with the fixed knob then
use the machine after electrify.
10. USAGE OF SILICONE OIL
Pull up the running belt slightly, apply silicone oil to the
backside of the belt and the top surface of the running deck.
Start the machine and keep it running for 3 minutes so that
the oil spread and even out. It is necessary to maintain your
treadmill like this every 30 working hours of the machine for optimal performance, which also helps
extend the service life of parts.

11. RUNNING BELT ADJUSTMENT
(1) Running belt deviate to left
Start the machine by speed at 2-3KM/H without loading, use Allen wrench to screw the bolt 1/4 turn
clockwise (see fig1). Keep the machine running without loading for 1-2 minutes to gauge. Repeat the
previous step if more adjustment is needed, until the belt moves to the center.
(2) Running belt deviate to right
Start the machine by speed at 2-3KM/H without loading, use Allen wrench screw the bolt 1/4 turn
clockwise (see fig2). Keep the machine running without loading for 1-2 minutes to gauge. Repeat the
previous step if more adjustment is needed, until the belt moves to the center.
(3) Running belt slipping
If the running surface becomes slipping, tighten bolts on both ends 1/2 turn clockwise (see fig3)
withAllen key. Repeat if necessary until the belt is properly adjusted.
(3) Running belt logjam
If the running belt is in dead condition, loosen bolts Allen wrench to make the screw 1/2 circle both
left and right till this logjam solved.

12. TROUBLE SHOOTING
Error Code
Meaning
Problem
Solution
Err(or E00)
No Safety key on Panel
Safety key is not on
the panel or it is not
properly put on
1. Put safety key in the yellow area of panel
2. Err(or E00) still shows or there is no function,
change the computer screen/display monitor.
E2
Control Board Error
Control board is
broken or pseudo
soldering on control
board
Replace control board
E4
Control Board Error
Control board is
broken
Replace control board
E5
Overcurrent Protection
Control board short
circuit or motor
blocked
1. Open the motor cover and check whether the
motor is blocked. Remove the block if yes.
2. Replace the control board if it’s not blocked,
or the error still shows.
E6
Motor Error
Motor broken or motor
line fall off
1. Open the motor cover and check whether the
motor is broken or whether the motor wire is
connected to control board properly. Reconnect
the wire is recommended.
2. Replace the control board if the error still
shows.
E7
Communication
Failures
Wires from the control
board to panel board
are broken or not
properly connected
1. Make sure the wires from the control board
and panel board are connected securely and not
damaged.
2. Replace the control board if the error still
shows.
E8
Overload Protection
Excess of electricity or
user exceeded max
load weight
1. Make sure the user does not exceed max
weight capacity.
2. Reconnect power and re-start the machine.
3. Replace the control board if the error code still
shows.
