User ManUal
130.com.ua
Autogood products «130»

2
Join the GoPro party at facebook.com/gopro to see what
other GoPro owners are capturing and sharing. Share your
footage and be a part of the GoPro movement!
130.com.ua
Autogood products «130»

3
table of contents
Accessories 4
Mounts + Accessories 5
HERO3 Features 6
Camera LCD Status Screen 8
Camera User Interface Flow Chart 9
Soware Updates 10
Basics 10
Camera Modes 13
Camera Settings 20
Delete 26
Set Up 28
Wireless Controls 36
Storage/SD Cards 38
System Requirements 39
Transferring Files 40
Playback 41
Battery Life 43
Important Warning Messages 45
Camera Assembly 46
Customer Support 52
130.com.ua
Autogood products «130»

4
HERO3 ACCESSORIES
Wrist Housing
Replacement Housing
Rechargeable Li-Ion Battery
Lens Replacement Kit
Caps + Doors
32GB/16GB microSD™
More HERO3 accessories available at gopro.com.
PREMIUM ACCESSORIES
LCD Touch BacPac™
Battery BacPac™
Wi-Fi Remote
The Frame Mount
(HERO3 accessory)
wear it. mount it. love it.
130.com.ua
Autogood products «130»

5
MOUNTS + ACCESSORIES
Helmet Front
Mount
Chest Mount
Harness
Handlebar/Seatpost/
Pole Mount Surfboard Mounts
Floaty Backdoor Head Strap Suction Cup Mount Vented Helmet
Strap
Roll Bar Mount Tripod Mount Anti-Fog Inserts Grab Bag of
Mounts
Curved + Flat
Adhesive Mounts Side Mount Camera Tethers Wi-Fi Remote
Mounting Kit
see more at gopro.com
130.com.ua
Autogood products «130»

6
Hero3 features
1. Status Indicator Lights (Red)
2. SHUTTER/SELECT Button
3. LCD Status Screen
4. Wi-Fi Indicator Light (Blue )
5. POWER/MODE Button
6. Micro HDMI Port
(Cable not included)
7. microSD Card Slot
(SD card not included)
8. mini-USB Port
(Supports Composite A/V
cable/3.5mm stereo mic adapter,
not included)
130.com.ua
Autogood products «130»

7

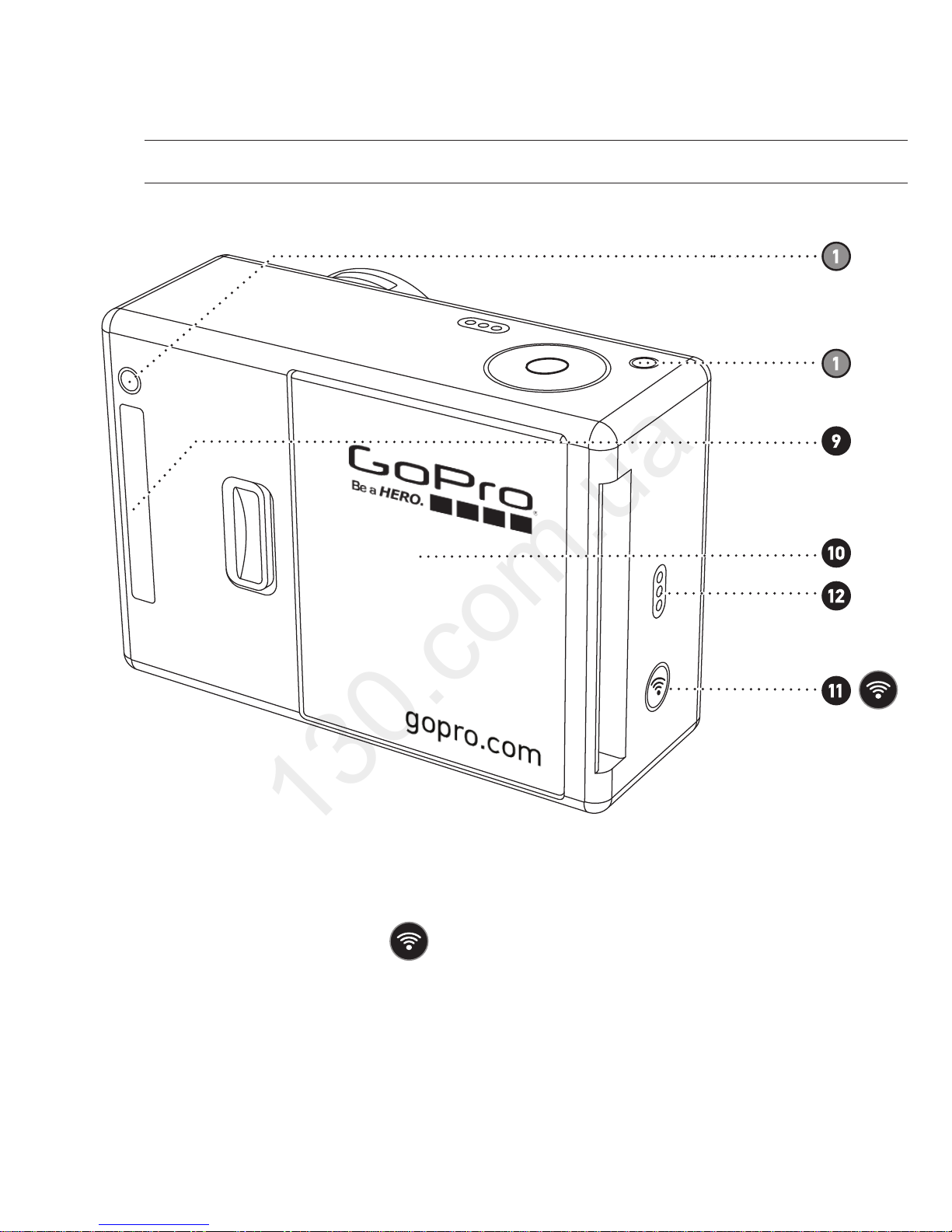

Hero3 features
9. HERO Port
10. Battery Door
11. Wi-Fi ON/OFF Button
12. Audio Alert
130.com.ua
Autogood products «130»

8
camera lcd status screen
The LCD screen displays the following information about HERO3 modes and
settings:
1. Camera Modes/FOV (Field of View)
2. Capture Setting Modes (not shown)
3. Resolution/FPS (Frames Per Second)
4. Time Interval Settings: (not shown)
5. Counter
6. Time/Storage/Files
7. Battery Life
Note: The icons displayed above will vary depending on what mode your camera is in.
130.com.ua
Autogood products «130»

9

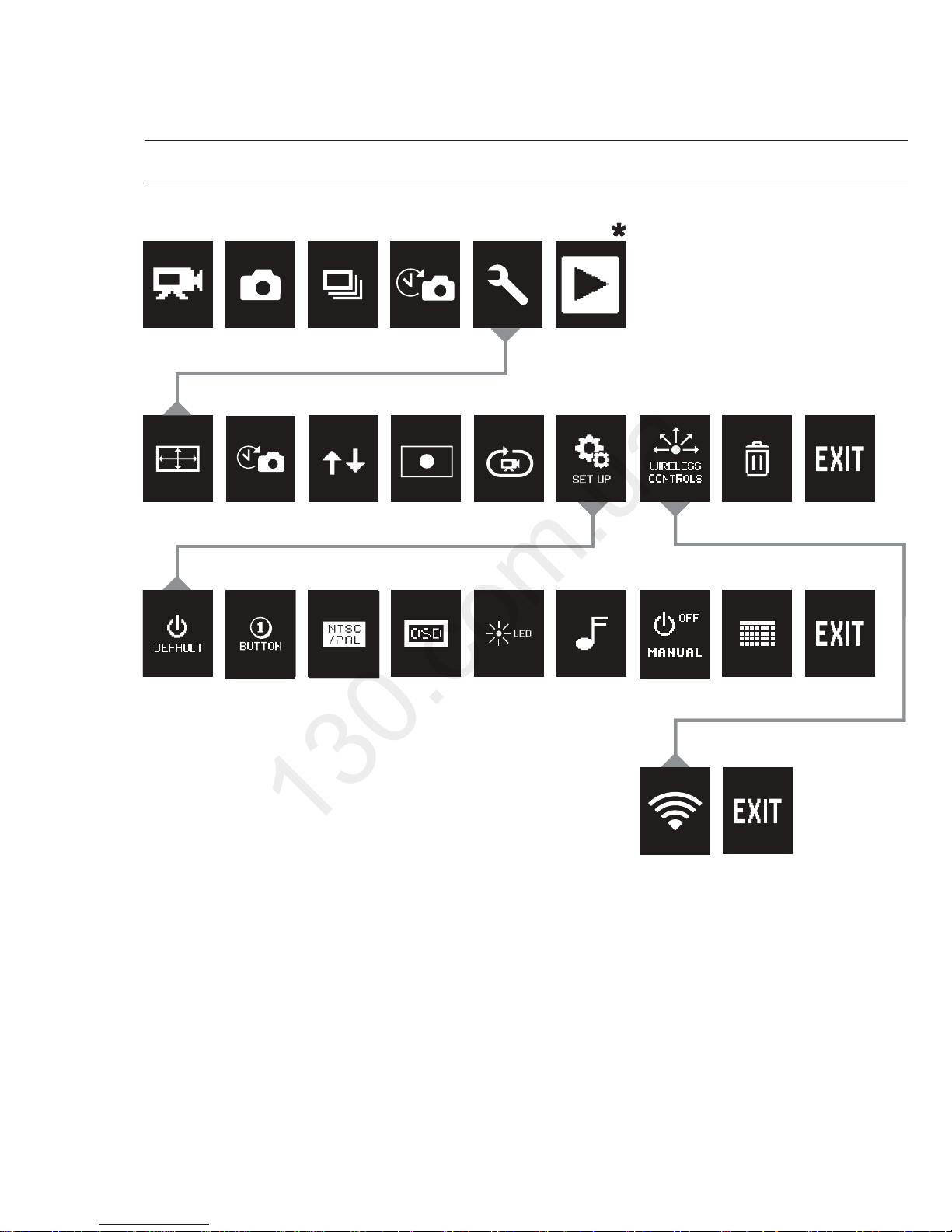

camera user interface flow cHart
MODES
CAMERA SETTINGS
WI-FI
SET UP
*Note: Playback only appears if Playback is activated.
130.com.ua
Autogood products «130»

10
usinG Your Hero3: basics
GETTING STARTED
Before using your HERO3 for the first time:
1. Insert a microSD, microSDHC™ or microSDXC™ card into the card slot
with label facing forward, narrowest part of the card first. Speed Class
4 or higher cards are recommended. When using 0.5 second Time Lapse, a
Speed Class Rating 10 is required.
2. Place battery into the camera.
3. Charge battery. The included lithium-ion battery comes partially charged. To
charge, connect the included USB cable to camera and connect the other end
of the cable to a power source such as a computer, GoPro Wall Charger or
GoPro Auto Charger. No damage will occur to the camera or battery if used
prior to a full charge.
PRO
TIP:
Status Indicator Lights when camera is OFF and
charging, show:
• Status Indicator Lights are ON when charging.
• Status Indicator Lights are OFF when charging is complete.
▶See BATTERY LIFE for more information.
software uPdates
GoPro releases product updates through soware updates. Check
to see if any updates are available for your camera or other GoPro
products. Visit: gopro.com/update.
130.com.ua
Autogood products «130»

11
usinG Your Hero3: basics
CAMERA DEFAULT SETTINGS
The HERO3 White Edition camera powers up with the following default settings:
Video Resolution 1080p30fps
Photo Resolution 5 Megapixels (MP)
Photo Burst 3 photos in 1 second
Time Lapse 0.5 seconds
Wi-Fi OFF
PRO
TIP:
Want to change your VIDEO and PHOTO settings?
▶See SETTINGS menu to make changes.
130.com.ua
Autogood products «130»

12
POWERING ON AND OFF
To power ON:
Press and release . The red Status Indicator Lights flash three times and
the Sound Indicator emits three beeps.
To power OFF:
Press for two seconds, then release. The red Status Indicator Lights flash
several times and the Sound Indicator emits seven beeps.
PRO
TIP:
Want to turn your HERO3 into a “one-button” camera that
automatically starts recording PHOTOS or VIDEOS once it
turns ON? Set the camera to ONE BUTTON mode.
▶See ONE BUTTON mode for more information.
usinG Your Hero3: basics
130.com.ua
Autogood products «130»

13
OVERVIEW
The HERO3 features several camera modes. To cycle through the modes, press .
The modes will appear in the following order:
VIDEO Record Video
PHOTO Capture single Photo
PHOTO BURST Capture Burst photos
TIME LAPSE Capture Time Lapse photos
PLAYBACK
Appears only if the camera is plugged into a TV/HDTV.
Playback allows you to play Photos and Videos on
a TV/HDTV (via optional Micro HDMI cable or A/V
composite cable).
PRO
TIP:
Use PHOTO BURST to capture fast moving subjects.
▶See PLAYBACK for more information.
usinG Your Hero3: camera modes
130.com.ua
Autogood products «130»

14
usinG Your Hero3: camera modes
VIDEO
To record Video, verify the camera is in Video mode. If the Video icon on
your camera’s LCD screen
is not showing, press repeatedly until it appears.
To start recording:
Press and release . The camera will emit one beep and the red Status
Indicator Lights will flash while recording.
To stop recording:
Press and release . The red Status Indicator Lights flash three times and the
camera emits three beeps to indicate recording has stopped.
The HERO3 automatically stops recording when the memory card is full or the
battery is out of power. Your video will be saved before the camera powers off.
▶See VIDEO mode for instructions on how to change resolution settings.
130.com.ua
Autogood products «130»

15
usinG Your Hero3: camera modes
To capture a Photo, verify the camera is in Photo mode. If the Photo icon on
your camera’s LCD is not showing, press repeatedly until it appears.
To take a photo:
Press and release . The camera beeps two times and the red Status
Indicator Lights flash.
▶See PHOTO modes for instructions on how to change resolution settings and
other PHOTO features.
130.com.ua
Autogood products «130»

16
usinG Your Hero3: camera modes
PHOTO BURST
In Photo Burst mode, your camera takes multiple photos in short time intervals—
3 photos/1 second.
To capture a Photo Burst series, verify the camera is in Photo Burst mode. If the
Photo Burst icon on your camera’s LCD screen is not showing, press
repeatedly until it appears.
To take a Photo Burst series:
Press and release . The red Status Indicator Lights flash and the camera
beeps multiple times.
130.com.ua
Autogood products «130»

17
usinG Your Hero3: camera modes
TIME LAPSE
Time Lapse mode captures a series of photos at 0.5, 1, 2, 5, 10, 30 or 60 second
intervals. When using the 0.5 seconds setting, an SD card with a Speed Class 10
Rating is required.
To capture a Time Lapse series, verify the camera is in Time Lapse mode. If the
Time Lapse icon is not showing on your camera’s LCD screen, press
repeatedly until it appears.
To take Time Lapse:
Press and release . The camera initiates countdown and the red Status Indicator
Lights flash each time a Photo is taken.
To stop Time Lapse:
Press and release . The red Status Indicator Lights flash three times and the
camera emits three beeps to indicate that Time Lapse has stopped.
▶See TIME LAPSE for instructions on how to change the interval settings.
130.com.ua
Autogood products «130»

18
usinG Your Hero3: camera modes
SETTINGS
The Settings menu allows you to adjust a variety of camera settings including:
Video Resolution
Photo Resolution
Time Lapse
Photo Burst
•and more
▶See SETTINGS menu to make changes, learn how to navigate menu options
and read more details on each setting.
130.com.ua
Autogood products «130»

19
usinG Your Hero3: camera modes
PLAYBACK
You can playback your GoPro Photos and Videos on a TV/HDTV or with the LCD
Touch BacPac (optional accessory). Playback appears as a camera mode when
camera is powered ON and plugged into a TV/HDTV.
▶See PLAYBACK for more information on viewing your VIDEOS and PHOTOS.
