GORMAN-RUPP PUMPS PRIME-AIRE Series Operating instructions

PUBLICATION NUMBER MR−05702
May 14, 2004
Rev. A 11-20-06
THE GORMAN-RUPP COMPANY DMANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED DST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
www.gormanrupp.com
ECopyright by the Gorman-Rupp Company
PRIME-AIRERSERIES
PA8A60 And PA10A60 Models
Including
610N60-(SAE 2/11.5) And
610N60-(SAE 3/11.5) Pump Ends

Register your new
Gorman-Rupp pump online at
www.grpumps.com
Valid serial number and e-mail address required.
RECORD YOUR PUMP MODEL AND SERIAL NUMBER
Please record your pump model and serial number in the
spaces provided below. Your Gorman-Rupp distributor
needs this information when you require parts or service.
Pump Model:
Serial Number:
The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects or
other reproductive harm.

MR−05702PA SERIES PUMPS
PAGE I − 1INTRODUCTION
INTRODUCTION
Thank You for purchasing a Gorman-Rupp Prime-
AireRSeries priming-assisted pump. Read this
manual carefully to learn how to safely maintain
and service your pump. Failure to do so could re-
sult in personal injury or damage to the pump.
A set of three manuals accompanies your pump.
The Installation/Operation Manual contains essen-
tial information on installing and operating the
pump, and on making electrical connections. The
Parts List Manual provides performance curve(s),
a pump model cross-section drawing, and parts
list for your pump.
This Maintenance and Repair Manual provides
troubleshooting instructions required to properly
diagnose operational problems. Maintenance in-
structions within this manual are limited to the
pump hydraulic and drive components only. For
maintenance and repair of the engine or air com-
pressor, consult the separate literature provided by
the manufacturers.
This pump is a PA SeriesR, priming-assisted cen-
trifugal model. The unit is designed for handling
non-volatile, non-flammable liquids containing
specified entrained solids. For specific service,
contact your Gorman-Rupp distributor or the Gor-
man-Rupp Company.
As described on the following page, this manual
will alert personnel to known procedures which re-
quire special attention, to those which could dam-
age equipment, and to those which could be dan-
gerous to personnel. However, this manual cannot
possibly anticipate and provide detailed precau-
tions for every situation that might occur during
maintenance of the unit. Therefore, it is the respon-
sibility of the owner/maintenance personnel to en-
sure that only safe, established maintenance pro-
cedures are used, and that any procedures not ad-
dressed in this manual are performed only after es-
tablishing that neither personal safety nor pump in-
tegrity are compromised by such practices.
If there are any questions regarding the pump
which are not covered in this manual or in other lit-
erature accompanying the unit, please contact
your Gorman-Rupp distributor or the Gorman-
Rupp Company:
The Gorman-Rupp Company
P.O. Box 1217
Mansfield, Ohio 44901−1217
Phone: (419) 755−1011
or:
Gorman-Rupp of Canada Limited
70 Burwell Road
St. Thomas, Ontario N5P 3R7
Phone: (519) 631−2870
CONTENTS
SAFETY − SECTION A
TROUBLESHOOTING − SECTION B
PUMP MAINTENANCE AND REPAIR − SECTION C
DRAWINGS AND IDENTIFICATION LISTS PAGES C − 2 THRU C−9. . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMP AND SEAL DISASSEMBLY AND REASSEMBLY PAGE C − 10. . . . . . . . . . . . . . . . . . . . . . . . . . .
Priming Chamber Removal and Disassembly PAGE C − 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suction Spool Flange Removal PAGE C − 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suction Head And Wear Ring Removal PAGE C − 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Separating Intermediate And Drive Assembly From Engine PAGE C − 12. . . . . . . . . . . . . . . . . . . .
Draining Oil From Seal Cavity PAGE C − 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loosening Impeller PAGE C − 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Casing Removal PAGE C − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Impeller Removal PAGE C − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seal Removal PAGE C − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shaft and Bearing Removal And Disassembly PAGE C − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shaft and Bearing Reassembly and Installation PAGE C − 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MR−05702 PA SERIES PUMPS
PAGE I − 2 INTRODUCTION
CONTENTS (Cont’d)
Securing Intermediate And Drive Assembly To Engine PAGE C − 15. . . . . . . . . . . . . . . . . . . . . . . . .
Seal Reassembly And Installation PAGE C − 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Impeller Installation And Adjustment PAGE C − 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Casing Installation PAGE C − 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suction Head And Wear Ring Installation And Adjustment PAGE C − 18. . . . . . . . . . . . . . . . . . . . .
Priming Chamber Assembly And Installation PAGE C − 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LUBRICATION PAGE C − 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seal Assembly PAGE C − 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bearings PAGE C − 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RECORDING MODEL AND
SERIAL NUMBERS
Please record the pump model and serial number
in the spaces provided below. Your Gorman-Rupp
distributor needs this information when you require
parts or service.
Pump Model:
Serial Number:
WARRANTY INFORMATION
The warranty provided with your pump is part of
Gorman-Rupp’s support program for customers
who operate and maintain their equipment as de-
scribed in this and the other accompanying litera-
ture. Please note that should the equipment be
abused or modified to change its performance be-
yond the original factory specifications, the war-
ranty will become void and any claim will be de-
nied.
The following are used to alert personnel to procedures which require special attention, to those which
could damage equipment, and to those which could be dangerous to personnel:
Immediate hazards which WILL result in
severe personal injury or death. These
instructions describe the procedure re-
quired and the injury which will result
from failure to follow the procedure.
Hazards or unsafe practices which
COULD result in severe personal injury
or death. These instructions describe
the procedure required and the injury
which could result from failure to follow
the procedure.
Hazards or unsafe practices which COULD
result in minor personal injury or product or
property damage. These instructions de-
scribe the requirements and the possible
damage which could result from failure to
follow the procedure.
NOTE
Instructions to aid in installation, operation, and
maintenance or which clarify a procedure.

PA SERIES PUMPS MR−05702
SAFETY PAGE A − 1
SAFETY − SECTION A
The following information applies
throughout this manual to Gorman-
Rupp Prime AireRSeries pumps.
This manual will alert personnel to
known procedures which require spe-
cial attention, to those which could
damage equipment, and to those which
could be dangerous to personnel. How-
ever, this manual cannot possibly antici-
pate and provide detailed instructions
and precautions for every situation that
might occur during maintenance of the
unit. Therefore, it is the responsibility of
the owner/maintenance personnel to
ensure that only safe, established main-
tenance procedures are used, and that
any procedures not addressed in this
manual are performed only after estab-
lishing that neither personal safety nor
pump integrity are compromised by
such practices.
Before attempting to install, operate, or
service this pump, familiarize yourself
with this manual, and with all other liter-
ature shipped with the pump. Unfamil-
iarity with all aspects of pump operation
covered in this manual could lead to de-
struction of equipment, injury, or death
to personnel.
Before attempting to open or service the
pump:
1. Familiarize yourself with this man-
ual.
2. Lock out or disconnect the power
source to ensure that the pump will
remain inoperative.
3. Allow the pump to completely cool
if overheated.
4. Check the temperature before
opening any covers, plates, or
plugs.
5. Close the suction and discharge
valves.
6. Vent the pump slowly and cau-
tiously.
7. Drain the pump.
This pump is may be used to handle ma-
terials which could cause illness
through direct exposure or emitted
fumes. Wear adequate protective cloth-
ing when working on the pump or pip-
ing.
Use lifting and moving equipment in
good repair and with adequate capacity
to prevent injuries to personnel or dam-
age to equipment. Attach lifting equip-
ment to the lifting device fitted to the
pump. If chains or cable are wrapped
around the pump to lift it, make certain
that they are positioned so as not to
damage the pump, and so that the load
will be balanced. The bail is intended for
use in lifting the pump assembly only.
Suction and discharge hoses and pip-
ing must be removed from the pump be-
fore lifting.

MR−05702 PA SERIES PUMPS
PAGE A − 2 SAFETY
After the pump has been installed, make
certain that the pump and all piping or
hose connections are tight, properly
supported and secure before operation.
Do not remove plates, covers, gauges,
pipe plugs, or fittings from an over-
heated pump. Vapor pressure within the
pump can cause parts being disen-
gaged to be ejected with great force. Al-
low the pump to cool before servicing.
Overheated pumps can cause severe
burns and injuries, and produce explo-
sive fumes. If overheating of the pump
occurs:
1. Stop the pump immediately.
2. Ventilate the area.
3. Allow the pump to completely cool.
4. Check the temperature and make
sure it is cool before opening any
covers, plates, gauges, or plugs.
5. Vent the pump slowly and cau-
tiously.
6. Refer to instructions in the manu-
als accompanying the pump be-
fore restarting the pump.
Do not operate the pump without the
guards in place over the rotating parts.
Exposed rotating parts can catch cloth-
ing, fingers, or tools, causing severe in-
jury to personnel.
Use only replacement parts provided or
approved by Gorman-Rupp. Use of non-
authorized parts may result in damage to
the equipment and/or injury to personnel
and will invalidate the warranty.
Make sure the pump is level. Lower jack
stands and chock the wheels, if so
equipped. Use caution when positioning
the skid-mounted unit to prevent damage
to the fuel tank.
Do not operate an internal combustion
engine in an explosive atmosphere.
When operating an internal combustion
engine in an enclosed area, make sure
exhaust fumes are piped to the outside.
These fumes contain carbon monoxide,
a deadly gas that is colorless, tasteless
and odorless.
Fuel used by internal combustion en-
gines presents an extreme explosion
and fire hazard. Make certain that all fuel
lines are securely connected and free of
leaks. Never refuel a hot or running en-
gine. Avoid overfilling the fuel tank. Al-
ways use the correct type of fuel.
Never tamper with the governor to gain
more power. The governor establishes

PA SERIES PUMPS MR−05702
SAFETY PAGE A − 3
safe operating limits that should not be
exceeded. Refer to the pump Perfor-
mance Curve for the maximum continu-
ous operating speed.
The electrical power used to operate
this pump is high enough to cause inju-
ry or death. Obtain the services of a qu-
alified electrician to make all electrical
connections. Make certain that the
pump and enclosure are properly
grounded; never use gas pipe as an
electrical ground. Be sure that the in-
coming power matches the voltage and
phase of the pump before connecting
the power source. Do not run the pump
if the voltage is not within the limits.
All electrical connections must be in ac-
cordance with The National Electric
Code and all local codes. If there is a
conflict between the instructions pro-
vided and N.E.C. Specifications, N.E.C.
Specifications shall take precedence.
Obtain the services of a qualified elec-
trician to troubleshoot, test and/or ser-
vice the electrical components of this
pump.

TROUBLE POSSIBLE CAUSE PROBABLE REMEDY
PUMP FAILS TO
PRIME
Strainer clogged. Check strainer and clean if neces-
sary.
Suction lift or discharge head too high. Check piping installation and install
bypass line if needed. See INSTAL-
LATION.
Leaking or worn seal or pump gasket. Check pump vacuum. Replace
leaking or worn seal or gasket.
Lining of suction hose collapsed. Replace suction hose.
Air leak in suction line. Correct leak.
Discharge check valve contami-
nated, damaged, or unable to seat.
Clean or replace check valve.
Air compressor head 180_out. Consult factory.
Air compressor damaged or belts bro-
ken.
Check and repair/replace.
Eductor safety valve leaking. Check and replace safety valve.
Pump speed too slow. Check driver output; consult driver
operation manual.
Eductor clogged. Check and clean eductor.
PA SERIES PUMPS MR−05702
TROUBLESHOOTING PAGE B − 1
TROUBLESHOOTING − SECTION B
Review all SAFETY information in Section A.
Before attempting to open or service the
pump:
1. Familiarize yourself with this manual.
2. Disconnect or lock out the power
source to ensure that the pump will
remain inoperative.
3. Allow the pump to completely cool if
overheated.
4. Check the temperature and make
sure pump is cool before opening
any covers, plates, or plugs.
5. Close the suction and discharge
valves.
6. Vent the pump slowly and cautiously.
7. Drain the pump.

TROUBLE POSSIBLE CAUSE PROBABLE REMEDY
PUMP REQUIRES
TOO MUCH
POWER
PUMP CLOGS
FREQUENTLY
Impeller or other wearing parts worn
or damaged.
Free impeller of debris.Impeller clogged.
Replace worn or damaged parts.
Check that impeller is properly
centered and rotates freely.
Discharge head too high.
Measure lift w/vacuum gauge. Re-
duce lift and/or friction losses in
suction line.
Suction lift too high.
Install bypass line.
Pump speed too slow. Check driver output; consult driver
operation manual.
Pump speed too high. Check driver output.
Discharge head too low.
Dilute if possible.Liquid solution too thick.
Adjust discharge valve.
Pump or jack shaft bearing(s) frozen. Disassemble, check and replace
bearing(s) as required..
Liquid solution too thick.
Open discharge valve fully to in-
crease flow rate, and run engine at
maximum governed speed.
Discharge flow too slow.
Dilute if possible.
Suction check valve or foot valve
clogged or binding.
Clean valve.
Suction intake not submerged at
proper level or sump too small.
Check installation and correct
submergence as needed.
Discharge check valve clogged. Check and clean check vavle.
Strainer clogged. Check strainer and clean if neces-
sary.
Belt or flexible coupling broken. Check and replace as necessary.
Extreme ambient temperature. Reduce pump output.
Fuel filter clogged (engine driven
units.
Check & replace often in extreme
operating conditions.
Check and replace as required.
Fuel contaminated (engine driven
units.
PUMP STOPS OR
FAILS TO DELIVER
RATED FLOW OR
PRESSURE
Air leak in suction line. Correct leak.
Lining of suction hose collapsed. Replace suction hose.
Leaking or worn seal or pump gasket. Check pump vacuum. Replace
leaking or worn seal or gasket.
Eductor clogged. Check and clean eductor.
MR−05702 PA SERIES PUMPS
TROUBLESHOOTINGPAGE B − 2

TROUBLE POSSIBLE CAUSE PROBABLE REMEDY
BEARINGS
RUN TOO HOT
Bearing temperature is high, but
within limits.
Align drive properly.Drive misaligned.
Check piping installation for proper
support.
Suction and discharge lines not prop-
erly supported.
Check for proper type and level of
lubricant.
Low or incorrect lubricant.
Check bearing temperature regu-
larly to monitor any increase.
Check belt tension. Adjust as
required.
Excessive tension on drive belt.
EXCESSIVE NOISE Cavitation in pump. Reduce suction lift and/or friction
losses in suction line. Record vac-
uum and pressure gauge readings
and consult local representative or
factory.
Clean out debris; replace damaged
parts.
Impeller clogged or damaged.
Secure mounting hardware.Pump or drive not securely mounted.
Locate and eliminate source of air
bubble.
Pumping entrained air.
PA SERIES PUMPS MR−05702
TROUBLESHOOTING PAGE B − 3
PREVENTIVE MAINTENANCE
Since pump applications are seldom identical, and pump wear is directly affected by such things as the
abrasive qualities, pressure and temperature of the liquid being pumped, this section is intended only to
provide general recommendations and practices for preventive maintenance. Regardless of the application
however, following a routine preventive maintenance schedule will help assure trouble-free performance
and long life from your Gorman-Rupp pump. For specific questions concerning your application, contact
your Gorman-Rupp distributor or the Gorman-Rupp Company.
Record keeping is an essential component of a good preventive maintenance program. Changes in suction
and discharge gauge readings (if so equipped) between regularly scheduled inspections can indicate
problems that can be corrected before system damage or catastrophic failure occurs. The appearance of
wearing parts should also be documented at each inspection for comparison as well. Also, if records indi-
cate that a certain part (such as the seal) fails at approximately the same duty cycle, the part can be checked
and replaced before failure occurs, reducing unscheduled down time.
For new applications, a first inspection of wearing parts at 250 hours will give insight into the wear rate for
your particular application. Subsequent inspections should be performed at the intervals shown on the
chart below. Critical applications should be inspected more frequently.

MR−05702 PA SERIES PUMPS
TROUBLESHOOTINGPAGE B − 4
General Condition (Temperature, Unusual
Noises or Vibrations, Cracks, Leaks,
Loose Hardware, Etc.) I
Pump Performance (Gauges, Speed, Flow) I
Bearing Lubrication I R
Seal Lubrication (And Packing Adjustment,
If So Equipped) I R
V-Belts (If So Equipped) I
Air Release Valve Plunger Rod (If So Equipped) I C
Front Impeller Clearance (Wear Plate) I
Rear Impeller Clearance (Seal Plate) I
Check Valve I
Pressure Relief Valve (If So Equipped) C
Pump and Driver Alignment I
Shaft Deflection I
Bearings I
Bearing Housing I
Piping I
Driver Lubrication − See Mfgr’s Literature
Legend:
I = Inspect, Clean, Adjust, Repair or Replace as Necessary
C = Clean
R = Replace
* Service interval based on an intermittent duty cycle equal to approximately 4000 hours annually.
Adjust schedule as required for lower or higher duty cycles or extreme operating conditions.
Preventive Maintenance Schedule
Item Daily Weekly Monthly Semi-
Annually
Annually
Service Interval*

MR−05702
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 1
PUMP MAINTENANCE AND REPAIR − SECTION C
Review all SAFETY information in Section A.
Follow the instructions on all tags, label and de-
cals attached to the pump.
Before attempting to install, operate, or
service this pump, familiarize yourself
with this manual, and with all other liter-
ature shipped with the pump. Unfamil-
iarity with all aspects of operation or
maintenance could lead to destruction
of equipment, injury or death to person-
nel.
Use lifting and moving equipment in
good repair and with adequate capacity
to prevent injuries to personnel or dam-
age to equipment. If slings or chains are
used to move the pump or components,
make sure that the load is balanced;
otherwise serious personal injury or
death could result. The bail is intended
for use in lifting the pump assembly
only. Suction and discharge hoses and
piping must be removed from the pump
before lifting.
The maintenance and repair instructions in this
manual are keyed to the sectional views and the
corresponding parts identification lists on the fol-
lowing pages. Refer to the separate Parts List Man-
ual for replacement parts.
This Maintenance and Repair Manual provides
troubleshooting instructions required to properly
diagnose operational problems. Maintenance in-
structions within this manual are limited to the
pump hydraulic, priming and drive components
only. Maintenance of the power source and facto-
ry-supplied air compressors are detailed in sepa-
rate literature provided by the manufacturer(s).
Check TROUBLESHOOTING, Section B to deter-
mine causes and remedies of pump problems.
Disassemble the pump only as far as required.
As described in the SAFETY Section, this manual
will alert personnel to known procedures which re-
quire special attention, to those which could dam-
age equipment, and to those which could be dan-
gerous to personnel. However, this manual cannot
possibly anticipate and provide detailed precau-
tions for every situation that might occur during
maintenance of the unit. Therefore, it is the respon-
sibility of the owner/maintenance personnel to en-
sure that only safe, established shop procedures
are used, and that any procedures not addressed
in this manual are performed only after establish-
ing that neither personal safety nor pump integrity
are compromised by such practices.
Select a suitable location, preferably indoors, to
perform required maintenance. All work must be
performed by qualified personnel.
Lifting
Pump unit weights will vary depending on the
mounting and drive provided. Check the shipping
tag on the unit packaging for the actual weight, and
use lifting equipment with appropriate capacity.
Drain the pump and remove all customer-installed
equipment such as suction and discharge hoses
or piping before attempting to lift existing, installed
units.
For the approximate weight of your pump, refer to
the pump specification data sheet or contact your
Gorman-Rupp distributor or the Gorman-Rupp
Company.

PA SERIES PUMPSMR−05702
MAINTENANCE & REPAIRPAGE C − 2

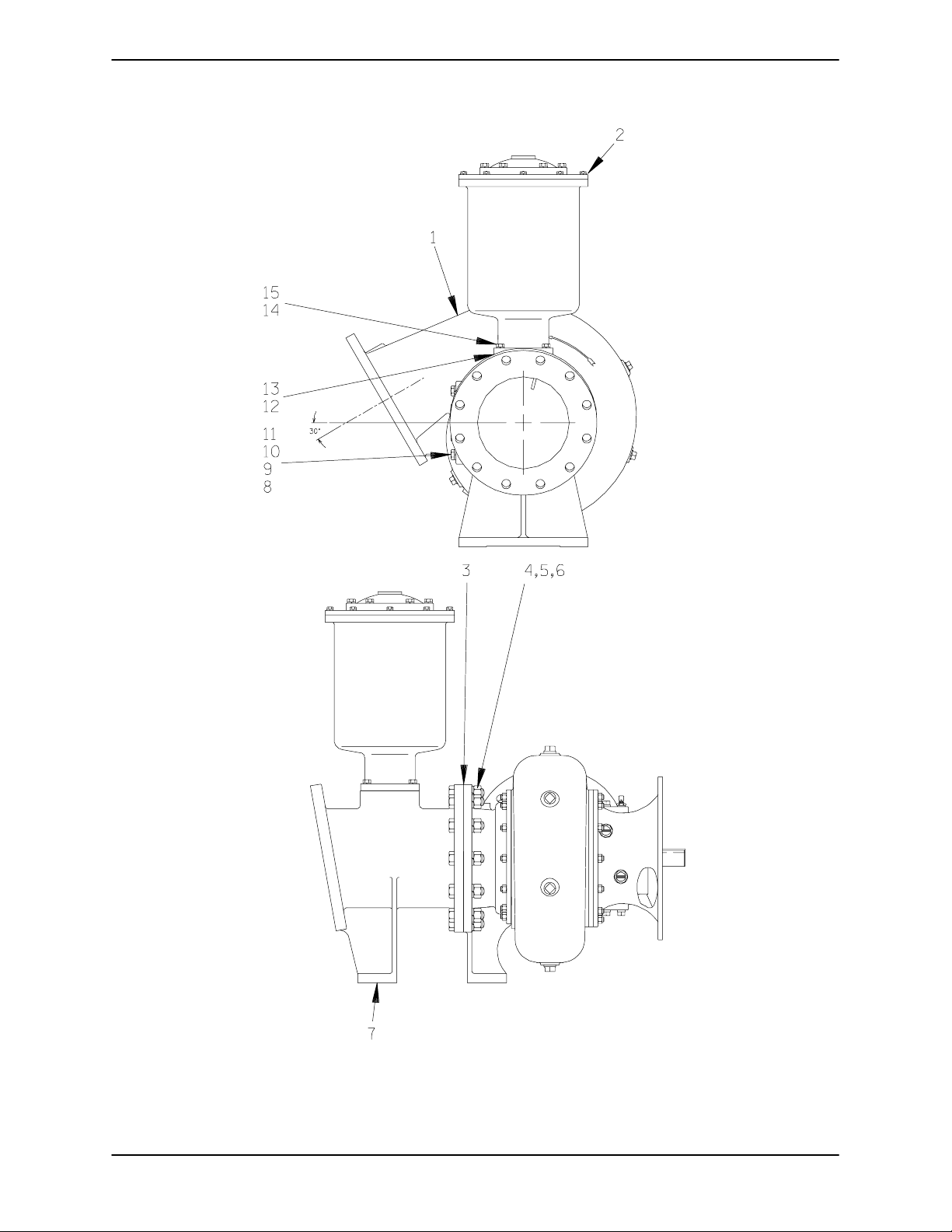

SECTION DRAWING
NOTE: Model PA8A60−6068T SU Consists of Pump
Model Assembly PA10A60−(3/11.5) SU
With a 10" x 8" Discharge Reducer.

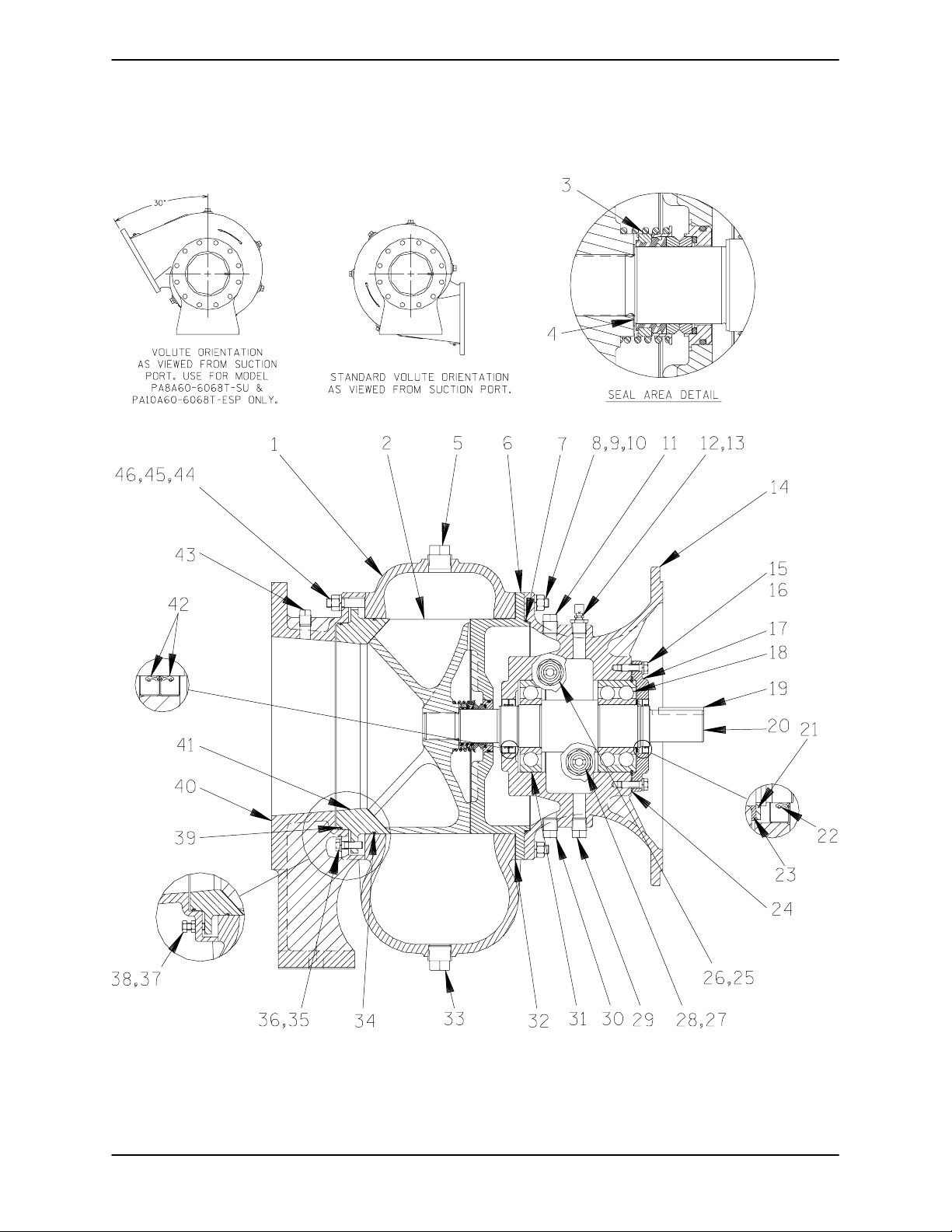

Figure C−1. PA10A60−(3/11.5) SU And PA10A60−(SAE 2/11.5)
Pump Model Assemblies

ITEM PART NAME
NO.
NOTE: Maintenance instructions in this manual are limited to the pump hydraulic,
priming and drive components only. Maintenance of power sources and
factory-supplied air compressors are detailed in separate literature pro-
vided by the manufacturer(s).
NOTE: Model PA8A60−6068T SU Consists of Pump
Model Assembly PA10A60−(3/11.5) SU
With a 10" x 8" Discharge Reducer.
MR−05702
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 3
PA10A60−(3/11.5) SU And PA10A60−(SAE 2/11.5)
Pump Model Assemblies
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
1 610N60−(SAE 3/11.5) PUMP END ASSEMBLY
610N60−(SAE 2/11.5) PUMP END ASSEMBLY
2 PRIMING CHAMBER ASSY
3 GASKET
4 HEX HD CAPSCREW
5 HEX NUT
6 LOCKWASHER
7 SUCTION SPOOL
8 BLIND FLANGE ASSY
9 GASKET
10 HEX HD CAPSCREW
11 LOCKWASHER
12 GASKET
13 BAFFLE
14 HEX HD CAPSCREW
15 LOCKWASHER

PA SERIES PUMPSMR−05702
MAINTENANCE & REPAIRPAGE C − 4
SECTION DRAWING
Figure C−2. PA10A60−(SAE 3/11.5) Pump Model Assembly

ITEM PART NAME
NO.
NOTE: Maintenance instructions in this manual are limited to the pump hydrau-
lic, priming and drive components only. Maintenance of power sources
and factory-supplied air compressors are detailed in separate literature
provided by the manufacturer(s).
MR−05702
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 5
PA10A60−(SAE 3/11.5) Pump Model Assembly
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
1 610N60−(SAE 3/11.5) PUMP END ASSEMBLY
2 PRIMING CHAMBER ASSY
3 CHECK VALVE
4 GASKET
5 HEX HD CAPSCREW
6 HEX NUT
7 LOCKWASHER
8 SUCTION SPOOL
9 HEX HD CAPSCREW
10 HEX NUT
11 LOCKWASHER
12 FLAT WASHER
13 GASKET
14 BLIND FLANGE ASSY
15 GASKET
16 HEX HD CAPSCREW
17 LOCKWASHER
18 GASKET
19 BAFFLE
20 HEX HD CAPSCREW
21 LOCKWASHER

PA SERIES PUMPSMR−05702
MAINTENANCE & REPAIRPAGE C − 6
SECTION DRAWING
Figure C−3. 610N60−(SAE 2/11.5) And 610N60−(SAE 3/11.5)
Pump End Assemblies

ITEM
NO.
PART
NAME
ITEM
NO.
PART
NAME
MR−05702
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 7
610N60−(SAE 2/11.5) And 610N60−(SAE 3/11.5) Pump End Assemblies
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
1 PUMP CASING
2 IMPELLER
3 SEAL ASSY
4 IMPELLER ADJ SHIM SET
5 PIPE PLUG
6 SEAL PLATE
7 SEAL PLATE O-RING
8STUD
9 HEX NUT
10 LOCKWASHER
11 VENTED PIPE PLUG
12 RED PIPE BUSHING
13 AIR VENT
14 INTERMEDIATE
15 HEX HD CAPSCREW
16 LOCKWASHER
17 BEARING COVER
18 DOUBLE ROW BALL BEARING
19 SHAFT KEY
20 IMPELLER SHAFT
21 RETAINING RING
22 OIL SEAL
23 THRUST WASHER
24 BEARING CVR GASKET
25 SIGHT GAUGE
26 PIPE PLUG
27 SIGHT GAUGE
28 PIPE PLUG
29 BRG CAVITY DRAIN PLUG
30 SEAL CVTY DRAIN PLUG
31 BALL BEARING
32 PUMP CASING GASKET
33 CASING DRAIN PLUG
34 WEAR RING O-RING
35 HEX HD CAPSCREW
36 LOCKWASHER
37 ADJUSTING SCREW
38 JAM NUT
39 WEAR RING O-RING
40 SUCTION HEAD
41 WEAR RING
42 OIL SEAL
43 PIPE PLUG
44 STUD
45 HEX NUT
46 LOCKWASHER

ITEM PART NAME
NO.
PA SERIES PUMPSMR−05702
MAINTENANCE & REPAIRPAGE C − 8
SECTION DRAWING

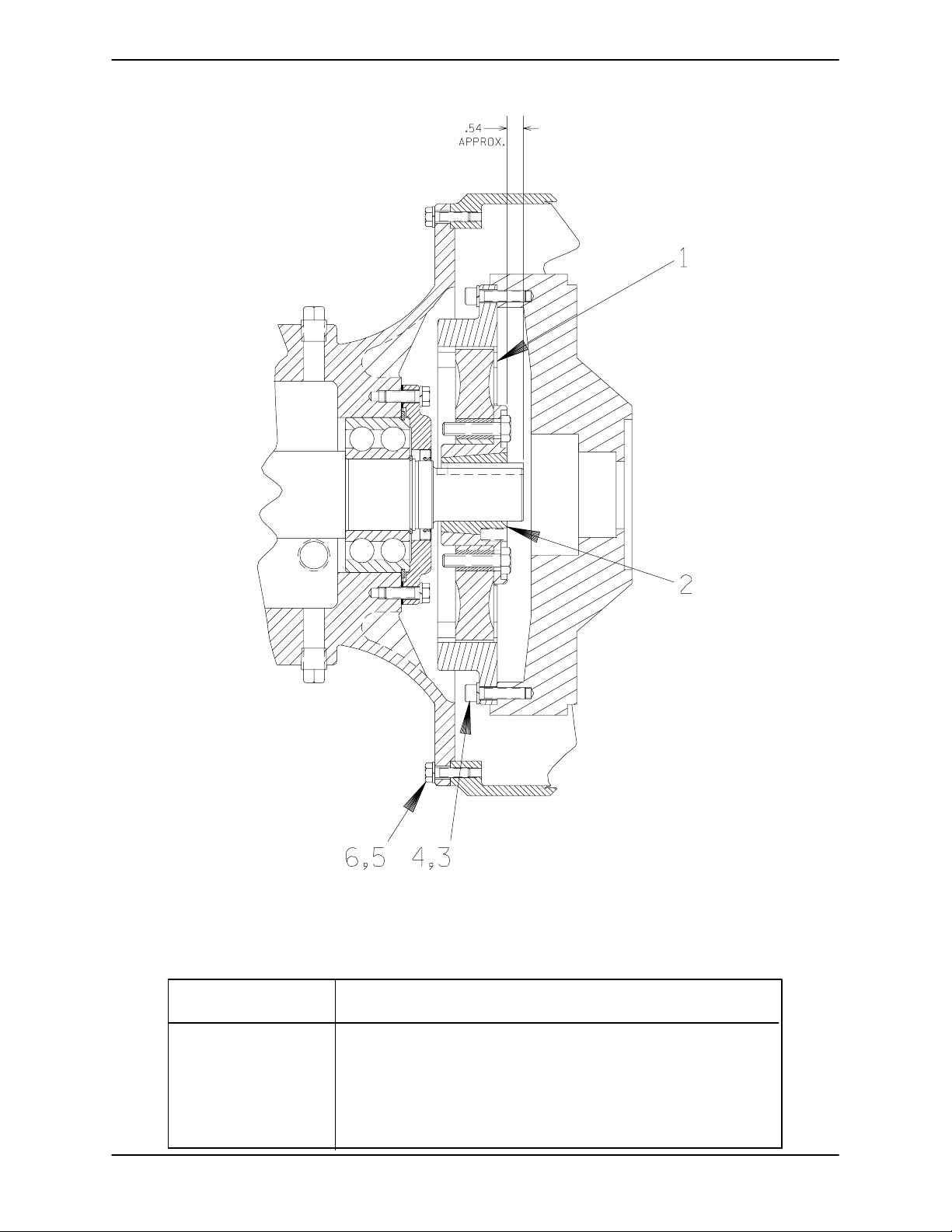

Figure C−4. Drive Assembly
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
1 COUPLING W/O BUSHING
2 BUSHING
3 SOCKET HD CAPSCREW
4 LOCKWASHER
5 HEX HD CAPSCREW
6 LOCKWASHER

ITEM
NO.
PART
NAME
ITEM
NO.
PART
NAME
MR−05702
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 9
SECTION DRAWING

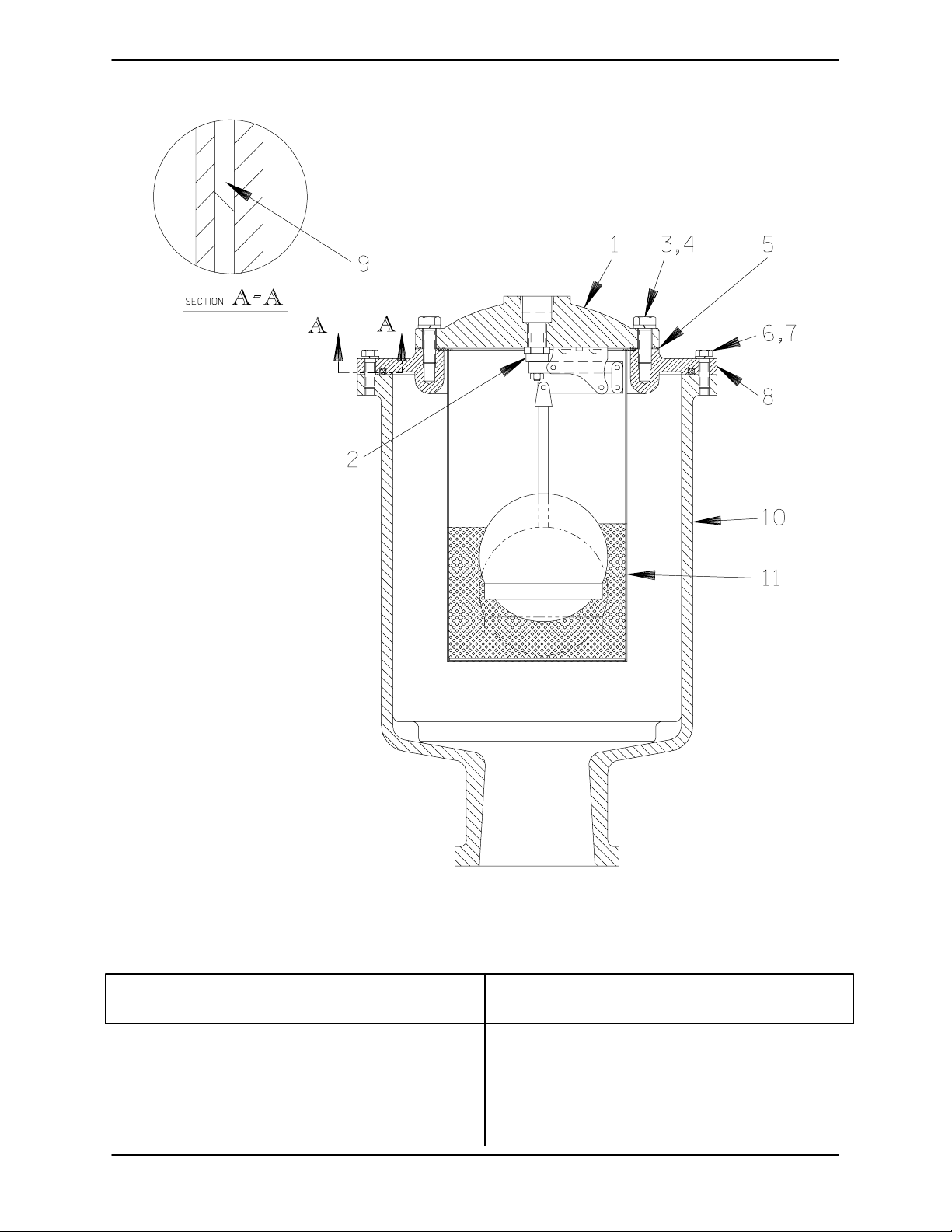

Figure C−5. Priming Chamber Assembly
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
1 PRIMING VALVE
2 −ORIFICE BUTTON
3 HEX HD CAPSCREW
4 LOCK WASHER
5 PRIMING VALVE GASKET
6 HEX HD CAPSCREW
7 LOCK WASHER
8 PRIMING CHAMBER LID
9 LINEAR O-RING
10 PRIMING CHAMBER
11 STRAINER ASSEMBLY
