Gosafe G606 User manual

Configuration Software User Manual
Gosafe G606
Configuration Software
User manual

Configuration Software User Manual
Contents
1. General Note ......................................................................................................................... 4
1.1 The aim of this document................................................................................................ 4
1.2Copyright .......................................................................................................................... 4
1.3Reference materials ......................................................................................................... 4
2. Software Overview ................................................................................................................ 5
2.1Software usage ................................................................................................................. 5
2.2Software operation .......................................................................................................... 5
2.3Structure of the software ................................................................................................. 5
2.4installation of the USB driver for the software ................................................................ 6
3. G606 user interface overview ............................................................................................... 9
3.1 The tool is composed of these tabs:.......................................................................... 9
3.2 “Communication” explanation：............................................................................ 10
3.3 “Function” ............................................................................................................... 10
3.4 “Device info”............................................................................................................ 11
4. Device Configuration ........................................................................................................... 12
4.1.1．Device-Software ...................................................................................................... 12

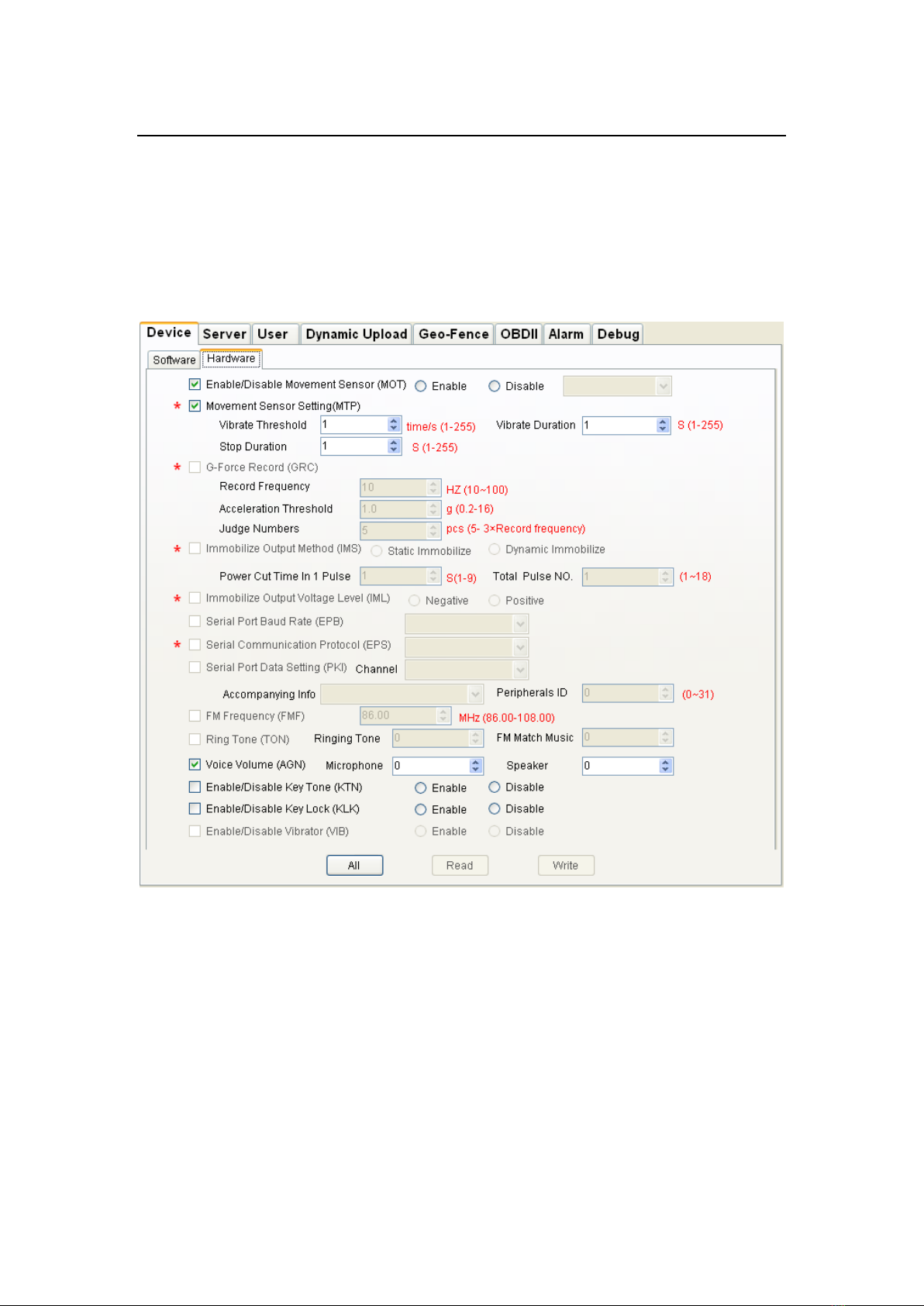

4.1.2．Device-Hardware..................................................................................................... 14
4.2.1 Server-Main ................................................................................................................ 15
4.2.2 Server-SMS Sever ....................................................................................................... 17
4.2.3 Server-TCP/UDP Upload ............................................................................................. 18
4.3.1 User-Main ................................................................................................................... 20
4.3.2 User-SMS Forwarding & Shortcut Key........................................................................ 22
4.3.3 User-Monitor & Communication................................................................................ 23
4.4 Dynamic Upload ............................................................................................................ 24
4.5.1 Geo-Fence-Main ......................................................................................................... 25
4.5.2 Geo-Fence-Geo-Fence Setting.................................................................................... 26
4.6.1 Alarm-Setting.............................................................................................................. 27
4.6.2 Alarm-Alarm Mask...................................................................................................... 28

Configuration Software User Manual
4.7.1 Debug-Command........................................................................................................ 29
4.7.2 Debug-Debug.............................................................................................................. 30

Configuration Software User Manual
1. General Note
1.1 The aim of this document
Gosafe provide this document to describe the functions and operation environment of
configuration software, with the aim of providing a better understanding of using scope and
approaches of the configuration software for the OEM manufacture, What’s more, this
document also provides necessary maintaining and updating information for G606
configuration software.
1.2Copyright
This document is a confidential document, Gosafe reserves all rights to this document and
the information contained herein. Any individual or organization is strictly prohibited to
reproduction, use or disclosure to the third party without permission. Otherwise, we hold
the right to investigate the legal responsibility.
Company address: B301-306, 69 Guangpu West Road, Science & Technology Park,
Guangzhou, China.
Tel: [phone]
E-mail: [email protected]
Website: www.gosafesystem.com
1.3Reference materials
G606 protocol and G606 user manual

Configuration Software User Manual
2. Software Overview
2.1Software usage
The Intended audiences of this document are the distributor and reseller of G606. Who use
the G606 device, this document also provides a fast configuration tool.
2.2Software operation
This software can be operated on both the PC and the compatible machine, it can be used
with Microsoft windows (compatible windows 7), at first, you should decompress the
software, and then click the Icons directly, then you can see the main menu of the software,
you can configure the device as you need. The specific is as following:
2.3Structure of the software
The software consists of three parts, which are configuration file —config.xml; APN list file
—apnlist.txt and executable file —G606.exe.

Configuration Software User Manual
2.4installation of the USB driver for the software
Please connect our device to your computer, you will see the below picture:
Then choose the options as the below picture show you

Configuration Software User Manual
Then click the ‘next’ button to go to the below picture, and we choose as the below picture
show you. Please note that when you are choosing the ‘Browse’ button, you should choose
the configuration file folder. You should choose the configuration file folder which has the
“Anytracking USB.inf” document.

Configuration Software User Manual

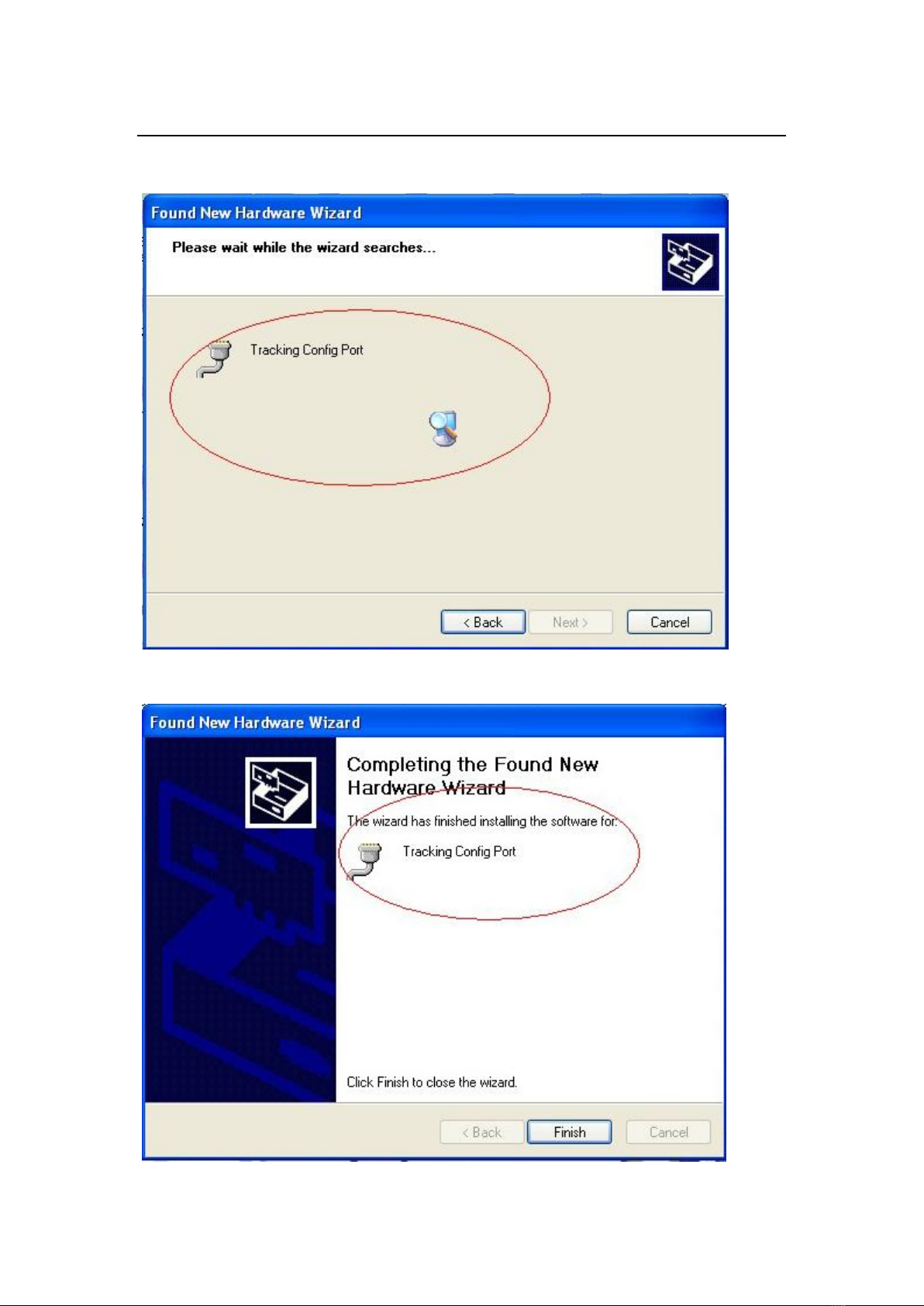

Then press ‘next’ button, you will see the below picture.
Finally the installation is finish and we get the below picture.

Configuration Software User Manual
Note:
If you have not do the installation of the USB driver, the device will cannot be connected to
your computer.
3. G606 user interface overview
Once “G606” is started, and connect to the computer correctly, the tool will start up as
shown in Figure 1.
—Figure 1—
3.1The tool is composed of these tabs:
1. “Device”→”Software”+”Hardware”
2. “Server”→”Main”+”SMS Server”+”TCP/UDP Upload”
3. “User”→”Main”+”SMS Forwarding & Shutcut Key”+”Monitor & Communication”
4. “Dynamic Upload”

Configuration Software User Manual
5. “Geo-Fence”→”Main”+”Geo-Fence setting”
6. “Alarm”→”Setting”+”Alarm Mask”
7. “Debug”→”Command”+”Debug”
Chose the function you need, to read and write the parameter. When the parameter is not
correct, it will show “Command error!”
3.2“Communication” explanation：
1. “Comm ports”→COM10 means the device is connect to Port No. 10 ( computer can
automatic identification);
2. “Device Model”→G606 Product model: G606; Click the button, can choose the
model;
3. “Password “→ default password is“0123456789”（the only one password which can
automatic login the configuration status）.
4. Button :“Connect” means the device is connect with the computer, when the password
is not the default one, need to input the correct one and then press “Connect” button,
then the device can login the configuration status;
5. Button: “Disconnect” means cancel the device connects with the computer;
3.3“Function”
1. “Import”: means import configuration files; first of all, there must be one export
configuration file which was exported before. Can use “Export” to export the
configuration files.
2. “Export”: means export configuration files, it can correctly export the configuration
parameter, first of all, must choose “√”. The purpose is to select the option which needs
to be exported. Otherwise the files will be empty (invalid configuration files).
Notes: when import the file, the content must be same as the export one. When
setting for the bulk order, no need to select all, just choose the one you need, to avoid
the error reminder.
3. “Reset”: means to set the parameters to default configuration；
4. “Restart”: means to restart the device；
