GoSleep 2000 User manual

1
GO SLEEP™- SLEEPING POD MAINTENANCE MANUAL
Short Rest Solutions Oy
Hietatie 6
FI-76850 Naarajärvi
FINLAND
gsm [phone]
info@@unipipe.fi
www.gosleep.fi
Copyright 2014 Short Rest Solutions Oy
GO SLEEP™ 2000
The original instructions

2
TABLE OF CONTENTS
1 The main functions and components
2 Opening and closing Decorative Side Panels
3 Opening the back End Wall and the Top Cover
4 Maintenance of the Actuator and Pillow
5 Maintenance and replacement of the Sliding
Shade Unit
6 Maintenance and function of the Sensor
7 Maintenance of electric parts
8 GoSleep™ side cut drawing
9 Maintenance and cleaning of the upholstery
parts
10 Transportation and logistics

3
GoSleep™pod main functions
Main dimensions
Length 224 cm width, 88cm, height 116 cm
Weight 227 kg
Serial Number Identification information is printed on the shield located underside of the
GoSleep™ Pod

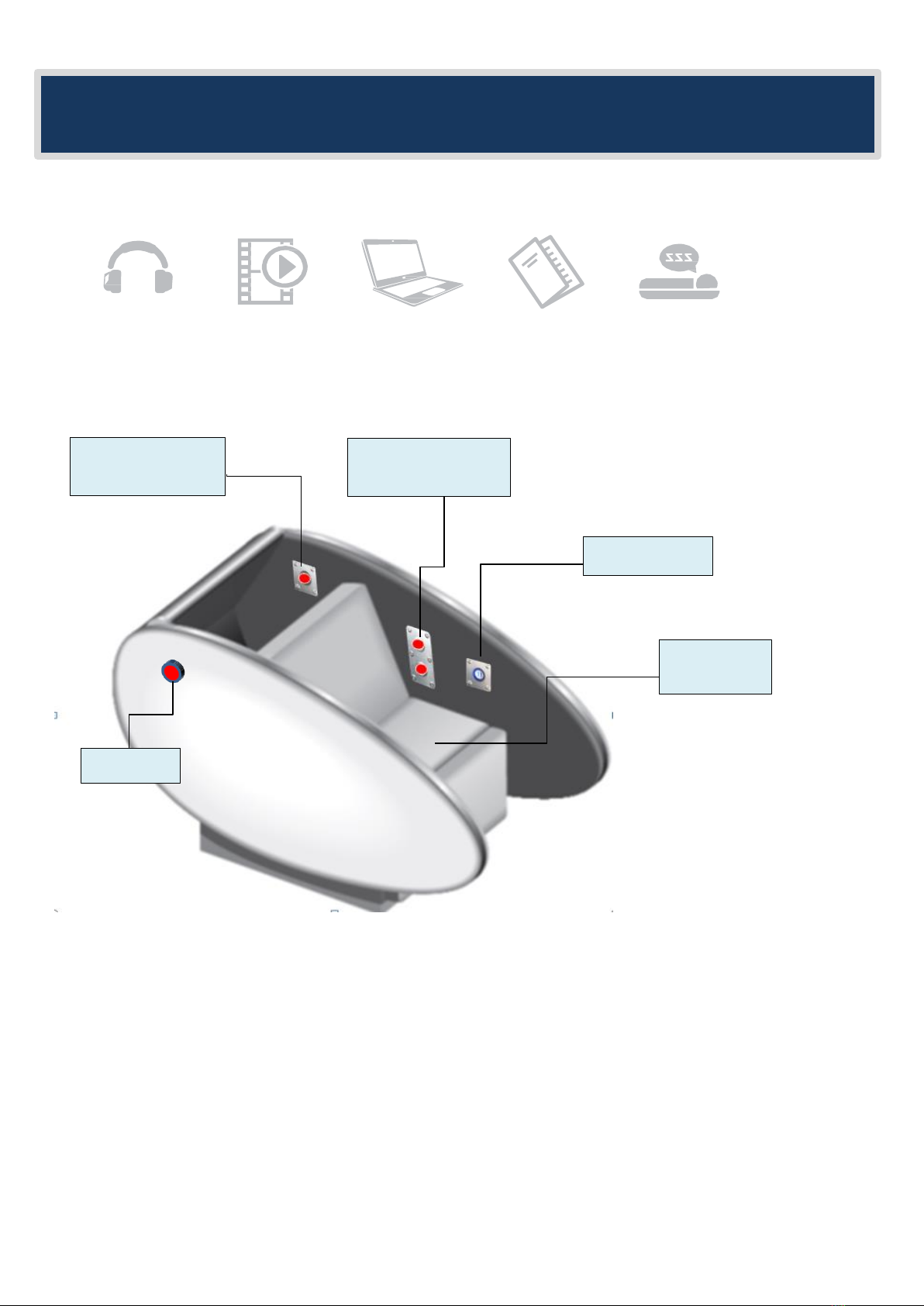

UNI SLEEPING POD MAINTENANCE MANUAL
Emergency button
for alarm light
Backrest up and
down buttons
USB Charger
Luggage
storage
Alarm light

4
WARNINGS AND IMPORTANT SAFETY INSTRUCTIONS
To reduce risk of burns, fire, electric shock or injury of persons
Never handle cables with wet hands or on wet surface
Check the electric cables regularly
Before any maintenance switch electricity off and take plugs from sockets
Keep your hands away from mechanism that may damage fingers or hands
Make sure that there is not anything preventing free movements on GoSleep™ chair
Only authorized electric and maintenance persons are allowed to maintain or repair GoSleep™ Pod
When GoSleep™ Pod is taken in from subzero temperature wait at least one hour before switching
electricity on
Close supervision is necessary when this appliance is used by, on, or near children, invalids,
or disabled persons
Use this appliance only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer
Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water, in that case return the appliance to a service center for
examination and repair
Do not carry this appliance by supply cord or use cord as a handle
Keep the cord away from heated surfaces
Never drop or insert any objects into any opening
Do not use outdoors
Do not operate where aerosol (spray) products are being used or where oxygen is being administered
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances
Be sure to check that there is not anybody (children in particular), pet or obstacle behind prior to inclining
the Backrest, otherwise, it may result in a cause of injury or trouble
Be sure to check that there is not anybody (children in particular), pet or obstacle behind prior to
lowering the Footrest, Otherwise, it may result in a cause of injury
Be careful not to put the hand into the clearance at the underside of Backrest or to the clearance
between the Backrest, otherwise, it may result in a cause of injury
Do not attempt to stand on the Armrest, Footrest or Backrest, otherwise, the chair may fall down,
resulting in injury
Do not attempt to plug/unplug the power plug with wet hands otherwise, it may result in injury or electric
shock
Never attempt to disassemble the chair. Do not allow any personnel other than repair engineer to
disassemble or repair the chair, otherwise, it may result in a cause of fire, electric shock or injury

5
1. Main functions of GoSleep™ Pod and components
Normal functions of the GoSleep™- Sleeping pod are described in next instruction. If there are any
irregularities during operation please follow next maintenance instructions:
Backrest functions
Sliding Shade functions
USB Charger
1.
2.
3.
4.
5.
6.
7.
8.

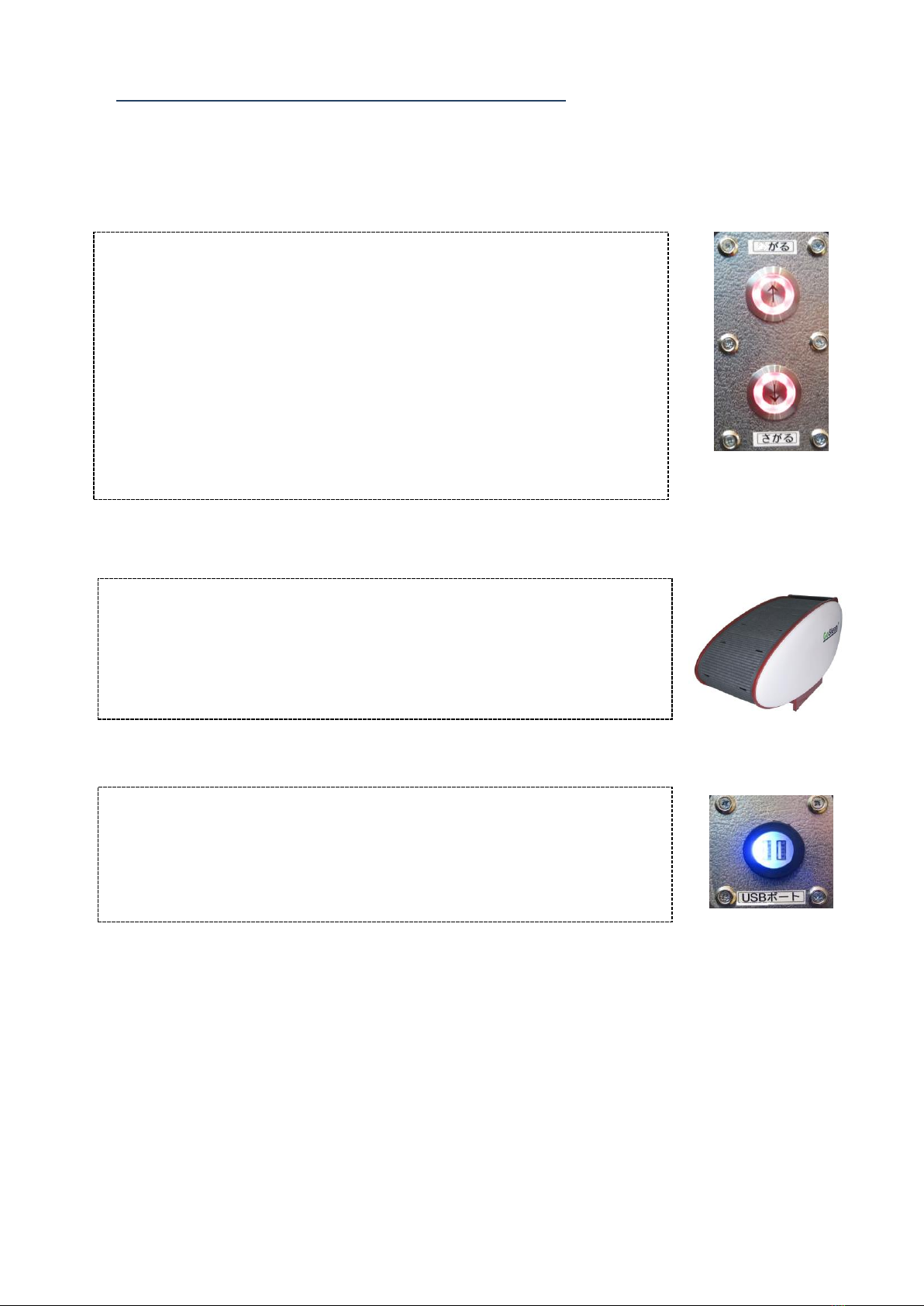

The backrest is operated by pushing up and down buttons attached on the wall
of the unit. There are light on buttons when in use. GoSleep™ chair has two
main positions and all positions between them to be used as a chair and as a
flat bed. Backrest of the chair can´t be raised if the Sliding Shade isn´t totally
opened.
If the backrest position buttons are not working properly:
Check that the Sliding Shade is totally opened
Check that The Sliding Shade moves underneath sensor to the end
position freely
If there is no red light shining on the buttons check main electricity
power supply and fuse
The Sliding Shade is operated manually. It should move smoothly along tracks.
If the movement is not smooth or something is hindering the movement check:
That the Sliding Shade is properly on the tracks
That there are no extra things in/ on the tracks
The USB Charger has light on when functioning properly. It is designed only for
charging small electric devices like phones etc. If not charging properly:
Check the main power supply and fuse, in details at section 7
Check all cable connections

6
9. 2. Opening and closing decorative side panels
Attention! The decorative walls are attached with screws from inside direction
through prefabricated holes. All screws should be tightened with care, not too
tight to avoid damages.
Side panel can be released by Torx-
screws on the bottom of Sliding
Cover track
Release the decorative feet cover
panel. Bend smaller end out and
pull

7
10.3. Opening the Back End Wall and the Top Cover Panel
11.4. Maintenance of the Actuator, Mechanical Parts and the Pillow
12.
13.
14.

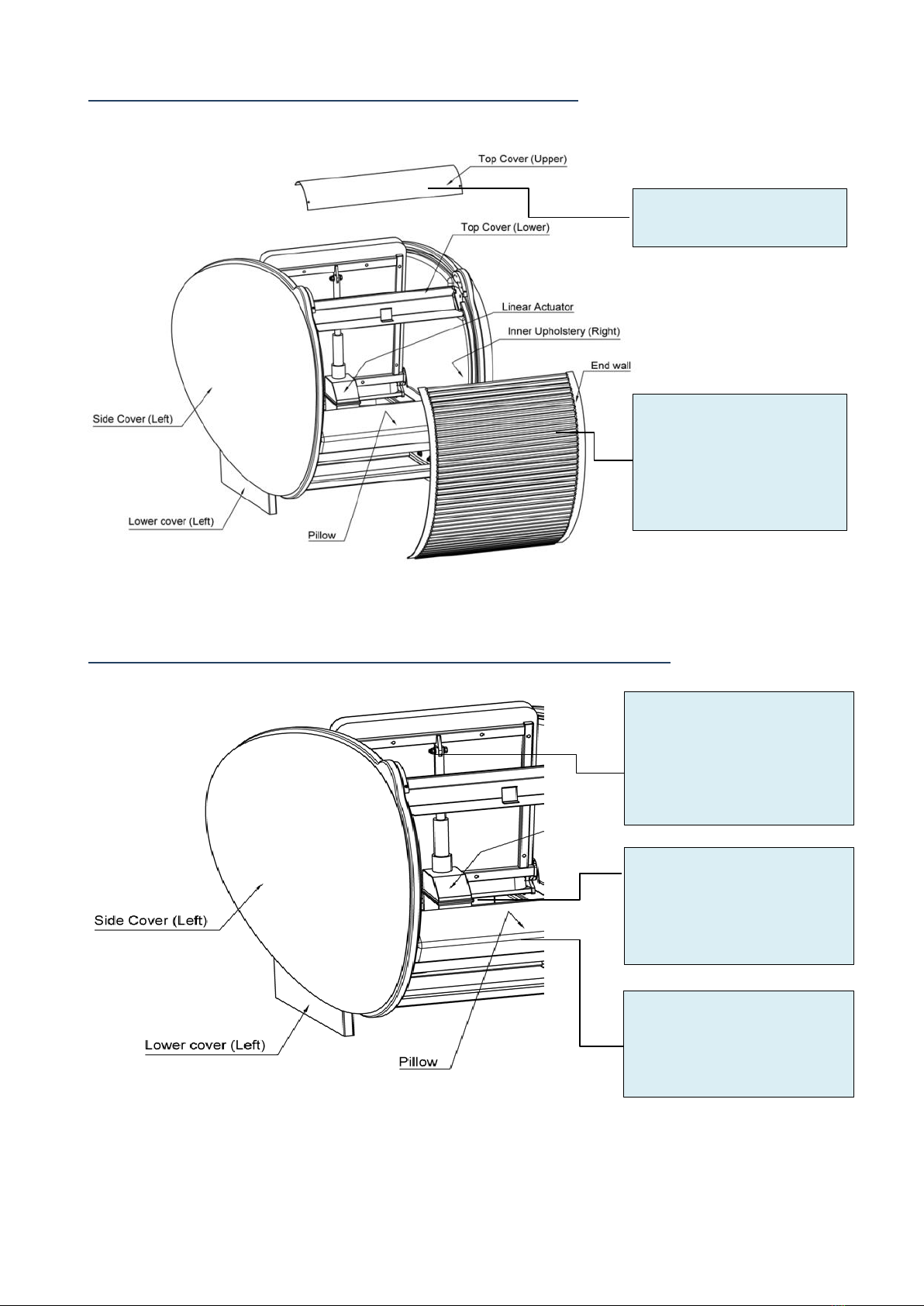

Open the Decorative Cover
Panel. Release screws.
Open the Back Cover Felt
Panel. Release screws.
Maintenance of the pillow
and the actuator is possible
form this side
The pillow is fastened by
screws. Open screws. The
pillow leather cover can be
changed by opening zipper
Open the steel plate between
the Pillow and the seat frame
to enable the Actuator
maintenance
To change the Actuator, open
bolts at the both end of the
Actuator and the electric
cable. Don’t tighten too
hard.

8
15.
16.

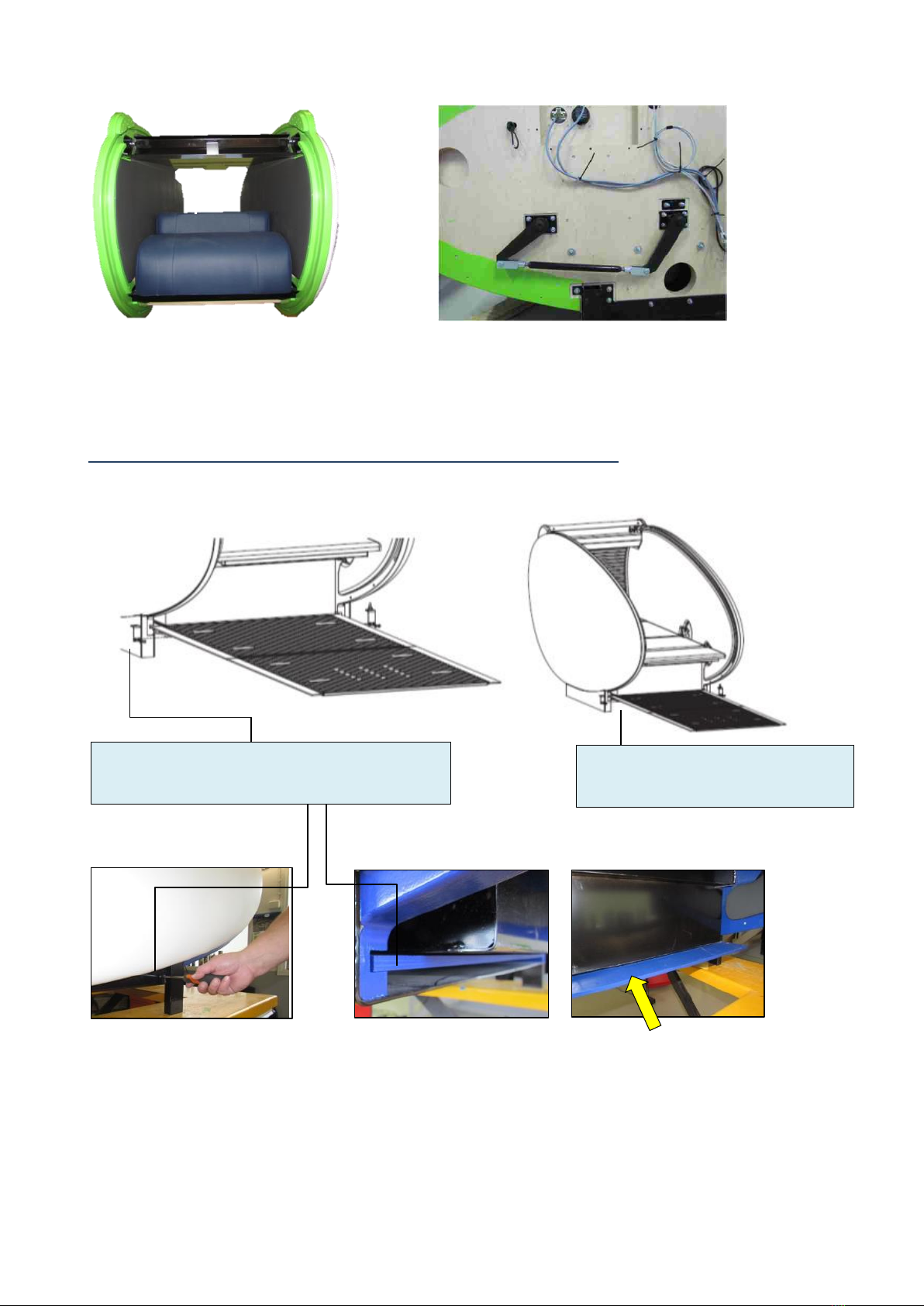

17. GoSleep™ Pod opened from backside Mechanism for seat movements
18. without felt covers
19.5. Maintenance and replacement of the Sliding Shade Unit
20.
Opening the Sliding Shade stopper, stopper material is made of ply wood.
The Sliding Shade Unit should move smoothly to the end position. The sheet metal counterpart
should be properly attached with the sliding cover felt to give a signal to the Sensor when totally
closed to enable safe backrest upwards movement.
The Sliding Shade can be pulled now
out from front of the chair
Open screws located at the positions at the both
sides and pull out the ply wood stopper

9
21.6. Maintenance and function of the Sensor
Backrest upward movement is limited by inductive sensor. Sensor is located at the lowest part of
the tracks on the wall. It is important that the Sliding Shade Unit moves following tracks beneath
the sensor smoothly without touching the sensor at right distance.
22.
23.7. Maintenance of electric parts

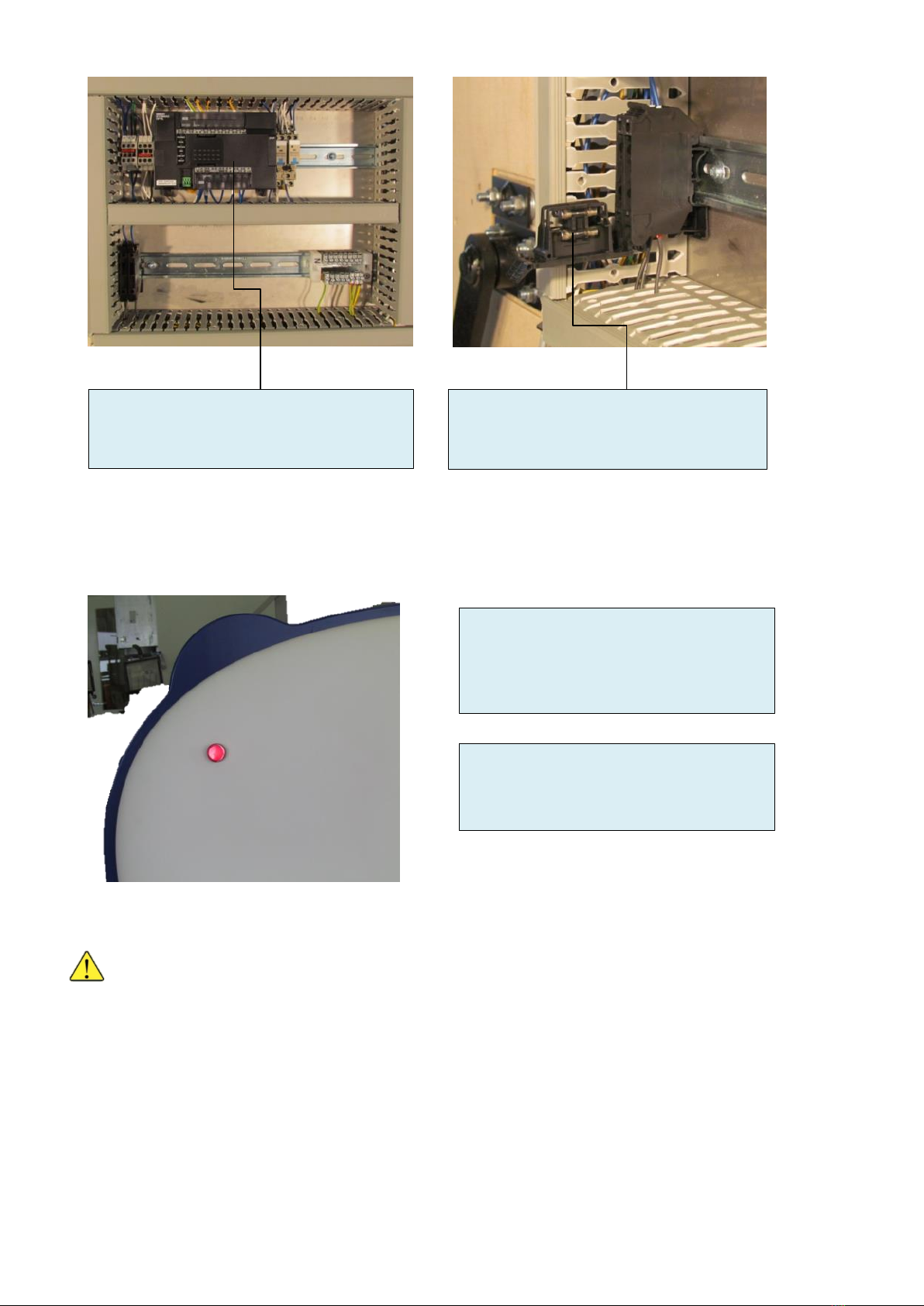

GoSleep™ electric controlling system is located on the wall inside the decorative
panel
Technical information of electric system:
Shock protection 2nd class
Plug type B
Box class IPX 4
Electric Voltage 24 V
Logic control unit, Omron Sysmac CP1L
The back rest can´t be raised up when the Sliding Shade Unit is
closed. The back rest can only be raised when properly opened.
There is a metal counterpart sheet fastened on the Sliding Shade
Unit to enable positions detection of the Sliding Shade. The sensor
distance from the Sliding Shade should be proper 2 –3 mm
If there are irregularities with backrest up and down movements
check that the Sliding Shade don´t touch sensor and moves
smoothly under the sensor. Normally there is no need to adjust
sensor. Always check first the Sliding Shade condition and cable
connections, before operations with sensor
The electric controlling system is located
in the right side decorative panel when
viewed from front of the unit
Follow instructions given at instruction
section no 1 to open the decorative side
panel to reach the electric controlling
center

10
Alarm system for emergency situations
Attention! Only authorized persons are allowed to do electric maintenance
according to the local regulations
GoSleep™ Pod is controlled by logic unit
Omron Sysmac CP1L
Main fuse is located in the electric control
box. To open, pull upper part of the box.
Spare fuse is included
There is red light at the top part of the
decorative side panel. Inside UNI-pod is
an emergency button for emergency
situations
When pushed once the red light will blink
outside. When pushed 20 seconds
continuously the light will stop blinking

11

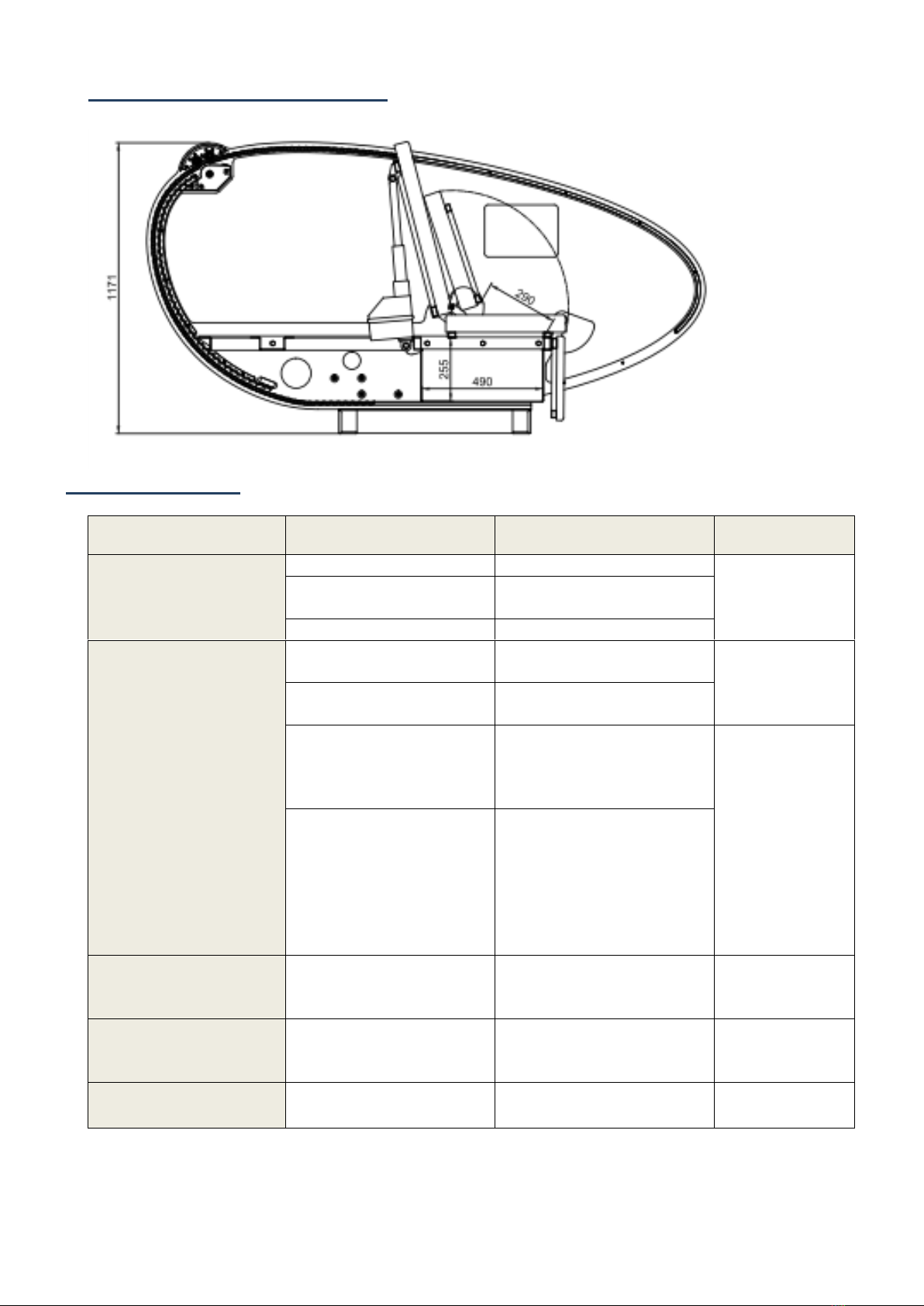

8. GoSleep™Pod side cut drawing
9. Trouble shooting
Symptoms
Check points
Trouble-Shooting
Refer to page
The Chair doesn´t start
up
Is the power cord plugged?
Connect the power cord
2,7
Is the fuse ok?
Open side panels and
replace the fuse
Is adapter giving power?
The Back rest is not
moving
Is the sliding shade at fully
opened position?
Check the open position of
the sliding shade and tracks
5,6
Is there light on the up and
down buttons?
Check power supply
Is the actuator in order?
Check that the actuator
functions normally and the
power cord is attached and
unbroken
1,3, 4, 5, 6, 7
Is the sensor operation
normal?
Check sensor distance from
metal counterpart attached
with the sliding shade
Check sensor reacts with
metal put close to sensor
with shining light
The Sliding Shade
don´t move smoothly
Is there anything extra staff
on or in the tracks?
Remove extra things from
tracks preventing smooth
movement
1,5
The Sliding Shield
stops on the way
Are there extra things
behind backrest or other
places, like pillows etc.?
Remove extra things from
wrong places
USB charger don´t
charge
Is there light on USB
socket?
Check cables and USB port
1

12
24.10. Maintenance and cleaning of the upholstery parts
Leather upholstery parts of the chair unit can be changed easily. Release screws of the damaged
part of the chair. Open zipper and replace new leather upholstery unit. The inside wall parts need
to be changed totally if leather is damaged. Open the decorative side panels. Release screws and
change damaged panel.
To clean upholstery surfaces use mild soap liquid or other suitable cleaning chemical for artificial
leather. Recommendable cleaning chemicals are water based liquids including KVAT. Don’t use
alcohol based or aggressive liquids.
25.
26.10. Transportation and logistic
27.
The right way to transport and move UNI Pod is to use pump trolley from the rear end of the
unit. Take care not to damage Sliding Shade or electric cables during transportation.
