GPro QM40-RD User manual

922134-11 Rev -
08/23
Product Owner’s Manual
QM40-RD
115-volt / 230-volt
Remote Dispenser
2 - 40 GMP (15.14 - 151.42 L/min)
MODELS: QM40-RD

EN
ES
FR
Thank you for choosing Great Plains Industries as your preferred brand! Our
team places innovation, precision, and care into every product made, providing
you with the best total value. This manual contains critical product information.
Save these instructions and observe all safety information to prevent personal injury or property
damage. See back cover for warranty and customer support details.
DO NOT RETURN THIS PRODUCT TO THE STORE!
Please contact Great Plains Industries, Inc. before returning any product. If you are missing parts,
or experience problems with your installation, contact our Customer Support Department. We will
be happy to assist you.
SAVE / GUARDAR / CONSERVEZ
Model / Modelo / Modèle #: �������������������
Serial / Serie / Série #: ������������������������
Date / Fecha / Date:��������������������������
Call / Llamar / Appel: 800-835-0113 or 316-686-7361
Email: [email protected]
Website: gpi.net
¡Gracias por elegir Great Plains Industries como su marca preferida! Nuestro
equipo pone innovación, precisión y cuidado en cada producto fabricado,
proporcionándole el mejor valor total. Este manual contiene información crítica
del producto. Guarde estas instrucciones y observe toda la información de seguridad para evitar
lesiones personales o daños materiales. Consulte la contraportada para obtener detalles sobre la
garantía y el soporte al cliente.
¡NO DEVUELVA ESTE PRODUCTO A LA TIENDA!
Comuníquese con Great Plains Industries, Inc. antes de devolver cualquier producto. Si le faltan
piezas o experimenta problemas con su instalación, comuníquese con nuestro Departamento de
atención al cliente. Estaremos encantados de ayudarle.
Merci d’avoir choisi Great Plains Industries comme votre marque préférée!
Notre équipe place l’innovation, la précision et le soin dans chaque produit
fabriqué, vous offrant la meilleure valeur totale. Ce manuel contient des
informations critiques sur le produit. Conservez ces instructions et respectez toutes
les informations de sécurité pour éviter les blessures corporelles ou les dommages matériels.
Consultez la couverture arrière pour obtenir des détails sur la garantie et le support client.
NE PAS RENVOYER CE PRODUIT AU MAGASIN !
Veuillez contacter Great Plains Industries, Inc. avant de retourner un produit. S’il vous manque
des pièces ou si vous rencontrez des problèmes avec votre installation, contactez notre service
d’assistance à la clientèle. Nous serons heureux de vous aider.

tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
3
SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION OPERATION MAINTENANCE
EN
GETTING STARTED
BEFORE YOU BEGIN
This manual covers all models of the QM40-RD Remote Dispenser, except where
noted.
Fueling Requirements
• All models of the Remote Dispenser are UL listed power operated petroleum
dispensing devices designed for use with gasoline, diesel, and kerosene
fuel.
• DonotusethisRemoteDispenserfordispensinganyuidsotherthanthose
for which it was designed. Using the dispenser with other fuels can damage
components and void the dispenser warranty.
• The Remote Dispenser IS NOT supplied with a pump. A UL Listed pump,
that does not exceed the electrical rating of the dispenser switch, is to be
supplied by the customer.
• An upstream, in-line mesh strainer must always be
installed when operating this meter; otherwise, particles
may enter the meter chamber and disrupt the smooth operation of the oval
gears.
• The Remote Dispenser comes equipped with a GPRO® QM Meter with
reset knob. The QM meter is for non-resale applications and has ±0.5%
accuracyat2-40GPM(8-150L/min)owrate.
Power Source Requirements
• The Remote Dispenser can operate with a 115-volts AC (60Hz) or 230-volts
AC(60Hz)pump.Ithasanintegralsafetyshuto󰀨solenoidvalvethatopens
simultaneously when the pump is turned on with the dispenser switch lever.
Tools Needed
• Adjustable Wrench, Pipe Wrench, Socket Set, Phillips Head Screwdriver,
Torque Wrench (in/lb) and thread tape or a pipe thread sealing compound
approved for use with petroleum fuels
UNPACKING
Contents
• (1) QM40-RD-G or (1) QM40-RD-L
Remote Dispenser
• (1) Nozzle cover and hardware
• (1) 1 inch 90 degree Elbow Fitting, and (1) 3/4 inch reducer bushing
• (1) Reset Knob, (1) Unleaded Fuel Gear, (1) Y-Strainer, and (1) 5 mm L-key
Hex Wrench
Inspect
• After unpacking the unit, inspect carefully for any damage that may have
occurred during transit. Check for loose, missing or damaged parts.
Shippingdamageclaimsmustbeledwithcarrier.
• Review General Safety Instructions and all Caution, Warning, and Danger
statements as shown.

MAINTENANCE OPERATION ASSEMBLY /
INSTALLATION GETTING STARTED
4
EN
SAFETY /
SPECIFICATIONS
GENERAL SAFETY INSTRUCTIONS
IMPORTANT: It is your responsibility to:
• Know and follow applicable national, state and local safety codes pertaining
toinstallingandoperatingelectricalequipmentforusewithammable
liquids.
• Know and follow all safety precautions when handling petroleum fuels.
• Ensure that all equipment operators have access to adequate instructions
concerning safe operating and maintenance procedures.
Observe all safety precautions concerning safe handling of petroleum fuels.
To ensure safe operation, all remote dispensing systems must
be properly grounded. Proper grounding means a continuous
metal-to-metal contact from one component to the next, including tank, bung, pump,
dispenser, filter, hose and nozzle. Care should be taken to ensure proper grounding
during initial installation and after any service or repair procedures.
To prevent physical injury or property damage, observe
precautions against fire or explosion when dispensing fuel. Do
not operate the system in the presence of any source of ignition including running or
hot engines, lighted tobacco products, gas or electric heaters, or any type of electronic
device. A spark can ignite fuel vapors.
Observe precautions against electrical shock when operating the
system. Serious or fatal
shock can result from operating electrical equipment in damp
or wet locations.
Observe precautions against electrical shock when servicing the
pump. Always disconnect power before repairing or servicing.
Never apply electrical power
to the system when any of the coverplates are removed.
Avoid prolonged skin contact with petroleum fuels. Use
protective goggles, gloves and aprons in case of splashing or
spills. Change saturated clothing and wash skin promptly with soap and water.
This dispenser is designed for use only with thin viscosity
petroleum fuels such as diesel and kerosene. Do not use this
dispenser for dispensing any other fluids other than those for which it was designed.
To do so may damage system components and will void the warranty.
This pump shall not be used for pumping fuel
or other liquids into aircraft.
An upstream, in-line mesh strainer must always be installed
when operating this meter; otherwise, particles may enter the
meter chamber and disrupt the smooth operation of the oval gears.
If using solvent to clean pump components
or tank, observe the solvent manufacturer’s recommendations
for safe use and disposal.

5
GETTING STARTED ASSEMBLY /
INSTALLATION OPERATION MAINTENANCE
EN
SAFETY /
SPECIFICATIONS
SPECIFICATIONS
QM40-RD METER
The QM40-RD Remote Dispenser is designed for use with gasoline, diesel, and
kerosene fuel. All models are designed for permanent mounting on vented storage tanks,
either in-ground or above ground.
Unit of Measure U.S. Gallons or Litres
Flow Range 2 to 40 GPM (15.14-151.42 L/min)
Typical Accuracy
(Factory Set)1
Diesel: ±0.5% (15-30 GPM/57-113 L/min)
±1.0%allotherowrates
Unleaded: +0.5% to -1.5% (15-30 GPM/57-113 L/min)
±2.0%allotherowrates
Typical Accuracy
(Field/Customer Set)1
Diesel:±0.25%atagivenow(15-30GPM/57-113L/min)
±0.5%allothergivenows
Unleaded:±0.5%atagivenow(2-23GPM/8-87L/min)
±0.5%atagivenow(23-40GPM/87-150L/min)2
Type Positive Displacement Oval Gear
Housing Material Aluminum
Maximum Working Pressure 50 PSI (3.4 bar)
Inlet/Outlet Fitting Size 1-inch NPT
Maximum Batch Total 999.9 Gallons (9999 Litres)
Maximum Cumulative Total 9,999,999.9 Gallons (99,999,999 Litres)
QM40-RD DISPENSER
Performance Duty Cycle: Continuous
Input 115 volt AC, 60 Hz / 230 volt AC, 60 Hz
Inlet/Outlet 1-inch NPT pipe nipple
Conduit 1/2 inch rigid NPT
Switch 12A 250 volts AC / 17A 125 volts AC
1HP 250 volts AC
Solenoid 10 Watts / 120 volts AC, 60 Hz
110 volts AC, 50/60 Hz
Security Nozzle can be padlocked
Shipping Weight 55.8 lbs. (25.3 kg)
Certications cULus Listed
1Results may vary due to application variations.
2Unleaded Fuel Kit required (see Maintenance)

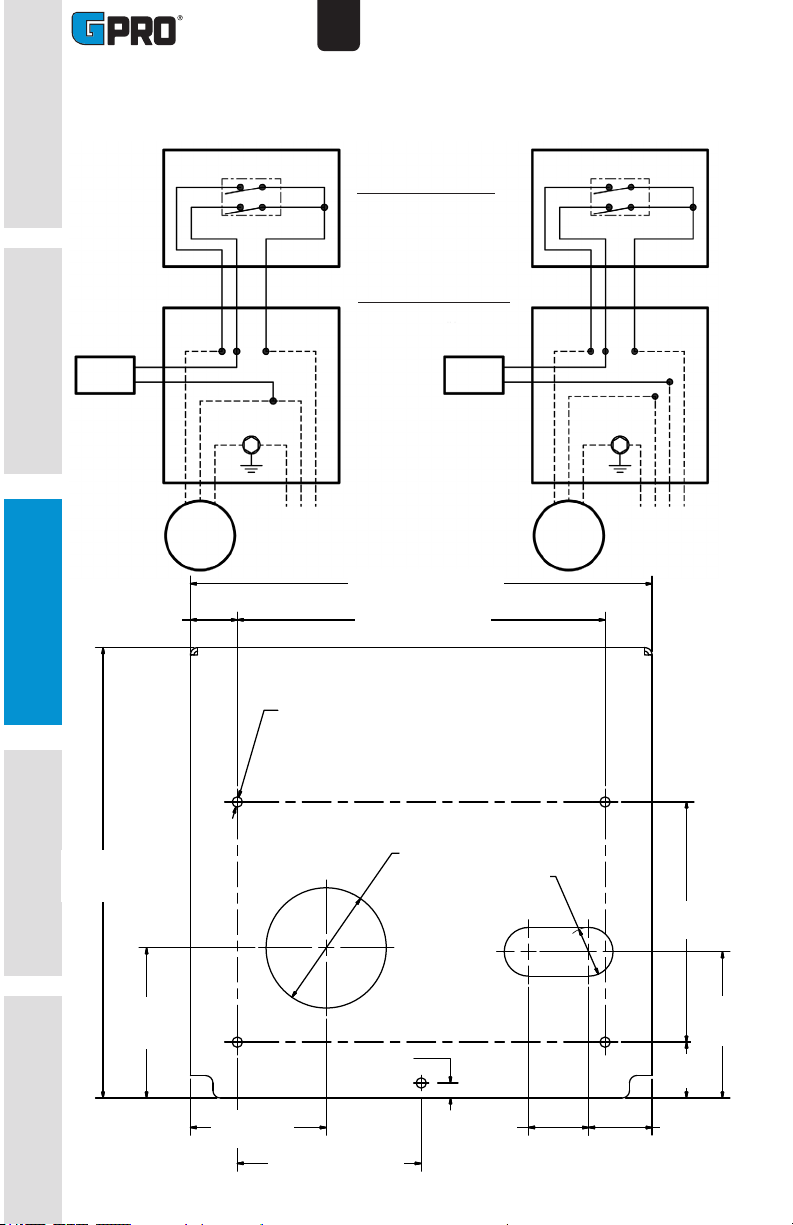

542.65 [21.364 in]
398.89 [15.704 in]
324.26 [12.766 in]
341.00 [13.425 in]
285.12 [11.225 in]
542.65 [21.364 in]
398.89 [15.704 in]
324.26 [12.766 in]
341.00 [13.425 in]
285.12 [11.225 in]
A
B
C
D
E
MAINTENANCE OPERATION ASSEMBLY /
INSTALLATION GETTING STARTED
6
EN
SAFETY /
SPECIFICATIONS
Figure 1
QM40-RD
Dimensions Inches (cm)
A. Overall Assy Width 21.36 (54.26)
B. Cabinet Width 15.70 (39.88)
C. Cabinet Height 12.54 (31.85)
D. Overall Assy Depth 13.42 (34.10)
E. Cabinet Depth 11.22 (28.51)
SPECIFICATIONS (CONTINUED)

7
GETTING STARTED SAFETY /
SPECIFICATIONS OPERATION MAINTENANCE
EN
ASSEMBLY /
INSTALLATION
INSTALLATION INSTRUCTIONS
Coverplates protect the operator from moving parts. Never
operate the pump without coverplates in place. Never apply
electric power to the pump without coverplates in place. Always disconnect power
before repairing or servicing.
An upstream, in-line mesh strainer must always be installed
when operating this meter; otherwise, particles may enter the
meter chamber and disrupt the smooth operation of the oval gears.
Mechanical Connections
NOTE: All threaded fuel connections must be sealed with thread tape or a pipe
thread sealing compound approved for use with petroleum fuels, and tightened
securely to prevent leakage.
NOTE: This dispenser must be installed to conform to all federal, state, and
local codes including the National Electrical Code (NFPA 70), Flammable and
Combustible Liquids Code (NFPA 30) and Code for Motor Fuel Dispensing
Facilities and Repair Garages (NFPA 30A) as they apply for non-commercial
applicationonxed,above-groundstoragetankswithamaximumcapacitynot
to exceed 6,000 gallons (22,700 litres) or Canadian Electric Code C22.1 as
applicable. The tank must not be accessible to the public. This dispenser may
also be mounted on underground tanks.
NOTE: When used with an above-ground storage tank, a UL Listed emergency
shut-o󰀨(shear)valvewithafusiblelinkmustbeinstalledbelowthedispenser
(see Figure 2).
NOTE: This dispenser is designed to mount directly onto a support bracket (not
included) attached to an above-ground storage tank, or mounted onto an island
pedestal.
1. Ensure pump (not included) is mounted securely onto top of tank and
oriented for most direct pipe routing to dispenser.
2. Ensurethatmountingbracket(notincluded)fordispenserisrmlyattached
at the desired dispenser height and located to allow for the most direct pipe
routing from pump to dispenser.
3. Install dispenser onto mounting bracket.
4. Install Y-Strainer (provided) to dispenser inlet.
5. Installemergencyshut-o󰀨valve(notsupplied)todispenserinlet.Valve
should be positioned to mount rigidly to tank and not rely on dispenser for
support.
6. Install piping, valves and other required components between pump and
emergencyshut-o󰀨valve(seeFigure2).Thepipingisnotintendedto
support the dispenser or pump in any manner.

MAINTENANCE OPERATION SAFETY /
SPECIFICATIONS GETTING STARTED
8
EN
ASSEMBLY /
INSTALLATION
INSTALLATION INSTRUCTIONS (CONTINUED)
Hose Nozzle Valves and Hoses
All accessories must be UL listed. Approved accessories for use with this remote
dispensing system are:
• UL listed interchangeable service station type hose nozzle valve. Use of
othero󰀨-the-shelfnozzlesmayresultinmalfunctionandreducedsystem
performance
• Any UL Listed hose assembly
NOTE: DO NOT use check valves.
Figure 2
GATEVALVE(NFPA30,4.3.2.5.1)
ELEVATEDTANKSFORGRAVITY
DISCHARGEMUSTALSOHAVEAN
EMERGENCYVALVE(NOTSHOWN)
THAT CLOSES IN CASE OF FIRE
(NFPA 30A, 13-2-3-10(3).
VACUUMBREAKER
(NFPA 30A, 4.3.6.4)
EXPANSIONRELIEFVALVE
(NFPA 30A, 4.3.6.5)
UL LISTED PUMP
1/2" RIGID CONDUIT
EMERGENCY
VENTVALVE
(NFPA 30, 4.2.5.2.1)
1" PIPE
GPI
®
QM40-RD
REMOTE
DISPENSER
EMERGENCY
SHUT-OFFVALVE
(NFPA 30A, 6.3.9)
1/2" RIGID
CONDUIT
SUCTION TUBE
STRAINER
RECOMMEND TERMINATE 3 IN.
(7.8cm)ORMOREABOVEBOTTOM
SUCTION TUBE
SPILL CONTAINER
(NFPA 30A, 4.3.2.8)
PRESSUREVACUUM
VENTCAP
(NFPA 30, 4.2.5.1.6)
TERMINATE WITHIN 6 IN. (15.2 cm)
OF BOTTOM (NFPA 30, 4.3.2.5.4)
FILL TUBE
OVERFILL
PROTECTIONVALVE
(NFPA 30A, 4.3.3.4.2
PRESSURE-VACUUM
VENTVALVE
(NFPA 30, 4.2.5.1.6)
12 FT. MIN.
(NFPA 30,
5.7.1.1)
Y-STRAINER

9
GETTING STARTED SAFETY /
SPECIFICATIONS OPERATION MAINTENANCE
EN
ASSEMBLY /
INSTALLATION
INSTALLATION INSTRUCTIONS (CONTINUED)
Install Dispenser and Accessories
The remote dispenser is available as a dispenser only (customer provides an
approved hose nozzle valve and hose assembly). A 1 inch NPT 90 degree
elbow,1inchto3/4inchNPTreducertting,andanozzlecover(withattaching
hardware that will need to be installed onto the dispenser) are included.
Attach the 90 degree elbow to the outlet pipe on the back of the dispenser. This
will accommodate a 1 inch NPT hose assembly. When installing a 3/4 inch NPT
hose assembly, install the reducer bushing into the 90 degree elbow. Install hose
assembly and hose nozzle valve. All threaded fuel pipe connections must be
made with a gasoline-resistant pipe joint sealing compound.
For UL Listed interchangeable nozzles, attach nozzle cover using mounting hole
positions (see Figure 3 and Figure 4), or label on side of cabinet.
1. Removefastenersandlifttoppanelo󰀨ofcabinet.
2. Attach nozzle cover to side of top panel at the hole locations shown.
3. Install top panel and fasteners.
Figure 3
Figure 4
For any UL listed interchangeable
service station type hose nozzle
valve
NOZZLE COVER

MAINTENANCE OPERATION SAFETY /
SPECIFICATIONS GETTING STARTED
10
EN
ASSEMBLY /
INSTALLATION
INSTALLATION INSTRUCTIONS (CONTINUED)
Electrical Connections
The Remote Dispenser must be installed by a licensed electrician
and conform to National Electrical Code (NFPA 70), Flammable
and Combustible Liquids Code (NFPA 30) and Code for Motor Fuel Dispensing
Facilities and Repair Garages (NFPA 30A) or Canadian Electric Code C22.1 as
applicable. You, as the owner, are responsible for seeing that the installation and
operation of your dispenser complies with NFPA codes as well as any applicable state
and local codes. Rigid conduit must be used to install wiring.
To reduce the risk of ignition of hazardous atmospheres, conduit runs must have a
sealing fitting connected within 18 inches of the enclosure.
Failure to follow these wiring instructions may result in death or
serious injury from shock, fire or explosion.
The dispenser must be properly grounded to avoid personal
injury. Operating an ungrounded or improperly grounded
dispenser may result in death due to electrical shock, fire or explosion.
Electrical wiring and connections must be made only by a licensed electrician
in accordance with national, state and local electrical codes regarding Class 1,
Division 1, Group D locations. Other codes may apply.
Refer to wiring diagrams for dispenser. The junction box inside the dispenser has
1/2 inch NPT threaded hubs for conduit connections. All electrical connections
shallbemadewiththreadedrigidconduit,sealingttingsandconductorseals.
Outside the United States, installation should be performed in compliance with
local codes.
Wiring Details
1. To access the junction box inside the dispenser, remove top cover then
remove the front panel. Remove the junction box cover (see Figure 5).
Avoid damaging the machined mating surfaces of the junction
box and its coverplate, as this precision seal is necessary to
ensure the junction box retains its explosion proof integrity.
2. Install 1/2 inch rigid conduit and electrical cable from pump motor junction
boxtothe90degreettingonleftsideofjunctionbox(seeFigure6).Install
1/2 inch rigid conduit and electrical cable from power source to opening in
bottomofjunctionbox(seeFigure6).Useonlycodespeciedelectrical
cable with ground wire.
3. Withpowerturnedo󰀨,usewirenutstoconnectpumpwires,solenoidwires
and power wires to switch leads per appropriate wiring diagram (115-volts
AC or 230-volts AC Pump). The switch leads enter the junction box through
the right side opening and the solenoid wires through the back opening. The
top opening is plugged.
4. Optional Pulser can be installed on internal junction box. Refer to
instructions provided with the GPI Pulser Kit.

11
GETTING STARTED SAFETY /
SPECIFICATIONS OPERATION MAINTENANCE
EN
ASSEMBLY /
INSTALLATION
INSTALLATION INSTRUCTIONS (CONTINUED)
5. Attach ground wires to ground screws in junction boxes (pump and
dispenser) and to ground source.
6. Position wires inside the junction box and replace the coverplate. Reinstall
the front panel and top cover.
Figure 5
Figure 6
GROUND SCREW
(GREEN)
1/2" RIGID CONDUIT AND CABLE TO
POWER MOTOR
1/2" RIGID CONDUIT AND
CABLE FROM POWER SOURCE

1.56 in
[39.7 mm]
4.52 in
[114.9 mm]
6.125 in
[155.6 mm]
2.11 in
[53.6 mm]
12.25 in
[311.2 mm]
15.375 in
[390.5 mm]
2.00 in
[50.8 mm]
.34 in
[8.7 mm]
5X
1.625 in
[41.3 mm]
2X
4.00 in
[101.6 mm]
.50 in
[12.7 mm] 1.86 in
[47.2 mm]
4.87 in
[123.7 mm]
5.00 in
[127.0 mm]
8.00 in
[203.2 mm]
15.00 in
[381.0 mm]
VIEW LOOKING DOWN
ON DISPENSER
MOUNTING PLATE
MAINTENANCE OPERATION SAFETY /
SPECIFICATIONS GETTING STARTED
12
EN
ASSEMBLY /
INSTALLATION
INSTALLATION INSTRUCTIONS (CONTINUED)
115-Volts AC 230-Volts AC
Figure 7
Figure 8
15.375 in. [390.5 mm]
12.25 in. [311.2 mm]
6.125 in. [155.6 mm]
4.52 in.
[114.9 mm]
8.00 in.
[203.2 mm]
4.87 in.
[123.7 mm]
2.11 in.
[53.6 mm]
2.00 in.
[50.8 mm]
1.86 in.
[47.2 mm]
1.56 in.
[39.7 mm]
15.0 in.
[381.0 mm]
5.00 in.
[127.0 mm]
5X Ø.34 in.
[Ø8.7 mm]
2X Ø1.63 in.
[Ø41.3 mm]
.50 in.
[12.7 mm]
Ø4.00 in.
[Ø101.6 mm]
14 BLK
14 BLUE
14 BLUE
18 RED
18 RED
115-VOLTSAC
60 HZ PUMP
MOTOR
14 BLK
14 BLK
SWITCH BOX
AC J-BOX
14 BLK
14 BLUE
SWITCH SPECIFICATIONS
DPST
12A250-VOLTSAC
17A125-VOLTSAC
1HP250-VOLTSAC
SOLENOID SPECIFICATIONS
10 WATTS
120-VOLTSAC/60HZ
110-VOLTSAC/50HZ
18 RED
SOLENOID
VALVE
230-VOLTSAC
60 HZ PUMP
MOTOR
GRND
SCREW
Dashed Lines
Indicate
Field Wiring
GROUND
L2
NEUTRAL
L1
GRND
SCREW
GROUND
NEUTRAL
HOT
SOLENOID
VALVE 18 RED
14 BLUE
14 BLK
14 BLK
AC J-BOX
SWITCH BOX
FRONT OF
DISPENSER 

13
GETTING STARTED SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION MAINTENANCE
EN
OPERATION
OPERATION
To prevent physical injury, observe precautions against fire or
explosion when dispensing fuel. Do not operate the dispenser in
the presence of any source of ignition including running or hot engines, lighted
cigarettes, or gas or electric heaters.
Observe precautions against electrical shock when operating the dispenser. Serious or
fatal shock can result from operation of electrical equipment in damp or wet locations.
Avoid prolonged skin contact with petroleum fuels. Use
protective goggles, gloves, and aprons in case of splashing or
spills. Change saturated clothing and wash skin promptly with soap and water.
An upstream, in-line mesh strainer must always be installed
when operating this meter; otherwise, particles may enter the
meter chamber and disrupt the smooth operation of the oval gears.
Afterhose,nozzle,lter,andotheraccessories,havebeeninstalled,thesystem
should be purged of air. Hold the nozzle open into the tank opening or container
and turn on the system by lifting the switch lever to the “ON” position (see Figure
10). Allow the pump to prime and discharge any air from the system.
Fuel Meter
The large meter display represents the Batch Total for each fuel delivery. Before
dispensing, reset the Batch Total to zero by turning the reset knob (see Figure 9).
The small display represents the Cumulative Total of all fuel deliveries and
cannot be reset (see Figure 9).
Figure 9
Reset Knob
Batch Total
Display
Cumulative Total
Display

MAINTENANCE ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS GETTING STARTED
14
EN
OPERATION
OPERATION (CONTINUED)
To Dispense Fuel
1. Remove the nozzle from the nozzle hanger. Turn the pump on by lifting
upward on the switch lever
(see Figure 10).
2. Insert the nozzle into the receiving tank and squeeze the handle to dispense
fuel.
3. Afterdispensingfuel,pushtheswitchleverdowntoturnthepumpo󰀨and
return nozzle to the holder. The pump motor cannot be operated with nozzle
in position on the holder. Use the holes provided to lock nozzle in place to
prevent unauthorized use (see Figure 11).
Lift cradle to
turn ON
Cradle shown in OFF position

Cover and Screws
Calibration Screw
Figure 10 Figure 11
Figure 12

15
GETTING STARTED SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION MAINTENANCE
EN
OPERATION
OPERATION (CONTINUED)
Coverplates protect the operator from moving parts. Never
operate the remote dispenser without coverplates in place. Never
apply electric power to the remote dispenser without coverplates in place. Always
disconnect power before repairing or servicing.
An upstream, in-line mesh strainer must always be installed
when operating this meter; otherwise, particles may enter the
meter chamber and disrupt the smooth operation of the oval gears.
Meter Calibration
The meter is accurately calibrated at the factory for use with diesel fuel. Due to
di󰀨erencesinviscosityandowrates,themetermayrequirerecalibrationto
measure other fuels or to adjust for inaccuracies.
Purge air from the meter and fuel system by dispensing fuel into a container
untilafullowoccurs.Closethenozzle.
Reset the meter batch counter to zero by twisting the knob on the side of
the unit (see Figure 9).
 Pumpintoagraduatedcalibrationcontainertoaspeciedquantity.Forthe
greatest accuracy, be sure the container is placed on a level surface and a
consistentowrateisused.Whentoppingo󰀨thecalibrationcontainer,use
a quick-open and quick-close method until the mark is reached.
Compare the meter display to the quantity in the container. If the display
does not register the quantity on the container, adjust the meter by
performing the following:
a. Remove cabinet top cover. Gain access to the recessed calibration screw
by removing the 4 screws and calibration screw cover on back of meter (see
Figure 12).
b. Using the 5 mm hex L-wrench (provided) with the meter, adjust the
calibration screw as required.
NOTE: The calibration screw setting may have been adjusted at the factory. The
gasoline setting is approximately fully closed (turn clockwise). Do not overtighten
the screw against the seat.
c. If the meter registered less than the quantity in the container, turn the
calibration screw clockwise. If the meter display reads more than the
amount in the container, turn the calibration screw counterclockwise.
Empty the calibration container and repeat steps 2 to 4 until the meter
registers the quantity in the container.
Reinstall the plate, (4) screws and the O-ring seal if removed. Tighten (4)
screws to 42-46 lb-in (4.75-5.20 Nm) torque. Replace cabinet top.

Figure 13
MAINTENANCE ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS GETTING STARTED
16
EN
OPERATION
OPERATION -METER (CONTINUED)
Optional Calibration - Unleaded Fuel Gear Kit
NOTE:Themetercanbeeldcalibratedforusewithunleadedfuel
(see Meter Calibration), however, a replacement gear is included to increase
accuracy when using unleaded fuel.
NOTE:Thereplacementgeariswhiteforeasyidentication.Retaintheblack
gear to change the meter back to a diesel calibration if needed
(see Figure 13).
1. Remove the 4 top cover screws and top cover, along with the faceplate.
2. Using a Phillips screwdriver, remove the 2 counter register screws and
counter register (see Figure 13).
3. Usingasmallatscrewdriver,pryo󰀨theretainingring.
4. Remove the black gear and replace with the white gear.
5. Press replace the retaining ring. Leave a small amount of space between
ring and gear.
6. Replace counter register and screws.
7. Replace top cover and screws, along with the faceplate.
Retaining Ring
Counter
Register Screw
Counter
Register
Black Gear
White Gear
Pay attention to beveled drive
gear. Gear is not retained when
counter assembly is removed
and can easily be lost.

0
1
2
3
4
5
6
7
8
-1.5
-1.0
-0.5
0.0
0.5
1.0
1.5
0 5 10 15 20 25 30 35 40
PRESSURE DROP PSI
ERROR %
FLOWRATE GPM
ACCURACY & PRESSURE DROP vs FLOWRATE - DIESEL
FACTORY SETTING NOMINAL UPPER RANGE FACTORY SETTING NOMINAL LOWER RANGE
CALIBRATION SCREW IN CALIBRATION SCREW OUT 2 TURNS PRESSURE DROP
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
-1.5
-1.0
-0.5
0.0
0.5
1.0
1.5
2.0
0 5 10 15 20 25 30 35 40
PRESSURE DROP PSI
ERROR %
FLOWRATE GPM
ACCURACY & PRESSURE DROP vs FLOWRATE - UNLEADED
SCREW IN ORIGINAL EQUIPMENT SCREW IN WITH GEAR KIT
SCREW OUT 2 TURNS WITH GEAR KIT PRESSURE DROP
OPERATION -METER (CONTINUED)
Calibration Curves
Figure 14
17
GETTING STARTED SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION MAINTENANCE
EN
OPERATION

OPERATION ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS GETTING STARTED
18
EN
MAINTENANCE
TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE(S)CORRECTIVE ACTION
Meter counter doesn’t
operate (normal fuel
delivery)
1. Foreign material in counter
assembly
1. Remove and clean counter
assembly
2. Missing or worn bevel gear 2. Replace bevel gear (Fig 13)
3. Counter misalignment 3. Look for loose or missing
fasteners, bent or misaligned parts
4. Broken counter assembly 4. Replace counter assembly
Meter counter doesn’t
operate (little or no
fuelow)
1. Clogged fuel strainer 1. Clean or replace strainer
2. Jammed rotors from
foreign material in rotor
assembly
2. Remove and clean rotor
assembly
3. Other system components
malfunctioning
3. Check all system components
(from tank to nozzle) for clogs and/
or malfunctions. Clean or replace as
necessary
Fuel leakage 1. Leakage at threads 1. Remove meter and reseal
all threaded connections using
thread tape, or pipe thread sealing
compound approved for use with
ammableliquids
2.Leakageatttings 2.Removettingsandinspectfor
damaged, missing or incorrectly
seated seals. Replace as required
3. Leakage between
coverplate and housing
3. Remove coverplate and inspect
for damaged, missing or incorrectly
seated seal. Replace as required
4. Leakage at counter drive
shaft
4. Remove meter and reseal
all threaded connections with
thread tape or pipe thread sealing
compound approved for use with
ammableliquids
Dispenser does not
operate (pump is
running and delivering
fuel to inlet)
1. Switch defective 1. Remove coverplate from
switchbox and inspect switch.
Replace if necessary
2. Electrical connections
faulty
2. Check for defective wiring and/or
connections or improper electrical
connections. Replace as needed
3. Solenoid valve defective 3. If power is being supplied to
solenoid valve but it does not
open, replace solenoid valve

NOTES/ NOTAS/ REMARQUES
19

OPERATION ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS GETTING STARTED
20
EN
MAINTENANCE
REPAIR PARTS ILLUSTRATION FOR QM40-RD -METER
Do not return the meter or parts without prior approval from the
GPI Customer Service Department. Due to strict government
regulations, GPI cannot accept parts unless they have been drained and cleaned.
H
G
A
A
A
C
L
B
E & F
J & K
D
