Graco President E Series Operation manual

Instructions – Parts List
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 2001, Graco Inc. is registered to I.S. EN ISO 9001
PresidentrPump
WITH PRIMING PISTON
24:1 Ratio Models
4320 psi (29.8 MPa, 298 bar) Maximum Fluid Working Pressure
Part No. 205791, Series E
5 & 10 gallon (19 & 38 liter) Pail Size
Part No. 205792, Series E
55 gallon (200 liter) Drum Size
Part No. 206738, Series E
5 gallon (19 liter) Ram Size
48:1 Ratio Models
4800 psi (33.1 MPa, 331 bar) Maximum Fluid Working Pressure
Part No. 206597, Series F
5 & 10 gallon (19 & 38 liter) Pail Size
Part No. 206739, Series E
5 gallon (19 liter) Ram Size
306746K
Read warnings and instructions.
See page 2 Table of Contents.
TI1807A
WARNING
Never exceed 100 psi (0.7 MPa, 7 bar) maximum
air pressure to the 48:1 President pump. Do not
exceed the maximum working pressure of any
component or accessory used in the system.
Parts

2 306746
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement Pump Service 12. . . . . . . . . . . . . . . . . . . .
Parts 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

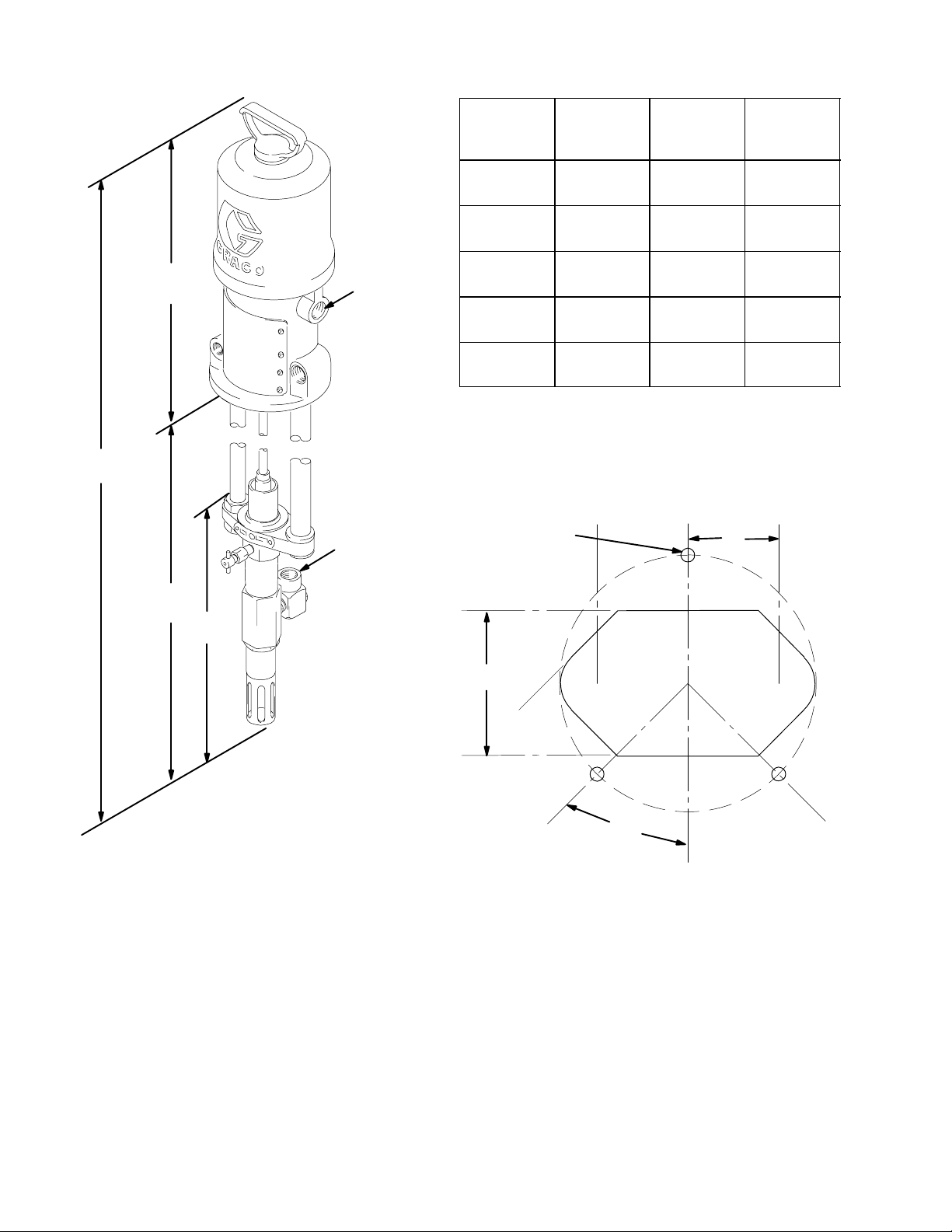

Dimensions 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting Hole Layout 16. . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Warranty 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Numbers 18. . . . . . . . . . . . . . . . . . . . . . . . .
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
DThis equipment is for professional use only.
DRead all instruction manuals, tags, and labels before operating the equipment.
DUse the equipment only for its intended purpose. If you are not sure, call your Graco distributor.
DDo not alter or modify this equipment. Use only genuine Graco parts and accessories.
DCheck equipment daily. Repair or replace worn or damaged parts immediately.
DDo not exceed the maximum working pressure of the lowest rated system component. Refer to the
Technical Data on page 17 for the maximum working pressure of this equipment.
DUse fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
DDo not use hoses to pull equipment.
DRoute hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82_C (180_F) or below –40_C (–40_F).
DWear hearing protection when operating this equipment.
DDo not lift pressurized equipment.
DComply with all applicable local, state, and national fire, electrical, and safety regulations.

306746 3
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
DGround the equipment and the object being sprayed. Refer to Grounding on page 5.
DIf there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately. Do not use the equipment until you identify and correct the problem.
DProvide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
DKeep the spray area free of debris, including solvent, rags, and gasoline.
DElectrically disconnect all equipment in the spray area.
DExtinguish all open flames or pilot lights in the spray area.
DDo not smoke in the spray area.
DDo not turn on or off any light switch in the spray area while operating or if fumes are present.
DDo not operate a gasoline engine in the spray area.
INJECTION HAZARD
Fluid from the dispense gun, hose leaks, or ruptured components can inject fluid into your body and
cause extremely serious injury, including the need for amputation. Splashing fluid in the eyes or on the
skin can also cause serious injury.
DFluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate medi-
cal attention.
DDo not point the gun/valve at anyone or at any part of the body.
DDo not put your hand or fingers over the spray tip/nozzle.
DDo not stop or deflect fluid leaks with your hand, body, glove, or rag.
DIf spraying, always have the trigger guard on the gun when dispensing.
DIf the unit is equipped with a gun diffuser, check the gun diffuser operation weekly. Refer to the gun
mn l
manual.
DBe sure the gun/valve trigger safety operates before dispensing.
DLock the gun/valve trigger safety when you stop dispensing.
DFollow the Pressure Relief Procedure on page 8 if the nozzle clogs, and before cleaning, check-
ing or servicing the equipment.
DTighten all fluid connections before operating the equipment.
DCheck the hoses, tubes, and couplings daily. Replace worn, damaged, or loose parts immediately.
Do not repair high pressure couplings; you must replace the entire hose.

4 306746
WARNING
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
DKnow the specific hazards of the fluid you are using.
DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
DAlways wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
MOVING PARTS HAZARD
Moving parts, such as the air motor piston, can pinch or amputate your fingers.
DKeep clear of all moving parts when starting or operating the pump.
DKeep your hands and fingers away from the priming piston and the fluid intake valve when the
pump is charged with air.
DBefore servicing the equipment, follow the Pressure Relief Procedure on page 8 to prevent the
equipment from starting unexpectedly.

306746 5
Installation
General Information
NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the figures and the
parts drawing.
NOTE: Always use Genuine Graco Parts and Acces-
sories, available from your Graco distributor. If you
supply your own accessories, be sure they are ade-
quately sized and pressure rated for your system.
Fig. 2 is only a guide for selecting and installing sys-
tem components and accessories. Contact your Graco
distributor for assistance in designing a system to suit
your particular needs.
Grounding
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below. Also read
the section FIRE AND EXPLOSION
HAZARD on page 3.
1. Pump: To ground the pump, loosen the grounding
lug locknut (A) and washer (B). Insert one end of a
12 gal (1.5 mm2) minimum ground wire (D) into the
slot in lug (C) and tighten locknut securely. See
Fig. 1. Connect the other end of the wire to a true
earth ground. Check your local code.
TI1809A
Fig. 1
A
B
D
C
2. Air and fluid hoses: use only grounded hoses with
a maximum of 500 ft (150 m) combined hose
length to ensure grounding continuity.
3. Air compressor: follow manufacturer’s recommen-
dations.
4. Spray gun or dispensing valve: obtain grounding
through connection to a properly grounded fluid
hose and pump.
5. Object being sprayed: follow your local code.
6. Solvent pails used when flushing: follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the
pail on a nonconductive surface, such as paper or
cardboard, which interrupts the grounding continu-
ity.
7. To maintain grounding continuity when flushing or
relieving pressure, hold a metal part of the gun/
valve firmly to the side of a grounded metal pail,
then trigger the gun/valve.

6 306746
Installation
Mounting the Pump
Mount the pump to suit the type of installation planned.
The pump dimensions and mounting hole layout are
shown on page 16.
System Accessories
Refer to the Installation drawing and the information on
the following pages for assistance setting up your
system.
NOTE: To ensure maximum pump performance, be
sure that any accessory used is properly sized to meet
your system’s requirements.
Your system should include an air line filter (J) to
remove harmful dirt and moisture from your com-
pressed air supply. On the air line (E), each pump
should have a bleed–type master air valve (G), an air
regulator (F) and shutoff valve (O), and an air line oiler
(K) which must be installed downstream from the air
regulator. See Fig. 2.
WARNING
Two accessories, the bleed–type master air valve
(G), and the fluid drain valve (R), are required for
your system to reduce the risk of serious bodily
injury from moving parts or injection when shutting
off the pump.
The bleed–type air valve relieves trapped air
between the valve and the pump, after the pump is
shut off. Trapped air can cause the pump to cycle
unexpectedly and result in serious bodily injury if
you are adjusting or repairing the pump.
The fluid drain valve helps relieve fluid pressure in
the displacement pump, hose, and gun/dispensing
valve when shutting off the pump. Triggering the
gun/dispensing valve to relieve pressure may not
be sufficient, especially if there is a clog in the
hose, gun/dispensing valve, and/or tip/nozzle.
Connecting the Hoses
Connect a grounded air supply hose (E) to the 1/2
npt(f) air inlet or the air regulator. Connect a grounded
fluid dispensing hose (L) to the 1 in. npt fluid outlet,
using a suitable adapter. For more flexible gun move-
ment, use a shorter whip hose (grounded) (M) be-
tween the main fluid hose and the gun/valve.

306746 7

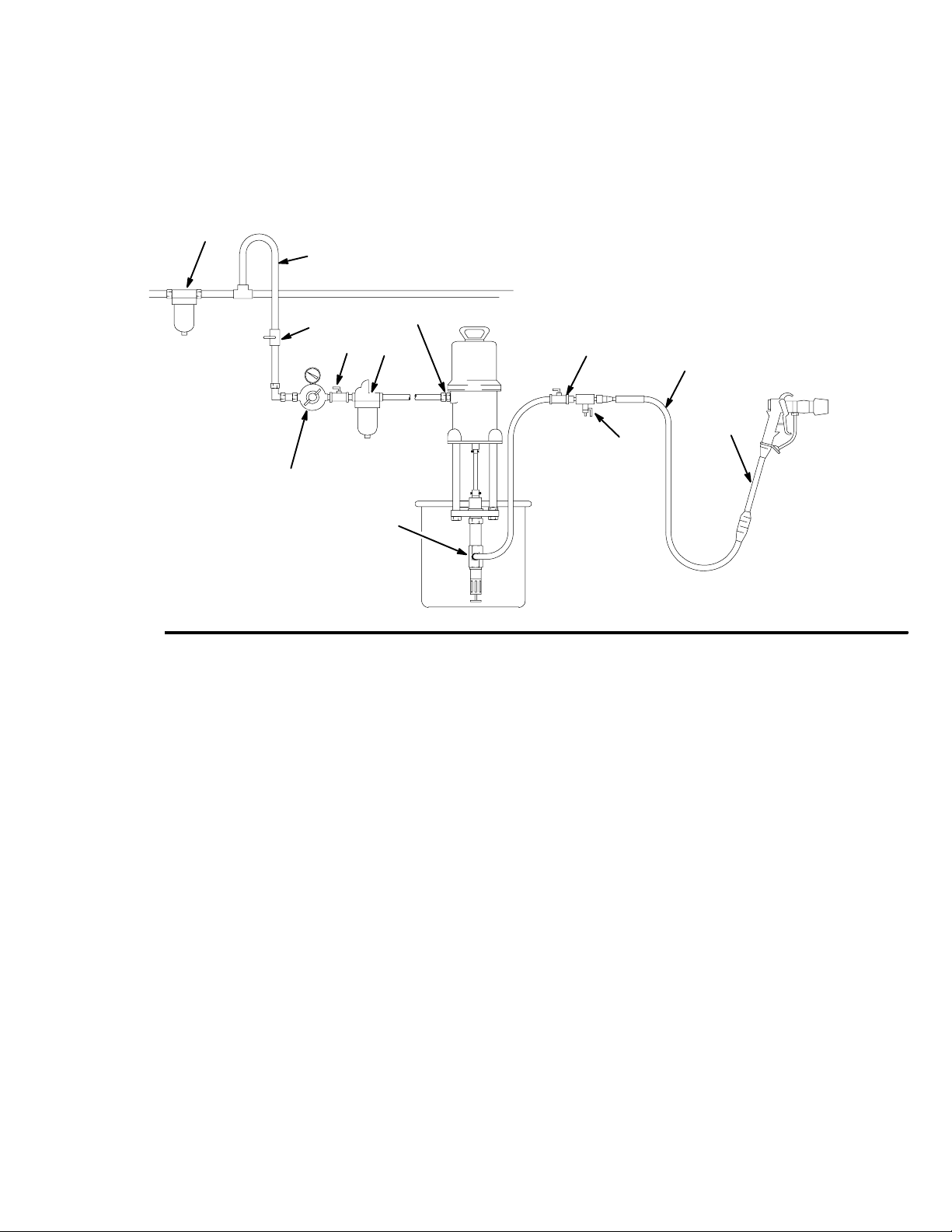

Installation
TI1808A
Fig. 2
KEY
EAir Supply Line
FAir Regulator
GBleed–Type Master Air Valve
HDrain Valve
JAir Line Filter
KAir Line Oiler
LFluid Hose
MWhip Hose
NFluid Shutoff Valve
OAir Shutoff Valve
O
1 in. npt
N
K
F
H
L
E
M
J
G1/2 npt(f)

8 306746
Operation
Pressure Relief Procedure
WARNING
FLUID INJECTION HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying acci-
dentally. To reduce the risk of an injury from acci-
dental spray from the gun, splashing fluid, or
moving parts, follow the Pressure Relief Proce-
dure whenever you:
Dare instructed to relieve the pressure,
Dstop spraying,
Dcheck or service any of the system equipment,
Dor install or clean the spray nozzle.
1. Shut off the air supply to the pump.
2. Close the bleed-type master air valve (required in
your system).
3. Hold a metal part of the gun firmly to the side of a
grounded metal pail, and trigger the gun to relieve
pressure.
4. Open the drain valve (required in your system),
having a container ready to catch the drainage.
5. Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray nozzle or hose is com-
pletely clogged, or that pressure has not been fully
relieved after following the steps above, very slowly
loosen the nozzle retaining ring or hose end coupling
and relieve pressure gradually, then loosen completely.
Now clear the nozzle or hose.
Flush Pump Before Using
Pumps are tested with lightweight oil which is left in to
protect the pump parts. To prevent contamination of
fluids, flush the pump with a compatible solvent before
using. If the pump will supply a circulating system,
circulate the solvent until the system is thoroughly
flushed.
WARNING
Be sure your entire system is properly grounded
before flushing. Refer to Fire or Explosion Haz-
ard on page 3. Relieve pressure, remove the tip
from the gun, then hold a metal part of the gun
firmly to the side of a grounded metal pail, and use
the lowest possible pressure to flush.

306746 9
Operation
Starting and Adjusting the Pump

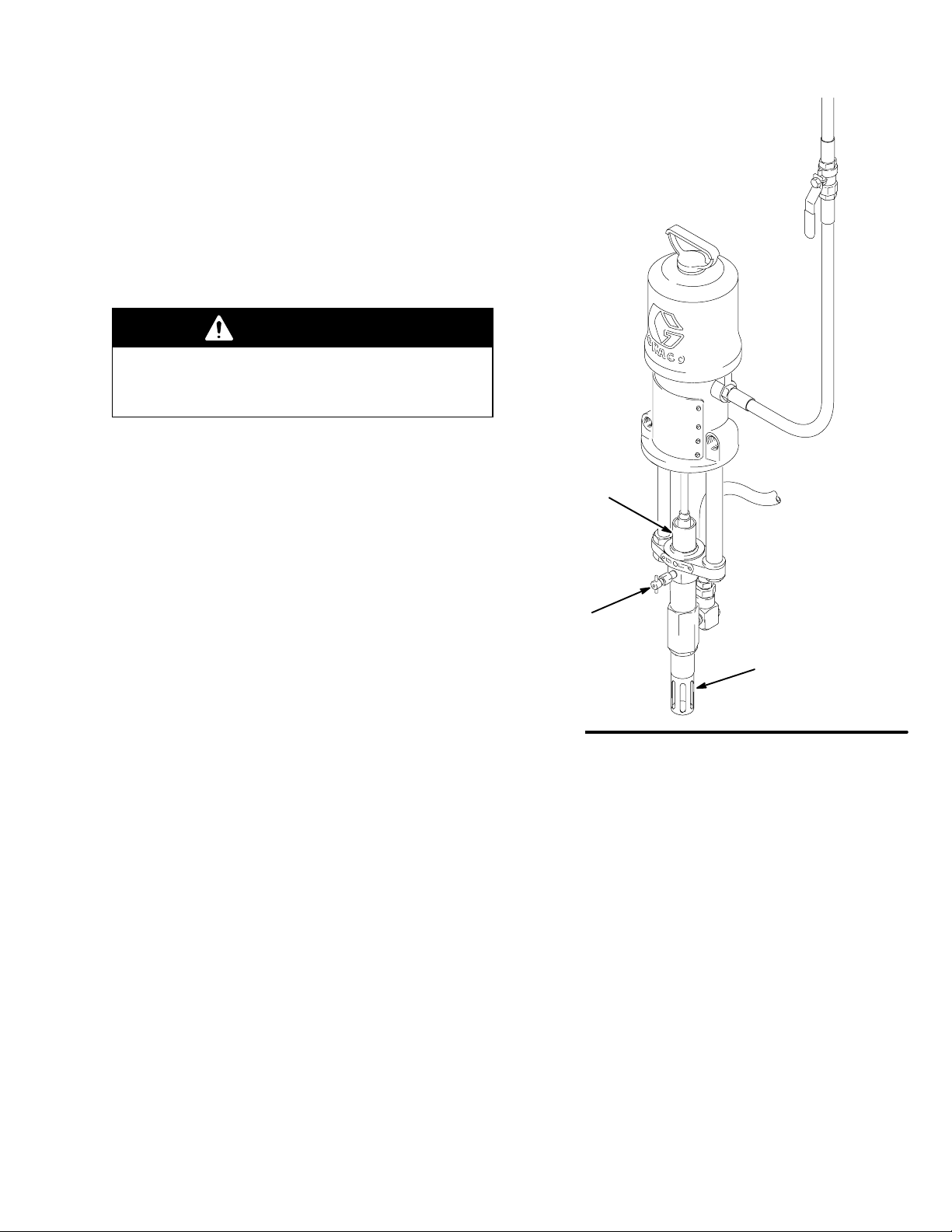

Fill the wet–cup (25) half full with Graco Throat Seal
Liquid (TSL). With the drain valve and bleeder valve
closed, and the gun/valve safety disengaged, trigger
the gun/valve and slowly open the air supply valve until
the pump starts. If fluid does not flow from triggered
gun/valve, open the bleeder valve (12) slightly. See
Fig. 3. When fluid appears, close bleeder valve.
WARNING
Keep your hand and fingers away from the priming
piston and fluid intake valve (R) to reduce the risk
of serious bodily injury, including amputation.
With the pump and lines primed, and with adequate air
pressure and volume supplied, the pump will start and
stop as the spray gun/valve is triggered and released.
In a circulating system, it will run continuously and
speed up or slow down as supply demands until air
supply is shut off.
Use an adequately sized air regulator (F) to control
pump speed and fluid pressure. See the Installation
drawing on page 7. Always use the lowest pressure
necessary to give you the results you want.
Never exceed the maximum air pressure to the pump
(see Technical Data on page 17). TI1810A
Fig. 3
25
12
R

10 306746
Maintenance
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
Keep the wet–cup (25) filled with Graco Throat Seal
Liquid (TSL). See Fig. 3. Check tightness of packing
nut (36 or 60) weekly. The packing nut should be tight
enough to prevent leakage, but no tighter. Follow the
Pressure Relief Procedure on page 8 before adjust-
ing the packing nut.
Never allow the pump to run dry of fluid being pumped.
A dry pump will quickly accelerate to a high speed,
possibly damaging itself. If your pump accelerates
quickly, or is running too fast, stop it immediately and
check the fluid supply. If the supply container is empty
and air has been pumped into lines, prime pump and
lines with fluid, or flush and leave filled with compatible
solvent. Eliminate all air from fluid system.
For overnight shutdown, follow the Pressure Relief
Procedure on page 8. Always stop the pump at the
bottom of its stroke to keep fluid from drying on the
exposed displacement rod. Always flush the pump
before the fluid dries on the rod. If the pump is to be
stored, and you are pumping water–based fluids, first
flush with water, then with mineral spirits to protect the
pump parts.

306746 11
Troubleshooting
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
Before You Start
DTo reduce downtime, be sure you have all neces-
sary repair parts available. Recommended spare
parts are listed in the Parts List on page 14 with an
asterisk (*).
DPacking repair kits are available for both the 24:1
and 48:1 pumps (see Parts List on page 14). If you
have a repair kit, use all the new parts for the best
results. Parts included in the repair kits are marked
with a double asterisk (e.g., 28**).
DWhenever you replace the packings, also replace
the glands and bearing.
DWhen cleaning parts, use a compatible solvent.
Inspect parts for wear or damage and replace as
necessary. Scoring or irregular surfaces on the
booster rod (35) or the displacement rod (33 or 59)
causes premature packing wear and leaking. Check
these parts by rubbing a finger on the surface or
holding them up to the light at a slight angle.
DUse light, water–proof grease whenever grease is
mentioned.
DCheck all possible problems and solutions before
disassembling pump.
Problem Cause Solution
Pump fails to operate. Restricted line or inadequate air
supply.
Clear; increase air supply.
Obstructed fluid hose, gun, or dis-
pensing valve.
Clear*.
Exhausted fluid supply. Refill and prime**.
Fluid dried on displacement rod. Clean***.
Damaged air motor. Service; see manual 306982.
Pump operates but output is low on
both strokes.
Restricted line or inadequate air
supply.
Clear; increase air supply.
Obstructed fluid hose, gun, or dis-
pensing valve.
Clear*.
Exhausted fluid supply. Refill and prime**.
Open or worn bleeder valve. Close; replace.
Air in displacement pump and hose. Reprime; use bleeder valve, induc-
tor, or ram.
Fluid too heavy for pump priming. Use bleeder valve, inductor, or ram.
Obstructed or worn intake or check
valve.
Clear; service.
Worn throat packings. Replace.
Erratic or accelerated operation. Exhausted fluid supply. Refill and prime**.
Obstructed or worn intake or check
valve.
Clear; service.
Connecting rods out of alignment. Adjust.
*Follow the Pressure Relief Procedure on page 8. Disconnect the fluid hose. Turn on the air just enough to start
the pump; if pump starts, the obstruction is in the fluid hose, gun, or valve.
** Stop pump immediately. Refill and prime to remove all air from system, or flush pump and store with mineral spir-
its in it.
***To help avoid this problem, always stop the pump at the bottom of its stroke, and keep TSL in wet–cup.

12 306746
Displacement Pump Service
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
1. Solvent flush the fluid from the pump, if possible;
then relieve the air and fluid pressures according
to the Pressure Relief Procedure on page 8.
Disconnect the hoses, remove the pump from its
mounting, and clamp in a vise.
NOTE: Packing repair kits 207158 (for 24:1 pump) and
207159 (for 48:1 pump) are available. Use all the new
parts, even if the old ones still look good, for the best
results.

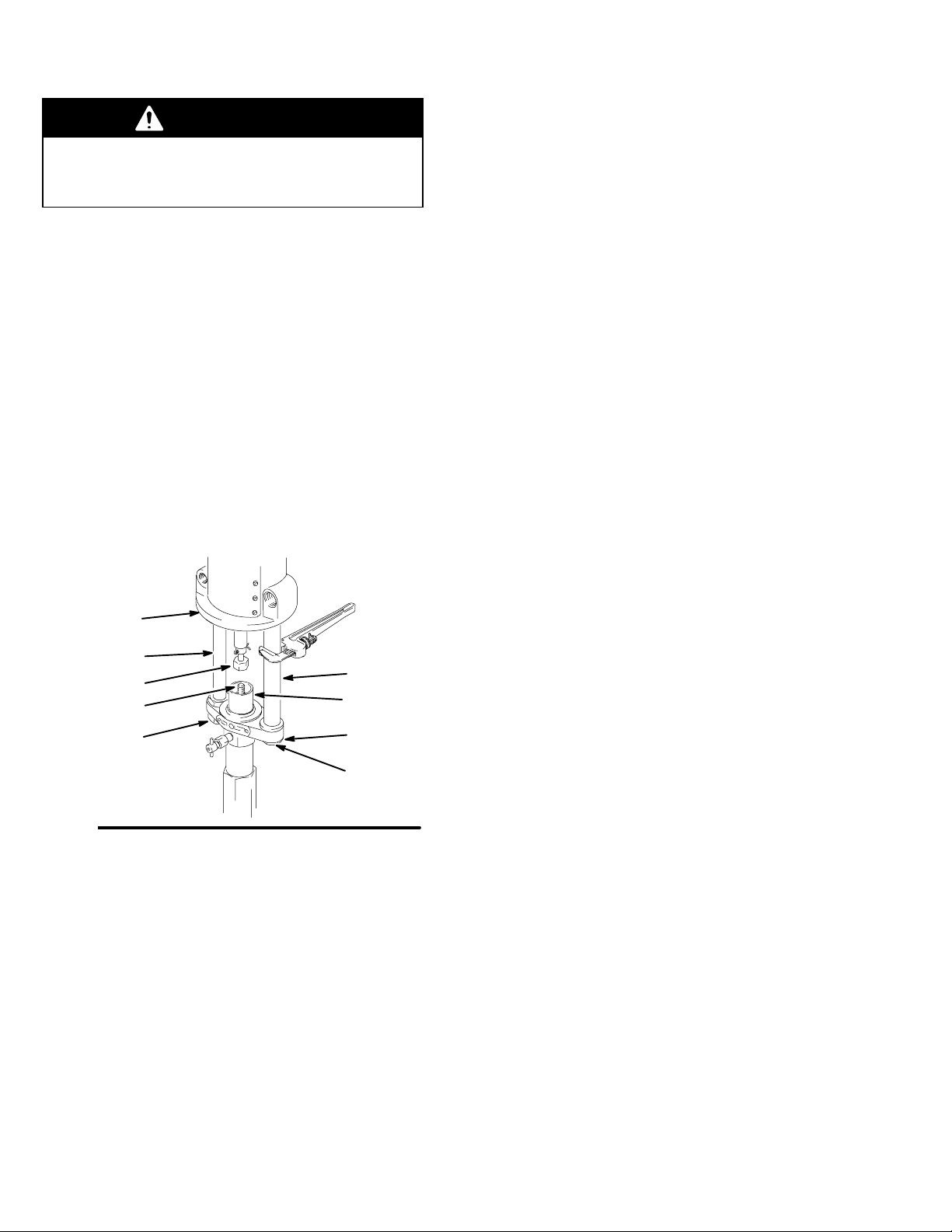

2. Unscrew the coupling nut (22) from the stud (24)
and the stud from the displacement rod (33 or 59).
Loosen the setscrews (40) in large locknuts (45)
and remove the locknut from the large mounting
tubes (P). See Fig. 4. If the mounting tubes are to
be replaced, wrench the tubes close to the air
motor base as shown in Fig. 4 to prevent thread
damage.
Fig. 4 TI1811A
1
Q
22
24
49, 53, 66
25
P
45
40
3. Unscrew the booster cylinder (34 or 61) from the
pump housing (11) and pull the booster rod (35),
intake valve assembly, and displacement rod from
the bottom of housing.
4. Unscrew the locknuts (44, 45), remove the priming
piston (26 or 58) from the booster rod, and pull the
intake valve from the booster rod. See Fig. 5. If the
valve is seized in the housing, squirt penetrating oil
around threads and gently tap around housing with
a hammer to loosen.
5. Remove the wet–cup (25), unscrew the packing
nut (36 or 60), and remove the o–ring (19), pack-
ings (31**, 32**, or 62**, 63**), and the backup
(62**) from the throat cavity. See Fig. 5.
6. Clean and inspect all parts for wear or damage
and replace as necessary.
7. Reassemble pump in reverse order of disassem-
bly, making sure all parts are installed correctly,
and that all threaded connections are tightened
securely.

306746 13
Service
Fig. 5
TI1812A
25
36, 60
12
33, 59
11
34, 61
35
22
24
31, 63
3
28
21
58, 26
49, 66
19
32 62
62
53
30
29
10
27
27
20
54
8. Turn the air motor upside down and place the fluid
pump on the mounting tubes (P, Q). Leaving the
coupling nut (22) loose, move the pump to align
with the rods. Install and tighten the larger locknut
(45) and lock in place with the setscrew (40).
Being careful not to disturb the alignment, install
and tighten the other locknut (44). Tighten the
coupling nut securely. See Fig. 6.
9. If the grounding wire was disconnected before
servicing, be sure to reconnect it before operating
the pump.
10. Operate pump at a minimum air pressure (50 psi,
0.35 MPa, or 3.5 bar). Adjust small mounting tube
(Q) locknuts (44) as necessary until pump runs
smoothly at 15 psi (0.1 MPa, 1.05 bar).
Fig. 6 TI1813A
22
33 or 59
P
40, 45
2
44
Q
56

14 306746
Parts
Model 205791, Series E
24:1 Ratio President Pump, 5 and 10 gal size
Includes items 1–49
Model 205792, Series E
24:1 Ratio President Pump, 55 gal size
Includes items 1–36, 40–46, and 51–56
Model 206738, Series E
24:1 Ratio President Pump, 5 gal size
Includes items 1–36, 40–46, and 64–66
Model 206739, Series F
48:1 Ratio President Pump, 5 gal size
Includes items 1, 40–46, 57, and 64–66
Model 206597, Series F
48:1 Ratio President Pump, 5 and 10 gal size
Includes items 1, 37–49, and 57
Ref Part
No. No. Description Qty
1 205038 MOTOR, air, President 1
See manual 306982 for parts
2 205831 PUMP, displacement; Series C; 1
includes items 3–36
3 203916 .VALVE, check; 1
includes items 4–9
4 203921 ..SEAT 1
5* 101454 ..BALL; steel; 5/8 in. diameter 1
6 151220 ..SPRING, compression 1
7 160494 ..HOUSING 1
8 160516 ..O–RING; nitrile rubber 1
9 162289 ..PLUG 1
10* 204926 .SEAL and SEAT, intake valve 1
11 215879 .HOUSING, fluid pump 1
12 206256 .VALVE, bleeder–type; 1
includes items 13–15
13 102039 ..ROLLPIN; 1/4 in. diameter; 1
1–1/2 in. long
14 165702 ..BODY, valve 1
15 165703 ..PLUG 1
17* 101579 .ROLLPIN; 1/8 in. diameter; 1
3/4 in. long
19 156593 .O–RING; nitrile rubber 1
20 156633 .O–RING; nitrile rubber 1
21 160158 .GASKET 1
22 160502 .NUT, coupling 1
24 162284 .STUD, coupling 1
25 162285 .WET–CUP 1
26 162287 .PISTON, priming 1
27 162288 .LOCKNUT, shovel–plate 2
28** 162301 .PACKING, flat; nitrile rubber 3
29** 162302 .BACKUP, packing; nylon 1
30 162303 .HOUSING, packing 1
31** 162308 .PACKING, flat; nitrile rubber 3
32** 162309 .BACKUP, packing; nylon 1
33 162311 .ROD, displacement 1
34 165133 .CYLINDER, booster 1
35 165134 .ROD, booster 1
36 165135 .NUT, packing 1
37 205833 TUBE, mounting; 1 in. diameter; 1
8–3/8 in. (213 mm) long
Ref Part
No. No. Description Qty
38 206994 LUBRICANT, throat seal; 1 pint 1
41* 100579 PIN, cotter; 7/64 in. diameter; 1
1 in. long
42 162648 LOCKWASHER 2
44 160026 LOCKNUT, special; 3/4 garden 2
hose thread
45 160505 LOCKNUT, special; 1–11 1
1/2 thread size
48 165137 TUBE, mounting; 3/4 in. diameter; 1
8–3/8 in. (213 mm) long
49 165138 ROD, connecting 1
51 205834 TUBE, mounting; 1 in. diameter; 1
19–3/4 in. (502 mm) long
52 156082 O–RING; nitrile rubber 2
53 160501 SOCKET, coupling 1
54 161310 TUBE, extension 1
55 165140 TUBE, mounting; 3/4 in. diameter; 1
19–3/4 in. (502 mm) long
56 165141 ROD, connecting; 13–7/8 in. 1
(352 mm) long
57 206620 PUMP, displacement; Series C;
includes items 3–25, 27–30, 35,
58–63 1
58 162294 .PISTON, priming 1
59 162316 .ROD, displacement 1
60 166393 .NUT, packing 1
61 166394 .CYLINDER, booster 1
62** 166395 .BACKUP, packing; nylon 2
63** 166396 .PACKING, flat; nitrile rubber 3
64 206737 TUBE, mounting; 1 in. diameter; 1
13–1/4 in. (337 mm) long
65 166546 TUBE, mounting; 3/4 in. diameter; 1
13–1/4 in. (337 mm) long
66 166547 ROD, connecting 1
*Keep these spare parts on hand to reduce down
time.
** These parts are included in Repair Kits 207158 and
207159.

306746 15
Parts
TI1814A
1
52
41
48, 55, 65
37, 51, 64
56
52
44
42
38
25
22
41
53
49, 66
24
36, 60
19
32**
62**
31**, 63**
62**
14
13
15
12
42
44
17
9
8
6
5
7
43
33, 59
45
35
30
28**
29**
21
10
27
26, 58
20
34, 61
54
11

16 306746
Dimensions
A
B
C
TI1815A
16–3/8 in. 1/2 npt(f)
1 in. npt(f)
fluid outlet
Model No.
A
Overall
Length
B
Pump
Length
C
Fluid
Pump
205791 36–5/8 in.
(930 mm)
20–3/8 in.
(518 mm)
14–3/8 in.
(364 mm)
205792 48–3/4 in.
(1238 mm)
32–1/2 in.
(826 mm)
15–1/8 in.
(384 mm)
206597 36–5/8 in.
(930 mm)
20–3/8 in.
(518 mm)
14–3/8 in.
(364 mm)
206738 41–1/2 in.
(1054 mm)
25–11/32 in.
(644 mm)
14–3/8 in.
(364 mm)
206739 41–1/2 in.
(1054 mm)
25–11/32 in.
(644 mm)
14–3/8 in.
(364 mm)
Mounting Hole
Layout
TI1816A
4 in.
2–1/2 in.
45_
6–3/8 in. dia.
bolt circle
three–11/32 in. dia.
holes
NOTE: Use 161822 Gasket.

306746 17
Technical Data
Category Data
Maximum working pressure 24:1 pump: 4320 psi (29.8 MPa, 298 bar)
48:1 pump: 4800 psi (33.1 MPa, 331 bar
Recommended air operating range 24:1 pump: 40–180 psi (0.28–1.24 MPa, 2.8–12.4 bar)
48:1 pump: 40–100 psi (0.28–0.7 MPa, 2.8–7 bar)
Air consumption 24:1 pump: approx. 20 cfm (0.56 m3/min) at 1/2 gpm
(1.95 liter/min) at 70 psi (0.48 MPa, 4.8 bar)
48:1 pump: approx. 29 cfm (0.82 m3/min) at 1/4 gpm
(0.95 liter/min) at 70 psi (0.48 MPa, 4.8 bar)
Pump cycles per gallon (liter) 24:1 pump: 110 (418)
48:1 pump: 220 (836)
Recommended maximum pump delivery 24:1 pump: 1/2 gpm (19 liter/min)
48:1 pump: 1/4 gpm (0.95 liter/min)
Wetted parts Nitralloy, Steel, Copper, Nitrile Rubber
Air inlet 1/2 npt(f)
Fluid outlet 1 in. npt(f)
Fluid inlet Priming piston
Weight 45 lb (20 kg) approximate

18 306746
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited
warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment
determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accor-
dance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub-
stitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnais-
sent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés àla suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Phone Numbers
TO PLACE AN ORDER, contact your Graco distributor, or call one of the following numbers
to identify the distributor closest to you:
1–800–367–4023 Toll Free
612–623–6921
612–378–3505 Fax
Sales Offices: Minneapolis, Detroit
International Offices: Belgium, Korea, Hong Kong, Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
www.graco.com
PRINTED IN U.S.A. 306746 10/1989 Revised 12/2001
