Graco Z-Pump Elite Series User manual

3A8563B
EN
Instructions - Parts
Z-Pump Elite Series
For pumping highly abrasive plural component materials. For professional use only.
3500 psi (24 MPa, 241 bar) Maximum Working Pressure
See page 2 for model information.
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save these instructions.

Related Manuals
2 3A8563B
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Isocyanate (ISO) Information . . . . . . . . 6
Isocyanate Conditions . . . . . . . . . . . . . . . . . . . . 6
Keep Components A and B Separate . . . . . . . . . 6
Moisture Sensitivity of Isocyanates . . . . . . . . . . 6
Changing Materials . . . . . . . . . . . . . . . . . . . . . . . 7
Component Identification . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 9
Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . 10

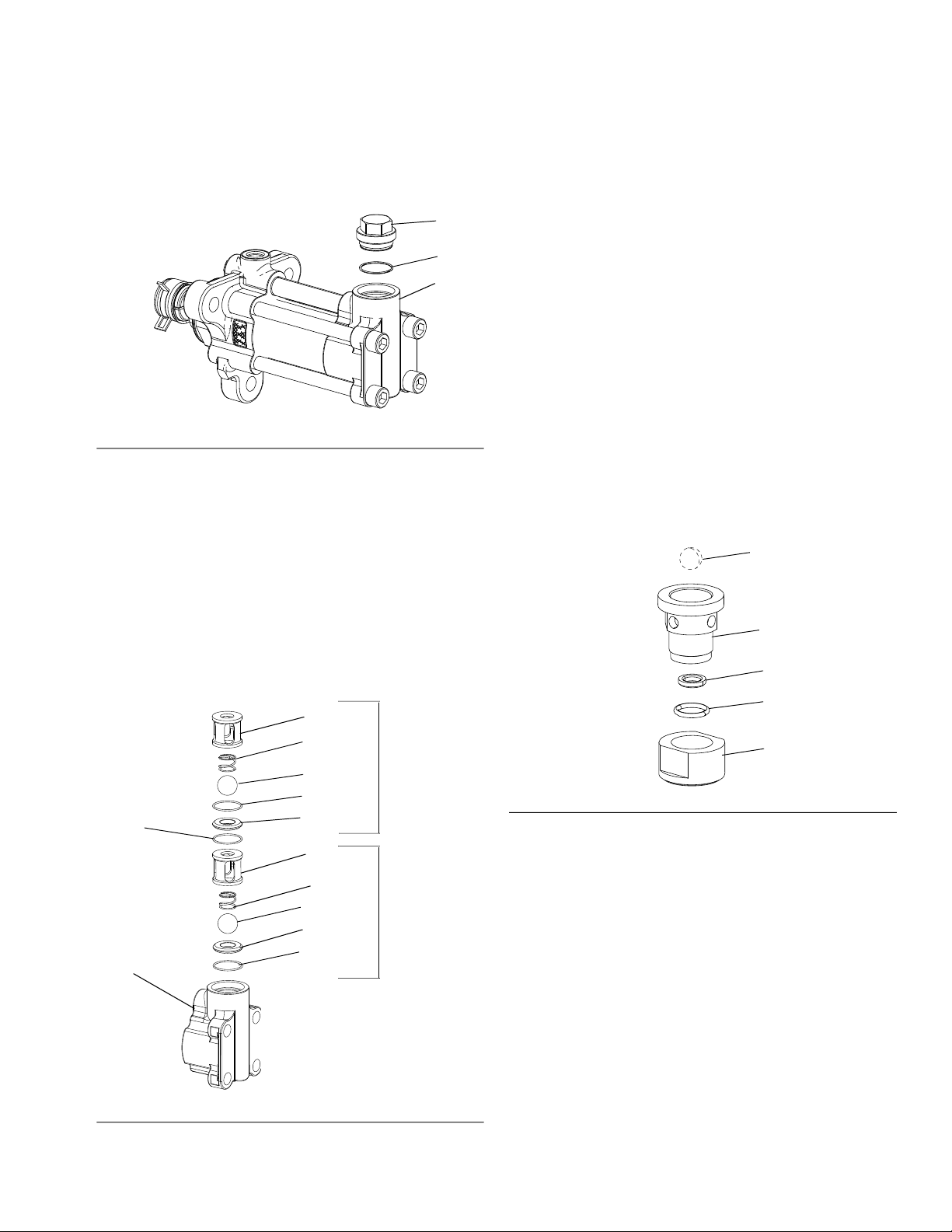

Inlet Housing Disassembly . . . . . . . . . . . . . . . . 10
Inlet Housing Assembly . . . . . . . . . . . . . . . . . . . 11

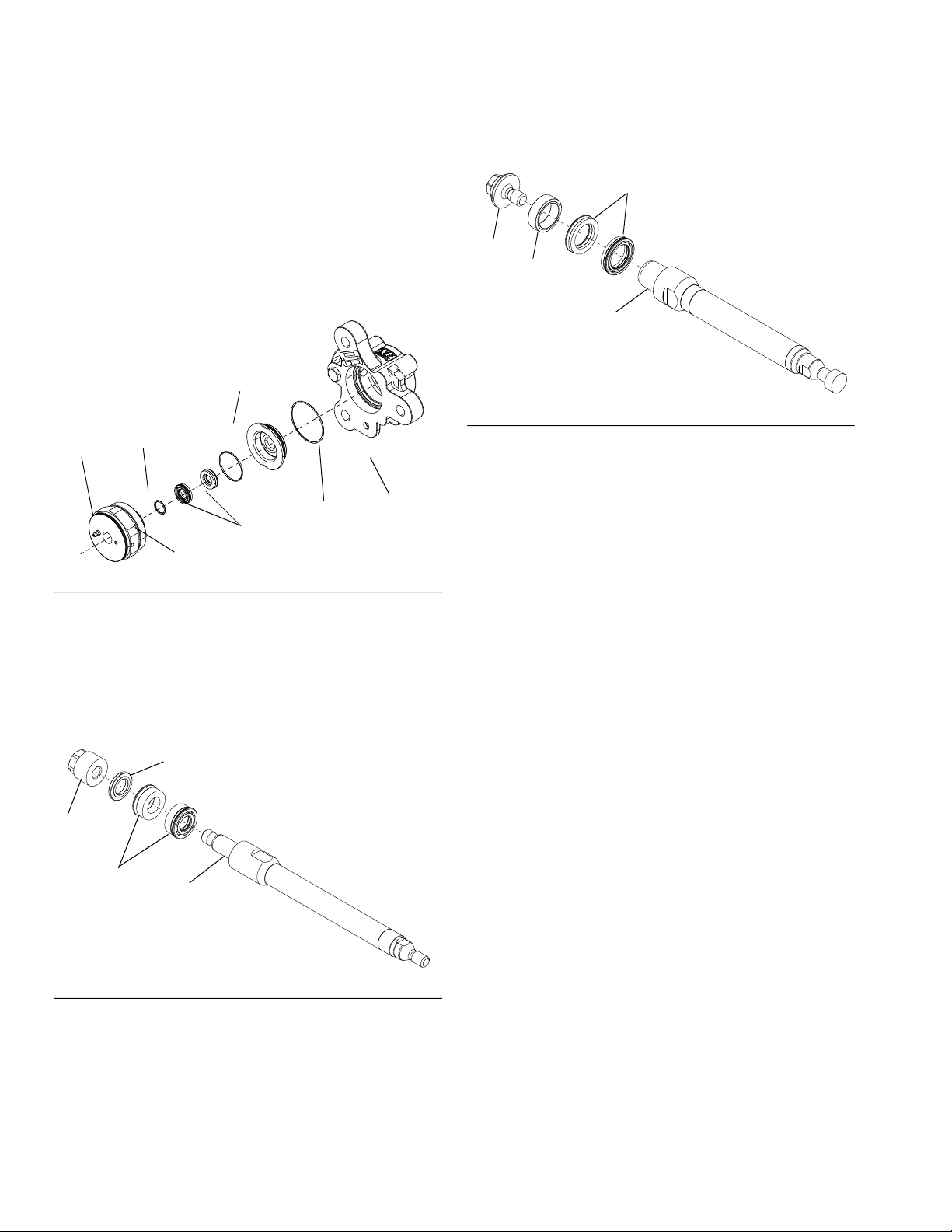

Pump Disassembly . . . . . . . . . . . . . . . . . . . . . . 13
Pump Assembly . . . . . . . . . . . . . . . . . . . . . . . . 15
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Seal Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Displacement Rod Kits . . . . . . . . . . . . . . . . . . . 24
Check Valve Kits . . . . . . . . . . . . . . . . . . . . . . . . 25
O-Ring Inlet Kit, 258775, 258776 . . . . . . . . . . . 25
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Technical Specifications . . . . . . . . . . . . . . . . . . . . 27
California Proposition 65 . . . . . . . . . . . . . . . . . . . . 27
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 28
Related Manuals
Models
Manual in
English Description
3A6165 EFR
313997 HFR
Model Pump Size
L020S8 20cc
L040S8 40cc
L080S8 80cc
L100S8 100cc
L120S8 120cc
L160S8 160cc

Warnings
3A8563B 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks.
When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or
solvent flowing through the equipment can cause static sparking. To help prevent fire and explosion:
• Use equipment only in well-ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static sparking).
• Ground all equipment in the work area.
• Never spray or flush solvent at high pressure.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they
are anti-static or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or
servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.

Warnings
4 3A8563B
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For
complete information about your material, request Safety Data Sheets (SDSs) from distributor or
retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and
create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Equipment can start without warning. Before checking, moving, or servicing equipment, follow the
Pressure Relief Procedure and disconnect all power sources.
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
WARNING

Warnings
3A8563B 5
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled or
swallowed.
• Read Safety Data Sheets (SDSs) for handling instructions and to know the specific hazards of the
fluids you are using, including the effects of long-term exposure.
• When spraying, servicing equipment, or when in the work area, always keep work area
well-ventilated and always wear appropriate personal protective equipment. See Personal
Protective Equipment warnings in this manual.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Always wear appropriate personal protective equipment and cover all skin when spraying, servicing
equipment, or when in the work area. Protective equipment helps prevent serious injury, including
long-term exposure; inhalation of toxic fumes, mists or vapors; allergic reaction; burns; eye injury and
hearing loss. This protective equipment includes but is not limited to:
• A properly fitting respirator, which may include a supplied-air respirator, chemically impermeable
gloves, protective clothing and foot coverings as recommended by the fluid manufacturer and local
regulatory authority.
• Protective eyewear and hearing protection.
WARNING

Important Isocyanate (ISO) Information
6 3A8563B
Important Isocyanate (ISO) Information
Isocyanate Conditions Keep Components A and B
Separate
Moisture Sensitivity of
Isocyanates
Exposure to moisture (such as humidity) will cause ISO
to partially cure, forming small, hard, abrasive crystal
that become suspended in the fluid. Eventually a film
will form on the surface and the ISO will begin to gel,
increasing in viscosity.
NOTE: The amount of film formation and rate of
crystallization varies depending on the blend of ISO, the
humidity, and the temperature.
Spraying or dispensing fluids that contain
isocyanates creates potentially harmful mists,
vapors, and atomized particulates.
• Read and understand the fluid manufacturer’s
warnings and Safety Data Sheets (SDSs) to know
specific hazards and precautions related to
isocyanates.
• Use of isocyanates involves potentially hazardous
procedures. Do not spray with this equipment
unless you are trained, qualified, and have read and
understood the information in this manual and in
the fluid manufacturer’s application instructions
and SDSs.
• Use of incorrectly maintained or mis-adjusted
equipment may result in improperly cured material.
Equipment must be carefully maintained and
adjusted according to instructions in the manual.
• To prevent inhalation of isocyanate mists, vapors,
and atomized particulates, everyone in the work
area must wear appropriate respiratory protection.
Always wear a properly fitting respirator, which
may include a supplied-air respirator. Ventilate the
work area according to instructions in the fluid
manufacturer’s SDSs.
• Avoid all skin contact with isocyanates. Everyone in
the work area must wear chemically impermeable
gloves, protective clothing and foot coverings as
recommended by the fluid manufacturer and local
regulatory authority. Follow all fluid manufacturer
recommendations, including those regarding
handling of contaminated clothing. After spraying,
wash hands and face before eating or drinking.
Cross-contamination can result in cured material in
fluid lines which could cause serious injury or
damage equipment. To prevent cross-contamination:
•Never interchange component A and component
B wetted parts.
• Never use solvent on one side if it has been
contaminated from the other side.
NOTICE
Partially cured ISO will reduce performance and the life
of all wetted parts.
• Always use a sealed container with a desiccant
dryer in the vent, or a nitrogen atmosphere. Never
store ISO in an open container.
• Keep the ISO pump wet cup or reservoir (if
installed) filled with appropriate lubricant. The
lubricant creates a barrier between the ISO and
the atmosphere.
• Use only moisture-proof hoses compatible with
ISO.
• Never use reclaimed solvents, which may contain
moisture. Always keep solvent containers closed
when not in use.
• Always lubricate threaded parts with an
appropriate lubricant when reassembling.

Important Isocyanate (ISO) Information
3A8563B 7
Changing Materials
NOTICE
Changing the material types used in your equipment
requires special attention to avoid equipment damage
and downtime.
• When changing materials, flush the equipment
multiple times to ensure it is thoroughly clean.
• Always clean the fluid inlet strainers after flushing.
• Check with your material manufacturer for
chemical compatibility.
• When changing between epoxies and urethanes or
polyureas, disassemble and clean all fluid
components and change hoses. Epoxies often
have amines on the B (hardener) side. Polyureas
often have amines on the B (resin) side.

Component Identification
8 3A8563B
Component Identification
Key:
A Displacement Rod (inside main cylinder)
B Throat Retainer
C Outlet Housing
D Main Cylinder
E Crossover Tube
F Tie Bolt
G Inlet Housing
H Inlet Cap
J Fluid Outlet
K Fluid Inlet (bottom of inlet housing)
L Pump Mounting Holes
M Pressure Transducer Port
N Linear Transducer Mounting Hole
P Identification Tag
R Rod Adapter (not on all models)
S Pump Coupler
T Coupler Cover
U Coupler Clamp
FIG. 1: Component Identification
40cc pump shown
Outlet Housing (D)
F
C
D
E
A
H
J
G
K
L
M
N
P
R
S
B
T
U
L
L

Operation
3A8563B 9
Operation
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
1. Press the enable/disable key on the ADM to
disable the EFR/HFR, and verify it is inactive.
2. Relieve pressure and shut off the supply systems.
See your appropriate supply system manual.
3. Turn the PRESSURE RELIEF/DISPENSE valves to
PRESSURE RELIEF/CIRCULATION. Route the fluid
to grounded waste containers or supply tanks.
Ensure gauges read 0.
4. For models with a dispense valve with a safety
lock, engage the dispense valve safety lock.
Flushing
• Flush before changing colors, before fluid can dry
in the equipment, at the end of the day, before
storing, and before repairing equipment.
• Flush at the lowest pressure possible. Check
connectors for leaks and tighten as necessary.
• Flush with a fluid that is compatible with the fluid
being dispensed and the equipment wetted parts.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop spraying and before clean-
ing, checking, or servicing the equipment.
To avoid fire and explosion, always ground
equipment and waste container. To avoid static
sparking and injury from splashing, always flush at
the lowest possible pressure.
Hot solvent may ignite. To avoid fire and explosion:
• Flush equipment only in a well-ventilated area
• Ensure main power is off and the heater is cool
before flushing
• Do not turn on heater until fluid lines are clear of
solvent

Repair
10 3A8563B
Repair
Required Tools
• Large vise
• Set of adjustable wrenches
• O-ring pick
• 1/2 in. bit socket
• 3/8 Allen wrench
• 1 1/4 in. wrench
• 1 1/8 in. crow foot wrench
• Rubber mallet
• Torque wrench
• 1 in. wrench
• 2 in., 2.25 in. and 3 in. sockets
• Anti-seize lubricant
• Removable strength thread locker
Inlet Housing Disassembly
L020S8 Model
1. Relieve pressure and flush system. Follow
Pressure Relief Procedure and Flushing, page 9.
2. Remove inlet hose and drain inlet housing (106).
3. Remove inlet valve cap (113) from inlet housing
(106), and remove o-ring (108). See FIG. 2.
4. Remove upper check assembly (AA), including the
spring retainer (137), check housing (138), conical
spring (139), ball housing retainer (140), ball (141),
carbide seat (142), O-ring (143), and retainer (144).
5. Remove lower check (BB), including the spring
retainer (137), check housing (138), conical spring
(139),ball housing retainer (140), ball (141), carbide
seat (142), O-ring (143), and retainer (144). See FIG.
3.
6. Clean all parts in a compatible solvent. Lay the
parts in order for easier reassembly. Inspect each
ball and seat for nicks or scratches then replace as
required.
7. It is recommended to replace the o-rings (108, 143)
after cleaning.
L040S8, L080S8, L100S8, L120S8 and
L160S8 Models
1. Relieve pressure and flush system. Follow
Pressure Relief Procedure and Flushing, page 9.
2. Remove inlet hose and drain inlet housing (106).
FIG. 2
113
108
106
FIG. 3
Upper
Check (AA)
Lower
Check (BB)
138
139
140
142
137
137
138
143
144
142
141
108
141
143
108
140
144
108
113
139

Repair
3A8563B 11
3. Remove inlet valve cap (113) from inlet housing
(106), and remove o-ring (108). See FIG. 4.
4. Remove upper check (CC) ball cage (112), check
ball spring (111), ball (110), O-ring (108) and carbide
seat (109).
5. Press lower ball (110) off seat (109) from fluid inlet
and drain the inlet housing (106).
6. Remove lower check (DD) o-ring (108), ball cage
(112), check ball spring (111), ball (110), carbide
seat (109), and o-ring (108). See FIG. 5.
3
7. Clean all parts in a compatible solvent. Lay the
parts in order for easier reassembly. Inspect each
ball and seat for nicks or scratches then replace as
required
Inlet Housing Assembly
L020S8 Model
1. Assemble upper check assembly (AA). Apply
anti-seize lubricant to the check housing (138),
spring retainer (137) and check valve retainer (144).
2. Install the O-ring (143) and then the carbide seat
(142) into the check valve retainer(144). The check
housing (138) then threads into the check valve
retainer and is torqued to 50 ft-lbs (67.5 N•m).
NOTE: The radius of the carbide seat (142) must face
towards the check housing (138) and the ball (141). See
FIG. 6.
3. Install the ball (141), ball housing retainer (140) and
conical spring (139) into the check housing (138).
4. Install the spring retainer (137) cup side down into
the check housing (138) to trap the spring (139)
until the spring retainer bottoms out into the check
housing. Torque spring retainer to 30 ft-lbs (41
N•m.) See FIG. 7, page 12.
FIG. 4
FIG. 5
113
108
106
111
110
109
112
112
111
110
108
106
Upper
Check (CC)
108
Lower
Check (DD)
109
108
FIG. 6
142
143
144
138
141

Repair
12 3A8563B
5. Assemble lower check assembly (BB) using the
steps 1 through 4 above.
6. Install the o-ring (108) into the inlet housing (106).
7. Install lower check (BB) into the housing (106) in the
orientation shown.
8. Install the o-ring (108) into the inlet housing (106).
9. Install upper check assembly (AA) into the inlet
housing (106) in the orientation shown.
10. Install o-ring (108) on valve inlet cap (113) and apply
anti-seize lubricant to valve inlet cap threads.
Torque inlet cap to 70 ft-lbs. (95 N•m). See FIG. 8. .
L040S8, L080S8, L100S8, L120S8 and
L160S8 Models
1. Apply anti-seize lubricant to the threads of inlet
valve cap (113) and install O-ring (108) into the
groove.
2. Assemble lower check assembly (DD). Install O-ring
(108) into inlet housing (106) followed by the
carbide seat (109).
3. Place the ball (110) onto the carbide seat (109)
followed by the ball check spring (111) and the ball
cage housing (112).
NOTE: Confirm the orientation of the ball cage prior to
installing. The end with the larger opening must face the
spring. See FIG. 9.
4. Assemble upper check assembly (CC). Repeat step
2 above after placing an O-ring (108) on top of the
lower check assembly (DD).
5. Install the valve inlet cap(113) compressing both
check assemblies together into the inlet housing.
Torque the valve inlet cap to 70 ft-lbs. (95 N•m).
FIG. 7
FIG. 8
140
141
138
139
137
AA
BB
108
108
113
108
106
FIG. 9
112
111
110
109
108
106

Repair
3A8563B 13
Pump Disassembly
1. Relieve pressure and flush system. Follow
Pressure Relief Procedure and Flushing, page 9.
2. Remove inlet hose and drain inlet housing (106).
3. Using a bench vice, Horizontally clamp the pump
on outlet housing (107). Use a 1/2 in. hex bit socket
to loosen all four tie bolts (105) from inlet housing
(106).
4. For 20cc - 40cc pumps only: Use wrench to
remove rod adapter (121). See FIG. 10.
5. Remove pump assembly from vise and lay on a flat
surface with towels or in catch pan.
6. Completely remove the tie bolts (105). See FIG. 11.
7. Remove inlet housing (106) from pump cylinder
(103). Remove pump crossover tube (104) and
o-rings (102). See FIG. 12.
8. Pull pump cylinder (103) and displacement rod
(115) away from outlet housing (107).
9. Remove displacement rod (115) from pump
cylinder (103). See FIG. 13.
10. Remove two o-rings (101) from pump cylinder
(103). See FIG. 14.
11. Place outlet housing (107) in vise so throat cartridge
(118) is facing up.
FIG. 10
FIG. 11
107
106
clamp here clamp here
121
105
105
106
FIG. 12
NOTICE
Be careful not to scratch the displacement rod (115);
place it on a smooth working surface. Damage to the
displacement rod will shorten pump life.
FIG. 13
FIG. 14
104 102
103
115
106
102
107
103
115
101
103
101

Repair
14 3A8563B
12. Remove throat retainer (119).
13. Use o-ring pick and remove o-ring (145) from inside
throat retainer (119) and two throat seals (126) out
of the throat cartridge (118). see FIG. 15.
14. Remove throat cartridge (118) and throat cartridge
o-ring. See FIG. 15.
15. Clamp flats on seal end of pump rod bottom(124) in
vise. Remove piston retainer (114), piston bearing
retainer(116), and two piston seals (117). See FIG.
16 and FIG. 17.
For 20cc-40cc Pumps
For 80cc-160cc Pumps
16. If the pump rod bottom (124) shows damage or
wear on the surface below the piston seals (117) it
should be replaced to prevent damage to new
seals.
17. Thoroughly clean all metal parts in a compatible
solvent.
FIG. 15
FIG. 16
119 125
126
118
120 107
145
114
116 - 40cc Only
117 124
FIG. 17
116
114
117
124

Repair
3A8563B 15
Pump Assembly
1. If the pump rod bottom (124) was replaced clean
any residual sealant from the threads of the piston
shaft (115). Apply one stripe of removable strength
thread locker to the male threads on (115) pump
sizes 20-120cc pumps or the male threads on (124)
for 160cc pumps. When fully threaded together
torque the shafts to the value shown in the table
below.
2. Apply grease to seal and bearing surface of
displacement rod (124), piston seals (117) and
piston bearing retainer (116) 40cc -160cconly.
3. Install piston seals (117) onto the pump rod bottom
(124). Confirm the first piston seal faces the
displacement rod (115) and the second piston seal
faces the piston retainer (114) for 20cc size and the
bearing retainer (116, 40cc-160cc size. only). See
FIG. 18 and FIG. 19
4. Clamp flats on seal end of pump rod bottom (124)
in vise. See Torque Specification table for piston
retainer (114) torque according to pump size.
Piston Retainer Torque Specifications
NOTICE
To prevent cross-contamination and damage of the
equipment’s wetted parts, never interchange
component A (isocyanate) and component B (resin)
parts.
Pump Size Torque
20 25 ft-lbs (34 Nm)
40 50 ft-lbs (67.5 Nm)
80-160 55 ft-lbs (74.5 Nm)
NOTICE
Specification sheets and Graco testing indicate that
anaerobic sealant requires three days to fully cure.
Failure to allow three days for full cure may result in
damage to the equipment from parts coming loose
during operation. If faster cure time is required, warm
components to 104° F (40° C) for 6 hours.
FIG. 18 20cc and 40cc pumps
FIG. 19 80cc through 160cc pumps
NOTICE
To prevent displacement rod damage, do not clamp
directly onto displacement rod surface.
Pump Size Torque
20cc 30 ft-lbs (40.6 N•m)
40cc 50 ft-lbs (67.5 N•m)
80cc 80 ft-lbs (108 N•m)
100cc 160 ft-lbs (216 N•m)
120cc 160 ft-lbs (216 N•m
160cc 160 ft-lbs (216 N•m)
116 40cc only
114
117
124
115
116
114
117 124

Repair
16 3A8563B
5. Apply grease to the o-ring (145) and the two throat
seals (126). Install the o-ring (145) into the upper
most groove of the throat cartridge (119). slide
O-ring (125) over the boss end of the throat
cartridge (119). Place first throat seal into the throat
cartridge (119) and ensure the first throat seal
spring faces towards the bottom of the throat
cartridge. Using a suitable size socket or dowel,
press the throat seal to the bottom of the throat
cartridge
6. Place the second throat seal (126) into the throat
cartridge (119) ensuring the spring side faces up
toward the throat retainer (118). Using a suitable
size socket or dowel, press the second throat seal
into the throat cartridge until it contacts the first
throat seal. See FIG. 20.
7. With the outlet housing (107) mounted securely in a
vice, Install the throat retainer O-ring (120) onto the
throat retainer (118). Place the retainer into the
outlet housing (107).
8. Apply anti-seize to the threads on the throat
retainer (119) and thread it into the outlet housing
(107). When fully threaded together torque the
throat retainer to 200 ft-lbs. (271 N•m). See FIG. 21.
9. Install cylinder o-rings (101) on pump cylinder (103)
and crossover tube o-rings (102) on crossover
pump tube (104). Lubricate o-rings with grease.
See FIG. 22.
10. Install pump cylinder (103) and pump crossover
tube (104) in outlet housing (107) with a rubber
mallet. See FIG. 23..
11. Lubricate piston seal (117), and piston bearing
retainer (116) with grease.
NOTE: For 160cc pumps, place the cylinder installation
tool (150) over the end of the pump cylinder (103) to
help guide the displacement rod (115) during
installation. See FIG. 24 page 17.
FIG. 20
FIG. 21
118
126
120
125
145
119
107
6
118
FIG. 22
FIG. 23
104
102
101
103
102
101
107
104
103

Repair
3A8563B 17
12. Install displacement rod (115) in pump cylinder
(103) and into throat cartridge (118). Gently tap
displacement rod with a rubber mallet until the hex
surface of the piston retainer (114) is flush or below
the surface of the pump cylinder (103). See FIG. 25.
13. Gently place inlet housing (106) on pump cylinder
(103) and pump crossover tube (104). Ensure inlet
housing bores are aligned with pump cylinder and
pump crossover tube. Install with a rubber mallet.
14. Lubricate four tie bolts (105) threads and install.
15. Torque tie bolts (105) in a star pattern (see FIG. 26)
to 10 ft-lbs (13.5 N•m). Then torque again to 50
ft-lbs (67.5 N•m). Torque a final time to 200 ft-lbs
(271 N•m)
16. After torquing the four tie bolts (105) ensure the
inlet housing(107) is evenly seated onto the pump
cylinder (103) and pump crossover tube (104).
17. For 20cc-40cc pumps only: Clean rod adapter (121)
threads with a wire brush and apply removable
strength thread locker to displacement rod (115)
threads. Install rod adapter (121) on displacement
rod (115). Torque Rod adapter and displacement
rod together to 45 ft-lbs (60.75 N•m). See FIG. 26.
FIG. 24
FIG. 25
NOTICE
To prevent damage to o-rings, ensure inlet housing is
evenly seated on main cylinder before installing tie
bolts (105).
150
103
116
115
117
103
118
114
FIG. 26
1
2
4
3
17
106
104
121
105
103
115

Parts
18 3A8563B
Parts
20cc Pump
1. Lubricate seals, o-rings, lead-in’s and moving parts with
grease.
Apply one stripe of removable strength anaerobic sealant on
threads.
Torque to 50-ft-lbs (67.5 N•m).
Assemble and torque after displacement rod (115) is
assembled through throat retainer (119). Torque to 45 ft-lbs
(61.01 N•m)
Torque tie bolts (105) in star pattern ( FIG. 26 page 17) to 10
ft-lbs (13.5 N•m). Then torque again to 50 ft-lbs (67.5 N•m).
Finally torque to 200 ft-lbs (271 N•m).
Torque to 200 ft-lbs. (271 N•m).
See Piston Retainer Torque Specifications table on page 15
for torque specification.
Must be pressed straight into housing.
Apply anti-seize lubricant to threads.
Ensure spring side of one throat seal (126) faces throat
cartridge (118) and spring side of other seal faces throat
retainer (119).
Ensure spring side of one piston seal (117) springs face
displacement rod (115) and piston bearing retainer(116).
Fully assemble piston seals(117) and piston bearing retainer
(116) onto pump rod bottom (124) before tightening piston
retainer (114).
Torque to 70 ft-lbs. (95 N•m).
Torque to 30 ft-lbs. (41 N•m).
Carbide seat (142) radius must face ball (141).
NOTICE
Specification sheets and Graco testing indicate that
anaerobic sealant requires three days to fully cure. Failure
to allow three days for full cure may result in damage to
the equipment from parts coming loose during operation.
If faster cure time is required, warm components to 104° F
(40° C) for 6 hours
2
3
4
5
6
7
8
9
10
11
12
13
14
15
106
117
115
101
101
103
104
102
102
107
120
137
139
143
141
142
138
140
108
140
144
138
108
144
108
143
141
139 137
142
113
124
148
149
2
15
14
13
12
11
9
7
5
3
9
9
14
9
15
3
9
2
89
105
114
118
125
126
145
119
121
135
133
134
147
4
146
6
9
10
8
8

Parts
3A8563B 19
40cc Pump
1. Lubricate seals, o-rings, lead-in’s and moving parts with
grease.
Apply one stripe of removable strength anaerobic sealant on
threads.
Torque to 50-ft-lbs (67.5 N•m).
Assemble and torque after displacement rod (115) is
assembled through throat retainer (119). Torque to 45 ft-lbs
(61.01 N•m)
Torque tie bolts (105) in star pattern ( FIG. 26 page 17) to 10
ft-lbs (13.5 N•m). Then torque again to 50 ft-lbs (67.5 N•m).
Finally torque to 200 ft-lbs (271 N•m).
Torque to 200 ft-lbs. (271 N•m).
See Piston Retainer Torque Specifications table on page 15
for torque specification.
Must be pressed straight into housing.
Apply anti-seize lubricant to threads.
Ensure spring side of one throat seal (126) faces throat
cartridge (118) and spring side of other seal faces throat
retainer (119).
Ensure spring side of one piston seal (117) springs face
displacement rod (115) and piston bearing retainer (116).
Fully assemble piston seals(117) and piston bearing retainer
(116) onto pump rod bottom (124) before tightening piston
retainer (114)..
Torque to 70 ft-lbs. (95 N•m).
NOTICE
Specification sheets and Graco testing indicate that
anaerobic sealant requires three days to fully cure. Failure
to allow three days for full cure may result in damage to
the equipment from parts coming loose during operation.
If faster cure time is required, warm components to 104° F
(40° C) for 6 hours.
2
3
4
5
6
7
8
9
10
11
12
13
105
104
102
102
115
113
111
108
110
108 109
112
107
101
103
101
124
117 116
114
106
112
111
109
110
108
148
149
2
13
12
11
9
7
5
2
121
133 135
134
147
145
146
126
120
118
125
119
4
8
10
8
6
9
10

Parts
20 3A8563B
80cc-160cc Pumps
1. Lubricate seals, o-rings, lead-in’s and moving parts with
grease.
Apply one stripe of removable strength anaerobic sealant on
threads.
Torque to 50-ft-lbs (67.5 N•m).
Torque tie bolts (105) in star pattern ( FIG. 26 page 17) to 10
ft-lbs (13.5 N•m). Then torque again to 50 ft-lbs (67.5 N•m).
Finally torque to 200 ft-lbs (271 N•m)
Torque to 200 ft-lbs. (271 N•m).
See Piston Retainer Torque Specifications table on page 15
for torque specification.
Must be pressed straight into housing.
Apply anti-seize lubricant to threads.
Ensure spring side of one throat seal (126) faces throat
cartridge (118) and spring side of other seal faces throat
retainer (119)..
Ensure spring side of one piston seal (117) springs face
displacement rod (115) and piston bearing retainer (116).
Fully assemble u-cups (17) and bearing (16) onto
displacement rod (15) before tightening piston retainer (14).
Torque to 70 ft-lbs. (95 N•m).
Not used on 160cc pump. .
Used on 160cc pump only.
NOTICE
Specification sheets and Graco testing indicate that
anaerobic sealant requires three days to fully cure. Failure
to allow three days for full cure may result in damage to
the equipment from parts coming loose during operation.
If faster cure time is required, warm components to 104° F
(40° C) for 6 hours.
2
3
5
6
7
8
9
10
11
12
13
14
15
105
101
101
103
104
102
102
107
115
124
117
112
106
133
135
134
146
147
119
145
125
114
126
118 120
108
109 110
111
112
108
110
111
109
112
108
113
148
149
150
9
13
2
15
5
12
11
12
7
3
14
9
8
10
8
