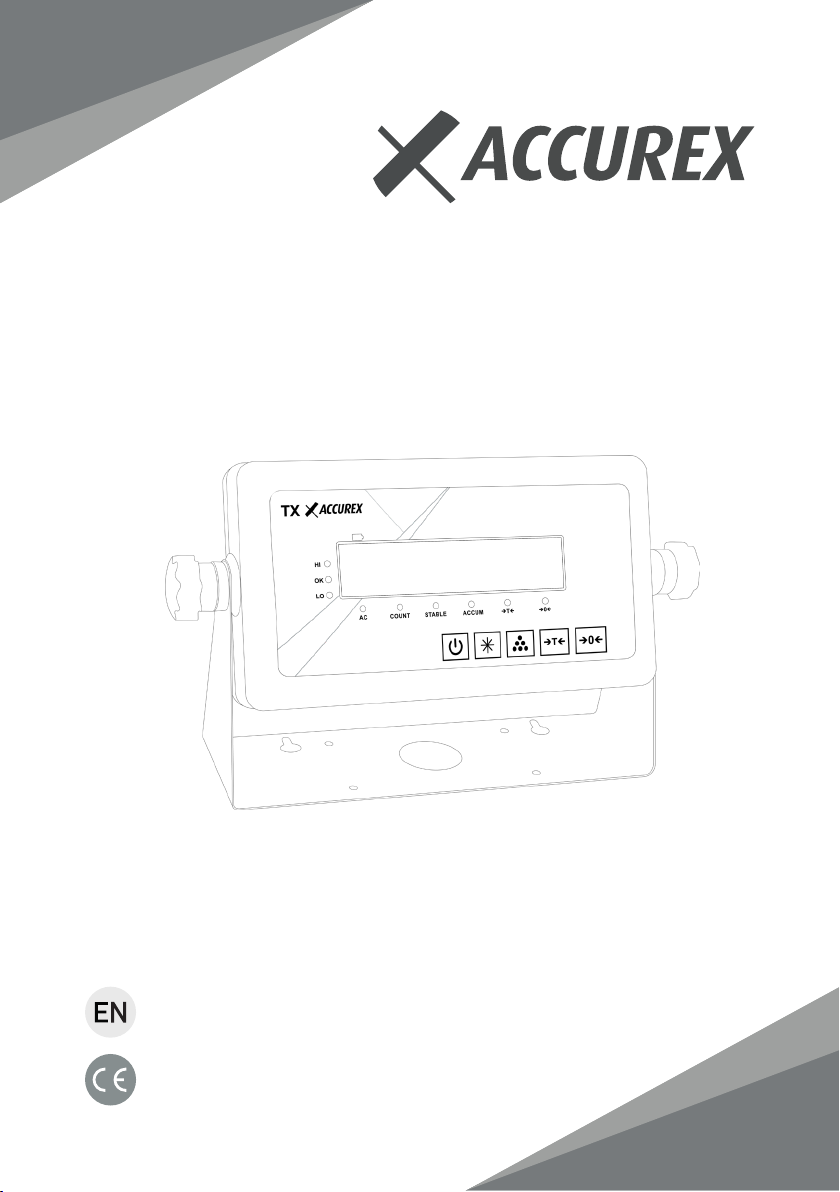

Gram ACCUREX TX User manual

TX
INDICATOR
USER MANUAL

33
INDEX
1. Main specications 5
2. Keyboard 3
2.1. Keyboard 3
2.2. Keyboard function 4
3. Connection of load cells to the indicator 4
4. Instructions for use and description 5
4.1. Tare 5
4.2. Zero 5
4.3. Animal weighing function 5
4.4. Accumulation function 5
4.5. Upper and lower limit alarm settings 5
5. System setup 6
6. Failure and correction 8
7. Use of battery 8
8. Maintenance and precautions 9
9. Calibration instructions 9

55
1. Main specications
1. Model: TX Digital Weighing Indicator
2. Sample rate: 10-20 times/second
3. Sensitivity of load cell: 1.5~3mV / V
4. Interval: 1/2/5/10/20/50 (Congurable)
5. Display: 6-digit LED display with 10 status indicators
8. Power supply: 100-240Vac/50-60Hz - 12Vdc-500mA AC/DC adapter
18659 3,7V 4000mAh Rechargeable Li-Ion Battery
9. Operating temperature: -10~40ºC
10. Transport temperature: -25~50ºC
2. Keyboard
2.1. Keyboard

6
1 +EXC
+SIG
SHIELD
- SIG
-EXC
2
3
4
5
1
1
3
4
5
2
6

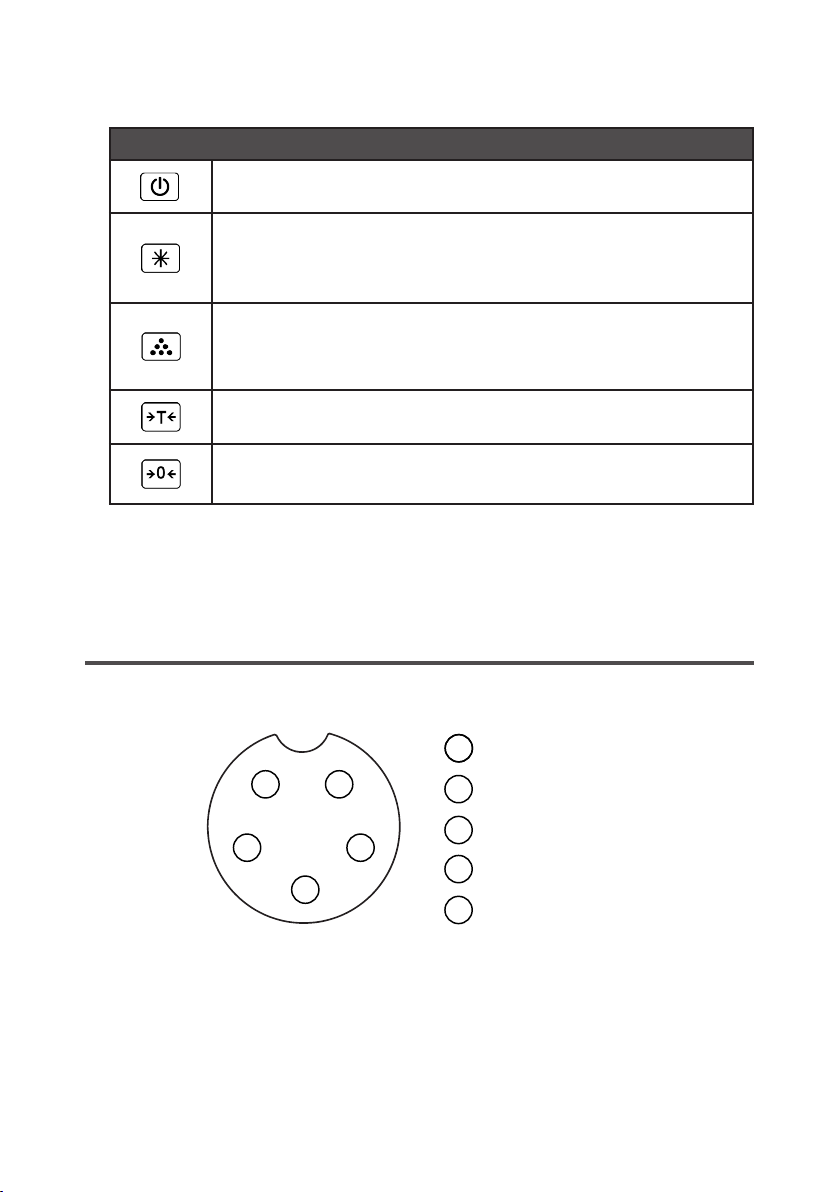

2.2. Keyboard function
3. Connection of load cells to the indicator
Key Function
Press this key to turn the display on/off.
Press and hold this button for more than 5 seconds in weighing mode,
you will enter user parameter setting mode; press and hold this button for
less than 5 seconds, you will enter a ales weighing mode.
In weighing mode, press this button to accumulate the weight; in self-test
mode, press and hold this button to enter calibration mode; in calibration
process, press this button to change the parameter setting.
In weighing mode, press this button to tare; in parameter setting mode,
press this button to change the parameter value.
In weighing mode, press this button to zero; in calibration process, press
this button to change the value.

77
4.1. Tare
Place the load to be weighed on the scale platform, when the stability indicator lights
up, press the key to tare. The display shows zero and the net weight indicator light
comes on. Remove the load and press again the key to cancel the tare, the net
weight indicator light will disappear.
4.2. Zero
Zeroing of the scale. The stability indicator must be lit. While the scale is zeroed, the
zero indicator lights up.
4.3. Animal weighing function
In the parameterisation, set the value [P 14] to [2] to start the animal weighing function.
Set the value [P 14] to [1] to deactivate the animal weighing function. The [P 13] function
is the ltering force. In weighing mode, press and [--CT--] will be displayed, after
a few seconds the scale will lock the current weight automatically; press the If the
scale is reset or zeroed, the scale can go into normal weighing mode.
4.4. Accumulation function
In the weighing mode, press the key the indicator will accumulate all the current
weight, and at the same time the ACCUM indicator will light up. Press the key
again, it will go into normal weighing mode and the ACCUM light will go out; press the
key with the counter at zero, to display the current accumulated value; under the
accumulation status, press to reset to zero, press can return to normal weighing
mode and, at the same time, the ACCUM lights go out.
Note: the balance must be zeroed before the next accumulation operation. otherwise,
you will not be able to perform the accumulation operation a second time.
4.5. Upper and lower limit alarm settings
Press and hold down the key to enter the upper and lower limit function setting.
[Set_H] is the upper limit setting, press the key to change, press the key to x.
Press the key to enter the lower limit setting. [Set_L] will be displayed, then you
can press the key to exit the setting. The upper and lower limit alarm is indicated by
the indicator and the alarm buzzer sounding at the same time. You can select the alarm
mode through the system setting P4.
Note: The upper limit value must be greater than the lower limit. If the set upper limit is
less than or equal to the lower limit, the indicator shall not alarm.
4. Instructions for use and description

88
5. System setup
In the weighing mode, press and hold down the key to enter the user conguration mode.
Press the key to change the value. Press the key to enter the next parameter; when
all parameters have been set, press the key to exit the user conguration mode.
Display Function Parameter Instructions
[P1 1] Change of unit
1Unidad Kg
2Unit lb (last decimal point lights up)
[P2 1] RESERVED - -
[P3 1] RESERVED - -
[P4 1] Upper and lower
limit alarm settings
1Deactivated
2Alarm above upper limits
3Alarm between the upper and lower
limits
4 Alarm below the lower limits
5Alarm outside upper and lower limits
[P5 1] RESERVED - -
[P6 1] RESERVED - -
[P7 1] Zero-range tracking
10.5e
21.0e
31.5e
4 2.0e
5 2.5e
6 3e
7 5e
[P8 1] Zero range
12% Max
24% Max
3 10% Max
4 20% Max
5100% Max

99
Display Function Parameter Instructions
[P9 1] Initial zeroing
conguration
12% Max
24% Max
3 10% Max
4 20% Max
5100% Max
6 Disabled
[P10 1] Digital lter time
intensity
1Fast
2Intermediate
3 Low
[P11 1] Time of stability
1Fast
2Intermediate
3 Low
[P12 1] Range of stability
1Low
2Medium
3 High
[P13 1] Setting the animal
weighing function
1Low
2Medium
3 High
4 Very high
[P14 1]
Animal weighing
function enabled/
disabled
1Disabled
2Enabled
[P15 1] RESERVED - -

1010
6. Failure and correction
Display Instructions
Err1 The AD value is too small when calibrated or the load cell capacity is
too large.
Err2 Zero point is out of range when calibrating.
Err3 The zero point is out of range at start-up or there is too much weight
on the scale.
Err5 No load is detected when calibrating the scale.
Err7 Incorrect load cell signal, check the wiring.
Err8 The load cell signal is not stable.
7. Use of battery
• The battery charging is done while the indicator is connected to a 220Vac socket.
• The voltage indicator ashes to indicate low battery, please connect the power cable to
charge the device.
• When the electronic scale displays the message LOB (“low battery”) the weighing
function will stop. Please immediately switch off the equipment and plug it into a 220Vac
socket to recharge the battery.
• It is recommended that before the rst use the battery charging time is longer than 24h to
ensure that the battery meets safe and stable working conditions.
• It is recommended to charge immediately when the battery is low as failure to do so
may damage the battery and shorten its life. It is recommended that the charging time is
longer than 12h. If the battery is not used for a long time, it should be recharged every
two months for about 20-24 hours to protect the battery from damage and prolong the life
of the battery.
Caution: The battery cable must not be reversed (red +, black -), otherwise the
device may burn out. When using the device for the rst time, make sure that the
battery is fully charged.

1111
• In order to extend the life of the weight indicator it should not be installed in direct
sunlight.
• Avoid installing the scale in humid environments and keep it isolated from severe
vibrations.
• Do not use strong solvents such as benzene and nitro based oils to clean the housing.
• Avoid spraying liquid on the indicator to prevent damage and electric shock.
• The battery incorporated in the electronic scale is a consumable and is not covered by
the warranty.
8. Maintenance and precautions
9. Calibration instructions
In the off state, press and hold the key to open the display, until the weight window shows
[d X] release the key to enter the calibration procedure. The calibration procedure is as
follows:
9.1. Press the key to set the value of the division.
Display Parameter
[d X]
1
2
5
10
20
50
9.2. Press the key to enter the decimal point setting menu. Press the key to set the
decimal point at the desired location.
Display Parameter
[P X]
0.
0.0
0.00
0.000

1212
9.3. Press the to enter the Maximum Capacity setting. Press to change digit, press the
key to change the value.
Display Parameter
[FULL] Press the key to enter the maximum capacity setting.
[2000.0]
Press the key to move the digit from left to right. When the
number ashes, press the key to add 1 value to the ashing
number until the corrected number is displayed.
9.4. Press the key to access the zero adjustment option.
Display Parameter
[noLoAd] Wait for stable light to enter the next step.
9.5. Press the key to access calibration with a known weight.
Display Parameter
[noLoAd] Press the key to enter the value of the load at which the
adjustment is to be made.
[00000.0] The last digit blinks.
[200.0]
Press the key to change digits.
Press the to change the value of each digit. Repeat this
operation until the weight of the load to be calibrated is shown on
the display.
9.6. Press key to complete the adjustment.
Display Parameter
[End] Finish adjustment.
9.7. Press the key the indicator will store the calibration in its internal memory and return to
weighing mode.

Gram Precision S.L.
Travesía Industrial, 11 · 08907 Hospitalet de Llobregat · Barcelona (Spain)
Tel. [phone] · [phone]
Fax [phone]
[e-mail]
www.gram-group.com
02/23032023
