DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the operation
of the appliance.

3
Safety instructions ..................................................................................................4
Description of the appliance ...................................................................................8
Installation ............................................................................................................10
Operation..............................................................................................................12
Baking in the oven – practical hints......................................................................22
Test dishes.................................................................................................................25
Cleaning and maintenance...................................................................................27
Troubleshooting....................................................................................................30
Technical data.......................................................................................................31
TABLE OF CONTENTS

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched o󰀨 before
replacing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.

5
SAFETY INSTRUCTIONS
● Ensure that small items of household equipment, including connection leads, do not touch
the hot oven as the insulation material of this equipment is usually not resistant to high
temperatures.
● Do not leave the oven unattended when frying. Oils and fats may catch re due to over-
heating or boiling over.
● Do not put pans weighing over 15 kg on the opened door of the oven.
● Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
● Do not use the oven in the event of a technical fault. Any faults must be xed by an ap-
propriately qualied and authorised person.
● In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
● The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the oven.
● The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.

6
HOW TO SAVE ENERGY
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
●Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
● Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
●Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o󰀨 the oven 10 minutes before the
end time.
Important! When using the timer, set ap-
propriately shorter cooking times according
to the dish being prepared.
●Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
●Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

7
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the
instruction manual or the packaging shows
that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

8
DESCRIPTION OF THE APPLIANCE

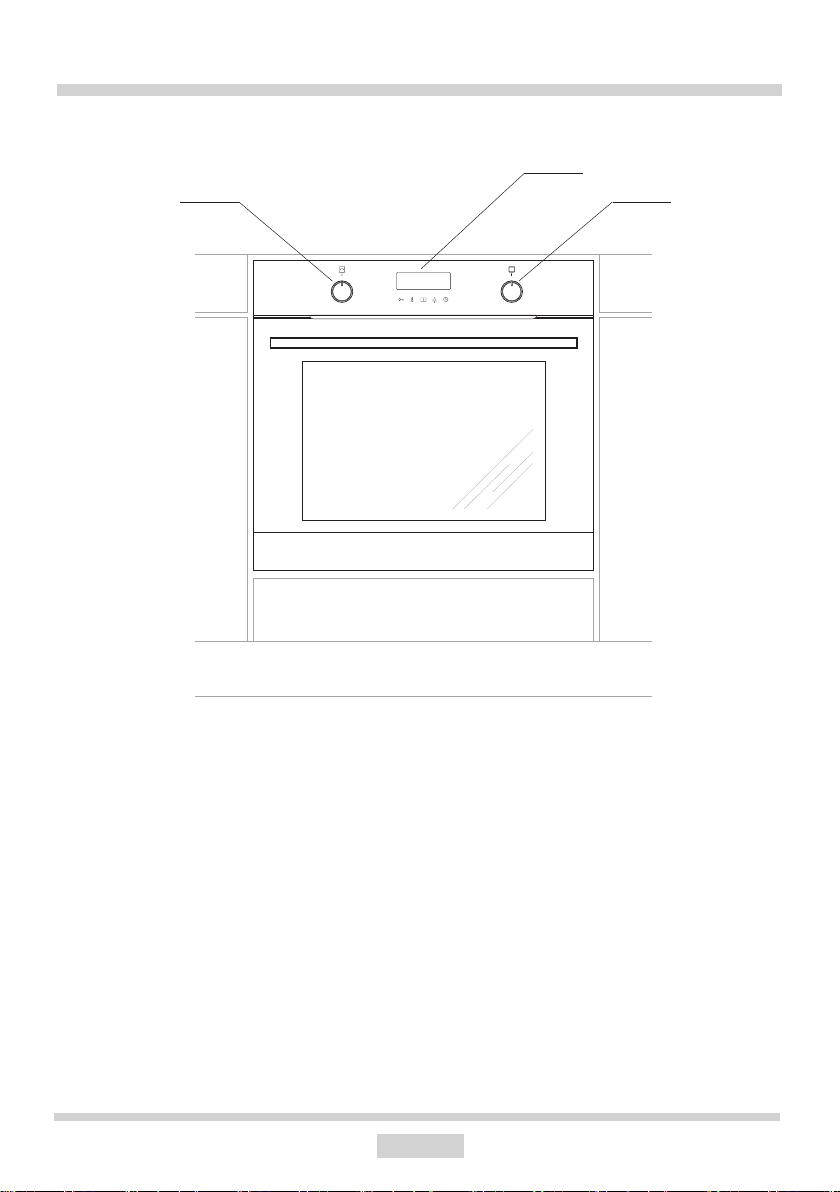

1 Electronic programmer
2 Oven function knob
3 Adjust settings knob +/-
1
2
3

9
SPECIFICATIONS OF THE APPLIANCE
Oven ttings:
Side
racks
Grill grate
(drying rack)
Roasting tray
Baking tray

10
Installing the oven
The kitchen area should be dry and aired
and equipped with e󰀩cient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneer used on tted furniture must be
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
Hoods should be installed according to
the manufacturer’s instructions.

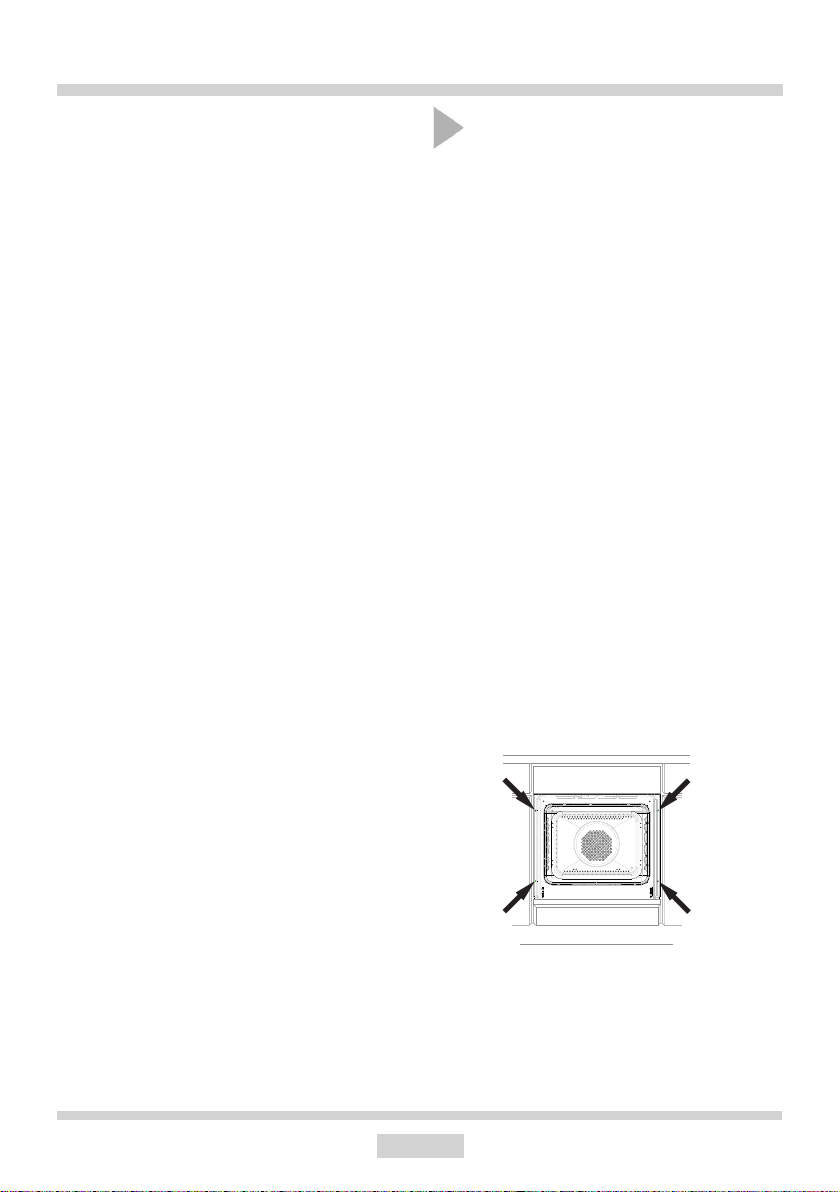

Make an opening with the dimensions
given in the diagram for the oven to be
tted.
Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
INSTALLATION
The oven is manufactured to work with
a one-phase alternating current (230V
1N~50 Hz) and is equipped with a 3 x 1,5
mm2connection lead of 1.5 mm length
with a plug including a protection contact.
A connection socket for electricity supply
should be equipped with a protection
pin and may not be located above the
cooker. After the cooker is positioned, it is
necessary to make the connection socket
accessible to the user.
Before connecting the oven to the socket,
check if:
- the fuse and electricity supply are able to
withstand the cooker load,
- the electricity supply is equipped with an
e󰀩cacious ground system which meets
the requirements of current standards
and provisions,
- the plug is within easy reach.
Electrical connection
Important!
If the xed power supply cable is damaged,
it should be replaced at the manufacturer
or at an authorized servicing outlet, or by a
qualied person to avoid danger.

11
56
523
544
429
1034
595
595
570
max50
16
25
116
595
600
595
40
40
560
40
560
560
560
7
600
5,5
584,5
INSTALLATION

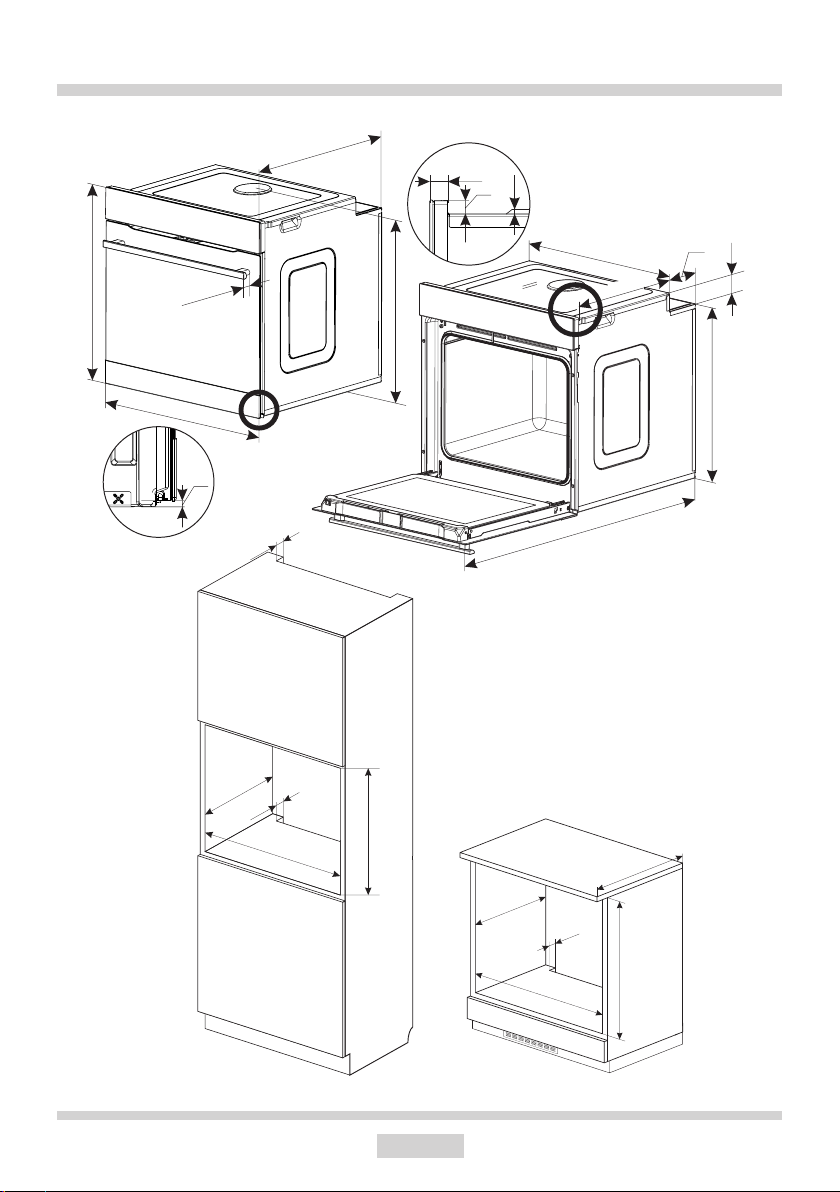

Mounting scheme with dimensions

12
OPERATION
Before rst use
• Remove all packaging elements, par-
ticularly those protecting the interior of
the oven chamber during transport.
• Remove all the accessories from inside
of the oven and wash them thoroughly
in warm water with gentle washing up
liquid.
• Remove the protective foil from the sur-
faces of the telescopic runners.
• Use warm water with the addition of
mild detergent to wash the inside of the
chamber. Do not use hard brushes or
sponges. They could damage the coat-
ing of the inside of the chamber.

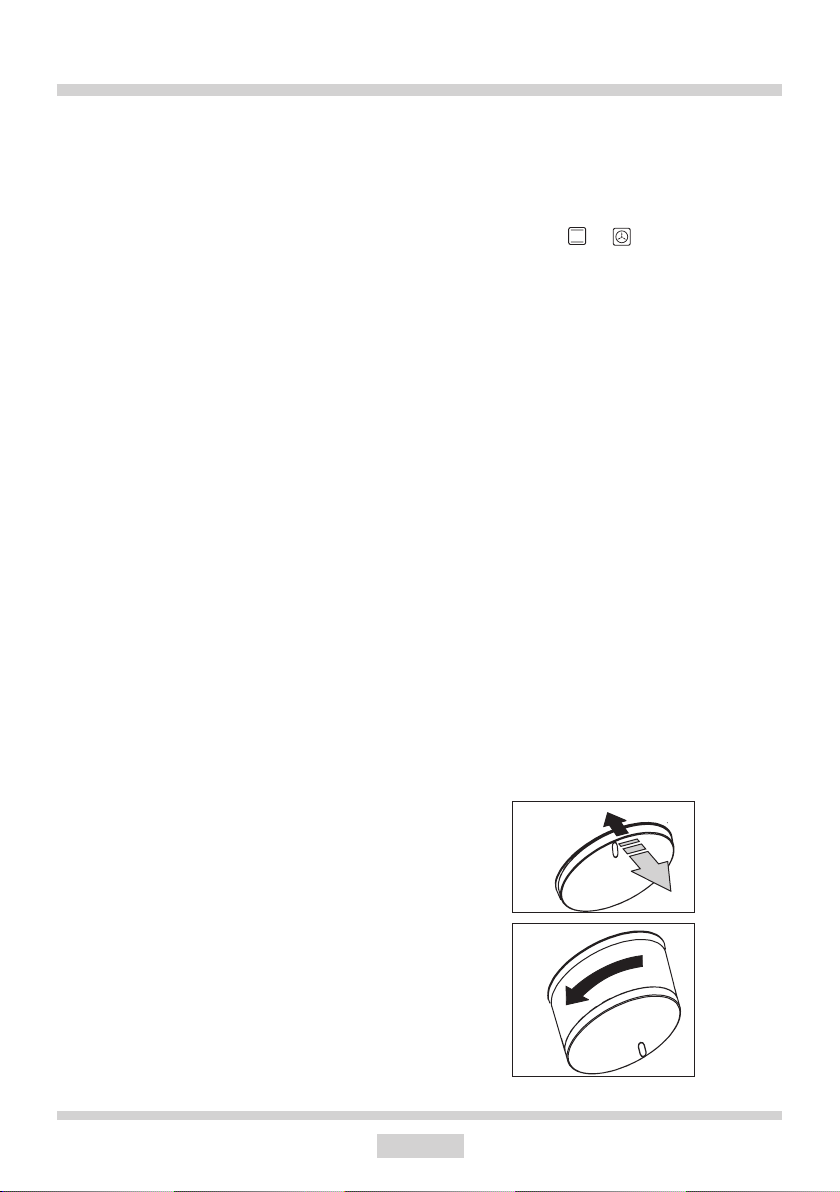

Push-pull knobs
The function selector knob and the oven
settings control are concealed in the front
panel. To set the function and/or settings,
gently press and release the knob. The
knob will pop out of the panel. You can now
set the appropriate function and/or settings.
Warm up the oven chamber
• Turn on the ventilation in the room or
open a window.
• Turn the function selector knob and set
the position or (there is a detailed
description of these functions later in
the instructions).
Set the temperature to 250°C. The oven
should operate for a minimum of 30 min-
utes; while it is operating the oven produces
a smell, which is only present at the be-
ginning but will eventually go away as the
appliance is used. This is perfectly normal
and is part of the process of warming up the
oven chamber.

13
OPERATION
Child safety lock
Oven door features a child safety lock de-
vice that prevents children from opening of
the door. The appliance is supplied by the
manufacturer with the door safety lock de-
vice engaged.
Release the
child safety lock.
The lock is
released and
you can open
the door.
The child safety lock is re-engaged
once you close the door.

14
OPERATION
Control panel
The Electronic programmer is equipped with
an LED display and 5 touch sensors:
Sensor Description
Child Lock
Temperature of the setting
Pre-set programmes
Oven cavity lighting on/o󰀨
Clock setting
Note: You will hear a beep each time you
touch a sensor. It is not possible to turn o󰀨
the acoustic beeps.
Oven function knob
The oven can be heated using the lower
heater, upper heater, fan heater or grill. Se-
lect the appropriate function with the aid of
the function knob.
The gure below shows the functions locat-
ed on the knob in their dened order:
0
Eco
Adjust settings knob +/-
The adjust settings knob is a swivel type
which does not rotate fully and can only be
turned slightly to the left or right. Use this
knob to adjust temperature and time. Turn
slightly right toward the “+” to increase value.
Turn slightly left toward the “–” to decrease
value. Use this knob to adjust temperature
and current time. If you keep the knob turned
left or right from its default position the rate
of value changes will increase.
I
I
I
I

15
OPERATION

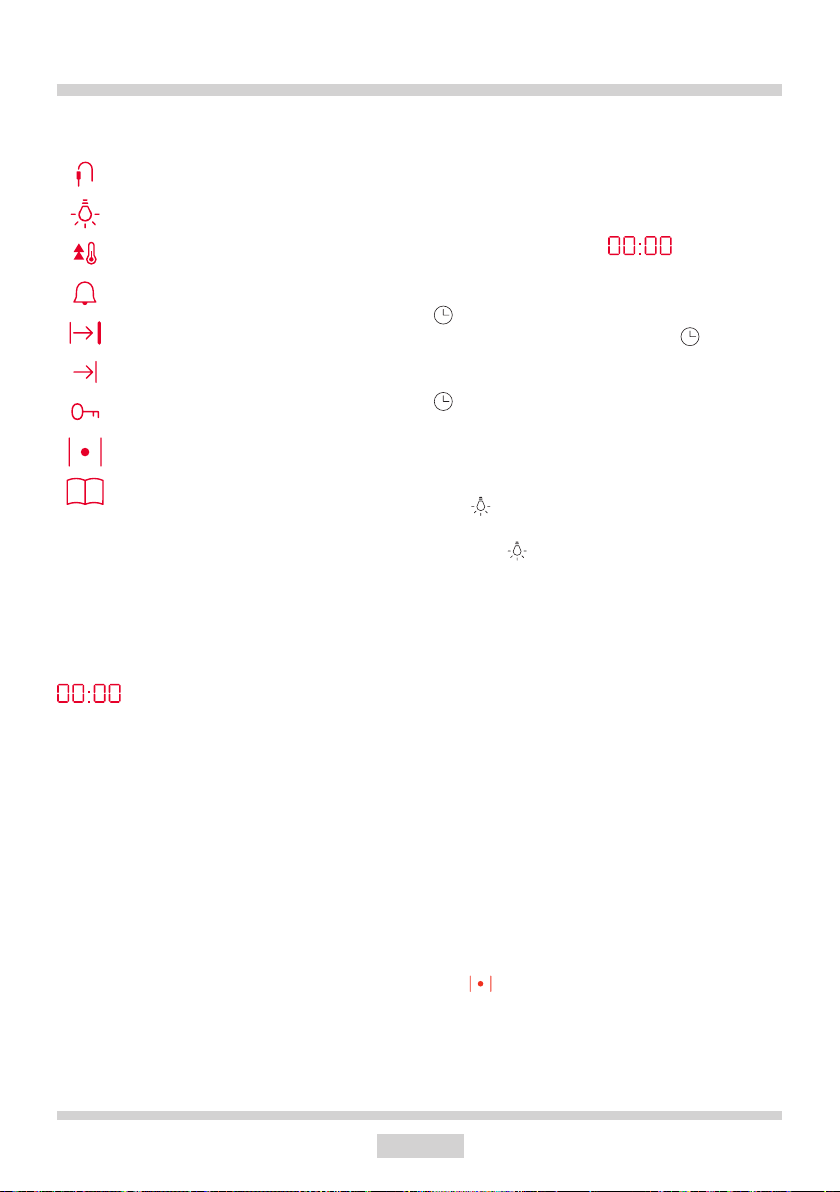

Active functions*
Meat probe connected
Lighting on
Quick pre-heat
Kitchen Timer active
Delayed timed operation
Timed operation
Child Lock Active
Oven pre-heat active
Pre-set programme active
* depending on model
Connect the power supply
When you connect the power supply (or
power is restored after a power outage) the
appliance will prompt to set the current time,
will ash on the display. You must set
the current time to use the appliance.
Note: In the event of a power outage, all
settings such as Duration, Temperature and
Heating Function will be lost. You will need
to re-enter the settings to continue cooking.
If the pyrolytic cleaning is interrupted (or the
door is locked for any other reason), the oven
will start the cooling and door opening proce-
dure before you can set the time.
The display brightness.
The LED display brightness varies depending
on the time of day. The display is dimmed
during 22:00 to 06:00 and its brightness is
normal during 06:00 to 22:00. Also, the dis-
play is brighter when active than when the
appliance is in Standby mode. The display
brightness and display dimming times cannot
be changed.
Set the current time
When you connect the appliance to the power
supply, the minutes ash on the
display. To set the minutes, turn the adjust
setting knob +/– in any direction. Then touch
and turn the adjust setting knob +/– in any
direction to set the hour. Touch to conrm
the current time.
To adjust the current time, touch and hold
in Stanby mode and the digits will ash.
Now you can proceed to set the current time.
Lighting
The sensor operates independently and
using it does not a󰀨ect other functions and
settings. sensor is inactive in a standby
mode.The light in the oven turns on for 30
seconds.
The lighting turns on each time you open the
oven door. The lighting also turns on when
the oven is in active mode. This lighting is o󰀨
in Standby mode. If the oven door remains
open for a long time, the lighting will auto-
matically turn o󰀨 after about 10 minutes.
Cooling fan
Cooling fan operates independently of the
set functions and the appliance mode. The
cooling fan operates as long as the oven
cavity temperature exceeds 50°C. B e l o w
this temperature, the cooling fan turns o󰀨.
Oven pre-heat (Thermostat symbol)
The pictogram indicates that at least one
of the heaters in the oven operates. This pic-
togram goes out when the set temperature
in the oven cavity is reached. Then the pic-

16
OPERATION
Oven functions
Turn function selector knob to one of the func-
tions described in the table below. Then use
the adjust settings knob +/– to set the tem-
perature. If you do not set the temperature,
the default temperature will be used. Touch
to conrm the temperature or wait a few
seconds and the oven will start automatically.
The oven door must be closed.
togram will be on and o󰀨 periodically. This
indicates that the set temperature is main-
tained. If you lower the set temperature,
the pictogram will only light up when the
oven cavity cools below the newly set tem-
perature.
Standby mode
Current time is displayed. The display is
dimmed in this mode.
Operation.
In this mode use the function selector knob
to set the desired function. If you use ad-
ditional functions such as timed operation,
delayed timed operation or cleaning, when
the function has completed, the oven will
automatically enter the Standby mode even
though the function selector knob is not set
to the “0” position.
Function Description
Oven elements Temperature [°C]
Default
temper-
ature
[°C]
Lighting
Top heater
Roaster
heater
Fan heater
Bottom heater
Fan
S heater
min. max
Eco ECO √ √ 30 280 170
Lighting √- - -
Fan assisted heating
(SoftSteam) √ √ √ √ 30 280 170
Pizza √ √ √ √ 30 280 220
Cake √ √ √ √ 30 280 170
Fan assisted heating √ √ √ 30 280 170
Conventional √ √ √ 30 280 180
Roasting √ √ 30 240 200
Grill √ √ 30 280 220

17
OPERATION
Kitchen Timer
Touch and hold the sensor in any mode
and will be shown on the display and
will ash. Now you can:
• Set the kitchen timer by turning the
+/– knob (clockwise), then touch to
conrm.
• Adjust the kitchen timer setting as need
using the +/– knob (in either direction).
Touch to conrm the adjusted setting.
• To turn the kitchen timer use the +/– knob
to dial the value down to . Touch
to conrm.
The Kitchen Timer operates independently of
any active oven functions. When the set time
has elapsed, you will hear beeping. Touch
any sensor to mute the beeping. You can set
a maximum of 99 minutes.
Preview and modify settings during oven
operation
Touch once to check the temperature inside
the oven cavity. Touch again to check the
set temperature. Touch again to displaying
the current time.
To adjust the set temperature, touch and
hold and the currently set temperature will
be displayed. Use the +/– knob to adjust
it as needed. Touch to conrm the new
temperature. The new temperature is not set
until conrmed.
Super grill √ √ √ 30 280 220
Turbo grill √ √ √ √ 30 280 190
Quick oven pre-heat √ √ √ √ 30 280 170
0O󰀨
When an oven function is active.
• You can change the oven function us-
ing the function selector knob. Note:
the previously set temperature will not
be changed To adjust the temperature,
touch and hold and then adjust the
temperature using the +/– knob. Touch
to conrm or wait a few seconds for the
adjusted temperature to be automatically
conrmed.
• Turn the function selector knob to the “0”
to turn o󰀨 the appliance.
• To adjust the temperature, touch and
hold and then adjust the temperature
using the +/– knob. Touch to conrm or
wait a few seconds for the adjusted tem-
perature to be automatically conrmed.
• You can activate the child lock
• You can use timed operation, and de-
layed timed operation.
Child Lock
To activate the child lock touch and hold
for 3 seconds and the symbol will be
shown on the display. If you try to use any
function when child lock is active, will
be shown on the display and you will hear a
beep. To deactivate the child lock touch and
hold for 3 seconds and the symbol
will be o󰀨.

18
OPERATION
Use the function selector knob to change
the function at any time. When you conrm
the new function, the temperature will be
displayed (currently set temperature, not
the default temperature for a given oven
function). To adjust temperature, touch and
hold and set a new temperature using the
+/– knob. Touch to conrm and the appli-
ance will operate with the new settings.
End oven function
Set the function selector knob to “0” to end
any function. By default the oven functions
operate indenitely, but you can set the oven
to turn o󰀨 using timed operation function of
delayed timed operation function. The only
exception is the pyrolytic cleaning function,
which cannot be modied.
Timed operation
In this mode the oven will turn o󰀨 after a set
duration. You can set the duration from 1
minute to 10 hours. To set timed operation
for any oven function, touch and hold the
sensor, and the timer symbol ashes in
the display. Touch the sensor again, the
display will show the symbol. Now you can:
• Set the Duration by turning the +/– knob
(clockwise), then touch to conrm.
• Adjust the Duration as need using the
+/– knob (in either direction). Touch
to conrm the adjusted setting.
• To cancel timed operation use the +/–
knob to adjust duration down to and
touch to conrm.
Timed operation will interrupt the active oven
function. When the set Duration has elapsed,
you will hear beeping. Touch any sensor or
open the door to mute the beeping. When
the beeping is muted the appliance will go
into stanby.
Delayed timed operation
You can set the oven to start at a specic time
and operate for a set Duration. You can delay
the oven start from 1 minute to 23 hours 59
minutes, and set the Duration for up to 10
hours. To activate the delayed timed opera-
tion, rst set the timed operation. Then touch
and hold the sensor again and the timer
symbol will ash on the display. Touch the
sensor twice, and the pictogram will ash
on the display. Now you can:
Use the +/– knob (clockwise) to set the time
when oven needs to start, then touch to
conrm.
Adjust the time as needed using the +/– knob
(in either direction). Touch to conrm the
adjusted setting.
To cancel timed operation use the +/– knob
to adjust duration down to and touch
to conrm.
Timed operation will interrupt the active oven
function. When the set Duration has elapsed,
you will hear beeping. Touch any sensor or
open the door to mute the beeping. When
the beeping is muted the appliance will go
into stanby.
Meat probe*
You can connect the meat probe at any time.
When you connect the meat probe, two
temperatures will be shown on the display.
Current meat probe temperature is shown on
the left and the set temperature on the right.
When you connect the meat probe, the set
temperature is ashing and you can adjust it
using the +/– knob. Touch to conrm or sim-
ply wait 5 seconds. When the meat probe is
connected and the set temperature has been
reached, the appliance will go into standby
and you will hear beeping. Touch any sen-

19
OPERATION
Pre-set programmes
These are programmes with specic settings of function, temperature and duration that are
most suitable for a given dish.
In standby mode, when the function selector knob is set to the “0” position, touch and hold
and the P01 pre-set programme will be shown on the display. Use the +/– knob to select
the pre-set programme from the following table. After a few seconds the corresponding heat-
ing function number “P01:06” ashes. Now use the +/– function selector knob to select the
function. The function number will disappear and the oven will start.
Pro-
gramme Description Function number
Position on the function knob Default
temper-
ature
[°C]
Quick oven pre-
heat Heating function
P01 Beef 06 180
P02 Pork 06 180
P03 Lamb 06 180
P04 Chicken 1.5 kg 11 190
P05 Duck 1.8 kg 11 180
P06 Goose 3.0 kg 11 170
P07 Turkey 2.5 kg 11 170
P08 Pizza 12+07 220
P09 Lasagne 12+07 200
P10 Focaccia 12+07 230
P11 Casserole with pasta 12+07 220
P12 Baked vegetables 12+07 180
P13 Sponge cake 12+07 160
sor to mute the beeping or use the +/– knob
clockwise to adjust the temperature. If you
unplug the meat probe during any function,
the appliance will go into standby.
Note: Time operation and delayed timed
operation cannot be used together with the
meat probe. If you pug in the meat probe,
the timed operation will be cancelled. The
set temperature inside the oven cavity and
the set function are not a󰀨ected.
* depending on model

20
OPERATION
P14 Mu󰀩ns 06 160
P15 Cookies 06 150
P16 Fruitcake 12+07 175
P17 Bread 07 180
P18 Dough proving 07 30
P19 Dry 06 50
Note: Do not set the function selector knob
to “0”, i.e o󰀨 position.
All pre-set programmes can be freely modi-
ed – you can adjust temperature or duration.
To do this, follow the relevant instructions
(“Preview and modify settings during oven
operation” and “Timed operation”). When you
make any adjustments, the stored pre-set
programme is not a󰀨ected and the original
settings will be restored the next time you
select a pre-set programme.
Note: To cancel a pre-set programme im-
mediately after you se it with the sensor
you need to rst turn the function selector
knob to the required function and let the ap-
pliance to start the programme, if only for a
few seconds. When the pictogram is show
you can turn the function selector knob to “0”.
If attempt to use a pre-set programme when
the meat probe is plugged in, you will hear a
beep to remind you to unplug the meat probe.
The appliance will start when you unplug the
meat probe and close the oven door.
Pre-set programmes with quick pre-heat
Some pre-set programmes require the oven
to be pre-heated. They are marked accord-
ingly in the above table. When you select
a pre-set programme with pre-heating, the
quick pre-heat pictogram will be displayed.
When the pre-heat temperature is reached
you will hear beeping and the “:07” number
and the pictogram will fash by the pre-set
programme number.Open the door and the
pictogramm will be o󰀨. Place the dish in
the oven and close the door. Turn the func-
tion selector knob to the heating function
corresponding to the ashing number — the
number will be o󰀨 and the appliance will start.
Note: It is inadvisable to modify a pre-set
programme during the quick pre-heat phase
as this will cancel the pre-set programme and
the appliance will operate with the currently
set function, duration and temperature.
End a pre-set programme.
When a pre-set programme ends, you will
hear beeping.
Oven door
Oven door must be closed during operation.
When you open the door you will interrupt
the active oven function. If the door remains
open for more than 30 seconds, an acoustic
signal will sound to prompt you to close the
oven door. Touch any sensor or close the
oven door to mute the beeping.
If you open the door for less than 10 minutes
the active settings are una󰀨ected. For safety
reasons, after this time, the oven enters the
standby mode (all settings are cleared).
