Grandbeing CV0101-N041-000 User manual

Model No.: CV0101-N041-000
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.

Introduction
Grandbeing’s CV0101-N041-000 is a HDMI surge protector. It is used to
protect the HDMI devices against Electrostatic discharge/Cable Discharge
Events/Lightning. It is active on all TMDS channels and will act as a final
defense for ESD and lightning surge.

Contents
HDMI Surge Protector...........................................................................................1
Product Overview..................................................................................................1
Features ................................................................................................................1
Package Contents.................................................................................................3
Panel Descriptions ................................................................................................3
Connections and Operations ................................................................................4
Specifications ........................................................................................................4
Typical Application.................................................................................................4
Maintenance..........................................................................................................5
Product Service.....................................................................................................5
Mail-In Service.......................................................................................................5
Warranty................................................................................................................6
Warranty Limits And Exclusions............................................................................6

Page 1
HDMI Surge Protector
■Product Overview ( Model Number: CV0101-N041-000)
■Features
zProtect HDMI Input and Output for ESD and lighting surge.
zMeet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).
zMeet IEC 61000-4-4 (EFT) 40A (5/50ns).
zMeet IEC 61000-4-5 (Lightning) 5A (8/20µs).
zSolid-state silicon-avalanche technology.
zLow TMDS signal loss.
zHDCP compliant.
zHDMI 1.4 with 3D and HEAC.

Page 2
"Notice
Grandbeing Inc. reserves the right to make changes in the
hardware, packaging and any accompanying documentation
without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
p
lu
g
s.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Page 3
■Package Contents
①1x Main unit. P/N_CV0101-N041-000.
②1x Ground Wire.
③Operating Instructions. P/N_INS CV0101-N041-000.
NOTE: PART NUMBER (Abbreviation as P/N).
■Panel Descriptions
1 2
① HDMI Input
② HDMI Output

Page 4
■Connections and Operations
Please place the protector before and after the HDMI devices for
additional protection for ESD and lightning surge. The power supply is not
needed. You can also attach the ground wire to screw hole of HDMI
socket for extra electric shock protection.
■Specifications
Operating Temperature Range 0 to +35°C (32 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Dimensions 65mmL×46mmW×25mmH
/2.6''L×1.8''W×1.0''H
Mass (Main unit) 80g/2.8oz
NOTE: Specifications are subject to change without notice. Mass and dimensions are
approximate.

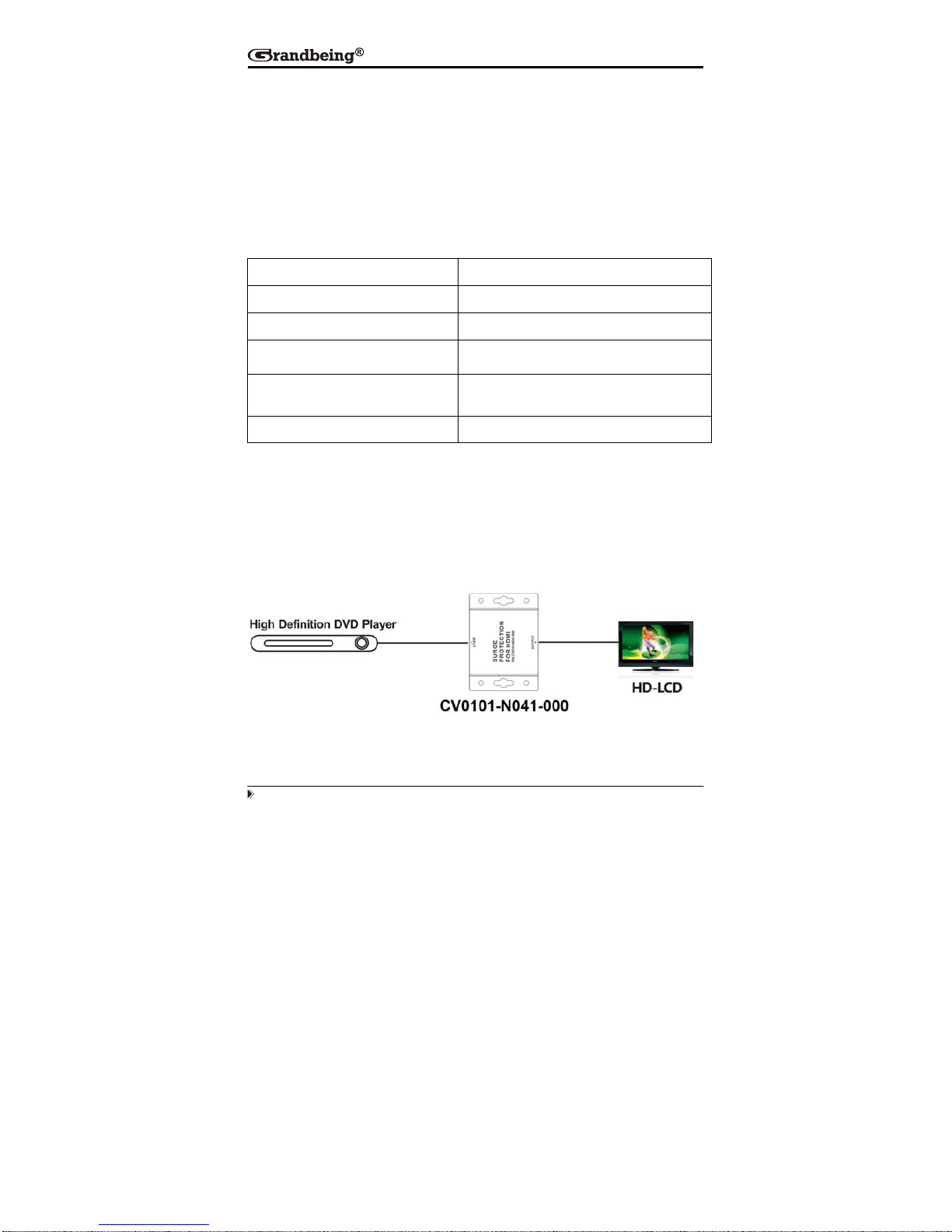

■Typical Application

Page 5
■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine
to clean this unit.
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
zThe DC power supply cord or AC adaptor has been damaged;
zObjects or liquids have gotten into the unit;
zThe unit has been exposed to rain;
zThe unit does not operate normally or exhibits a marked change in performance;
zThe unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in
these operating instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses parts
specified by the manufacturer or parts that have the same characteristics as the original
parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety checks to
confirm that the unit is in proper working condition.
●Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured and preferably
in the original carton. Include a letter detailing the complaint and provide a daytime phone
and/or email address where you can be reached.
If repair is needed during the limited warranty period the purchaser will be required to furnish a
sales receipt/proof of purchase indicating date of purchase, amount paid and place of
purchase. Customer will be charged for the repair of any unit received without such proof of
purchase.

Page 6
●Warranty
If your product does not work properly because of a defect in materials or workmanship,
Grandbeing Company (referred to as “the warrantor”) will, for the length of the period indicated
as below, (Parts (1) Year, Labor(90) Days)which starts with the date of original purchase
(“Limited Warranty period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will
be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warranty is extended only to the original purchaser and only
covers product purchased as new. A purchase receipt or other proof of original purchase date
is required for Limited Warranty service.
●Warranty Limits And Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not
supplied by the warrantor, or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments,
maladjustment of consumer controls, improper maintenance, power line surge, lightning
damage, modification, or service byanyone other than a Factory Service Center or other
Authorized Service, or damage that is attributable to acts of God.
2) There are no express warranties except as listed under “limited warranty
coverage”. The warrantor is not liable for incidental or consequential
damages resulting from the use of this product, or arising out of any
breach of this warranty. (As examples, this excludes damages for lost time, cost of
having someone remove or re-install an installed unit if applicable, travel to and from the
service location, loss of or damage to media or images, data or other recorded content.
The items listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty, are
your responsibility.

Grandbeing Technology Co., Ltd.
Address:
B-301, Science and Technology Building Phase II,
1057 Nanhai Road,Nanshan District Shenzhen, P.R. China
Tel: [phone]/Fax: [phone]
Post Code: 518067
www.grandbeing.biz
