Model：1GD-IRAn

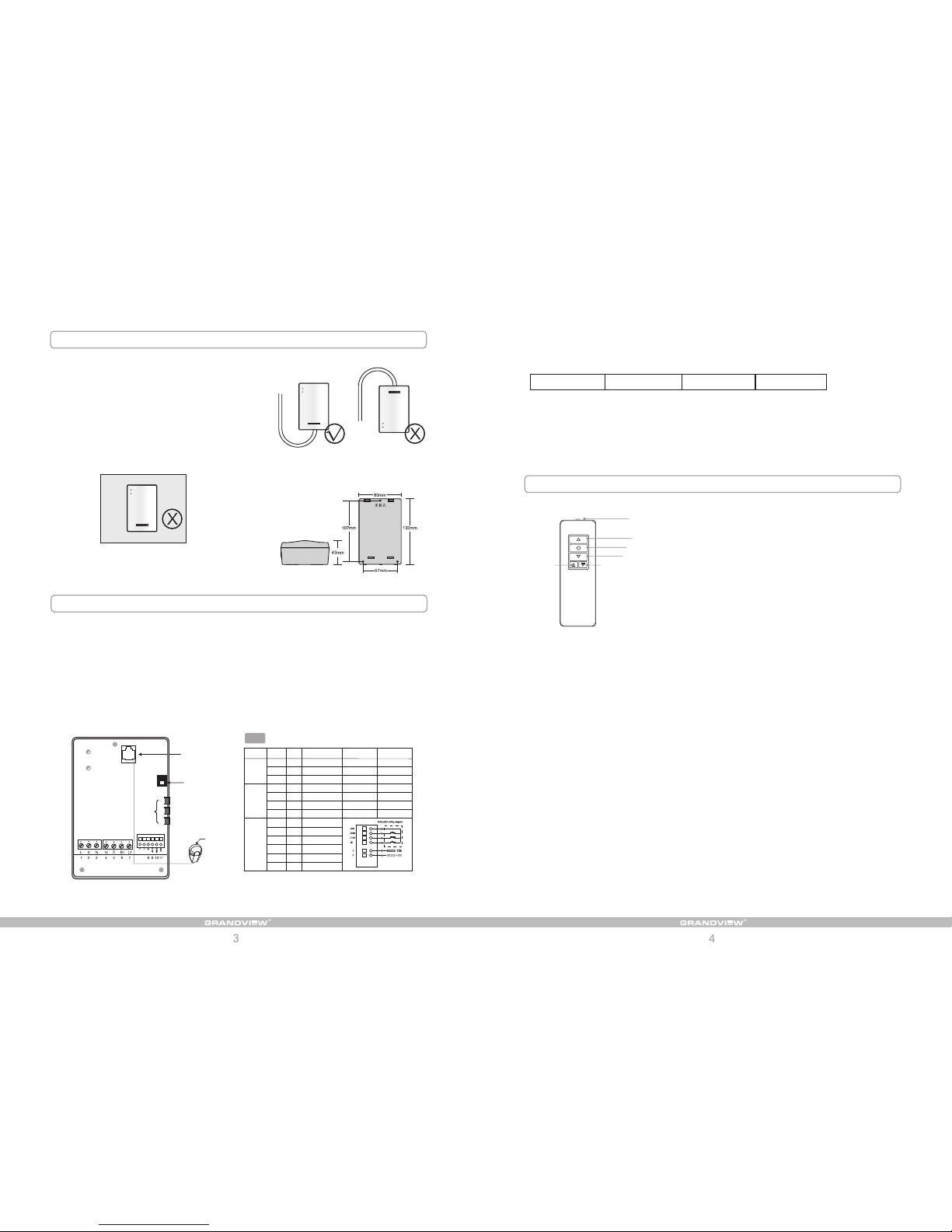

Installation of the Receiver
Wiring Instruction
UP
DOWN
STOP
MICRO-UP MICRO-DOWN
The Remote control is compatible with the receiver,tramsfer signal by
IR(Wavelength: 940Nm)
Model:1GD-IRAn
1. Press ▲ to lift the screen.
2. Press ○ to stop the screen
3. Press ▼ to lower the screen.
4. The Micro switch is used for retracting or lowering screen in small
increments.
Operating Instruction for Using Remote:
FUNCTION：
header plug
Please read the below instruction before installing the receiver
Attention:
> When installing the receiver, please make sure the cable
exit face down to prevent from potential infiltrationwater
> Please keep away from large size metal objects when installing the receiver in case the frequency
is affected
> Please make sure the distance between two receiver
should be at least 20 cm Dimension
metal
Mannual control of Direction Exchange Switch for Motor(SW1) Manual Instruction:
When controlling the screen by mannual control, if you found the screen rolling in a contrary direction and confrim
operate the remote in a right way (that means when you press the up button the screen goes downwards,when you
press the down button, the screen goes upwards). Please just turn turn the (SW1) switch which is inside of the
Receiver, the screen will properly working again.
LED light
Cautions for Remote Control:
1.The minimum distance between IR emitter and receiver is 50cm.
2.IR emitter only can work within 8 meteres in front of receiver.
3.Obstacles are forbidden in front of LED light.
4.Emitter are not allowed to use in the wet and high-temperatured condition.
5.New batteries need to be replaced when the signal gets weak.
6.in order to avoid leakage,please take out of the battery when storing it for a long time without use.
7.Model of the batteries: AAA 1.5X2.
8.One minute after the end of each accepted instructions it automatically closes the output power, but is still on
standby, if not used for a long time, cut power off or unplug the power plug from the outlet.
9.When using the emitter, receiver issued a minor "click"sound, this is the sound when relay works.
IR Header
Wiring
1
3
2
6
7
5
4
L
N
N
Live Wire Brown
Null Wire
E
Earth Wire Yellow Green
E
Earth Wire
Null Wire
R
Up/Down Wire
L
Up/Down Wire
Model No. 230V Color
NameID
Motor
Line
Power
Line
115V Color
External
Switch
8
9
10
11
Up Wire
Down Wire
Stop Wire
Concentric Wire
Black
Green
Blue
Blue Blue
White
Yellow Green Yellow Green
Brown Brown
Black Black
Attention: Please make sure the wiring is strictly following the diagram and the
diagram is only base on our product.
Up
Stop
Down
Con
12
13 5
3
RS232-TXD
RS232-GND
The below diagram showcase the wire connection, please following the below instruction during
installation
> The power must be cut before wiring
> Please prevent from static electricity as it may damage to some electronic parts
> Please use cables that match the local safety standard
> The earth wire must be connected
> When connecting the control box externally, please make sure the loop resistance is less than 20Ω.
If the cable lies nearby the strong current, please try to use shielded wire. The qualified UTP cable is
recommend for total cable length within 100 meter as the resistance is around 9.2Ω.
Sw1
Sw4
Sw3
Sw2
Indicating Light
Power Light
Manual Button
Up/Down
Down/up
Stop
Power Source
Direction Exchange
Switch
Motor
1213
If you found the screen rolling in a contrary direction(when you press the up button the screen goes downwards, when
you press the down button,the screen goes upwards),you only needs to open the receiver and change the cables for
R1 and L1.
RS485/RS232 Configuration
Central Control Protocol
1. Communication Protocol:
2. UP : 0xFF 0x EE 0xE E 0xEE 0X DD
3. STOP: 0xFF 0xEE 0xEE 0xEE 0XCC
4. DOWN: 0xFF 0xEE 0xEE 0xEE 0XEE
5. MICRO-UP: 0xFF 0xEE 0xEE 0xEE 0xC9
6. MICRO-DOWN: 0xFF 0xEE 0xEE 0xEE 0xE9
7. Initial Code: 0xFF 0xXX 0xXX 0xXX 0xAA
DATA BITS: 8 Digits INTIAL DIGITS: Digit 1 STOP DIGITS: Digit 1 BAUD RATE: 2400
