Granit G300 User manual

Operating Instructions for Hydraulic Hose Cutter G300
Page 1of 9
Operating Instructions for
Hydraulic Hose Cutter G300

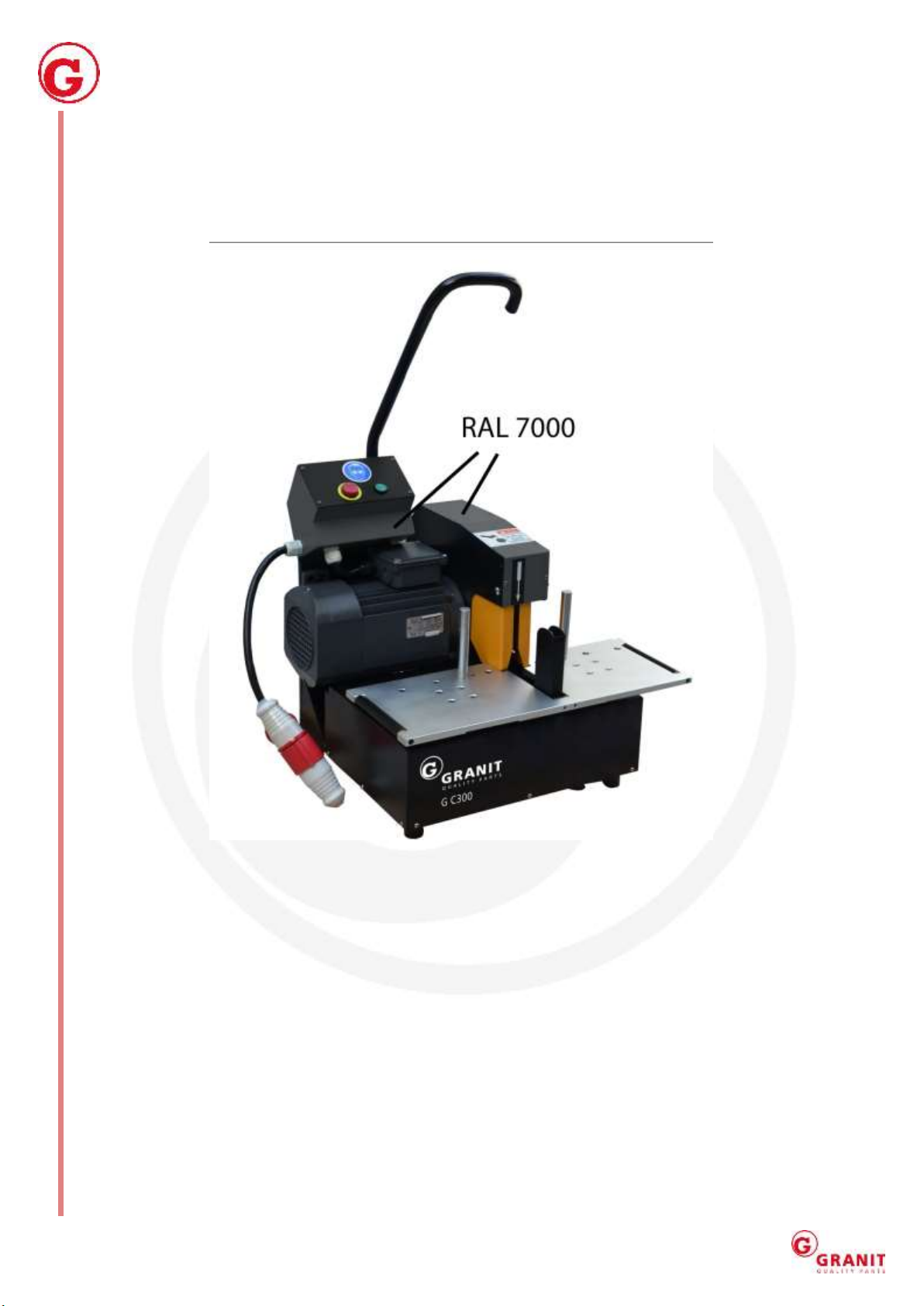

Figure 1 G300
These operating instructions must be read thoroughly before use and followed.
These operating instructions must be retained for future reference.

Operating Instructions for Hydraulic Hose Cutter G300
Page 2of 9
Table of Contents
1. ABOUT THESE INSTRUCTIONS AND SYMBOL DESCRIPTIONS 3
SAFETY AND ACCIDENT PREVENTION RULES 3
2.1 GENERAL SAFETY INSTRUCTIONS 3
2.2 PRECAUTIONARY MEASURES 3
3. INTENDED USE 4
4. WARNINGS ON THE MACHINE 5
5. COMPONENTS AND OPERATING INSTRUCTIONS 6
5.1 COMMISSIONING 6
5.2 COMPONENTS AND FUNCTION DESCRIPTION 6
6. CARE AND MAINTENANCE 7
7. DISPOSAL 7
8. EC DECLARATION OF CONFORMITY 8
9. GUARANTEE 9
10. ADDRESSES 9
11. LEGAL NOTICE 9

Operating Instructions for Hydraulic Hose Cutter G300
Page 3of 9
1. About these Instructions and symbol descriptions
The information in these Operating Instructions is labelled as follows:
DANGER
Warning of personal injury or environmental damage.
IMPORTANT
Warning of property damage.
NOTE
Additional information.
Numbers in illustrations (1, 2, 3 ...) refer to the corresponding numbers in brackets (1), (2), (3) ...
in the text next to the item numbers in the tables.
Instructions for which the order must be followed are numbered (1, 2, 3, ...)
Lists are marked with a dot (●, ●, ...)
Safety and accident prevention rules
2.1 General safety instructions
These operating instructions were prepared so that you can work safely with the equipment.
People who are not familiar with these instructions should not perform these actions.
Read these Operating Instructions thoroughly before use. Pay particular attention to the safety
instructions.
These Operating Instructions are intended for people with basic technical knowledge in using
equipment such as that described here.
If you have no experience with such equipment, you should first get assistance from experienced
persons.
Keep all supplied documents with the equipment for future reference if required. Keep the
purchase receipt for any warranty claims.
If you lend or sell the equipment, supply all documentation with it.
Observe the operating and maintenance instructions found in this manual.
Children should be supervised to ensure that they do not play with the equipment.
Mechanical maintenance should be performed at the prescribed intervals and in the prescribed
scope.
Following maintenance work, all dismantled protective devices must be properly reinstalled. The
protective devices and their protective functions should be inspected by a competent person
before using the machine.
Defective equipment must be repaired promptly in order to minimize the extent of damage and
avoid endangering the safety of the equipment.
Retrofits, changes or modifications to the equipment are strictly prohibited. They require
consultation with and written approval by the manufacturer.
If during operation (residual) hazards and risks become apparent which are not described in this
manual, the operator is obliged to report this to the manufacturer.
Never work or reach between or on moving cutting tools.
Do not change the settings of the safety components. Check functioning before each use.
2.2 Precautionary measures
Always wear protective gloves when performing setup, maintenance and cleaning work
on the equipment, to prevent injury from sharp parts.

Operating Instructions for Hydraulic Hose Cutter G300
Page 4of 9
While working with and on the equipment wear protective work gloves that fit snugly,
safety goggles and work shoes.
Wear body-covering, snug-fitting clothing.
Before each use always perform a visual and then a function check of the equipment to
identify damage and worn parts, and arrange for their repair by trained personnel before
use.
Ensure that the equipment is always on a solid and stable base.
Observe care and maintenance instructions.
The press may be operated only by persons 16 years or older. As an exception, use by a teenager
is permitted in the course of training to attain skill under the supervision of an instructor.
3. Intended use
The G300 cutter is designed and made for cutting hydraulic hoses.
It is intended for use in dry, non-freezing interior spaces.
The manufacturer shall not be liable for damages caused by failure to comply with generally
accepted rules as well as the instructions in this manual, including insufficient maintenance.
The manufacturer is not liable for any damages resulting from these causes.

Operating Instructions for Hydraulic Hose Cutter G300
Page 5of 9
4. Warnings on the machine
The machine is intended only for professional use. It should be operated only by trained personnel.
It is absolutely necessary to observe the Operating Instructions and warnings. Do not remove or
cover the warning stickers. Immediately replace damaged warning signs with new ones.
Keep hands far enough away
from moving parts during
cutting.
For technical reasons, some tool parts are not covered. Their travel is short and they move very
slowly. This limits the danger of injury, since the movement is small and the speed is low. However,
never let body parts get between these or any moving parts.
Additional warnings:
Warning of rotating machine
parts
Warning of hand injury
General warning
The noise developed by the equipment in operation has been measured as no higher than 70dB(A).

Operating Instructions for Hydraulic Hose Cutter G300
Page 6of 9
5. Components and Operating Instructions
5.1 Commissioning
Place the machine on an even and stable base. Use the adjustable foot to align the machine so that it
stands firmly and securely.
5.2 Components and function description
Figure 2
Legend, Fig. 2:
1. Emergency off and stop switch: press the switch to turn off the power supply (note: Even after
the motor is switched off the blade will still move because of momentum!)
2. Operate the switch to turn the cutter on.
3. Hose stop: keeps the hose steady for a good cut
4. Cutting: lever 4-1 extends the rod with the blade and presses it against the stop 4 and cuts.
5. Hose lever gap hole: extends the spacing between the two hose stands to facilitate the size of
the hose curve.
6. Blade guard: protects the operator from cut injury and in case of blade breakage.
7. The rollers are non-slip coated to keep the hose from slipping.

Operating Instructions for Hydraulic Hose Cutter G300
Page 7of 9
6. Care and maintenance
The machine should be cleaned every eight (8) operating hours and the bare metal surfaces of the
blade should be sprayed with a multi-purpose lubricating oil.
The machine table and rollers with non-slip coating should not be oiled.
It is better to lubricate frequently but sparingly, than rarely but lavishly. If not lubricated the machine
will lose pressing force and the sliding surfaces will be damaged.
7. Disposal
The separate, environmentally friendly disposal of materials encourages recycling of materials.
Therefore, after expiry of the normal service life, the equipment itself and all related components,
including the lubrication, packaging and wear parts, should be disposed of at a recyclables collection
point.
Packaging, equipment and accessories are made of recyclable materials and should be disposed of
accordingly.
If the unit is no longer serviceable, make sure it is unusable before disposal.
DANGER: If you do not have the necessary expertise, engage a specialist for dismantling and
disposal. INJURY HAZARD!
!!! Always observe local disposal regulations!!!

Operating Instructions for Hydraulic Hose Cutter G300
Page 8of 9
8. EC declaration of conformity
EC Declaration of Conformity for Machinery (EC - Directive 2006/42/EC)
The distributor,
Wilhelm Fricke SE
Zum Kreuzkamp 7
D-27404 Heeslingen, Germany
hereby declares on its sole responsibility that the Hydraulic Hose Cutter
Type/series identification: G300
is in conformity with the provisions
of Machinery Directive 2006/42/EC. Appendix I
The product was developed in accordance with the following standards:
EN 60204-1:2006/AC:2010
EN ISO 12100:2010
Technical documentation is kept by:
Arndt Strate, Wilhelm Fricke SE
The serial number and model year are shown on the type plate of the equipment.
Heeslingen, 28 July 2018
Holger Wachholtz
(Managing Director)

Operating Instructions for Hydraulic Hose Cutter G300
Page 9of 9
9. Guarantee
The warranty terms of Wilhelm Fricke SE, as can be found in the sales documents and the current
version of the Terms and Conditions, apply.
In case of questions, please contact the company's customer service line.
10. Addresses
Sales/Customer Service / Tel.: [phone]
Spare parts sales: Fax: [phone]
Postal and shipping address: Wilhelm Fricke SE
Zum Kreuzkamp 7
D-27404 Heeslingen
11. Legal Notice
Original Operating Instructions for Hydraulic Hose Cutter G300
Manufacturer: Wilhelm Fricke SE - D-27404 Heeslingen
1st Edition of July 2018
©2018 Wilhelm Fricke SE
Reproduction in whole or in part is prohibited without the written consent
of the Wilhelm Fricke SE company.
All names of products mentioned in these Operating Instructions are trademarks of their
respective companies.
Printed on paper made from chlorine and acid-free bleached pulp.
