This manual will introduce the CameraMan 3-CCD ANALOG Camera, explain
how to install, connect and configure it, and how to use it in single and multi-
camera network applications. In addition, useful diagrams and charts can be
found in the appendices, providing technical specifications.
Two icons are used throughout the manual:
This icon alerts important instructions in the operation and maintenance of the CameraMan 3-CCDANALOG Camera.
This icon alerts tips or noteworthy suggestions in the operation or maintenance of the CameraMan 3-CCDANALOG Camera.
About this Manual
The CameraMan 3-CCD ANALOG Camera is unmatched in quality, flexibility and expandability,
providing one of the best video-communications cameras in the industry.
The manufacturer reserves the right to change specifications and warranty at
any time without notice or obligation.
Refer all Warranty and Servicing to the Consumer Center listed
in the front of this manual.
The 3-CCD ANALOG Camera should
include these components:
• One CameraMan 3-CCD ANALOG Camera with
18x lens and Mini Docking Station attached (when
applicable)
• One CameraMan Power Supply.
• One RS-485 Connector “T”
• One 3’ CameraMan Communication Cable
• One 25’ CameraMan Keypad Cable
• One 3-CCD Installation and Operations Manual

Page 2
CameraMan®3-CCDANALOG Camera Installation and Operations Manual
3-CCD Product Description
The 3-CCD ANALOG Camera is designed to be used in a variety of applications. This
camera may have been purchased with one of the below packages. Information on
upgrade paths, and recommended accessories can be found on this page.
Product Description
The 3-CCDANALOG Camera's pan/tilt functions, zoom perspective, focus and
IMAGE settings can be controlled via the Remote Control Keypad,
PVTV PVTV SHOT DIrector, or Tracking Keypad. In addition to the camera-
control these optional accessories provide, they also provide multi-camera
control and store up to 125 presets per camera.
Student Camera Upgrade Package
Used in distance learning applications, this system gives each student the
power to be instantly identified by the camera with the touch of a press
to talk microphone. This includes the Programmable Response Module
for distributed preset control and a 3-CCD Camera Control Keypad.
Presenter Camera Upgrade Package .snoitacilppagnicnerefnocoedivdnaenicidemelet,gninraelecnatsidnidesU
The system gives presenters and instructors the ability to provide dynamic
presentations while the camera automatically follows their every move.
Includes a Tracking Ring Package, 3-CCD RF Tracking Keypad, and Main
Docking Station.
Personal Locator Upgrade Package
For videoconferencing applications, this system gives each videoconferencing
participant the power to be instantly identified by the camera with the touch of
a MY TURN button on individually controlled keypads. Includes three 3-CCD
RF Personal Locator Keypads and one RF Chairperson Locator Keypad for
distributed preset control.
Deluxe Upgrade Package
Combines the distributed preset control of the Personal Locator System and
the autoTRACK presentation capabilities of the Presenter Camera System.
Includes three 3-CCD RF Personal Locator Keypads, one RF Chairperson
Locator Keypad, Tracking Ring Package, 3-CCD RF Tracking Keypad, and
Main Docking Station.
Personal Locator Keypad
for Personal Locator and
Deluxe Systems
Tracking Ring Package
for Presenter and Deluxe
Systems

3-CCDANALOG Camera
Page 3
3-CCD Product Description
Recommended Accessories
Camera Control Keypad
Whether used in wireless RF, or hard-wired mode, this keypad gives the ability
to control the pan, tilt, zoom, focus, iris, and location presets for up to three
separate cameras. The standard keypad comes standard with the Student
Camera System, and the Tracking Keypad comes standard with the Presenter
and Deluxe Camera Systems.
PVTV SHOT Director
Some applications require precise and flexible camera control. The
PVTV SHOT Director is a joystick controller designed to give ultimate control
by affording the ability to adjust to the pan, tilt, zoom, focus, iris, CCU functions
and location presets on 1 to 16 different cameras from one location. And
its built-in CCU functionality allows adjustment of each camera’s on-screen
image.
CameraMan Tally Light
For visual indication of which camera is selected in a multi-camera application,
the CameraMan Tally Light provides a high intensity indication from an easy-
to-install interface on the rear of the camera. Abright red indicator is mounted
to the top of a flexible pedestal, allowing precise adjustment and positioning
of the light for the best possible studio-wide observation. Control of the Tally
light can be accomplished through Control Center, and PVTV STUDIO, as well
.rotcennocxineohPdetnuom-edisaotdetcennocerusolclanretxenaaivsa
All current 3-CCD cameras are Tally-light compatible, and previous models
are factory upgradeable.
PVTV SCRIPT Viewer Display
Adding a full-feature teleprompting display that moves with the camera is
now available with addition of the powerful PVTV SCRIPT Viewer
system. The 12" active matrix, full color displays are available separately and
are easily mounted to the camera. Contact your reseller for more information
on the complete Script Viewer system.
3-CCD Camera
Control Keypads
CameraMan
Tally Light
PVTV SCRIPT Viewer Display
PVTV SHOT Director

Page 4
CameraMan®3-CCDANALOG Camera Installation and Operations Manual
CameraMan 3-CCD ANALOG Camera
The camera and its integrated intelligent pan/tilt system is the primary
component, and the basis for all of the CameraMan camera systems.
The 18x version of the 3-CCD ANALOG
Camera includes a rectangular lens shroud.
See Appendix F: page 22 for instructions on
how to install the shroud.
Mini Docking Station
The Mini Docking Station should be attached to the back of the camera.
This box is the point of connection for all RS-232 and RS-485. The only
time this box needs to be removed is if the camera is upgraded to a
Presenter Camera System.
Note: If a Presenter or Deluxe Camera System was purchased,
the Mini Docking Station is not needed.
CameraMan Power Supply
The included power supply enables use with 50/60 Hz, 100-240V Power
sources.
Connection Accessories
• RS-485 Connector “T”
• 3’ CameraMan Communication Cable
• 25’ CameraMan Keypad Cable
Below is a description of each part that came with the CameraMan 3-CCD ANALOG
Camera.
3-CCD ANALOG Camera Components
Power Supply
Non-functional
3-CCD Cameras
Mini Docking Station
Top of T-connector with RS-485 cables.
Front and back of T-connector
Front View of CameraMan 3-CCD
ANALOG Camera Rear View of CameraMan 3-CCD
ANALOG Camera

3-CCDANALOG Camera
Page 5
The back of the CameraMan 3-CCD ANALOG Camera has a variety of ports and jacks used
to connect the camera to other video and camera control components in a system.
CameraMan Ports and Jacks
PVI COM Jack– Used by certain devices
as a communication interface to the camera system.
(For example, a hard-wired keypad would attach here).
This is a standard 6-conductor RJ-11 jack.
RS-485 Jack–- Used for RS-485 communications
between the camera system and other Grass Valley
devices. This jack can be used to network multiple
camerasortoconnectappropriate, approved
peripherals using the supplied T-connector. This is a
standard 4-position modular handset jack.
Auxiliary Communication Port– Provides
communications to select Grass Valley peripherals and
provides capability for future expansion.
RS-232 Port–Provides RS-232 communications to
external devices such as PC's or other vendor control
systems. This connector is a standard DB-9 (female)
connector.

MENU – Turns on the on-screen menu for appearance
adjustments. Also used to scroll upward through the
on-screen menus.

ITEM/AWC – When in shooting mode, the automatic
white balance control can be set with this switch. It can
also be used to scroll downward through the on-screen
menus.

YES/ABC – When in shooting mode, the automatic black
balance control can be set with this switch. It is also
used to display and increase the value of the sub-menus
of the main on-screen menu.

NO/BAR – When in shooting mode, the color bar and the
shooting conditions are alternately indicated by pressing
thisswitch. This is alsoused toscroll downward through,
or lower the value of sub-menu items.

OPTION CARD/COMPONENT OUT –AnAnalog R/G/B,
Y/C, or Y/Pr/Pb component signal is provided at this
DB-9 connector.
Ports and Jacks
Non-functional on
3-CCD Cameras
S-Video Jack–- Non-functional.
Cable Restrainer– Helps keep cables from
becoming disconnected, or hindering the pan and
tilt capabilities of the camera.
Composite Video Jack– Non-functional.
DC Power Jack– Power input for the CameraMan
Camera. Plug only the suppoied power supply
into this jack. No other types of power
supplies should be used.
Power– Used to power on/off the CameraMan
Camera.
VIDEO OUT – This is a Composite Video Out signal.
G/L IN – A GEN LOCK BNC connector used to
synchronize the camera by connecting it to the network's
Video Timing Source.
IRIS – Input terminal for lens iris control.
DC12V IN – Not Used.
I/F REMOTE – Allows communication with the pan/tilt
unit.
Back of Camera Shroud
The PVTV SHOT Director can communicate with the
cameras through either the RS-485 or RS-232 port.

Page 6
CameraMan®3-CCDANALOG Camera Installation and Operations Manual
CameraMan LED Displays
On the front of the ANALOG CameraMan 3-CCD Camera, there are several LEDs.
These indicate various functions that are being performed by the camera. Below
is a description of each.
When the camera is first powered ON, all LEDs will illuminate. During this
time, basic system hardware checks are being performed. These checks
include communication with the camera interface board which verifies
proper installation of the camera block on the pan/tilt unit. After the initial
systemchecks arecompleted,the LEDswill turnon andoffoneby onein a
binary pattern. This pattern represents the progress the camera is making
duringhardwareinitialization. Duringthisinitialization,pan/tiltpositionsand
camera settings are being restored. Once initialization is complete, the
camera LEDs will represent the following functions:

Power–- Indicates that the camera has an active power supply and
is powered ON.

Setup– The camera is in the camera setup mode.

COM– Indicates that the camera is receiving valid network data on a
communication link (the LEDs on the back of the camera only indicate
line activity, not valid data).

autoTRACK– Indicates that the camera is in autoTRACK mode. The
IR spinners are running and the camera is attempting to acquire
data from the TRP.

Tracking Unit Status– Indicates that the camera has acquired the RF
signal from the TRP and is receiving valid data. When this LED is
OFF, TRP power is usually OFF.

Lock– This LED is used in the CLK/PLK package option only. There
are two types of keypads in this package: the Personal Locator
Keypad and the Chairman Locator Keypad. The Chairman Locator
Keypad has lock/unlock buttons on it that enable the CLK operator to
disable or override the PLK users. The LED is illuminated when the
CLK operator has disabled the PLK keypads by pressing the LOCK
button onthe CLK keypad.

3-CCDANALOG Camera
Page 7
Switch Bank A

Switch 7 (Baud Rate Switch)– Used to change the camera’s Baud Rate.

Switch 8 (Memory Lock Select Switch)–Can be used to prevent
programmed settings from being accidentally overridden.

Switches 1, 2, 3, 4, 5 and 6— Reserved for future use.
Center Control Switches

Video Select Switch–Non-functional.

Base Unit Address–Used to configure the address of the
Camera.
Switch Bank B

Switch 1 (Protocol Select Switch) – Used to select the type of
Protocol being used for RS-232 and RS-485 communications.
This can be configured as either Basic or High Reliability.

Switch 4 (RF Commands Switch) – Used to enable or disable
the RF Receiver in the CameraMan camera.

Switch 5 (Preset Save) - Used to determine how the preset
settings will be saved.

Switch 8 (Interlink Switch) – Used to disable commands from being sent
on the RS-485 bus to other CameraMan devices.

Switches 2, 3, 6 and 7— Reserved for future use.

Tally Light Interface Port- Provides output and external control for
CameraMan Tally Light.
CameraMan Configuration Switches
Behind the configuration plate on the lower right side rear of the 3-CCD ANALOG Camera
is the configuration panel. These DIP and rotary switches are used to link the camera’s
settings to other components in the system.
Back of 3-CCD
ANALOG Camera
Note: After changing any switch’s settings, turn the camera off, then
back on to activate the change. Refer to page 13 for Dip Switch
configuration.
Non-Functional on
3-CCD Cameras

Page 8
CameraMan®3-CCDANALOG Camera Installation and Operations Manual
ANALOG
Mounting the CameraMan 3-CCD ANALOG Camera
Mount the ANALOG Camera on any flat, non-slick, non-metal surface with a minimum
supporting area of 8”x8” by following these easy steps.
Zero degree
position
mark
1/4”-20 UNC Mounting
Screw Hole
Step 1: Check the selected camera-location to ensure that there is enough
camera and cable clearance space (right) for the CameraMan to pan
and tilt without obstruction.
Note: Do not mount the camera upside down, or with more than a 10° angle from horizontal.
Tip: See Appendix E: FIELD OF VIEW SPECIFICATIONS on page 18, to assist in placing the CameraMan to achieve
optimum optical views.
Step 2: Locate the zero-degree position mark labeled FRONT on the bottom
of the base unit. This mark helps ensure that the base unit is
calibrated correctly. Point this indicator mark in the direction that best
reflects the center of travel in which the camera will be used (usually
the center of the room).
Step 3: To ensure that the camera-mounting is not prone to vibrations,
securely fasten the camera to a rigid flat surface using a 1/4"-20
UNC cap screw that does not extend into the base platform by more
than 0.4". (The screw hole is provided in the base platform for
this purpose. The cap screw is not provided.) This screw should
be hand-tightened. If necessary, use a non-hardening threadlock to
prevent the screw from loosening.
Note: Be sure to take environmental conditions into consideration when operating the camera. Always operate
the camera indoors, and follow the temperature and
humidity specifications outlined in Appendix C: CAMERA
SPECIFICATIONS on page 16.
Diameter
30.0"
17.0"

3-CCDANALOG Camera
Page 9
Connecting to the Camera System
Follow the instructions below to begin connecting the camera to the system.
Tip: After connecting each cable to the camera, let it hang
loosely behind the camera. Then follow the instructions in the
“Restraining the Cable Connections” section before attaching the
other ends of the cable to other equipment. This will relieve
undue stress on the cables, allowing the camera to move freely.
Connecting The Camera Control Cables
On the back of the camera shroud, there are two cables. These control
the camera’s lens, power and video signals. These must be attached for
the camera to operate properly.
• Connect the 12-pin male connector (#1) to the IRIS jack.
• Connect the 50-pin SCSI connector (#2) to the I/F REMOTE jack.
Connecting The RGB Output
The 3-CCDANALOG Camera supports IV[p-p] (75 ohm) video output.
For a Composite signal, connect to the BNC jack labeled VIDEO OUT on
the back of the camera shroud, using a standard coaxial cable with a BNC
connector. For a YC/YPrPb/RGB Component signal, connect to the DB-9
connector on the back of the camera.
1
2
2
1
YC/YPrPb/RGB
Component Video Out
Rear View ofANALOG
Camera
IV[p-p] 75 ohm
Composite Video Out
Video/RGB Output Connector [VIDEO/RGB]
Composite signals, RGB/YPrPb/YC component signals,
and synchronizing signals are output.
These output signals can be selected using the menu.
Use the special cable WV-CA9T5 (Dsub-BNC) or WV-
CA9T9 (Dsub-Dsub) to connect to it.
VIDEO/RGB
Video/RGB output
connector
1
2
3
4
5
9
8
7
6
Pin assignments
Pin No.
1
2
3
4
5
Signal
COMPOSITE GND
VIDEO GND
R/Pr/C
G/Y/Y
B/Pb/–
7
8
9
SYNC
SYNC GND
NC
6 COMPOSITE
Pin No. Signal
SeeAppendix H for output signal selection details.

Page 10
CameraMan®3-CCDANALOG Camera Installation and Operations Manual
Connecting to the Camera System
Connecting To The RS-232 Port
The 3-CCD ANALOG Camera provides for RS-232 communications using the
DB-9 jack on the back of the camera, labeled RS-232. This RS-232 port can
be used to control the CameraMan Camera from external devices such as
a PC or other vendor control system (i.e.: AMX, Crestron). Connect to this
port using a standard computer cable with a DB-9 connector. When used
with a PVTV SHOT Director, this port operates at 19,200 Baud, No Parity and
software hand-shaking using a High Reliability protocol. Otherwise,
the port operates at 9600 Baud, No Parity, and software hand-shaking using
the High Reliability or Basic protocols.
Note: To verify which protocol is being used, check the PROTOCOL
switch on the configuration panel on the back lower-right of the
ANALOG Camera.
Tip: The COM light above the RS-232 port is used to indicate communication activity.
Tip: For the DB-9 pinout port information, see the Appendix D: PIN-
OUT DIAGRAMS, page 18.
RS-232 Port on the Mini Docking
Station on the back of the 3-CCD
ANALOG Camera

3-CCDANALOG Camera
Page 11
Connecting Camera Control Devices
There are several ways to control the CameraMan’s movement. The information below explains how to
connect and configure the optional Camera Control Keypad, or the PVTV SHOT Director.
Connecting Optional Camera Control Devices
Note: Do not use the Camera Control Keypad and the CameraMan
SHOT Director at the same time

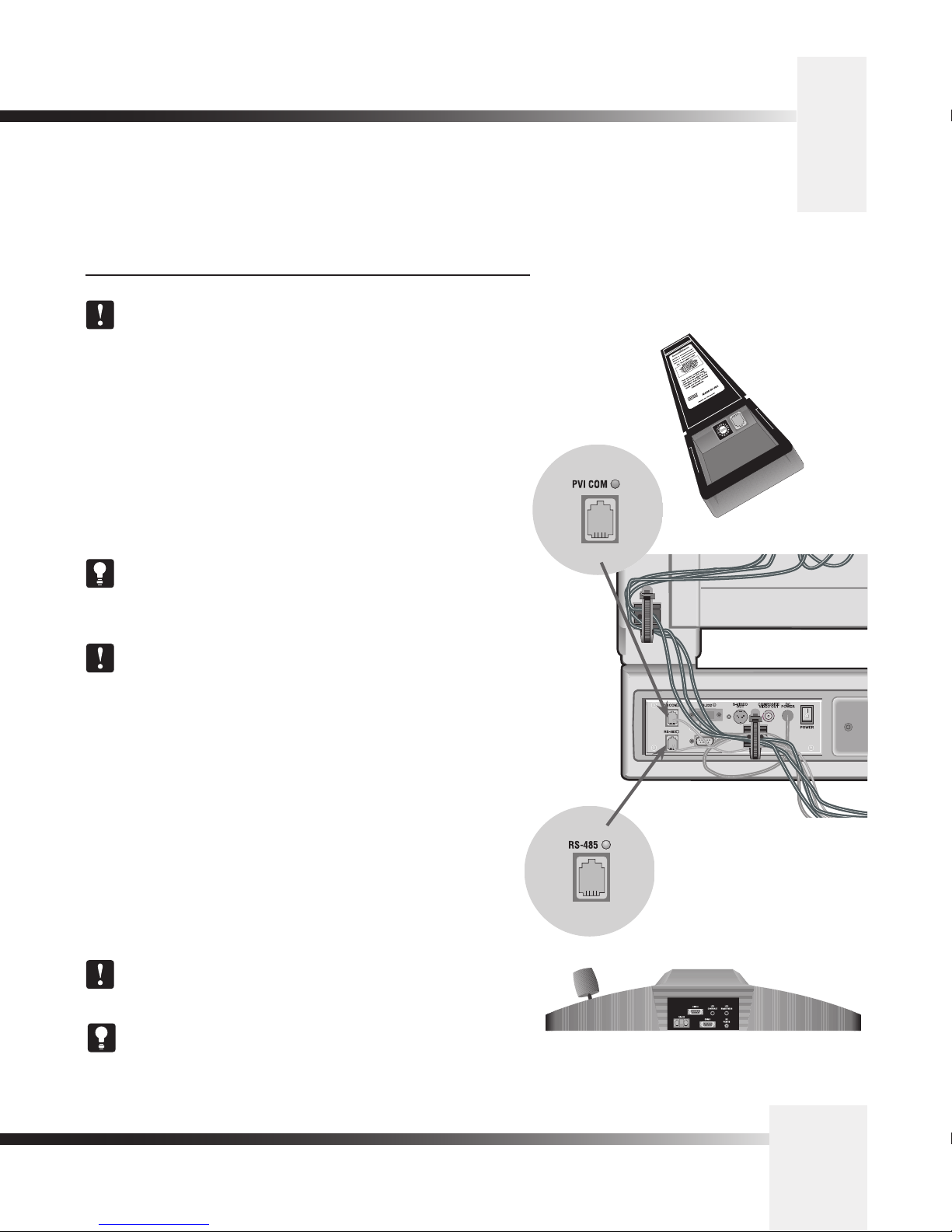

Camera Control Keypad (or Tracking System Keypad)
The optional Camera Control Keypad controls the camera’s movement via
wireless RF technology (up to 60 feet), or hard-wired connection (up to 250
feet). If you choose to use a Camera Control Keypad in the hard-wired mode,
follow these directions for installation.
1. Using the 25’ CameraMan Keypad Cable included with your camera,
connect one end of the cable to the RJ-11 type jack located in the
battery compartment of the keypad.
2. Connect the other end of the cable to the RJ-11 type jack on the back
of the camera, labeled PVI COM.
Tip: When the system is powered on, the light on the keypad
should illuminate momentarily, indicating the keypad is ready for
operation. The light located above the PVI COM port is used to
indicate communication activity.
Note: Using cable other than the supplied cable for the PVI
COM port may cause damage.
PVTV SHOT Director
The optional PVTV SHOT Director multi-camera controller can be connected
in hard-wired mode only. Follow these directions to connect the PVTV SHOT
Director to the CameraMan.
1. Using a standard RS-485 cable, connect one end of the cable to one
of the RS-485 jacks (either one) on the back of the PVTV SHOT
Director.
2. Connect the other end of the cable to:
• The jack labeled RS-485 on the back of the CameraMan
connector box for single camera applications, or
• The T-Connector for multiple-camera applications. Then use
the provided 3’ CameraMan Communication Cable to connect
the T-connector to the camera’s RS-485 jack.
Note: If using a Camera Control Keypad or PVTV SHOT Director,
refer to its operations manual. If it is unavailable, contact your local
reseller or Grass Valley.
To use the RS-232 port for communication between the camera and
PVTV SHOT Director, connect one end of the cable to the RS-232
port on the CameraMan Connector Box (Mini Docking Station), and
connect the other end of the RS-232 cable to the COM 1 Port
on the PVTV
PVTV SHOT Director
connected via RS-485
Camera Control
Keypad
connected via
PVI COM

Page 12
CameraMan®3-CCDANALOG Camera Installation and Operations Manual
Cable Restraint and System Power
Power Connections
and Switches
Feed the upper cables from left to right through the upper
cable restraint, then bundle with the lower cables and feed
left to right through the lower restraint.
SHOT Director.
Restraining The Cable Connections
For upper (ie GEN LOCK) cable connections (if used)
1. Locate the cable restraint on the back left side of the camera.
2. Insert cable(s) through the cable restraint from left to right.
Note: Allow 16” of cable between the restraint and the connection port to provide enough slack for the camera’s tilting movement.
3. Tighten the restraint by pulling on the strap’s “free” end to prevent
any cable from becoming dislodged. (the cable restraint is reusable
and adjustable).
4. Group the cables with all the other cables connected to the connector
box and follow the instructions below to feed them through the lower
cable restraint.
For lower cable connections
1. Insert all cables (upper and lower) through the cable restraint from left
to right. This will result in the cables being located approximately in
the center of the camera, instead of near the edge.
2. Tighten the restraint by pulling on the strap’s “free” end to prevent any
cable from becoming dislodged.
Note: To relieve undue stress on the camera and the cable connections, it is important to fasten all cables using the cable
restrainer on the back of the camera.
Note: Be sure to leave enough slack in the cables for the camera to pan left and right free of any constraints.
Connecting The Power Supply
Mount the Power Supply with any orientation, or on top of a table or roll-about
unit by using the following steps.
1. Verify that the POWER switch, on the back of the camera, is turned
OFF.
2. Plug the 5.5mm female connector from the power supply cord into the
DC POWER jack in the back of the camera.
Notice that if left alone, the connected cables may impede the camera’s movement. To
combat this, the 3-CCD ANALOG Camera comes equipped with two cable restrainers on
the left back, and on the Mini Docking Station. Follow the instructions below to properly
restrain the cables and power-up the camera.

3-CCDANALOG Camera
Page 13
Non-Functional on
3-CCD Cameras
Switch Configuration
Now that CameraMan is connected to the power supply and control devices, the ANALOG Camera must
be configured to work in the desired application. To begin, remove the configuration plate on the back
right side of the camera by removing the two screws holding it in place. Behind it are the configuration
switches. From left to right, they are:
Switch Bank B
Dip Switch 1 (Protocol)
Select the communication protocol which will be used by the
RS-232 and RS-485 ports on the camera. The High Reliability
protocol includes some advanced error checking that is not
performed in the Basic protocol. (factory default: DOWN)
Dip Switch 4 (RF Command)
WhenthisswitchisDOWN,thecamerarespondstocommands
sent from an RF Keypad. When it is UP, the RF receiver in the
camera is disabled and the camera cannot receive commands
directly from a wireless keypad. (factory default: DOWN)
When using multiple cameras networked on the
RS-485 bus, only one camera should have its RF
receiver enabled. Set switch 4 on the other cameras
to UP.
Dip Switch 5 (Preset Save)
Use this switch to determine how the preset settings will be
recalled. DOWN recalls your Manual Gain, Iris, and Focus
settings. UP recalls only the Auto settings for presets and
autoTRACK Views. (factory default: DOWN)
Dip Switch 8 (Interlink)
Use this feature in multi-camera applications. When it is
DOWN, all commands will be passed onto the RS-485
communication bus to the appropriate camera. For a single-
camera application, the setting of this switch does not matter.
(factory default: DOWN).
Switch Bank A
Dip Switch 7 (Baud Rate)
This switch is used to
configure the camera’s Baud
Rate for the RS-232 and
RS-485 ports. Switch UP for
19,200 and DOWN for 9600.
(factory default: UP)
Dip Switch 8 (Memory)
For the majority of
applications, this switch
should be set to UNLOCK
(UP). When DOWN, all
programmed features are
locked and cannot be
overridden. (factory default:
UP)
Central Control Switches
Base Unit Address
Use the 16-position rotary switch
labeled BASE UNIT ADDRESS to
setthe unique identificationnumber
for this CameraMan. If using
the optional Keypad, PVTV SHOT
Director, or another control system,
referto the documentationprovided
with those accessories for proper
configuration.
For setting up a camera
network, see page 15,
Appendix B: MULTIPLE
CAMERAAPPLICATIONS.
Example: Switch
in the down
position
All switches not discussed on this page should remain in the DOWN or OFF position.

Page 14
CameraMan®3-CCDANALOG Camera Installation and Operations Manual
System Startup
Once all necessary connections and configurations are made, you are ready to turn
on the system.
3. Connect the other end of the power supply into a 120 VAC source.
Powering On
1. Just switch the Power button on the back of the CameraMan ANALOG Camera to the ON position. The Camera
should automatically enter its position calibration mode and then stop at the zero degree point.
2. Verify that the camera is now facing in the direction the "FRONT" label was pointing during mounting (see page 8).
3. If you are using the optional Camera Control Keypad or PVTV SHOT Director, make sure its base unit address is the
same as on the camera. If they are, verify that the camera’s PAN and TILT functions are working properly.
Cameras 1-16 on PVTV SHOT Director correspond to Base Unit Addresses 0-F respectively: 1=0,
2=1, 3=2....11=A, etc.
Back ofANALOG Camera
with power supply

3-CCDANALOG Camera
Page 15
Appendix A: Troubleshooting
Should any problems occur with the CameraMan 3-CCD ANALOG Camera, please refer
to the following guide. If questions or problems still exist after troubleshooting, please
contact your authorized reseller or contact Grass Valley Customer Support.
Problem: The Camera’s Video is not working properly.
Solution: 1. Verify that the VIDEO OUT or COMPONENT VIDEO OUT
connection is being used on the back of the camera
shroud.
2. Verify that the video output of the camera is connected to
the appropriate video input on the switcher or CODEC.
3. Verify that the lens cover is off and the Iris is open.
4. Verify that the monitor is an analog monitor. If the monitor
is Digital, verify that anA-To-D converter is in use.
Problem: No communications through the RS-232 port.
Solution: 1. Verify that the cable being used is wired correctly.
(see page 18)
2. Verify that the PROTOCOL SELECT switch on the rear
configuration panel is set properly in relation to the
controlling device. (see page 13)
3. Verify that the BASE UNIT ADDRESS on the rear
configuration panel is set properly.
4. Does the COM light above the RS-232 port on the back of
the camera blink when you send a command through this
port? If no, change the cable and retry.
5. Verify that the POWER LED, on the front of the camera,
is illuminated. Also verify that the 12VDC indicator, on the
rear of the camera block is, is illuminated. If the POWER
LED is not lit, check the POWER switch to make sure that
it is ON, then verify that the Power Supply is connected to
the camera properly. If the 12VDC LED on the rear of the
camera block is not illuminated, verify that the I/F Remote
SCSI cable is connected properly.
Back of 3-CCD CameraMan with
configuration plate removed
COM light
on RS-232
Connection

Page 16
CameraMan®3-CCDANALOG Camera Installation and Operations Manual
Appendix B: Multi-Camera Applications
Tip: If the camera does not move, refer to the TROUBLESHOOTING section of the Camera Control
Keypad, or PVTV SHOT Director manual.
If using more than one CameraMan 3-CCD ANALOG
Camera, the cameras need to be set up in a “daisy-
chain” network configuration by following these
steps:
1. Connect the cameras together by plugging the supplied
T-connector into the RS-485 port on the back of the camera.
2. Connect each camera using a 4-conductor cable, with 4-position
modular handset plugs wired "straight-through":
Pin 1......Pin 1
Pin 2......Pin 2
Pin 3......Pin 3
Pin 4......Pin 4
Note: Do NOT use a standard phone cable, as these are wired differently and may cause damage.
3. Using the BASE UNIT ADDRESS rotary switch, which is located
on the back of the Camera, configure each camera with a unique
Base UnitAddress. (i.e.: Camera One would be set with address 0,
Camera Two would be set with address 1, and so on)
4. In order to control each camera with your Camera Control Keypad,
the rotary switch inside the keypad battery compartment must
match the lowest Base UnitAddress in your system. For example, if
the Base Unit Address switches are set according to the illustration
to the right, the rotary switch inside the keypad should be set
to zero. The Camera Control Keypad can control up to three
cameras.
Camera One
Camera Two
Connector T
Camera Three

3-CCDANALOG Camera
Page 17
3-CCD ANALOG Camera (NTSC and PAL)
Appendix C: Camera Specifications
This device complies with part 15 of the FCC rules. Operation is subject to the condition
that this device does not cause harmful interference. FCC identifier: JFECM003-AA. This
device has been tested in accordance with the requirements contained in the appropriate
EN 55 022 regulations and has been issued Declaration of Conformity.
CameraMan Clearance
The minimum dimension for the CameraMan is a circular diameter of 30". This accounts for both camera and
cable clearance. Check cable movement to avoid binding and stress on the camera.
3-CCD ANALOG Camera
Image Sensor:.....(3) 1/2” interline, supersensitive CCD
Hor. Resolution:.......850 TV Lines (high band, DTLON)
Aspect Ratio:.............................................................4:3
Pixels:.......................................768 (H) x 494 (V) pixels
S/N Ratio:............................................65 dB (DNR on)
Scanning:....................................................2:1 interlace
System:.................................................................NTSC
Scanning Frequency:.15.734kHz (hor), 59.94 Hz (vert)
Synchronizing:..................................Internal or external
Sensitivity:.....................................2000 lx, F11, 3200 K
Min. Illumination:...0.25 lx, F1.4, Night Eye HIGH mode
Registration:.........................................................0.05%
Contour Correction:....................Horizontal and Vertical
White Balance:........Auto (2 memories), 3200K, 5600K,
................................Fine Man,ATW
Black Balance:......................................................AUTO
Color Bar:......................SMPTE color bar (Setup 0/7.5)
Shutter Speed:........Synchro Scan:60.34 Hz-15.75 kHz
Step Shutter:.............OFF, 1/100, 1/250, 1/500, 1/1000,
..................................1/2000, 1/4000, 1/10000 s ELC
Gain:.......AGC low/high, 0 - 30 dB, Night Eye Low/High
Iris:............................................................Auto, Manual
Temperature:.......................-10° to 45° C
Humidity:.............................30 to 90% Non-condensing
Dimensions:......................US: 14”L x 13.5”W x 10.75”H
..........................INT:35.6cm Lx 34.3cm W x 27.31cmH
Zoom Ratio:..............................................................18x
Focal Length:.............................................6.7 - 121mm
Angular F.O.V.:..............................51.1° x 39.4° (wide)
......................................................3.03° x 2.27° (tele)
Maximum RelativeAperature.........1:1.4 (f=6.7~91mm),
...........................................................1:1.85 (f=121mm)
Mechanical
Mechanical Drives:....WhisperDRIVE Plus™ Rated For
5000 Hrs. Of Continuous Motion
Tilt:............................± 25° (Speed: 1°/Sec to 50°/Sec)
Pan:............................359° (Speed: 1°/Sec to 45°/Sec)
Location Presets:.....................................................125
Location Preset Data:..........Pan, Tilt, Zoom, Focus, Iris
Location PresetAccuracy:.................................±0.125°
Inputs/Outputs
Video Output:.........Composite: 1V[p-p] (75 ohm)
...............................RGB: 0.7 V[p-p] (75 ohm)
...............................Y/C: Y: 1 V[p-p], C: 0.286 V[p-p]
...............................YPrPb: 1 V[p-p], Pr/Pb: 0.7 V[p-p]
...............................SYNC: 2 V[p-p]
*75 ohm, selected output from 9-pin Dsub connector or
50-pin Dsub camera connector
Switch:......................................Component output
switching (selected with menu)
Source Voltage:....................................12 V DC
(supplied from camera)
Power Consumption:..............................2.4W
.................................................(4 pos. RJ handset port)
Power:.................................100-240VAC Power Supply
......................................100 W Maximum Consumption
PAL 3-CCD ANALOG Camera
Pickup Element:.....1/2” interline, supersensitive CCDx3
Hor. Resolution:.......850 TV Lines (high band, DTLON)
Aspect Ratio:.............................................................4:3
Pixels:.......................................752 (H) x 582 (V) pixels
S/N Ratio:............................................63 dB (DNR on)
Scanning:....................................................2:1 interlace
System:....................................................................PAL
Scanning Frequency:......15.625 kHz (H), 50.00 Hz (V)
Synchronizing:..................................Internal or external
Sensitivity:.....................................2000 lx, F11, 3200 K
Min. Illumination:...0.25 lx, F1.4, Night Eye HIGH mode
Registration:.........................................................0.05%
Contour Correction:....................Horizontal and Vertical
White Balance:........Auto (2 memories), 3200K, 5600K,
................................Fine Man,ATW
Black Balance:......................................................AUTO
Color Bar:...................................Full color bar (Setup 0)
Shutter Speed:........Synchro Scan:50.34 Hz-15.63 kHz
Step Shutter:.............OFF, 1/100, 1/250, 1/500, 1/1000,
..................................1/2000, 1/4000, 1/10000 s ELC
Gain:.......AGC low/high, 0 - 30 dB, Night Eye Low/High
Iris:............................................................Auto, Manual
Temperature:.......................-10° to 45° C
Humidity:.............................30 to 90% Non-condensing
Dimensions:...........US: 6-3/32”L x 3-5/16”W x 3-1/32”H
................................INT:155mm Lx 84mm W x 77mmH
Zoom Ratio:..............................................................18x
Focal Length:.............................................6.7 - 121mm
Angular F.O.V.:..............................51.1° x 39.4° (wide)
......................................................3.03° x 2.27° (tele)
Maximum RelativeAperature.........1:1.4 (f=6.7~91mm),
...........................................................1:1.85 (f=121mm)
