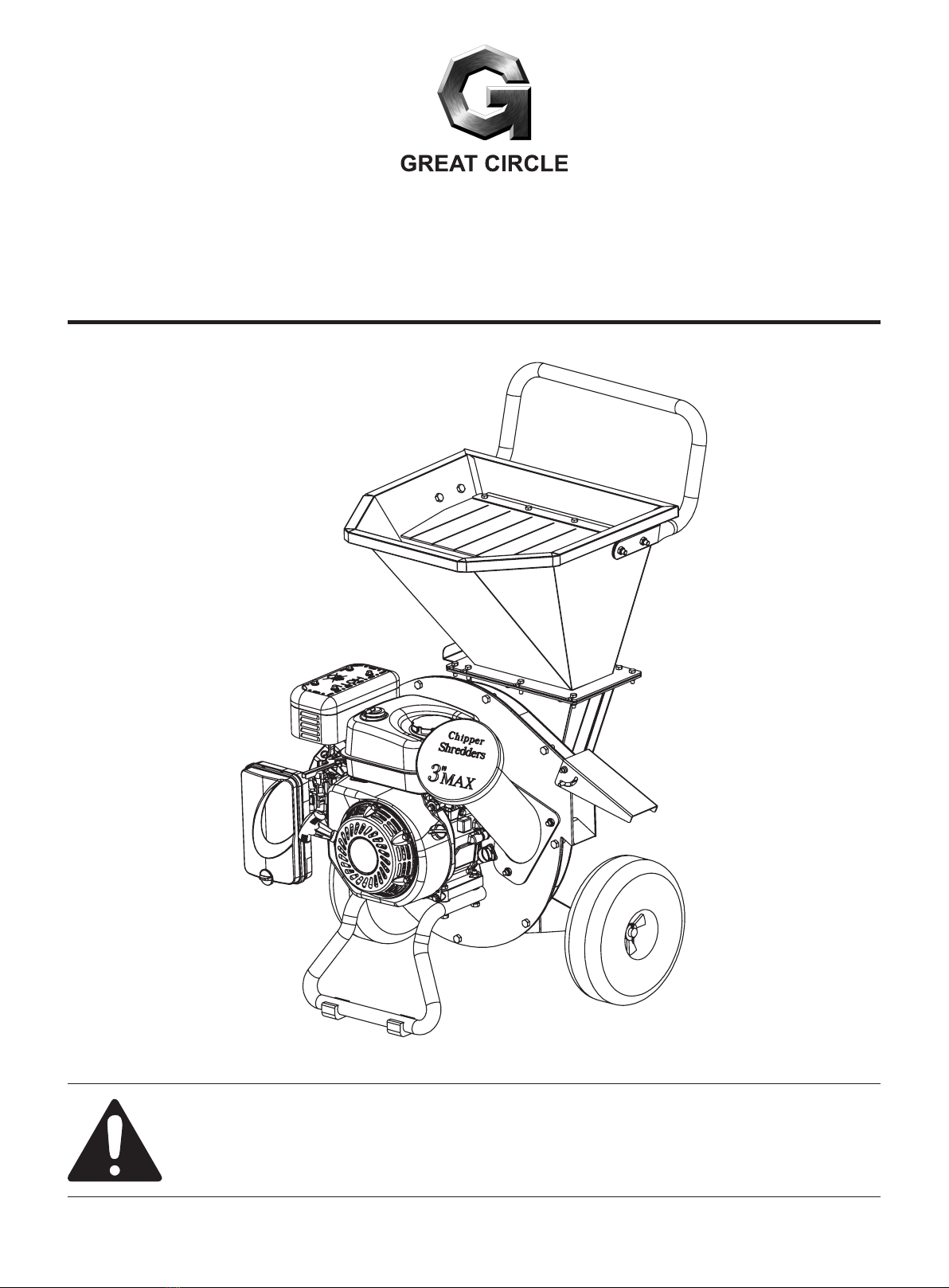

Great Circle LCE01 User manual

REV 08/22/18
Instruction Manual
Chipper Shredder
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required. Keep
these instructions to assist in future servicing.

WARNING SYMBOL
WARNING: This is the warning symbol to get your high attention
for the instruction notice, which should be followed to avoid the
potential serious personal injury. Anyone to use this equipment
should read all the instructions of this manual. Keep this
instruction manual for future reference.
Do not allow children to operate this chipper shredder. Keep small children away from
the area while chipper shredder is in use. Do not allow adults to operate the chipper
shredder without proper instruction.
WARNING SYMBOLS AND DEFINITIONS
Intended Use
Foreseeable Misuse
This is a petrol engine-powered chipper shredder that breaks up leaves and wooded
pieces such as tree branches, brush, and limbs into smaller volume via a high-speed
rotor containing chipping blades and shredding hammers. It shall not be used for any
other purpose.
WARNING
1. You must read, understand and comply with all safety and operating instructions in
this manual before attempting to setup and operate your chipper shredder.
2. Failure to comply with all safety and operating instructions can result in loss of
machine control, serious personal injury to you and/or bystanders, and risk of
equipment and property damage. The triangle in the text signifies important
cautions or warnings which must be followed.
WARNING
1. Engine exhaust, wood dust, and gasoline vapors from this product contains chemi-
cals known to the state of california
2. To cause cancer, birth defects, or other reproductive harm.
DANGER
WARNING
CAUTION
IMPORTANT
DANGER INDICATES A SERIOUS INJURY OR FATALITY WILL RESULT
IF THE SAFETY INSTRUCTIONS THAT FOLLOW THIS SIGNAL WORD
ARE NOT OBEYED.
WARNING INDICATES A HAZARD WHICH, IF NOT AVOIDED, COULD
RESULT IN DEATH OR SERIOUS INJURY AND/OR PROPERTY
DAMAGE.
CAUTION INDICATES YOU CAN OR YOUR EQUIPMENT CAN BE HURT
IF THE SAFETY INSTRUCTIONS THAT FOLLOW THIS SIGNAL WORD
ARE NOT OBEYED.
IMPORTANT INDICATES HELPFUL INFORMATION FOR PROPER
ASSEMBLY, OPERATION, OR MAINTENANCE OF YOUR EQUIPMENT.

Item No.
Chipping Capacity
Shredder Capacity
Chipping Knives
Shredder Hammer
Reduction Rate
Chipper Knife Material
Hopper Dimensions (IN)
Limb Chute
Wheel Size (IN)
Wheel Material
Wheel Type
Net Weight (LB)
Gross Weight (LB)
Assembled Dimension (IN)
Packing Dimension (IN)
LCE01
Max. 3”
1/2”
2
4 Y-HAMMERS
15:1
CR12MoV
16.7X15.2
YES
10x3
PU
SOLID
121
130
30x24.1x41
31.9x23.8x22.2
SPECIFICATIONS
Engine Brand
Engine Type
Power
Displacement
Starting
RPM
Fuel Capacity
Oil
EPA3 Approval
CARB Approval
Rato
OHV
7HP
212CC
Recoil
3600
0.7Gal
10W-30 for 32°F & above
5W-30 for 25°F & below
YES
YES
Engine Specifications
Handle
Shredder Hopper
Engine
Chipper
Cone
Stand
Rotor
Housing
Vacuum
Inlet
Discharge
Chute
Wheel
1
INDEX
Features ----------------------------------------------------------------------------------------------------------------------------------------- 1
Specifications --------------------------------------------------------------------------------------------------------------------------------- 1
Safety ------------------------------------------------------------------------------------------------------------------------------------------ 2-4
Assembly ---------------------------------------------------------------------------------------------------------------------------------------- 5
Operation ------------------------------------------------------------------------------------------------------------------------------------- 6-7
Transportating and Storage ------------------------------------------------------------------------------------------------------------ 7-8
Maintenance --------------------------------------------------------------------------------------------------------------------------------- 8-9
Trouble Shooting --------------------------------------------------------------------------------------------------------------------------- 10
Repair ------------------------------------------------------------------------------------------------------------------------------------------ 11

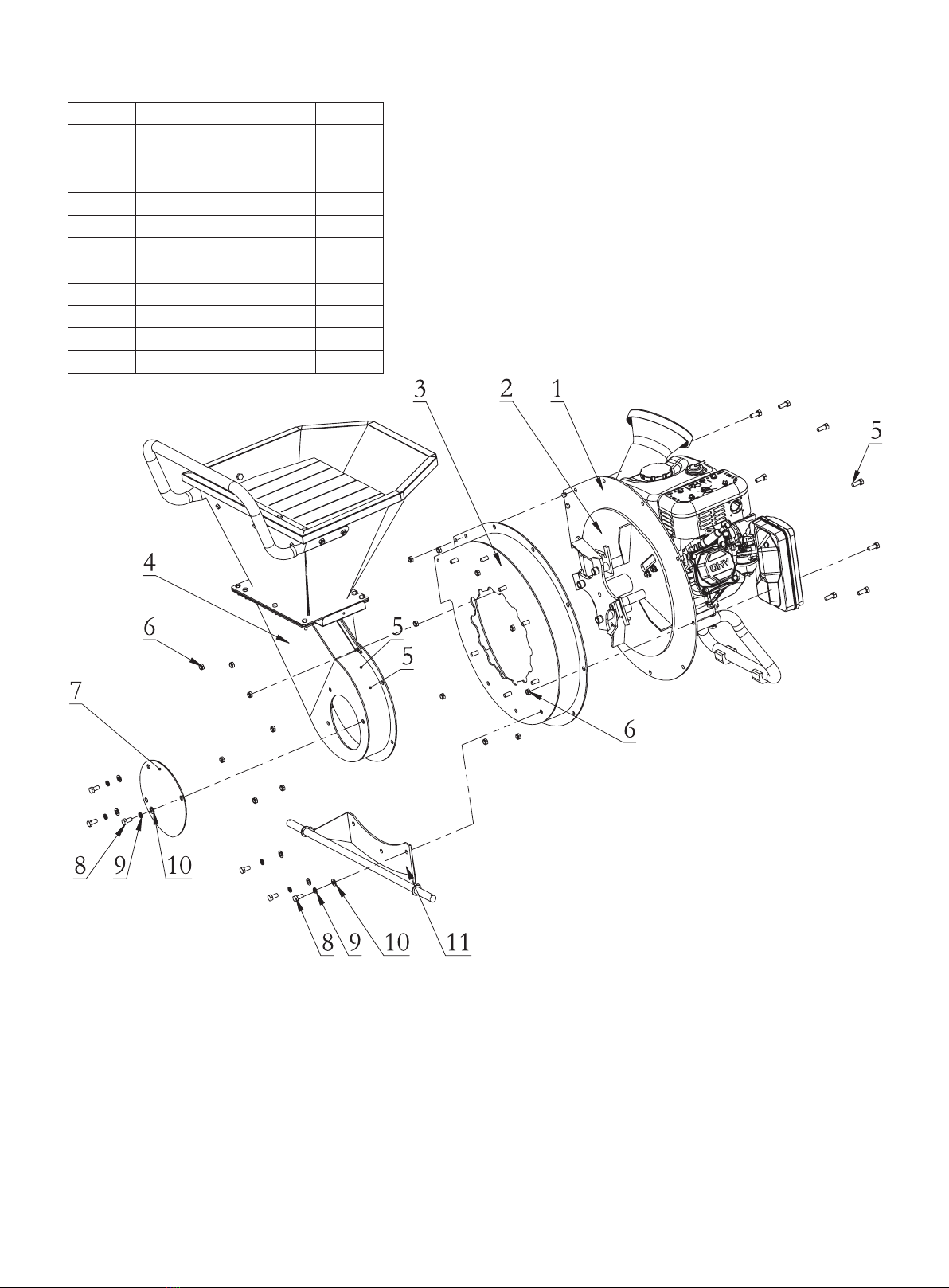

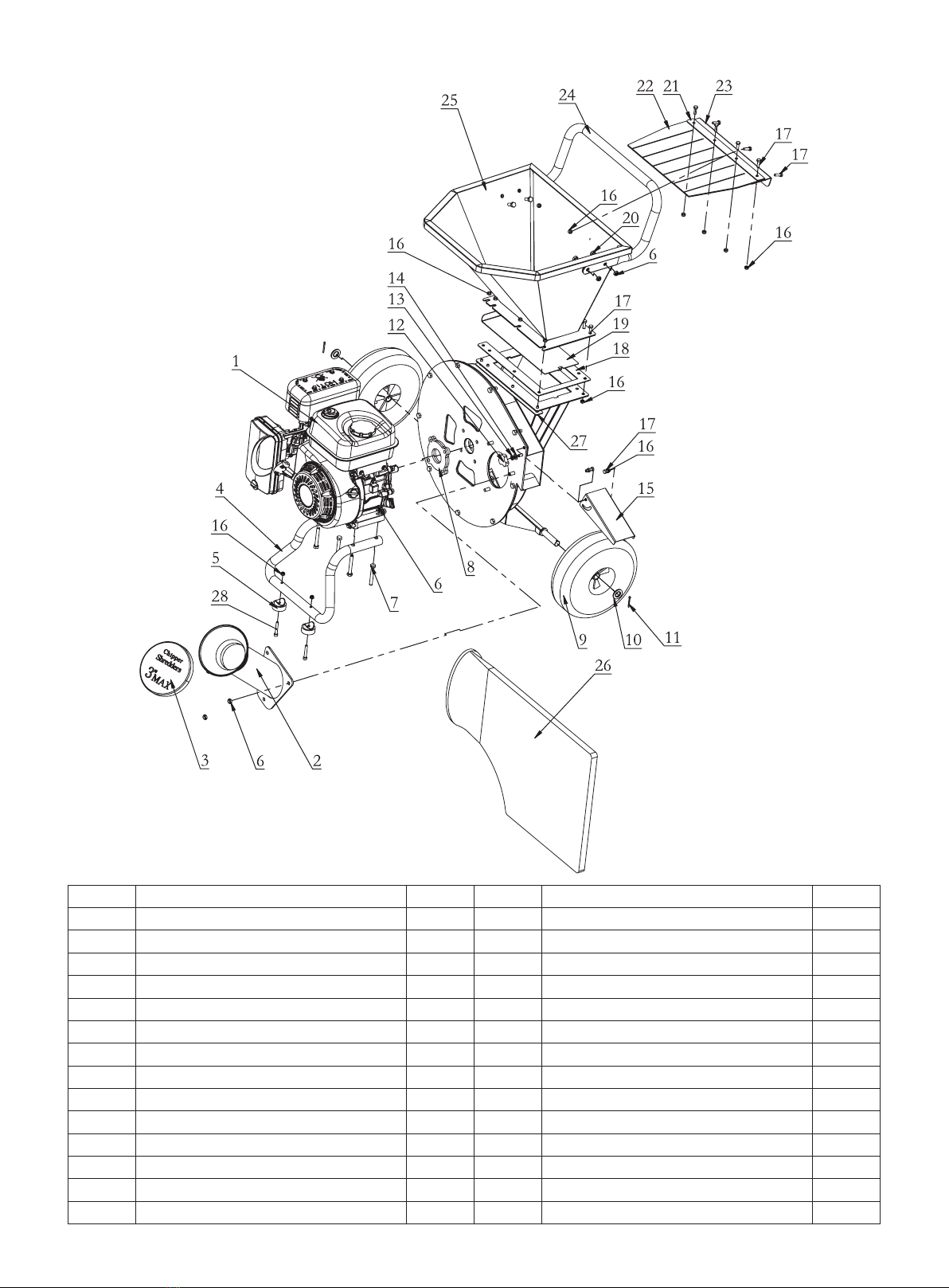

Parts Breakdown ----------------------------------------------------------------------------------------------------------------------- 12-14
Warranty -------------------------------------------------------------------------------------------------------------------------------------- 14
OPTIONAL ACCESSORY ------------------------------------------------------------------------------------------------------------- 15-16
FEATURES

GENERAL OPERATING SAFETY
1. Read, understand, and follow all instructions in the manual and on the unit before starting
2. Locate the Chipper/Shredder on a flat, level, sturdy surface capable of supporting the weight of the Chipper /
Shredder and any additional tools and equipment.
3. Do not attempt to use the machine on a slope or slick surface.
4. Dress appropriately when operating the chipper shredder. Always wear sturdy footwear and safety goggles.
Never wear sandals, sneakers or open shoes, and never operate the chipper shredder with bare feet. Do not
wear loose clothing that might get caught in moving parts.
5. Never place your hands, fingers, feet, or any other part of your body close to the Discharge Opening while the
Chipper/Shredder is in operation.
6 .Do not look into the Hopper, Chipper Chute or Discharge Opening when the machine is running.
7. Only allow responsible adults, who are familiar with the instructions, to operate the unit. Keep children away from
the equipment, especially while it is operating.
8. Be sure the area is clear of other people before operating. Stop the unit if anyone enters the area.
9. Always maintain secure footing and solid balance while starting or operating the chipper shredder. Never lean
directly over the machine.
10. Operate the machine only in daylight or good artificial light.
11. Do not operate the unit while under the influence of alcohol or drugs.
12. Always wear eye and hearing protection when operating this unit.
13. Keep in mind the operator is responsible for accidents occurring to other people or property.
14. Never operate the machine without proper guards, plates, or other safety protective devices in place.
15. Thoroughly inspect where equipment is to be used and remove all foreign objects.
16. Exercise extreme caution when operating on or crossing gravel drives, walks or roads. Stay alert for hidden
hazards or traffic.
PRODUCT SPECIFIC SAFETY
DANGER: The chipper shredder has spinning blades that can amputate hands and
feet. Do not place hands or feet in the hopper or chipper cone, or discharge chute.
WARNING: This unit discharges debris at high speeds. Always wear protective
goggles and do not operate without the debris bag in place.
Do not allow anyone in the area while the unit is running. If someone does enter the area, shut the unit off immediately
until they leave. Organize the work area prior to starting work.
1. Do not operate without the debris bag in place because this unit discharges debris at high speeds. If the unit is
operated on hard ground, asphalt, concrete, or other hard surfaces without the collection bag in place. Material
can ricochet off of the hard surface and cause an unsafe condition for users and bystanders.
2. Never leave the machine running unattended. Always turn off the engine, wait for the rotor to come to a com-
plete stop, and disconnect the spark plug before leaving the area. Always move the unit to a safe storage area
when not in use.
3. Never direct discharge material toward anyone. Avoid discharging material against a wall or obstruction. Material
may ricochet back toward the operator.
4. Always stand to the side of the chipper cone when feeding tree limbs and branches into the unit, as tree limbs,
branches, and harder woods may kick back while being chipped.
5. Always keep hands out of the chipper cone and shredder hopper when feeding materials. Never wrap fingers
tightly around branches as you are feeding them into the unit, as a sudden inward surge could pull your hands
and arms into the unit.
6. Never allow material to build up in the discharge area or shredding chamber, as this may cause new material
being fed into the machine to kickback with sufficient force to injure you or other bystanders.
7. Never allow material to build up around the engine during chipper shredder operation. This could result in a fire,
or overheating of the engine.
2

8. Never attempt to reposition or move the chipper shredder unit while it is running. Doing so could cause the
machine to tip over, and reaching to steady the unit could result in accidental insertion of your hands into the
chipper cone or shredder hopper areas.
9. Never continue to operate the machine if it starts making unusual noise or vibration. Shut the engine off immedi-
ately, allow the rotor to stop, disconnect the spark plug wire and secure the wire away from the spark plug.
Inspect the unit for any signs of damage or foreign material in the chipping or shredding areas. Remove any
solid material that may be preventing the unit from operating properly.
10. Never attempt to clear clogs from the chipper cone, shredder hopper or discharge chute while the unit is
running. Always shut the engine off, allow the rotor to come to a complete stop, and remove the spark plug wire
from the spark plug before removing excess materials.
11. Never attempt to perform any maintenance, repairs, or attachment of accessories while the unit is running.
Always shut the unit off, allow the rotor to come to a complete stop, and remove the spark plug wire from the
spark plug before beginning these activities.
12. Always make sure that the shredding chamber, shredder hopper, and chipper cone are empty before starting
the unit after it has been idle. Attempting to start the unit with material in these areas could cause the engine
starting cord to stop suddenly, injuring your hand and fingers, or toppling the unit over. Vibration is generally a
warning sign of trouble.
13. Use only attachments and accessories approved of by the manufacturer of the machine.
14. Make sure chipper shredder is free of debris before starting the engine.
15. Never attempt to make any adjustments while the engine is running.
16. After striking a foreign object, stop the engine, remove spark plug wire, and wait for all moving parts to come to
a complete stop. Thoroughly inspect the machine for any damage, repair the damage before restarting and
operating the machine.
ENGINE SPECIFIC SAFETY
Before cleaning, repairing, or inspecting, shut off the engine and make certain that all moving parts have come to a
complete stop. Disconnect the spark plug wire and secure the wire away from the spark plug to prevent accidental
starting.
DANGER
1. Engines give off carbon monoxide, an odorless, colorless, poison gas. Carbon monoxide may be pres-
ent even if you do not smell or see any engine exhaust. Breathing carbon monoxide can cause nausea,
fainting or death, in addition to drowsiness, dizziness and confusion. If you experience any of these
symptoms, seek fresh air and medical attention immediately.
2. If your machine comes with a separate engine manual, be sure to read and follow all safety and warning
precautions outlined there, in addition to any in this manual.
Handle fuel with care; it is highly flammable.
a. Use an approved fuel container.
b. Never add fuel to a running engine or hot engine.
c. Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.
d. Replace gasoline cap securely and clean up spilled fuel before restarting.
Preventing Carbon Monoxide Poisoning
1. Always start and run engine outdoors. Do not start or run engine in an enclosed area, even if doors or windows are open.
2. Never try to ventilate engine exhaust indoors. Carbon monoxide can reach dangerous levels very quickly.
3. Never run engine outdoors where exhaust fumes may be pulled into a building.
4. Never run engine outdoors in a poorly ventilated area where the exhaust fumes may be trapped and not easily
taken away. (Examples include: in a large hole or areas where hills surround your working area.)
5. Never run engine in an enclosed or partially enclosed area. (Examples include: buildings that are enclosed on
one or more sides, under tents, car ports or basements.)
6.Always run the engine with the exhaust and muffler pointed in the direction away from the operator.
7. Never point the exhaust muffler towards anyone. People should always be many feet away from the operation of
the engine and its attachments.
8. Do not change the engine governor settings or over-speed the engine.
9. Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
3

Gasoline Fires and Handling Fuel Safely
Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.
1. When storing extra fuel be sure that it is in an appropriate container and away from any fire hazards.
2. Prevent fire and explosion caused by static electric discharge. Use only nonmetal, portable fuel containers
approved by the Underwriter’s Laboratory (U.L.) or the American Society for Testing &Materials.
3. Always fill fuel tank outside in a well ventilated area. Never fill your fuel tank with fuel indoors. (Examples
include: basement, garage, barn, shed, house, porch, etc.) Never fill tank near appliances with pilot lights,
heaters, or other ignition sources. If the fuel has to be drained, this should be done outdoors. The drained fuel
should be stored in a container specifically designed for fuel storage or it should be disposed of carefully.
4. Never remove the fuel cap or add fuel with the engine running. Stop engine and allow to cool before filling.
5. Do not smoke while refueling or operating engine.
6. Never drain fuel from the engine in an enclosed area.
7. Always wipe up excess (spilled) fuel from engine before starting. Clean up spilled fuel immediately. If fuel is
spilled, do not start the engine but move machine and fuel container from area. Clean up spilled fuel and allow to
evaporate and dry after wiping and before starting.
8. Allow fuel fumes/vapors to escape from the area before starting engine.
9. Test the fuel cap for proper installation before starting and using engine.
10. Always run the engine with fuel cap properly installed on the engine.
11. During storage, keep machine so gas cap is up.
12. Never siphon fuel by mouth to drain fuel tank.
13. Always have an adult fill the fuel tank and never allow children to fill the engine.
14. Never allow an adult or anyone under the influence of drugs or alcohol to fill engine.
15. When storing gasoline or equipment with fuel in the tank, store away from furnaces, stoves, water heaters or
other appliances that have a pilot light or other ignition source because they can ignite gasoline vapors.
16. Never fill containers inside a vehicle or on a truck bed with a plastic bed liner. Always place containers on the
ground away from your vehicle before filling.
17. Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then
refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
Burns and Fires
The muffler, muffler guard and other parts of the engine become extremely hot during the operation of the engine.
These parts remain extremely hot after the engine has stopped.
Prevention of Burns and Fires
1. Never remove the muffler guard from the engine.
2. Never touch the muffler guard because it is extremely hot and will cause severe burns.
3. Never touch parts of the engine that become hot after operation.
4. Always keep materials and debris away from muffler guard and other hot parts of the engine to avoid fires.
Children and Bystanders
Tragic accidents can occur if the operator is not alert to the presence of children and/or bystanders. Never assume
that others will remain where you last saw them.
1. Keep the area of operation clear of all persons, especially small children and pets. Keep children under the
watchful care of a responsible adult.
2. Be alert and turn the machine off if children enter the area.
3. Before and while moving backwards, look behind and down for small children.
4. Never allow children to operate the machine
4

5
ASSEMBLY
Install Stand (See Figure 1)
1. Position the stand (A) underneath the engine base
2. Using the four M8x60 bolts (C) and four nuts (D) to
tight the stand with the engine base plate
Install the Wheels (See Figure 2)
1. Put the wheel onto the axle(B), Make sure the wheel
disc flat side face to machine.
2. Slide the washer (A) onto the axle against the wheel.
3. Insert the cotter pin (C) into the hole to secure the
wheel on the axle.
Install Chipper Cone (See Figure 3)
1. Position the chipper cone(B) over the three M8
thread studs protruding from the engine plate
2. Attach the three M8 flange nuts (C) and tighten to
secure the cone
3. Rubber cone cover (A) can be used when using the
vacuum function
Install the Handle (See Figure 4)
1. Position the handle(A) to by aligning the handle holes
with the hopper holes on two sides
2. Using four flange bolts (C) and nuts (D) to secure the
handle on the hopper
Figure 1
Figure 2
Figure 3
Figure 4

GENERAL OPERATION
1. Be sure to read all information in the Safety and Operation sections before attempting to operate this unit.
Become familiar with all of the controls and how to stop the unit.
2. Check all hardware (bolts, screws, etc) before every use for tightness to be sure machine is in safe working
condition.
3. Overloading the equipment will shorten its life, and can cause mechanical failures.
Chipper Operation
The chipper is designed to handle tree limbs and branches up to approximately 3” (7,6 cm) in diameter. The
chipping knives also permit the processing of course organic matter like corn stalks. Tree branches must be
inserted large-end first into the chipper cone. Since occasional kick-backs may occur, always stand off to the side
of the unit. Allow the self-feeding action of the unit to draw the sticks in.
Shredder Operation
The shredder is designed to shred light brush, leaves, and other soft but bulky organic waste. As material (no
larger than 1/2 inch in diameter) is loaded into the shredder hopper it is pulled into the path of the hammers by air
flow.
Vacuum Attachment (Optional)
In addition to the chipper cone and hopper, loose debris may be processed by the Vacuum hose adapter kit.
Leaves may be raked directly into the leaf tray where vacuum action will draw them into the shredder. For
hard-to-reach areas, the nozzle and hose assembly may be used. The strength of the Vacuum may be changed
using the rotating sleeve on the nozzle.
Operating Location
1. Select an area with firm, level ground, covered by dirt or grass.
2. Do not operate on wet or slick surfaces, or near bystanders.
3. Locate and organize the materials to be processed so that you don’t have to walk in front of the inlet or discharge
openings, and so you have adequate room to work safely.
6
Figure 6
Install the Hopper (See Figure 5)
1. Set plate (G) with bolts through the aligned holes
2. Assembly the U shape plate (C) and put on plate (B)
3. Position the hopper (A) by aligning
the assembly holes and
fix by bolts (E)
4. Tight nuts (F) to secure
the guard assembly
to the hopper
Install the Hopper Guard (See Figure 6)
1. Position the hopper guard assembly (C) by aligning
the assembly holes with the holes in the hopper
2. Using the three M6 flange bolts (A) and nuts (D) to
secure the guard assembly (C) to the hopper.
Figure 5

7
Adding Oil
Refer to engine manual for information on adding oil.
DANGER
1. The exhaust from this product contains carbon monoxide gas. Carbon monoxide is a colorless, orderless and
tasteless gas that can cause dizziness, nausea, unconsciousness or even brain damage and death if inhaled for
prolonged periods.
2. Operate the unit outdoors in a well ventilated location only. Keep children, pets and bystanders away.
3. Failure to follow these instructions may result in serious injury or death.
WARNING
1. Gasoline is highly flammable and must be handled with care. Never fill the tank when the engine is still hot from
recent operation.
2. Do not allow open flame, smoking or matches in the area. Avoid over-filling and wipe up any spills.
WARNING: To avoid serious personal injury from rotating cutting blades, keep
hands out of inlet while machine is running.
WARNING: Do Not Use Gasoline Containing Methanol, Gasohol Containing More
Than 10% Ethanol, Gasoline Additives Or White Gas Because Engine/fuel System
Damage Could Result.
IMPORTANT: Engine is shipped from factory without oil. You must add engine oil
before starting engine.
Adding Fuel
To add fuel:
1. Remove the fuel cap.
2.
Fill the tank. Do not overfill. Leave room in the tank for fuel expansion. Refer to your engine manual for specific fuel
recommendations.
3. Install and hand tighten the fuel cap.
Starting the Engine
1. See engine manual for starting up instructions.
2. Ensure engine is running full throttle before beginning chipping operation. On some engines, the throttle may not
be adjustable.
Stopping the Engine
1. See engine manual for shut down procedure.
2. Stopping the engine is the only way to stop the rotor from turning. With engines equipped with an adjustable
throttle, move the throttle to the SLOW position and wait for engine to be running a slow RPM. Then switch to
STOP ENGINE as shown in the engine manual.
TRANSPORTING AND STORAGE
1. Always observe safe refueling and fuel handling practices when refueling the unit after transportation or storage.
2. Never store the unit (with fuel) in an enclosed poorly ventilated structure. Fuel vapors can travel to an ignition
source (such as a furnace, water heater, etc.) and cause an explosion. Fuel vapor is also toxic to humans and
animals.

3. Always use the hopper handle and built-in wheels to move the chipper shredder. Never lift the unit using the fuel
tank for support. If the unit must be lifted , always use at least two people, and always grip the unit securely
using the front leg and hopper handle.
4. Always follow the engine manual instructions for storage preparations before storing the unit for both short and long
term periods.
5. Always follow the engine manual instructions for proper start-up procedures when returning the unit to service.
6. Never store the unit or fuel container inside where there is an open flame or pilot light, such as in a water heater.
Allow unit to cool before storing.
Storage
Perform engine maintenance and storage measures listed in the engine owner’s manual. This includes draining the
fuel system, or adding stabilizer to the fuel. NOTE: Do not store a fueled unit in an enclosed structure. (SEE
GASOLINE FIRES AND HANDLING FUEL SAFETY)
Before starting the unit after it has been stored:
1. Check all fluid levels. Check all maintenance items.
2. Perform all recommended checks and procedures found in the engine owner’s manual.
3. Allow the engine to warm up for several minutes before use.
MAINTENANCE
Schedule & Procedures
The following schedule should be followed for normal care of your unit.
Engine Maintenance
Refer to the engine manual included in your package for information on engine maintenance. Your engine manual
provides information and a maintenance schedule for performing the following tasks:
1. Always check oil level before starting engine. Refer to engine manual for capacity and type of oil to use.
2. Change oil after first 5-8 hours of operation. Change oil while engine is warm. Refill with new oil of recommend-
ed grade.
4. Check spark plug yearly or every 50 hours of operation.
5. Service air cleaner.
6. Keep engine and parts clean.
7. Check engine and equipment often for loose nuts and bolts, keep these items tightened.
Check for Loose Hardware
1. Service Interval: Every 5 hours; every spring and fall.
2. Inspect the unit, checking for loose hardware or components.
3. Pay special attention to the hardware attaching the chipper cone, hopper, axle, and front leg.
8
SAFETY ITEMS BEFORE
EACH USE
EVERY
5 HOURS
EVERY
25 HOURS
EVERY
100 HOURS
EVERY
250 HOURS
SPRING
& FALL
Clean debris from engine and chipper
Inspect/Rotate Shredding Hammers
Inspect/Rotate Chipping Knives
Check for loose hardware
Check all safety labels
Inspect cone, hopper, and guards
CHIPPER MAINTENANCE ITEMS
X
X
X
X
X
X
X
X

9
Check Safety Labels
1. Service Interval: Every spring and fall.
2. Check that the safety labels are in place and undamaged.
3. Sample illustrations and part numbers of the decals can be found on page 6. Replace any damaged or missing
decals.
Inspect Cone, Hopper, & Guards
1. Service Interval: Every spring and fall.
2. Check that the chipper cone, shredder hopper, and discharge guards are in place, undamaged, and secure.
Replace any damaged or missing parts.
Clean Debris from Engine & Chipper
1. Service Interval: Before each use and every 100 hours.
2. The engine requires air flow to cool itself and for combustion.
3. Before each use, clean any debris from the unit especially from around the air shroud intake, air filter, and
muffler. Every 100 hours, remove the engine air shroud and clean out any debris from the engine cooling fins.
We recommend having this service performed by an authorized dealer.
Figure 8
Figure 7

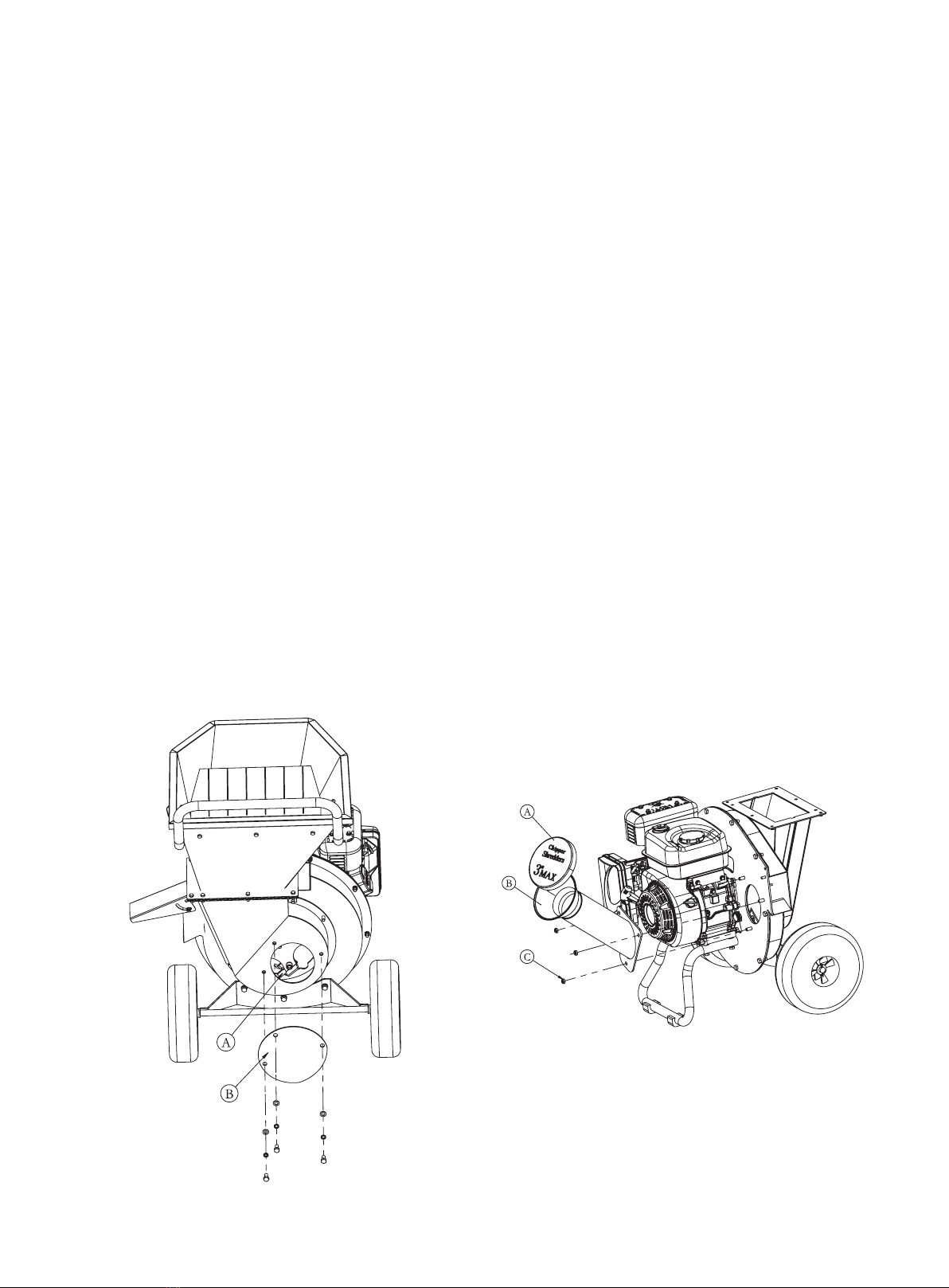

Inspect / Rotate Shredding Hammers (See Figure 7)
Service Interval: Every 25 Hours, or As Necessary
The shredding hammers of this unit can be rotated to
provide a new cutting surface as required.
The Y hammers can be flipped over once.
To inspect the shredding hammers:
1. Disconnect the spark plug wire and secure it away
from the spark plug.
2. Remove the small circular access panel (B) from the
back of the shredder housing.SEE FIGURE 7
3. Inspect the cutting edges of the Y-hammers (A).
Inspect Chipping Knives (See Figure 8)
Service Interval: Every 25 hours, or as necessary
The chipping knives of this unit can be rotated or
sharpened to provide a new cutting surface as
required. When inspecting the knives be careful to
avoid touching the sharpened edges. To inspect the
chipping knives:
1. Disconnect the spark plug wire and secure it away
from the spark plug.
2. Remove the nuts securing the chipper cone to the
front of the chipper. Remove the chipper cone to
access the knives. SEE FIGURE 8
3. Using the recoil starter, slowly pull the starter rope to
rotate the rotor into position so the blades can be
seen.To sharpen or replace the chipper knives, see
the Troubleshooting and Repair section.

IMPORTANT: Engine is shipped from factory without oil. You must add engine oil
before starting engine.
CAUTION
1. For the safety of the user, and to maximize the life of the engine, it is crucial to take time to check the condition
of the engine.
2. Problems must be corrected before operating.
3. Avoid injury! Engine oil is hazardous to your health. Dispose of oil appropriately.
4. Use a safe disposal/recycling center.
TROUBLESHOOTING CHART
1. While normal care and regular maintenance will extend the life of your equipment, prolonged or constant use
may eventually require that service be performed to allow it to continue operating properly.
2. The troubleshooting guide below lists the most common problems, their causes, and remedies.
3. See the information on the following pages for instructions on how to perform most of these minor adjustments
and service repairs yourself. If you prefer, all of these procedures can be performed for you by your local autho-
rized dealer.
WARNING
1. To avoid serious injury, perform maintenance on the unit only when the engine is stopped.
2. Always disconnect the spark plug wire and fasten it away from the plug before beginning the maintenance, to
prevent accidental starting of the engine.
10
Problem(s)
Engine won't start
Engine exhaust is black
Engine stops suddenly
Engine runs but no
material is discharged
Chipping action slow,
or engine stalling
Unusual noise or
vibration when
chipping material
Vacuum not working.
Possible Cause
1. No fuel.
2. Choke not in START position.
3. Low quality or deteriorated, old gasoline.
4. Dirty fuel passageways.
5. Spark plug cap not connected securely.
6. Spark plug fouled.
7. No compressions. Problem after long storage
periods.
8. Low engine oil.
1. Dirty air filter.
2. Choke closed.
1. Fuel tank empty or full of impure or low quality
gasoline.
2. Low oil shutdown.
3. Disconnected or improperly connected spark
plug cap.
4. The limb is too long.
1. Discharge chute clogged.
2. Engine not running at full speed.
1. Branch diameter is too thick.
2. Throttle set is too slow.
3. Tree limbs are extremely hard or dried out.
1. Rotor overloaded with material.
2. Hammers are broken, bent, or loose.
3. Hammers frozen in place.
1. Hopper gate not closed.
2. Cone cover not installed.
3. Hose not attached properly.
4. Engine not running at full RPM.
Corrective Action
1. Add fuel.
2. Turn choke to START position.
3. Use fresh unleaded gasoline.
4. Clean out passageways using fuel additive.
Heavy deposits may require further cleaning.
5. Connect spark plug cap properly.
6. Remove spark plug. Clean/replace as
recommended in engine manual.
7. Lubricate the cylinder, pour tablespoon of oil
into spark plug hole. Crank engine a few times
and try to start again.
8. Add engine oil to proper level.
1. Replace air filter.
2. Open choke.
1. Add fuel tank with fresh unleaded gasoline.
2. Fill engine oil to proper level.
3. Secure spark plug cap.
4. If the limb diameter for the side chute in 2"-3"
and the length over 31" long, suggest the
operator should help the limb feeding by
slightly holding to keep the rotate speed.
1. Clean out debris.
2. Set throttle control to FAST if equipped.
1. Do not process branches over 3" diameter.
2. Adjust throttle to increase engine speed.
3. Material is not suitable for chipping.
1. Allow unit to clear itself before adding more
material to the hopper.
2. Check assembly. Tighten or replace as
necessary.
3. Check for obstructions and debris. Repair or
replace as necessary.
1. Slide gate to closed position.
2. Allow material to dry.
3. Clear blockage or replace.
4. Set throttle control to FAST if equipped.

REPAIR
Shredding Hammer Rotation and Replacement
The cutting edges of the shredding hammers may eventually wear out requiring rotation of the hammer or replace-
ment if all cutting edges have been dulled.
To rotate the shredding hammers:
1. Turn the engine off and wait for all moving parts to stop.
2. Disconnect the spark plug wire and secure it away from the spark plug.
3. Detach the rotor housing and hopper from the rotor plate. SEE FIGURE 9
4. Note the assembly sequence of the hardware used to secure the hammers. Using an allen wrench remove the
socket head cap screw (A) and related hardware. SEE FIGURE 10
5. Inspect the hammers (D), spacer tubes (C, E), and hardware. If the spacer tube (E) shows signs of wear, replace
it. Inspect and flip, or replace the hammers (D).
6. Reassemble the hammers, spacers, washers, and cap screws.
Torque the socket head cap screws (A) back tightly
7. Repeat for all the hammers.
Chipping Knives Sharpening and Replacement
1. The chipping knives should be sharpened or replaced when tree limbs require extra force to feed into the chipper cone.
2. The chipping knives may be sharpened at a 39 degree angle until the distance between the edge of the blade
bevel and the mounting hole is less than 1/16” (1.6mm). SEE FIGURE 13.
To inspect, sharpen, or replace the chipping knives:
1. Turn the engine off and wait for all moving parts to stop.
2. Disconnect the spark plug wire and secure it away from the spark plug.
3. Detach the rotor housing and hopper from the rotor plate. SEE FIGURE 9
4. Remove the rotor by removing the hardware that secures it to the engine
crank shaft. SEE FIGURE 11. NOTE: Do not lose spacer. During
reassembly Be sure to place spacer is installed inside rotor.
Without spacer, rotor will interfere with housing components.
5. Using a hex wrench, remove the two socket head cap screws
and the chipper knife. SEE FIGURE 12
6. Inspect, rotate, sharpen, or replace the chipper knife. SEE FIGURE 13
7. Reinstall the chipper knife and tighten the socket
head cap screws
Figure 13- Chipper knife minimum cutting edge
11
Figure 9
Figure 10
Figure 11
Crank shaft
Spacer
Figure 12
Chipper kinfe

12
PARTS BREAKDOWN
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Description
Engine
Chipper cone
Cone cap
Support stand
Stand pad
Flange nut M8
Flange bolt M8x60
Flange
Wheel
Washer
Cotter pin
Handwheel
Spring washer
Washer
Q’ty
1
1
1
1
2
11
4
2
2
2
2
1
1
1
Part No.
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Description
Discharge guard
Flange nut M6
Flange bolt M6x20
Damper attachment
Damper
Flange bolt M8x20
Retainer hopper guard
Hopper Guard
Flange hopper guard
Handle
Hopper
Bag
Screw plate
Socket Cap Screw M6x40
Q’ty
1
17
17
1
1
4
1
1
1
1
1
1
1
2

13
Parts Breakdown – Engine and Rotor Group
Parts Breakdown – Rotor Group
Part No.
1
2
3
4
5
6
7
8
9
10
Description
Engine
Flange
Engine plate
Spring washer 8
Hex bolt
Key parallel pin
Bearing spacer
Rotor assembly kit
Spring washer 10
Socket head cap screw
Q’ty
1
2
1
4
4
1
1
1
1
1
Part No.
1
2
3
4
5
6
7
8
9
10
11
Description
Socket head cap screw M10x50
Spring washer 10
Spacer
Y hammer
Bearing sleeve
Knives plate
Locknut M8
Spring washer 8
Washer 8
Knife
Screw
Q’ty
4
4
4
4
4
1
4
4
4
2
4

14
PARTS BREAKDOWN - CHIPPER HOUSING GROUP
WARRANTY
Limited 3 Years Warranty
1. The manufacturer warrantees this chipper shredder against defects in material and craftsmanship, for a period of
36 months from date of original purchase, but not including engine mounted on the product.
2. This warranty excludes parts that are worn or damaged due to normal wear, such as bearings, wheels, tires, Y
hammers, chipper knives, routine maintenance items such as O-rings, seals, and lubricants, accessory parts
such as collection bag etc.
3. Manufacturer’s liability is limited to replacement or repair of defective material within the warranty period, when
returned freight prepaid to the distributor or their designated servicedepot.
4. The warranty does not cover damage caused by accident, misuse or faulty installation.
5. The chipper shredder must be installed and maintained in compliance with the instructions.
Part No.
1
2
3
4
5
6
7
8
9
10
11
Description
Engine plate
Rotor assembly kit
Rotor house
Chipper back cover
Flange bolt M8x20
Flange nut M8
Vacuum inlet cover
Hex bolt M8x15
Spring washer
Washer
Wheel rack
Q’ty
1
1
1
1
11
18
1
6
6
6
1

Type of waste permitted: Light, loose, dry waste such as leaves, grass clippings, or sawdust.
NOTES: The vacuum is engineered for small, loose waste and for cleaning around decorative landscaping and
flower beds. Twigs, wet leaves, and other bulky materials will clog the hose or obstruct the shredding chamber.
Vacuum Kit
Item# LC901
Optional Accessory for
LCE01 Wood Chipper Shredder
Specification: 4"x10' extension hose with vacuum nozzle
15

TROUBLE SHOOTING:
PART LIST
PROBLEM
Vacuum not working
POSSIBLE CAUSE
1. Hopper gate not closed.
2. Cone cover not installed.
3. Hose not attached properly.
4. Engine not running at full RPM.
SOLUTIONS
1. Slide gate to closed position.
2. Install the cone cover.
3. Clear blockage or replace.
4. Set throttle control to FAST if equipped.
Part No.
1
2
3
4
5
Description
Adapter
Hose adapter
Extension vacuum hose
End cap
Handle
Q’ty
1
1
1
1
1
Part No.
6
7
8
9
10
Description
Handle grip
Vacuum nozzle
Plastic ring
Hex bolt
Locknut
Q’ty
1
1
1
1
1
16
