Great Lakes XTREME GLUPS-STLI Guide

Standy Lithium Ion UPS
GLUPS-STLI Models
User & Installation Manual
1.866.879.4522
GreatCabinets.com

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 2
Table of Contents
1. Package Contents ....................................................................3
2. Product Introduction...............................................................3
3. Product Overview ....................................................................3
5. Indicators & Alarm Conditions...............................................4
6. Important Safety Instructions................................................4
7. Troubleshooting.......................................................................7
8. Specications ...........................................................................8
Battery Runtimes.........................................................................8
9. Obtaining Service.....................................................................9
10. Xtreme Power Conversion Limited Warranty ..................10

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 3
1. Package Contents
You should be receiving the following items inside the package:
• UPS Unit
• User Manual
• Local Monitoring Software CD
2. Product Introduction
Thank you for selecting this Uninterruptible Power Supply (UPS). It provides you with protection for connected
equipment. Please read this manual before installing the STLI Series UPS as it provides important information
that should be followed during installation and maintenance of the UPS and batteries, allowing you to correctly
set up your system for the maximum safety and performance. Included is information on customer support and
service, if it is required. If you experience a problem with the UPS, please refer to the Troubleshooting section in
this manual to correct the problem. If the problem is not corrected, please collect information so that the Techni-
cal Support personnel can more eectively assist you.

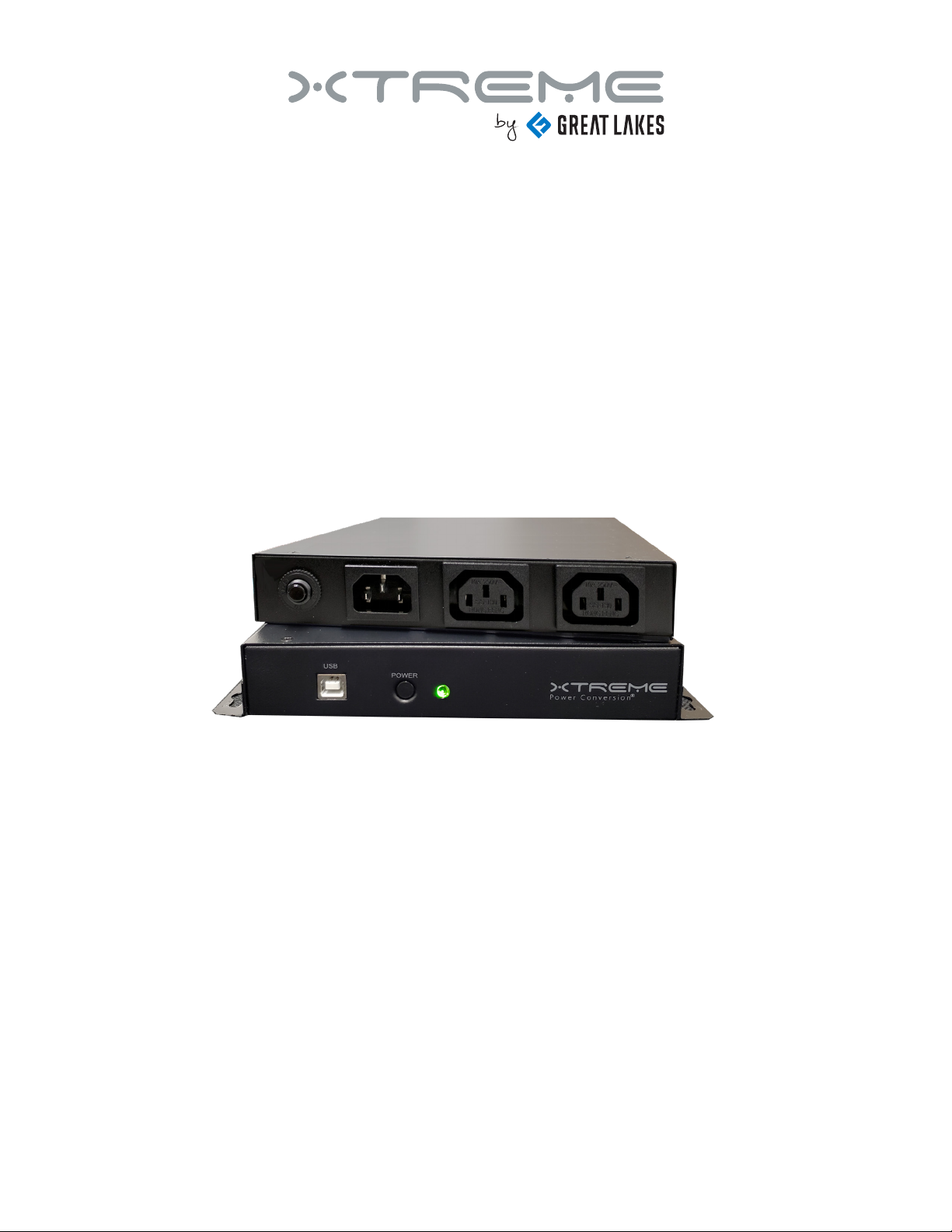

3. Product Overview
Xtreme STLI advanced design combines the benets of lithium powered UPS and advanced surge suppression
technology. Slim form factor (just 1.25”, STLI(i)-350 only), wall mounting, and easy access receptacles make STLI
ideal for mounting behind thin display screens used in hotels, restaurants, hospitals, campuses, airports and other
commercial areas.
While STLI’s compact design is appealing to the digital signage industry, it is also excellent for providing protection
to kiosks, gaming machines, computers, point-of-sale equipment, and small printers.
4. Installation & Initial Startup
Note: Before installation, inspect the unit and packaging to make sure that nothing inside has been damaged.
Connect UPS to Utility and Charging
Before the initial use of the UPS, plug the UPS input cord into a wall outlet and turn the UPS on by pressing the
Power switch on the back of the UPS. For best results, the batteries in the UPS should be charged for at least 8
hours before use. The UPS charges its battery while it is connected to AC utility power and powered on.
GLUPS-STLI-030 GLUPS-STLI-060

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 4
Connecting the Loads
Plug the loads to be supported by the UPS into the output receptacles on the front of the UPS. Simply turn the
power switch on the UPS on and the devices connected to the UPS will be protected by the UPS unit.
Turn UPS ON / OFF
To turn the UPS unit on, press the power button on the UPS and hold for three seconds. To turn the UPS unit
o, press the power button and hold for one second.
Connecting Local Monitoring Software (optional)
If it is desired to use the Local Monitoring Software, and if your UPS is equipped with USB communications, con-
nect a USB cable from your computer to the UPS, and install the software from the CD.
5. Indicators & Alarm Conditions
Condition Visual Indicator Alarm
AC mode LED illuminated No Audible Alarm
Battery mode LED ashes every 10 seconds Audible Alarm sounds every 10
seconds
Low battery mode LED ashes every 1 second Audible Alarm sounds every 1
second
Fault LED is illuminated Audible Alarm is continuous
Alarm for over temperature protec-
tion
LED ashes every 0.5 seconds No Audible Alarm
6. Important Safety Instructions
(Save These Instructions) This manual contains important instructions for the STLI-035-120/240
and STLI-060-120-240 that should be followed during installation and maintenance of the UPS
CAUTION! (UPS having Internal Batteries): Risk of electrical shock – Hazardous live parts inside this unit are
energized from the battery supply even when the input AC power is disconnected.
CAUTION! (No User serviceable Parts): Risk of electrical shock, do not remove cover. No user serviceable
parts inside. Refer servicing to qualied service personnel.
CAUTION! (Non-isolated Battery supply): Risk of electric shock, battery circuit is not isolated from AC input,
hazardous voltage may exist between battery terminals and ground. Test before touching.
WARNING! Unit intended for installation in a controlled environment.
CAUTION! Do not dispose of batteries in a re, the battery may explode.
CAUTION! Do not open or mutilate the battery, released electrolyte is harmful to the skin and eyes.
CAUTION: A battery can present a risk of electrical shock and high short-circuit current. Contact with any
• part of a grounded battery can result in electrical shock. The following precautions should be observed
• when working on batteries:
A. Remove watches, rings, or other metal objects.
B. Use tools with insulated handles.
C. Wear rubber gloves and boots.
D. Do not lay tools or metal parts on top of batteries.

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 5
E. Disconnect charging source and load prior to installing or maintaining the battery.
F. Remove battery grounds during installation and maintenance to reduce likelihood of shock.
Remove the connection from ground if any part of the battery is determined to be grounded.
EN 62040-2,C2:
WARNING: This is a category C2 UPS product. In a residential environment, this product may cause radio
interference, in which case the user may be required to take additional measures.
FCC Notice: Class A
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursu-
ant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction man-
ual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
WARNING: Changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
To reduce the risk of electric shock, disconnect the UPS from the main supply before installing a computer inter-
face signal cable. Reconnect the power cord only after signaling interconnections have been made.
Servicing of batteries should be performed or supervised by personnel with knowledge of batteries and the re-
quired precautions. Keep unauthorized personnel away from batteries.
The instructions contained within this safety manual are deemed important and should be closely followed at all
times during installation and follow-up maintenance of the UPS and batteries.
CAUTION: The unit has a dangerous amount of voltage. If the UPS indicator is on, the
unit’s outlets may have a dangerous amount of voltage even when not plugged into the
wall outlet because the battery may continue to supply power.
Care should be taken to undertake installation indoors, free from electrically-conductive
particles which are under temperature and humidity control, in order to reduce the risk of
electric shock.
It is best to disconnect the device using the power supply cord. Ensure that the equipment
is placed in a position near the outlet where easily accessible. The socket-outlet shall be
installed near the equipment and shall be easily accessible.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
All servicing on this equipment must be carried out by qualied service personnel.
Before conducting any maintenance, repair, or shipment, rst ensure that everything is
turned o completely and disconnected.

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 6
Consignes de sécurité importantes: (Conservez ces instructions)
- Ce manuel contient des instructions importantes pour les STLI-350, STLIi-350, STLI-600 et STLIi-600 qui doivent
être suivies pendant l’installation et la maintenance de l’onduleur
MISE EN GARDE! (UPS avec batteries internes): Risque de choc électrique - Les pièces sous tension dangere-
uses à l’intérieur de cet appareil sont alimentées par l’alimentation de la batterie même lorsque l’alimentation CA
d’entrée est déconnectée.
MISE EN GARDE! (Aucune pièce réparable par l’utilisateur): Risque de choc électrique, ne retirez pas le couvercle.
Aucune pièce réparable par l’utilisateur à l’intérieur. Conez l’entretien à un technicien qualié.
MISE EN GARDE! (Alimentation par batterie non isolée): Risque de choc électrique, le circuit de la batterie n’est pas
isolé de l’entrée CA, une tension dangereuse peut exister entre les bornes de la batterie et la masse. Testez avant
de toucher.
ATTENTION! Unité destinée à être installée dans un environnement contrôlé.
MISE EN GARDE! Ne jetez pas les batteries au feu, la batterie pourrait exploser.
MISE EN GARDE! Ne pas ouvrir ou mutiler la batterie, l’électrolyte libéré est nocif pour la peau et les yeux.
ATTENTION: Une batterie peut présenter un risque de choc électrique et de courant de court-circuit élevé. Con-
tact avec tout
une partie d’une batterie mise à la terre peut provoquer un choc électrique. Les précautions suivantes doivent
être observées
lorsque vous travaillez sur des batteries:
a) Retirez les montres, bagues ou autres objets métalliques.
b) Utilisez des outils avec des poignées isolées.
c) Portez des gants et des bottes en caoutchouc.
d) Ne posez pas d’outils ou de pièces métalliques sur les batteries.
e) Débranchez la source de charge et la charge avant d’installer ou d’entretenir la batterie.
f) Retirez les masses de la batterie pendant l’installation et l’entretien pour réduire la probabilité de choc.
Retirez la connexion de la terre si une partie de la batterie est déterminée comme étant mise à la terre.
AVERTISSEMENT: Il s’agit d’un produit UPS de catégorie C2. Dans un environnement résidentiel, ce produit peut
provoquer des interférences radio,
dans ce cas, l’utilisateur peut être amené à prendre des mesures supplémentaires.
AVERTISSEMENT: Les changements ou modications non expressément approuvés par la partie responsable de
la conformité
annuler le droit de l’utilisateur à utiliser l’équipement.

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 7
ATTENTION: l’appareil a une tension dangereuse. Si le voyant de l’onduleur est allu-
mé, les prises de l’unité peuvent présenter une tension dangereuse même si elles ne sont
pas branchées sur la prise murale, car la batterie risque de continuer à s’alimenter.
Il convient de veiller à eectuer une installation à l’intérieur, exempte de particules élec-
troconductrices sous contrôle de la température et de l’humidité, an de réduire les ris-
ques d’électrocution.
Il est préférable de déconnecter le périphérique à l’aide du cordon d’alimentation. Assurez-
vous que l’équipement est placé près de la prise de courant et facilement accessible.
La prise de courant doit être installée à proximité de l’équipement et doit être facilement
accessible
ATTENTION RISQUE D’EXPLOSION SI LA PILE EST REMPLACÉE PAR UN TYPE INCORRECT.
JETER LES PILES USÉES SELON LES INSTRUCTIONS
Tous les travaux d’entretien de cet équipement doivent être eectués par du personnel
qualié.
Avant de procéder à tout entretien, réparation ou expédition, assurez-vous que tout est
complètement éteint et débranché.
7. Troubleshooting
Condition Visual Indicator Alarm
No LED display on the front UPS
panel
Low battery Charge the UPS at least 8 hours
Battery fault Replace the battery with the same
type of battery
The UPS is not turned on Press the Power Switch on the
front of the UPS
Alarm continuously sounds when
the AC input is normal
The UPS is overloaded Remove some of the load from the
output of the UPS
UPS fault Return the unit for service
Alarm continuously sounds when
the AC input is normal
Battery defect Replace the battery with the same
type of battery
Charging circuit is damaged Return the unit for service
When power fails, backup time is
shorter than expected
The UPS is overloaded Remove some of the load from the
output of the UPS
Battery voltage is too low Charge the UPS at least 8 hours
Battery defect Replace the battery with the same
type of battery
The AC input is normal but the blue
LED is ashing
Power cord is loose Reconnect the input power cord
properly

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 8
8. Specications
Model Number STLI-035A-120 STLI-035A-230 STLI-060A-120 STLI-060A-230
CAPACITY Power rating 350VA (200W) 350VA (200W) 600VA (360W) 2000VA (1930W)
INPUT Voltage 120VAC 230VAC 120VAC 230VAC
Frequency 50/60Hz
OUTPUT
Voltage 120VAC 230VAC 120VAC 230VAC
Waveform Sine wave (normal), simulated sine wave (battery mode)
Frequency 50/60Hz
Surge suppression 312 joules
Transfer time 2-6 ms (typical)
BATTERY
Battery type Lithium Iron Phosphate (LiFePo4)
Battery quantity and
size (8) LiFePO4 18650 cells, 2400mAh (16) LiFePO4 18650 cells, 4400mAh
PHYSICAL
Dimensions (W x D x H) 6.9 x 8.5 x 1.25 in* (175 x 216 x 32 mm) 7.3 x 10.8 x 1.6 in (185 x 275 x 40 mm)
Weight 3.4 lbs (1.5 kg) 4.7 lbs (2.1 kg)
Line cord Detachable 5–15P to
C13 C14 inlet Detachable 5–15P to C13 C14 inlet
Receptacles (3) 5–15R (2) IEC C13 (3) 5–15R (2) IEC C13
ENVIRONMENT
Temperature 32–104°F (0–40°C)
Humidity 0–90%
Altitude 11,500 ft above sea level
COMMUNICATIONS
INTERFACE
Standard
Communications USB Interface including cable and software DB9 port provides communication and power for optional webcard
Web/SNMP card option N/A External Web/SNMP card providing UPS
monitoring and receptacle On/O control
Environmental
Monitoring Device N/A Measures temperature and humidity (requires Web/SNMP card option)
APPROVALS UL-1778, cTUVus, FCC, RoHSCE, RoHS, TAA compliant (120V)
CE, RoHS, TAA compliant (230V)
WARRANTY 5 years electronics, 5 years battery warranty (USA & Canada)**
System
Load (watts) 20 40 80 120 160 200 240 280 320 360
STLI-
035A-
120/230
72 35 17 11 9 7 N/A N/A N/A N/A
STLI-
060A-
120/230
161 79 35 23 17 14 11 9 8 6
*Wall mount brackets add 15mm to each side. **Warranty outside of USA & Canada is 3 years.
Battery Runtimes
Runtimes are shown in minutes and will vary based on battery age and site conditions.

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 9
9. Obtaining Service
If the UPS requires Service:
1. Use the TROUBLESHOOTING section in this manual to eliminate obvious causes.
2. Verify there are no circuit breakers tripped.
3. Call your dealer for assistance. If you cannot reach your dealer, or if they cannot resolve the problem, call
Xtreme Power Conversion Corp Technical Support at 800.582.4524. Technical support inquiries can also
be made at [email protected]. Please have the following information available BEFORE calling the Techni-
cal Support Department:
• Your name and address.
• The serial number of the unit.
• Where and when the unit was purchased.
• All of the model information about your UPS.
• Any information on the failure, including LED’s that may or may not be illuminated.
• A description of the protected equipment, including model numbers if possible.
• A technician will ask you for the above information and, if possible, help solve your problem over the
phone. In the event that the unit requires factory service, the technician will issue you a Return Material
Authorization number (RMA).
If you are returning the UPS to Xtreme Power for service, please follow these procedures:
1. Pack the UPS in its original packaging. If the original packaging is no longer available, ask the Technical Sup-
port Technician about obtaining a replacement set of packaging material. It is important to pack the UPS
properly in order to avoid damage in transit. Never use Styrofoam beads for a packing material.
2. Include a letter with your name, address, daytime phone number, RMA number, a copy of your original sales
receipt, and a brief description of the problem.
3. Mark the RMA number on the outside of all packages. Xtreme Power cannot accept any package without the
RMA number marked on the outside of the boxes.
4. Return the UPS by insured, prepaid carrier to the address provided by the Technician.
5. Refer to the Warranty statements in this manual for additional details on what is covered.

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 10
10. Xtreme Power Conversion Limited Warranty
Xtreme Power Conversion (XPC) Corporation warrants Xtreme Power Conversion equipment, when properly ap-
plied and operated within specied conditions, against faulty materials or workmanship for a period of ve years
(USA & Canada) or three years (outside USA & Canada) for STLI-Series products from the date of
purchase. XPC Corporation warrants internal batteries for a period of ve years from the date of pur-
chase. For equipment sites within the United States and Canada, this warranty covers repair or replacement, at
the sole discretion of XPC Corporation. The customer is responsible for the costs of shipping the defective product
to XPC Corporation. XPC Corporation will pay for ground shipment of the repaired or replacement product. For
equiptment outside the US & Canada, the warranty does not include shipping to and from XPC service depot. This
warranty applies only to the original purchaser.
If equipment provided by XPC Corporation is found to be Dead-on-Arrival (DOA), XPC Corporation will be
responsible for the costs of shipping product to and returning equipment from the customer in a timely manner
as agreed to with the customer, once the customer has requested and received a Return Material Authoriza-
tion (RMA) number. DOA equipment is dened as equipment that does not properly function according to user
documentation when initially received and connected in conjunction with proper procedures as shown in the user
documentation or via support provided by XPC Corporation personnel or authorized agents.
This warranty shall be void if (a) the equipment is repaired or modied by anyone other than XPC Corporation
or a XPC Corporation approved third party; (b) the equipment is damaged by the customer, is improperly used
or stored, is subjected to an adverse operating environment, or is operated outside the limits of its electrical
specications; or (c) the equipment has been used or stored in a manner contrary to the equipment’s operating
manual, intended use or other written instructions. Any technical advice furnished by XPC Corporation or a XPC
Corporation authorized representative before or after delivery with regard to the use or application of Xtreme
Power Conversion equipment is furnished on the basis that it represents XPC Corporations best judgment under
the situation and circumstances, but it is used at the recipient’s sole risk.
EXCEPT AS STATED ABOVE, XPC Corporation DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
EXCEPT AS STATED ABOVE, IN NO EVENT WILL XPC Corporation BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCI-
DENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF Xtreme Power Conversion EQUIPMENT,
including but not limited to, any costs, lost prots or revenue, loss of equipment, loss of use of equipment, loss
of software, loss of data, cost of substitutes, or claims by third parties. Purchaser’s sole and exclusive remedy for
breach of any warranty, expressed or implied, concerning Xtreme Power Conversion equipment, and the only
obligation of XPC Corporation under this warranty, shall be the repair or replacement of defective equipment,
components, or parts; or, at XPC Corporations sole discretion, refund of the purchase price or substitution of an
equivalent replacement product.

Great Lakes Data Racks & Cabinets
Standby Lithium Ion User’s Manual
Page 11
This page intentionally left blank

FORM: #MS-5.02-XX Rev. 0
Thank you
for your
business!
ETSI Associate Member
