GREAT PLAINS 1300 User manual

Manufacturing, Inc.
www.greatplainsmfg.com
© Copyright 2018 Printed 2018-01-29 175-157M
EN
Table of Contents Index
Table of Contents Index
ORIGINAL INSTRUCTIONS
Operator Manual
1300 and 1300F
13-Foot/4 Meter End-Wheel Drill
Read the operator’s manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Cover illustration may show optional equipment not supplied with standard unit.
!
16677

Table of Contents Index
Table of Contents Index
Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information
to the new manual.
If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that
were originally ordered, the weights and measurements are no longer accurate for your machine. Update
the record by adding the machine weight and measurements starting on page 57 with the Option(s) weight
and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Year of Construction
Delivery Date
First Operation
Accessories
Name:
Street:
City/State:
Telephone:
Email:
Dealer’s Customer
No.:
Dealer QRC
The QR Code (Quick Response) to the
left will take you to available dealers for
Great Plains products. Refer to the
Parts Manual QR Locater for detailed
instructions.
Manual Family QRC
The QR Code (Quick Response) to the
left will take you to this machine’s family
of manuals. Use your smart phone or
tablet to scan the QR Code with an
appropriateApp to begin viewing.

1300 and 1300F Cover Index Table of Contents iii
2018-01-29 Cover Index 175-157M
© Copyright 1998, 1999, 2002, 2005, 2006, 2008, 2014, 2015, 2017, 2018 All rights Reserved
Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been
taken in the preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed
for damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products
as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
Trademarks of Great Plains Manufacturing, Inc. include:AccuShot, Max-Chisel, Row-Pro,
Singulator Plus, Short Disk, Swath Command, Terra-Tine, Ultra-Chisel, and X-Press.
Registered Trademarks of Great Plains Manufacturing, Inc. include:Air-Pro, Clear-Shot, Discovator, Great Plains, Land Pride, MeterCone,
Nutri-Pro, Seed-Lok, Solid Stand, Terra-Guard, Turbo-Chisel, Turbo-Chopper, Turbo-Max, Turbo-Till, Ultra-Till, Whirlfilter, and Yield-Pro.
Brand and Product Names that appear and are owned by others are trademarks of their respective owners.
Printed in the United States of America
Table of Contents
Important Safety Information.................................................1
Prepare for Emergencies...................................................1
Wear Protective Equipment...............................................2
Use Safety Lights and Devices..........................................3
Transport Machinery Safely...............................................3
Shutdown and Storage......................................................4
Practice Safe Maintenance................................................4
Tire Safety.........................................................................4
Safety At All Times............................................................5
Safety Decals ....................................................................6
Introduction...........................................................................11
Description of Unit...........................................................11
Intended Usage........................................................11
Using This Manual...........................................................11
Document Family.............................................................11
Definitions.................................................................11
Owner Assistance............................................................12
Preparation and Setup .........................................................13
Pre-Setup Checklist.........................................................13
Hitch Preparation.............................................................13
Adjusting the Drill Hitch............................................13
Hitching............................................................................14
Electrical Connections.....................................................14
Hydraulic Hose Hookup...................................................15
Operating Instructions .........................................................16
General Description.........................................................16
Pre-Start Checklist...........................................................16
Raising Openers for Transport........................................17
Opener Pivot Stop....................................................17
Lock-Out Hub ..................................................................18
Secure Markers...............................................................18
Transport.........................................................................19
Weights for Tractor Requirements ...........................19
Transport Checklist ..................................................19
Opener Operation............................................................20
Lowering and Raising Openers .......................................20
Loading Materials............................................................21
Loading Main Seed Box...........................................21
Loading Small Seeds Box........................................21
Loading Fertilizer Compartment...............................22
Setting Materials Rates ...................................................23
Initial Seeding Depth................................................23
Fertilizer Box Operation...................................................24
Applying Seed and Fertilizer ....................................24
Using Fertilizer Compartment...................................25
Seeding with Both Compartments............................25
Marker Operation (Option) ..............................................26
Prepare Markers for Field Use.................................26
Marker Field Operations...........................................26
Acremeter Operation.......................................................27
Field Operations..............................................................28
Final Field Checklist.................................................28
Materials Clean-Out ........................................................29
Main Box Clean-Out.................................................29
Fertilizer Box Clean-Out...........................................29
Small Seeds Box Clean-Out ....................................30
Parking............................................................................30
Storage............................................................................30
Adjustments..........................................................................31
Planting Depth.................................................................31
Seed and Fertilizer Rate..................................................31
Opener Frame Down-Force ............................................32
Spring Down Pressure–All Openers ........................32
Marker Disk Angle Adjustment........................................33
Row Unit Adjustments.....................................................34
Opener Height..........................................................35
Row Unit Down Pressure (Spring)...........................35
Disk Blade Adjustments...........................................36
Disk Scraper Adjustments........................................36
Seed Firmer Adjustments.........................................37
Opener Depth (Press Wheel Height) .......................38
Troubleshooting ...................................................................39
Maintenance and Lubrication..............................................41
General Information.........................................................41
Maintenance....................................................................42
Bleeding Hydraulics .................................................42
Marker Maintenance ................................................44
Chain Maintenance..................................................45
Seed Flap Replacement...........................................46
Lubrication.......................................................................47
Options..................................................................................53
Appendix A Reference Information ....................................57
Specifications and Capacities .........................................57
Standard Models 1300.............................................57
Fertilizer Models 1300F............................................58
Tire Warranty Information ........................................58
Torque Values Chart.......................................................59
Chain Routing..................................................................60
End Wheel to Main Jackshaft Chain........................60
Main Jackshaft to Main Seed Jackshaft Chain ........60

1300 and 1300F Cover Index Table of Contents iv
2018-01-29 Cover Index 175-157M
Main Seed Jackshaft to Meter Drive Chain..............61
Fertilizer Range Chain..............................................61
Fertilizer Transmission Chain...................................62
Fertilizer Meter Drive Chain......................................62
Small Seeds Chains.................................................63
Agitator Chain...........................................................64
Hydraulic Diagrams.........................................................65
Opener Lift (No Markers)..........................................65
Opener Lift and Markers (Option) ............................66
Appendix B Initial Setup ......................................................67
Acremeter Installation......................................................67
Scraper Installation..........................................................67
Marker Setup...................................................................68
Installing Drill Hydraulics.................................................69
Warranty..........................................................................70

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Important Safety Information 1

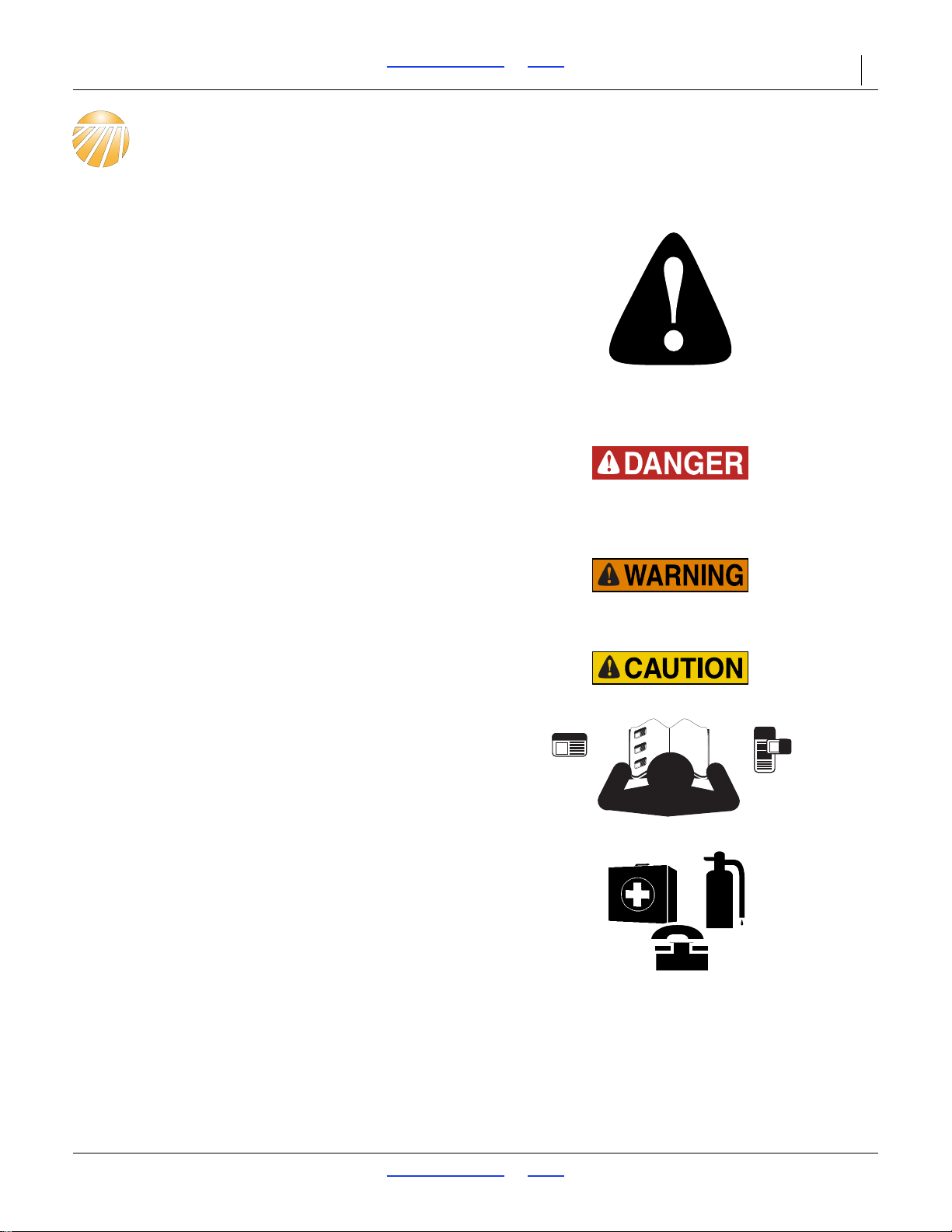

Important Safety Information
Look for Safety Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence and
proper training of personnel involved in the operation,
transport, maintenance and storage of equipment.
Be Aware of Signal Words
Signal words designate a degree or level of hazard
seriousness.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
This signal word is limited to the most extreme situations,
typically for machine components that, for functional
purposes, cannot be guarded.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury, and includes hazards that are exposed when
guards are removed. It may also be used to alert against
unsafe practices.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe
practices.
Be Familiar with Safety Decals
Read and understand “Safety Decals” on page 6,
thoroughly.
Read all instructions noted on the decals.
Keep decals clean. Replace damaged, faded and illegible
decals.
Prepare for Emergencies
Be prepared if a fire starts
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctor, ambulance, hospital
and fire department near phone.
911

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Important Safety Information 2

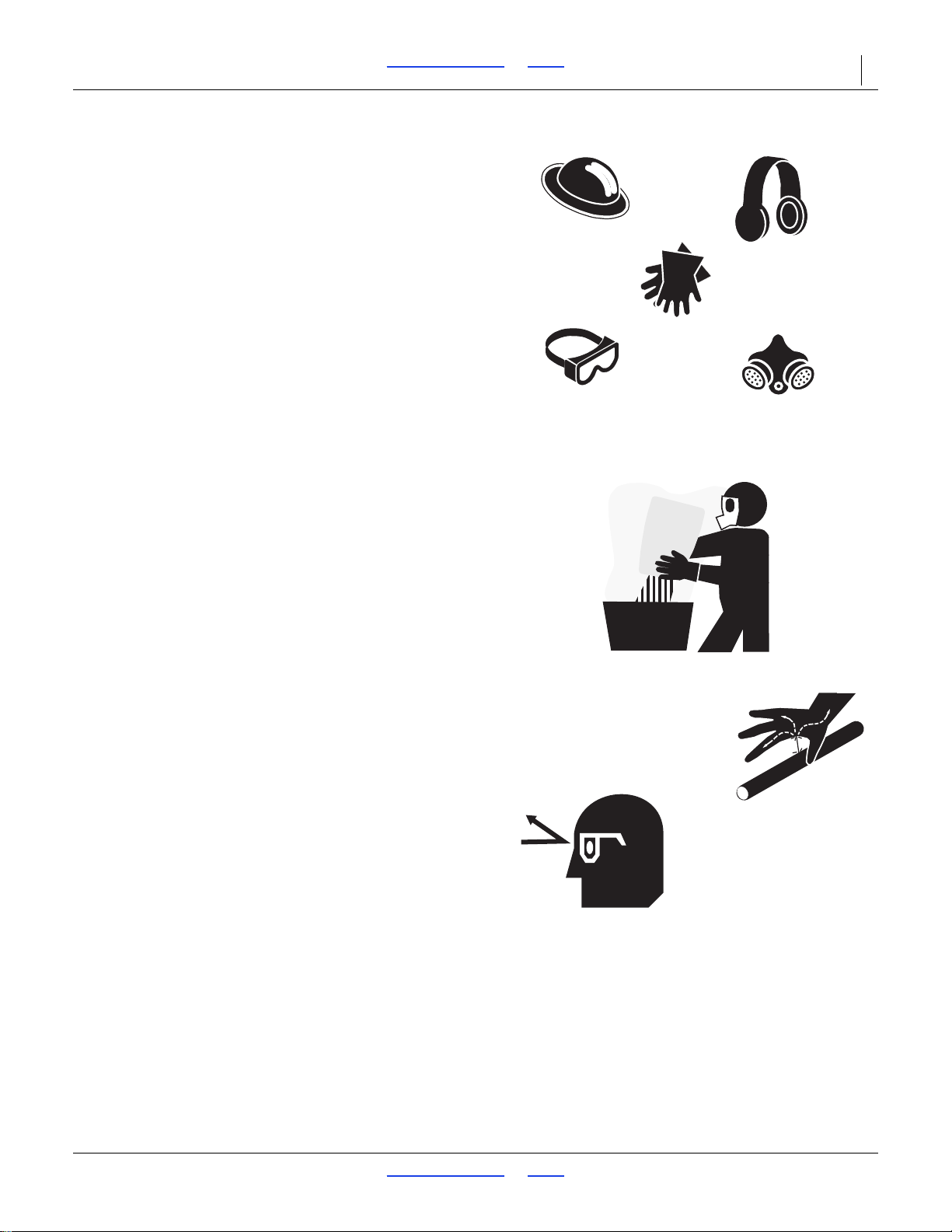

Wear Protective Equipment
Wear protective clothing and equipment.
Cartridge-type respirator approved for treatment dust
unless label specifies another type of respirator.
Wear clothing and equipment appropriate for the job.
Avoid loose-fitting clothing.
Do not wear contaminated clothing. Wash protective
clothing and equipment with soap and water after each
use. Personal clothing must be laundered separately from
household articles.
Because prolonged exposure to loud noise can cause
hearing impairment or hearing loss, wear suitable
hearing protection such as earmuffs or earplugs.
Because operating equipment safely requires your full
attention, avoid wearing entertainment headphones while
operating machinery.
Handle Chemicals Properly
Agricultural chemicals can be dangerous. Improper use
can seriously injure persons, animals, plants, soil and
property.
Read and follow chemical manufacturer’s instructions.
Wear protective clothing.
Handle all chemicals with care.
Avoid inhaling smoke from any type of chemical fire.
Store or dispose of unused chemicals as specified by
chemical manufacturer.
Avoid High Pressure Fluids
Escaping fluid under pressure can penetrate the skin,
causing serious injury.
Avoid the hazard by relieving pressure before
disconnecting hydraulic lines.
Use a piece of paper or cardboard, NOT BODY PARTS, to
check for suspected leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems.
If an accident occurs, seek immediate medical assistance
from a physician familiar with this type of injury.

1300 and 1300F Table of Contents Index Important Safety Information 3
2018-01-29 Table of Contents Index 175-157M
Use A Safety Chain
Use a safety chain to help control drawn machinery
should it separate from tractor drawbar.
Use a chain with a strength rating equal to or greater than
the gross weight of towed machinery.
Attach chain to tractor drawbar support or other specified
anchor location. Allow only enough slack in chain to
permit turning.
Replace chain if any links or end fittings are broken,
stretched or damaged.
Do not use safety chain for towing.
Use Safety Lights and Devices
Slow moving tractors and towed implements can create
a hazard when driven on public roads. They are difficult
to see, especially at night.
Use flashing warning lights and turn signals whenever
driving on public roads.
Use lights and devices provided with the drill.
Keep Riders Off Machinery
Riders obstruct the operator’s view. Riders could be
struck by foreign objects or thrown from the machine.
Never allow children to operate equipment.
Keep all bystanders away from machine during operation.
Transport Machinery Safely
Maximum transport speed for drill is 20 mph (30 km/h).
Some rough terrains require a slower speed. Sudden
braking can cause a towed load to swerve and upset.
Install transport lock and disengage the lock-out hub
before transport.
Do not exceed 20 mph (30 km/h). Never travel at a speed
which does not allow adequate control of steering and
stopping. Reduce speed if towed load is not equipped with
brakes.
Comply with national, regional and local laws.
Follow your tractor manual recommendations for
maximum hitch loads. Insufficient weight on tractor
steering wheels will result in loss of control.
Carry reflectors or flags to mark drill in case of
breakdown on the road.
Keep clear of obstructions when transporting. Refer to
transport dimensions under “Specifications and
Capacities” on page 57.

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Important Safety Information 4
Shutdown and Storage
Clean out and safely store or dispose of residual
chemicals.
Secure drill using blocks and transport locks.
Lock up openers.
Store in an area where children normally do not play.

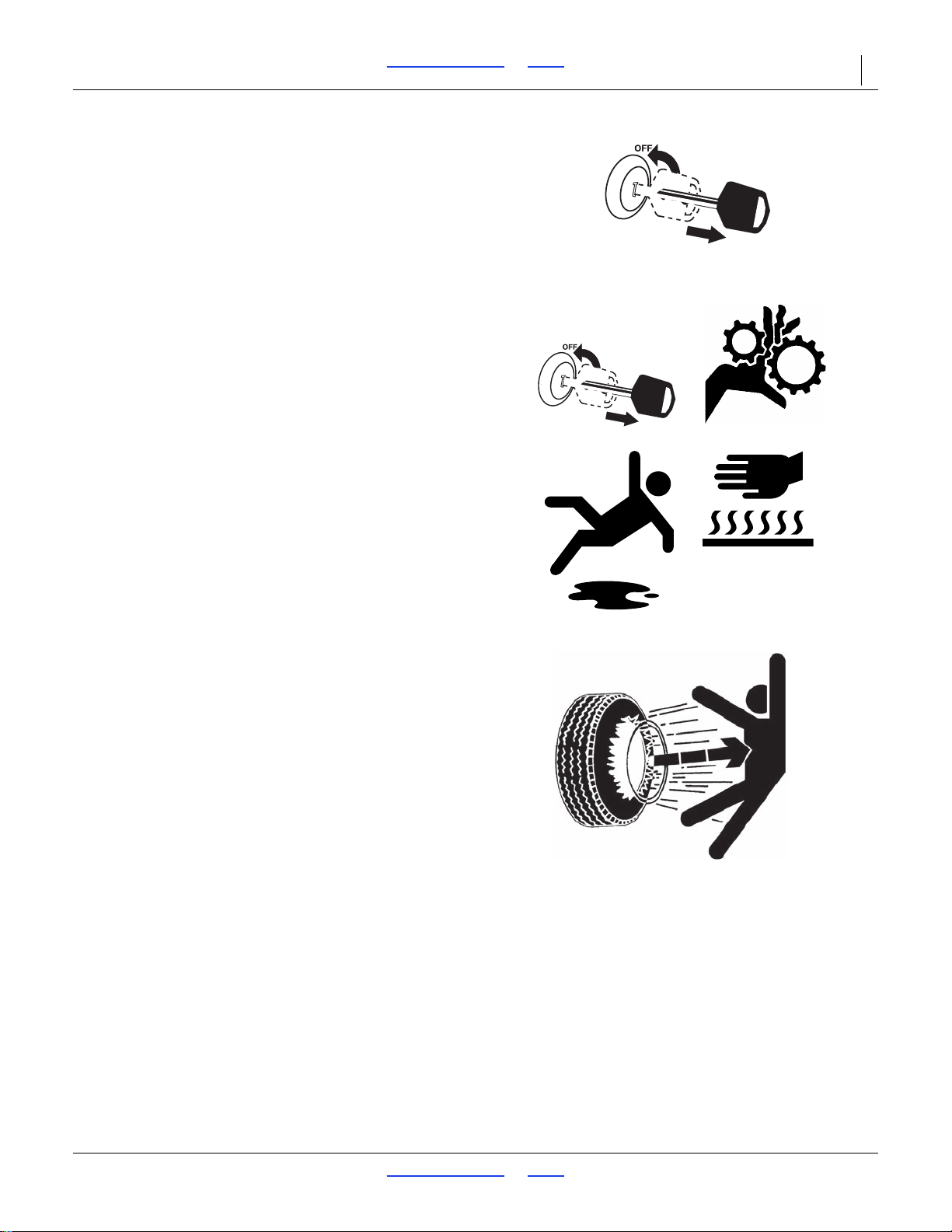

Practice Safe Maintenance
Understand procedure before doing work. Use proper
tools and equipment. Refer to this manual for additional
information.
Work in a clean, dry area.
Put tractor in park, turn off engine, and remove key before
performing maintenance.
Make sure all moving parts have stopped and all system
pressure is relieved.
Use caution when working on or near row units. Opener
disk edges are sharp.
Disconnect battery ground cable (-) before servicing or
adjusting electrical systems or before welding on drill.
Inspect all parts. Make sure parts are in good condition
and installed properly.
Remove buildup of grease, oil or debris.
Remove all tools and unused parts from drill before
operation.
Tire Safety
Tire changing can be dangerous and should be
performed by trained personnel using correct tools and
equipment.
When inflating tires, use a clip-on chuck and extension
hose long enough for you to stand to one side–not in front
of or over tire assembly. Use a safety cage if available.
When removing and installing wheels, use wheel-handling
equipment adequate for weight involved.

1300 and 1300F Table of Contents Index Important Safety Information 5
2018-01-29 Table of Contents Index 175-157M
Safety At All Times
Thoroughly read and understand the instructions in this
manual before operation. Read all instructions noted on
the safety decals.
Be familiar with all drill functions.
Operate machinery from the driver’s seat only.
Do not leave drill unattended with tractor engine running.
Do not dismount a moving tractor. Dismounting a moving
tractor could cause serious injury or death.
Do not stand between the tractor and drill during
hitching.
Keep hands, feet and clothing away from power-driven
parts.
Wear snug fitting clothing to avoid entanglement with
moving parts.
Watch out for wires, trees, etc., when folding and raising
drill. Make sure all persons are clear of working area.
Do not turn tractor too tightly, causing drill to ride up on
wheels. This could cause personal injury or equipment
damage.

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Important Safety Information 6
Safety Decals
Safety Reflectors and Decals
Your drill comes equipped with all lights, safety
reflectors and decals in place. They were designed to
help you safely operate your drill.
Read and follow decal directions.
Keep lights in operating condition.
Keep all safety decals clean and legible.
Replace all damaged or missing decals. Order new
decals from your Great Plains dealer. Refer to this
section for proper decal placement.
When ordering new parts or components, also request
corresponding safety decals.
To install new decals:
1. Clean the area on which the decal is to be placed.
2. Peel backing from decal. Press firmly on surface,
being careful not to cause air bubbles under decal.
Slow Moving Vehicle Reflector
818-003C
Center of walkboard;
1 total
Red Reflectors
838-266C
On rear walkboard face, outside corners;
2 total
16613
20148

1300 and 1300F Table of Contents Index Important Safety Information 7
2018-01-29 Table of Contents Index 175-157M
Amber Reflectors
838-265C
On wing walkboard end faces, above steps,
front face of frame, outside corners;
4 total
Daytime Reflectors
838-267C
On rear walkboard face (inboard of red reflectors);
2 total
Danger: Cannot Read English
818-557C
On tongue at hitch;
1 total
20148
20148
16615
Si No Lee Ingles, Pida Ayuda a Alugien Que Si Lo Lea Para
Que le Traduzca las Medidas de Seguridad.
818-557C
PELIGRO

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Important Safety Information 8
Danger: Possible Chemical Hazard
838-467C (Option)
Under Small Seeds box lid;
1 total
Warning: Negative Tongue Weight
818-019C
On tongue at hitch;
1 total
Warning: Excessive Speed Hazard
818-337C
On tongue near hitch;
1 total
13734
16615
NEGATIVE TONGUE WEIGHT
HAZARD
Negative tongue weight can cause immediate
elevation of tongue when unhitching implement
To prevent serious injury or death:
Always be certain implement is hitched securely
to tractor drawbar before reaising.
Lower implement BEFORE unhitching.
818-019C Rev. D
WARNING
16615
WARNING
EXCESSIVE SPEED
HAZARD
To Prevent Serious Injury or Death:
Do NOT exceed 20 mph maximum
transport speed. Loss of vehicle
control and/or machine damage
can result.
818-337C Rev. B

1300 and 1300F Table of Contents Index Important Safety Information 9
2018-01-29 Table of Contents Index 175-157M

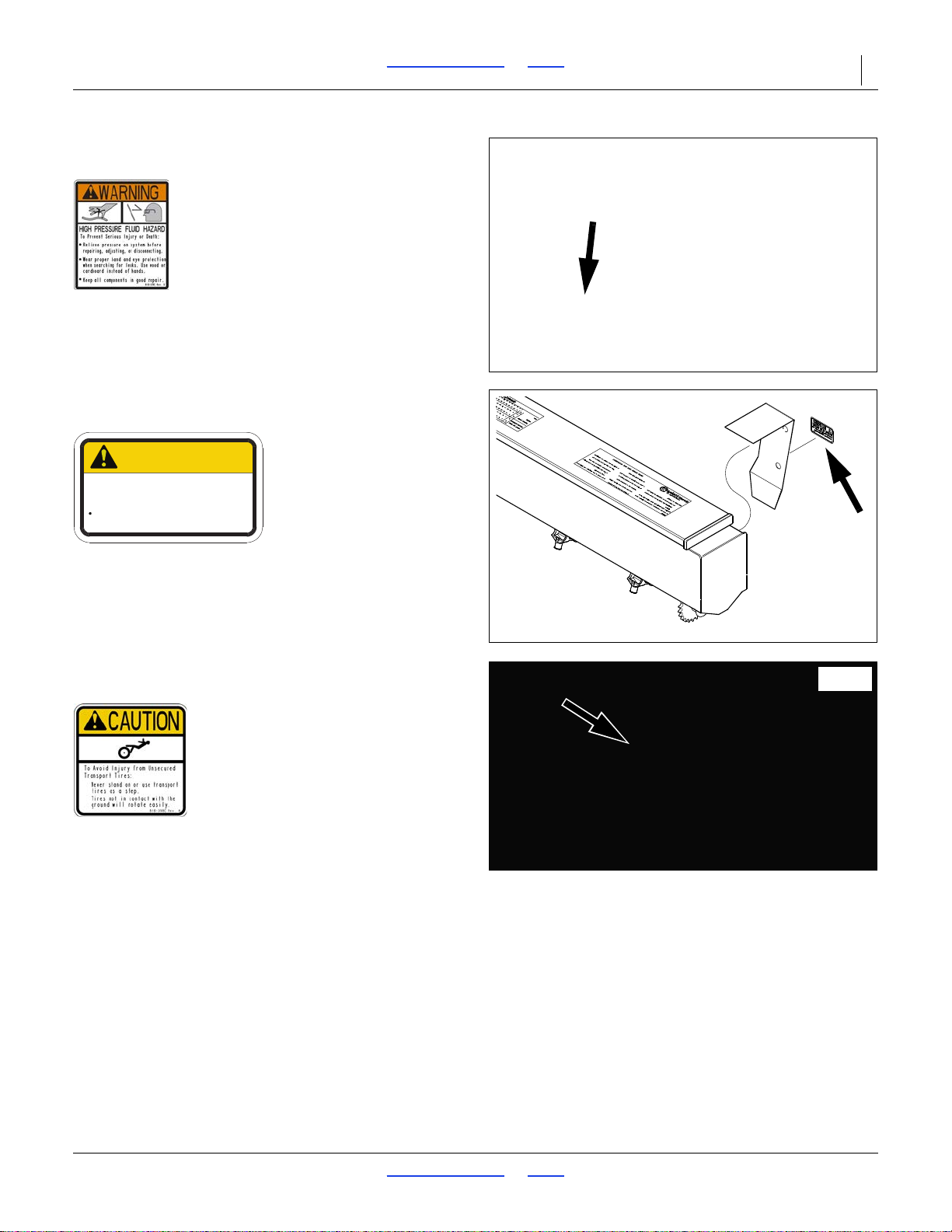

Warning: High Pressure Fluid
818-339C
On tongue near hitch;
1 total
Caution: Moving Chain
818-518C (Option)
On Small Seeds chain guard;
1 total
Caution: Tires Not A Step
818-398C
Upper rear of side frames;
2 total
16615
17036
818-518C REV. B
DO NOT operate with enclosure missing
CAUTION
MOVING CHAIN HAZARD
To prevent serious injury from moving chain:
16613

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Important Safety Information 10
Caution: Tire Pressure and Wheel Bolt
Torque
818-789C (With 4 Ply Tire)
On rim of each end wheel with 4 ply tire;
2 total
Caution: Tire Pressure and Wheel Bolt
Torque
858-390C(With10 Ply Tire)
On rim of each end wheel with 10 ply tire;
2 total
16616
To Avoid Injury or Machine Damage from Improper Tire
Ination or Torquing of Wheel Bolts:
Maximum ination pressure for tires is 28 psi.
Torque wheel bolts to 110 lb-ft.
818-789C
CAUTION
16616
CAUTION
To Avoid Injury or Machine Damage from Improper Tire
Ination or Torquing of Wheel Bolts:
Maximum ination pressure for tires is 60 psi.
Torque wheel bolts to 110 lb-ft. 838-390C

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Introduction 11

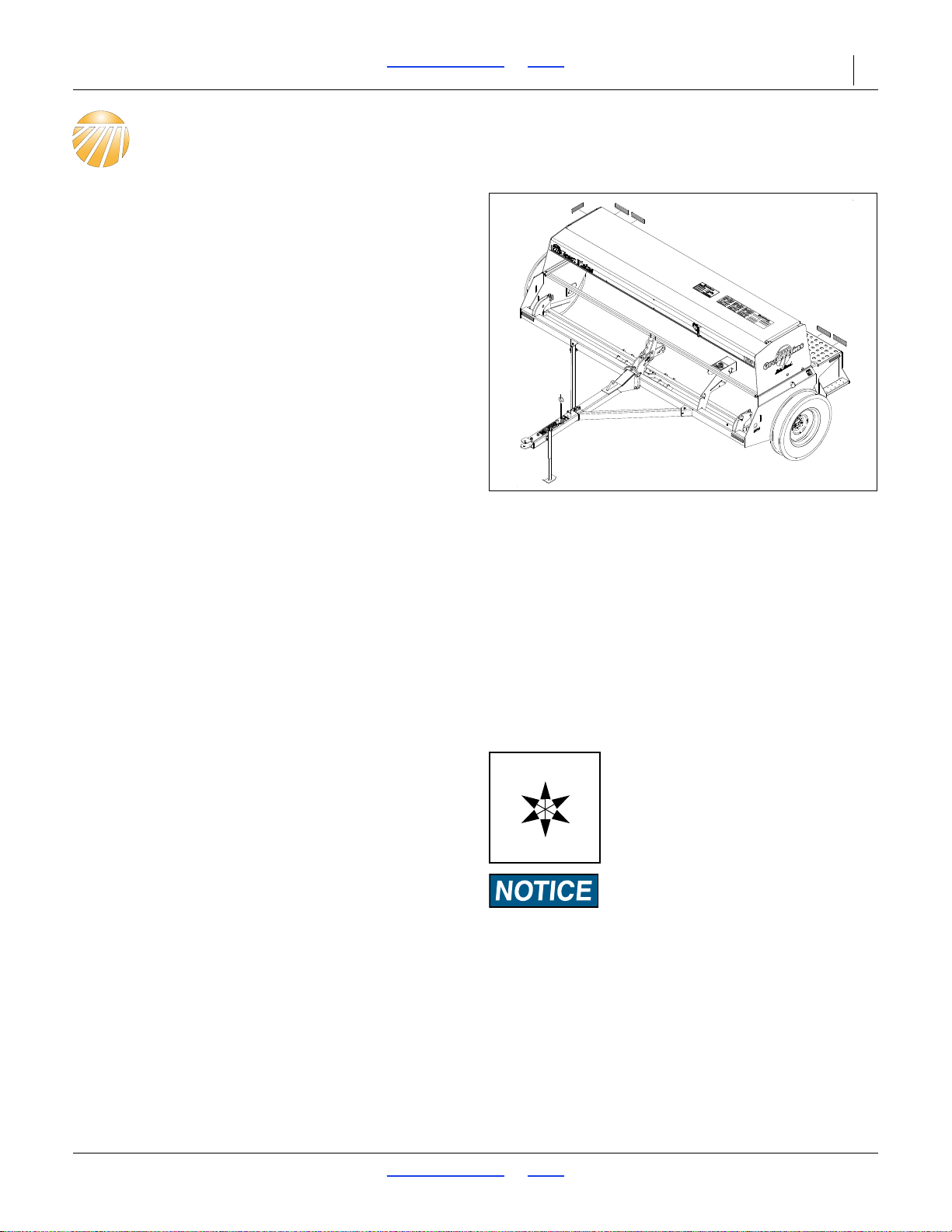

Introduction
Great Plains welcomes you to its growing family of new
product owners. Your 13-Foot/4 Meter End-Wheel Drill
has been designed with care and built by skilled workers
using quality materials. Proper setup, maintenance, and
safe operating practices will help you get years of
satisfactory use from the machine.
Description of Unit
The 1300 and 1300F is a towed seeding implement. This
drill has a working width of 13 feet (4 m). The drill has
straight arm, double disk openers. The opener disks
make a seed bed, and seed tubes mounted between the
disks place seed in the furrow. Press wheels following
the opener disks close the furrow and gauge opener
seeding depth. A T-handle on the opener body is for
seeding depth adjustments.
The metering system is driven from the left end wheel.
Seeding rates are adjustable with the seed rate
adjustment handle and sprocket changes.
Intended Usage
Use this implement to seed production-agriculture crops
in conventional or minimum tillage applications.
Using This Manual
This manual familiarizes you with safety, assembly,
operation, adjustments, troubleshooting, and
maintenance. Read this manual and follow the
recommendations to help ensure safe and efficient
operation.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Models Covered
Standard 1300 Models have 00 Series openers and a
main seed box used entirely for seed. F Models add
fertilizer meters and divide the main box for this purpose.
Either model may add optional Small Seeds capability.
Document Family
Definitions
The following terms are used throughout this manual.
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
Economic or Liability Risk:
Paragraphs in this format present a crucial point of information
related to the current topic. Read and follow the directions to:
• remain safe,
• avoid serious damage to equipment and
• ensure desired field results.
NOTE: Paragraphs in this format provide useful
information related to the current topic.
Figure 1
1300 and 1300F Drill 20148
1300 Models
1300-1610 16 row 10 inch (25.4 cm)
1300-2175 21 row 7.5 inch (19.1 cm)
1300-2606 26 row 6 inch 9 (15.2 cm)
1300F (Fertilizer) Models:
1300F-1610 16 row 10 inch (25.4 cm)
1300F-2175 21 row 7.5 inch (19.1 cm)
1300F-2606 26 row 6 inch 9 (15.2 cm)
175-157M Owner’s Manual (this document)
175-157P 1300 and 1300F Parts Manual
175-157B Seed Rate Manual
U
D
F
B
L
R

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Introduction 12
Owner Assistance
If you need customer service or repair parts, contact a
Great Plains dealer. They have trained personnel, repair
parts and equipment specially designed for Great Plains
products.
Refer to Figure 2
Your machine’s parts were specially designed and
should only be replaced with Great Plains parts. Always
use the serial and model number when ordering parts
from your Great Plains dealer. The serial number plate is
located on the left side of the drill frame below the front of
the seed box.
Record your drill model and serial number here for quick
reference:
Model Number:__________________________
Serial Number: __________________________
Further Assistance
Great Plains Manufacturing, Inc. and your Great Plains
dealer want you to be satisfied with your new 1300/F. If
for any reason you do not understand any part of this
manual or are otherwise dissatisfied, please take the
following actions first:
1. Discuss the matter with your dealership service
manager. Make sure they are aware of any problems
so they can assist you.
2. If you are still unsatisfied, seek out the owner or
general manager of the dealership.
If your dealer is unable to resolve the problem or the
issue is parts related, please contact:
Great Plains Service Department
1525 E. North St.
P.O. Box 5060
Salina, KS 67402-5060
Or go to www.greatplainsag.com and follow the contact
information at the bottom of your screen for our service
department.
Figure 2
Serial Number 16643

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Preparation and Setup 13
Preparation and Setup
This section helps you prepare your tractor and drill for
use. Before using the drill in the field, you must hitch the
drill to a suitable tractor and also setup the drill.
Pre-Setup Checklist
1. Read and understand “Important Safety
Information” on page 1.
2. Check that all working parts are moving freely, bolts
are tight, and cotter pins are spread.
3. Check that all grease fittings are in place and
lubricated. See “Lubrication” on page 47.
4. Check that all safety decals and reflectors are
correctly located and legible. Replace if damaged.
See “Safety Decals” on page 6.
5. Inflate tires to pressure recommended and tighten
wheel bolts as specified. “Appendix A Reference
Information” on page 57.
Hitch Preparation
Crushing Hazard:
You may be severely injured or killed by being crushed
between the tractor and drill. Do not stand or place any part of
your body between machines being hitched. Stop tractor
engine and set park brake before installing hitch pin.
Adjusting the Drill Hitch
Adjust the drill hitch to match tractor drawbar height so
your drill frame runs level in the field.
Refer to Figure 3
1. Back your tractor up as if hitching to the drill. Park
the tractor several yards from the drill. Set the brake
and turn off the tractor.
2. Crank the drill jack until the top of the drill box is
parallel with the ground. Compare the height of the
drill hitch to your tractor drawbar.
3. If necessary, adjust the drill hitch to match your
tractor drawbar.To adjust the hitch, remove the
3/4inch nuts, bolts and washers. Reposition and
install the clevis hitch.
Negative Tongue Weight Hazard:
This drill can have positive and negative tongue weight, which
can work the hitch pin loose during transport. To avoid serious
injury or death due to a road accident, always check that the
drill is hitched before raising the openers. Lower the openers
before unhitching.
Figure 3
Clevis Hitch Positions 16645

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Preparation and Setup 14
Hitching
Crushing Hazard:
You may be severely injured or killed by being crushed
between the tractor and drill. Do not stand or place any part of
your body between machines being hitched. Stop tractor
engine and set park brake before installing hitch pin.
1. Slowly back the tractor toward the drill. When within
a few yards of the drill, stop and park the tractor.
2. Crank the drill jack until the drill hitch matches the
tractor drawbar height.
3. Continue backing the tractor until the drawbar and
hitch are aligned. Stop and park the tractor. Adjust
the drill tongue height until you can install the hitch
pin.
4. Install a hitch pin. Install a retaining clip to keep the
pin from working out of the hitch.
5. Secure the drill safety chain to an anchor on the
tractor capable of pulling the drill.
6. Use crank to raise jack foot. Remove pin and jack.
Store jack on top of tongue.
Electrical Connections
Refer to Figure 5
7. Plug drill electrical lead into tractor seven-pin
connector. If your tractor is not equipped with a
seven-pin connector, contact your dealer for
installation.
Negative Tongue Weight Hazard:
This drill can have positive and negative tongue weight, which
can work the hitch pin loose during transport. To avoid serious
injury or death due to a road accident, always check that the
drill is hitched before raising the openers. Lower the openers
before unhitching.
Figure 4
Jack in Storage Position 16615
Figure 5
Lighting Connector 26467

1300 and 1300F Table of Contents Index Preparation and Setup 15
2018-01-29 Table of Contents Index 175-157M
Hydraulic Hose Hookup
High Pressure Fluid Hazard:
Only trained personnel should work on system hydraulics!
Escaping fluid under pressure can have sufficient pressure to
penetrate the skin, causing serious injury. Avoid the hazard by
relieving pressure before disconnecting hydraulic lines. Use a
piece of paper or cardboard, NOT BODY PARTS, to check for
leaks. Wear protective gloves and safety glasses or goggles
when working with hydraulic systems. If an accident occurs,
seek immediate medical attention from a physician familiar
with this type of injury.
8. Set tractor circuit for opener lift to float.
9. Plug cylinder base and rod end hoses into circuit
extend and retract ports.

2018-01-29 Table of Contents Index 175-157M
1300 and 1300F Table of Contents Index Operating Instructions 16
Operating Instructions
This section covers general operating procedures.
It assumes that setup items have been completed.
Experience, machine familiarity and the following
information will lead to efficient operation and good
working habits. Always operate farm machinery with
safety in mind.
General Description
Field operations are controlled by a tractor cab hydraulic
lever. When openers are lowered, a mechanical clutch
engages, and the left end wheel drives the seed meter
shaft.
Seed and fertilizer meters operate at a rate proportional
to ground speed, as set by sprockets and/or rate
handles, based on the rate charts, and calibration.
Seeding depth and furrow coverage are controlled by
drill down pressure and row unit setup.

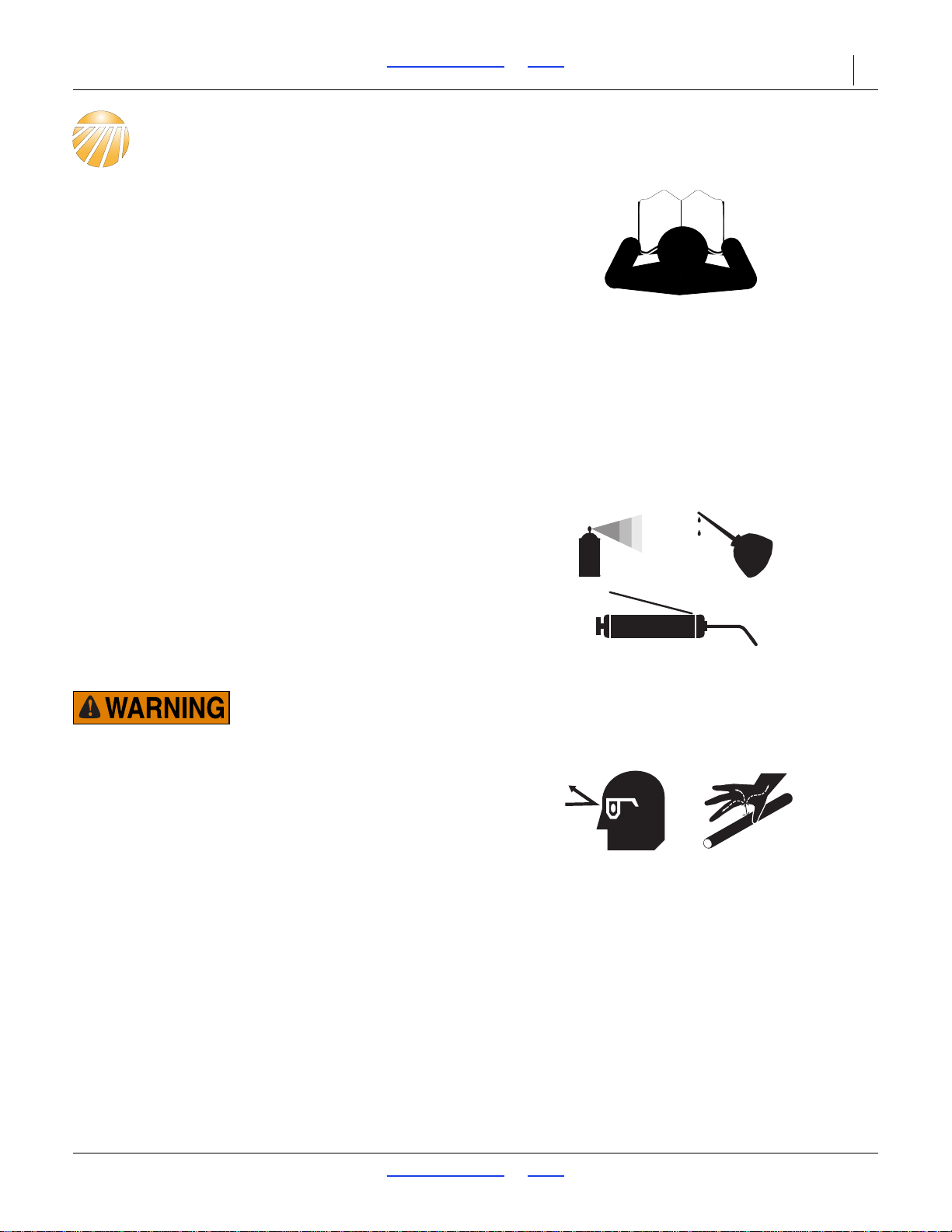

Pre-Start Checklist
High Pressure Fluid Hazard:
Escaping fluid under pressure can penetrate the skin causing
serious injury. Avoid the hazard by relieving pressure before
disconnecting hydraulic lines. Use a piece of paper or
cardboard, NOT BODY PARTS, to check for suspected leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems. If an accident occurs, seek
immediate medical attention from a physician familiar with
this type of injury.
qLubricate the drill as indicated under Lubrication,
“Maintenance and Lubrication” on page 41.
qCheck the tires for proper inflation according to
“Appendix A Reference Information” on page 57.
qCheck for worn or damaged parts and leaks.
Repair or replace before going to the field.
qCheck all nuts, bolts and screws. Tighten bolts as specified
on “Torque Values Chart” on page 59
