ORIGINAL INSTRUCTIONS
Assembly Manual
FCA4500-5410, FCA 4500-7275
Field Cultivator Air Drill
Read the operator’s manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.

Table of Contents Index
Table of Contents Index

FCA4500 Cover Index iii
2019-03-21 Cover Index 560-594Q-ENG
© Copyright 2016, 2017, 2018, 2019 All rights Reserved
Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been
taken in the preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed
for damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products
as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
Trademarks of Great Plains Manufacturing, Inc. include: AccuShot, Max-Chisel, Row-Pro,
Singulator Plus, Short Disk, Swath Command, Terra-Tine, Ultra-Chisel, and X-Press.
Registered Trademarks of Great Plains Manufacturing, Inc. include: Air-Pro, Clear-Shot, Discovator, Great Plains, Land Pride, MeterCone,
Nutri-Pro, Seed-Lok, Solid Stand, Terra-Guard, Turbo-Chisel, Turbo-Chopper, Turbo-Max, Turbo-Till, Ultra-Till, Whirlfilter, and Yield-Pro.
Brand and Product Names that appear and are owned by others are trademarks of their respective owners.
Printed in the United States of America
Table of Contents
Important Safety Information.................................................1
Introduction.............................................................................4
Description of Unit .............................................................4
Models Covered ................................................................4
Document Family...............................................................4
Tools Required ..................................................................4
Pre-assembly Checklist .....................................................4
Using This Manual.............................................................5
Definitions...................................................................5
Shipping Inventory......................................................6
Unloading ...................................................................7
Unpacking Components .............................................7
Unload Smaller Items First .........................................7
Unpacking Boxes .......................................................7
Further Assistance .....................................................7
Assembly.................................................................................8
Center Frame Assembly....................................................8
Torque Tube & Level Bar ..................................................9
Center Fold......................................................................10
Connect Hitch..................................................................10
Install Inside Wings ..................................................11
Install Outside Wings................................................12
Transport .........................................................................13
Center Transport ......................................................13
Inside Wing Transport ..............................................13
Outside Wing Transport ...........................................14
Install Gauge Wheel (Caster Style) ..........................15
Install K-Flex.............................................................16
Install Magnum Shank..............................................16
Hydraulics........................................................................17
Hydraulic Depth Stop ...............................................17
Depth Control Valve .................................................17
Rebound Valve and O-Ring Fittings.........................18
Hydraulic Fold Valves...............................................19
Install Fold System Double Tee Blocks....................20
Install Hose Handles ................................................20
Opener Hydraulics ...................................................21
Install JIC Fittings.....................................................22
Attach Hose Clamps and Hose wraps .....................23
Hydraulic Handle Hook Up.......................................23
ADC2350 Hydraulic Connections.............................24
Hydraulic Hose Hookup ...........................................25
Hose Handles...........................................................25
Purging Hydraulic System........................................26
Openers Seed Tube Set Up.....................................27
Light Assembly.........................................................28
Install Openers.........................................................29
Completing Setup.....................................................29
Appendix ...............................................................................30
Torque Values Chart .......................................................30
Tire Inflation Chart...........................................................31
Hydraulic Connectors and Torque...................................31
Hydraulic Lift Layout........................................................32
Hydraulic Lift Layout........................................................33
Hydraulic Fold Layout......................................................34
Hydraulic Fold Layout......................................................35
FCA4500-7275 Tower Hydraulic & Bracket Layout.........36
FCA4500-7275 Tower Hydraulic & Bracket Layout.........37
FCA4500 Opener Hydraulic Layout ................................38
FCA4500 Opener Hydraulic Layout ................................39
FCA4500-7275 Opener Layout .......................................40
FCA4500-7275 Opener Layout .......................................41
FCA4500-7275 Machine Layout......................................42
FCA4500-7275 Machine Layout......................................43
Fertilizer Tower Layout....................................................44
Fertilizer Tower Layout....................................................45
Fertilizer Tube Routing Layout ........................................46
Fertilizer Tube Routing Layout ........................................47
Seed Tube Routing Layout..............................................48
Seed Tube Routing Layout..............................................49

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index iv

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index 1

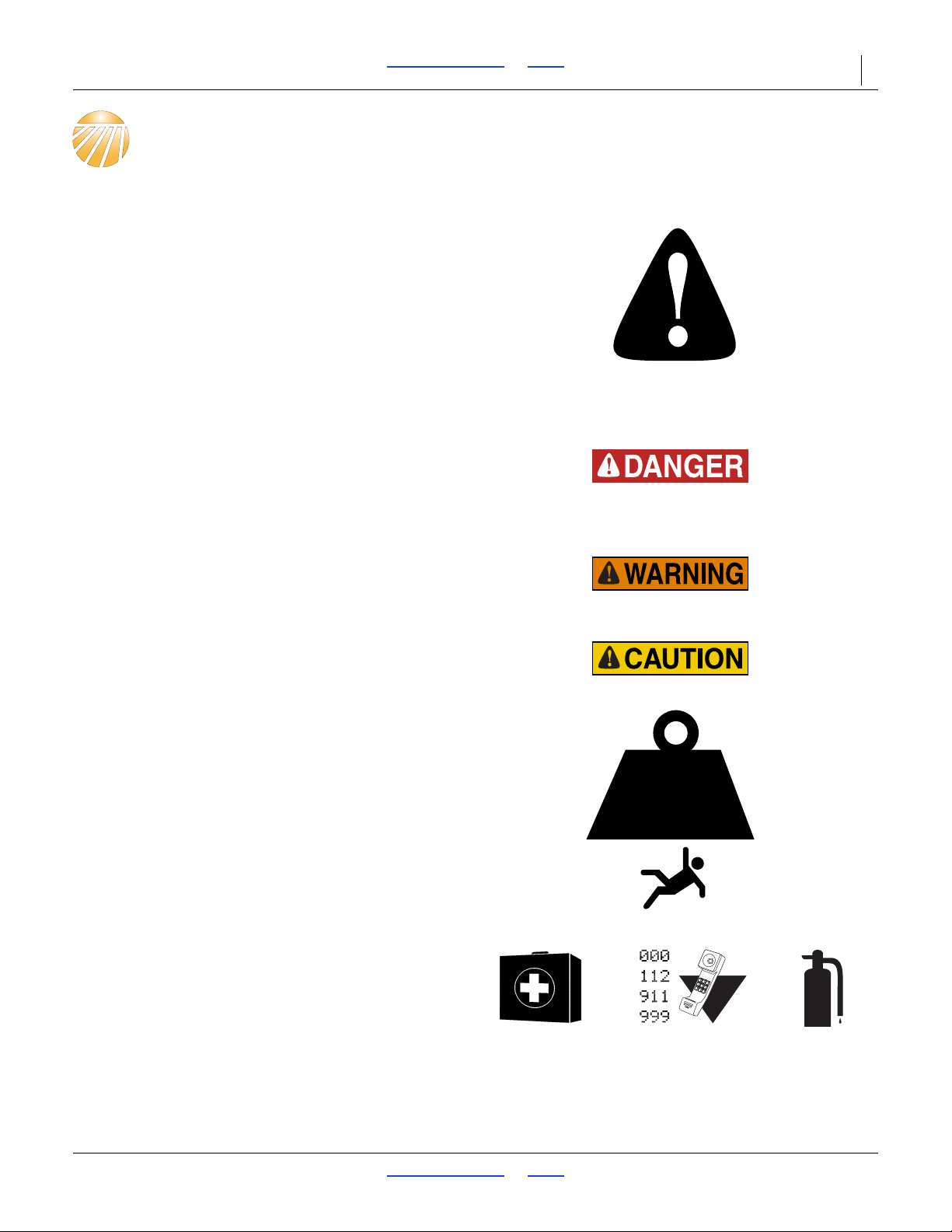

Important Safety Information
Look for Safety Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence and
proper training of personnel involved in the operation,
transport, maintenance and storage of equipment.
Be Aware of Signal Words
Signal words designate a degree or level of hazard
seriousness.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
This signal word is limited to the most extreme situations,
typically for machine components that, for functional
purposes, cannot be guarded.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury, and includes hazards that are exposed when
guards are removed. It may also be used to alert against
unsafe practices.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe
practices.
Use Adequate Lifting Means
The frame sections and gangs of this machine are
extremely heavy. If using multiple lifters, make sure each
is rated for at least its share of the load.
Prepare for Emergencies
Be prepared if a fire starts
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctor, ambulance, hospital
and fire department near phone.
> 14,000
POUNDS

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index Important Safety Information 2

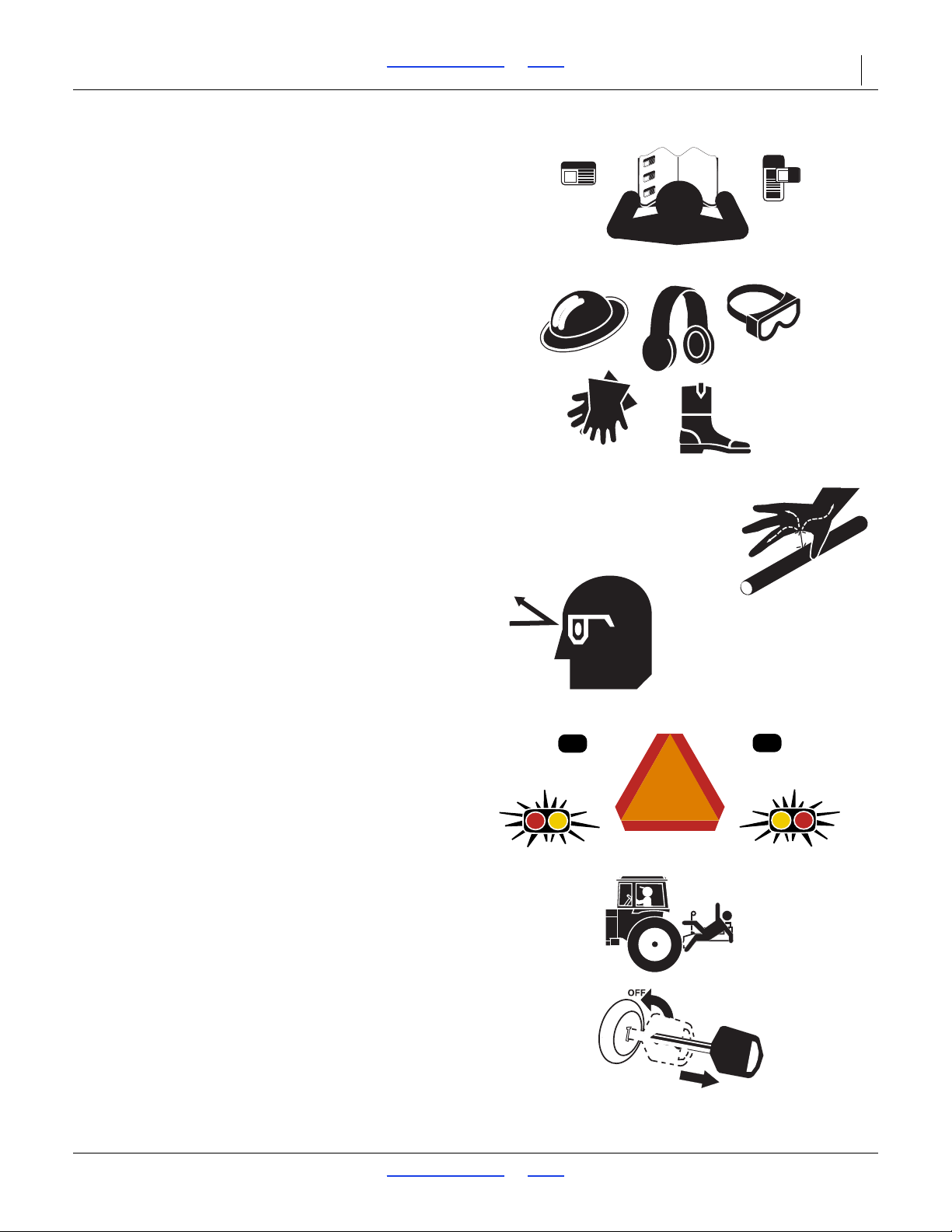

Be Familiar with Safety Decals
Read and understand the “Safety Decals” section of the
Operators Manual.
Read all instructions noted on the decals.
Keep decals clean. Replace damaged, faded and illegible
decals.
Wear Protective Equipment
Wear protective clothing and equipment.
Wear clothing and equipment appropriate for the job.
Avoid loose-fitting clothing.
Because prolonged exposure to loud noise can cause
hearing impairment or hearing loss, wear suitable
hearing protection such as earmuffs or earplugs.
Because operating equipment safely requires your full
attention, avoid wearing entertainment headphones while
operating machinery.
Avoid High Pressure Fluids
Escaping fluid under pressure can penetrate the skin,
causing serious injury.
Avoid the hazard by relieving pressure before
disconnecting hydraulic lines.
Use a piece of paper or cardboard, NOT BODY PARTS, to
check for suspected leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems.
If an accident occurs, seek immediate medical assistance
from a physician familiar with this type of injury.
Use Safety Lights and Devices
Slow-moving tractors and towed implements can create
a hazard when driven on public roads. They are difficult
to see, especially at night.
Use flashing warning lights and turn signals whenever
driving on public roads.
Use lights and devices provided with implement
Keep Riders Off Machinery
Riders obstruct the operator’s view. Riders could be
struck by foreign objects or thrown from the machine.
Never allow children to operate equipment.
Keep all bystanders away from machine during operation.
Shutdown and Storage
Lower implement, put tractor in park, turn off engine, and
remove the key.
Secure FCA4500 using blocks and supports provided.
Detach and store FCA4500 in an area where children
normally do not play.

FCA4500 Table of Contents Index Important Safety Information 3
2019-03-21 Table of Contents Index 560-594Q-ENG

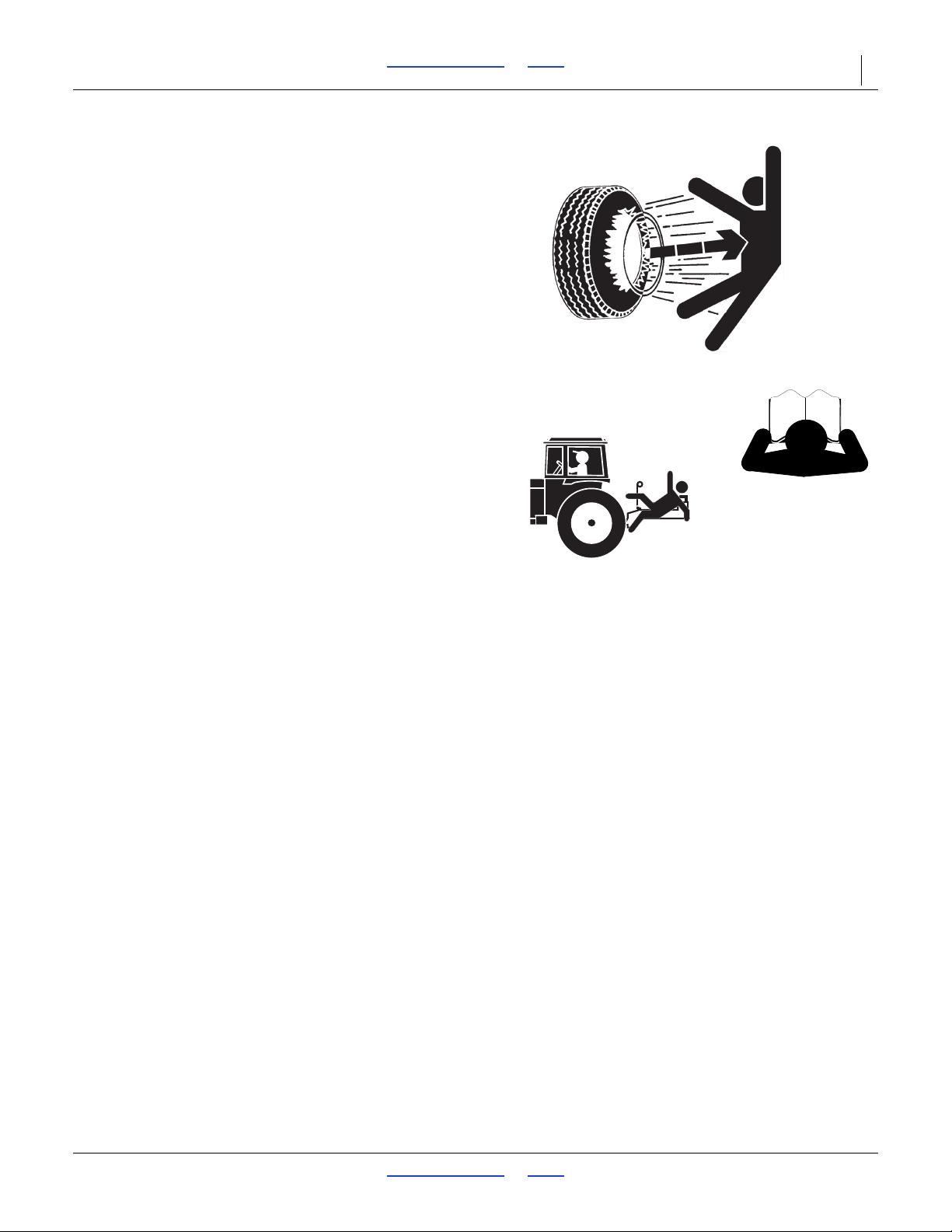

Tire Safety
Tire changing can be dangerous and should be
performed by trained personnel using correct tools and
equipment.
When inflating tires, use a clip-on chuck and extension
hose long enough for you to stand to one side–not in front
of or over tire assembly. Use a safety cage if available.
When removing and installing wheels, use wheel-handling
equipment adequate for weight involved.
Safety At All Times
Thoroughly read and understand the instructions in this
manual before operation. Read all instructions noted on
the safety decals.
Be familiar with all machine functions.
Operate machinery from the driver’s seat only.
Do not leave machine unattended with tractor engine
running.
Do not stand between the tractor and machine during
hitching.
Keep hands, feet and clothing away from power-driven
parts.
Wear snug-fitting clothing to avoid entanglement with
moving parts.
Watch out for wires, trees, etc., when folding and raising
machine. Make sure all persons are clear of working area.

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index 4
Introduction
The FCA4500 Field Cultivator Air Drill has been
designed with care and built by skilled workers using
quality materials. Proper setup, maintenance, and safe
operating practices will help the customer get years of
satisfactory use from the machine.
Description of Unit
The FCA4500 Field Cultivator Air Drill, is a five-section
seedbed preparation and planting tool all in one. Working
width is 45 feet. The implement is designed for
secondary field operations to smooth, level, eliminate
weeds incorporate chemicals, apply fertilizer and drill
seed.
Models Covered
Document Family
Tools Required
•Basic Hand Tools
•Torque Wrench
•Fork Truck, Overhead Hoist or Loader
Pre-assembly Checklist
1. Before assembling, read and understand “Important
Safety Information” in front part of this manual.
2. Have at least two people on hand while assembling.
3. Make sure area is level and free of obstructions
(preferably an open concrete area).
4. Have all major componets
5. Have all fasteners and pins shipped with FCA4500
Field Cultivator Air Drill.
FCA4500-7275 45-Foot 5-section 7.5” spacing
560-594Q-ENG Assembly Manual (this document)
560-594Q Pre-Delivery Manual
560-594M Operator Manual
560-594P Parts Manual
Figure 1
Field Cultivator
41882

FCA4500 Table of Contents Index Introduction 5
2019-03-21 Table of Contents Index 560-594Q-ENG
Using This Manual
This manual was written to help you assemble and
prepare the new machine for the customer. The manual
includes instructions for assembly and setup. Read this
manual and follow the recommendations for safe,
efficient and proper assembly and setup.
A parts manual is also provided with the new machine.
Refer to the parts manual for proper part’s identification.
As a reference, keep the operator’s and part’s manual on
hand while assembling.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Definitions
The following terms are used throughout this manual.
A crucial point of information related to the preceding topic.
Read and follow the directions to remain safe, avoid serious
damage to equipment and ensure desired field results.
Useful information related to the preceding topic.
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
An orientation rose in some line art
illustrations shows the directions of: Up,
Back, Left, Down, Front, Right
RL
Figure 2
Right / Left
43893
U
D
F
B
L
R

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index Introduction 6
Shipping Inventory
The machine will be shipped partially assembled, as
shown, in several big shipping racks and shipping
boxes. The K-Flex mounts should be installed in the
correct locations on the frames. The openers and the
reel baskets will be assembled but will need to be install
in the correct location on the machine. Locate the reel
arms, opener arm mounts, opener arms and mounting
hardware before installing. See “FCA4500-7275
Opener Layout” on page 40 & 35 for proper
placement.
Refer to Figure 3
•All frame sections, hitch and torque tubes will be
shipped in shipping container.
Figure 3
Shipping Rack
43832

FCA4500 Table of Contents Index Introduction 7
2019-03-21 Table of Contents Index 560-594Q-ENG
Refer to Figure 4
•Shank parts, small parts and bolts will be shipped in
boxes or secured and sitting on the bottom of the
shipping racks. Openers will be attached to their
respective attachment bars and will need installed
with mounts onto the rear or the frame sections.
Shipping stands, and racks do not need to be returned
to Great Plains.
Unloading
Once everything is unloaded from “storage pod” you may
proceed with taking parts out of shipping containers.
Carefully move everything to a level site and prepare to
un-pack items.
Unpacking Components
Be sure you have read and understood the Important
Safety Information, starting on page 1 of this manual,
before you start unpacking componets.
Unload Smaller Items First
Unloading the frames is a potentially dangerous
operation.
Reduce risk and complication by first unloading
6. the tires, gauge wheel assemblies,
7. boxes, crates
8. the smaller items
Place these components well out of the maneuvering
area needed for unloading the shipping racks.
Centering componets:
Be sure and center fork truck or chains (overhead hoist)
on componets so they won’t slide and cause injury.
Unload individual componets one at a time using a fork
truck or overhead hoist. Place frame sections on level
ground using shipping stands or assembly stands if
available.
Move each component out of the way so you have plenty
of room to remove the next one.
9. Carefully unload the shipping racks that contain the
frames and cart components out of shipping container
Unpacking Boxes
10. Carefully remove banding and lids from boxes.
11. Locate and identify all componets and hardware
before assembling.
Further Assistance
Great Plains Manufacturing, Inc. wants you to be
satisfied with your new Turbo Chisel Narrow. If for any
reason you do not understand any part of this manual or
are otherwise dissatisfies with the product please
contact:
Great Plains Service Department
1525 E. North St.
PO Box 5060
Salina, KS 67402-5060
Or go to www.greatplainsag.com and follow the contact
information at the bottom of your screen for our service
department.
Figure 4
Shipping Boxes
43833

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index 8
Assembly

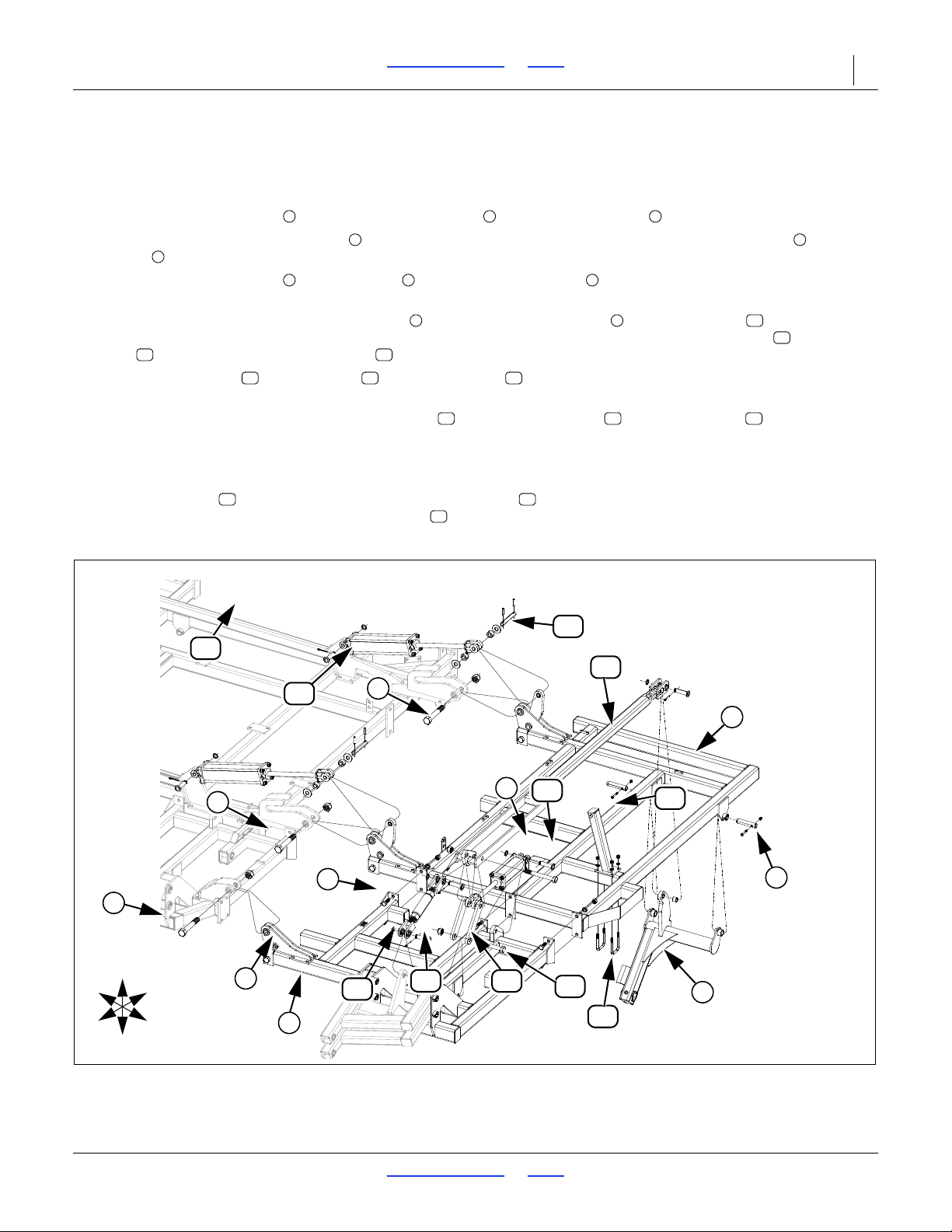

Center Frame Assembly
Refer to Figure 5
12. Once the center frame has been uncrated and placed on assembly stands, the brace bar and trusses may be
installed.
13. Carefully move center brace bar to front of center frame , with overhead hoist or fork lift, secure with 34 x 2
hex bolts , 34 lock washers and 34 nuts.
14. Attach center frame trusses with 34 x 2 hex bolts (front plates), 34 lock washers and 34 nuts, rear plates with
58 x 1 12 hex bolts , 58 lock washers and 58 nuts.
15. Attach light brackets, LH and RH with 12 x 4132 x 4 u-bolts , 12 lock washers and 12 nuts.
See machine layout section in “Appendix” for proper light bracket placement.
16. Attach light mounting brackets to rear of center frame truss with 12 x 112 hex bolt , 12 lock washers and
12nuts.
17. Mount smv post with 12 x 4132 x 4 u-bolt , 12 lock washers and 12 nuts as close to center of tube as possible.
Attach smv sign to rear of smv post with 14 x 34 pan head screws , 14 lock washers and nuts.
18. All bolts may be tightened to specs, See “Torque Values Chart” on page 30. Plastic end caps may need to be
attached to any and all open 4 x 3 tubes.
Figure 5
Center Frame
43789
U
D
F
B
L
R6
7
3
4
9
3
11
2
8
9
1
13
12
5
4
5
10
8
9
2
1
3
4
3
5
6
7
8
9
10
11
8
12
13

FCA4500 Table of Contents Index Assembly 9
2019-03-21 Table of Contents Index 560-594Q-ENG

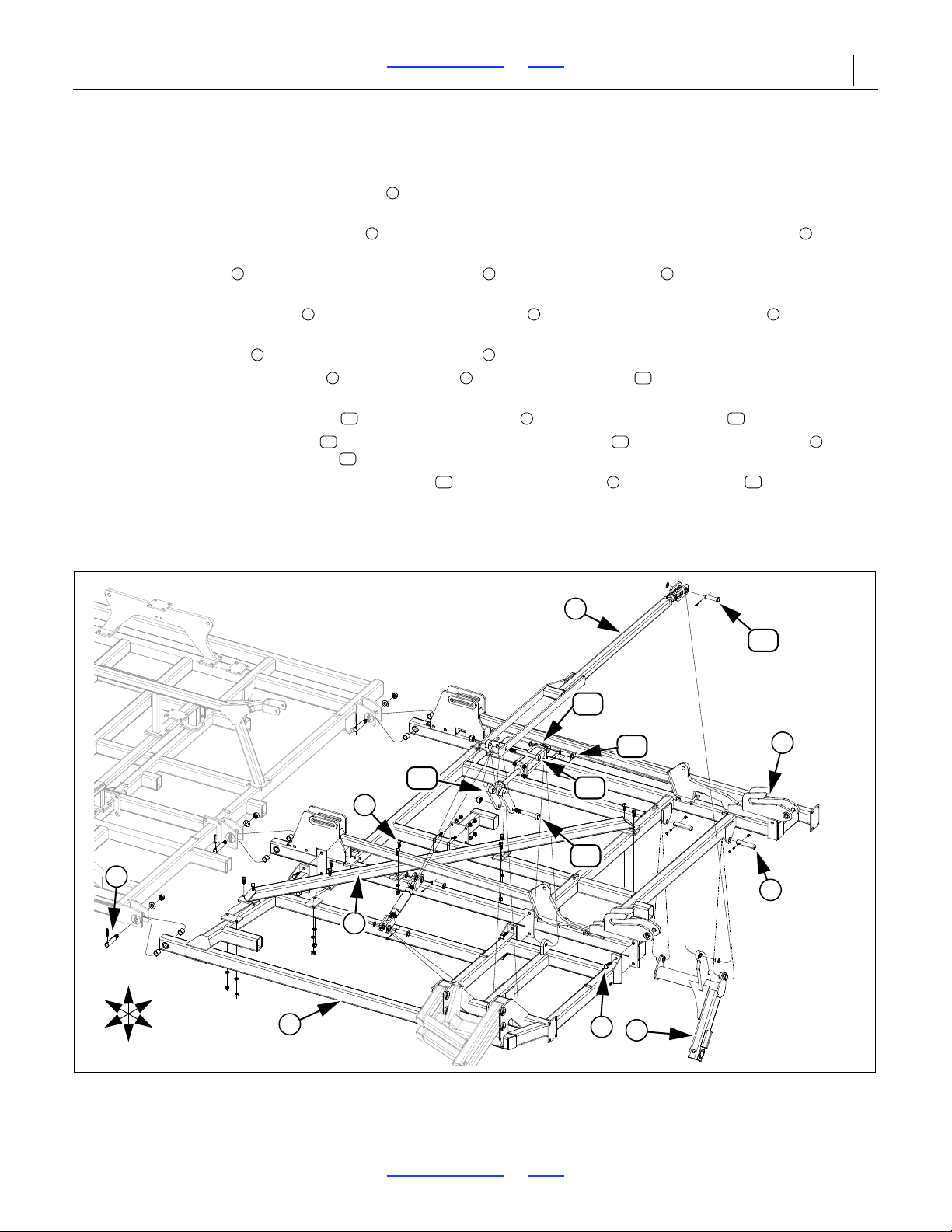

Torque Tube & Level Bar
Refer to Figure 6
19. Carefully raise the torque tube with an overhead hoist and secure with 114 x 6 pins , 38 x 214 Gr. 8 hex bolt
and 38 top lock nut.
20. Attach rear of RH level bar to the torque tube with the 1 x 6 Gr. 8 special hex bolt and 1 top lock nut. Repeat
with LH level bar .
21. Mount the level bar cross tube to the level bar side plates with 12 x 1
12 hex bolts , secure with 12 lock
washers and 12 nuts.
22. Now attach the rear of the level bar link the front side of the level bar assembly and , secure with 114
threaded bar pin , 114 flat washers , 114 slotted nuts and 316 x 112 roll pins.
23. Align holes in leveling links with outer tubes of level bars and other end with welded ears on center brace bar.
Secure with 1 x 7 Gr. 8 special thread bolts and 1 top lock nuts. Align holes in front leveling links with front of
level bar link and other end with welded ears on center brace bar. Secure with 1 x 7 Gr. 8 special thread bolts
and 1 top lock nuts.
24. Align top holes in rear leveling links with rod end of 3.50 x 8 x 1.25 cylinders and rear of level bar link ,
secure with 1 x 1112 lift pin , 1.5 x 1.00 x.075 machine washers and 316 x 2 cotter pins. Fasten other end to
welded ears on center brace bar with 1 x 9 Gr. 8 hex bolt and 1 top lock nut.
25. Attach base end of 3.50 x 8 x 1.25 cylinders to plates on front of center frame with 1 x 318 pin , 1.5 x 1.0
x.075 machine washer and 316 x 2 cotter pin.
26. Install cylinder transport lock pin through aligned holes of front hole of level bar link and welded ear of center
brace bar. Tighten all bolts with lock nuts down snug but make sure everything will still pivot on bolts. Rest of bolts
may be tightened to specs, See “Torque Values Chart” on page 30.
U
D
F
B
L
R
1
13
11
18
13
12
11 13
2
19
3
14
15
10
4
5
87
6
9
16
17
Figure 6
Torque Tube & Level Bar
43792
1
2
3
4
6
5
7
8
9
4
5
10
19
11
13
12
9
13
12
14
9
16
18
14
15
17
9

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index Assembly 10

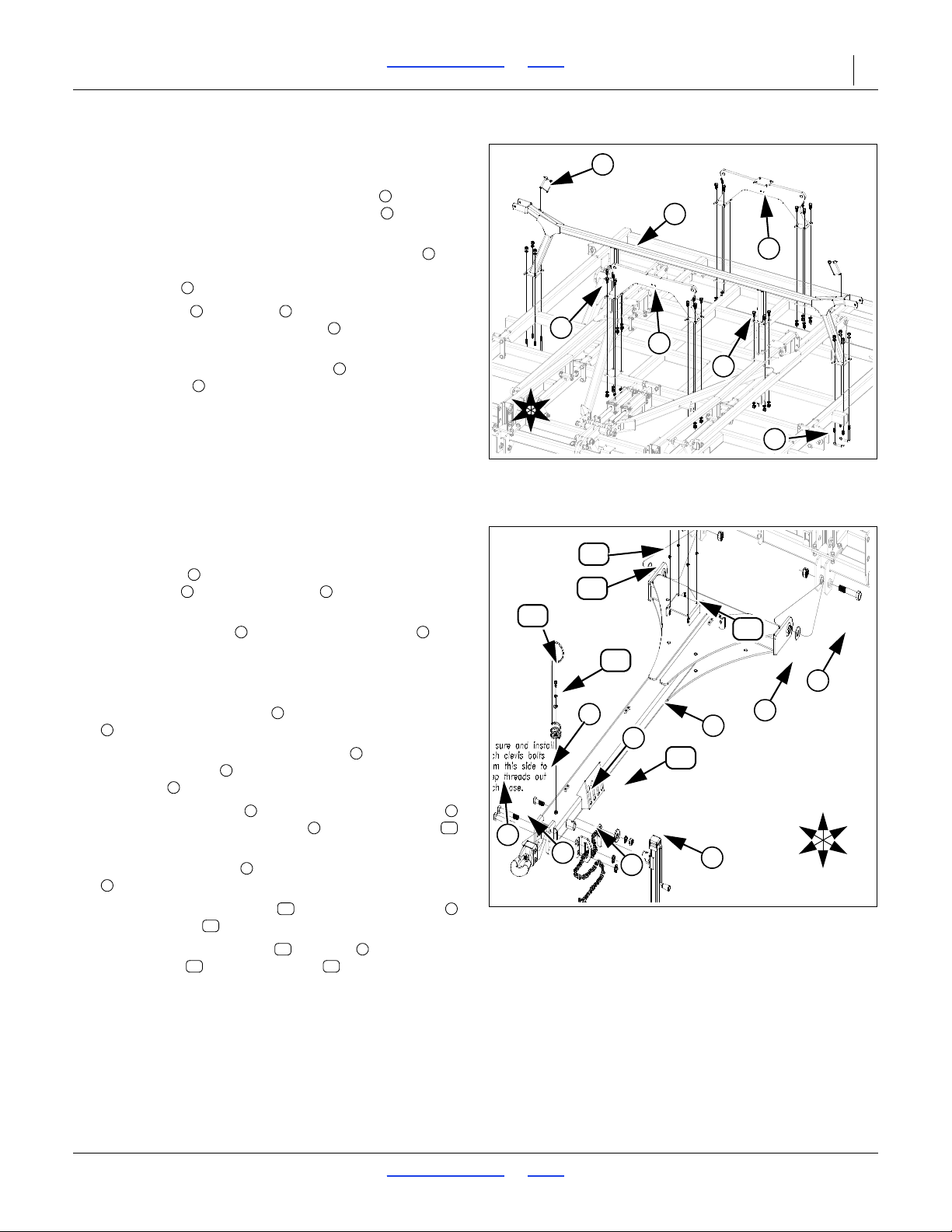

Center Fold
Refer to Figure 7
27. Attach inside plates of center wing stop , to center
frame trusses using 58 x 1
12 bolts , 58 lock
washers and nuts.
28. Attach outside plates of center wing stop , to
outside tubes of center frame with 58 x 3132 x
612u-bolts , 58 lock washers and nuts.
29. Mount front and rear fold brackets to center
frame plates with 58 x 112 bolts , 58 lock washers
and nuts.
30. Insert the 12 x 412 pin w/keepers into round tubes
on wing stop .
31. All bolts may be tightened to specs, See “Torque
Values Chart” on page 30.
Connect Hitch
Refer to Figure 8
32. Attach hitch to center brace bar using 114 x 7 Gr.
8 hex bolts , 114 flat washers (one on outside of
hitch, both sides) and 1 top lock nut.
33. Mount square jack to front mount on hitch with
pin provided with jack.
•Use jack to help support front of hitch for rest of hitch
assembly.
34. Align holes in hitch base with holes in front of hitch
.
35. Align holes in safety chain support with holes on
left side of hitch , secure with 1 x 8 Gr. 8 special
hex bolts , 1 lock washers and 1 nuts.
36. Install safety chain on bottom side of hitch ,
secure with 78 x 3 hex bolt , 78 flat washer ,
78lock washer and 78 nut.
37. Route safety chain through safety chain support
.
38. Mount spring hose loop to top side of hitch ,
with 12 x 1bolt , 12 lock washer and 12 flat washer.
39. Mount the manual pack to hitch with 14 x 34
pan screws , rubber spacers , 14 lock washers
and 14 nuts.
40. All bolts may be tightened to specs, See “Torque
Values Chart” on page 30.
U
D
F
B
L
R
2
24
1
5
3
6
Figure 7
Center Fold
43790
1
2
1
3
4
5
2
6
1
U
D
F
B
L
R
7
14
13
15
3
1
4
8
5
10
6
9
12
11
Figure 8
Hitch
41905
2
1
2
3
4
1
5
1
6
1
7
8
1
9
10
8
6
11
1
12
13
1
14
15

FCA4500 Table of Contents Index Assembly 11
2019-03-21 Table of Contents Index 560-594Q-ENG
Install Inside Wings
Refer to Figure 9
Be sure and install the 1 x 614 hinge pins as shown with roll pin in slot on front side of hinge. Wing fold brackets
should already be installed on the inside wing frames.
41. Carefully align holes in wing frame LH with holes in center frame. Secure with 114 x 614 hinge pins , 38 x 212
roll pins, 1 flat washer and 1 top lock nut.
42. Attach wing brace to the front of the wing frame LH with 34 x 2 hex bolts , 34 lock washers and 34 hex
nuts.
43. Align holes in wheel arm LH with plates on wing frame LH , secure with 114 x 6 hinge pins , 38 x 214 hex
bolts and 38 top lock nuts.
44. Fasten LH wing truss to wing with 58 x 112 hex bolts , 58 lock washers and 58 hex nuts.
45. Align hole in rear of LH wing pull to LH wheel arm , with 1 x 318 clevis pin , 1.5 x 1.0 x.075 machine washer
and 316 x 2 cotter pin.
46. Align bottom holes of leveling links with ear on wing brace , secure with 1 x 9 Gr. 8 bolt and 1 top lock nut.
47. Align top holes in leveling links , rod end of 4.25 x 8 x 1.50 lift cylinder and front of LH wing pull , secure
with 1 x 7 Gr. 8 special thread bolt 1 top lock nut.
48. Attach base end of 3.25 x 8 x 1.25 lift cylinder to ear of wing brace with 1 x 318 pin , 1.5 x 1.0 x.075
machine washer and 316 x 2 cotter pin.
49. Repeat same procedure for right wing.
50. Tighten all bolts to specs, See “Torque Values Chart” on page 30.
9
7
U
D
F
B
L
R
1
2
5
13
10
6
8
10
4
11 14
12
3
Figure 9
5-Section Wing
43793
2
1
2
3
1
4
5
1
6
7
8
9
5
10
11
3
14
11
13
9
12
13
3
10

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index Assembly 12
Install Outside Wings
Refer to Figure 10
The outside wing hinges with the 180* fold rocker should already be installed on the wing frames.
51. Attach outside wing brace to front side of wing frame , with 34 x 2 hex bolts , 34 lock washers, 34 hex nuts.
52. Carefully align holes in wing hinges , with holes in fold brackets, secure with 114 x 7 Gr. 8 hex bolt and 114 x
8 Gr. 8 , and 114 top lock nut.
53. Attach holes in wheel arm , to wing frame , secure with 114 x 6 pin , 38 x 214 Gr. 8 hex bolts and 38 top lock
nut.
54. Attach base end of 4 x 8 x 1.37 lift cylinder to the outside wing brace with 1 x 338 pin , 1.5 x 1.0 x.075
machine washer and 316 x 2 cotter pin. Align rod end of cylinder with holes in the wing pull bar & 2 leveling
links secure with 1 x 7 Gr. 8 hex bolt , 1 top lock nut.
55. Attach wing pull bar to turn buckle using 1 x 338 pin , 1.5 x 1.0 x.075 machine washer and 316 x 2 cotter
pin.
56. Attach base end of 4 x 14 x 1.25 fold cylinders to wing fold bracket with 1 x 318 pin , 1.5 x 1.0 x.075
machine washer and 316 x 2 cotter pin.
57. Do not attach rod end of fold cylinders until fold system has been purged, See “Purging Hydraulic System” on
page 26.
58. Attach T bracket to wing frame with 12 x 3132 x 5 u-bolts , 12 lock washers and 12 nuts. See layout section
in “Appendix” for proper placement of T bracket . Repeat for other wing.
Tighten all bolts to specs, See “Torque Values Chart” on page 30.
U
D
F
B
L
R
2
13
8
7
1
3
19
11
10
12
16
18
9
6
15
17
4
5
6
14
20
Figure 10
5-Section Outside Wing
41910
1
2
3
4
5
6
7
2
8
9
1
11
12
13
14
12
15
10
16
17
18
19
20
19

FCA4500 Table of Contents Index Assembly 13
2019-03-21 Table of Contents Index 560-594Q-ENG

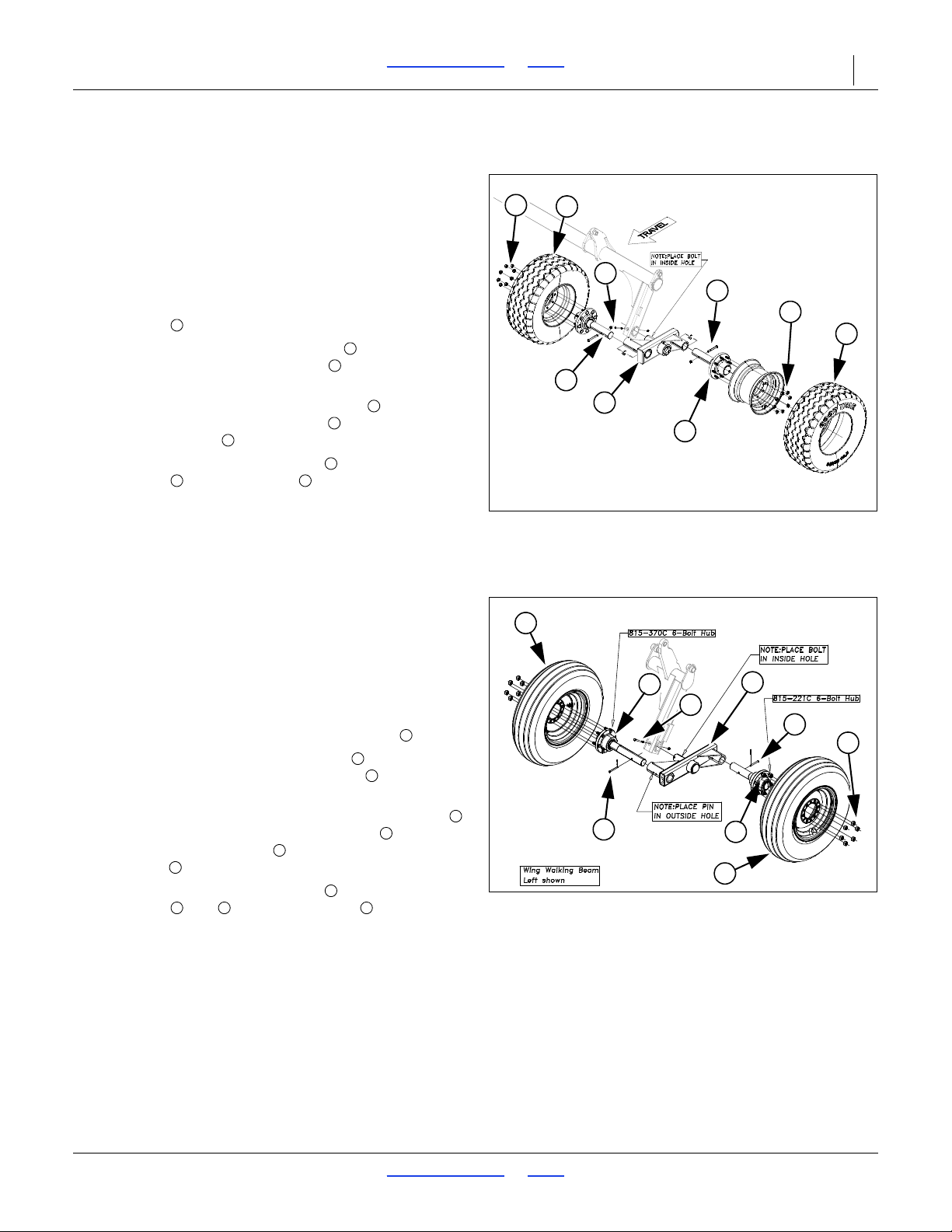

Transport
Center Transport
Refer to Figure 11
See transport section of “Parts Manual” for proper
parts breakdown for center walking beam assemblies
(left hand and right hand). See notes on drawing for
proper hole placement of walking beam spindle and
front tube on walking beam. See “Tire Inflation
Chart” on page 31, for proper tire sizes for tire/wheel
assembly .
59. Install the walking beam assembly into the torque
tube with 516 x 4 Gr. 8 hex bolt and 516 top lock
nut.
60. Align hole in spindle/hub assembly to hole in
walking beam assembly secure with
12x4 12hex bolt and top lock nut.
61. Mount tire/wheel assembly to spindle/hub
assembly with 58 lug nuts .
Left hand is shown. Repeat same procedure for right
side.
62. Tighten all bolts to specs, See “Torque Values
Chart” on page 30.
Inside Wing Transport
Refer to Figure 12
See transport section of “Parts Manual” for proper
parts breakdown for inside wing walking beam
assemblies. See notes on drawing for proper hole
placement on walking beam spindle and front tube of
walking beam. See “Tire Inflation Chart” on page 31,
for proper tire sizes for tire/wheel assembly .
63. Install the walking beam assembly into the wing
torque tube with 516 x 4 Gr. 8 hex bolt and 516 top
lock nut.
64. Align hole in spindle/hub assembly (13.5” spindle)
and spindle hub assembly (17” spindle) to hole in
walking beam assembly secure with 516 x 2 1316
pin clevis and cotter pin.
65. Mount tire/wheel assembly to spindle/hub
assembly and with 9/16 lug nuts .
Left hand is shown. Repeat same procedure for right
side.
66. Tighten all bolts to specs, See “Torque Values
Chart” on page 30.
1
2
3
4
3
5
6
3
5
Figure 11
Center Transport
43803
5
1
2
3
1
4
5
3
6
6
4
2
1
5
6
7
5
Figure 12
Wing Transport
42731
3
6
1
2
3
4
1
5
6
3
4
7

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index Assembly 14
Outside Wing Transport
Refer to Figure 13
On outside wings the torque tubes will be the opposite of the
inside wings on the same side. Example: On the left outside
wing you will install a right hand wing torque tube.
See transport section of “Parts Manual” for proper
parts breakdown for wing walking beam assemblies.
See notes on drawing for proper hole placement on
walking beam spindle and front tube of walking beam.
See “Tire Inflation Chart” on page 31, for proper tire
sizes for tire/wheel assembly .
67. Install the walking beam assembly into the wing
torque tube with 516 x 4 Gr 8. hex bolt and 516 top
lock nut.
68. Align hole in 13.5” spindle/hub assembly to hole in
walking beam assembly secure with 516 x2
1316
pin clevis and cotter pin. Repeat with 17” spindle/
hub assembly .
69. Mount tire/wheel assembly to spindle/hub
assembly and with 916 lug nuts .
Left hand side is shown. Repeat same procedure for
right side.
70. Tighten all bolts to specs, See “Torque Values
Chart” on page 30.
7
6
4
1
3
2
5
6
Figure 13
Outside Wing Transport
43807
5
1
2
3
1
5
4
6
3
4
7

FCA4500 Table of Contents Index Assembly 15
2019-03-21 Table of Contents Index 560-594Q-ENG
Install Gauge Wheel (Caster Style)
Refer to Figure 14
Gauge Wheel Arms will be shipped assembled but
will to be installed on the machine. Wheels will need
to be mounted on the hubs. Be sure and install the 1
x 512 pin as shown with roll pin in slot on outside of
pivot mount . See “Tire Inflation Chart” on
page 31, for proper tire sizes for tire/wheel assembly
.
71. Start by installing the LH or RH caster wheel arm
and top caster wheel arm to the brackets on
frames with 1 x 512 gauge wheel pin , 78 flat
washers and 78 lock nuts.
72. Fasten back side of turnbuckle assembly to LH or
RH wing pull bar (level bar on center section), front
side to lever to caster wheel arm with 1 x 31116 clevis
pins and 316 x 2 cotter pins.
73. Attach the pivot mount assembly to caster wheel
arms and , secure with 1 x 512 gauge wheel
pins , 38 x 2 roll pins, 78 flat washers and 78 lock
nuts.
74. Slide 6-bolt hub assembly into pivot mount
assembly , align holes, secure with 516 x 3 hex
bolt and 516 lock nut.
75. Attach the wheel/tire assembly to 6-bolt hub
assembly and secure with 916 lug nuts .
76. Tighten bolts to specs, See “Torque Values Chart”
on page 30.
77. See layout section in “Appendix” for proper
adjustment of gauge wheel assembly.
Outside wing gauge wheels will need to be installed oriented
with the tire to the inside.
78. Install just like the other gauge wheels.
U
D
F
B
L
R
5
4
3
1
2
3
8
7
9
10
6
Figure 14
Gauge Wheel (Caster Style)
41892
3
5
9
1
2
3
4
5
7
1
2
3
7
6
8
9
10

2019-03-21 Table of Contents Index 560-594Q-ENG
FCA4500 Table of Contents Index Assembly 16

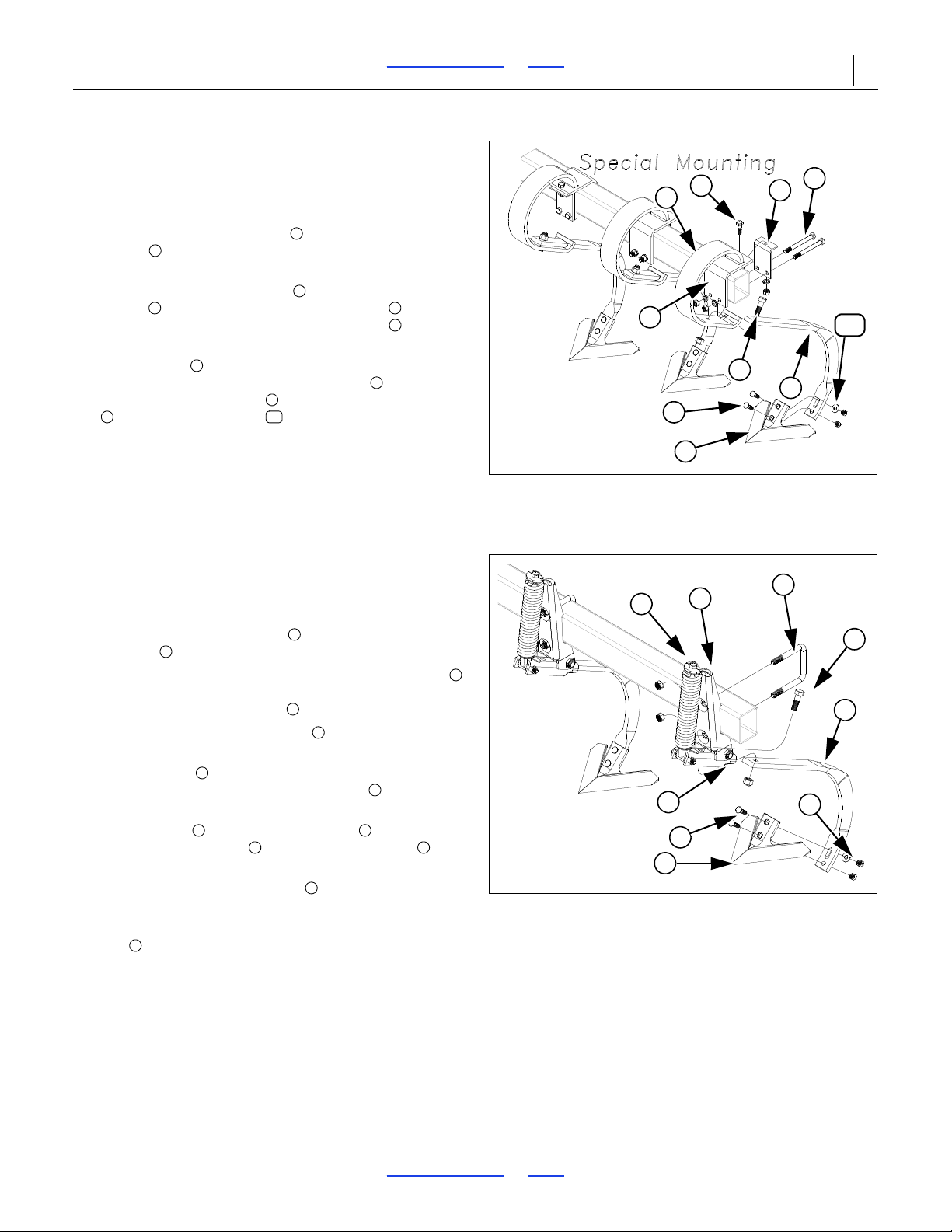

Install K-Flex
 See layout section in “Appendix” for proper shank
placement.
Refer to Figure 15
79. Slide k-flex shank mount through slot in k-flex
clamp . Slide these two parts over frame tube in
proper location.
80. Align top hole in k-flex clip with top hole in k-flex
clamp , secure with 12 x 1
12 hex bolt , 12 lock
washer and nut. Install 12 x 5 hex bolts , 12 lock
washers and nuts.
81. Slide shank through slotted hole in k-flex shank
mount (1), secure with 58 x 2 hex bolt and 58 top
lock nut. Attach sweep with 716 x 134 plow bolts
, one, 716 flat washer (top slotted hole) and 716
nylock nuts.
82. Tighten all bolts to specs, See “Torque Values
Chart” on page 30.
Install Magnum Shank
 See layout section in “Operator’s Manual” for proper
shank placement.
Refer to Figure 16
83. Loosen 12 x 112 hex bolt clear up to get 58 x 2
hex bolt installed.
84. Position pre-assembled shank mount assembly
over front of frame tube in proper location. Secure
with 58 x 4132 x 434 u-bolt and 58 top lock nut.
85. Be sure the 34 nylock jam nut is loose enough for
shank cradle to pivot.
86. Slide shank into shank cradle until holes are
aligned, secure with 58 x 2 hex bolt and 58 top
lock nut.
87. Align sweep with holes on shank , secure with
716 x 134 plow bolts , one, 716 flat washer (top
slotted hole) and 716 nylock nuts.
88. Re-tighten 12 x 112 hex bolt until threads bottom
out.
IIMPORANT(!) Be sure and tighten 3

4nylock jam
nut until threads bottom out to insure that hole
doesn’t wear excessively.
89. Tighten rest of bolts to specs, See “Torque Values
Chart” on page 30.
5
3
4
1
2
76
10
9
8
Figure 15
K-Flex
41667
1
2
3
2
4
5
6
7
8
9
10
Figure 16
Magnum Shank
41668
1
7
9
5
6
2
8
3
4
4
6
1
2
3
5
6
7
5
8
9
4
3
