Air-Pro
®
Meter Ultra Test Stand Kit - Second Generation
Meter Test Stand
General Information
These are instructions for installing attachments and
accessories to mount and operate the Great Plains
Air-Pro®Meter on the MeterMax®UltraTest Stand.
These instructions apply to an installation of:
One kit provides everything needed to operate an
Air-Pro®meter on the MeterMax®a Ultra Test Stand,
seed disks not included.
Tools Required
• basic hand tools
Entanglement Hazard:
Keep hands, loose clothing, and hair away from all moving
parts. Unplug Test Stand when making adjustments or servic-
ing. The drive can cause serious bodily injury.
Call-Outs
Null4:
When you see this symbol, the subsequent instructions
and warnings are serious - follow without exception.
Your life and the lives of others depend on it!
Kit Kit Description
403-940A Air-Pro®Ultra Test Stand Kit
a. MeterMax
®
is a registered trademark of Precision Planting, Inc.
Null4:
Figure 1
Air-Pro®Meter Mounted on the
MeterMax®Ultra Test Stand
TP-71226
to Single-digit callouts identify components in the
currently referenced Figure. These numbers
may be reused for different items from page to
page.
to Two-digit callouts in the range 11 to 23 refer-
ence new parts from the list on page 16.
1
9
11
23

2 Great Plains Manufacturing, Inc. Front Page Part Lists Air-Pro®Ultra Test Stand Kit
403-942M Front Page Part Lists 05/16/2019

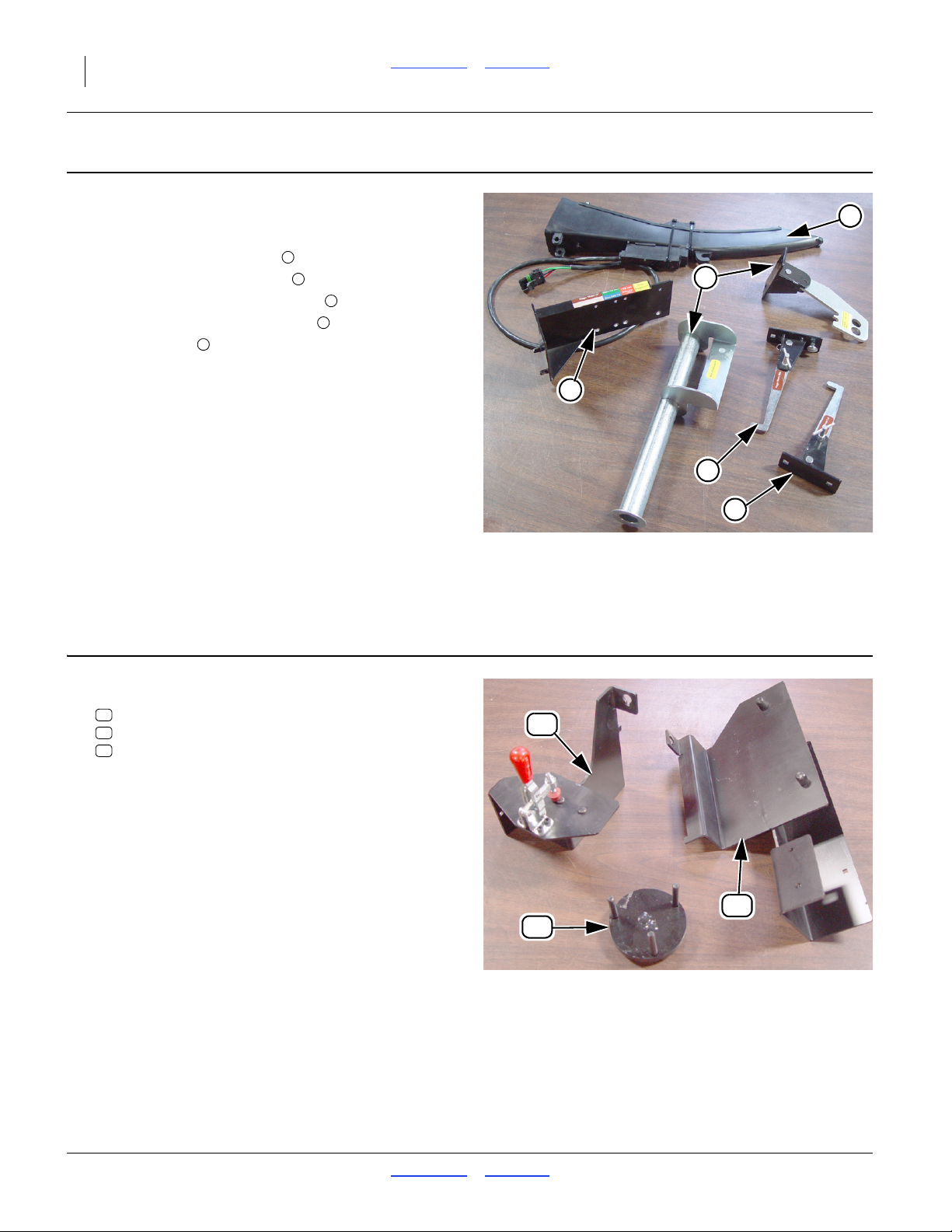

Remove Existing Attachments
Refer to Figure 2
1. Remove the following six attachments from the
MeterMax®UltraTest Stand and store with unit.
• Finger Meter Left Hand
• Finger Meter Right Hand
• Deere ProSeries™ (2 pieces)
• Seed Tube Location Bracket
• Seed Tube
Null4:
Mount Brackets and Drive Hub
Refer to Figure 3
2. Select one each of the following:
drive hub
RH bracket
LH bracket (meter mount and clamp asy).
Null4:
Figure 2
Attachments To Be Removed
31059
1
2
4
5
3
1
2
3
4
5
Null4:
Figure 3
Air-Pro®Mounting Brkts & Drive Hub
31060
14
16
15
14
15
16

Mount Brackets and Drive Hub Front Page Part Lists Great Plains Manufacturing, Inc. 3
05/16/2019 Front Page Part Lists 403-942M

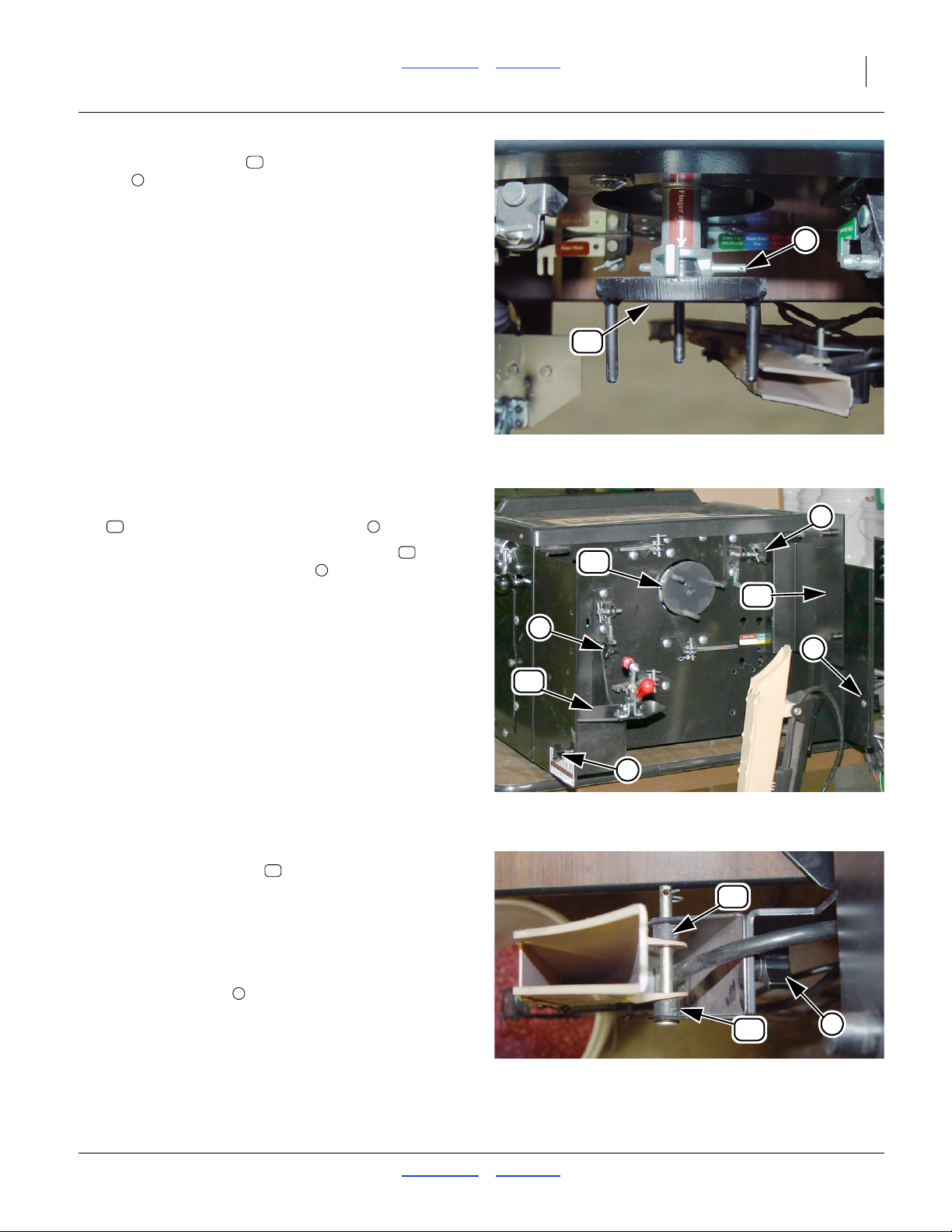

Refer to Figure 4
3. Mount the drive hub and secure with existing long
pin (same pin used for the White meter drive).
Refer to Figure 5
4. Mount the LH Air-Pro®meter mount clamp assembly
and secure with existing hardware .
5. Mount the RH Air-Pro®MeterMax®mount and
secure with existing hardware .
Refer to Figure 6
6. Cut two 14in spacers from the pressure sensing
14in hose supplied with the Air-Pro®kit.
7. Use the two spacers to center the Air-Pro®seed
tube in the seed tube bracket.
8. Position seed tube and holder in its proper location
on the RH Air-Pro®meter mount and secure with
existing hardware .
Null4:
Figure 4
Drive Hub and Long Pin
31062
14
6
14
6
Null4:
Figure 5
Test Stand Showing Brackets & Drive
31061
16
15
8
7
7
8
14
16
8
15
7
Null4:
Figure 6
Seed Tube Centered in Bracket
31063
23
23 9
23
9

4 Great Plains Manufacturing, Inc. Front Page Part Lists Air-Pro®Ultra Test Stand Kit
403-942M Front Page Part Lists 05/16/2019

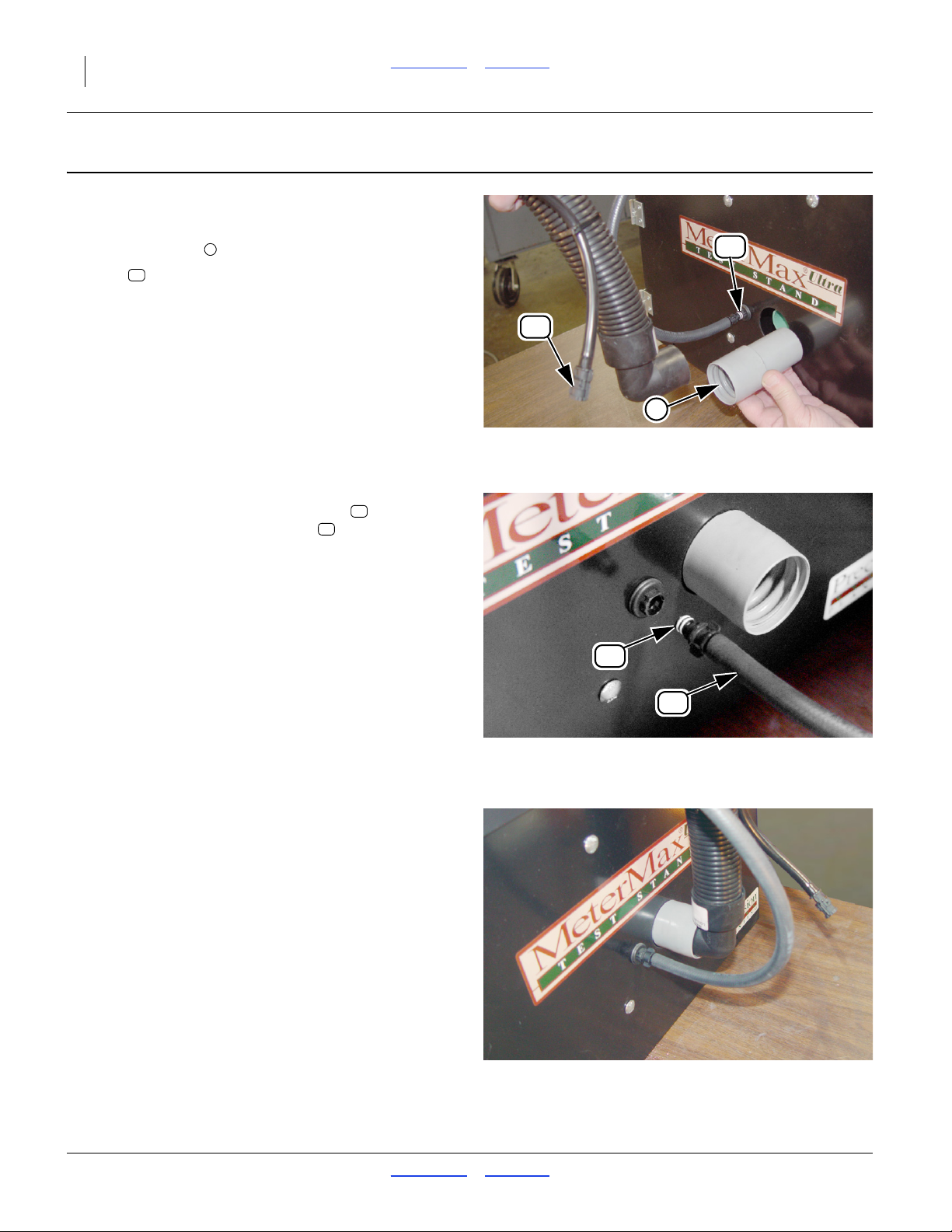

Connect Blower Supply Hose
Refer to Figure 7, Figure 8, and Figure 9
9. The Air-Pro®meter uses the blower port found at the
back of the Ultra Test Stand. Make sure you add the
hose extension for a secure connection.
10. Cap the existing pressure sensing hose that is
connected to the blower supply hose.
11. Secure the 14in barb quick connect to one end of
supplied pressure sensing hose and plug in back
of Ultra Test Stand.
Null4:
20
21
1
Null4:
100% Figure 7
Hose Extension and Sensing Hose
31064
1
21
Null4:
Figure 8
Quick Connect
31065
20
23
20
23
Null4:
Figure 9
Hoses Connected Back of Stand
31066

Mount Air-Pro®Meter Front Page Part Lists Great Plains Manufacturing, Inc. 5
05/16/2019 Front Page Part Lists 403-942M

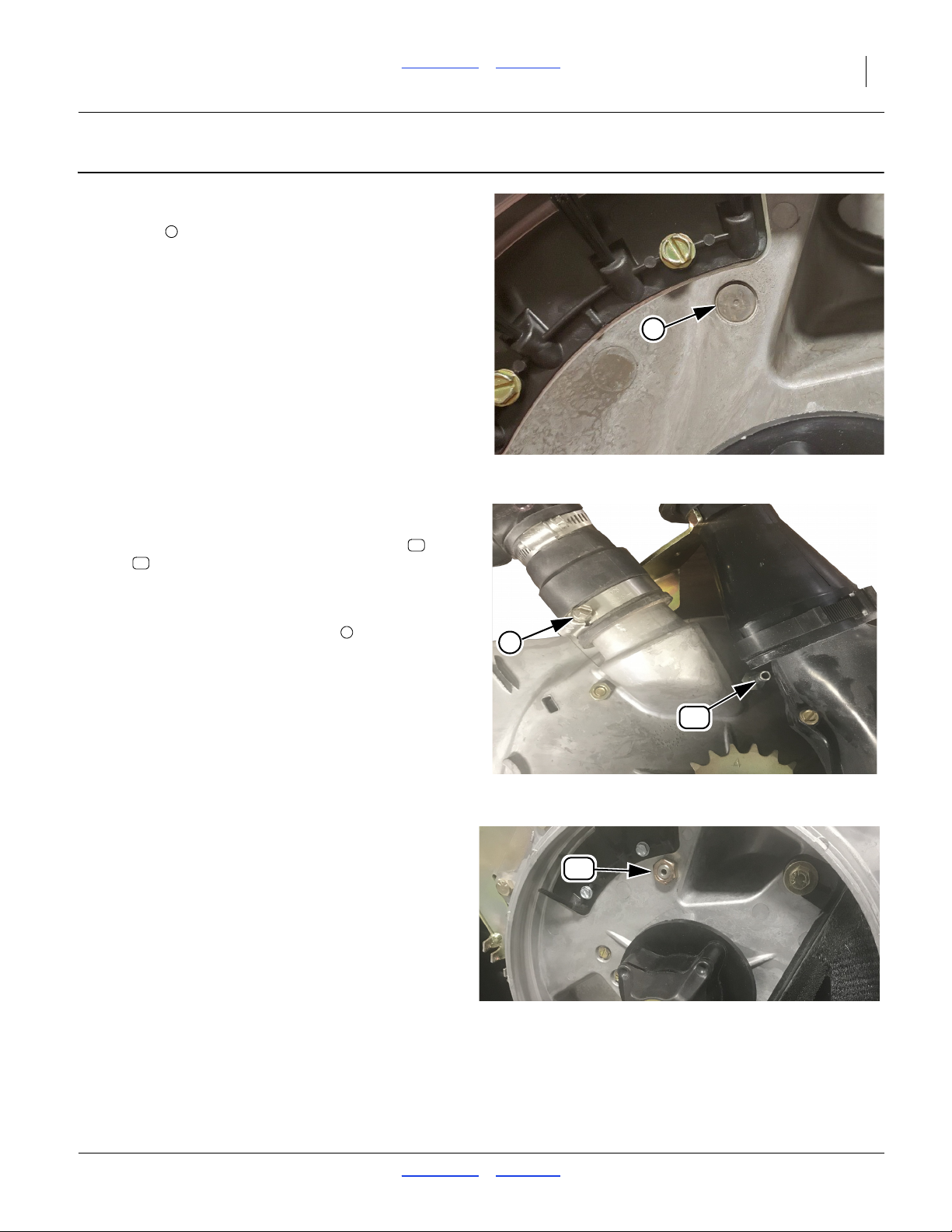

Mount Air-Pro®Meter
Refer to Figure 10
12. Remove the metal knockout plug from the meter
housing .
Refer to Figure 11 and Figure 12
13. After you remove the metal knockout plug from the
meter housing install the 14in pressure port and
nut as shown.
14. The pressure sensing hose from back of the Ultra
Test Stand is connected at this port.
15. Use the 114in to 112in adaptor to transition the
blower supply hose to the air in port of the meter.
Refer to Figure 12
16. Mount the Air-Pro®meter on the locating pins of the
brackets installed in Figure 5 and clamp in place.
Null4:
Figure 10
Meter Housing Plastic Plug
TP-71231
3
3
Null4:
Figure 11
Adaptor for Blower Hose
TP-71233
5
22
22
17
5
Null4:
Figure 12
Mount Air-Pro®on Test Stand
TP-71234
17

6 Great Plains Manufacturing, Inc. Front Page Part Lists Air-Pro®Ultra Test Stand Kit
403-942M Front Page Part Lists 05/16/2019
Refer to Figure 13
17. Make sure the top of the seed tube is located
properly behind the drip apron.
Refer to Figure 14
18. Cut seed hose 112in above the black molded
boot. Insert the funnel and attach to top of seed in
port of the Air-Pro®meter. Refer to Figure 1 on
page 1.
Null4:
Display Monitor
Refer to Figure 15
Confusion Risk:
Due to the direction of meter rotation program in the vacuum
mode, the display will show “Vacuum” but the reading you
see is actually “PRESSURE IN INCHES OF WATER.”
Null4:
Figure 13
Top of Seed Tube
31069
6
6
Null4:
Figure 14
Funnel and Seed Hose
31086
19
18
18
19
Null4:
Figure 15
Seed Sense Display Monitor
31070
7
7

Meter Pressurization Front Page Part Lists Great Plains Manufacturing, Inc. 7
05/16/2019 Front Page Part Lists 403-942M
Meter Pressurization
Note: These are suggested initial (starting) pressures.
Higher or lower pressure adjustments can be
expected to maximize singulation.
Initial Meter Pressurization: Cotton
1.5 inches of water (any seed density)
Initial seed inlet Shutter: 3
Initial Meter Pressurization: Milo
1.5 inches of water (all disk, any seed density)
Initial seed inlet Shutter: 3
Initial Meter Pressurization: Soybeans
2.0 inches of water (84 cell disk, any seed density)
3.0 inches of water (168 cell disk, any seed density)
Initial seed inlet Shutter: 3
Initial Meter Pressurization: Sunflowers
817-851C Sunflower Oil Large
8500 seeds/pound (or fewer)
8500-7000 s/lb 1.25 inches of water
7000-5500 s/lb 1.75 inches of water
5500 s/lb and fewer 2.25 inches of water
Adjust pressure as needed to achieve desired population.
Initial seed inlet Shutter: 4
Null4:

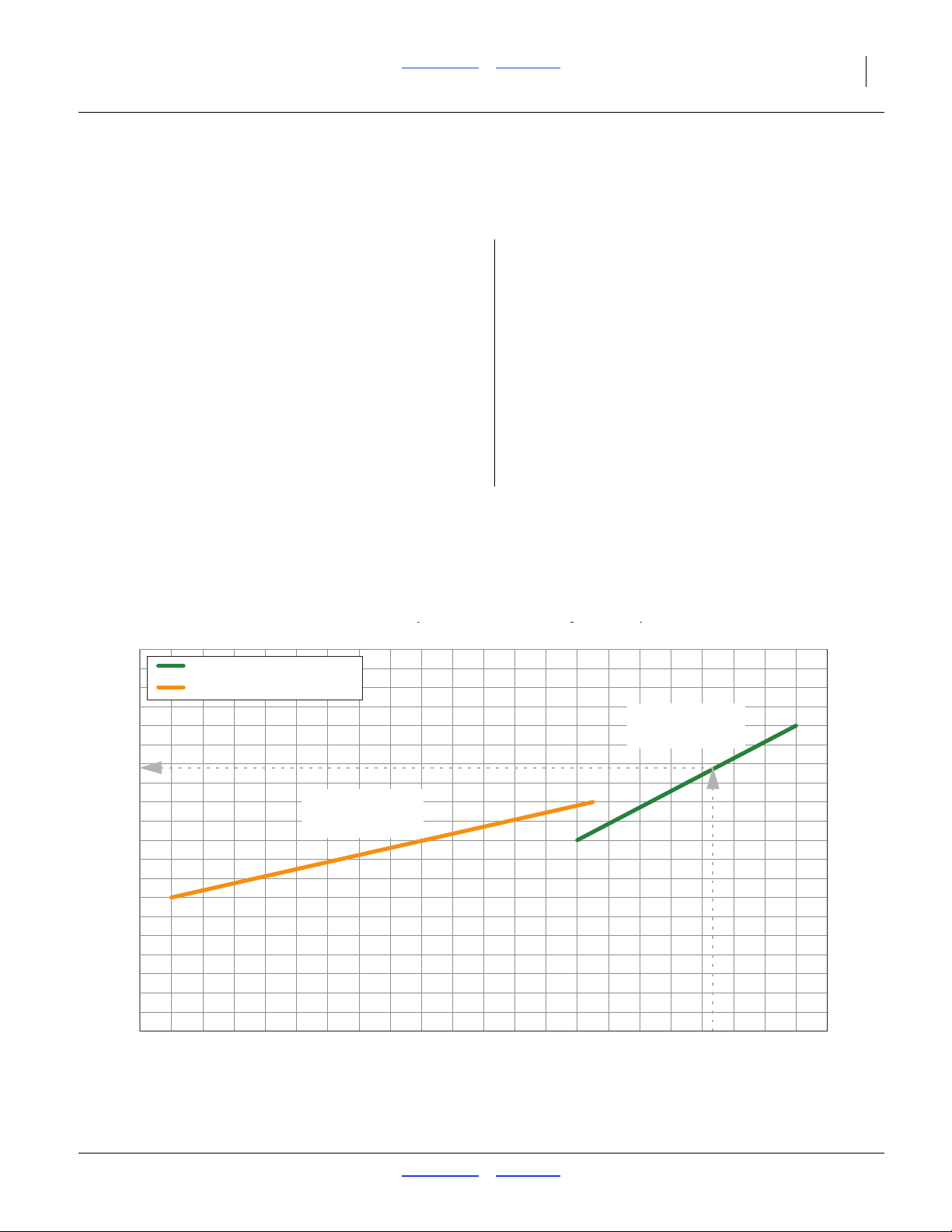

Initial Meter Pressurization: Round Corn
Reading a Corn Pressure Chart
1. Pick the chart based on seed shape (flat, round).
Example: large round corn
2. Pick a line based on seed size (large, small).
Example: the right line below
3. Find the seed density on the bottom scale.
Example: 1260 seeds/pound
4. Read the suggested starting pressure on the left
scale, where the line (example shown as dotted
gray) intersects the density.
Example: 3.4 inches of water
Initial seed inlet Shutter for corn is: 5
29725
(y)
Pressure/Seed Comparison
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
900
11001300
150017001900
2100
23002500
27002900
3100
Seeds Per Pound
Unit Weight (80K)
Linear (Round Corn Large)
Linear (Round Corn Small)
Meter Pressure (in/water)
5
4.5
3.5
3
2.5
2
1.5
1
0.5
0
88.9
72.761.5
53.347.142.138.134.832.0
29.627.6
25.8
4
817-794C & 817-796C
Round Corn-Large
817-795C & 817-797C
Round Corn-Small
Meter Pressure (in/water)
Disks
Disks
Example
Example
Null4: Meter Pressurization in inches of Water
Null4: Meter Pressurization in inches of Water
Null4:
29725

8 Great Plains Manufacturing, Inc. Front Page Part Lists Air-Pro®Ultra Test Stand Kit
403-942M Front Page Part Lists 05/16/2019

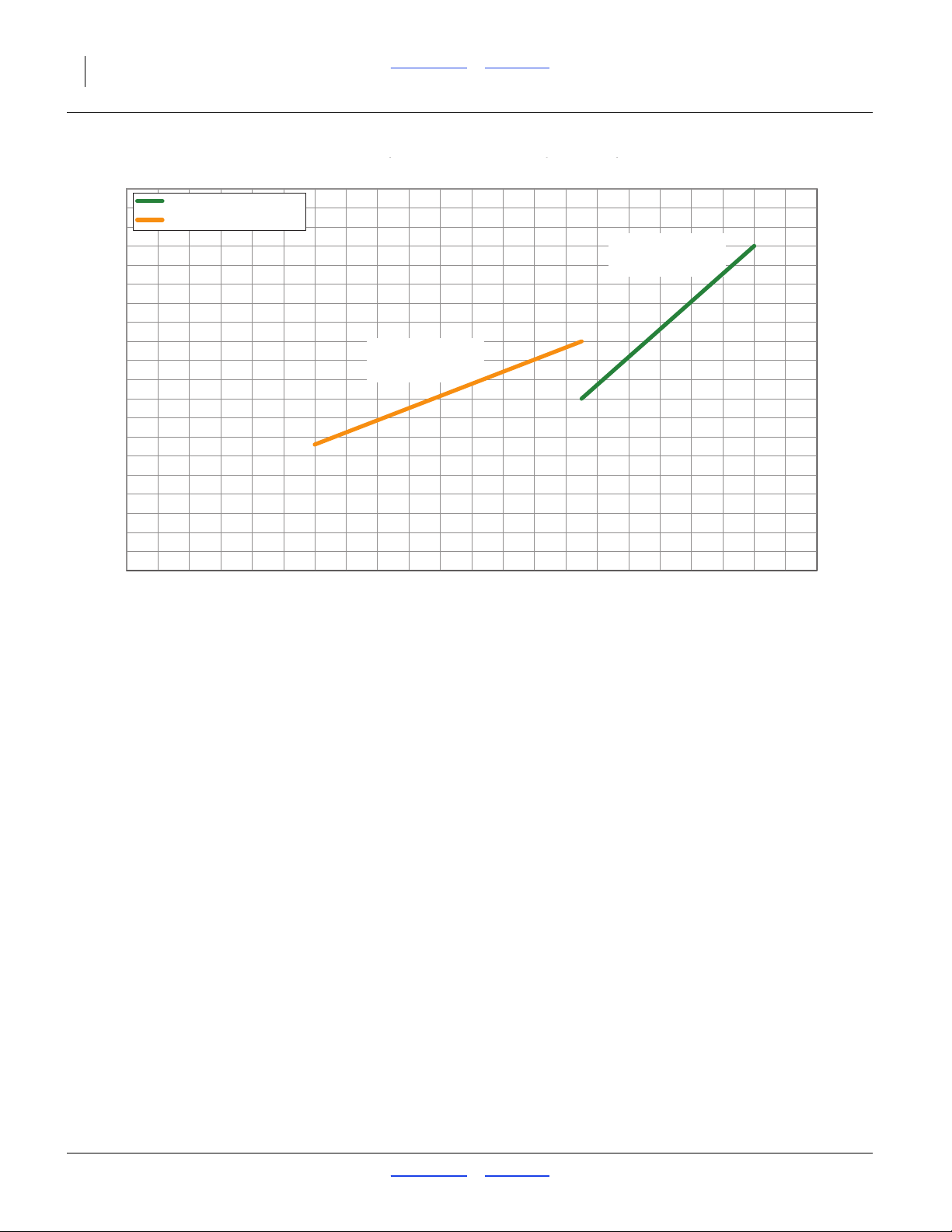

Initial Meter Pressurization: Flat Corn
29726
(y)
Pressure/Seed Comparison
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
90011001300150017001900
2100
230025002700
2900
3100
Seeds Per Pound
Unit Weight (80K)
Meter Pressure (in/water)
Linear (Flat Corn Large)
Linear (Flat Corn Small)
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
88.9
72.7
61.5
53.3
47.142.1
38.134.832.029.627.625.8
817-836C & 817-838C
Flat Corn-Large
817-795C & 817-797C
Flat Corn-Small
Meter Pressure (in/water)
Disks
Disks
Null4: Meter Pressurization in inches of Water
Null4: Meter Pressurization in inches of Water
Null4:
29726

Air-Pro®Meter Disk Selection Front Page Part Lists Great Plains Manufacturing, Inc. 9
05/16/2019 Front Page Part Lists 403-942M
Air-Pro®Meter Disk Selection

10 Great Plains Manufacturing, Inc. Front Page Part Lists Air-Pro®Ultra Test Stand Kit
403-942M Front Page Part Lists 05/16/2019
Null4:
Recommended Seed Disks (2 of 3)

Air-Pro®Meter Disk Selection Front Page Part Lists Great Plains Manufacturing, Inc. 11
05/16/2019 Front Page Part Lists 403-942M
Recommended Seed Disks (3 of 3)

12 Great Plains Manufacturing, Inc. Front Page Part Lists Air-Pro®Ultra Test Stand Kit
403-942M Front Page Part Lists 05/16/2019

Air-Pro®Meter Disk Selection Front Page Part Lists Great Plains Manufacturing, Inc. 13
05/16/2019 Front Page Part Lists 403-942M
Seed Spacing
Seed Spacing (U.S. Customary units, page 1 of 2)
Row Spacings
Twin Row Single Row
20 in. 30 in. 36 in. 38 in. 40 in.
Plant 10 in. 15 in. 20 in. 22 in. 30 in. 36 in. 38 in. 40 in.
Population Rows Rows Rows Rows Rows Rows Rows Rows
(seeds/acre) Seed Spacing (inches)
14 000
44.8 29.9 24.9 23.6 22.4 20.4 14.9 12.4 11.8 11.2
15 000
41.8 27.9 23.2 22.0 20.9 19.0 13.9 11.6 11.0 10.5
16 000
39.2 26.1 21.8 20.6 19.6 17.8 13.1 10.9 10.3 9.8
17 000
36.9 24.6 20.5 19.4 18.4 16.8 12.3 10.2 9.7 9.2
18 000
34.8 23.2 19.4 18.3 17.4 15.8 11.6 9.7 9.2 8.7
19 000
33.0 22.0 18.3 17.4 16.5 15.0 11.0 9.2 8.7 8.3
20 000
31.4 20.9 17.4 16.5 15.7 14.3 10.5 8.7 8.3 7.8
21 000
29.9 19.9 16.6 15.7 14.9 13.6 10.0 8.3 7.9 7.5
22 000
28.5 19.0 15.8 15.0 14.3 13.0 9.5 7.9 7.5 7.1
23 000
27.3 18.2 15.2 14.4 13.6 12.4 9.1 7.6 7.2 6.8
24 000
26.1 17.4 14.5 13.8 13.1 11.9 8.7 7.3 6.9 6.5
25 000
25.1 16.7 13.9 13.2 12.5 11.4 8.4 7.0 6.6 6.3
26 000
24.1 16.1 13.4 12.7 12.1 11.0 8.0 6.7 6.3 6.0
27 000
23.2 15.5 12.9 12.2 11.6 10.6 7.7 6.5 6.1 5.8
28 000
22.4 14.9 12.4 11.8 11.2 10.2 7.5 6.2 5.9 5.6
29 000
21.6 14.4 12.0 11.4 10.8 9.8 7.2 6.0 5.7 5.4
30 000
20.9 13.9 11.6 11.0 10.5 9.5 7.0 5.8 5.5 5.2
31 000
20.2 13.5 11.2 10.6 10.1 9.2 6.7 5.6 5.3 5.1
32 000
19.6 13.1 10.9 10.3 9.8 8.9 6.5 5.4 5.2 4.9
33 000
19.0 12.7 10.6 10.0 9.5 8.6 6.3 5.3 5.0 4.8
34 000
18.4 12.3 10.2 9.7 9.2 8.4 6.1 5.1 4.9 4.6
35 000
17.9 11.9 10.0 9.4 9.0 8.1 6.0 5.0 4.7 4.5
36 000
17.4 11.6 9.7 9.2 8.7 7.9 5.8 4.8 4.6 4.4
37 000
17.0 11.3 9.4 8.9 8.5 7.7 5.7 4.7 4.5 4.2
38 000
16.5 11.0 9.2 8.7 8.3 7.5 5.5 4.6 4.3 4.1
39 000
16.1 10.7 8.9 8.5 8.0 7.3 5.4 4.5 4.2 4.0
40 000
15.7 10.5 8.7 8.3 7.8 7.1 5.2 4.4 4.1 3.9
41 000
15.3 10.2 8.5 8.1 7.6 7.0 5.1 4.2 4.0 3.8
42 000
14.9 10.0 8.3 7.9 7.5 6.8 5.0 4.1 3.9 3.7
43 000
14.6 9.7 8.1 7.7 7.3 6.6 4.9 4.1 3.8 3.6
44 000
14.3 9.5 7.9 7.5 7.1 6.5 4.8 4.0 3.8 3.6
45 000
13.9 9.3 7.7 7.3 7.0 6.3 4.6 3.9 3.7 3.5
46 000
13.6 9.1 7.6 7.2 6.8 6.2 4.5 3.8 3.6 3.4
47 000
13.3 8.9 7.4 7.0 6.7 6.1 4.4 3.7 3.5 3.3
48 000
13.1 8.7 7.3 6.9 6.5 5.9 4.4 3.6 3.4 3.3
49 000
12.8 8.5 7.1 6.7 6.4 5.8 4.3 3.6 3.4 3.2
50 000
12.5 8.4 7.0 6.6 6.3 5.7 4.2 3.5 3.3 3.1
32320A

14 Great Plains Manufacturing, Inc. Front Page Part Lists Air-Pro®Ultra Test Stand Kit
403-942M Front Page Part Lists 05/16/2019
Seed Spacing (U.S. Customary units, page 2 of 2)
MetaData:
Row Spacings
Twin Row
Single Row
20 in. 30 in. 36 in. 38 in. 40 in.
Plant 10 in. 15 in. 20 in. 22 in. 30 in. 36 in. 38 in. 40 in.
Population Rows Rows Rows Rows Rows Rows Rows Rows
(seeds/acre) Seed Spacing (inches)
50 000
12.5 8.4 7.0 6.6 6.3 5.7 4.2 3.5 3.3 3.1
55 000
11.4 7.6 6.3 6.0 5.7 5.2 3.8 3.2 3.0 2.9
60 000
10.5 7.0 5.8 5.5 5.2 4.8 3.5 2.9 2.8 2.6
65 000
9.7 6.4 5.4 5.1 4.8 4.4 3.2 2.7 2.5 2.4
70 000
9.0 6.0 5.0 4.7 4.5 4.1 3.0 2.5 2.4 2.2
75 000
8.4 5.6 4.6 4.4 4.2 3.8 2.8 2.3 2.2 2.1
80 000
7.8 5.2 4.4 4.1 3.9 3.6 2.6 2.2 2.1 2.0
85 000
7.4 4.9 4.1 3.9 3.7 3.4 2.5 2.0 1.9 1.8
90 000
7.0 4.6 3.9 3.7 3.5 3.2 2.3 1.9 1.8 1.7
95 000
6.6 4.4 3.7 3.5 3.3 3.0 2.2 1.8 1.7 1.7
100 000
6.3 4.2 3.5 3.3 3.1 2.9 2.1 1.7 1.7 1.6
105 000
6.0 4.0 3.3 3.1 3.0 2.7 2.0 1.7 1.6 1.5
110 000
5.7 3.8 3.2 3.0 2.9 2.6 1.9 1.6 1.5 1.4
115 000
5.5 3.6 3.0 2.9 2.7 2.5 1.8 1.5 1.4 1.4
120 000
5.2 3.5 2.9 2.8 2.6 2.4 1.7 1.5 1.4 1.3
125 000
5.0 3.3 2.8 2.6 2.5 2.3 1.7 1.4 1.3 1.3
130 000
4.8 3.2 2.7 2.5 2.4 2.2 1.6 1.3 1.3 1.2
135 000
4.6 3.1 2.6 2.4 2.3 2.1 1.5 1.3 1.2 1.2
140 000
4.5 3.0 2.5 2.4 2.2 2.0 1.5 1.2 1.2 1.1
145 000
4.3 2.9 2.4 2.3 2.2 2.0 1.4 1.2 1.1 1.1
150 000
4.2 2.8 2.3 2.2 2.1 1.9 1.4 1.2 1.1 1.0
155 000
4.0 2.7 2.2 2.1 2.0 1.8 1.3 1.1 1.1 1.0
160 000
3.9 2.6 2.2 2.1 2.0 1.8 1.3 1.1 1.0 1.0
165 000
3.8 2.5 2.1 2.0 1.9 1.7 1.3 1.1 1.0 1.0
170 000
3.7 2.5 2.0 1.9 1.8 1.7 1.2 1.0 1.0 0.9
175 000
3.6 2.4 2.0 1.9 1.8 1.6 1.2 1.0 0.9 0.9
180 000
3.5 2.3 1.9 1.8 1.7 1.6 1.2 1.0 0.9 0.9
185 000
3.4 2.3 1.9 1.8 1.7 1.5 1.1 0.9 0.9 0.8
190 000
3.3 2.2 1.8 1.7 1.7 1.5 1.1 0.9 0.9 0.8
195 000
3.2 2.1 1.8 1.7 1.6 1.5 1.1 0.9 0.8 0.8
200 000
3.1 2.1 1.7 1.7 1.6 1.4 1.0 0.9 0.8 0.8
225 000
2.8 1.9 1.5 1.5 1.4 1.3 0.9 0.8 0.7 0.7
250 000
2.5 1.7 1.4 1.3 1.3 1.1 0.8 0.7 0.7 0.6
275 000
2.3 1.5 1.3 1.2 1.1 1.0 0.8 0.6 0.6 0.6
300 000
2.1 1.4 1.2 1.1 1.0 1.0 0.7 0.6 0.6 0.5
32320B

Air-Pro®Meter Disk Selection Front Page Part Lists Great Plains Manufacturing, Inc. 15
05/16/2019 Front Page Part Lists 403-942M
Seed Lubricants
Air-Pro®Meters (all seeds)
Ezee Glide Plus Talc + Graphite Mix
821-069C bucket, 5 gallon (19 liter)
Ezee Glide Plus Lubricant
To maximize performance of Great Plains metering sys-
tems, it is imperative to use only “Ezee Glide Plus” lubri-
cant. “Ezee Glide Plus” Talc + Graphite lubricant is
mandatory for all seeds, especially treated or inoculated
seed. Thorough mixing of seed and added lubricant
is required.
Recommended Usage:
For clean seeds other than milo, cotton, and sunflowers
sprinkle one cup of Ezee Glide Plus per 4 bushels or
units (170 ml per 100 liters) of seed.
For milo, cotton, and sunflowers double the application to
one cup (or more) per 2 bu or units (335 ml per 100
liters) of seed.
Adjust this rate as necessary so all seeds become
coated while avoiding an accumulation of lubricant in the
bottom of the hopper.
For seed with excessive treatment, or for humid planting
environments, increase the rate as needed for smooth
meter operation.
Irritation and Chronic Exposure Hazard:
Wear gloves. DO NOT use hands or any part of your body to
mix seed lubricant. Wear a respirator when transferring and
mixing. Avoid breathing lubricant dust. Not an acute hazard.
May cause mechanical eye or skin irritation in high concen-
trations. As with all mineral spills, minimize dusting during
clean-up. Prolonged inhalation may cause lung injury. Prod-
uct can become slippery when wet.
Null4:
Null4:
29248

Great Plains Manufacturing, Inc.
Corporate Office P.O. Box 5060
Salina, Kansas 67402-5060 USA
16 Front Page Part Lists
403-942M Front Page Part Lists 05/16/2019
APPENDIX
New Parts
The part call-out numbers in this list match all Figures in
these installation instructions. Part descriptions match
those in your updated Parts Manual.
Quantities are units (“ea”).
Kit Content
AEOD???????
403-940A Air-Pro®Test Stand Meter Mount Kit
Callout Quantity Part Number Part Description
11 1 403-942M MANUAL METER TEST STAND
12 1403-850K AIR METER G2 BULK MECH
13 1 403-301S SEED TUBE AM TB,CLIP & SENS
14 1403-528H TEST STAND PIN DRIVER F/ 19
15 1 403-530H RH METER MAX MOUNT FOR AIR
16 1403-532K METER MOUNT & CLAMP ASY
17 1 803-374C NUT HEX JAM 7/16-20 PLT
18 1817-613C SEED DISCHARGE HOSE 42
19 1 817-868C TEST STAND FUNNEL
20 1830-414C CP KENT CAT4 M QD X 1/4 HB
21 1 830-415C CP KENT CAT4 F QD X CAP
22 1891-328C EL 45 7/16MORB X 1/4HB
23 3 990-021R HOSE 1/4 RUBBER AIR
