Great CRISTAL Italy DRYMASTER DM230R-1 User manual
DM230R-1
Ceiling Mounted Dehumidifier
lnstallation & Operation Manual
Great Treasure (Building Supplies) Limited
頻率
220V
50Hz
10.6公升 / 最高
38W
5.5A
780W
1060W25.5公斤
˜
˜
˜
˜
ENGLISH
INSTALLATION
AND
OPERATION
MANUAL

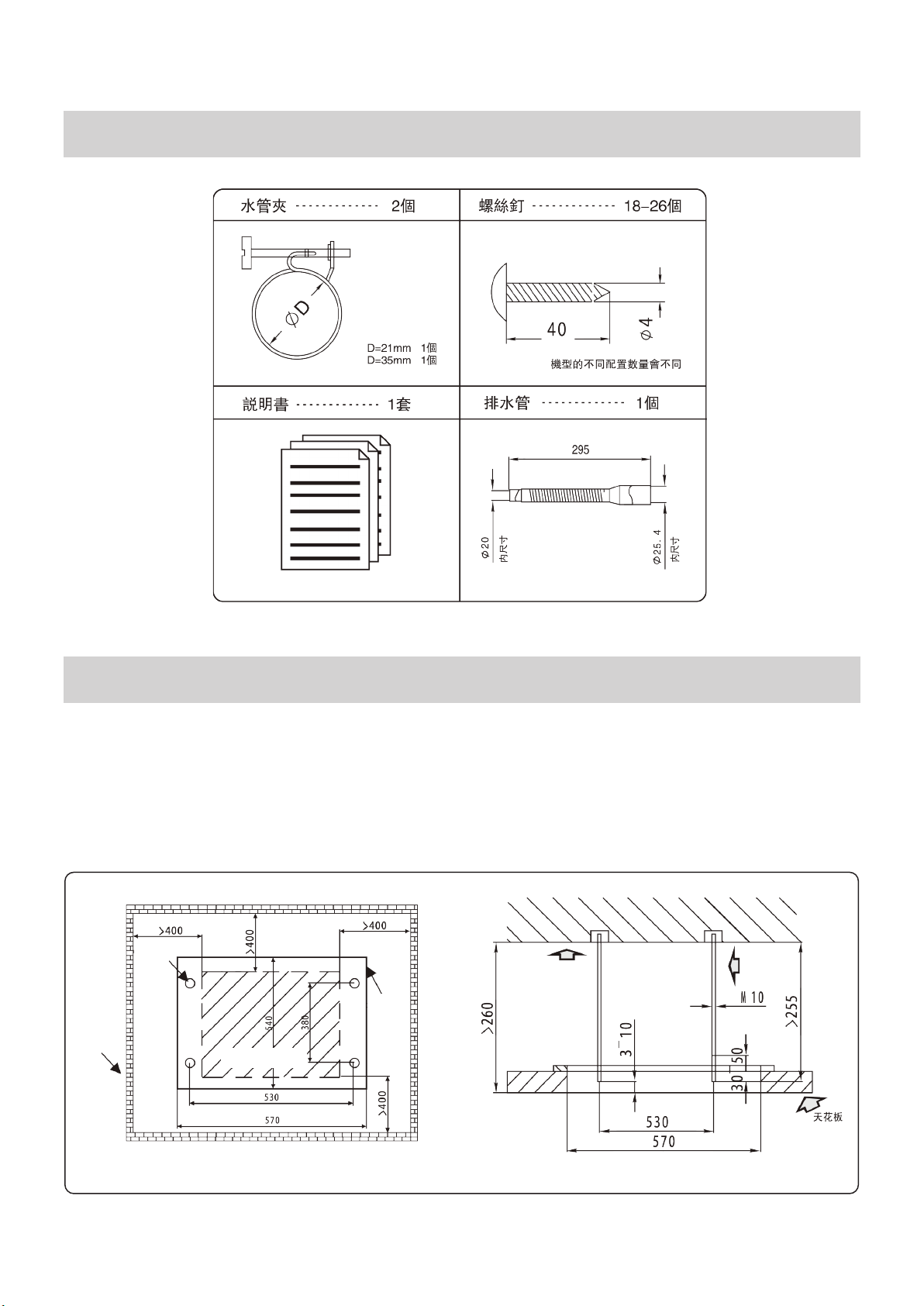

SPARE PARTS

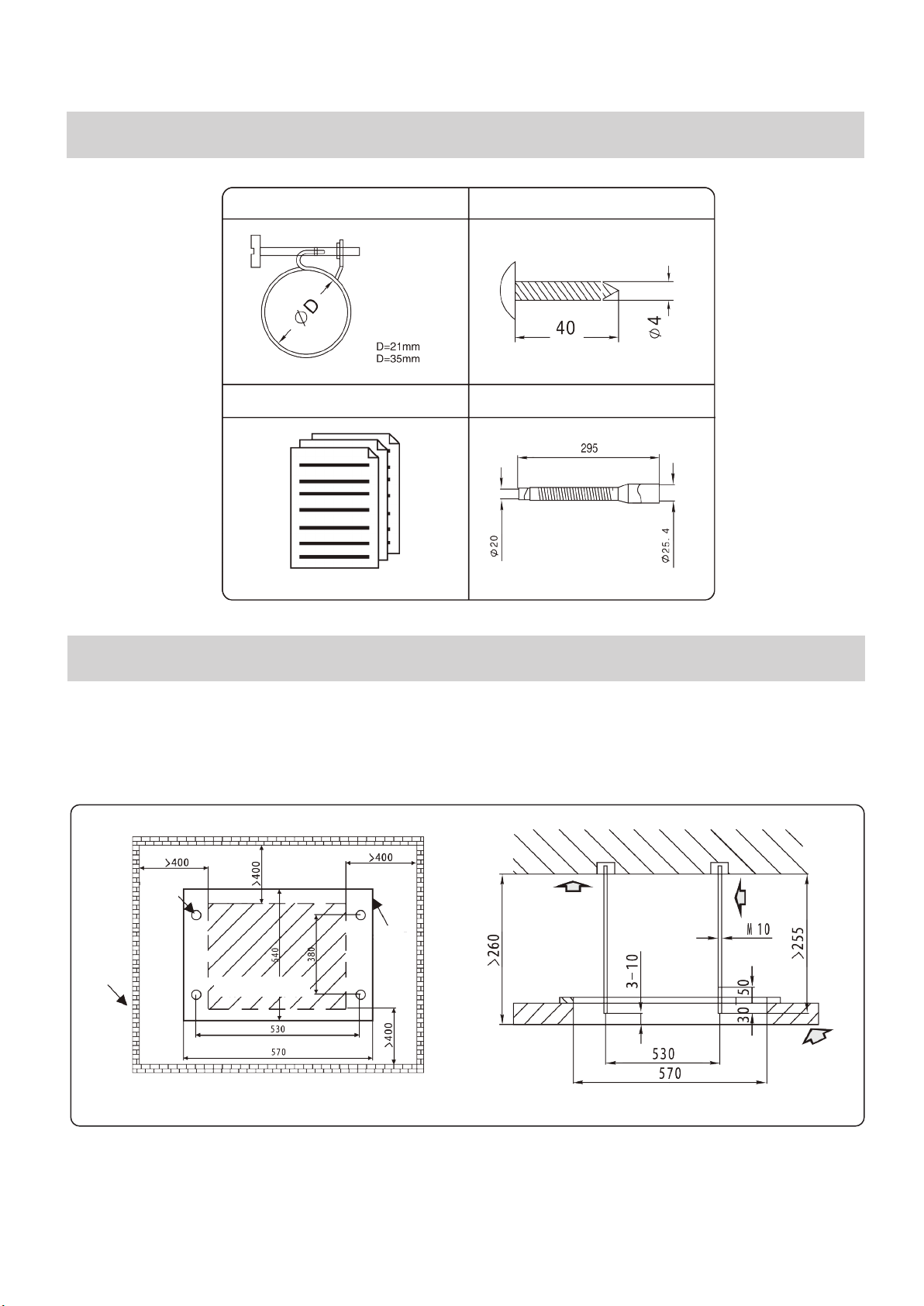

PREPARATION WORK
1/ From a opening 510 x 540mm on the false ceiling as per diagram 1.
2/ Install 4 anchor bolts M10 x 255mm referred to diagram 1 and 2.
3/ Based on the room arrangement install suitable drain pipe.
1 No.
1 No. Difference quantity in difference model
Drain pipe - - - 1 No.
Pipe clamp - - - 2 Nos. Screw - - - 18-26 Nos.
O&M manual - - - 1 No.
I D
I D
Wall
(around)
Dehumidifier
Anchor bolt
(4 Nos) Anchor bolt
Concrete
slab
Opening on
the ceiling
(510x540)
Ceiling
Diagram 1
Screw thread
length
Diagram 2
Control box must keep more than 400mm
away from the wall for maintain
Lock nut
Inlet
Clamp
Drain pipe through
this hole
Drain pipe
Cross screw driver
Drain
outlet
Concrete
slab
Ceiling Dehumidifier
Power
socket

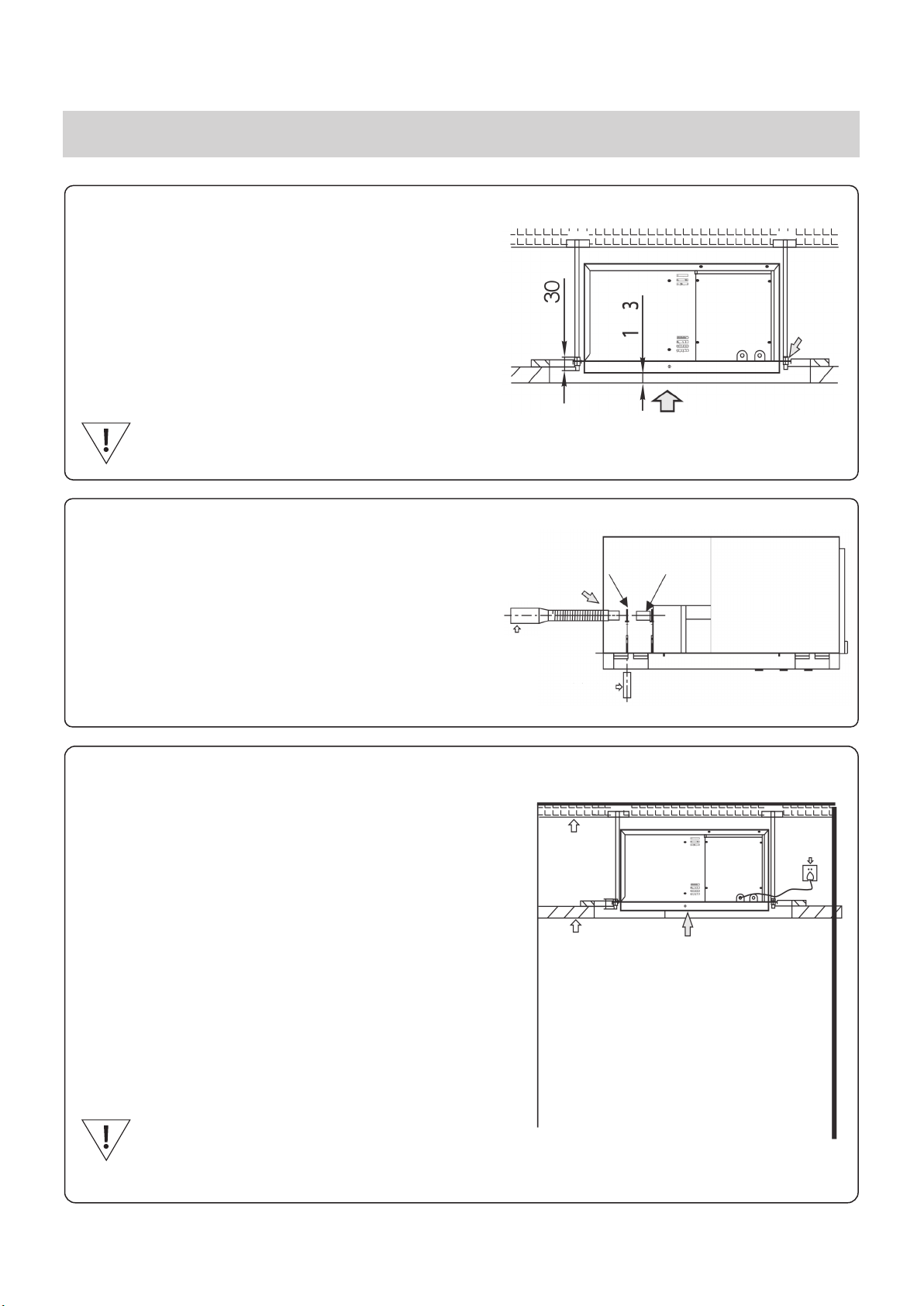

INSTALLATION
1/ Screw four M10 lock nut above 30mm from the
end of the anchor.
2/ Locate the dehumidifier and installed with the
lock nut and spring plate.
3/ Adjust the distance between the dehumidifier
and the ceiling tile, about 1-3mm.
4/ After adjust the dehumidifier, secured with the
lock nut.
Please refer to the local regulation for installation,
fulfil the safety requirement.
1/ Install the attach drain pipe to the drain
hole of the dehumidifier.
2/ Secured the clamp by cross screw driver.
3/ Connect the drain pipe to the drainage
properly.
1/ The power of this appliance is 1P, 220VAC,
50Hz. Please refer to the local regulation for
installation and wiring. External wiring should
be used 2.5mm²minimum power cable and
10A minimum overload cut fuse device.
2/ Installed the power cable according to the
wiring diagram.
3/ After installed the power cable, switch on the
unit and test with “Dehumidifier O&M manual”
check if the unit running normally. Otherwise,
check with the power supply connection
properly. If there still not run normally, please
call our after service.
Please install the electrical work by authorized
person and don’t dismantle by yourself.
Before maintain the unit or do not intend to use
for a long period, please disconnect the power.

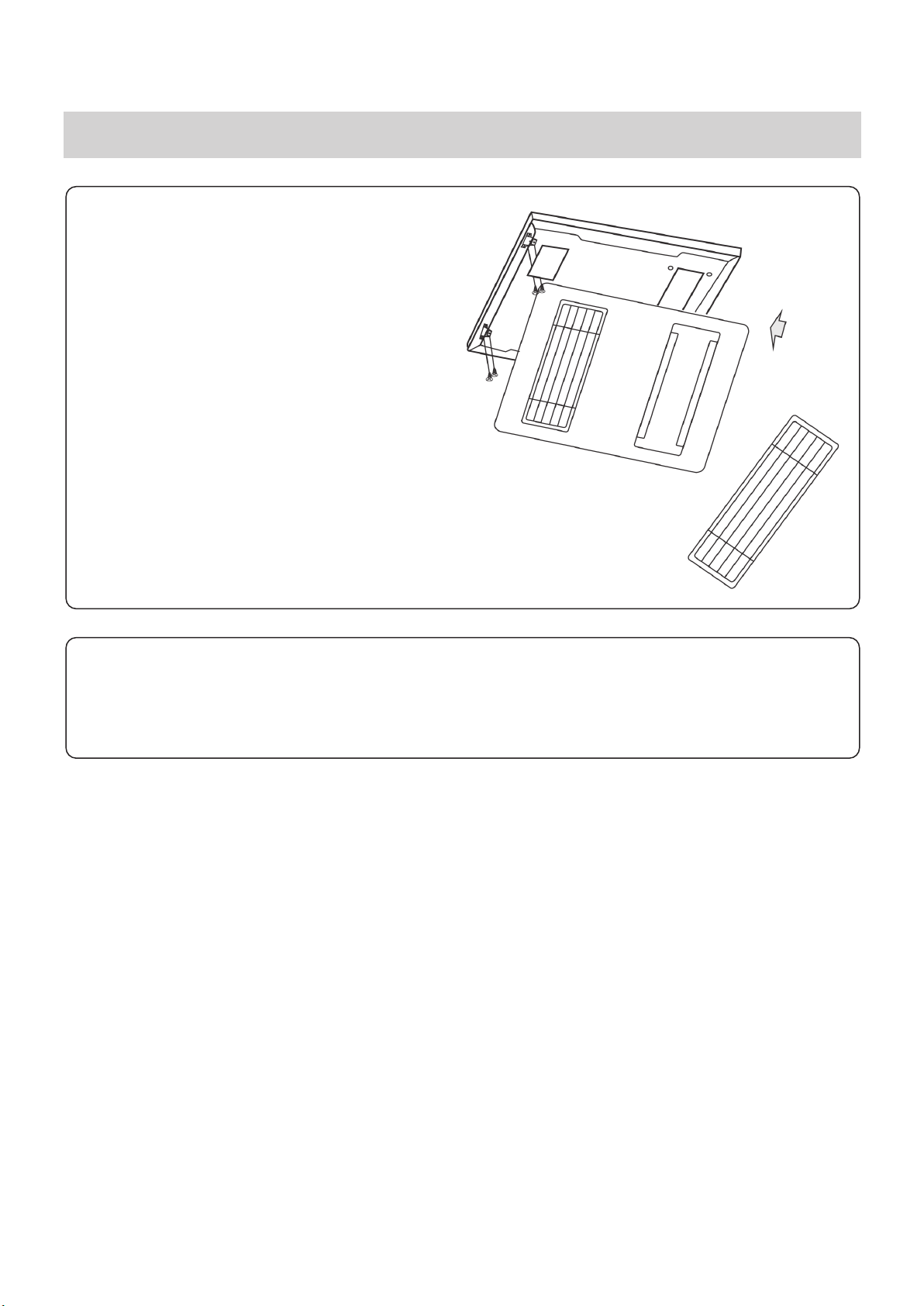

INSTALLATION
1/ Take out the louver from the cover
panel.
2/ Lock and secure the face plate to the
fixing plate.
3/ Screw and fix the face plate with four
screw to the dehumidifier.
4/ Hang the louver to the cover panel by
a line.
5/ Secure the louver to the cover panel.
Push in
direction
Install the dia 25.4mm drain pipe for the drain outlet with supplied clamp.
Hanging rod
Drain pipe
Drain pipe diameter does not excess 25.4mm
COMMISSIONING

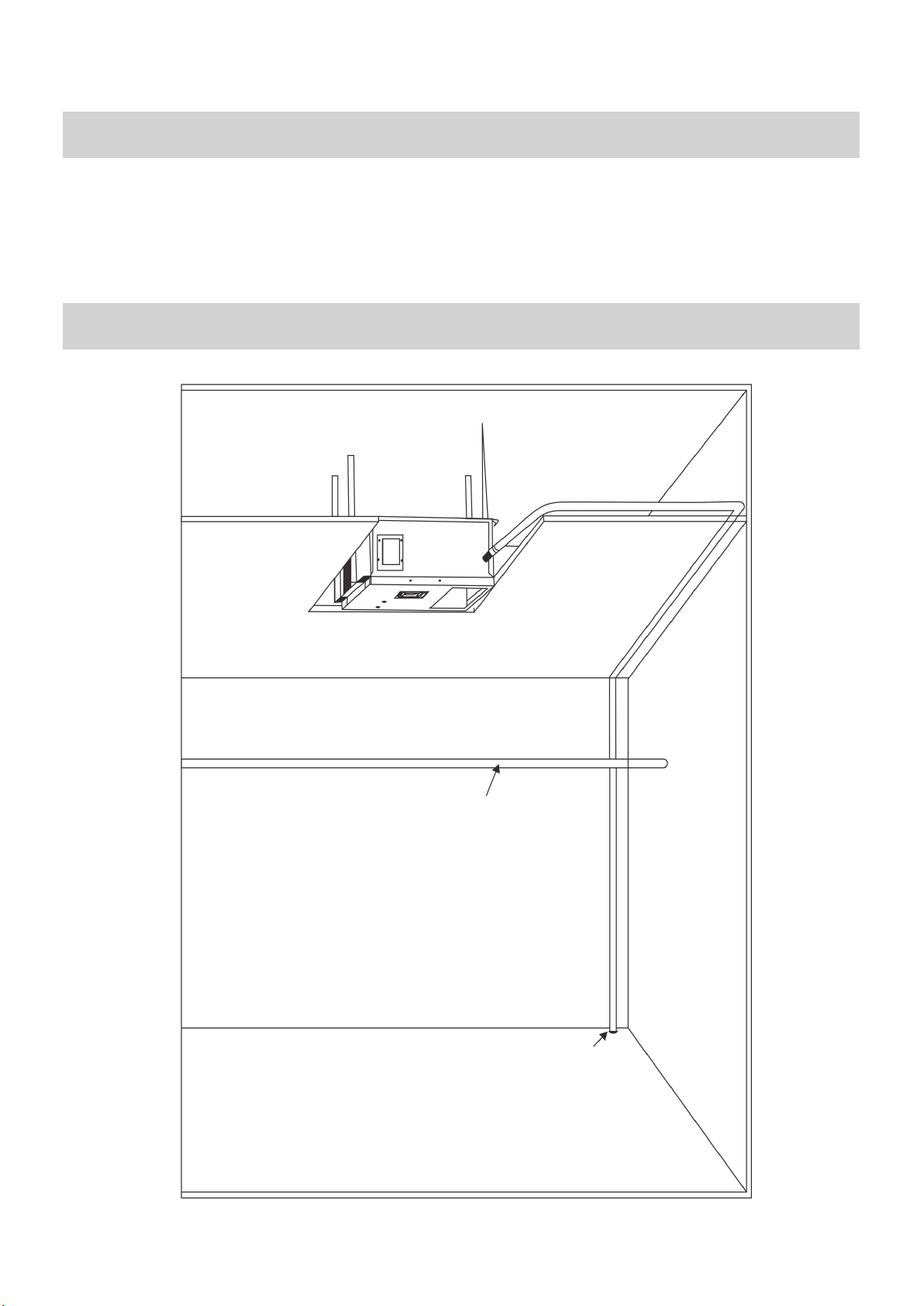

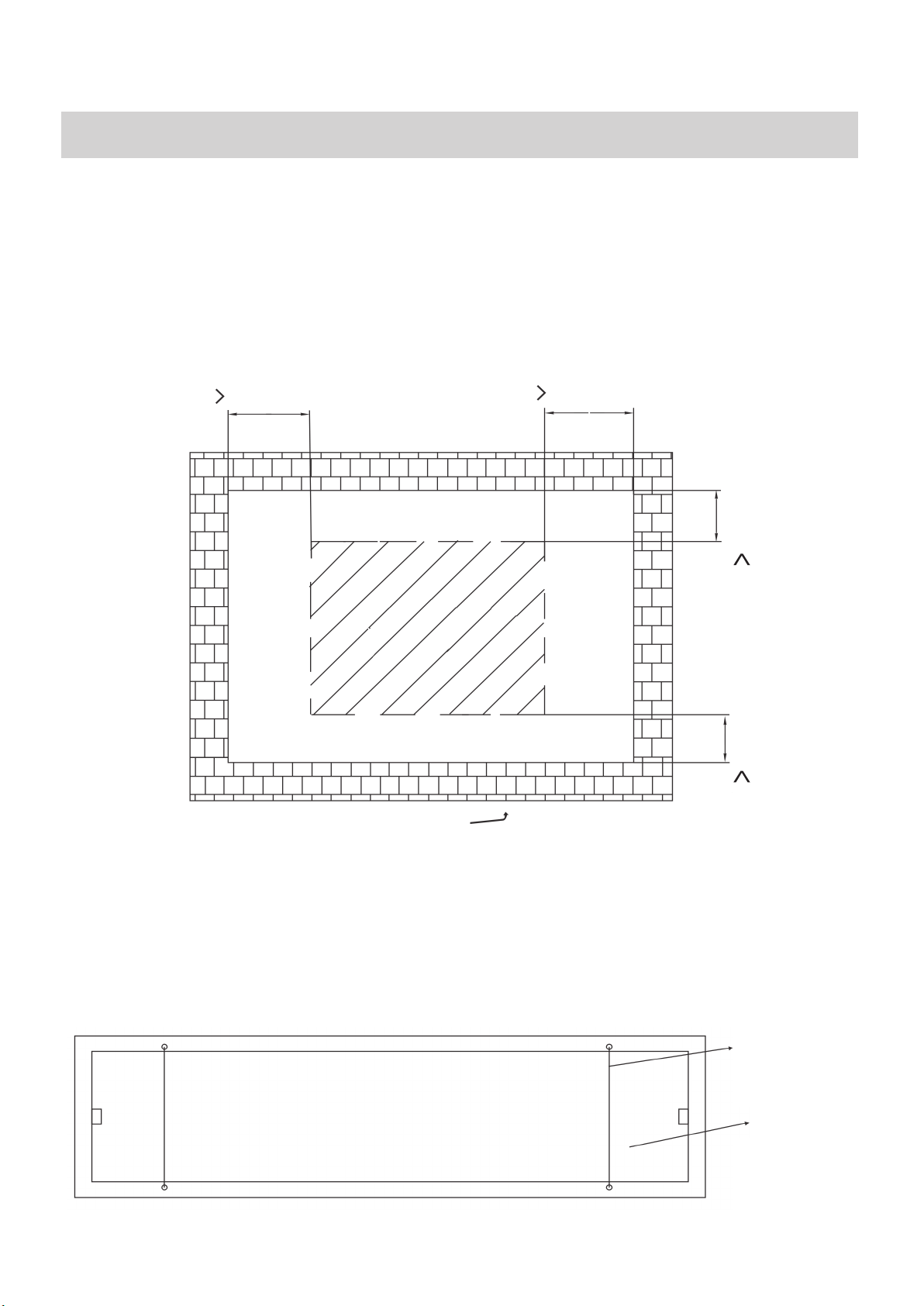

INSTALLATION DIAGRAM
After installed the dehumidifier, check the power cable and power supply then test the unit.
Press the ON / OFF button to start the unit, try the dehumidifying, drying and heating mode by
push the mode button.
Filter
fixing
wire
Filter
Dehumidifier
Wall
400mm 400mm
400mm
400mm
NOTE
1/ Please refer to the local regulation for dehumidifier installation, compliance to the safety
requirement.
2/ Electrical installation please refer to the local regulation.
3/ The access on the ceiling not less than 400 ×400mm.
4/ The dehumidifier contained with electrical heater, please pay attention to the safety space
during installation and easy for maintenance.
5/ Allow the dehumidifier working with the standard specification.
6/ Check the drain pipe connection to avoid leakage.
7/ Periodically clean or replace the filter.
8/ Keep 5mm minimum distance between heater to combustibles. The appliance equipped
with electrical heater for heat up.
Voltage
SPECIFICATION
Fan Motor Power
Frequency
Capacity
220V
50Hz
10.6L / MAX
38W
Rated Current
Net Weight
Heater Power
Max. Total Power
5.5A
780W
1060W25.5Kg

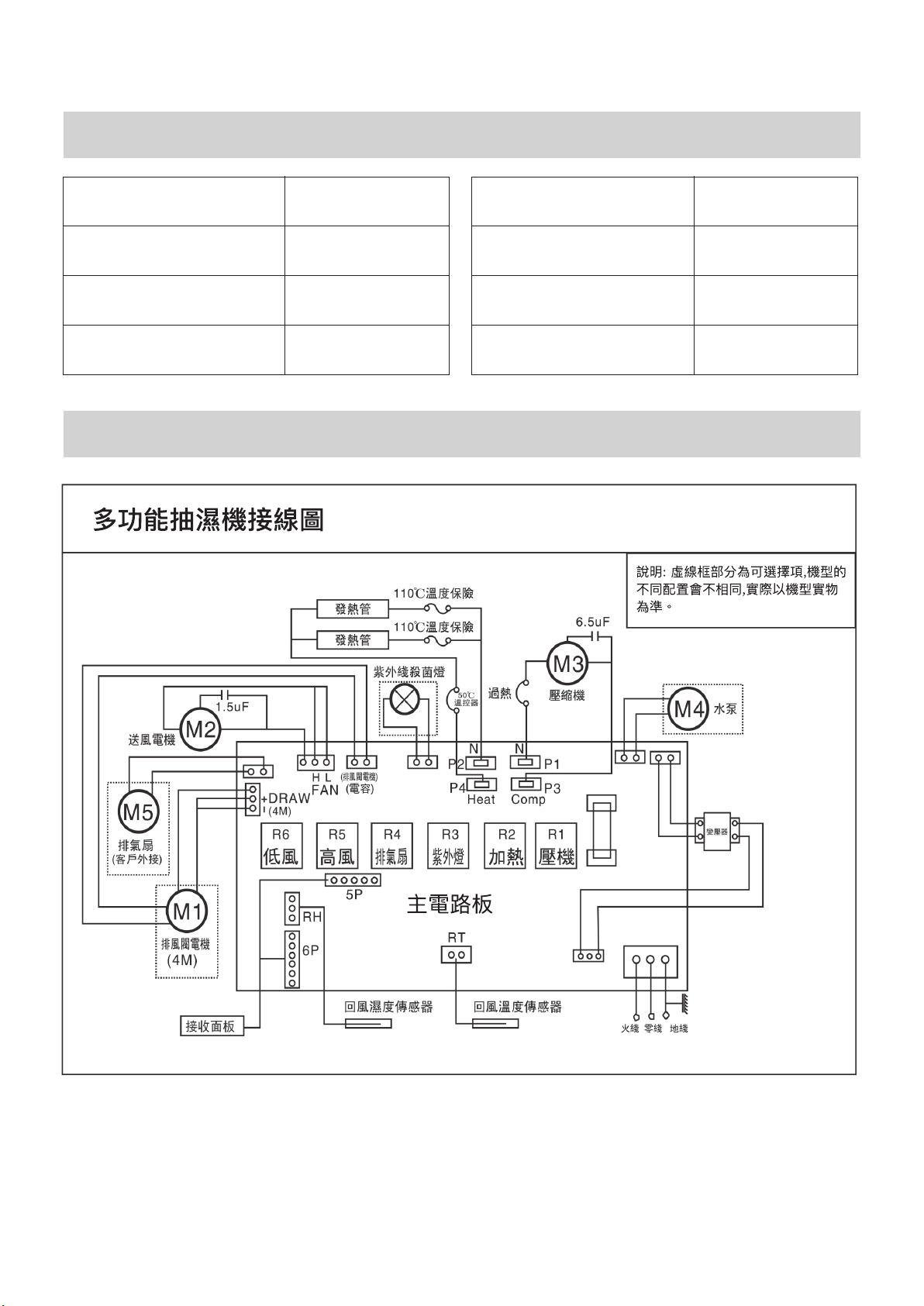

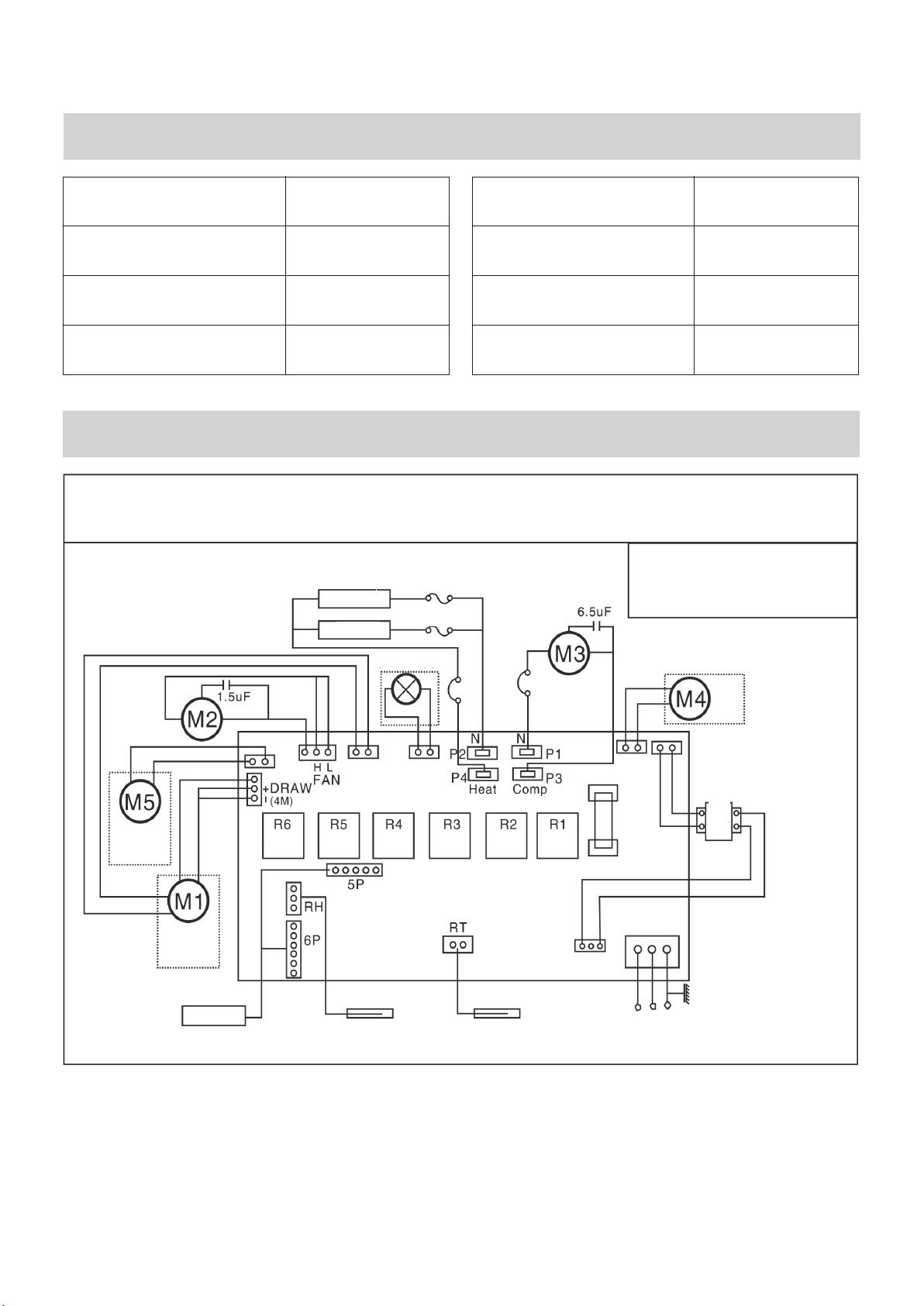

WIRING DIAGRAM
Multi-function dehumidifier wiring diagram
Heater
Heater
110˚C Temp.Fuse
110˚C Temp.Fuse
OH Comp
50˚C
Thermoslat
SA Fan
Exhaust Fan
(By others)
Exhaust
Damper
Motor (4M)
Damper Motor
(Capacitor)
Pump
TRAN
Low High EXHAU UV Heater Comp
Control Board
RH sensor Temp. sensor L EN
Note: Dotted frame area is
optional. There is different
configure with different mode.
Control Panel
ON/OFF switch
Dry clothing function
Warm air funcation
Anion function
UV function
(Not available in DM230R)
Adjustment button
Dehumidification function
Time function

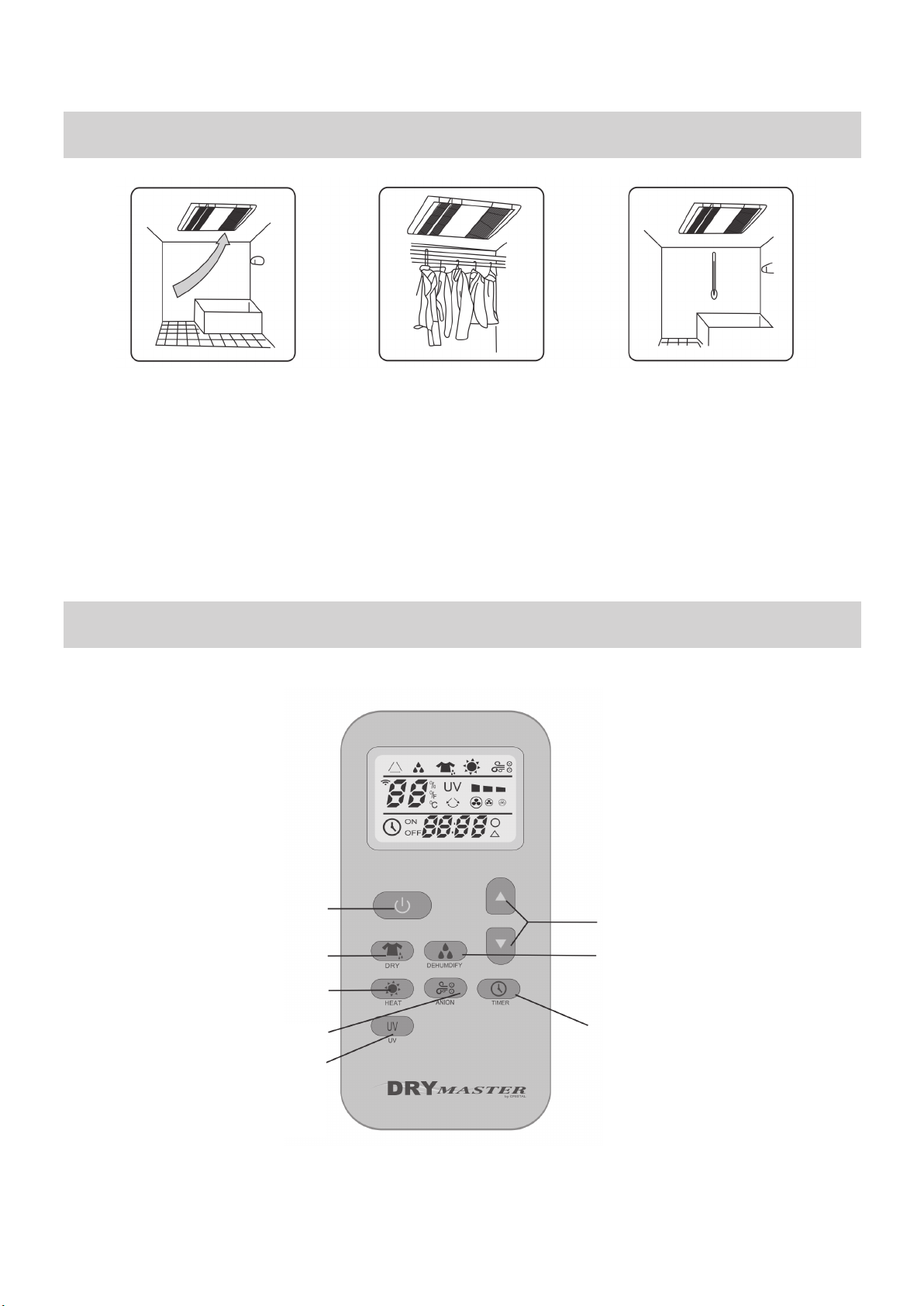

FUNCTION
Dehumidify : Keep
bathroom dry
and comfortable.
Heating : Warm up
the bathroom to
more comfortable
environment.
Drying : Clothes
drying in short time
even on humid
weather.
Fresh air
We use that the titanium dioxide technology to remove odour from the indoor and let you
experience the fresh air.

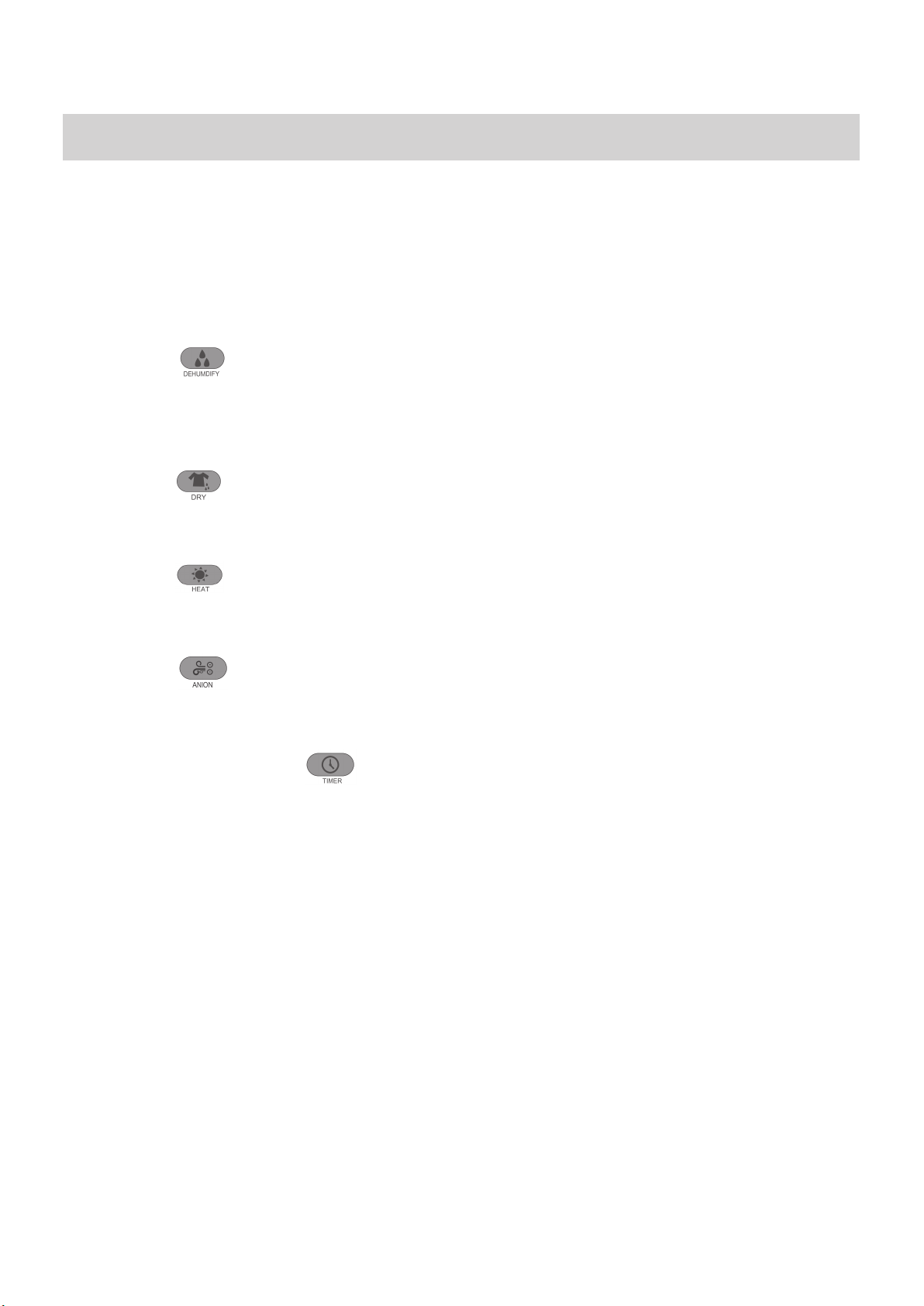

REMOTE CONTROLLER
1/ ON/OFF switch:
After the dehumidifier is connected to the power, press the “ON/OFF” button on the remote
control panel to turn ON/Off the dehumidifier.
2/ Dehumidification
Press the “Dehumidification” button, dehumidifier start working to remove moisture
in the air effectively and keep you bathroom dry, the humidity can be adjusted with interval
from 45% ˜80%.
3/ Drying
Press the “Drying” button, dehumidifier will work for clothes drying effectively in the
bathroom. The drying temperature can be adjusted with interval from 18°C ˜30°C.
4/ Heating
Press the “Warm Air” button, dehumidifier in this mode will warm up the bathroom
and maintain a constant temperature, the adjustment interval is 18°C ˜30°C.
5/ Anion
Press the “Anion” button, dehumidifier in this work mode will have Anion internal
circulation. 2 fan speeds can be selected with one more press on the natural wind button.
6/ Timer setting
Press the remote control “Clock” button, you can set the operation time, the setting
interval is 0.5 hours and between 0.5 ˜ 12 hours duration.
7/ Manual control
There is a menu button in the middle of the cover panel of the dehumidifier, and the machine
can be switch ON/OFF without the remote controller just press on the manual button.
Remark: When the dehumidifier is turn OFF, the heater fan will still working to cool down the
machine, around 3 minutes when the machine cool down and the heater fan will stop
working.
USER MANUAL
After installed the unit check the power supply then start the unit by the following steps:
