GREE ELECTRIC KC-32/C1 User manual

J 1 J
Function and working temperature range.
Introduction
Window type room air conditioners of GREE can regulate the room
temperature,dry the room. It is convenient for your work,study and
life. It can be widely used in residence, shop, hotel, office, library and
laboratory, and so on.
Cooling in summer
In hot summer, Air conditioner can cool down
room air by transferring heat out.
Without reducing room temp, Air conditioner
can dehumidify and make room air dry and
comfortable.
Dehumidifying in rainy or
humid season
Operating auto
KAccording to room temperature change, microcomputer can automatically set COOL or FAN operation mode,
so as for the best effect.

J 2 J
Technical Specifications
If there is any change, we will not give you notice here, the correct parameter is
in the nameplate of your air-conditioner.
Temperature range of working environment:Cooling type:
Model KC-32/C1 KC-32/C1A
Function
Cooling capacity(w)
Power supply
Power input(w)
Refrigerant
(indoor/outdoor)
Climate type
Dimension(cm)
Weight (Kg)
Noise (dB(A))
Mechanic control cool only type Remote control cool only type
57 38 59
45
Maximum cooling
Minimum cooling
Indoor side DB/WBEF
32/23
21/15
Outdoor side DB/WBEF
43/26
21/-
3200
220-230V~ 50Hz
1880
R22
51
57
T1
WHD

J 3 J
Operating Condition
Cool mode operation
Outdoor temperature should be in range of 18
to 43, Otherwise it is possible for air conditioner
to breakdown.
Room temperature should be in range of 18to
32.
Room humidity should be lower than 80%. Oth-
erwise it is possible to dew at air conditioner su-
rface and even drop water.
Please operate air condition in correct conditions as following
DRY mode operation
Outdoor temperature should be in range of 18to 43,
otherwise it is possible for air conditioner to breakdown.
Room temperature should be in range of 18to32K
Power requirement
Electric circuit
Must use special socket, do not use longer power lines, do not share
a same socket with other electric appliances to avoid fire etc.
The earthing method must be reliable.
Work within correct voltage range.
Earth wire do not connect earth wire to following places.
Water pipe Gas pipe
OOMJOPMs
Rated voltage range: 220-230V
The compresor would vibrate violently to damage the refrigerantion
system, when voltage is too high.

J 4 J
Installation
Caution for use:
Please associate special technician to install the window type
conditioner.
Install air conditioner unit far away TV set or radio etc.,to avoid disturbing video
or voice.
In salt and coastal area or place where is near thermal springs and polluted by
sulphurous gas, or other special areas, please contact with seller before use.
Avoid place where is possible for flammable gas to leak out.
Avoid other heat sources or direct sun light.
Avoid place where is easy for children to touch.

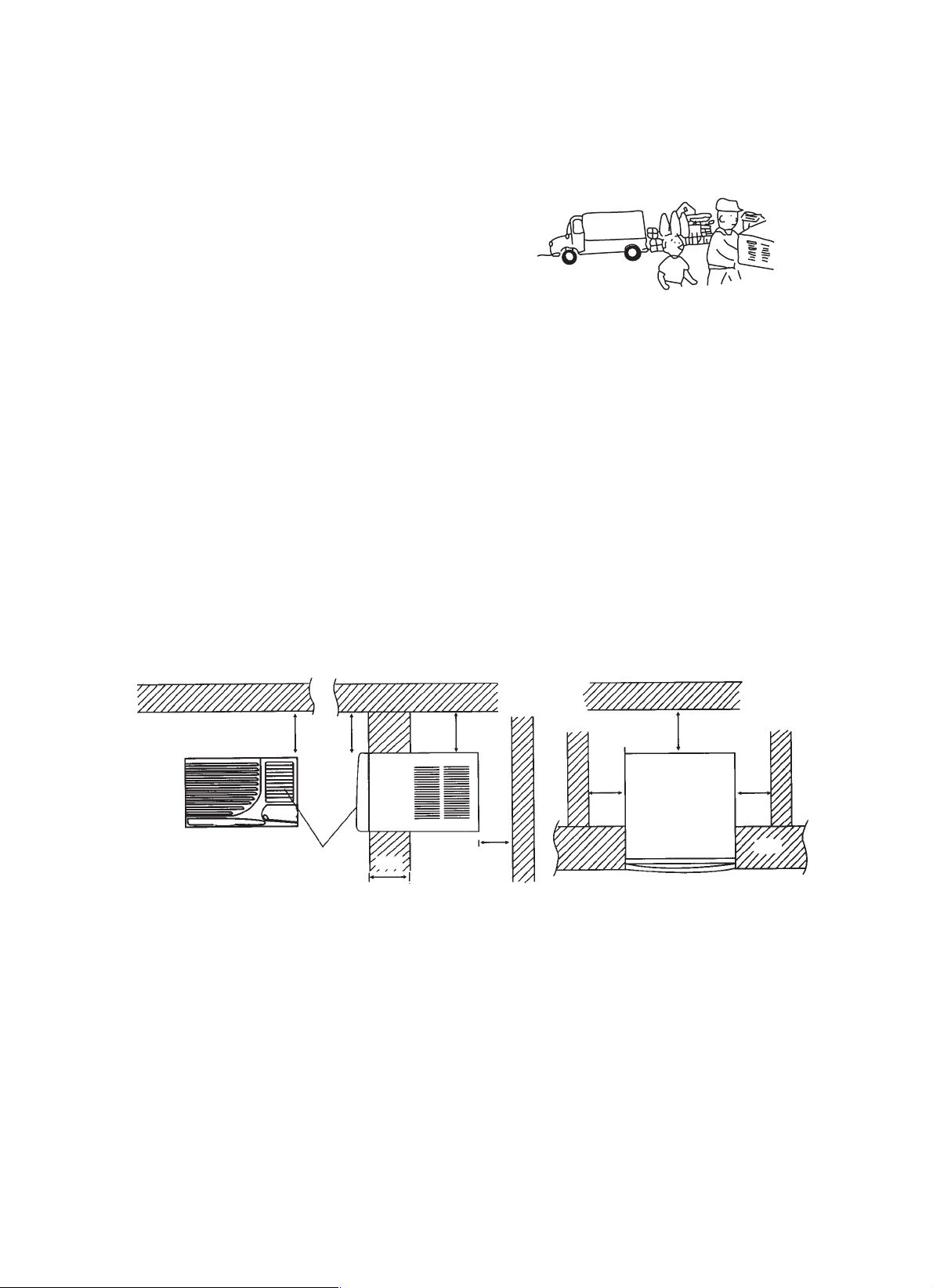

How to install:
There are no any obstacles surrounding the unit.
Prepare the installation hole slightly bigger than unit size.
FRONT VIEW SIDE VIEW TOP VIEW
Ceiling
Fence or likewise
Over 200cmOutdoor
Over 30cm Over 30cm
Over
30cm
Over
30cm
Fence or likewise
Indoor
Less than 25cm
Wall Over
200cm
Fence or likewise Indoor
Wall

J 5 J
Installation procedure:
1.Remove sticker from front panel.
2.Put unit into installation hole. When installation,unit
should be slanted down to the back to avoid enlarge
of noise or vibration.(slant between 6-10mm)
Installation place should be strong enough to avoid
enlarge of noise or vibration.
3.Fill up sews in the cabinet by sponge or puffy.
Horizontal line
SNMãã
Drain water:
To get the maximum cooling efficiency,the air
conditioner is designed to splash the condensate
on the condenser coil.
If the splashing sound annoys you, you can pro-
vide an outside drain by using the following
procedure, which may however cause a small loss
of performance.
1.There is a drainage outlet at the back of the unit.
2.Remove cover from the drainage outlet , and
then connect drainage joint to it with screw.
3.Connect the drain hose to the outlet.
Note:
Drain hose or tubing can be purchased locally
to satisfy your particular needs.
Installation assistance:
Use iron support
Installation hole should be strong enough to support the
air conditioner. If it can not, iron support has to be used
in outside. Iron support should be fixed on the building.
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover on
it, you should contact the sellet for installation of sun-
shade board.
Sunshade board and support can be purchased locally
to satisfy your particular needs.
Sunshade board
Wall
Wooden frame
Rubber plate
Support
SNMãã
Horizontal line
Drainage outlet
Washer
Drainage joint
Install
Cover
Remove

J 6 J

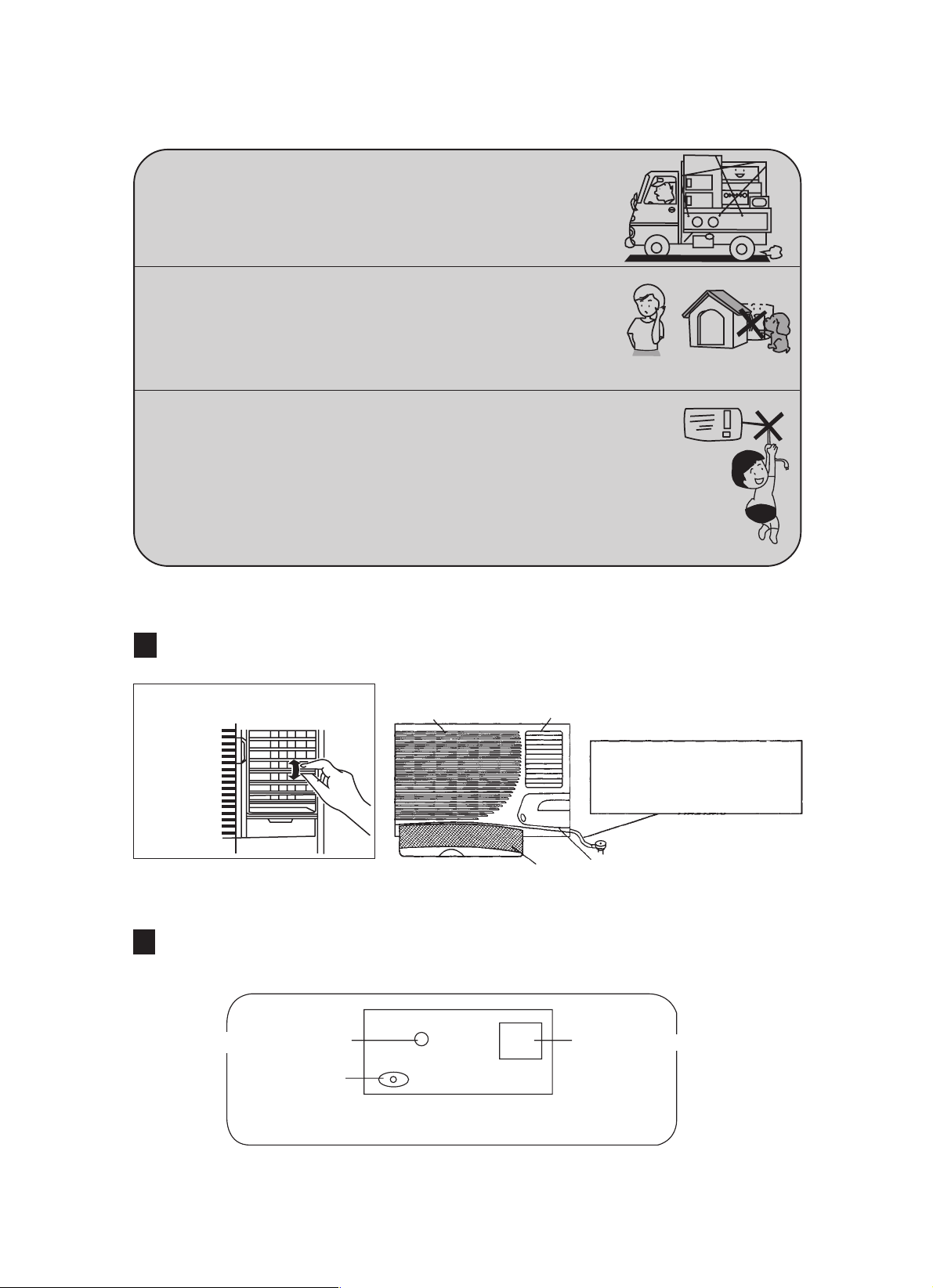

Installation precaution
Remove
When remove air conditioner to other place, it needs special
technician, so contact with seller firstly.
Noise
Electric lines location
Product component identification
Product Component Identification of Remote control of Window type air condition.
Remote control panel
* Install on place firmly enough to avoid transmitting or increasing noise and
vibration.
* Do not put objects in front of outdoor unit air outlet, to avoid increasing noise.
* Be sure not to make trouble to neighbors with hot air or noise from outdoor unit.
* Please contact with seller as soon as there is strange noise during operation.
* Must connect with ground reliably.
* Must use rated voltage and electric circuit specific for air conditioner.
* Avoid octopus type of multi-plug which would cause over heat.
* Do not pull power lines strongly.
* To fit an electrical leakage-proof switch, please contact with special electric dealer.
* Choose circuit-breaker having a capacity of 16 Amp to meet with the current specification.
* Power cord should be more than 2.5mm2in area.
Vertical airflow direction vane
The vertical
airflow direction
by positioning the
vane to discharge
the air upward,
downward or
straight out.
(Airflow direction adjustment Up and Down) Air intake grille Air outlet grille
Air filter Control panel
Confirm that the power supply cord is connected to
a proper AC outlet.
Power supply cord
Operation indicator light(red)
Emergency switch
Remote control signal receiver

J 7 J

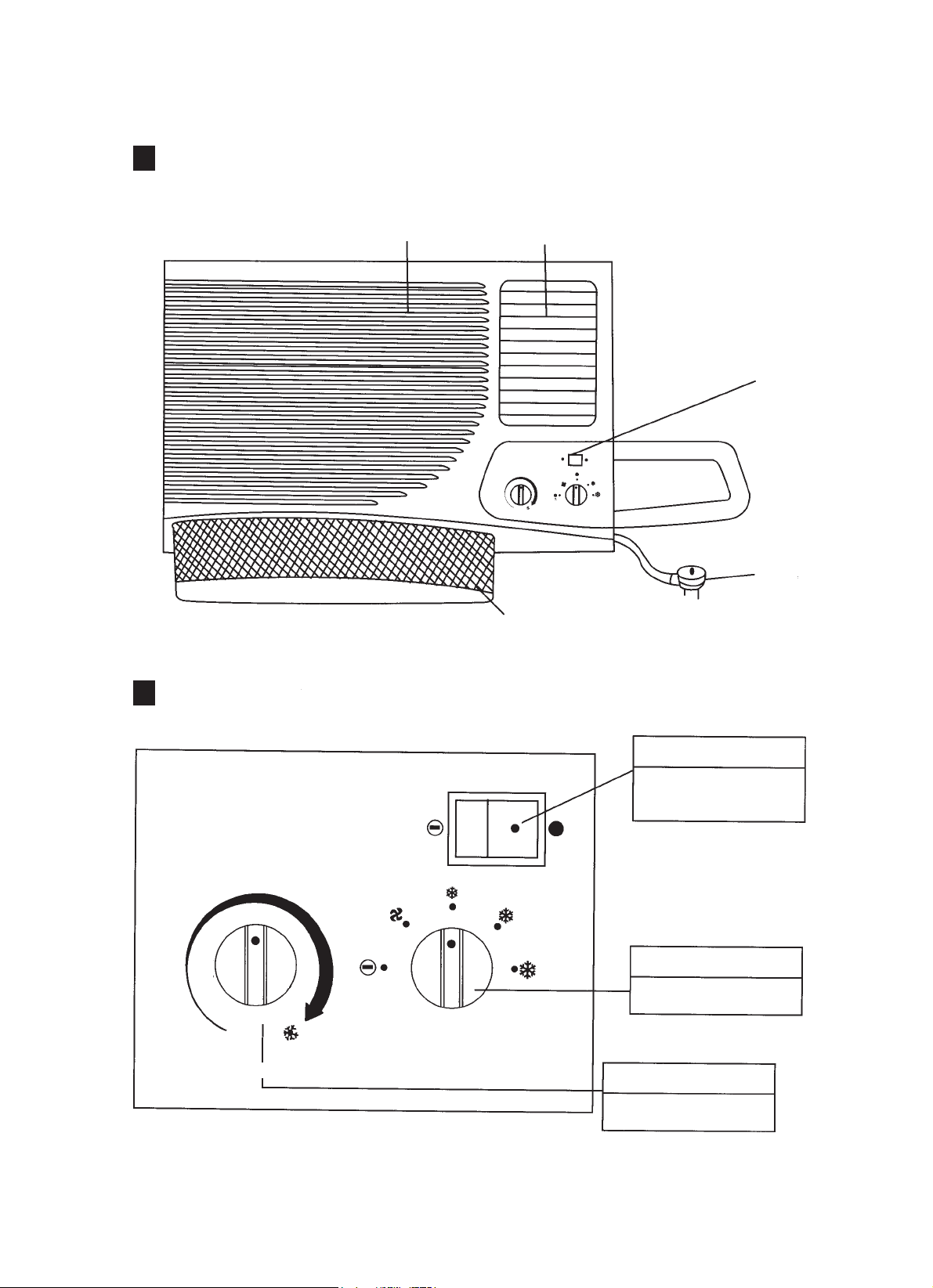

Product Component Identification of Mechanic control of Window type
air condition
Air intake grill
Control panel
Power supply cord
Air filter
Operating instructions
Wait 3 Minutes Before Restarting Unit
SWING
HIGH LOW
Thermostat
OPERATION
Auto swing Switch
Directs the cool air right and
left automatically.
Main switch
Controls room temperature
automatically
Air outlet grill
Control panel
01
0To select different function.
Thermostat
HIGH LOW
Thermostat

J 8 J
Air-conditioning Principle
Refrigeration principle
Accomplished by continuously circulating of refrigerant in a closed system. Low pres-
sure refrigerant gas from evaporator is pumped, increased its pressure, and discharges to
the condenser by compressor. When axial flow fan working, heat exchanging occurs
between the high pressure gas and outside air,it changes into liquid.Then passing through
the capillary tube,it’s pressure and temperature becomes lower and lower. Heat from
room air is transfer to the refrigerant liquid by centrifugal fan.

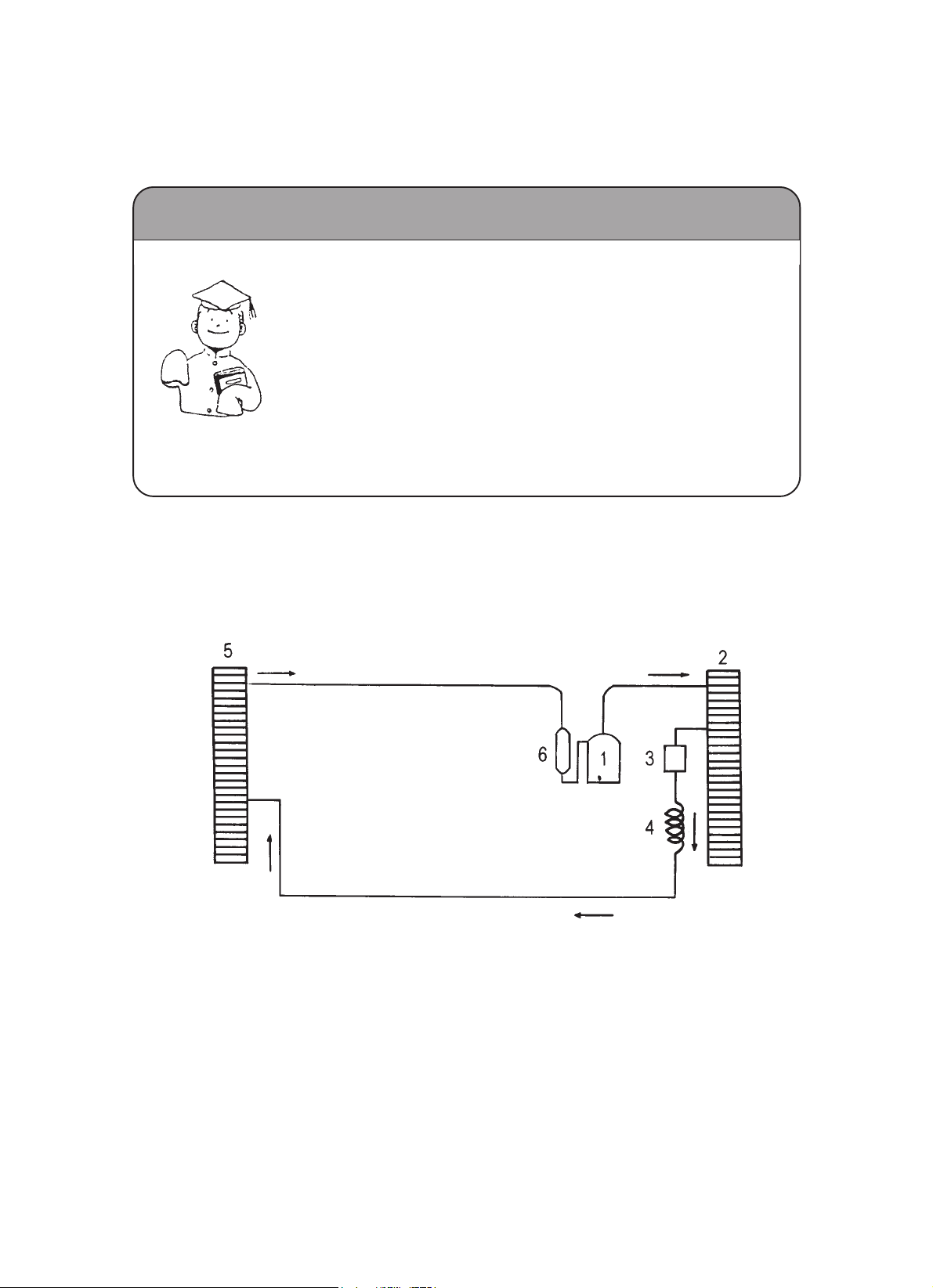

Schematic diagram for cool only type
1. Commpressor 2. Outdoor heat-exchanger 3. Filter 4. Capillary tube
5. Indoor heat-exchanger 6. Accumulator

J 9 J

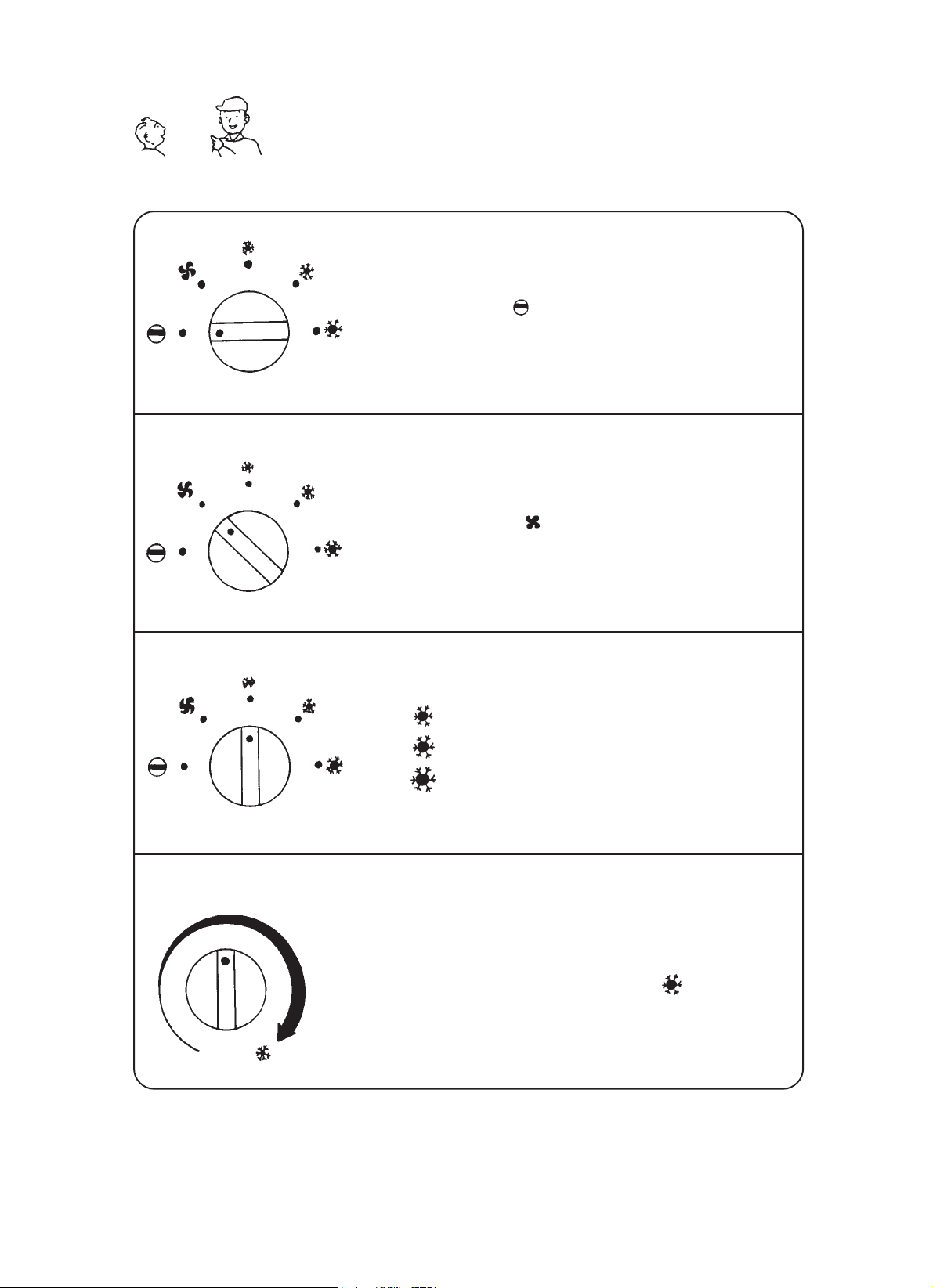

Mechanic control of Windows type air
conditioner operation procedure
Turn the main switch to position, air-conditioner stop work.
Turn the main switch to position, just operates the fan.
Turn the main switch to the position as follow:
Set the thermostat switch at a desired position.
If you want more cooling turn the knob nearest to .
Thermostat
Cooling with low fan.
Cooling with middle fan.
Cooling with high fan.
HIGH LOW

J 10 J
“ ” AUTO mode
“ ” COOL mode
“ ” DRY mode
“ ” FAN mode
“ ” HEAT mode
1 / 0
T-OFF
C
T-ON
SWING
MODE
FAN
LIGHT
SLEEP
AIR
C
AUTO
C
h
SWING
Remote control operation procedure
MODE button
press this button to change
the operation mode in or-
der of :
Note:
Cooling only type have no
mode.

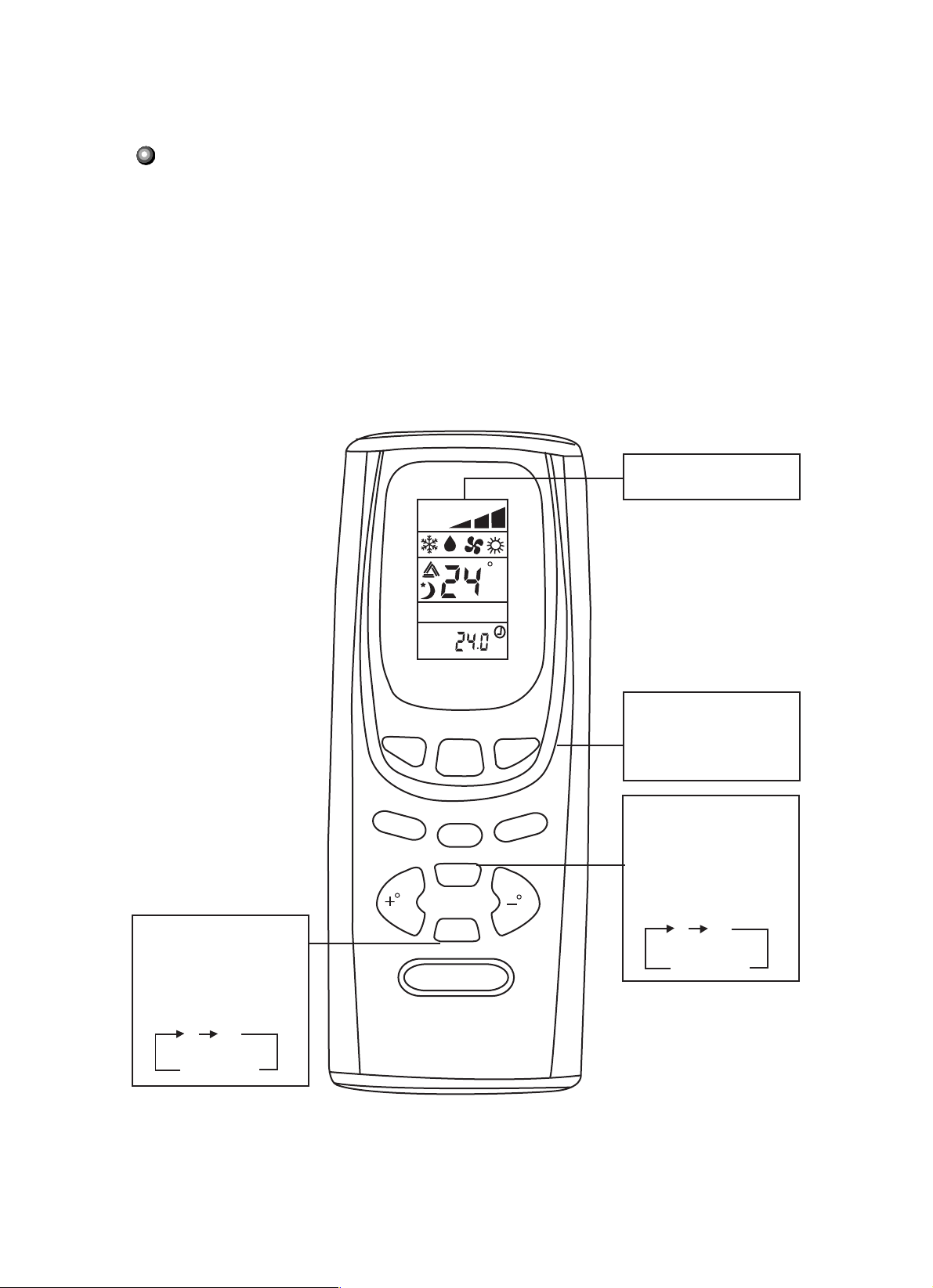

Name and Function-Remote control
Note:
Be sure that there are no obstrutions between reciever and remote controller.
The remote control signal can be received at the distance of up to about 8m.
Don’t drop or throw the remote control.
Don’t let any liquid in the remote controller and put the remote controller
directly under the sunlight or any place where is very hot.
SWING button
When it is pressed,the lou-
vers start to rotate auto-
matically and stop when
repressed.
TEMP. button
SET TEMP. increases 1by
pressing Hbutton once, and
decreases 1by pressing -but-
ton once.
At mode operation,SET TEMP.
can be selected from 16to30K
At mode operation,SET TEMP.
can be selected from 16to30.
At mode operation,SET TEMP.
can be selected from 16to30.
1/0 button
Press this button to turn on
or turn off the unit.
FAN button
Press this button to
change the fan speed of:

J 11 J
Name and Function-Remote control
AUTO
C
h
SWING
1 / 0
T-OFF
C
T-ON
SWING
MODE
FAN
LIGHT
SLEEP
AIR
C
T-OFF button
At operating, press T-OFF
button, set OFF TIME in
range of 0 to 24 hour to
stop the unit automatically.
Timer
cancellation
24h
0
T-ON button
At stopping, press T-ON
button, set ON TIME in
range of 0 to 24 hour at the
interral of 0.5h to start the
unit automatically.
024h
Timer
cancellation
SLEEP button
Press this button to set
SLEEP operation. And stop
when repressed.
Liquid crystal displayer.It
shows all set contents.
Note: 

This type of remote controller is a kind of new current controller.
Some buttons of the controller which are not available to this Air
conditioner will not be described below.


Operate on unmentioned buttons would not impact on the normal
use.

J 12 J

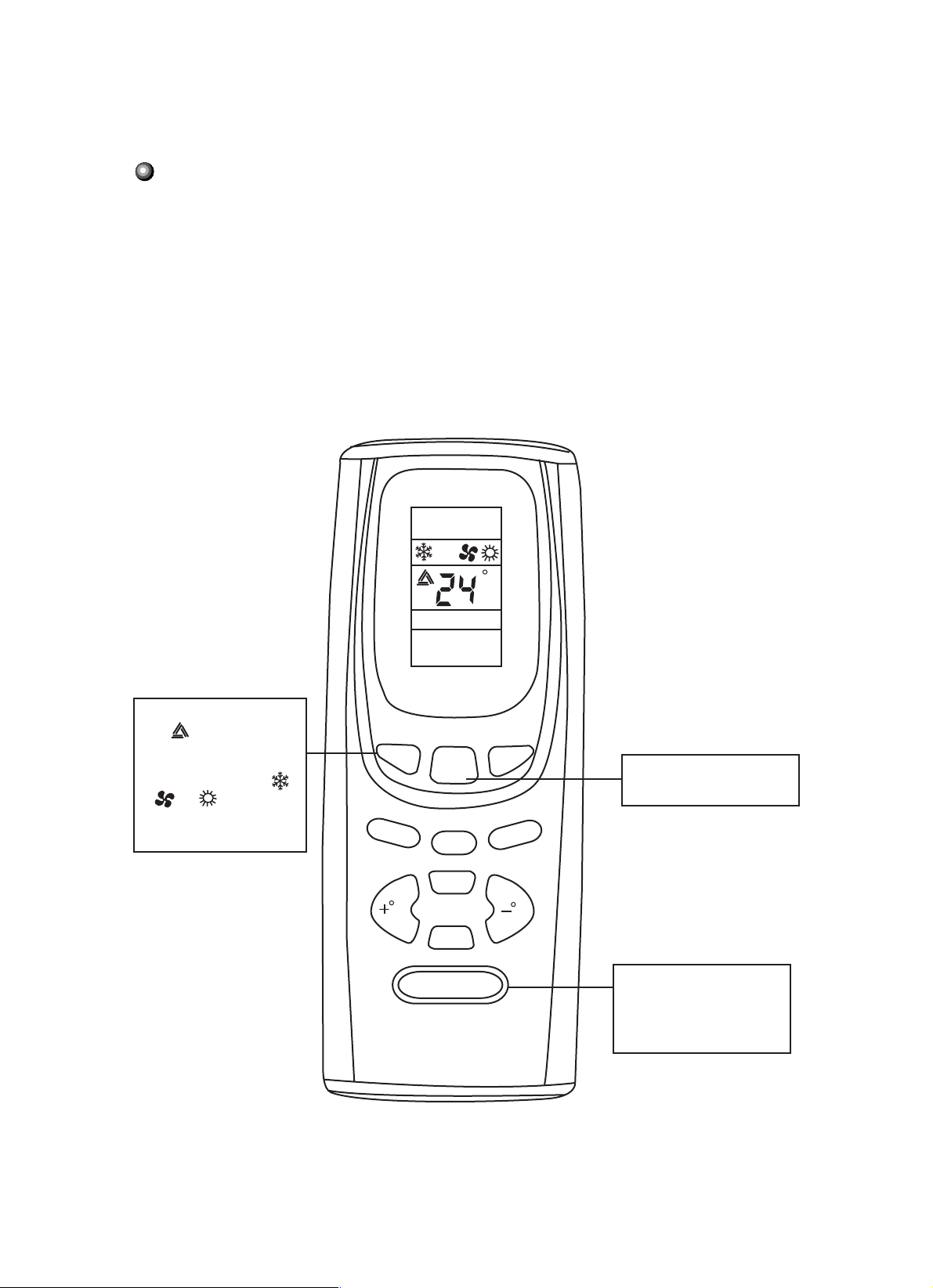

COOL mode operation procedure
1 / 0
T-OFF
C
T-ON
SWING
MODE
FAN
LIGHT
SLEEP
AIR
C
SWING
C


According to difference between room temp. and set temp., microcomputer can control
cooling on or not.


If room temp. is higher than set temp.,compressor runs at COOL mode.


If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.


SET TEMP. should be in range of 16

íç PMíç PM
íç PMíç PM
íç PM


1.Plug in, press 1/0 button,
then air conditioner is
turned on.
2.Press MODE button.
set operation
mode.
4.Press FAN button,set
fan speed.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress. 5.Press TEMP. button, set
suitable SET TEMP.

J 13 J

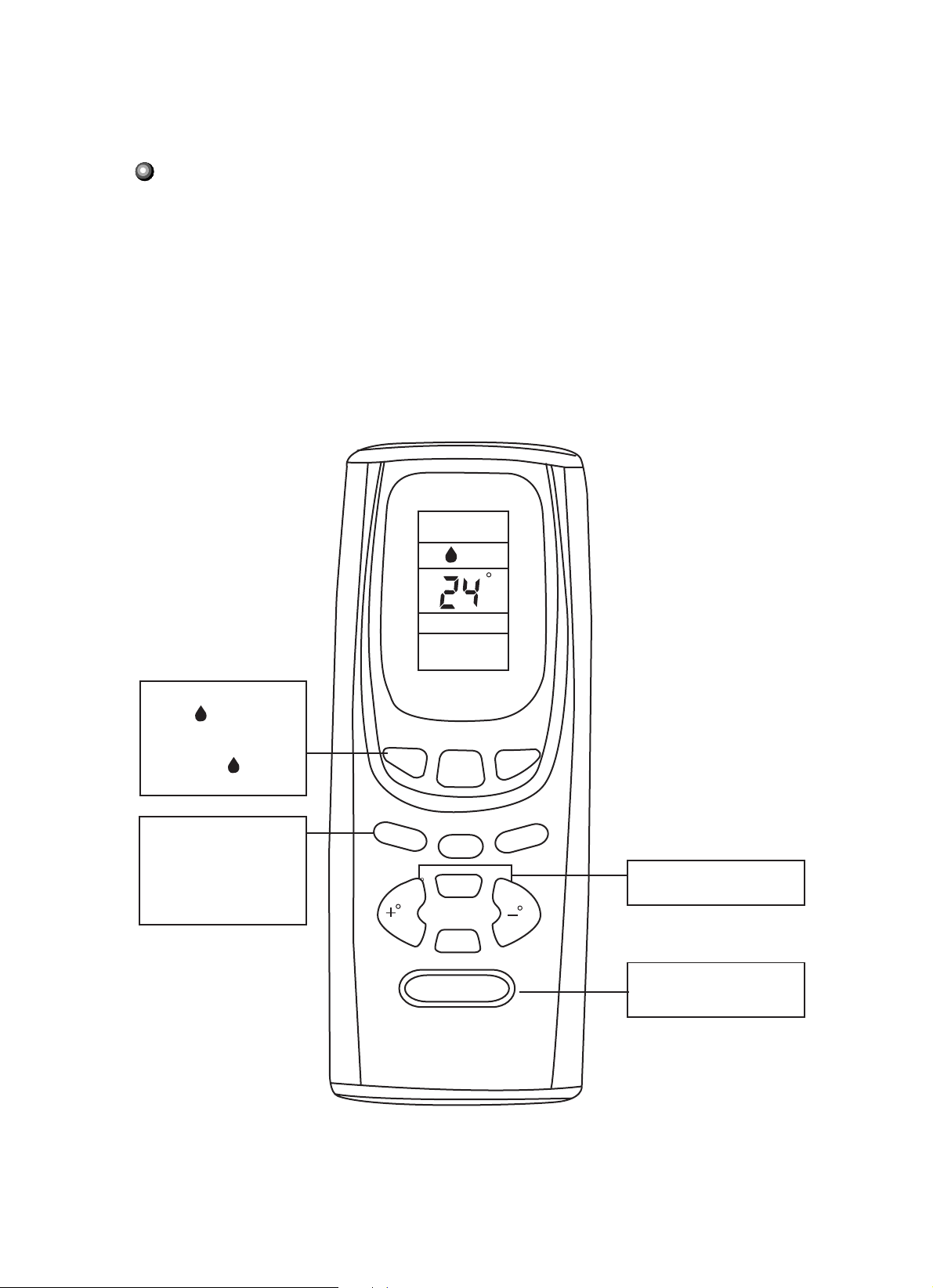

DRY mode operation procedure
1.Plug in, press 1/0 button,
then air conditioner is
turned on.
2.Press MODE button.
set “ ” operation
mode. Air speed
couldn’t be changed
after the “ ” being
set.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress it.
4.Press TEMP.button, set
suitable SET TEMP.


If room temp. is lower than set temp.,compressor, outdoor and indoor
fan motor stop.If room temp. is between 

2

of set temp., Air conditioner
is drying. If room temp. is higher than set temp. 2

, it’s at COOL mode.


SET TEMP.should be in range of 16

to 30

KK
KK
K
1 / 0
AUTO
T-OFF
C
T-ON
SWING
MODE
FAN
LIGHT
SLEEP
AIR
C
SWING
C

J 14 J
SLEEP mode operation procedure
5.Press TEMP. button, set
suitable SET TEMP.
2.Press MODE button.
set or op-
eration mode.
3.Press SWING button,
the louvers start to ro-
tate automatically,
and stop when repress.
4.Press FAN button, set
fan speed.


As the unit is cooling or drying ,if SLEEP operation is set, SET TEMP.
would increase 1

in 1 hour and 2

in 2 hours.
1 / 0
T-OFF
C
T-ON
SWING
MODE
FAN
LIGHT
SLEEP
AIR
C
SWING
C
1.Plug in, press 1/0
button, then air condi-
tioner is turned on.
6.SLEEP button
Press it to set SLEEP
operation.

J 15 J
AUTO mode operation procedure
1.Plug in, Press 1/0 button,
then air conditioner is
turned on.


Under Auto mode operation, standard SET TEMP. is 25

for COOL
mode, fan speed can be changeable.


 If room temp. is in range of 23

to 26

, air conditioner is at FAN mode.


If room temp. is higher than 26

, it’s at COOL mode.
1 / 0
AUTO
T-OFF
C
T-ON
SWING
MODE
FAN
LIGHT
SLEEP
AIR
C
C
Press FAN button, set fan
speed.
2.Press MODE button,
set operation mode,
According to room
temp., microcomputer
can automatically set 
operation
mode, so as for best
effect.

J 16 J
TIMER mode operation procedure
1 / 0
T-OFF
C
T-ON
SWING
MODE
FAN
LIGHT
SLEEP
AIR
C
h
C
T-ON button
At stopping, press T-ON
button, set ON TIME in
range of 0 to 24 hour to
start the unit automati-
cally.
Timer
cancellation
24h
0
T-OFF button
At operating, press T-OFF
button, set OFF TIME in
range of 0 to 24 hour to
stop the unit automatica-
lly.
Timer
cancellation
24h
0

J 17 J
How to insert batteries
NOTE:


 Don’t confuse the new
and worn or different
types of batteries.


 Remove batteries when
the remote controller is
not in use for a
longtime.


 The remote control sig-
nal can be received at
the distance of up to
about 8m.


 The lifetime of the bat-
teries is about one year.


 The remote controller
should be placed about
1m or more away from
the TV. or any other
electric appliances.



Bad batteries are for-
bidden.
1.Remove the cover from the
back of the remote control.
2.Insert the two batteries (Two
AAA dry - cell batteries).
3.Re - attach the cover.
Remove the
cover.
Re - attach
the cover.
Insert the 7# batteries.

J 18 J

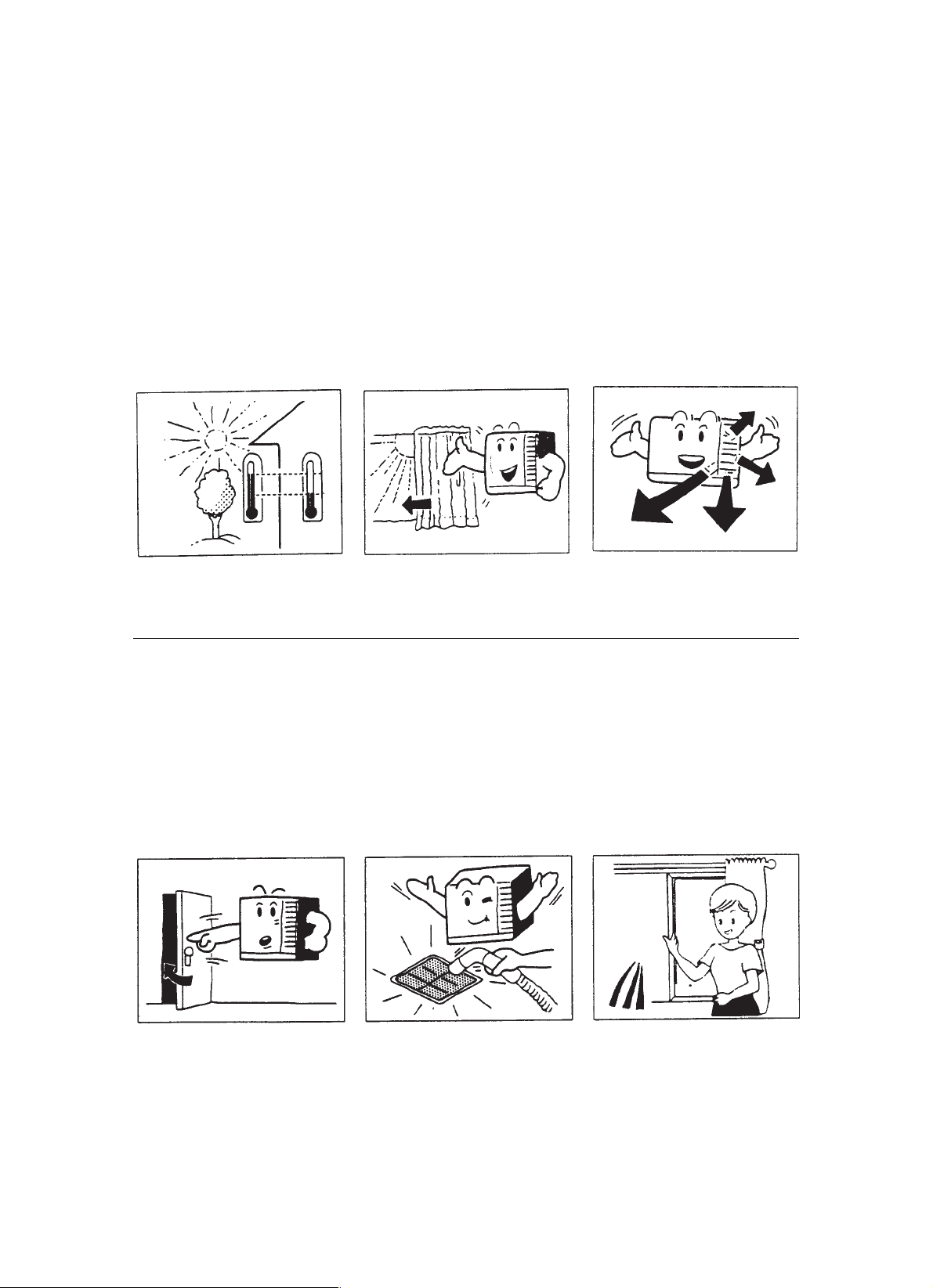

Operation Tips
Operation for comfort and economy
Do not overcool the room
temperature, This is not good for
health and waste electricity.
Keep the room, Do not let sun-
shine enter the room directly
when the air condition is in
operation.
Keep blind or curtains closed,
Adjust the vertical and horizontal
airflow direction to ensure a uni-
form temperature in the room.
Make sure that the doors and windows
are shut tightly.Avoid opening doors
and windows as much as possible to
keep the cool air in the room.
Clean the air filter regularly.
Blackages in the air filter re-
duce dehumidifying effects.
Clean at least once every two
weeks.
Ventilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.

J 19 J
Emergency run operation procedure
If wireless remote controller is lost, open the surface panel and operate as following:
Note:
When operating emergency switch, we should use something rigid and long, with its size less than 2.5mm in
diameter. Exert properly to avoid damage.
Emergency switch operation
Emergency switch
At stopping, press AUTO
button, start the air con-
ditioner at AUTO mode
operation.
* According to room
temp. change, microcom-
puter can automatically
set COOL or FAN opera-
tion mode, so as for best
effect.
At operation, press
AUTO button, stop the air
conditioner.
* Air conditioner stop
Air flow direction adjustment procedure
1.Vertical air cooling direction 2. Horizontal air direction
When the cooling air is desired to be directed up
and down, move the horizontal vanes up or down
by hand.
AUTO swing
Make the cooling air right and left forcedly by swing
the vertical vanes of the auto swing mechanism.
start
stop
Horizontal vanes
Swing vanes
Pull to this direction,the swing vanes sway
to two side direction.
Pull to this direction, the swing vanes
sway at a certain angle.

J 20 J
Caution
Do not use the air conditioner
for purposes other than cooling
the room.
Do not use the air conditioner
for other purposes such as dry-
ing clothes, preserving foods,
keeping animals, or cultivating
vegetables.
Do not block the air intake and
outlet vents
This causes lowered perfor-
mance and irregular operation.
Do not insert sticks or other ob-
jects into these vents as it is dan-
gerous to touch the electric com-
ponents and the fan.
Select the most appropriate
temperature.
Take care to adjust the temperature
to suit the conditions.
Rooms occupied by infants,the
elderly, or the sick should be kept at
an appropriate temperature.
Do not use heating apparatuses in the
vicinity.The air conditioner’s plas-
tic parts melt if exposed to exces-
sive heat.
Avoid exposing the body directly to
a continuous unidirectional air flow
for long periods.
This is not reconmmended for health
reason.
Always wait at least 3 minutes before switching the
air conditioner on again after you have switched it
off during cooling.
Always wait
at least 3 minutes
1) The plug must be accessible after the appliance is positioned.
2) Do not use this appliance in the laundry.
3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard.
Do not pull out the power cord.
Damage to the cord may result in
serious electrical shocks.
