Service Manual
Technical Information 1

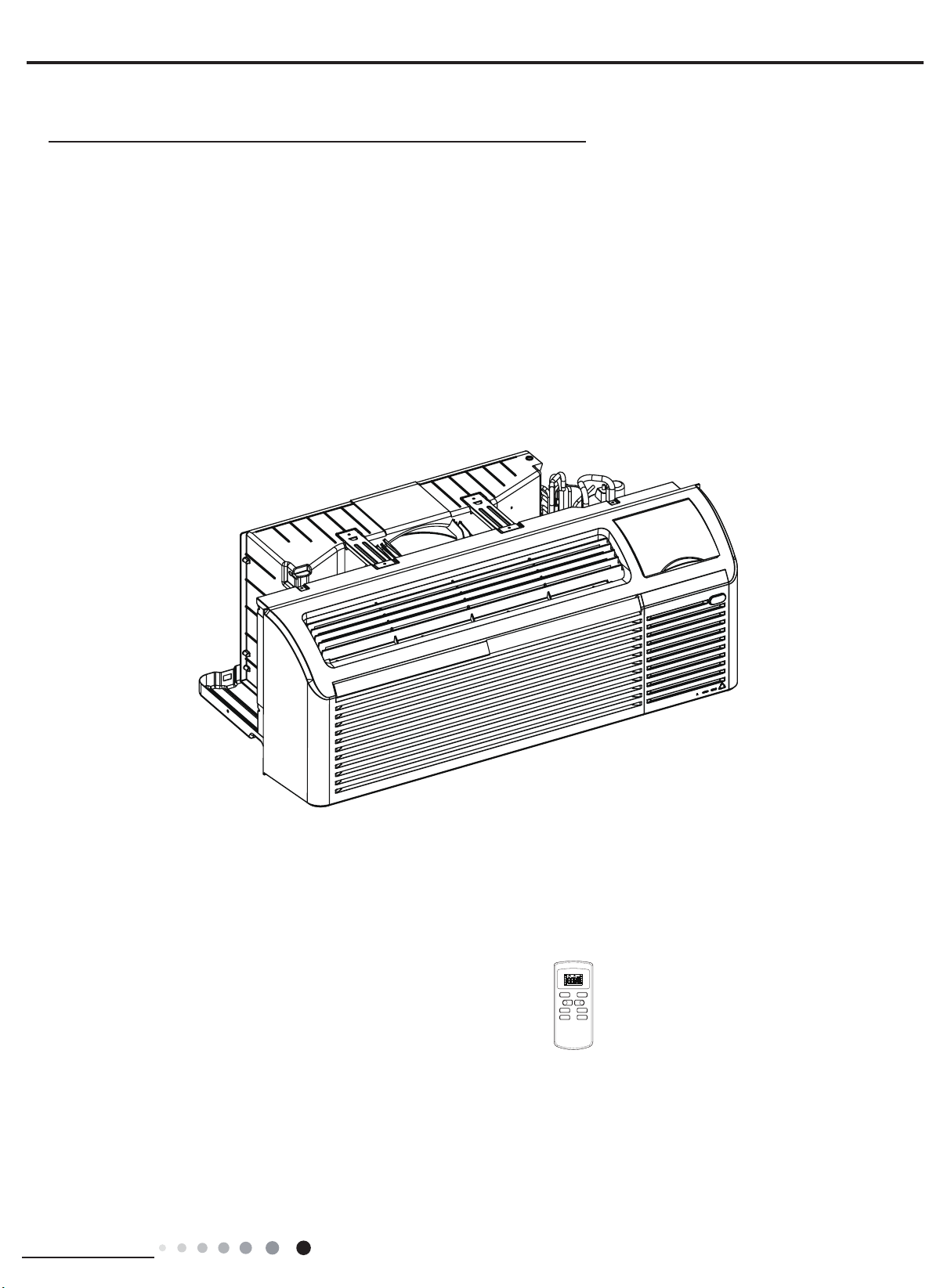

1. Summary
Part Ⅰ:Technical Information
Models
ETAC2-07HC230VA-A
ETAC2-07HP230VA-A
ETAC2-09HC230VA-A
ETAC2-09HP230VA-A
ETAC2-12HC230VA-A
ETAC2-12HP230VA-A
ETAC2-15HC230VA-A
ETAC2-15HP230VA-A
Remote Controller
YX1FF
ON/OFF MODE
FAN SWING
SLEEP TIMER
+
-
AUTO
COOL
DRY
FAN
HEAT
T-ON T-OFF
SWING
SLEEP
LOCK
SPEED
ETAC2-07HC265VA-A
ETAC2-07HP265VA-A
ETAC2-09HC265VA-A
ETAC2-09HP265VA-A
ETAC2-12HC265VA-A
ETAC2-12HP265VA-A
ETAC2-15HC265VA-A
ETAC2-15HP265VA-A

Service Manual
Technical Information
2
Parameter Unit Value
Model ETAC2-07HP230VA-A ETAC2-07HC230VA-A
Product Code CC060045000_L45468 CC060044900_L45468
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 1 1
Cooling Capacity Btu/h 7000/7200 7000/7200
Heating Capacity Btu/h 5800/6000 /
Cooling Power Input W 535/550 535/550
Heating Power Input W 470/485 /
Electric Heating Power Input W 2820/3450 2820/3450
Cooling Power Current A 2.9/2.7 2.9/2.7
Heating Power Current A 2.6/2.4 /
Rated Input W 774 774
Rated Current A 3.8 3.8
EER (Btu/h)/W 13.0/13.0 13.0/13.0
COP W/W 3.6/3.6 /
Air Flow Volume(H/M/L) CFM 312/282/- 312/282/-
Dehumidifying Volume Pint/h 1.69 1.69
Application Area yd211.96-19.14 11.96-19.14
Permissible Excessive Operating Pressure for the
Discharge Side MPa 4.3 4.3
Permissible Excessive Operating Pressure for the
Suction Side MPa 2.5 2.5
Maximum Allowable Pressure MPa 4.3 4.3
Throttling Method Capillary Capillary
Defrosting Method / /
Climate Type T1 T1
Isolation I I
Moisture Protection IP24 IP24
Dimension (WXHXD) inch 42X16X21 1/2 42X16X21 1/2
Dimension of Carton Box (LXWXH) inch 45X25 5/16X17 7/8 45X25 5/16X17 7/8
Dimension of Package (LXWXH) inch 45X25 3/8X18 1/2 45X25 3/8X18 1/2
Net Weight lb 112.5 48.0
Gross Weight lb 132.3 57.0
Refrigerant / R410A R410A
Refrigerant Charge oz 33.9 22.9
Indoor Side
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 55/72X27 35/44 Φ4 55/72X27 35/44
Cooling Speed r/min 990/880 990/880
Heating Speed r/min 990/880 990/880
Fan Motor Power Output W 18 18
Fan Motor RLA A 0.10 0.10
Fan Motor Capacitor μF 1 1
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Evaporator Pipe Diameter inch Φ8/29 Φ8/29
Evaporator Coil Length (LXDXW) inch 27 13/25X9 55/72X1 1/2 27 13/25X9 55/72X1 1/2
Swing Motor Model / /
Swing Motor Power Output W / /
Fuse Current A 3.15 3.15
Set Temperature Range 61~86 61~86
Sound Pressure Level (H/M/L) dB (A) 50/-/48 50/-/48
Sound Power Level (H/M/L) dB (A) 60/-/58 60/-/58
2. Specications

Service Manual
Technical Information 3
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Outdoor
Side
Compressor Trademark RECHI RECHI
Compressor Manufacturer RECHI PRECISION CO.,LTD RECHI PRECISION CO.,LTD
Compressor Model 39B142GD&5DKZ 39B142GD&5DKZ
Compressor Oil NMOC Ze-Gles RB68EP NMOC Ze-Gles RB68EP
Compressor Type Rotary Rotary
Compressor LRA. A 13.00 13.00
Compressor RLA A 2.50 2.50
Fan Diameter inch Φ13 3/4 Φ13 3/4
Fan Motor Speed rpm 1340/1120 1340/1120
Fan Motor Power Output W 20 20
Fan Motor RLA A 0.21 0.21
Fan Motor Capacitor μF 2 2
Outdoor Unit Air Flow Volume CFM 471 470.8
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Condenser Pipe Diameter inch Φ8/29 Φ12/61
Condenser Coil Length (LXDXW) inch 30 7/10X13 1/2X1 1/2 30 7/10X13 1/2X1 9/26
Cooling Operation Ambient Temperature Range ºF 55~83 55-83
Heating Operation Ambient Temperature Range ºF ≤75 ≤75
Sound Pressure Level (H/M/L) dB (A) / /
Sound Power Level (H/M/L) dB (A) / /
Note: The connection pipe applies metric diameter.

Service Manual
Technical Information
4
Parameter Unit Value
Model ETAC2-09HC230VA-A ETAC2-09HP230VA-A
Product Code CC060045100_L45468 CC060045200_L45468
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 1 1
Cooling Capacity Btu/h 9200/9400 9200/9400
Heating Capacity Btu/h / 8100/8300
Cooling Power Input W 760/775 760/775
Heating Power Input W / 675/695
Electric Heating Power Input W 2820/3450 2820/3450
Cooling Power Current A 3.9/3.7 3.9/3.7
Heating Power Current A / /
Rated Input W 951 951
Rated Current A 5.9 5.9
EER (Btu/h)/W 12.1/12.1 12.1/12.1
COP W/W / 3.5
Air Flow Volume(H/M/L) CFM 329/294/- 329/294/-
Dehumidifying Volume Pint/h 2.11 2.113
Application Area yd212-18 12-18
Permissible Excessive Operating Pressure for the
Discharge Side MPa 4.3 4.3
Permissible Excessive Operating Pressure for the
Suction Side MPa 2.5 2.5
Maximum Allowable Pressure MPa 4.3 4.3
Throttling Method Capillary Capillary
Defrosting Method / /
Climate Type T1 T1
Isolation I I
Moisture Protection IP24 IP24
Dimension (WXHXD) inch 42X16X21 1/2 42X16X21 1/2
Dimension of Carton Box (LXWXH) inch 45X25 5/16X17 7/8 45X25 5/16X17 7/8
Dimension of Package (LXWXH) inch 45X25 3/8X18 1/2 45X25 3/8X18 1/2
Net Weight lb 52.0 54.0
Gross Weight lb 61.0 63.0
Refrigerant / R410A R410A
Refrigerant Charge oz 23.6 33.9
Indoor Side
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 55/72X27 35/44 Φ4 55/72X27 35/44
Cooling Speed r/min 1060/940 1060/940
Heating Speed r/min 1060/940 1060/940
Fan Motor Power Output W 21 21
Fan Motor RLA A 0.20 0.20
Fan Motor Capacitor μF 1.5 1.5
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Evaporator Pipe Diameter inch Φ8/29 Φ8/29
Evaporator Coil Length (LXDXW) inch 27 13/25X9 55/72X1 1/2 27 13/25X9 55/72X1 1/2
Swing Motor Model / /
Swing Motor Power Output W / /
Fuse Current A 3.15 3.15
Set Temperature Range 61-86 61-86
Sound Pressure Level (H/M/L) dB (A) 52/-/50 52/-/50
Sound Power Level (H/M/L) dB (A) 62/-/60 62/-/60

Service Manual
Technical Information 5
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Outdoor
Side
Compressor Trademark RECHI RECHI
Compressor Manufacturer RECHI PRECISION CO.,LTD RECHI PRECISION CO.,LTD
Compressor Model 44B202GK&FEKD 44B202GK&FEKD
Compressor Oil NMOC Ze-Gles RB68EP NMOC Ze-Gles RB68EP
Compressor Type Rotary Rotary
Compressor LRA. A 19.50 19.50
Compressor RLA A 3.50 3.50
Fan Diameter inch Φ13 3/4 Φ13 3/4
Fan Motor Speed rpm 1340/1120 1340/1120
Fan Motor Power Output W 20 20
Fan Motor RLA A 0.21 0.21
Fan Motor Capacitor μF 2 2
Outdoor Unit Air Flow Volume CFM 470.8 470.8
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Condenser Pipe Diameter inch Φ12/61 Φ8/29
Condenser Coil Length (LXDXW) inch 30 7/10X13 1/2X1 9/26 30 7/10X13 1/2X1 1/2
Cooling Operation Ambient Temperature Range ºF 55-83 55-83
Heating Operation Ambient Temperature Range ºF ≤75 ≤75
Sound Pressure Level (H/M/L) dB (A) 63/61/59 63/61/59
Sound Power Level (H/M/L) dB (A) 73/71/69 73/71/69
Note: The connection pipe applies metric diameter.

Service Manual
Technical Information
6
Parameter Unit Value
Model ETAC2-12HC230VA-A ETAC2-12HP230VA-A
Product Code CC060045300_L45468 CC060045400_L45468
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 1 1
Cooling Capacity Btu/h 11600/11800 11600/11800
Heating Capacity Btu/h / 10400/10600
Cooling Power Input W 1000/1015 1000/1015
Heating Power Input W / 895/910
Electric Heating Power Input W 4089/5000 4089/5000
Cooling Power Current A 5.1/4.9 5.1/4.9
Heating Power Current A / 4.7/4.2
Rated Input W 1306 1306
Rated Current A 7.10 7.10
EER (Btu/h)/W 11.6/11.6 11.6/11.6
COP W/W / 3.4/3.4
Air Flow Volume(H/M/L) CFM 341/306/- 341/306/-
Dehumidifying Volume Pint/h 2.747 2.747
Application Area yd216-24 16-24
Permissible Excessive Operating Pressure for the
Discharge Side MPa 4.3 4.3
Permissible Excessive Operating Pressure for the
Suction Side MPa 2.5 2.5
Maximum Allowable Pressure MPa 4.3 4.3
Throttling Method Capillary Capillary
Defrosting Method / /
Climate Type T1 T1
Isolation I I
Moisture Protection IP24 IP24
Dimension (WXHXD) inch 42X16X21 1/2 42X16X21 1/2
Dimension of Carton Box (LXWXH) inch 45X25 5/16X17 7/8 45X25 5/16X17 7/8
Dimension of Package (LXWXH) inch 45X25 3/8X18 1/2 45X25 3/8X18 1/2
Net Weight lb 54.0 55.0
Gross Weight lb 63.0 64.0
Refrigerant / R410A R410A
Refrigerant Charge oz 35.27 35.27
Indoor Side
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 55/72X27 35/44 Φ4 55/72X27 35/44
Cooling Speed r/min 1130/970 1130/970
Heating Speed r/min 1130/970 1130/970
Fan Motor Power Output W 23 23
Fan Motor RLA A 0.20 0.20
Fan Motor Capacitor μF 1 1
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Evaporator Pipe Diameter inch Φ8/29 Φ8/29
Evaporator Coil Length (LXDXW) inch 27 13/25X9 19/36X1 1/2 27 13/25X9 19/36X1 1/2
Swing Motor Model / /
Swing Motor Power Output W / /
Fuse Current A 3.15 3.15
Set Temperature Range 61-86 61-86
Sound Pressure Level (H/M/L) dB (A) 53/-/50 53/-/50
Sound Power Level (H/M/L) dB (A) 63/-/60 63/-/60

Service Manual
Technical Information 7
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Outdoor
Side
Compressor Trademark RECHI RECHI
Compressor Manufacturer RECHI PRECISION CO.,LTD RECHI PRECISION CO.,LTD
Compressor Model 44B262UK&FEKD 44B262UK&FEKD
Compressor Oil NMOC Ze-Gles RB68EP or
equivalent
NMOC Ze-Gles RB68EP or
equivalent
Compressor Type Rotary Rotary
Compressor LRA. A 21.50 21.50
Compressor RLA A 4.70 4.70
Fan Diameter inch Φ13 3/4 Φ13 3/4
Fan Motor Speed rpm 1550/1390 1550/1390
Fan Motor Power Output W 65 65
Fan Motor RLA A 0.52 0.52
Fan Motor Capacitor μF 2.5 2.5
Outdoor Unit Air Flow Volume CFM 564.96 564.96
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Condenser Pipe Diameter inch Φ8/29 Φ8/29
Condenser Coil Length (LXDXW) inch 30 7/10X13 1/2X1 1/2 30 7/10X13 1/2X1 1/2
Cooling Operation Ambient Temperature Range ºF 55-83 55-83
Heating Operation Ambient Temperature Range ºF ≤75 ≤75
Sound Pressure Level (H/M/L) dB (A) 63/61/59 63/61/59
Sound Power Level (H/M/L) dB (A) 73/71/69 73/71/69
Note: The connection pipe applies metric diameter.

Service Manual
Technical Information
8
Parameter Unit Value
Model ETAC2-15HC230VA-A ETAC2-15HP230VA-A
Product Code CC060045500_L45468 CC060045600_L45468
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 1 1
Cooling Capacity Btu/h 14200/14500 14200/14500
Heating Capacity Btu/h / 13000/13300
Cooling Power Input W 1365/1390 1365/1390
Heating Power Input W / 1225/1255
Electric Heating Power Input W 4089/5000 4089/5000
Cooling Power Current A 6.7/6.2 6.7/6.2
Heating Power Current A / 6.7/6.2
Rated Input W 1860 2162
Rated Current A 10.20 12.00
EER (Btu/h)/W 10.4/10.4 10.4/10.4
COP W/W / 3.1/3.1
Air Flow Volume(H/M/L) CFM 341/306/- 341/306/-
Dehumidifying Volume Pint/h 3.17 3.17
Application Area yd221-31 21-31
Permissible Excessive Operating Pressure for the
Discharge Side MPa 4.3 4.3
Permissible Excessive Operating Pressure for the
Suction Side MPa 2.5 2.5
Maximum Allowable Pressure MPa 4.3 4.3
Throttling Method Capillary Capillary
Defrosting Method / /
Climate Type T1 T1
Isolation I I
Moisture Protection IP24 IP24
Dimension (WXHXD) inch 42X16X21 1/2 42X16X21 1/2
Dimension of Carton Box (LXWXH) inch 45X25 5/16X17 7/8 45X25 5/16X17 7/8
Dimension of Package (LXWXH) inch 45X25 3/8X18 1/2 45X25 3/8X18 1/2
Net Weight lb 54.5 56.0
Gross Weight lb 63.5 65.0
Refrigerant / R410A R410A
Refrigerant Charge oz 35.27 38.80
Indoor Side
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 55/72X27 35/44 Φ4 55/72X27 35/44
Cooling Speed r/min 1130/970 1130/970
Heating Speed r/min 1130/970 1130/970
Fan Motor Power Output W 23 23
Fan Motor RLA A 0.20 0.20
Fan Motor Capacitor μF 1 1
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Evaporator Pipe Diameter inch Φ8/29 Φ8/29
Evaporator Coil Length (LXDXW) inch 27 13/25X9 19/36X1 1/2 27 13/25X9 19/36X1 1/2
Swing Motor Model / /
Swing Motor Power Output W / /
Fuse Current A 3.15 3.15
Set Temperature Range 61-86 61-86
Sound Pressure Level (H/M/L) dB (A) 54/-/51 54/-/51
Sound Power Level (H/M/L) dB (A) 64/-/61 64/-/61

Service Manual
Technical Information 9
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Outdoor
Side
Compressor Trademark RECHI RECHI
Compressor Manufacturer RECHI PRECISION CO.,LTD RECHI PRECISION CO.,LTD
Compressor Model 44B342UL-FEKD 44B342UL-FEKD
Compressor Oil NMOC Ze-Gles RB68EP or
equivalent
NMOC Ze-Gles RB68EP or
equivalent
Compressor Type Rotary Rotary
Compressor LRA. A 28.90 28.90
Compressor RLA A 5.90 5.90
Fan Diameter inch Φ13 3/4 Φ13 3/4
Fan Motor Speed rpm 1550/1390 1600/1400
Fan Motor Power Output W 65 65
Fan Motor RLA A 0.52 0.52
Fan Motor Capacitor μF 2.5 2.5
Outdoor Unit Air Flow Volume CFM 564.96 588.5
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Condenser Pipe Diameter inch Φ8/29 Φ8/29
Condenser Coil Length (LXDXW) inch 30 7/10X13 1/2X1 1/2 30 7/10X13 1/2X1 1/2
Cooling Operation Ambient Temperature Range ºF 55-83 55-83
Heating Operation Ambient Temperature Range ºF ≤75 ≤75
Sound Pressure Level (H/M/L) dB (A) 63/61/59 63/61/59
Sound Power Level (H/M/L) dB (A) 73/71/69 73/71/69
Note: The connection pipe applies metric diameter.

Service Manual
Technical Information
10
Parameter Unit Value
Model ETAC2-07HC265VA-A ETAC2-07HP265VA-A
Product Code CC060045700_L45468 CC060045800_L45468
Power Supply
Rated Voltage V~ 265 265
Rated Frequency Hz 60 60
Phases 1 1
Cooling Capacity Btu/h 7200 7200
Heating Capacity Btu/h / 6000
Cooling Power Input W 550 550
Heating Power Input W / 485
Electric Heating Power Input W 3450 3450
Cooling Power Current A 2.40 2.40
Heating Power Current A / 2.2
Rated Input W 774 774
Rated Current A 2.9 2.9
EER (Btu/h)/W 13.0 13.0
COP W/W / 3.6
Air Flow Volume(H/M/L) CFM 312/282/- 312/282/-
Dehumidifying Volume Pint/h 1.691 1.691
Application Area yd211.96-19.14 11.96-19.14
Permissible Excessive Operating Pressure for the
Discharge Side MPa 4.3 4.3
Permissible Excessive Operating Pressure for the
Suction Side MPa 2.5 2.5
Maximum Allowable Pressure MPa 4.3 4.3
Throttling Method Capillary Capillary
Defrosting Method / /
Climate Type T1 T1
Isolation I I
Moisture Protection IP24 IP24
Dimension (WXHXD) inch 42X16X21 1/2 42X16X21 1/2
Dimension of Carton Box (LXWXH) inch 45X25 5/16X17 7/8 45X25 5/16X17 7/8
Dimension of Package (LXWXH) inch 45X25 3/8X18 1/2 45X25 3/8X18 1/2
Net Weight lb 48.5 50.5
Gross Weight lb 57.5 59.5
Refrigerant / R410A R410A
Refrigerant Charge oz 22.9 33.9
Indoor Side
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 55/72X27 35/44 Φ4 55/72X27 35/44
Cooling Speed r/min 1000/890 1000/890
Heating Speed r/min 1000/890 1000/890
Fan Motor Power Output W 10 10
Fan Motor RLA A 0.11 0.11
Fan Motor Capacitor μF 1 1
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Evaporator Pipe Diameter inch Φ8/29 Φ8/29
Evaporator Coil Length (LXDXW) inch 27 13/25X9 55/72X1 1/2 27 13/25X9 55/72X1 1/2
Swing Motor Model / /
Swing Motor Power Output W / /
Fuse Current A 3.15 3.15
Set Temperature Range 61-86 61-86
Sound Pressure Level (H/M/L) dB (A) 50/-/48 50/-/48
Sound Power Level (H/M/L) dB (A) 60/-/58 60/-/58

Service Manual
Technical Information 11
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Outdoor
Side
Compressor Trademark RECHI RECHI
Compressor Manufacturer RECHI PRECISION CO.,LTD RECHI PRECISION CO.,LTD
Compressor Model 39B147GD&5DKZ 39B147GD&5DKZ
Compressor Oil NMOC Ze-Gles RB68EP NMOC Ze-Gles RB68EP
Compressor Type Rotary Rotary
Compressor LRA. A 12.50 12.50
Compressor RLA A 2.20 2.20
Fan Diameter inch Φ13 3/4 Φ13 3/4
Fan Motor Speed rpm 1340/1120 1340/1120
Fan Motor Power Output W 20 20
Fan Motor RLA A 0.16 0.16
Fan Motor Capacitor μF 1.5 1.5
Outdoor Unit Air Flow Volume CFM 470.8 470.8
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Condenser Pipe Diameter inch Φ12/61 Φ8/29
Condenser Coil Length (LXDXW) inch 30 7/10X13 1/2X1 9/26 30 7/10X13 1/2X1 1/2
Cooling Operation Ambient Temperature Range ºF 55-83 55-83
Heating Operation Ambient Temperature Range ºF ≤75 ≤75
Sound Pressure Level (H/M/L) dB (A) 63/61/59 63/61/59
Sound Power Level (H/M/L) dB (A) 73/71/69 73/71/69
Note: The connection pipe applies metric diameter.

Service Manual
Technical Information
12
Parameter Unit Value
Model ETAC2-09HC265VA-A ETAC2-09HP265VA-A
Product Code CC060045900_L45468 CC060046000_L45468
Power Supply
Rated Voltage V~ 265 265
Rated Frequency Hz 60 60
Phases 1 1
Cooling Capacity Btu/h 9400 9400
Heating Capacity Btu/h / 8300
Cooling Power Input W 775 775
Heating Power Input W / 695
Electric Heating Power Input W 3450 3450
Cooling Power Current A 3.30 3.30
Heating Power Current A / /
Rated Input W 951 951
Rated Current A 4.2 4.2
EER (Btu/h)/W 12.1 12.1
COP W/W / 3.5
Air Flow Volume(H/M/L) CFM 329/294/- 329/294/-
Dehumidifying Volume Pint/h 2.113 2.113
Application Area yd212-18 12-18
Permissible Excessive Operating Pressure for the
Discharge Side MPa 4.3 4.3
Permissible Excessive Operating Pressure for the
Suction Side MPa 2.5 2.5
Maximum Allowable Pressure MPa 4.3 4.3
Throttling Method Capillary Capillary
Defrosting Method / /
Climate Type T1 T1
Isolation I I
Moisture Protection IP24 IP24
Dimension (WXHXD) inch 42X16X21 1/2 42X16X21 1/2
Dimension of Carton Box (LXWXH) inch 45X25 5/16X17 7/8 45X25 5/16X17 7/8
Dimension of Package (LXWXH) inch 45X25 3/8X18 1/2 45X25 3/8X18 1/2
Net Weight lb 52.0 54.0
Gross Weight lb 61.0 63.0
Refrigerant / R410A R410A
Refrigerant Charge oz 23.6 33.9
Indoor Side
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 55/72X27 35/44 Φ4 55/72X27 35/44
Cooling Speed r/min 1060/940 1060/940
Heating Speed r/min 1060/940 1060/940
Fan Motor Power Output W 21 21
Fan Motor RLA A 0.18 0.18
Fan Motor Capacitor μF 1.5 1.5
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Evaporator Pipe Diameter inch Φ8/29 Φ8/29
Evaporator Coil Length (LXDXW) inch 27 13/25X9 55/72X1 1/2 27 13/25X9 55/72X1 1/2
Swing Motor Model / /
Swing Motor Power Output W / /
Fuse Current A 3.15 3.15
Set Temperature Range 61-86 61-86
Sound Pressure Level (H/M/L) dB (A) 52/-/50 52/-/50
Sound Power Level (H/M/L) dB (A) 62/-/60 62/-/60

Service Manual
Technical Information 13
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Outdoor
Side
Compressor Trademark RECHI RECHI
Compressor Manufacturer RECHI PRECISION CO.,LTD RECHI PRECISION CO.,LTD
Compressor Model 44B207GK&FEKD 44B207GK&FEKD
Compressor Oil NMOC Ze-Gles RB68EP NMOC Ze-Gles RB68EP
Compressor Type Rotary Rotary
Compressor LRA. A 13.50 13.50
Compressor RLA A 3.00 3.00
Fan Diameter inch Φ13 3/4 Φ13 3/4
Fan Motor Speed rpm 1340/1120 1340/1120
Fan Motor Power Output W 20 20
Fan Motor RLA A 0.16 0.16
Fan Motor Capacitor μF 1.5 1.5
Outdoor Unit Air Flow Volume CFM 470.8 470.8
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Condenser Pipe Diameter inch Φ12/61 Φ8/29
Condenser Coil Length (LXDXW) inch 30 7/10X13 1/2X1 9/26 30 7/10X13 1/2X1 1/2
Cooling Operation Ambient Temperature Range ºF 55-83 55-83
Heating Operation Ambient Temperature Range ºF ≤75 ≤75
Sound Pressure Level (H/M/L) dB (A) 63/61/59 63/61/59
Sound Power Level (H/M/L) dB (A) 73/71/69 73/71/69
Note: The connection pipe applies metric diameter.

Service Manual
Technical Information
14
Parameter Unit Value
Model ETAC2-12HC265VA-A ETAC2-12HP265VA-A
Product Code CC060046100_L45468 CC060046200_L45468
Power Supply
Rated Voltage V~ 265 265
Rated Frequency Hz 60 60
Phases 1 1
Cooling Capacity Btu/h 11800 11800
Heating Capacity Btu/h / 10600
Cooling Power Input W 1015 1015
Heating Power Input W / 910
Electric Heating Power Input W 5000 5000
Cooling Power Current A 4.2 4.2
Heating Power Current A / 3.7
Rated Input W 1264 1264
Rated Current A 5.17 5.17
EER (Btu/h)/W 11.6 11.6
COP W/W / 3.4
Air Flow Volume(H/M/L) CFM 341/306/- 341/306/-
Dehumidifying Volume Pint/h 2.747 2.747
Application Area yd216-24 16-24
Permissible Excessive Operating Pressure for the
Discharge Side MPa 4.3 4.3
Permissible Excessive Operating Pressure for the
Suction Side MPa 2.5 2.5
Maximum Allowable Pressure MPa 4.3 4.3
Throttling Method Capillary Capillary
Defrosting Method / /
Climate Type T1 T1
Isolation I I
Moisture Protection IP24 IP24
Dimension (WXHXD) inch 42X16X21 1/2 42X16X21 1/2
Dimension of Carton Box (LXWXH) inch 45X25 5/16X17 7/8 45X25 5/16X17 7/8
Dimension of Package (LXWXH) inch 45X25 3/8X18 1/2 45X25 3/8X18 1/2
Net Weight lb 53.5 54.0
Gross Weight lb 62.5 63.0
Refrigerant / R410A R410A
Refrigerant Charge oz 35.27 35.27
Indoor Side
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 55/72X27 35/44 Φ4 55/72X27 35/44
Cooling Speed r/min 1130/950 1130/950
Heating Speed r/min 1130/950 1130/950
Fan Motor Power Output W 20 20
Fan Motor RLA A 0.20 0.20
Fan Motor Capacitor μF 1.5 1.5
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Evaporator Pipe Diameter inch Φ8/29 Φ8/29
Evaporator Coil Length (LXDXW) inch 27 13/25X9 19/36X1 1/2 27 13/25X9 19/36X1 1/2
Swing Motor Model / /
Swing Motor Power Output W / /
Fuse Current A 3.15 3.15
Set Temperature Range 61-86 61-86
Sound Pressure Level (H/M/L) dB (A) 53/-/50 53/-/50
Sound Power Level (H/M/L) dB (A) 63/-/60 63/-/60

Service Manual
Technical Information 15
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Outdoor
Side
Compressor Trademark RECHI RECHI
Compressor Manufacturer RECHI PRECISION CO.,LTD RECHI PRECISION CO.,LTD
Compressor Model 44B267HK&FEKD 44B267HK&FEKD
Compressor Oil NMOC Ze-Gles RB68EP or
equivalent
NMOC Ze-Gles RB68EP or
equivalent
Compressor Type Rotary Rotary
Compressor LRA. A 19.00 19.00
Compressor RLA A 3.90 3.90
Fan Diameter inch ΦΦ13 3/4 Φ13 3/4
Fan Motor Speed rpm 1550/1380 1550/1380
Fan Motor Power Output W 45 45
Fan Motor RLA A 0.31 0.31
Fan Motor Capacitor μF 2 2
Outdoor Unit Air Flow Volume CFM 564.96 564.96
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Condenser Pipe Diameter inch Φ8/29 Φ8/29
Condenser Coil Length (LXDXW) inch 30 7/10X13 1/2X1 1/2 30 7/10X13 1/2X1 1/2
Cooling Operation Ambient Temperature Range ºF 55-83 55-83
Heating Operation Ambient Temperature Range ºF ≤75 ≤75
Sound Pressure Level (H/M/L) dB (A) 63/61/59 63/61/59
Sound Power Level (H/M/L) dB (A) 73/71/69 73/71/69
Note: The connection pipe applies metric diameter.

Service Manual
Technical Information
16
Parameter Unit Value
Model ETAC2-15HC265VA-A ETAC2-15HP265VA-A
Product Code CC060046300_L45468 CC060046400_L45468
Power Supply
Rated Voltage V~ 265 265
Rated Frequency Hz 60 60
Phases 1 1
Cooling Capacity Btu/h 14500 14500
Heating Capacity Btu/h / 13300
Cooling Power Input W 1390 1390
Heating Power Input W / 1255
Electric Heating Power Input W 5000 5000
Cooling Power Current A 5.4 5.4
Heating Power Current A / 5.0
Rated Input W 1684 1684
Rated Current A 7.10 7.10
EER (Btu/h)/W 10.4 10.4
COP W/W / 3.1
Air Flow Volume(H/M/L) CFM 341/306/- 341/306/-
Dehumidifying Volume Pint/h 3.17 3.17
Application Area yd221-31 21-31
Permissible Excessive Operating Pressure for the
Discharge Side MPa 4.3 4.3
Permissible Excessive Operating Pressure for the
Suction Side MPa 2.5 2.5
Maximum Allowable Pressure MPa 4.3 4.3
Throttling Method Capillary Capillary
Defrosting Method / /
Climate Type T1 T1
Isolation I I
Moisture Protection IP24 IP24
Dimension (WXHXD) inch 42X16X21 1/2 42X16X21 1/2
Dimension of Carton Box (LXWXH) inch 45X25 5/16X17 7/8 45X25 5/16X17 7/8
Dimension of Package (LXWXH) inch 45X25 3/8X18 1/2 45X25 3/8X18 1/2
Net Weight lb 54.5 55.0
Gross Weight lb 63.5 65.0
Refrigerant / R410A R410A
Refrigerant Charge oz 35.27 38.80
Indoor Side
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 55/72X27 35/44 Φ4 55/72X27 35/44
Cooling Speed r/min 1130/950 1130/950
Heating Speed r/min 1130/950 1130/950
Fan Motor Power Output W 20 20
Fan Motor RLA A 0.20 0.20
Fan Motor Capacitor μF 1.5 1.5
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Evaporator Pipe Diameter inch Φ8/29 Φ8/29
Evaporator Coil Length (LXDXW) inch 27 13/25X9 19/36X/1 1/2 27 13/25X9 19/36X1 1/2
Swing Motor Model / /
Swing Motor Power Output W / /
Fuse Current A 3.15 3.15
Set Temperature Range 61-86 61-86
Sound Pressure Level (H/M/L) dB (A) 54/-/51 54/-/51
Sound Power Level (H/M/L) dB (A) 64/-/61 64/-/61

Service Manual
Technical Information 17
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Outdoor
Side
Compressor Trademark Panasonic Panasonic
Compressor Manufacturer
Panasonic Wanbao
Appliances Compressor
<Guangzhou> Co.,Ltd
Panasonic Wanbao
Appliances Compressor
<Guangzhou> Co.,Ltd
Compressor Model 5PS136LCA21 5PS136LCA21
Compressor Oil FV50S or equivalent FV50S or equivalent
Compressor Type Rotary Rotary
Compressor LRA. A 26.00 26.00
Compressor RLA A 5.05 5.05
Fan Diameter inch Φ13 3/4 Φ13 3/4
Fan Motor Speed rpm 1550/1380 1550/1380
Fan Motor Power Output W 45 45
Fan Motor RLA A 0.31 0.31
Fan Motor Capacitor μF 2 2
Outdoor Unit Air Flow Volume CFM 565 565
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Condenser Pipe Diameter inch Φ8/29 Φ8/29
Condenser Coil Length (LXDXW) inch 30 7/10X13 1/2X1 1/2 30 7/10X13 1/2X1 1/2
Cooling Operation Ambient Temperature Range ºF 55-83 55-83
Heating Operation Ambient Temperature Range ºF ≤75 ≤75
Sound Pressure Level (H/M/L) dB (A) 63/61/59 63/61/59
Sound Power Level (H/M/L) dB (A) 73/71/69 73/71/69
Note: The connection pipe applies metric diameter.

Service Manual
Technical Information
18

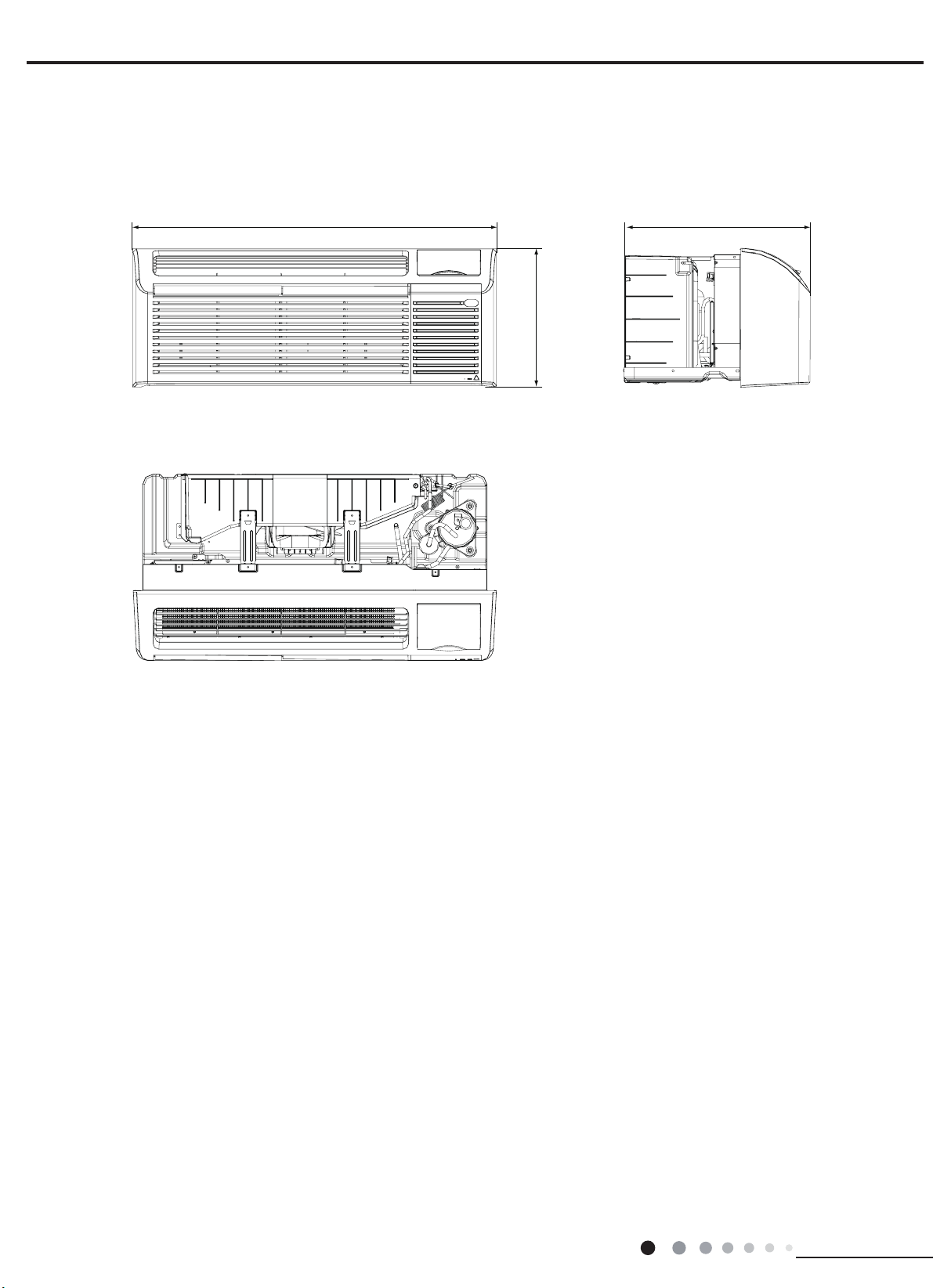

3. Outline Dimension Diagram
Unit:inch
21 1/242
16

Service Manual
Technical Information 19
4. Refrigerant System Diagram
COOLED AIR
HOT DISCHARGED AIR
OUTDOOR COILS
CAPILLARY
AXIAL FAN
COMPRESSOR
HEATING MODE
COOLING MODE
NOTES:
REFRIGERANT FLOW DIRECTION
CENTRIFUGAL
OR CROSS FAN
HOT AIR
INDOOR COILS
ELECTRIC HEATER
COOLED AIR
(1)Cooling + Heat Pump + Auxiliary Electric Heater
(2) Cooling + Electric Heater
COMPRESSOR
OUTDOOR COILS
HOT DISCHARGED AIR
CAPILLARY
REFRIGERANT FLOW DIRECTION
AXIAL FAN
CENTRIFUGAL
OR CROSS FAN
ELECTRIC HEATER
INDOOR COILS
COOLED AIR

Service Manual
Technical Information
20
5. Electrical Part
5.1 Wiring Diagram
Symbol Symbol Color Symbol Symbol Color Symbol Name
WH White GN Green CAP. Capacitor
YE Yellow BN Brown COMP Compressor
RD Red BU Blue Grounding wire
YEGN Yellow-Green BK Black / /
●Electric Diagram
●Instruction
ETAC2-07HC230VA-A ETAC2-07HP230VA-A ETAC2-07HC265VA-A
63610000492
%.
/
/
;
%.
5'
(+.:
(+.:

(+.:
:+
%. %.
)87 6$7
5' %8
'$+77(03
57
&203
<( %8
28778%(
65
&
5220
78%(
&


5'
.
.
%.
.
&203 $&/

;7
1
5'
%8
;7
6(1625
78%(7(03 52207(03
6(1625
28778%(7(03
6(1625
.0




%.
:+
%1
+($7
,+($7
2+($7
2+($7
,+($7

6(1625
'$+7
&1
&1
1
2)$1/
2)$1+
%8
%1
%1
5'
<(*1
*
&
)$102725
&1 &1
&1
$3
$3
$3
75287
75,1
7&
&1 &1
&1&1
',63/$<
)$1
5'
%1
&
<(*1
*
)$102725
%.
%8
:+
&1
:$//
7KHUPRVWDW
RSWLRQDO
57 57 57
%8
%.
5(/$<
&203
%. %8 *1
;
*
:+ %.
% % % $ $ $
 


0
,
,, ,
,,
;

0







