Gree GMV-ND36TS/A-T User manual

Owner's Manual
Air Conditioners
Models:
GMV-ND28TS/A-T GMV-ND36TS/A-T
GMV-ND45TS/A-T GMV-ND50TS/A-T
GMV-ND56TS/A-T GMV-ND63TS/A-T
GMV-ND71TS/A-T GMV-ND80TS/A-T
GMV-ND90TS/A-T GMV-ND112TS/A-T
GMV-ND140TS/A-T
Thank you for choosing Air Conditioners, please read this owner’s manual carefully before
operation and retain it for future reference.If you have lost the Owner’s Manual, please contact
the local agent or visit www.greeproducts.es or sent email to [e-mail] for
electronic version.
GREE reserves the right to interpret this manual which will be subject to any change due to
product improvement without further notice.
GREE Electric Appliances, Inc. of Zhuhai reserves the final right to interpret this manual.
Two-way Cassette Indoor Unit
Owner's Manual
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Preface
For correct installation and operation, please read all instructions carefully. Before reading the
instructions, please be aware of the following items:
(1) For the safe operation of this unit, please read and follow the instructions carefully.
(2) During operation, total capacity of indoor units should not exceed the total capacity of
outdoor units. otherwise, poor effect of cooling or heating may result.
(3) Direct operators or maintainers should well keep this manual.
(4) If this unit fails to operate normally, please contact our service center as soon as possible
and provide the following information:
1)Content on the nameplate(model number,cooling capacity,production code,ex-factory
date.
2)Malfunction details(before and after the malfunction occurs.
(5) Each unit has been strictly tested and proved to be qualified before ex-factory. In order to
prevent units from being damaged or operating normally because of improper
disassembly, please do not disassemble the unit by yourself. If you need to disassemble
and check units, please contact our service center. We will send specialists to guide the
disassembly.
(6)Under the standby status, the unit will consume a little power for ensuring reliability of
complete unit, maintaining normal communication and preheating refrigerant. When the
unit won’t be used for a long time, cut off the power of the complete unit. However, please
preheat it when operating the unit next time.
(7) All graphics in this manual is only for your reference. For sales or production
reasons,these graphics are subject to change by manufacturer without prior notice.
(8) These instructions shall also be available in an alternative format, e.g. on a website.
User Notice
● This appliance can be used by children aged from 8 years and above and persons with
reduced physical ,sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instrction concerning use of the appliance in a safe
way and understand the hazards involved .Children shall not play with the
appliance .Cleaning and user maintenance shall not be made by children without
supervision.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.
R410A(R32/125:50/50):2087.5
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Contents
1 SAFETY PRECAUTIONS ................................................................................. 1
2 PRODUCT INTRODUCTION ........................................................................... 3
2.1 Names of Key Components.................................................................. 3
2.2 Rated Working Condition ...................................................................... 3
2.3 Unit Functions......................................................................................... 4
3 PREPARATIONS FOR INSTALLATION.............................................................. 5
3.1 Standard Fittings .................................................................................... 5
3.2 Installation Position Selection............................................................... 5
3.3 Requirements of communication wire selection................................. 6
3.4 Wiring Requirements ............................................................................. 8
4 INSTALLATION INSTRUCTIONS ..................................................................... 8
4.1 Indoor unit installation............................................................................ 8
4.2 Refrigerant Pipe Connection............................................................... 11
4.3 Drainage Pipe Installation and Drainage System Testing ............... 11
4.4 Panel installation .................................................................................. 15
4.5 Installation of Wired Controller ........................................................... 17
5 WIRING WORK ...........................................................................................17
5.1 Connection of Wire and Patch Board Terminal................................. 18
5.2 Power Cord Connection ...................................................................... 19
5.3 Connection of Communication Wire between Indoor Unit and
Outdoor Unit (or indoor unit)...................................................................... 19
5.4 Connection of Communication Wire for Wired Controller ............... 20
5.5 Wiring Instructions of Wired Controller and Indoor Units Network . 20
6 ROUTINE MAINTENANCE............................................................................21
6.1 Cleaning of Filter.................................................................................. 22
6.2 Maintenance before the Seasonal Use ............................................. 22
6.3 Maintenance after the Seasonal Use................................................. 22
7 TABLE OF ERROR CODES FOR INDOOR UNIT................................................22
8 DISPLAY OF LIGHT BOARD ..........................................................................23
9 TROUBLESHOOTING ...................................................................................24
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
1
1 Safety Precautions
means items that must be forbidden! Otherwise, it may lead to personal injury or
death or serious damage.
means items that must be followed! Otherwise, it may lead to personal injury or
property loss.
Please install the unit
according to
instructions in this
manual. Read this
manual carefully
before starting up or
checking the
machine.
Installation should be
performed by dealer or
qualified technicians. Do
not install the product by
yourself. Improper
installation may result in
water leakage, electric
shock or fire hazard.
Make sure the local
power supply is in
accordance with units
before installation,
and check the power
supply carefully.
This air conditioner must be
properly grounded through
the receptacle to avoid
electric shock.The
grounding wire shouldn't
be connected with gas pipe,
water pipe, lightning
arrester or telephone line.
Please use
specialized
accessories or parts
to carry out
installation,or water
leakage, electric
shock,fire hazard may
resulted.
R410A refrigerant can
produce poisonous gas
once it meets fire, so please
ventilate the room
immediately if refrigerant
leaks out during installation.
Diameter of power
cord must be large
enough. Damaged
power cord and
connecting wire must
be replaced by
specialized electric
cable.
After the power cord is
connected, please install
the cover of electric box to
avoid danger.
Nitrogen must be
charged according to
technical
requirements.
Short circuit is forbidden.
Do not cancel the pressure
switch in case the unit may
be damaged.
For units with wired
controller, do not
connect power supply
until the wired
controller is well
installed. Otherwise,
the wired controller
cannot be used.
When the installation is
finished, please check and
make sure the drain pipe,
pipeline and electric wire
are all well connected in
order to avoid water
leakage, refrigerant
leakage, electric shock or
fire hazard.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manual
2
Do not extend fingers or
objects into air outlet or air
return grille.
If you use gas heater or
petroleum heater in the
same room, please open
the door or window to
maintain good air
circulation in case the
room may lack of oxygen.
Never start or stop the air
conditioner by inserting or
removing the power cord.
Do not turn off the air
conditioner until it runs for
at least 5 minutes.
Otherwise, oil-return of the
compressor will be
affected.
Children are not allowed to
operate the air conditioner.
Do not operate the air
conditioner with wet
hands.
Please turn the unit off and
unplug your air conditioner
before cleaning. Otherwise, it
may cause electric shock or
personal injury.
Do not spray water on the
air conditioner or it will
cause malfunction or
electric shock.
Do not expose the air
conditioner directly to water or
place it in a damp or corrosive
environment.
Connect power supply 8
hours before operation.
Do not disconnect power if
you want to stop the unit
in a short period of time,
e.g. in one night. (This is
for protecting the
compressor.)
Volatile liquid like thinner or
gasoline will damage the
appearance of air conditioner.
(Please use soft dry cloth and
wet cloth with mild detergent
to clean the outer case of air
conditioner.)
During Cooling mode,
indoor temperature should
not be set too low. Keep
the difference between
indoor temp and outdoor
temp within 5°C.
If abnormal condition occurs
(e.g. unpleasant smell),
please turn off the unit at
once and disconnect power
supply. Then contact GREE
service center. If the air
conditioner continues to
operate despite of abnormal
condition, the unit may be
damaged and it may cause
electric shock or fire hazard.)
Do not repair the air
conditioner by yourself.
Improper repair will cause
electric shock or fire
hazard. Please contact
GREE service center and
have it repaired by
professional technicians.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
3
Any personal injury or property loss caused by improper installation, improper debug,
unnecessary repair or not following the instructions of this manual should not be the responsibility
of Gree Electric Appliances, Inc. of Zhuhai.
2 Product Introduction
2.1 Names of Key Components
No.
①
②
③
④
⑤
⑥
⑦
Name
Drainage
Pipe
Connection
Pipe
Drainage
Device
Air Inlet Grille (With Filter)
Main
Unit
Louver
Panel
2.2 Rated Working Condition
Indoor Side Condition
Outdoor Side Condition
Dry Bulb Temp℃(℉)
Wet Bulb Temp℃(℉)
Dry Bulb Temp℃(℉)
Wet Bulb Temp℃(℉)
Rated Cooling
27(80.6)
19(66.2)
35(95)
24(75.2)
Rated Heating
20(68.0)
15(59.0)
7(44.6)
6(42.8)
Indoor Unit Working Temperature Range: 16°C~ 32°C.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manual
4
2.3 Unit Functions
Unit Functions
Wired Controller
XK46(Optional)
Remote Controller
YAP1F (Standard)
Remote Controller
YV1L1 (Optional)
Operation Mode (Cooling, Heating,
Fan, Dehumidifying)
Fan Speed Adjustment
Temperature Adjustment
X-fan Function
Quiet Function
Sleep Function
Save Function
E-heater Function
Memory Function
Absence Function
Timer Function
Low Temp Dehumidify Function
Filter Cleaning Reminding Function
I Feel
Light Function
Swing
Note：
①√: included, X: not included.
②Please refer to the user manual of Wired Controller or Remote Controller for function details.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
5
3 Preparations for Installation
Note: this picture is for reference only, please refer to the actual product; the unit of dimension
is mm.
3.1 Standard Fittings

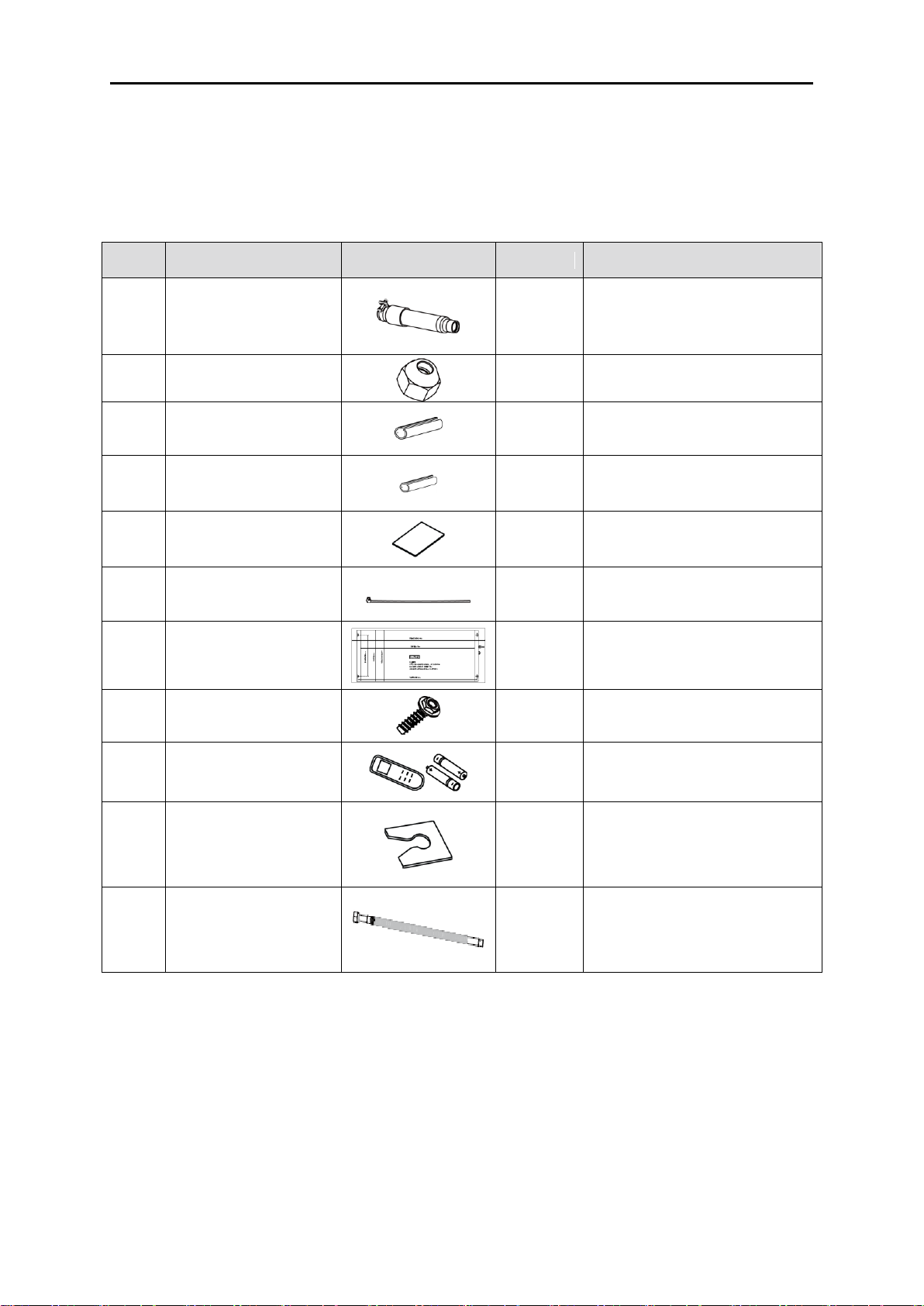

Please use the supplied standard fittings listed below as instructed.
No.
Name
Appearance
Q'ty
Usage
1
Drainage hose assembly
1
To connect the drainage pipe
2
Special Nut
1
To be used for connecting the
refrigerant pipe
3
Insulation
1
To insulate the gas pipe
4
Insulation
1
To insulate the liquid pipe
5
Sponge
1
To insulate the drain pipe
6
Fastener
4
To fasten the sponge
7
paper pattern for
installation
1
Locate the drill hole on ceiling
8
Tapping screw with
washer
4
Fix paper pattern
9
Remote controller
1+2
To control the indoor unit
10
Washer fixing plate
4
Prevent the washer from falling off
11
corrugated pipe
1
It’s used for bending connection
pipe（ Packing materials for 56 or
above models）
3.2 Installation Position Selection
(1) The location should be able to withstand the weight of unit.
(2) The water can be drained conveniently from drainage pipe.
(3) There should be no obstruction near air inlet and air outlet.

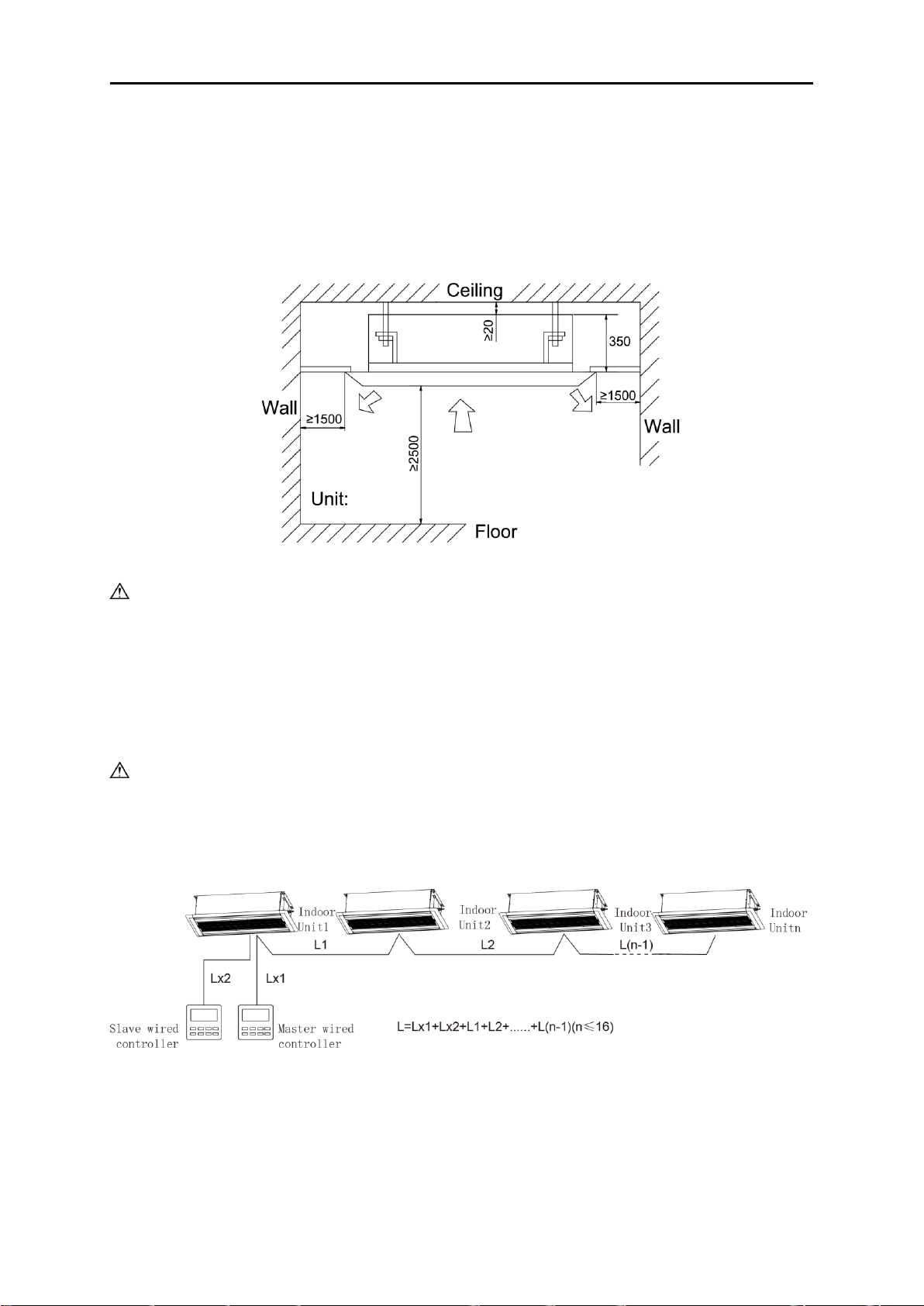

(4) Follow the installation distance required in the fig below to ensure sufficient space for
maintenance.
(5) The installation location should be far from heat sources, flammable or explosive gas, or
smog spread in the air..
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manual
6
(6) The appliance shall not be installed in the laundry.
(7) The indoor unit, outdoor unit, power cord and connection electricity wire should be at least
1m from television and radio in order to prevent interference and noise. (Even though 1m
distance is ensured, there may be noise if the electric wave is too strong.)
Unit: mm
Fig 3.2.1
Notes:
①The unit shall be installed in accordance with national standards or local regulations.
②Only qualified personnel can carry out installation work, please contact with local dealer before
installation..
③Make sure all the installation work completed before energizing.
3.3 Requirements of communication wire selection
Notes:
If air conditioner used under strong electronic-magnetic interference circumstance,
STP(shielded twisted pair) communication cable must be adopted.
3.3.1 Selection of communication wire between indoor unit and wired controller
Fig 3.3.1
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
7
Wire type
Total length of
communication wire between
indoor unit and wired
controller (m)
Wire diameter
(mm2)
Wire standard
Remark
Light/Ordinary
polyvinyl
chloride
sheathed
cord.(60227
IEC 52 /60227
IEC 53)
L≤250
2×0.75~2×1.25
IEC 60227-5
1)Total length of
communication cable can't
exceed 250m .
2)The cord shall be Circular
cord (the cores shall be
twisted together).
3) If unit is installed in places
with intense magnetic field or
strong interference, it is
necessary to use shielded
wire.

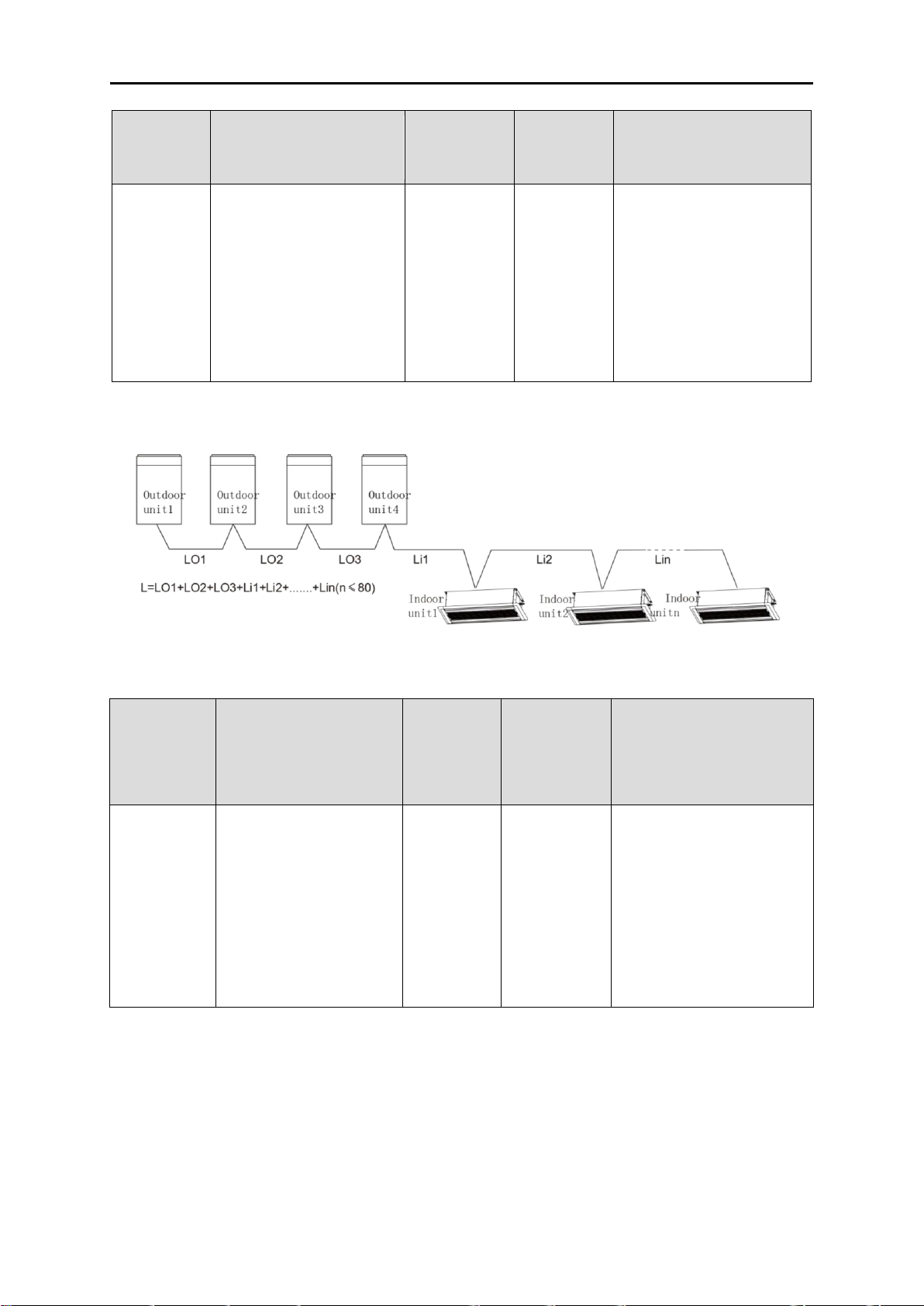

3.3.2 Selection of communication wire between indoor unit and indoor unit (or outdoor
unit)
Fig 3.3.2
Wire type
Total length of
communication wire
between indoor unit and
indoor unit(outdoor unit)
(m/feet)
Wire diameter
(mm2)
Wire standard
Remark
Light/Ordinary
polyvinyl
chloride
sheathed
cord.(60227
IEC 52 /60227
IEC 53) (60227
IEC 52
/60227 IEC 53)
L≤1000
≥2×0.75
IIEC 60227-5
1)If the wire diameter is
enlarged to 2 × 1 mm2, the total
communication cable length
can reach 1500m.
2)The cord shall be Circular
cord (the cores shall be twisted
together).
3)If unit is installed in places
with intense magnetic field or
strong interference, it is
necessary to use shielded
wire.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manual
8
3.4 Wiring Requirements
(1) Dimension of power cord and capacity of air switch
Notes:
① The circuit breaker and power cord specification in above sheet are based on max power (max
current) of the unit.
② The power cord specification in above sheet is based on ambient temperature of 40°C.
③ The circuit breaker specification in above sheet is based on ambient temperature of 40°C.
④ If the working condition is different, please adjust it according to the specification sheet of
circuit breaker.
Model
Power Supply
Air Switch
Capacity (A)
Minimum
Sectional Area of
Grounding
Wire(mm2)
Minimum
Sectional Area
of Power Cord
(mm2)
GMV-ND28TS/A-T
220~240V-1ph-50Hz
208~230V-1ph-60Hz
6
1
1
GMV-ND36TS/A-T
6
1
1
GMV-ND45TS/A-T
6
1
1
GMV-ND50TS/A-T
6
1
1
GMV-ND56TS/A-T
6
1
1
GMV-ND63TS/A-T
6
1
1
GMV-ND71TS/A-T
6
1
1
GMV-ND80TS/A-T
6
1
1
GMV-ND90TS/A-T
6
1
1
GMV-ND112TS/A-T
6
1
1
GMV-ND140TS/A-T
6
1
1
4 Installation Instructions
4.1 Indoor unit installation
4.1.1 Ceiling opening Dimension and suspension bolt position
Unit: mm
Fig 4.1.1
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
9
Unit: mm
Model
Indoor
unit(A)
Suspension bolt
pitch(B)
Ceiling
opening(C)
Decoratio
n panel(D)
Outer diameter of
connection pipe(mm)
Liquid pipe
Gas pipe
GMV-ND28TS/A-T
1200
1252
1403
1443
6.35
9.52
GMV-ND36TS/A-T
GMV-ND45TS/A-T
GMV-ND50TS/A-T
1200
1252
1403
1443
6.35
12.7
GMV-ND56TS/A-T
GMV-ND63TS/A-T
GMV-ND71TS/A-T
GMV-ND80TS/A-T
1200
1252
1403
1443
9.52
15.9
GMV-ND90TS/A-T
GMV-ND112TS/A-T
GMV-ND140TS/A-T
1680
1732
1883
1923
9.52
15.9
Important: The drilling work must be carried out by qualified personnel.
4.1.2 Suspend the indoor unit
(1) Drill bolt holes and install bolts

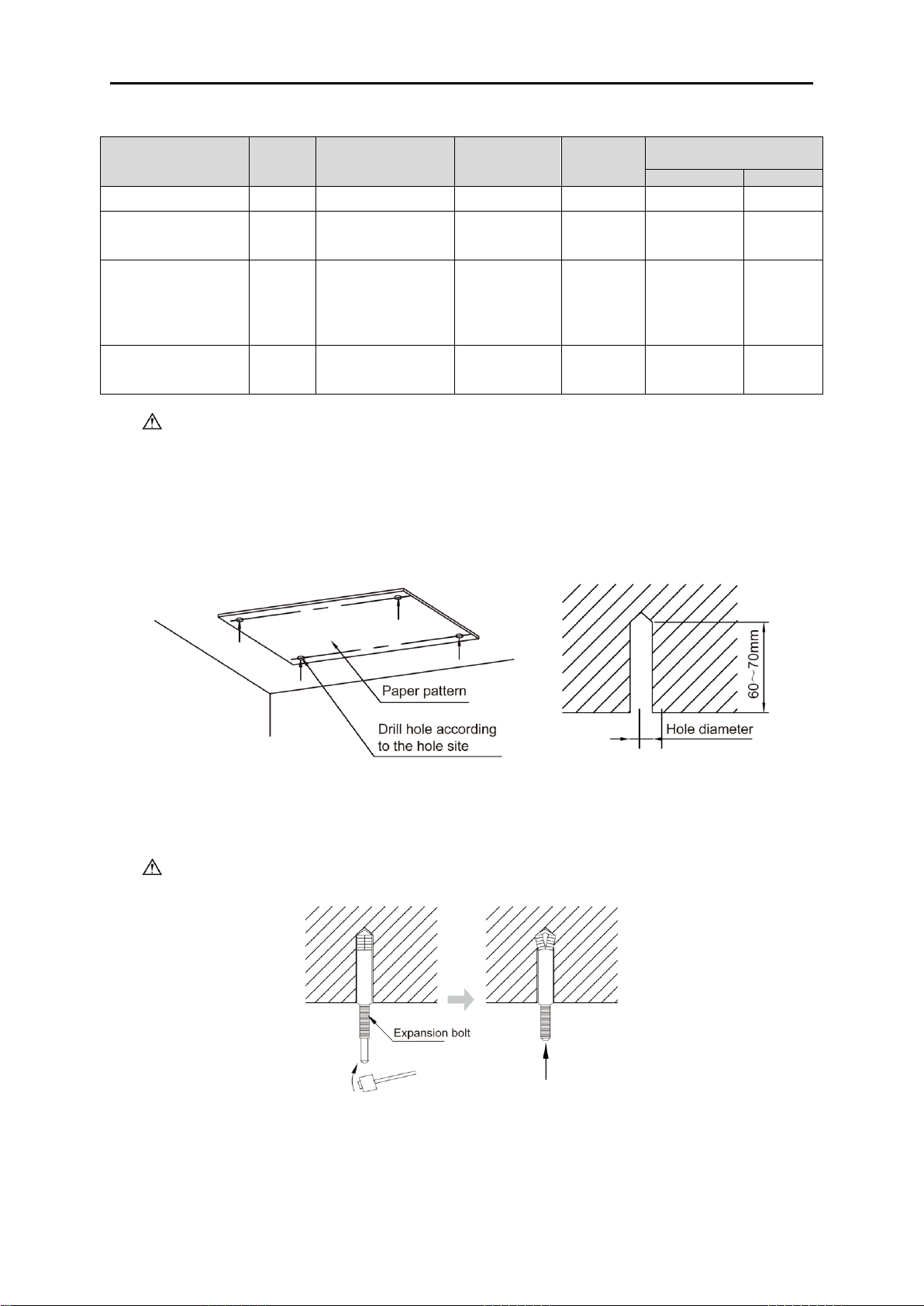

1) Stick the paper pattern on the installation position; drill 4 holes according to the hole
site on the cardboard as shown in fig 4.1.2; diameter of drilling hole is according to the
diameter of expansion bolt and the depth is 60-70mm, as shown in fig 4.1.3.
Fig 4.1.2 Fig 4.1.3
2) Insert the M10 expansion bolt into the hole and then knock the nail into the bolt, as
shown in fig 4.1.4.
Note:The length of bolt depends on the installation height of the unit, bolts are field
supplied.
Fig 4.1.4
(2) Install the indoor unit temporarily
Assemble suspension bolt on the expansion bolt, attach the hanger bracket to the suspension
bolt. Be sure to fix it securely by using a nut and washer from upper and lower sides of the hanger
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manual
10
bracket. The washer fixing plate will prevent the washer from falling.
(3) The usage of paper pattern
Refer to paper pattern of installation for ceiling opening dimension. The center of ceiling
opening is indicated on the paper pattern. Fix the paper pattern to the unit with 4 screws and fix
the corners of the waterspout at the drainage pipe by screws.
(4) Adjust the unit to the right position.
(5) Check the level of the unit.
The indoor unit is equipped with build-in water pump and float switch, verify the levelness of 4
directions by level gauge or vinyl tube (filled with water) respectively.
(6) Remove the washer locating plate and then tighten the nut on it.
(7) Remove the paper pattern.
Fig 4.1.5
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
11
4.2 Refrigerant Pipe Connection

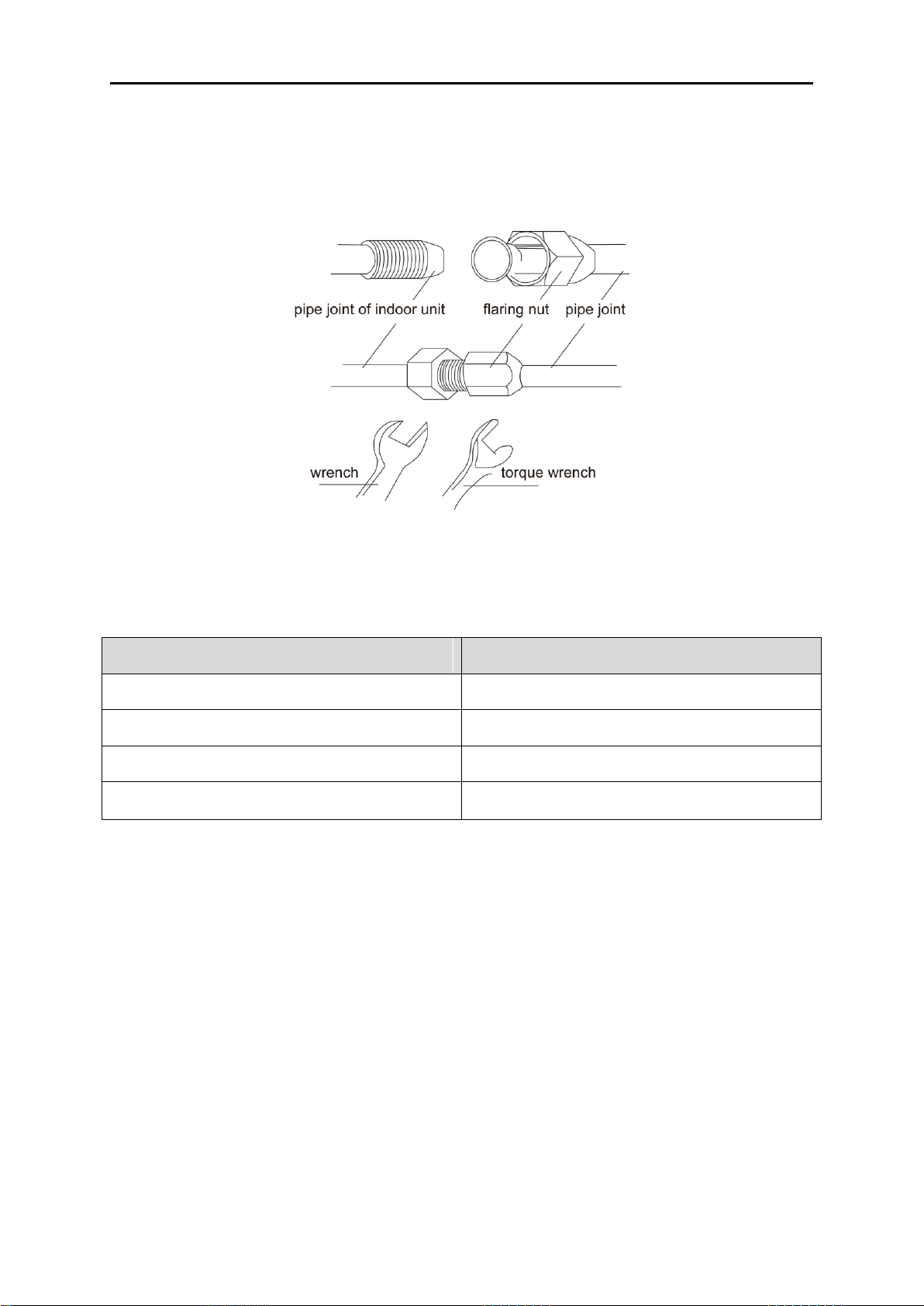

(1) Aim the flaring port of copper pipe at the center of screwed joint and then tighten the
flaring nut with hand as shown in fig 4.2.
(2) Use a torque wrench to tighten up the flaring nut until the wrench gives out a click sound.
Fig.4.2
Torque for tightening nut
Pipe diameter (mm)
Torque (N·m)
Φ6.35
15~30
Φ9.52
35~40
Φ12.7
45~50
Φ15.9
60~65
(3) The pipe should not be bent too much or it may crack. Use a pipe bender when bending
the pipe.
(4) Wrap the connection pipe and joint with sponge and then tie them firmly with tape.
4.3 Drainage Pipe Installation and Drainage System Testing
4.3.1 Notice for Installation of Drainage Pipe
(1) The drainage pipe should be short and the gradient downwards should be at least 1%~2%
in order to drain condensation water smoothly.
(2) The diameter of drainage hose should be bigger or equal to the diameter of drainage pipe
joint.

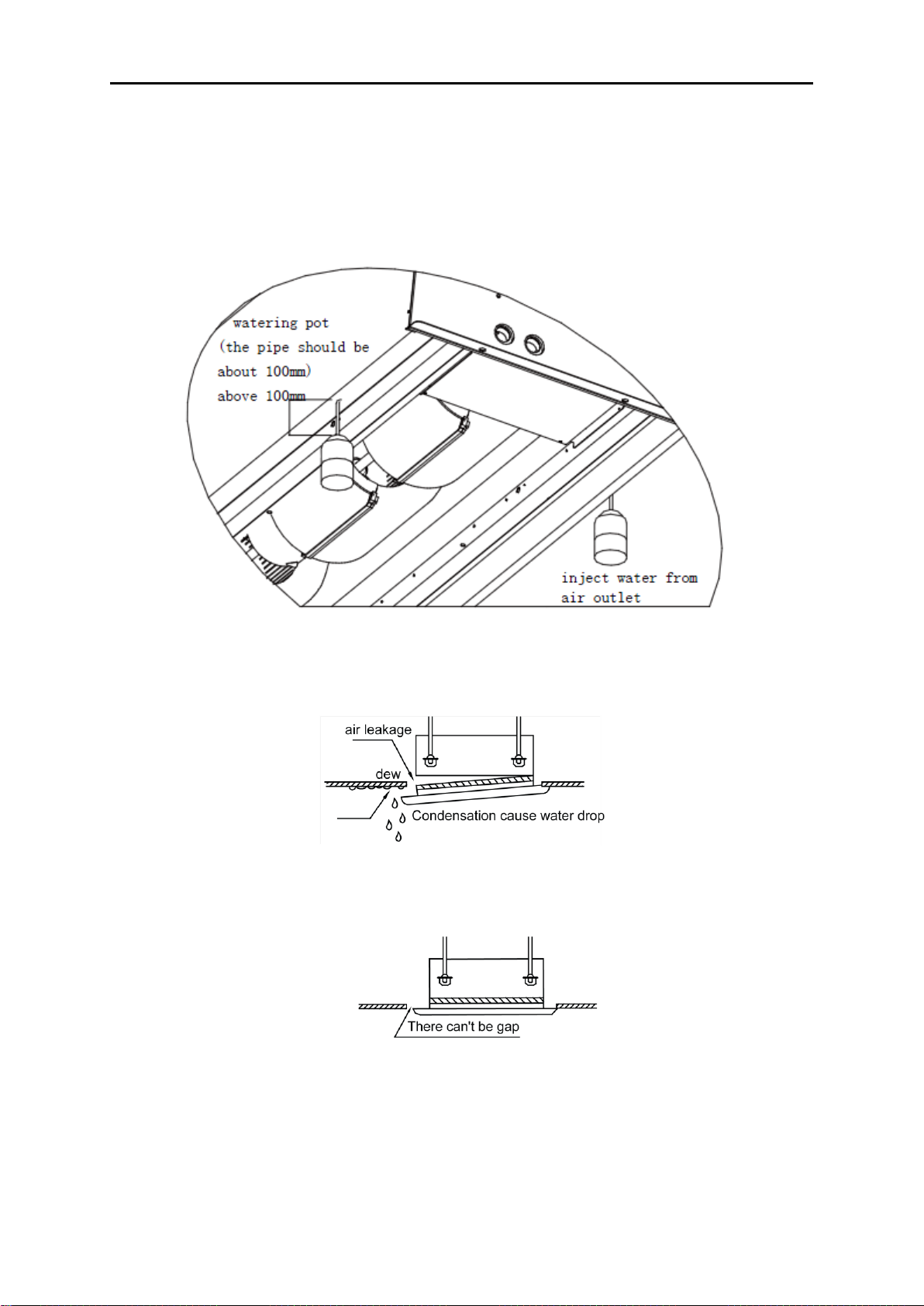

(3) Install drainage pipe according to the following fig and arrange insulation to the drainage
pipe. Improper installation may lead to water leakage and damp the furniture and other
things in the room.
(4) You can buy normal hard PVC pipe used as the drainage pipe. During connection, insert
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manual
12
the end of PVC pipe into the drainage hole and then tighten it with drainage hole and wire
binder. Never connect the drainage hole and drainage hose with glue.
(5) When the drainage pipelines are used for several units, the position of pipeline should be
about 100mm(4 inch) lower than the drainage port of each unit. In this case, thicker pipes
should be applied.
Fig 4.3.1
4.3.2 Installation of Drainage pipe
(1) Drainage pipe should have the same diameter or larger diameter than the connection
pipes(PVC pipe, outside diameter 25mm, thickness≥1.5mm).
(2) Keep drainage pipe short and sloping downwards at a gradient of at least 1% for
preventing forming air bubbles.
(3) If the gradient of drainage pipe could not meet the installation requirements, raising pipe
should be applied.
(4) Insert the drainage hose into drain socket and then tighten the metal clamp securely.
(5) Warp the sealing pad over drainage hose and metal clamp for heat insulation.
(6 ) Make sure to perform insulation work for all drainage hoses in the room in order to
prevent any possible water dropping due to dew condensation.
(7) Apply the suitable diameter for converging drainage pipe according to the operating
capacity of the unit, as show in Fig. 4.3.2.
Fig 4.3.2
① -Drainage pipes assembled by T-shaped joints

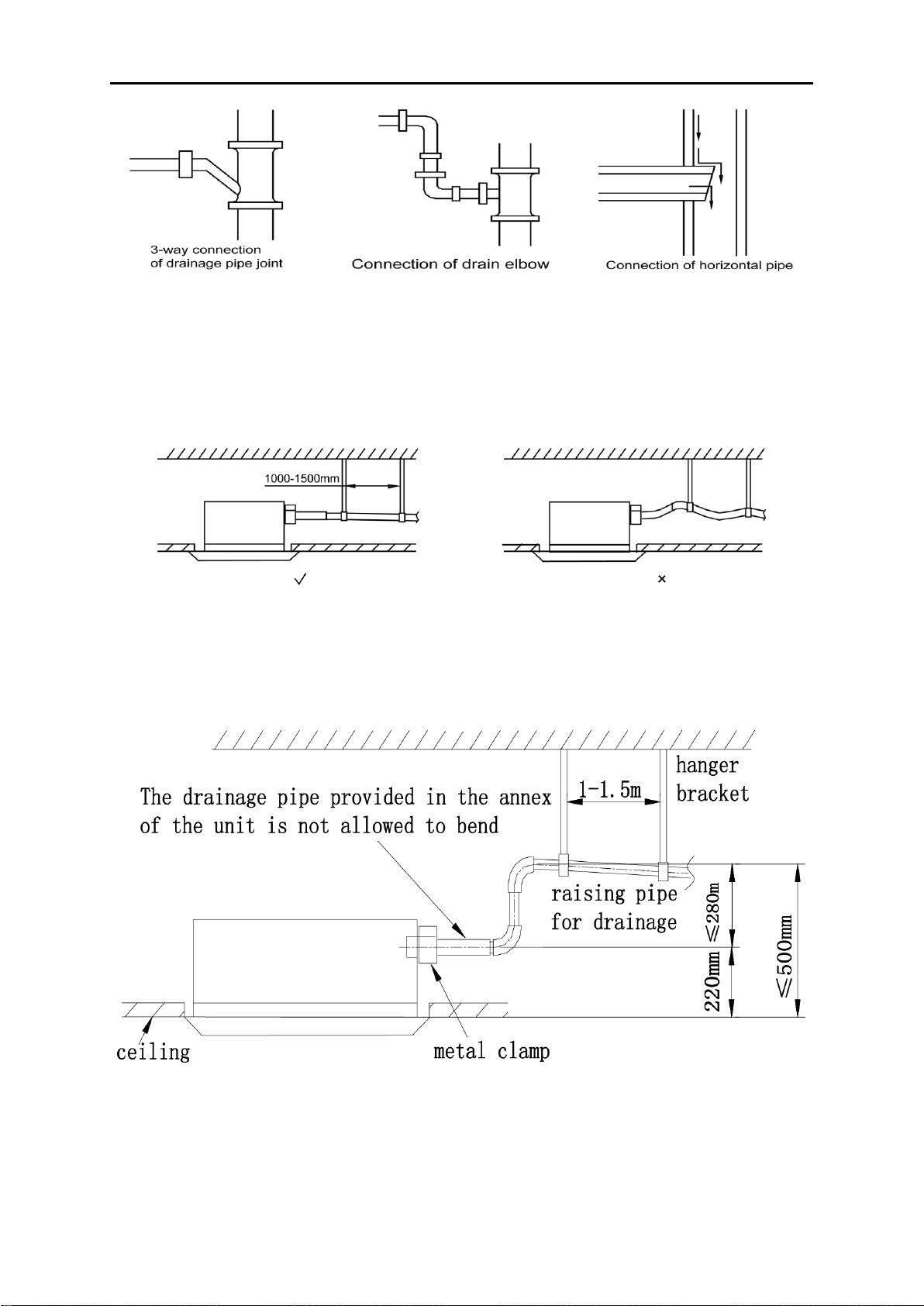

(8) The horizontal pipe can’t be connected to vertical pipe in the same level; please select the
connection way as shown in following fig.
NO1: Three-way connection of drainage pipe joints (Fig 4.3.2.2)
NO2: Connection of downspout elbow (Fig 4.3.2.3)
NO3: Inserting horizontal pipe connection (Fig 4.3.2.4)
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
13
Fig 4.3.2.2 Fig 4.3.2.3 Fig 4.3.2.4
(9) The installation height of raising pipe for drainage should be lower than 850mm. The
gradient from raising pipe towards drainage direction should be at least 1%~2%. If the
raising pipe is vertical with the unit, the raising height should be less than 800mm.
(10) Drainage pipes should have a downward slope of at least 1%~2%, in order to prevent
pipes from sagging; install hanger bracket at intervals of 1000~1500mm.
Fig 4.3.4
(11) The installation height of raising pipe for drainage should be lower than 850mm. The
gradient from raising pipe towards drainage direction should be at least 1%~2%. If the
raising pipe is vertical with the unit, the raising height should be less than 800mm., as
shown in Fig 4.3.5.
Fig 4.3.5
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manual
14
model
A(mm)
B(mm)
GMV-ND28TS/A-T
GMV-ND36TS/A-T
GMV-ND45TS/A-T
GMV-ND50TS/A-T
GMV-ND56TS/A-T
GMV-ND63TS/A-T
GMV-ND71TS/A-T
GMV-ND80TS/A-T
GMV-ND90TS/A-T
GMV-ND112TS/A-T
GMV-ND140TS/A-T
260
740
(12) During the installation, distance from soft drain pipe to the gasket is C mm when the bolt is
tightened. It is not allowed to apply PVC or other related glue in the joints of two ends of
drain pipe.
Fig 4.3.6
model
C(mm)
GMV-NDR28～140TS/A
10±3
4.3.3 Test of Drainage System
(1) Please test drainage system after electric work is finished.
Inject approximately 1L purified water to drain pan from air vent, ensure that not to splash the
water over the electrical components (e.g. water pump. etc).
1) In case of commissioning finished, please energize the IDUs and switch to cooling or
dry mode, meanwhile, the water pump operates, you can check the draining through
the drain socket.
2) If communication wire is not connected, communication malfunction “C0” will occur
after 60s of energizing. In this case, the water pump operates automatically. Check if
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
15
the water pump drains normally through drainage port. The water pump will stop
automatically after running for 10mins.
(2) During the test, please carefully check the drainage joint, make sure no any leakage
occur.
(3) It’s strongly recommend to do the drain test before ceiling decoration.
Fig 4.3.7
4.4 Panel installation
4.4.1 Notices for installation
(1) Improper decorative panel installation could cause the following problems.
Fig 4.4.1
(2) Ensure that its clearance-free between decoration panel and ceiling board after
installation, if not, please adjust the body position.
Fig 4.4.2
(3) Connect the decoration panel terminals (Female) to body terminals (male) as shown in
figure4.4.3.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manual
16
Fig 4.4.3
4.4.2 Panel installation
(1) Adjust the panel direction. Let the swing motor on the panel keep the same side with
connection pipe;
Fig 4.4.4
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Two-way Cassette Indoor Unit Owner's Manua
17
(2) Adjust the position of panel to make the panel holes fix at the holes on the unit;
(3) Fix the 4 screws at the two side of panel and then fix the 2 screws in the middle of panel;
(4) Install the air inlet grille and then lock the clasp.
(5) Tighten the screw until the thickness of sealing material between panel and indoor unit is
about 5~8mm.
Fig 4.4.5
4.5 Installation of Wired Controller
Wired controller is optional accessory. If wired controller is needed, please contact your local
dealer and install the wired controller according to the instruction manual.
Note:
Do perform the commissioning operation before first use; automatic addressing or other
settings, please refer to the manual of ODU.
5 Wiring Work
Note:
Units must be grounded securely, or it may cause electric shock.
① Please carefully read the nameplate and the wiring diagram before carry out the wiring
work, incorrect wiring could cause malfunction or even damage the unit.
② The capacity of power supply must be sufficient and the sectional area of wires in the room
should be above 2.5mm2.
③ The unit should be powered by independent circuit and specific socket.
④ The wiring should be in accordance with related regulations in order to ensure the units
operate reliably.
⑤ Install circuit breaker for branch circuit according to related regulations and electrical
standards.
⑥ All wiring must use pressure terminal or single wire. Multi-twisted wire that connects
directly to the wiring board may cause fire hazard.
⑦ Keep cable away from refrigerant piping, compressor and fan motor.
⑧ Do not alter the inner wires of air conditioner. Manufacturer does not assume
responsibility for damage or abnormal operation due to this reason.
⑨ If the unit is installed in places with strong electromagnetic interference, it's recommended
to use twin-twisted shield wire. During wire connection, please pay attention that the metal
shield layer of the twin-twisted wire must be grounded(outer case) in order to prevent the
unit from electromagnetic interference.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.
