Gree GPC07AJ-A3NNA1A User manual

Change for life
AIR CONDITIONER
Owner's Manual
Original Instructions
Model: GPC07AJ-A3NNA1A
GPH07AJ-A3NNA1A
Thank you for choosing our product.
Please read this Owner’s Manual carefully before operation and
retain it for future reference.
If you have lost the Owner's Manual, please contact the local agent
or visit www.gree.com or send an email to [e-mail] for
the electronic version.
Portable room air conditioner

SUMMARY ..........................................................................................3
WORKING PRINCIPLE.......................................................................3
STRUCTURE..........................................................................................4
OPERATING METHODS................................................................5--7
NAMES AND FUNCTIONS OF THE REMOTE CONTROLLER
...8--9
OPERATION OF THE REMOTE CONTROLLER .....................10--12

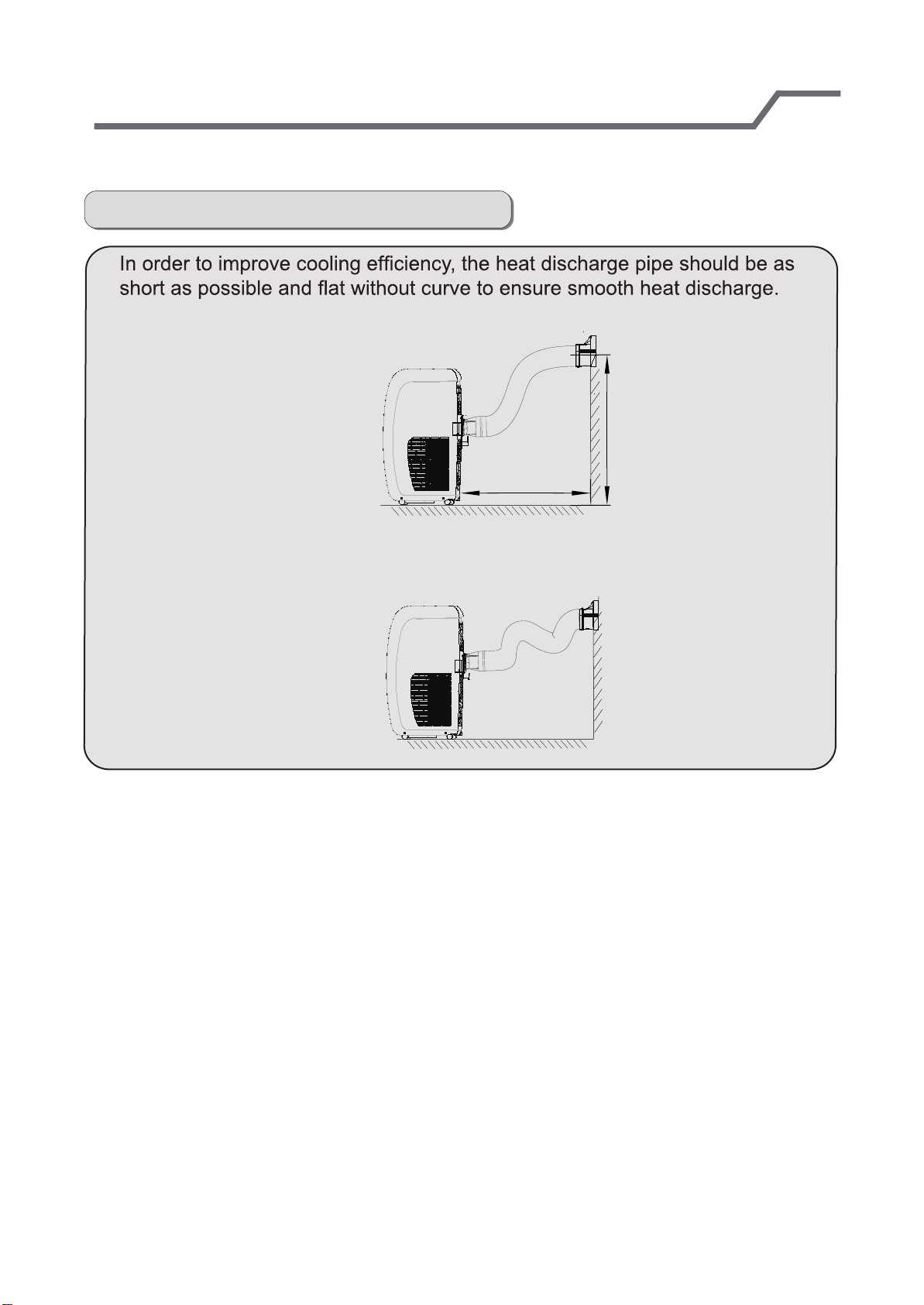

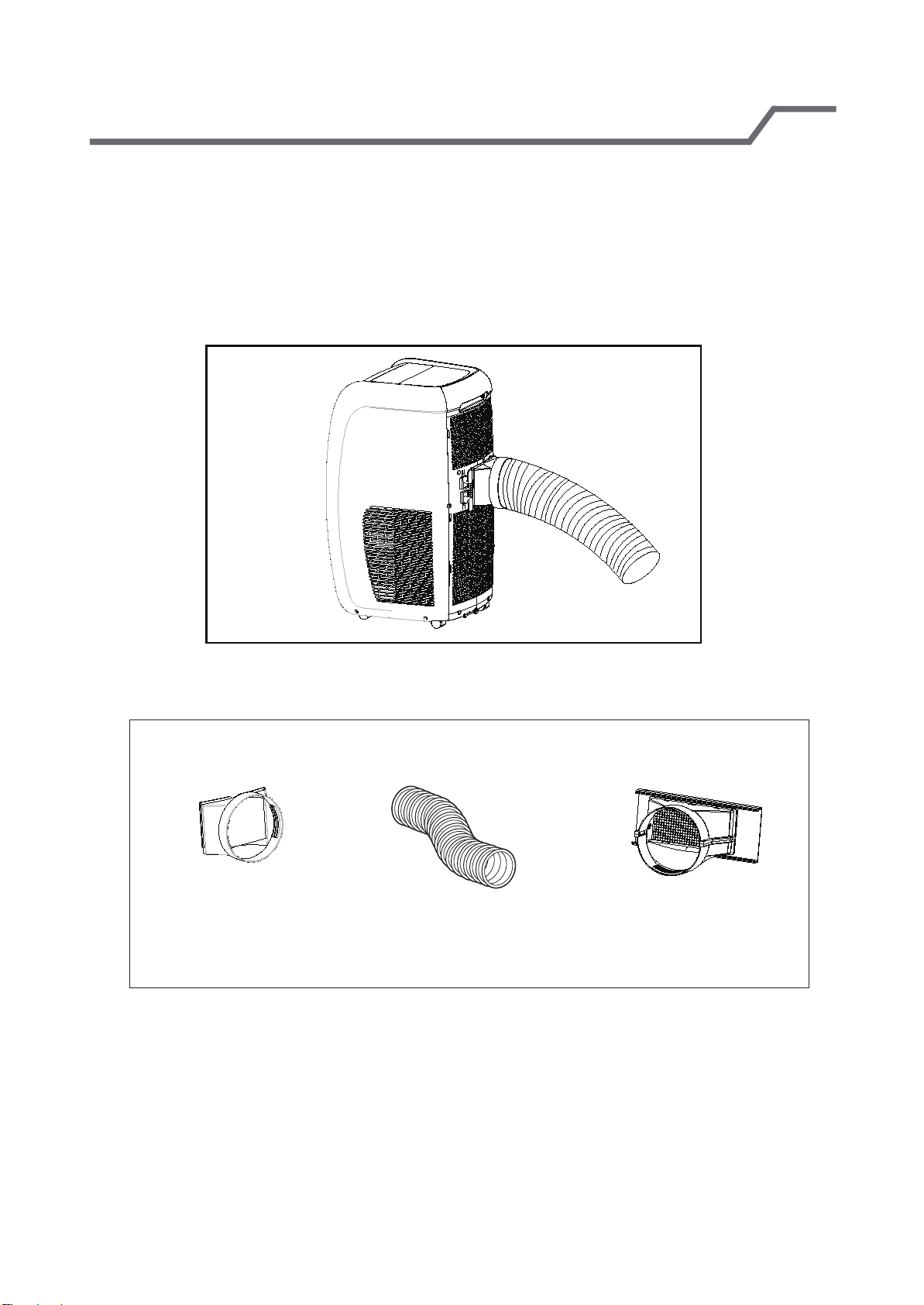

ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE
....................................................................................................16--17
ELECTRIC SCHEMATIC DIAGRAM............................................... 29
CARE AND MAINTENANCE ................................................... 28--29
TROUBLESHOOTING .................................................................... 30
USER NOTICES.............................................................................. 31
AFTER SALES SERVICE................................................................ 32
INSTALLATION INSTRUCTIONS .......................................... 18--26
INSTALLATION OF DRAINAGE HOSE .......................................... 27
OPERATION ENVIRONMENT............................................................1
SAFETY WARNING ............................................................................2
MALFUNCTION ANALYSIS .......................................................13
--15
Content

Explanation of Symbols
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
WARNING
CAUTION
DANGER
N OTIC E

Operation Environment
● This air conditioner can only be used for family, not for
commercial industry.
● The appliance is for indoor use only.
● The appliance must be positioned so that the plug is accessible.
● Reserved space around the air conditioner should be 12″(30cm)
at least.
● Do not operate the air conditioner at humid environment.
● During operation, close doors and windows to improve cooling effect.
● Please keep air inlet and air outlet clean, no obstacles.
to avoid noise and vibration.
● Please put the air conditioner at smooth and flat ground for operation
● This air conditioner is equipped with castors. Castors should slide
at smooth and flat ground.
● Prohibit inclining or turning over the air conditioner. If there’s abnor-
mity,please disconnect power immediately and contact dealer.
● Avoid direct sunshine.
-1-
12″(30cm)
min.
12″(30cm)
min.
● The working range of COOL mode and DRY mode: 16 ℃ (61°F)-35℃ (95°F).
● The Max Heating operation temperature for the air conditioner is:
DB/WB 27℃
(80.6°F)/ --.
● The Max Cooling operation temperature for the air conditioner is:
DB/WB 35℃ (95°F)/24℃ (75.2°F).
● The working range of HEAT mode: 10℃ (50°F)-27℃ (80.6°F).

Safety Warning
● Before operation, please confirm whether power specification
● Before cleaning or maintaining the air conditioner, please turn off
air conditioner and pull out the power plug.
in order to avoid a hazard.
manufacturer or professional person.
complies with that on nameplate.
● Please use the grounded power. Make sure the gounding is reliable.
● If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
● Do not insert or pull out the power plug with wet hands.
disconnect power at once and then contact local dealer.
● If abnormal condition occurs (e.g. burned smell), please
● If the power cord is damaged, it must be replaced by
● When nobody is taking care of the unit, please turn it off and
remove the power plug or disconnect power.
● Do not splash or pour water on air conditioner. Otherwise, it may
cause short circuit or damage to air conditioner.
portable room air conditioner without supervision.
●
If drainage hose is used, ambient temperature can't be lower than
0.Otherwise, it will cause water leakage to air conditioner.
● Prohibit inserting any objects into the air conditioner.
● Do not use an extension cord.
● Do not repair or disassemble the air conditioner by yourself.
● Do not put or hang dripping objects above the air conditioner.
● Keep children from playing or climbing on the air conditioner.
● Children and disabled people are not allowed to use the
● Far away from fire source, inflammable and explosive objects.
● Prohibit operating heating equipment around the air conditioner.
● Make sure the power cord hasn’t been pressed by hard objects.
● Do not pull or drag the power cord to pull out the power plug or
move the air conditioner.
● This appliance can be used by children aged from 8 years and
above and persons with reduced physical,sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.Cleaning and user
maintenance shall not be made by children without supervision.
-2-

-3-
This PORTABLE AIR CONDITIONER is a small, movable air conditioner. It possessed the functions
of COOL, HEAT,DRY and the Separate Ventilation, and depends on different places, it can be moved
convenient for moving, energy saving, and with low noise.
Note: Please read this manual carefully before operating the unit, the manual is used for reference,
and the technical parameters are subject to change without notice.
as will.It is fit for home and office use, especially fit for the house with many rooms. With the compact
configuration, excellent workmanship, elegant appearance, it looks like a standing Benz car. It is
Summary

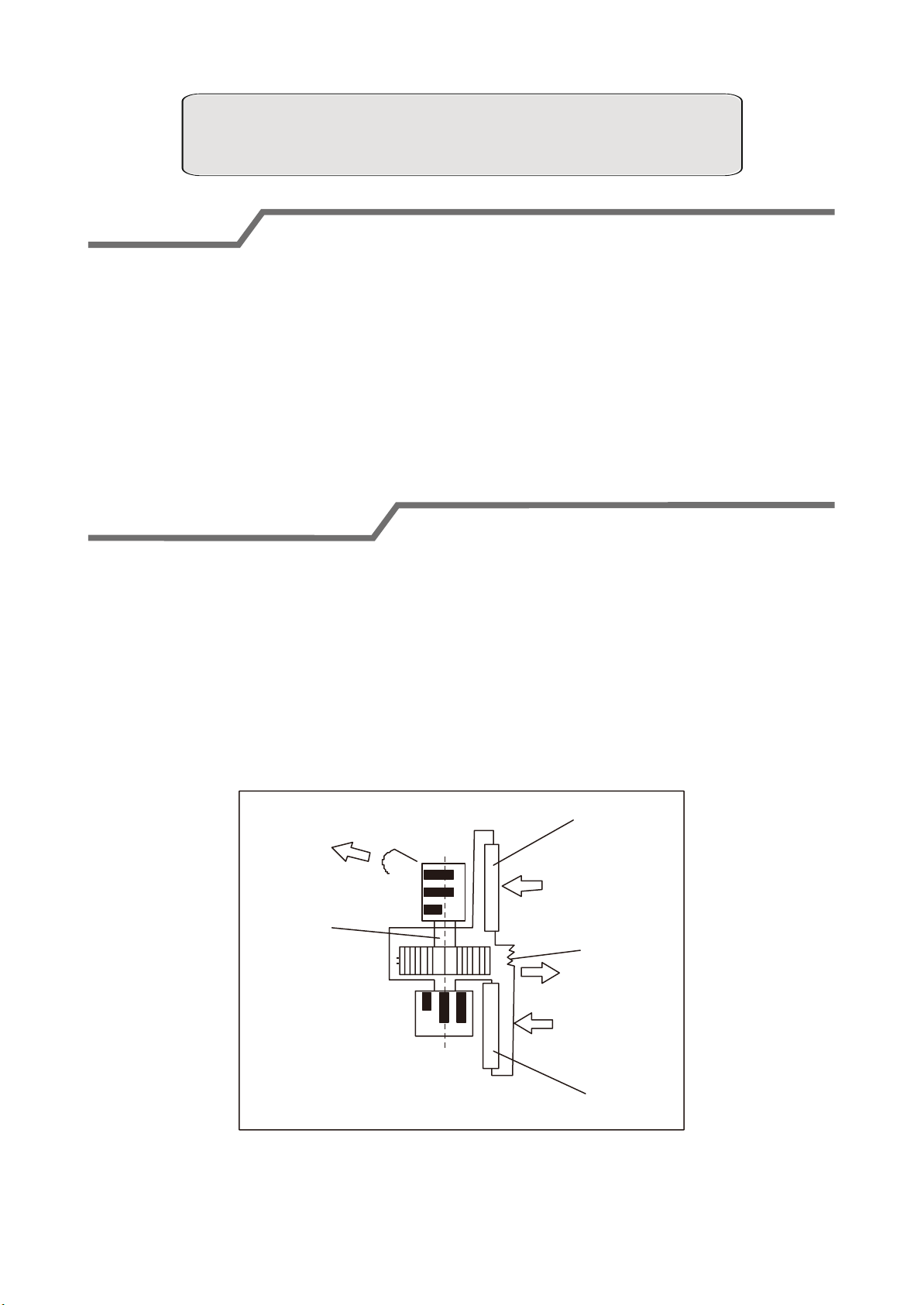

Working principle
With the help of upper motor, the airflow of indoor pass through the evaporator becomes the
cooled wind, but with the help of lower motor, the airflow of indoor pass through the condenser
becomes the heated wind. There is two duct systems designed in its structure. The heated wind is
discharged by the rear outlet, the cooled wind is discharged by the front outlet, flow-guided by the
louver, and it brings the gentle cooling airflow, and the low temperature environment is maintained.
evaporator
fluel
capillary
flue2
condenser
cool air
fan motor
heat air
The Working Principle
● The fuse style:T3.15AH250V;Allowed maximal current pass
throught the fuse can not above 3.15A.

-4-

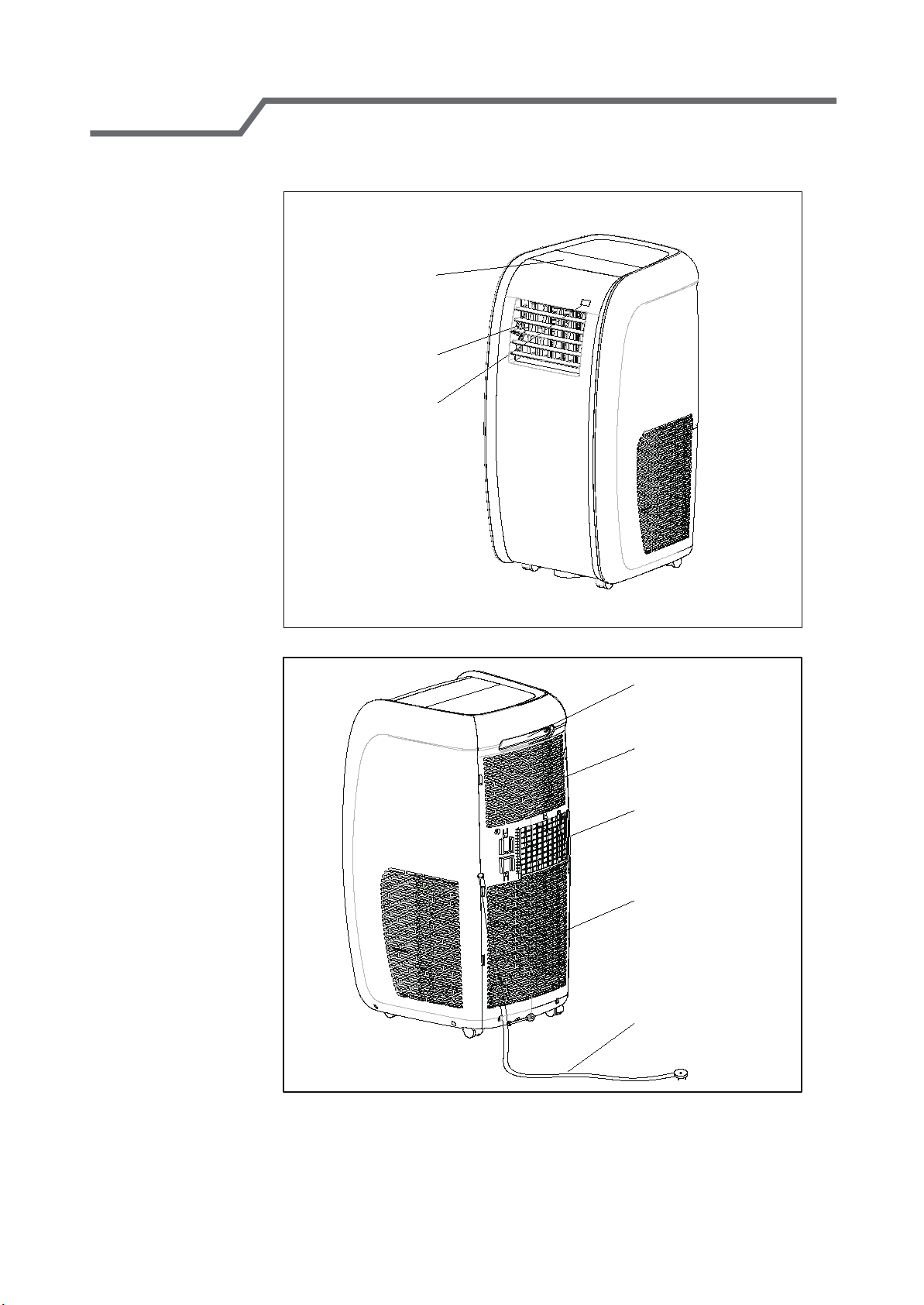

Front
Rear
Remote control
receptor
Air outlet
Handle
Upper air inlet grille
Heat air exhaust vent
Power cord
Lower air inlet grille
Display Board
Structure

Power must adopt the rated voltage and special circuit for AC. And diameter of power cord should
-5-
Electrical Requirements
death, fire, or electrical shock.
WARNING
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Failure to follow these instructions can result in
Do not use an extension cord.
Do not use an adapter.
Do not remove ground prong.
Time-delay fuse or time-delay circuit breaker is recommended to be used.
All wiring must comply with local and national electrical codes and should be installed by a qualified
electrician. If you have any questions, contact a qualified electrician.
※. USAGE NOTICE
The wiring must be operated by the professional personnel by following the national regulation.
enough capacity in fixed circuit. Don't connect earth wire to water pipe or gas pipe. When the air
conditioner is not used, please pull out the power plug or cut off power supply.
There must be electric leakage protect switch and magnetic and heat drop-off air switch that with
Including an air switch with suitable capacity, please note the following table. Air switch should be
15A
Air switch capacityAir-conditioner (W)
included magnet buckle and heating buckle function, it can protect the circuit-short and overload.
(Caution: please do not use the fuse only for protect the circuit)
be big enough.
GPC07AJ-A3NNA1A
GPH07AJ-A3NNA1A
Operating methods

-6-

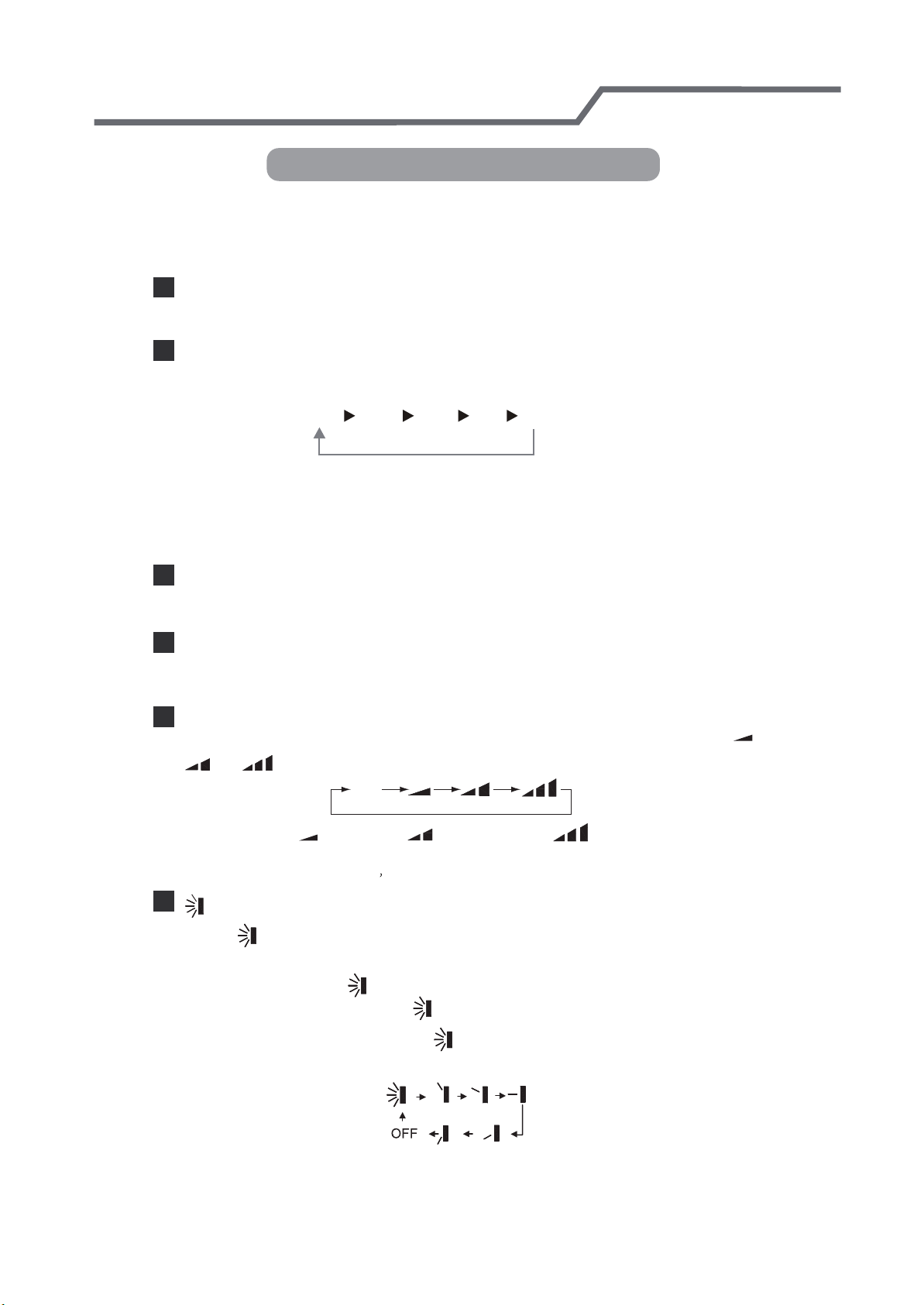

Names and Functions Remote Controller
1.Power:
Press once to start and press once more to stop the unit.
2.Mode:
Press this button to change the operation mode in order of:
COOL → DRY → FAN →HEAT
GPC07AJ-A3NNA1A:
COOL → DRY → FAN
3." " " " :
Press" " once, the temperature will increase 1 (°F). The temperature can be selected from 16
(61°F) ~ 30 (86°F)
4.Fan:
Press this button to change the operation fan in order of:
5. Timer:
button to adjust the timer setting. Timer setting will increase or decrease 0.5 hour by pressing
temperature if there’s no operation for 5s. If timer function is started up, the upper indicator will
keep the display status. Others, it won’t be displayed. Under timer mode, press timer button again
to cancel timer mode.
6. Sleep:
Press sleep button to enter into sleep mode. If the controller operates at cooling mode,
after sleep mode is started up, preset temperature will increase by 2℃within 2 hours and then
the unit will operate at this temperature all the time; While, if the controller operates at heating mode,
after sleep mode is started up, preset temperature will decrease by 2℃within 2 hours and then the
unit will operates at this temperature all the time. Sleep function is nor available for fan mode, drying
mode and auto mode. If sleep function is started up, the upper indicator will keep the display status.
Others, it won’t be displayed.
Control panel and the function
In "COOL" or "HEAT" mode, press" " once, the temperature will decrease 1 °F).
1
2
3
4
56
Press timer button to enter into timer setting mode. Under this mode, press " " or " "
" "or" " button within 10 hours, while timer setting will increase or decrease 1 hour by
pressing " "or" " button beyond 10 hours. After timer setting is finished, the unit will display
Operating methods
GPH07AJ-A3NNA1A:
LOW→MED→TURBO→AUTO

1). To select a place near the door and window, install the exhaust duct.
2). Press "MODE" key to select "COOL" mode.
Please close the door and window, in order to obtain the better dehumidifying effect:
Press "MODE" key, select the "DRY" mode, the unit will run in the "DRY" mode, at
the same time, the upper motor is running at the low speed, it is not adjustable.
COOL mode
1). Press “MODE” key to select “HEAT” mode.
HEAT mode
(not for only
cooling unit )
DRY mode
When the unit runs in FAN mode, it can select 3 speeds.
FAN mode
-7-
2). Press" "or " " key to set the suitable temp.16 ( 61°F ) 30 (86°F).
3). Press" "or " " key to set the suitable temp.16 ( 61°F ) 30 (86°F).
Operating methods

FAN
AUTO
OPER
HEALTH
AIR
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
ON/OFF
MODE
FAN
X-FAN
TURBO
TEMP TIMER
SLEEP LIGHT
2
11
7
10
13
9
43
12
8
6
14
5
1
Press it to start or stop
ON/OFF
operation.
1
MODE
Press it to select operation mode
(AUTO/COOL/DRY/FAN/HEAT).
2
+:Press it to increase temperature
setting.
4
-
: Press it to decrease temperature
setting.
3
FAN
Press it to set fan speed.
5
Press it to set up & down swing angle.
6
TIMER
Press it to set timer ON/ timer OFF.
11
X-FAN
9
TEMP
10
TURBO
12
SLEEP
13
Press it to turn on/off the light.
LIGHT
14
Press it to set left & right swing angle.
8
HEALTH SAVE
Press it to turn on or off health function.
7
-8-

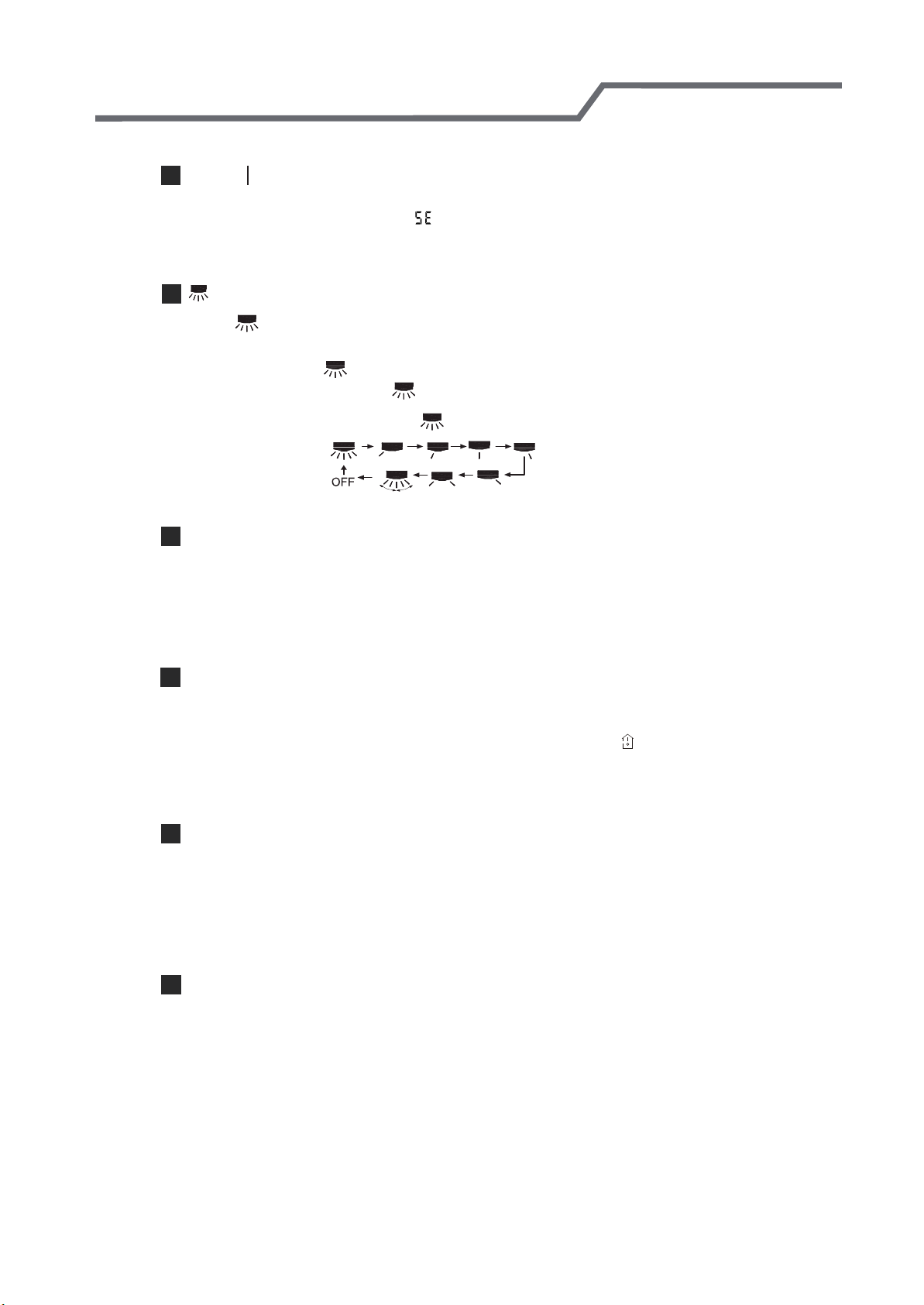

Names and functions of the remote controller

-9-
FAN
AUTO
OPER
HEALTH
AIR
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
19
15
20
18
16
17 21
22
23
24
LOCK icon:
MODE icon:
LIGHT icon:
If MODE button is pressed,
current operation mode icon
Pressing TEMP button,
(set temperature),
ambient temperature)
(outdoor ambient temperature)
and blank is displayed circularly.
(indoor
is displayed by pressing "+"
and “-” buttons simultaneously. Press
them again to clear the display.
is displayed when pressing the
left & right swing button.Press this
button again to clear the display.
is displayed when pressing
the up & down swing button.
Press this button again to clear the
display.
is displayed by pressing the
LIGHT button. Press LIGHT button
again to clear the display.
(AUTO),
( COOL),
(DRY), (FAN) or (HEAT
only for heat pump models) will show.
15
Left & right swing icon:
20
Up & down swing icon:
After pressing TIMER button,
ON or OFF will blink.This area
will show the set time.
SET TIME display:
21
DIGITAL display:
23
Press FAN button to select the
desired fan speed setting(AUTO-
Low-Med-High).Your selection will
be displayed in the LCD windows,
except the AUTO fan speed.
FAN SPEED display:
24
16
17
SLEEP icon :
is displayed by pressing
the SLEEP button. Press this
button again to clear the display.
18
TEMP icon:
22
19
This area will show the set tempe-
rature. In SAVE mode,"SE" will be
displayed. During defrosting opera-
tion, “H1” will be displayed.

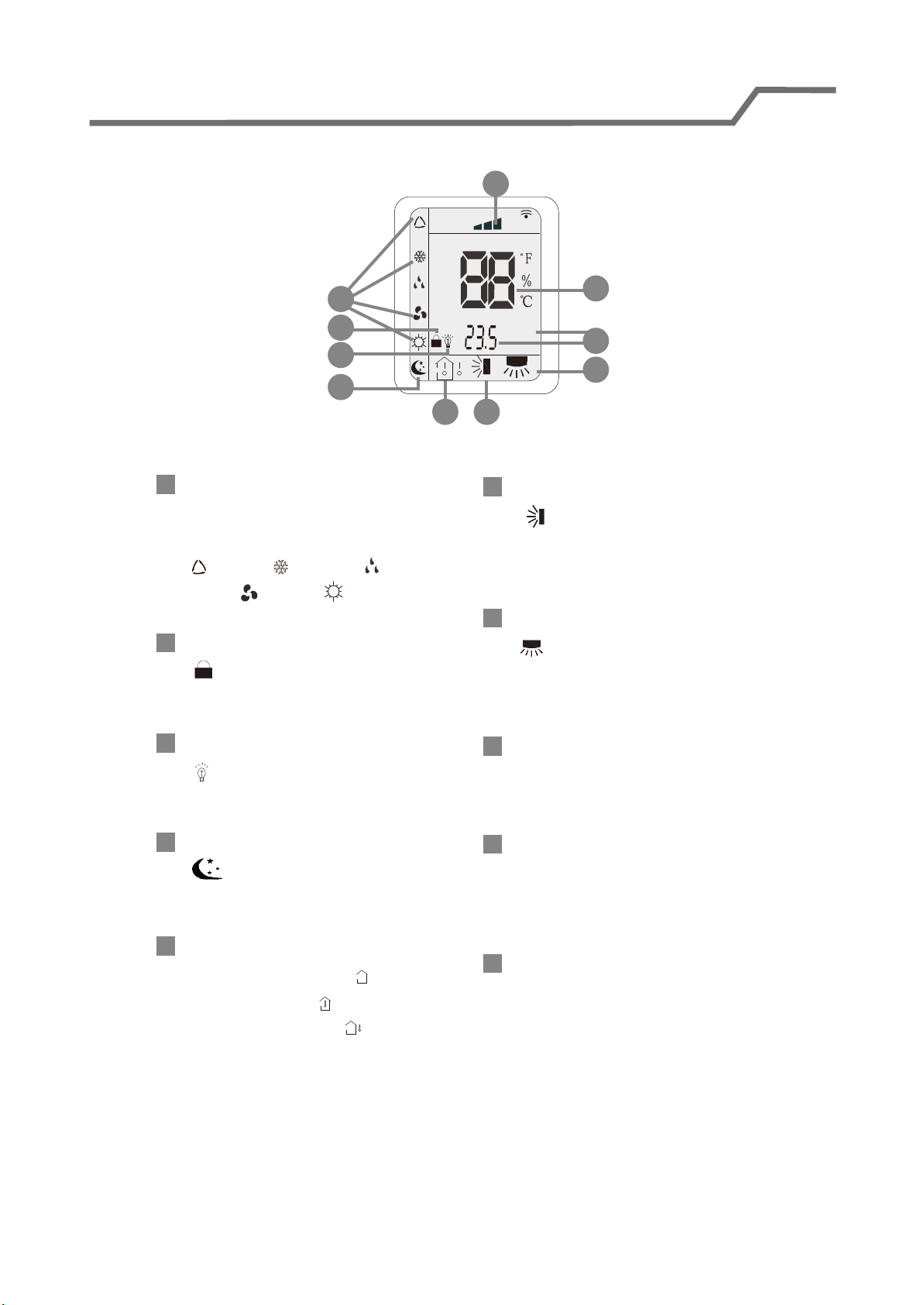

Names and functions of the remote controller

-10-
1
2
4
3
5
Press this button to turn on the unit. Press this button again to turn off the unit.
Each time you press this button,a mode is selected in a sequence that goes from AUTO,
COOL, DRY, FAN,and HEAT *, as the following:
AUTO COOL DRYFAN HEAT *
*Note: Only for models with heating function.
After energization, AUTO mode is defaulted. In AUTO mode, the set temperature will not
be displayed on the LCD, and the unit will automatically select the suitable operation
mode in accordance with the room temperature to make indoor room comfortable.
Press this button to decrease set temperature. Hold it down for above 2 seconds to
rapidly decrease set temperature. In AUTO mode, set temperature is not adjustable.
Press this button to increase set temperature. Hold it down for above 2 seconds to
rapidly increase set temperature. In AUTO mode, set temperature is not adjustable.
This button is used for setting fan speed in the sequence that goes from AUTO,
to then back to Auto.
,
,,
Auto
Low speed Medium speed High speed
6
If the unit is turned off during swing operation,the louver will stop at present position.
●
●
●
●
Press button to start or stop up & down swing function.The remote controller
defaults to simple swing condition.(This function is not applicable for some models).
Press + button and button at the same time at unit OFF to switch between
simple swing and static swing; blinks for 2 seconds.
In static swing condition, pressing button, the swing angle of up & down louver
changes as below:
When setting HIGH fan speed unit will display TURBO fan speed.
ON/OFF :
MODE :
+ :
FAN :
:
- :
Operation of the remote controller
Remote controller description
This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.

-11-
10 TEMP:
Press this button, could select displaying the indoor setting temperature or indoor ambient
temperature.When the indoor unit firstly power on it will display the setting temperature,
if the temperature's displaying status is changed from other status to" ",displays the
ambient temperature, 5s later or within 5s, it receives other remote control signal that will
return to display the setting temperature. if the users haven't set up the temperature
displaying status,that will display the setting temperature.
Press HEALTH part of this button to turn on or off HEALTH function.
7HEALTH SAVE:
Press TIMER button at unit ON to set TIMER OFF; HOUR OFF blinks. Press TIMER
button at unit OFF to set TIMER ON; HOUR ON blinks. In this case, pressing + or -
button changes time setting. Holding down either button rapidly changes time setting
(time setting range 0.5-24hours). Press TIMER button again to confirm setting; HOUR
O
N/OFF stops blinking. If there is not any
operation of button within 5 seconds during
HOUR ON/OFF blinking, TIMER setting will be cancelled.
TIMER:
11
X-FAN:
TURBO:
9
12
8:
"X-FAN" is displayed and thenocieht,edomYRDroLOOCninottubNAF-XgnisserP
indoor fan will continue operation for 10 minutes in order to dry the indoor unit even though
you have turned off the unit.
After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO, FAN and
HEAT mode.
Press this button to activate / deactivate the Turbo function which enables the unit to
reach the preset temperature in shortest time. In COOL mode, the unit will blow strong
cooling air at super high fan speed. In HEAT mode, the unit will blow strong heating air
at super high fan speed.
Pressing SAVE part of this button, is displayed and the unit goes into SAVE operation
mode. Press SAVE part of the button again to cancel SAVE function. During SAVE
operation, the temperature and fan speed is not adjustable.
Press + button and button at the same time at unit OFF to switch between
simple swing and static swing;
Press button to start or stop left & right swing function.The remote controller
defaults to simple swing condition.(This function is not applicable for some models).
blinks for 2 seconds.
In static swing condition, pressing button, the swing angle of left & right louver
changes as below:
●
●
●
If the unit is turned off during swing operation,the louver will stop at present position.
●
Operation of the remote controller

SLEEP :
LIGHT:
13
14

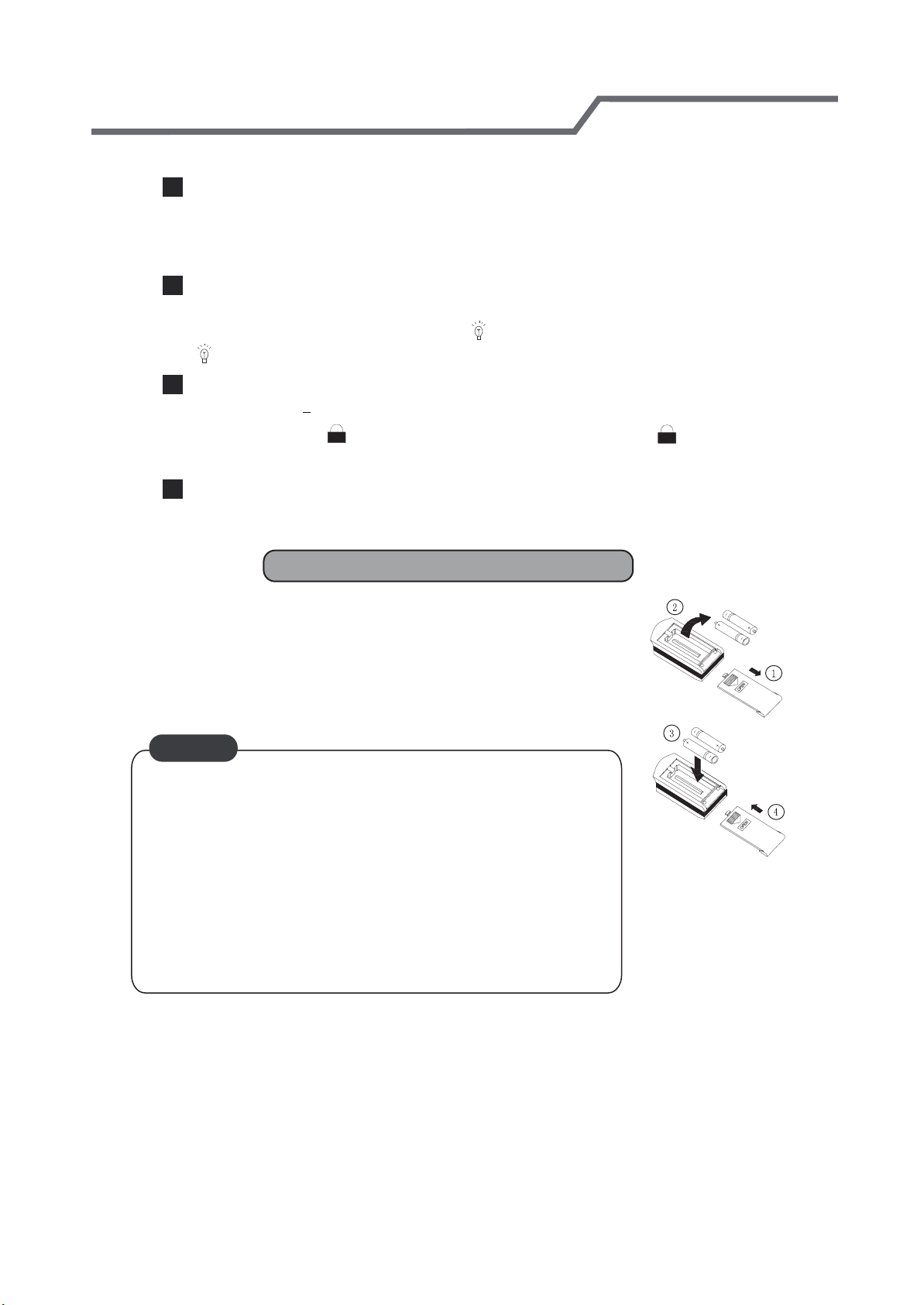

Replacement of Batteries
properly, replace the batteries.
●
●
●
●
●
1.Remove the battery cover plate from the rear of the remote controller.
(As shown in the figure)
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
4. Reinstall the battery cover plate.
When replacing the batteries, do not use old or different batteries,
If the wireless remote controller will not be used for a long time, please
otherwise, it may cause malfunction.
remove batteries to prevent damage from leaking batteries.
The operation should be performed in its receiving range.
It should be kept 1m away from the TV set or stereo sound sets.
If the wireless remote controller does not operate normally, please take
the batteries out and reinsert them after 30 seconds. If it still can't operate
Sketch map for
replacing batteries
Press this button to go into the SLEEP operation mode. Press it again to cancel this
function. This function is available in COOL, HEAT (Only for models with heating
function) or DRY mode to maintain the most comfortable temperature for you.
Press LIGHT button to turn on the display's light and press this button again to turn off
the display's light. If the light is turned on , is displayed. If the light is tunrned off,
disappears.
At unit OFF, press "MODE" and"-" buttons simultaneously to switch between and .
℃
℉
Press "+" and " " buttons simultaneously to lock or unlock the keypad. If the remote
controller is locked, is
displayed. In this case, pressing any button, blinks
three times.
Combination of "+" and "-" buttons: About lock
15
2
Combination of "MODE " and "-" buttons:About switch between Fahrenheit and Centigrade.
16
Operation of the remote controller
NOTICE
-12-

Malfunction analysis
Please check below items before asking for maintenance. If the malfunction still
can’t be eliminated, please contact local dealer or qualified professionals.
Phenomenon Troubleshooting Solution
Air conditioner
can't operate
Air conditioner
can't receive
signal from
remote contr-
oller or remote
controller is
not sensible.
Poor cooling
(heating)
● Power failure?
● Whether the unit is interfered
seriously (such as static pres-
sure, unstable voltage)?
● Whether remote controller is
within the receiving range?
● Whether it's blocked by obst-
acles?
● Is sensitivity of remote contr-
oller low?
● Whether there’s fluorescence
lamp in the room?
● Is the power too low?
●
Whether the air filter is too dirty?
● Whether the set temperature is
proper?
● Whether door and window are
closed?
● Is plug loose?
● Whether the air switch is trip-
ped off or fuse is burnt?
● Is there's malfunction for the
circuit?
● Whether the unit is restarted up
after stopping immediately?
● Wait after power recovery.
● Please pull out the plug. Ins-
ert the plug after about 3min,
and then turn on the unit.
●
The receiving range of remote
controller is 8m. Do not exce-
ed this range.
● Remove the obstacles.
● Check the batteries of remote
controller. If the power is low,
please replace the batteries.
● Move the remote controller
close to air conditioner.
●
Turn off the fluorescence lamp
and try it again.
●
Wait after voltage is resumed.
● Clean the air filter.
●Adjust the temperature.
● Close door and window.
● Reinsert the plug.
●Ask professional person to
replace air switch or fuse.
●Ask professional person to
replace circuit.
● Wait for 3min, and then turn
on the unit again.
-13-

Phenomenon Troubleshooting Solution
Set tempera-
ture can't be
adjusted.
● Whether the unit operates un-
der auto mode?
● Whether the required temper-
ature exceeds the temperature
setting range?
●Temperature can't be adjus-
ted under auto mode.
●Temperature emperature set-
ting range:
Malfunction analysis
● Whether air outlet or air inlet is
blocked?
● Under heating mode, whether
indoor temperature is reached
to set temperature?
● Whether heating mode is sta-
rted up just now?
● Whether evaporator is defros-
ted? (observe it by pulling out
the filter)
● Eliminate the obstacles.
● Indoor unit will stop blowing
fan after reachingto set
temperature.
● In order to prevent cold air,
air conditioner will delay for a
while to be started up, which
is the normal phenomenon.
● It's the normal phenomenon.
Air conditioner is defrosting.
After defrosting is finished, it
will resume operation.
No fan blowed
out from air
conditioner
There's off
flavour
●There’s off-flavour source in
the room, such as furniture,
cigarette etc.
● Eliminate the off-flavour
source.
● Clean the filter.
There's abnor-
mal sound du-
ring operation
● Whether the unit is interfered
by thunder, radio, etc?
● Disconnect power, put thro-
ugh the power again, and
then turn on the unit again.
You can heard
water-flowing
sound
● Whether the unit is turned on
or turned off just now?
●There’s flowing sound of ref-
rigerant inside the air condit-
ioner, which is the normal
phenomenon.
You can heard
the sound of
"PAPA"
● Whether the unit is turned on
or turned off just now?
●Heat expansion or shrinkage
for the panel due to change
of temperature, which cause
friction sound.
-14-
16 ( 61°F ) 30 (86°F)

Malfunction analysis
Malfunction code
Warning
● If there're below phenomenons, please turn off the air conditioner and discon-
nect the power immediately, and then contact dealer immediately.
● If operate the air conditioner under abnormal condition,it may cause malfunc-
→ Power cord is overheating or damaged.
→ Abnormal sound during operation.
→ Water leakage
Chassis is full of water.
Malfunction of ambient
temperature sensor.
Please contact previsional person to deal
with it.
Malfunction of evaporator
temperature sensor.
Please contact previsional person to deal
with it.
1. Pour out the water inside chassis.
2. If "H8" still exits, please contact professional
person to maintain the unit.
F0
F2
F1
H8
H3
E8
F4
1.Refrigerant is leaking
2.System is blocked
1. Re-energize the unit after turning off and
pulling out the plug for 30min;
2. If there's still malfunction, please contact
after-sales service.
Overload protection for compressor
Overload malfunction
1.Check if the unit is under high-temperature
and high-humidity environment; if ambient
temperature is too high, power off the unit and
then energize it for operation after the ambient
temperature drops to 35 (95°F) below.
2. Check if the evaporator and condenser are
blocked by some objects; if yes, take away the
objects, power off the unit and then energize
it for operation.
3. If the malfunction still occur, please contact
our after-sales service center.
Outdoor tube temperature
sensor is open/short-circuited.
Please contact after-sale service person
to deal with it.
-15 -

Note of Installingheat discharge pipe
The discharge pipe is suggested to be installed according to below figure by the manufacturer.
correct under 51 inchs
about 24 inchs
User can adjust the installation method of the discharge pipe basing on the requirement, while
the similar installation methods as below which will lead to unsmoothly air-out are not allowed.
wrong
Accessories and installation of heat exhaust hose
-16-

●The length of the heat discharge pipe is less than 40 inchs.
It is recommended to use it with shortest length.
●When installing,heat discharge pipe should be as flat as possible.
Don’t prolong the pipe or connect it with other heat discharge pipe.
PARTS INCLUDED
Front plastic pipe end Flexible Exhaust Hose Window Exhaust Adapter
-17-
Accessories and installation of heat exhaust hose
