Gree GSY09BXAE User manual

Change for life
Thank you for choosing our product.
Please read this User's Manual carefully before operation and
retain it for reference.
If youlost theUser's Manual, please contact the Tool Box
or visit www.gilman-group.com or send an email to Tool Box
for theelectronic version.
User's Manual
Split Air Conditioner（Cool & Heat）
Thank
This appliance uses R32 mildly flammable refrigerant.
Installation, inspection and maintenance of R32 air conditioner shall
be conducted by authorized dealer, supplier or professionally trained technicians.
Installation shall fulfill the minimum room area and
minimum installation height as stated in this operating instruction.

GSY09BXAE/GSY09BXAC
GSY12BXAE/GSY12BXAC
GSY18BXAE/GSY18BXAC

Content
Operation Notices
The Refrigerant......................................................................................................1
Precautions............................................................................................................2
Special function and specification..........................................................................7
Screen Operation Guide
Parts’ Name..........................................................................................................10
Buttons on remote controller ................................................................................11
Introduction for buttons on remote controller........................................................11
Replacement of batteries in remote controller......................................................16
Maintenance
Emergency operation ...........................................................................................16
Malfunction
Installation Notice
Clean and Maintenance.......................................................................................17
Malfunction analysis ............................................................................................19
Safety operation of flammable refrigerant............................................................23
Installation dimension diagram ............................................................................25
Safety precautions for installing and relocating the unit.......................................26
Tools for installation .............................................................................................27
Installation
Selection of installation location ..........................................................................27
Installation of indoor unit......................................................................................29
Installation of outdoor unit...................................................................................34
Vacuum pumping.................................................................................................37
Leakage detection...............................................................................................37
Requirements for electric connection ..................................................................28
Test and operation
Check after installation ........................................................................................38
Attachment
Configuration of connection pipe.........................................................................39
Test operation ......................................................................................................38
Pipe expanding method.......................................................................................41
Specialist’s Manual..............................................................................................42
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Explanation of Symbols
1.
2.
Damage the product due to improper use or misuse of the product;
Alter, change, maintain or use the product with other equipment without abiding
by the instruction manual of manufacturer;
4.
5.
6.
7.
3.
Exception Clauses
After verification, the defect of product is directly caused by corrosive gas;
After verification, the defects are due to improper operation during transportation
of product;
Operate, repair, maintain the unit without abiding by instruction manual or related
regulations;
After verification, the problem or dispute is caused by the quality specification or
performance of parts and components that produced by other manufacturers;
The damage is caused by natural calamities, bad using environment or force
majeure.
Manufacturer will bear no responsibilities when personal injury or
property loss is caused by the following reasons.
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
DANGER
WARNING
CAUTION
N OTIC E
If it needs to install, move or maintain the air conditioner, please contact dealer
or local service center to conduct it at first. Air conditioner must be installed,
moved or maintained by appointed unit. Otherwise, it may cause serious
damage or personal injury or death.
When refrigerant leaks or requires discharge during installation, maintenance,
or disassembly, it should be handled by certified professionals or otherwise in
compliance with local laws and regulations.

1
The Refrigerant
WARNING：
To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is R32.
The refrigerant is mildly flammable and inodorous. Furthermore, it can lead to explosion
under certain conditions. But the flammability of the refrigerant is very low. It can
be ignited only by fire.
Compared to common refrigerants, R32 is no harm to the ozonosphere.
The influence upon the greenhouse effect is also lower. R32 has got very good
thermodynamic features which lead to a really high energy efficiency.
The units therefore need a less filling.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nea-
rest authorized Service Centre. Any repairs carried out by unqualified personnel
may be dangerous. The appliance shall be stored in a room without continuously
operating ignition sources. (for example: open flames, an operating gas appliance
or an operating electric heater.) Do not pierce or burn.
For repairs, strictly follow manufacturer’s instructions only.
Be aware that refrigerants may not containan odour. Read specialist’s
manual.
The appliance is using mildly flammable refrigerant R32 and tested to comply with
IEC 60335-2-40. There is no minimum room area requirement for the appliance.
WARNING:Appliance filled with mildly flammable refrigerant R32.
If the refrigerant is leaked and exposed to external ignition source,
there is a risk of fire.
CAUTION:Before use the appliance,read the user's manual first.
CAUTION:Information is available such as the user's manual first.
CAUTION:Before repair the appliance ,read the service manual first.
Model
refrigerant charge
(kg)
maximum refrigerant charge
(kg)
minimum installation height
(m)
minimum room area
(m2)
GSY09BXAE/
GSY09BXAC
1.00 1.16 1.80 No minimum room area requirement
GSY12BXAE/
GSY12BXAC
1.00 1.24 1.80 No minimum room area requirement
GSY18BXAE/
GSY18BXAC
1.20 1.52 1.80 No minimum room area requirement

Precautions
Operation and Maintenance
2

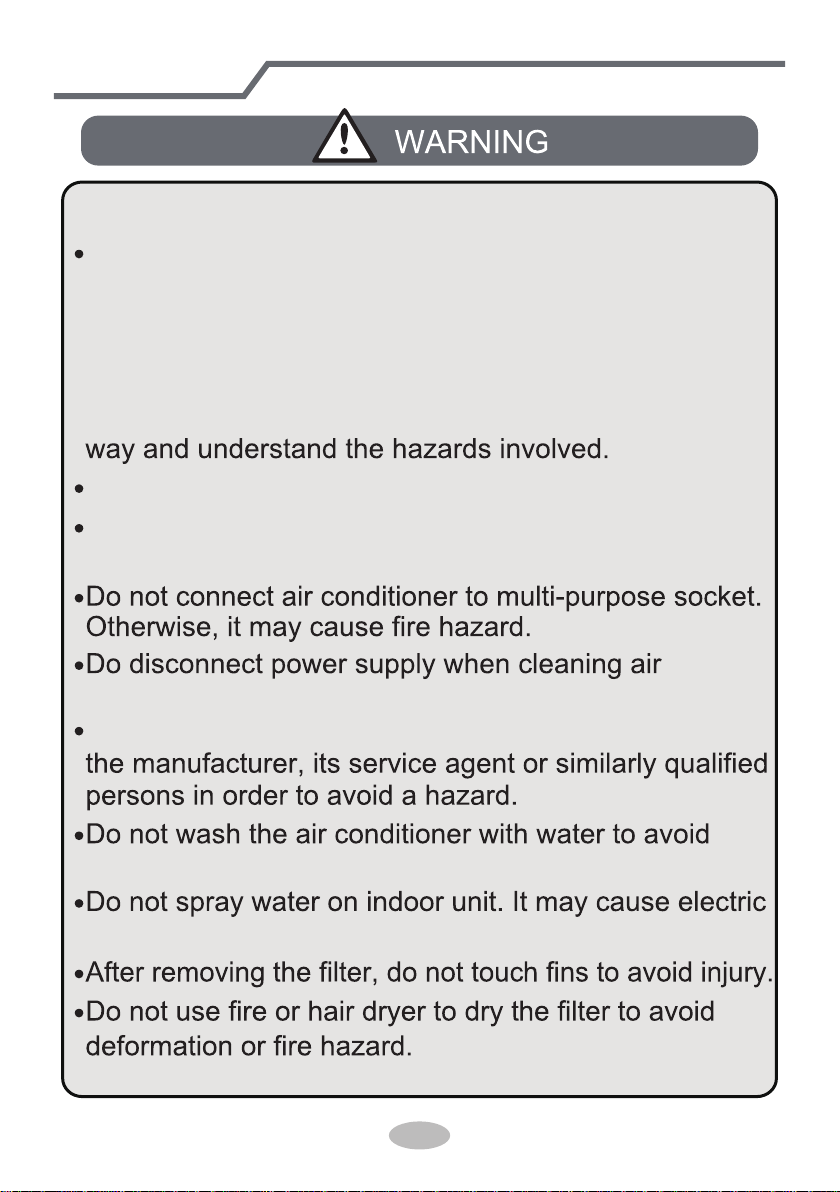

This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
conditioner. Otherwise, it may cause electric shock.
If the supply cord is damaged, it must be replaced by
electric shock.
shock or malfunction.

Do not block air outlet or air inlet. It may cause
malfunction.
remote controller may be broken.
●Power cord is overheating or damaged.
●There’s abnormal sound during operation.
●Circuit break trips off frequently.
●Air conditioner gives off burning smell.
●Indoor unit is leaking.
contact the dealer or qualified professionals for service.
When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
outlet. It may cause personal injury or damage.
Precautions
WARNING
conditioner and disconnect power immediately, and then
If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.
Do not spill water on the remote controller, otherwise the
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not repair air conditioner by yourself. It may cause
objects. It may cause damage or personal injury.
Do not step on top panel of outdoor unit, or put heavy
When below phenomenon occurs, please turn off air
Do not extend fingers or objects into air inlet or air
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
3

Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation
of at least 3mm in all poles should be connected in fixed
wiring.
4
According to the local safety regulations, use qualified
power supply circuit and circuit break.
Precautions
WARNING
Must follow the electric safety regulations when installing
the unit.
Make sure the power supply matches with the requirement
of air conditioner.Unstable power supply or incorrect wiring
may result in electric shock, fire hazard or malfunction.
Please install proper power supply cables before using the
air conditioner.
Properly connect the live wire, neutral wire and
grounding wire of power socket.
Be sure to cut off the power supply before proceeding
any work related to electricity and safety.
Don't use unqualified power cord.
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Including an circuit break with suitable capacity, please
note
the following table.Air switch should be included
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.
Attachment

Installation must be performed in accordance with the
persons in order to avoid a hazard.
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The appliance must be positioned so that the plug is
accessible.
If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.
All wires of indoor unit and outdoor unit should be
connected by a professional.
national wiring regulations.
requirement of NEC and CEC by authorized personnel
only.
Precautions
WARNING
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The air conditioner is the first class electric appliance. It
keep the interconnection cable away from the copper
tube.
The temperature of refrigerant circuit will be high, please
the manufacturer, its service agent or similarly qualified
If the supply cord is damaged, it must be replaced by
The yellow-green wire in air conditioner is grounding
The appliance shall be installed in accordance with
Do not put through the power before finishing installation.
5

The indoor unit should be installed close to the wall.
Instructions for installation and use of this product are
provided by the manufacturer.
Precautions
WARNING
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
If you need to relocate the air conditioner to another
must be installed in the line.
For the air conditioner without plug, an circuit break
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
Select a location which is out of reach for children and
reachable after finishing installation.
For the air conditioner with plug, the plug should be
Working temperature range
6
Outdoor side DB/WB(°C)Indoor side DB/WB(°C)
Maximum cooling 32/23 48/26
Maximum heating 27/- 24/18
NOTICE:
●The operating temperature range (outdoor temperature) for Low-temperature
cooling only unit is -15°C~ 48°C; for Low-temperature heat pump unit is
-25°C~ 48°C.

7
When the unit is conducting cooling under low temperature, the surface of
indoor heat exchanger will be frosted; when the temperature of indoor heat
exchanger is decreased to below 0°C for a period of time, the outdoor unit will
stop operation.
When outdoor temperature is low and humidity is high, after operating for a period
of time, the heat exchanger of outdoor unit will be frosted, which will lower
heating effect. At this time, the unit will start defrosting mode automatically.
1. During defrosting, there might be steam in outdoor unit. It is caused by quick
defrosting and is normal.
2. After defrosting, heating mode will be resumed.
Under “Heating” mode, if indoor heat exchanger doesn’t reach certain tempera-
ture in the following 3 kinds of status, the indoor fan will not be started to
prevent cold air from blowing (about 2 minutes):
1. Heating operation is just started;
2. After auto defrosting operation;
3. Heating under low temperature.
When operating under heating mode or auto heating mode, shut down the unit
if compressor and indoor fan is working, the compressor and outdoor fan will
stop, air guide louver will be rotated to the horizontal location and indoor fan will
be off after operating for a period of time in low speed.
Special function and specification
When it is set “auto light” by remote controller, the air conditioner will automati-
cally adjust the brightness of display and beeper according to the ambient light
intensity. When the air conditioner detects the ambient light intensity is weak, it
will automatically turn off the display, if it is operated by remote controller, the
display will display in low brightness for a short time, and the beeper beeps
slightly; when the air conditioner detects the ambient light intensity is strong
for a period of time, the above mentioned control will be quitted.
Anti-freezing function
Defrosting function
Anti cold air function
Waste heat blow function
Photosensitive function

8
Under cooling or heating mode, press “I Sense” button in the
remote controller or use APP in mobile phone to enter into “I Sense air
supply”, after setting I sense, follow, avoid, surround mode, people sensing
device is automatically activated to detect. The air conditioner will automati-
cally detect the body sense temperature and enter into comfortable
temperature quickly. The air conditioner will automatically adjust the angle
of guide louver and angle of air supply.
After setting “absence energy-saving” via mobile APP, people sensing
device will automatically turn on to detect, when it detects that there is no
people in the room, the air conditioner will automatically operate at
energy-saving mode.
Under the following cases, people sensing device may have wrong detec-
tion, which belongs to normal phenomenon:
1. People sensing device detects the location of people and then controls
the air supply direction, there is certain time difference from detecting to
changing the air direction (it cannot instantly detect the moving of people).
2. Under the following cases may influence the detection of people sensing
device and impact the actual using experience.
The following situations may be detected as absence:
①Indoor temperature is higher than 30℃, or the temperature difference
between the people and the environment is relatively small.
②When the people is immobile or barely move.
③When the people is having his back to the people sensing device.
④When the people exposes very few skin to the air.
⑤When the people is shielded by a higher furniture.
⑥When the people covers with thick quilt or wears thick clothes, the device
is not able to detect.
⑦When the indoor unit cannot detect the people below or in the side of
indoor unit.
Under the following cases the device may detect that there is people in the
room:
①During the operation when it turns on or switches mode, the room
temperature is not stable and temperature difference is relatively large in a
short time.
②There are lamp, TV, computer, pet or related heating elements in the
room.
③The door or window is not well closed, and heating or high-temperature
objects can be detected through the door or window.
Special function and specification
Detection of people sensing device

Special function and specification
9
In order to prevent user from adjusting the air louver manually, when turning off
the air conditioner or after power failure and re-energization, the air louver will
reset (fully open and fully close), it will spends about 50 seconds, which is
normal phenomenon, please do not cut off the power supply when the air louver
has not fully closed.
2. The auto clean process of evaporator will conduct quick cooling or heating,
there might be big noise which is the sound of liquid flow and injection molding
expansion and contraction; the air conditioner might blow cold air or hot wind
and it is normal. Keep the room ventilated during cleaning process to avoid
affecting comfort.
Tip:
Auto clean function can only be started for operation normally under routine
environment temperature. If the dust at home is heavy, we suggest cleaning it
once in a month; if not, just clean it once in 3 months. After starting auto clean,
the user can leave the room; after auto clean, the unit will enter standby mode
automatically.
Auto clean function of indoor heat exchanger
Realize auto clean by utilizing sweating, frosting, defrosting and evaporator high
temperature.
Close of air louver
1. Under the remote controller is off, press “MODE” and “FAN” button at the
same time for 5 seconds to start auto clean function, then the unit will display
“CL”. Operation time for cleaning is about 30 minutes; repeat the operation of
exit auto clean (if exiting auto clean in the midway, the unit will be dried in low
speed for a period of time).

remote controller
Indoor Unit
(Display content or position may be different from above
graphics, please refer to actual products)
Power /
Auxiliary heating
Temperature
display
display
Filter
Human
sense device
Air inlet grille Air inlet
Air outlet
Panel
Air guide
louver
10
Parts’ Name
Outdoor Unit
NOTICE:
Actual product may be different from above graphics, please refer to actual
products.
air inlet
air outlet

Introduction for buttons on remote controller
11
Buttons on remote controller
Tip: this series has no health and breeze functions.
cool button
Set fan speed display
/ button
Mode display
Timer function display
All kinds of function
status display
left and right fixed angle button
e-heater button
heat button
Direction display
timer button
WiFi button
breeze button
I sense button
Battery display
Child lock status display
Set temperature display
ON/OFF button
button
fan button
button
mode button
up and down fixed angle button
health button
light button
sleep button
Tip: cooling only type does not receive heating mode signal.
Press this button to turn on/off the air conditioner.
When turning on/off, clear off the original timer and sleep setting.
Auto
Heat Fan
shown: Cool Dry
Press this button, the circulation mode will change as the fig is
ON/OFF button
MODE button
WiFi button
Press " WiFi " button to turn on WiFi function, " WiFi " icon will
be displayed on the remote controller.
Hold " WiFi " button for 5s to turn off WiFi function and " WiFi "
icon will disappear.
Under off status, press "MODE" and " WiFi " buttons simultane-
ously for 1s, WiFi module will restore factory settings.
This function is only available for some models.

Introduction for buttons on remote controller
12
For every press of “-” or “+” button, the set temperature will
decrease or increase 0.5℃. Press “-” or “+” button for over 1
second, the temperature value will be changed quickly and the
information will be sent until the button is loose.
Press “-” and “+” button at the same time for 3 seconds to lock
or unlock the keyboard, after locking, the remote controller will
display the lock icon “ ”, at this moment, touch either button,
the lock icon will blink three times and the status is unchanged.
After unlocking the keyboard, the lock icon of displayer will
disappear.
Press this button to control the LED status on the displayer, the
circulation change is as follow:
Press this button, the air conditioner will conduct cooling mode.
/ button
LIGHT button
COOL button
Press this button, the air conditioner will conduct heating mode.
Press this button to start (display “ ” icon) or shut down (no
display “ ” icon) left and right swing function.
Remark: according to the comfort demand of air supply, the
swing range under different modes is different.
HEAT button
TIMER button
Up and down
fixed angle button
button
Press this button to start (display “ ” icon) or shut down (no
display “ ” icon) up and down swing function.
Remark: according to the comfort demand of air supply, the
swing range under different modes is different.
Press this button to set timer ON/OFF.
Press this button, the character of H and OFF (ON) will blink. At
this time, press “+” or “-” button to adjust timer (long press “+”
or “-” button, time value will change quickly), the setting range
is 0.5～24 hour(s); press this button again to confirm timer, the
character of H and OFF (ON) will not blink any more.
Press this button to set up and down swing status, the circula-
tion change is as follow:
button
LED on(display ) LED off(no display)
Auto LED(display )
LED off(no display)

Introduction for buttons on remote controller
13
E-HEATER
button
Left and right
fixed angle
button This is a general remote controller, when receiving “ ”, the
swing status is the same as “ ”; when receiving “ ”, the
swing status is the same as left and right swing.
Press this button to set left and right swing status, the circula-
tion change is as follow:
Under heating mode, press this button, circulation change of
auxiliary heating status is as follow:
FAN button
Press this button, circulation change of fan speed is as follow:
Press this button, the sleeping status will be circulated in the
following sequence:
SLEEP button
Under dry mode, it can only be operated under the fan speed
of .
Quiet function can only be started under cooling and heating
mode. Turbo can be started under cooling and heating mode.
Under air supply mode, health function (this model has no
health function) shall be started at the same time.
Under cooling mode, start the breeze function, circulation
change of fan speed is as follow:
Remark: when pressing the button of remote controller to
adjust the fan speed to “ ” (speed 1) or “ ”(speed 2), IDU
panel will display “Low” fan speed; when adjusting to “ ”
(speed 3) or “ ” (speed 4), the panel will display “Medium”;
when adjusting to “ ” (speed 5), the panel will display
“High”.
After starting heating mode, the remote controller will automati-
cally restore to the auxiliary heating status set previously.
The function is only available for some models.
Auxiliary heating ON (display ) Auxiliary heating OFF(display )
Auto auxiliary heating (no display)
QuietAuto
Turbo
Turn off sleep

Introduction for buttons on remote controller
Sleep 1 Cooling mode: under sleep status and after operation
for 1h, the temperature of the master unit will increase 1℃,
then 2℃after 2h, after that, the unit will be operated at the set
temperature. Heating mode: under sleep status and after oper-
ation for 1h, the set temperature will decrease, then decrease
2℃after 2h, after that, the unit will be operated at the set
temperature.
Sleep 2 is the sleep temperature curve preset based on the
system.
Sleep 3 is the sleep curve setting under DIY sleep mode:
(1) Under Sleep 3 mode, long press “U&D FIXED ANGLE”
button to enter personalized sleep setting status, as the fig
shown: Display the
set temperature
SLEEP button
In Cool or Heat mode, press this button and the unit will work
in the following sequence:
14
Display the
set time
I SENSE
button OFF
SMART: the unit will judge based on the body sensing device,
body temperature, indoor temperature and the operation data
to enter different air supply modes including airflow blowing to
(2) Adjust “-” or “+” button to change the corresponding set
temperature, after that, press “U&D FIXED ANGLE” button for
confirmation to set temperature for the next hour, until tempe-
rature setting for the next 8h is finished. If sleep curve setting is
completed, at this time, the remote controller will display again.
(3) If not pressing any buttons in 10 seconds, the remote
controller will exit sleep curve setting status automatically and
restore the original display. During setting process, if pressing
“ON/OFF”, “Timer”, “Sleep” or other modes, it will exit the sleep
curve setting as well.
Sleep 4 is the afternoon nap mode. The temperature will be
changed automatically according to afternoon nap status.
If re-energizing the unit after power off, sleep mode will be
cancelled acquiescently; if micro sense function is not activat-
ed, when starting the sleep function, quiet fan speed will be
started automatically.

15
I SENSE
button
Auto clean
function
Night mode
Introduction for buttons on remote controller
Under cooling or heating mode, when turning on sleep mode and
turn to low speed or quiet notch, the outdoor unit would enter into
night mode.
NOTE:
When you feel that the cooling and heating effect is poor, please
press "FAN" button to other fan speed or cancel "SLEEP" function
to exit the night mode.
The night mode can only work under normal ambient tempera-
ture.
Under unit off status, hold "MODE" and"FAN" buttons simultane-
ously for 5s to turn on or turn off the auto clean function. When
the auto clean function is turned on, indoor unit displays "CL".
During the auto clean process of evaporator, the unit will perform
fast cooling or fast heating. There may be some noise, which is
the sound of flowing liquid or thermal expansion or cold shrink-
age. The air conditioner may blow cool or warm air, which is a
normal phenomenon. During cleaning process, please make
sure the room is well ventilated to avoid affecting the comfort.
NOTE:
The auto clean function can only work under normal ambient tem-
perature. If the room is dusty, clean it once a month; if not, clean
it once every three months. After the auto clean function is turned
on, you can leave the room. When auto clean is finished, the air
conditioner will enter standby status.
This function is only available for some models.
people, airflow avoiding people, and circular airflow.
FOLLOW: the unit will control the vertical and horizontal swing
louvers automatically according to the body sensing device so
as to blow air toward people.
AVOID: the unit will control the vertical and horizontal swing
louvers automatically according to the body sensing device so
as to avoid direct airflow to people.
SURROUND: the unit will control the vertical and horizontal
swing louvers automatically according to the body sensing
device so as to supply air around the people. If the air is directly
blown to people, it will pass the people very quickly.

Replacement of batteries in remote controller
16
NOTICE:
1.
2.
3.
Don’t mix the new battery with the old one and batteries of different types shall
not be mixed. The remote controller shall be kept well; Liquid shall not flow into
the remote controller; the remote controller shall avoid direct sunshine or not be
put in places with high temperature.
If not using the remote controller for a long time, please take out the battery.
When the remote controller is sending message, “ ” icon will blink for about
1 second. When receiving effective remote message, the air conditioner will
give out a sound.
1.
2.
3.
Slightly press the “ ” mark, then push the battery cover of remote controller
towards the arrows direction.
Install two new No.7 (1.5V) dry batteries and ensure “ ” and “ ” is correctly
placed.
Close the battery cover of remote controller.
Remark: the remote controller will display the remaining battery life, when it
displays “ ”, please replace the battery immediately.
panel
aux. button
WARNING:
Use insulated object to press
the auto button
Emergency operation
rononrutotnottub.xuaesuesaelp,degamadrotsolsirellortnocetomerfI
turn off the air conditioner. The operation in details is as below:
auto mode.
air conditioner. When the air conditioner is turned on, it will operate under
