Gree R410A User manual

Photovoltaic Direct-driven VRF for
North America
R410A(GC201610-1)

PRODUCT .....................................................................................................2
1 PRODUCT LIST ..............................................................................................................................2
2 NOMENCLATURE ............................................................................................................................3
3 PRODUCT FEATURES.....................................................................................................................4
4 SPECIFICATIONS.............................................................................................................................5
5 CAPACITY CODE ...........................................................................................................................10
6 PRINCIPAL OF OPERATION.......................................................................................................... 11
CONTROL....................................................................................................13
1 Units’ Control...................................................................................................................................14
2 Wired Controller .............................................................................................................................15
3 Remote Controller ...........................................................................................................................34
INSTALLATION............................................................................................36
1 Engineering Installation Preparation and Notice .............................................................................37
2 Installation Materials Selection........................................................................................................37
3 Installation of outdoor unit ...............................................................................................................39
4 Installation of indoor Unit ..............................................................................................................40
5 Installation of Electronic Expansion Valve Assy (unit with external EXV)........................................43
6 Installation of Refrigerant Pipeline ..................................................................................................44
7 Installation of the Connection Pipe.................................................................................................47
8 Installation of Condensate Pipes.....................................................................................................52
9 Electric Wiring .................................................................................................................................54
10 Debugging of Unit .........................................................................................................................56
MAINTENANCE.............................................................................................59
1 Malfunction List ..............................................................................................................................60
2 Troubleshooting ..............................................................................................................................61
3 Power Distribution of Unit................................................................................................................65
4 Removal of Parts.............................................................................................................................68
5 Vacuum drying for the system . ........................... .............. ............................................................ 81
6 Exploded View of Unit and Parts’ List .......... .................................................................................. 84
CONTENTS

1
Photovoltaic Direct-driven VRF
for North America
PRODUCT
PRODUCT

2
for North America
PRODUCT
PRODUCT
1 PRODUCT LIST
1.1 Outdoor Unit
Model Product
Code
Cooling Capacity Heating Capacity Power
Supply Refrigerant Appearance
Kw(Btu/h) Kw(Btu/h)
GMV-HY36WLT/
A-T(U) CN870W0050 10.5
(36000)
13.2
(45000) 208/230V
~
60Hz
R410A
CN870W0060 14.1
(48000)
15.8
(54000)
1.2 Indoor Unit
1.2.1 Low static pressure duct
Model Product
Code
Cooling Capacity Heating Capacity Power
Supply Refrigerant Appearance
kW(Btu/h) kW(Btu/h)
GMV-ND07PLS/
A-T(U) CM810N0080 2.2
(7500)
2.5
(8500)
208/230V
~
60Hz
R410a
GMV-ND09PLS/
A-T(U) CM810N0090 2.8
(9500)
3.1
(10500)
GMV-ND12PLS/
A-T(U) CM810N0100 3.5
(12000)
4.0
(13500)
GMV-ND14PLS/
A-T(U) CM810N0120 4.0
(13800)
4.5
(15500)
GMV-ND18PLS/
A-T(U) CM810N0070 5.2
(18000)
5.2
(20000)
GMV-ND22PLS/
A-T(U) CM810N0110 6.3
(22000)
7.1
(24000)
1.2.2 Four-way Cassette
Model Product
Code
Cooling Capacity Heating Capacity Power
Supply Refrigerant Appearance
kW
(Btu/h)
kW
(Btu/h)
GMV-ND07T/
A-T(U) CM500N0520 2.2
(7500)
2.5
(8500)
208/230V
~
60Hz
R410a
GMV-ND09T/
A-T(U) CM500N0530 2.8
(9500)
3.1
(10500)
GMV-ND12T/
A-T(U) CM500N0540 3.5
(12000)
4.0
(13500)
GMV-ND15T/
A-T(U) CM810N0130 4.4
(15000)
5
(17000)
GMV-ND18T/
A-T(U) CM500N0510 5.3
(18000)
5.9
(20000)
GMV-ND24T/
A-T(U) CM500N0550 7.0
(24000)
7.9
(27000)
GMV-ND30T/
A-T(U) CM500N0560 8.8
(30000)
10
(34000)
GMV-ND36T/
A-T(U) CM500N0570 10.6
(36000)
11.7
(40000)
GMV-ND42T/
A-T(U) CM500N0580 12.3
(42000)
13.8
(47000)
GMV-ND48T/
A-T(U) CM500N0590 14.1
(48000)
15.8
(54000)
Photovoltaic Direct-driven VRF
GMV-HY48WLT/
A-T(U)

3
for North America
PRODUCT
1.2.3 Wall Mounted Type IDU
Model Product
Code
Cooling Capacity Heating Capacity Power
Supply
Power
Supply Appearance
kW
(Btu/h)
kW
(Btu/h)
GMV-N07G/A3A-
D(U) CM100N1480 2.2 (7500)
2.5
(8500)
208/230V
~
60Hz
R410a
GMV-N09G/A3A-
D(U) CM100N1490 2.8 (9500)
3.2
(11000)
GMV-N12G/A3A-
D(U) CM100N1500 3.5 (12000)
4.0
(13500)
GMV-N18G/A3A-
D(U) CM100N1510 5.2 (18000)
5.8
(20000)
GMV-N24G/A3A-
D(U) CM100N1520 7.0 (24000)
7.5
(25500)
2 NOMENCLATURE
2.1Nomenclature of outdoor units
GMV □ - □ □ □ □ W □ / □ □ □
1 2 3 4 5 6 7 8 9 10
No. Description Options
1 Product code GMV-Gree Multi VRF Units
2 Suitable climate Blank-T1 condition; T2-low temperature climate;
T3-high temperature climate
3 Unit type DC Inverter (omit)
4 Function code Q—Heat Recovery; S—Water Heater; W—Water-cooled Unit; X—Fresh Air Unit
Leave blank if above functions are unavailable.
5 Code of cooling capacity Nominal capacity/100(W)
6 Unit structure M—Modular (top discharge); L—Non-modular (side discharge); blank—Non-modular (top
discharge)
7 Refrigerant R410a (omit)
8 Design No. Named in order of A, B, C, or combined with 1, 2, 3…
9 Power supply 7000~18000W, 1 phase—omit; 3 phase—S
2.2Nomenclature of indoor units
GMV－—— Power supply
Series number
With water pump or not
Cooling capacity
Units series
Function code
Motor type
Household or commercial
Code for indoor unit
Code for type
Photovoltaic Direct-driven VRF

4
for North America
PRODUCT
Code for
multi VRF －Code for indoor unit Motor type Function code Cooling capacity
GMV －N
D-DC
motor
Default-AC
motor
R-heat pump
L-cooling only
X-fresh air
W-dual heat sources
Q-heat recovery
Default-electric heating
Nominal cooling
capacity/100(W)
With water pump or
not Series number Power supply
PL-Low static pressure duct type indoor unit;
P-Standard static pressure duct type indoor;
PH-High static pressure duct type indoor
unit; PB-Thin duct type indoor unit; T-Four-
way cassette; TD-Single-way cassette; TS-
Two-way cassette; C-Floor mounting unit;
ZD-Floor ceiling unit; G-Wall-mounted unit
With water pump-
S(All cassette indoor
units are with water
pump, S is not
presented in the
model same)
A, B, C… or 1, 2, 3… Select power supply code
according to power supply
3 PRODUCT FEATURES
3.1 General introduction
Gree Photovoltaic Direct-driven Inverter VRF adopts inverter compressor technology. By changing the displacement of compressor,
3.1.1 Features
3.1.2 Features of Duct Type Indoor Unit
◆Flexible setting and even air supply
◆Convenient installation
Can be installed in the ceiling
◆With fresh air function to improve indoor air quality
Fresh air duct can be connected
◆Wide adjusting range of static pressure and air volume
Static pressure and air volume can be set according to actual requirements
3.1.3 Features of Wall Mounted Type Indoor Unit
Photovoltaic Direct-driven VRF
stepless capacity regulation within rangeof 15%~100% can be realized. Various product lineups are provided with capacity range from
36000Btu/h to 48000Btu/h, which can be widely used in residential, commercial and working area and especially applicable to places
with big load change. Gree residential air conditioner is absolutely your best choice.
(1)
Gree Photovoltaic Direct-driven Inverter VRF System adopts DC motor to realize complete direct current and upgrade the energy
(2) New generation CAN bus communication
Due to the latest communication method—CAN Bus Communication, system’s anti-interference capability is stronger and the control
on indoor units is more accurate, with higher reliability. Specialized shield wire is no more needed and ordinary communication wire can be
.
(3) Long connection pipe
The maximum length of connection pipe is 300m (in total) and the farthest connection pipe between indoor and outdoor units can be
120m’s long, which has extended the installation condition and reduced the limit of installation distance.
(4) Wide operation range
Units can operate reliably in a wide temperature range (cooling:10~54
oC, heating: -30~27oC).
(5) Fine sound quality
Through a series of optimized measures, system has reduced the throttle noise and oil return noise of indoor units, gas bypass noise,
etc. so that units are more comfortable regarding sound quality.
(6) Reliable low-temperature running
The controller uses the low temperature elements, which can run reliably at -35
(7) Complete protection
Units are equipped with a series of protection to accurately identify errors and protect the units, which has ensured reliable and safe
operation.
efficiency. SEER is up to 18 and HSPF is up to 11.
℃ . The compressor can normally start up below -35 ℃ .

5
for North America
PRODUCT
◆Filter can be cleaned
◆Quiet design
◆One IDU with several wired controller and several IDUs with one wired controller
One IDU can be connected with several wired controllers in order to control one IDU from different location; meanwhile, several IDUs
can be connected with one wired controller in order to achieve centralized control of 16 IDUs in maximum.
◆Wide air supply range
The air supply range is wide, so that the wind can be delivered to each corner of the room naturally and evenly.
◆Super cooling and heating function
Intelligent temperature control technology is adopted with super cooling and heating function, so that the room temperature can reach
set temperature rapidly.
◆I-feel function
When I-feel function is activated, the unit can detect the temperature around the user and adjust the temperature, so that the comfort of
user is improved. (Remote controller shall be equipped)
◆Panel is removable
The panel of indoor unit can be removed easily for convenient maintenance.
◆CAN bus communication technology and auto addressing
The response of the system is quicker with more reliable communication; auto addressing, non-polar communication and free wiring
are available.
◆Multiple protections
Anti-freezing protection, temperature sensor malfunction protection, fan motor overload protection, auxiliary electric heating overheat
protection (This function is not included in pure heat pump unit).
4 SPECIFICATIONS
4.1 Outdoor Unit
Model GMV-HY36WLT/A-T(U) GMV-HY48WLT/A-T(U)
Product Code CN870W0050 CN870W0060
Cooling capacity kW(Btu/h) 10.5(36000) 14.1(48000)
Heating capacity kW(Btu/h) 13.2(45000) 15.8(54000)
Circulating air volume m3/h 6000 6000
Noise dB(A) 56 57
Refrigerant charge volume Kg(oz) 6.0 6.0
3.5
Power supply 208/230V~60Hz 208/230V~60Hz
Rated power
input
Cooling kW 3.3 5.1
Heating kW 3.5 4.1
Unit Dimensions (mm/inch)(WxDxH) 900×340×1345mm(35.4×13.4×53.0inch)
Package Dimensions (mm/inch)(WxDxH) 993×453×1500mm(39.3×18.0×59.6 inch)
Compressor QXAT-D20zA030×2
Water-proof level IPX4 IPX4
Suitable climite T1 T1
Connection
pipe
Gas mm/inch φ15.9(5/8) φ15.9(5/8)
Liquid mm/inch φ9.52(3/8) φ9.52(3/8)
Connection Method Flare connection Flare connection
Net weight Kg 146
Note:
①. The technical parameters are changed along with the products’improvement; please refer to the nameplate of the unit for actual data.
Noise is tested in the semi-anechoic room, so it should be slightly higher in the actual operation due to environmental change.
Rated conditions:
Cooling: Indoor air temperature27℃DB/19℃WB
Outdoor air temperature35℃DB/24℃WB
Heating: Indoor air temperature20℃DB/15℃WB
Outdoor air temperature7℃DB/6℃WB
②.
③.
Photovoltaic Direct-driven VRF
Minimum NO. of connectable indoor units
Maximum NO. of connectable indoor units
Total capacity index of to be
connected indoor units
Min
Max
22
57
50
100
50
100
Max.power input of PV solar kW 3.5
146

6
for North America
PRODUCT
4.2 Indoor Unit
4.2.1 Low Static Pressure Duct Type IDU
Model
GMV-
ND07PLS/
A-T(U)
GMV-
ND09PLS/
A-T(U)
GMV-
ND12PLS/
A-T(U)
GMV-
ND14PLS/
A-T(U)
GMV-
ND18PLS/
A-T(U)
GMV-
ND22PLS/
A-T(U)
Product Code CM810N0080 CM810N0090 CM810N0100 CM810N0120 CM810N0070 CM810N0110
Cooling Capacity Btu/h 7500 9500 12000 14000 18000 22000
kW 2.2 2.8 3.5 4.0 5.3 6.3
Heating Capacity Btu/h 8500 10500 13500 15000 20000 24000
kW 2.5 3.1 4.0 4.5 5.9 7.1
Galvanized Steel plate
Dimensions
(W×D×H)
outline
mm 700×615×200 700×615×200 700×615×200 900×615×200 1100×615×200 1100×615×200
inch 27-1/2×24-
1/4×7-7/8
27-1/2×24-
1/4×7-7/8
27-1/2×24-
1/4×7-7/8
35-3/8×24-
1/4×7-7/8
43-1/4×24-
1/4×7-7/8
43-1/4×24-
1/4×7-7/8
Packaging
mm 893×743×305 893×743×305 893×743×305 1123×743×305 1323×743×305 1323×743×305
inch 35-1/8×29-
1/4×12
35-1/8×29-
1/4×12
35-1/8×29-
1/4×12
44-1/2×29-
1/4×12 52×29-1/4×12 52×29-1/4×12
Net Weight lbs. 51 51 51 60 69 69
kg 23 23 23 27 31 31
Gross Weight lbs. 64 64 64 73 86 86
kg 29 29 29 33 39 39
Pipe
Connection
Liquid Side mm Φ6.35 Φ6.35 Φ6.35 Φ6.35 Φ9.52 Φ9.52
inch Φ1/4 Φ1/4 Φ1/4 Φ1/4 Φ3/8 Φ3/8
Gas Side mm Φ9.52 Φ9.52 Φ12.7 Φ12.7 Φ15.9 Φ15.9
inch Φ3/8 Φ3/8 Φ1/2 Φ1/2 Φ5/8 Φ5/8
Drain Pipe mm Φ25 Φ25 Φ25 Φ25 Φ25 Φ25
inch Φ1 Φ1 Φ1 Φ1 Φ1 Φ1
Power supply 1-phase 208-230V 60Hz
Fan
Type * Quantity Centrifugal*2 Centrifugal*2 Centrifugal*2 Centrifugal*3 Centrifugal*4 Centrifugal*4
Driving Mechanism Direct-driven
Motor Type BLDC
Motor Power Input W 43 43 43 52 99 99
Motor Running
Current A 0.3 0.3 0.3 0.5 0.7 0.7
CFM 265/235/150 265/235/150 325/265/205 410/353/265 590/470/355 590/470/355
m3/h 450/400/250 450/400/250 550/450/350 700/600/450 1000/800/600 1000/800/600
External Default in.W.G. 0.06 0.06 0.06 0.06 0.06 0.06
Static
Pressure
Pa 15 15 15 15 15 15
Range in.W.G. 0~0.12 0~0.12 0~0.12 0~0.12 0~0.12 0~0.12
Pa 0~30 0~30 0~30 0~30 0~30 0~30
Sound Pressure Level(H/M/L) dB(A) 31/29/25 31/29/25 32/30/27 33/31/28 35/33/30 35/33/30
Heat Exchanger
Air Filter PP
Refrigeration Control Device EXV
Protection Device Fuse
Photovoltaic Direct-driven VRF

7
for North America
PRODUCT
4.2.2 4-way Cassette Type IDU
Model GMV-ND07T/
A-T(U)
GMV-ND09T/
A-T(U)
GMV-ND12T/
A-T(U)
GMV-ND15T/
A-T(U)
GMV-ND18T/
A-T(U)
Product Code CM500N0520 CM500N0530 CM500N0540 CM810N0130 CM500N0510
Cooling Capacity Btu/h 7500 9500 12000 15000 18000
kW 2.2 2.8 3.5 4.4 5.3
Heating Capacity Btu/h 8500 10500 13500 17000 20000
kW 2.5 3.1 4.0 5 5.9
Galvanized Steel plate
Dimensions
(W×D×H)
Body outline mm 840×840×190 840×840×240 840×840×240 840×840×240 840×840×240
inch 33×33×7 1/2 33×33×9-1/2 33×33×9-1/2 33×33×9-1/2 33×33×9-1/2
Body
Packaging
mm 960×960×257 960×960×310 960×960×310 960×960×310 960×960×310
inch 37-3/4×37-3/4×10-
1/8
37-3/4×37-3/4×12-
1/4
37-3/4×37-3/4×12-
1/4
37-3/4×37-3/4×12-
1/4
37-3/4×37-3/4×12-
1/4
Panel
outline
mm 950×950×65 950×950×65 950×950×65 950×950×65 950×950×65
inch 37-3/8×37-3/8×2-
1/2
37-3/8×37-3/8×2-
1/2
37-3/8×37-3/8×2-
1/2
37-3/8×37-3/8×2-
1/2
37-3/8×37-3/8×2-
1/2
Panel
Packaging
mm 1030×1035×118 1030×1035×118 1030×1035×118 1030×1035×118 1030×1035×118
inch 40-1/2×40-1/2×4-
5/8
40-1/2×40-1/2×4-
5/8
40-1/2×40-1/2×4-
5/8
40-1/2×40-1/2×4-
5/8
40-1/2×40-1/2×4-
5/8
Net
Weigh
Main Body lbs. 50 58 58 58 58
kg 22.5 26.5 26.5 26.5 26.5
Panel lbs. 15-3/8 15-3/8 15-3/8 15-3/8 15-3/8
kg 7.0 7.0 7.0 7.0 7.0
Gross
Weigh
Main Body lbs. 64 75 75 75 75
kg 29 34 34 34 34
Panel lbs. 24-1/4 24-1/4 24-1/4 24-1/4 24-1/4
kg 11.0 11.0 11.0 11.0 11.0
Pipe
Connections
Liquid Side mm Φ6.35 Φ6.35 Φ6.35 Φ6.35 Φ9.52
inch Φ1/4 Φ1/4 Φ1/4 Φ1/4 Φ3/8
Gas Side mm Φ9.52 Φ9.52 Φ12.7 Φ12.7 Φ15.9
inch Φ3/8 Φ3/8 Φ1/2 Φ1/2 Φ5/8
Drain Pipe mm Φ25 Φ25 Φ25 Φ25 Φ25
inch Φ1 Φ1 Φ1 Φ1 Φ1
Power supply 1-phase 208-230V 60Hz
Fan
Type * Quantity Centrifugal*1 Centrifugal*1 Centrifugal*1 Centrifugal*1 Centrifugal*1
Driving Mechanism Direct-driven Direct-driven Direct-driven Direct-driven Direct-driven
Motor Type BLDC BLDC BLDC BLDC BLDC
Motor
Power Input W 48 48 48 48 59
Motor
Running
Current
A 0.3 0.5 0.5 0.5 0.5
Rate(H/M/L)
CFM 440/385/325 590/530/440 590/530/440 590/530/440 590/530/440
m3/h 750/650/550 750/650/550 750/650/550 750/650/550 1000/900/750
Sound Pressure Level
(H/M/L) dB(A) 36/34/31 36/34/31 36/34/31 36/34/31 37/35/32
Heat Exchanger
Air Filter PP PP PP PP PP
Insulation Material Foamed polystyrene
Refrigeration Control Device EXV EXV EXV EXV EXV
Protection Device Fuse Fuse Fuse Fuse Fuse
Panel name TC01 TC01 TC01 TC01 TC01
Photovoltaic Direct-driven VRF

8
for North America
PRODUCT
Model GMV-ND24T/
A-T(U)
GMV-ND30T/
A-T(U)
GMV-ND36T/
A-T(U)
GMV-ND42T/
A-T(U)
GMV-ND48T/
A-T(U)
Product code CM500N0550 CM500N0560 CM500N0570 CM500N0580 CM500N0590
Cooling Capacity Btu/h 24000 30000 36000 42000 48000
kW 7 8.8 10.6 12.3 14.1
Heating Capacity Btu/h 27000 34000 40000 47000 54000
kW 7.9 10 11.7 13.8 15.8
Galvanized Steel plate
Dimensions
(W×D×H)
Body
outline
mm 840×840×240 840×840×320 840×840×320 840×840×320 840×840×320
inch 33×33×9-1/2 33×33×12-5/8 33×33×12-5/8 33×33×12-5/8 33×33×12-5/8
Body
Packaging
mm 960×960×310 960×960×394 960×960×394 960×960×394 960×960×394
inch 37-3/4×37-3/4×12-
1/4
37-3/4×37-3/4×15-
1/2
37-3/4×37-3/4×15-
1/2
37-3/4×37-3/4×15-
1/2
37-3/4×37-3/4×15-
1/2
Panel
outline
mm 950×950×65 950×950×65 950×950×65 950×950×65 950×950×65
inch 37-3/8×37-3/8×2-
1/2
37-3/8×37-3/8×2-
1/2
37-3/8×37-3/8×2-
1/2
37-3/8×37-3/8×2-
1/2
37-3/8×37-3/8×2-
1/2
Panel
Packaging
mm 1030×1035×118 1030×1035×118 1030×1035×118 1030×1035×118 1030×1035×118
inch 40-1/2×40-1/2×4-
5/8
40-1/2×40-1/2×4-
5/8
40-1/2×40-1/2×4-
5/8
40-1/2×40-1/2×4-
5/8
40-1/2×40-1/2×4-
5/8
Net
Weight
Main
Body
lbs. 58 72 72 72 72
kg 26.5 32.5 32.5 32.5 32.5
Panel lbs. 15-3/8 15-3/8 15-3/8 15-3/8 15-3/8
kg 7.0 7.0 7.0 7.0 7.0
Gross
Weight
Main Body lbs. 75 88 88 88 88
kg 34 40 40 40 40
Panel lbs. 24-1/4 24-1/4 24-1/4 24-1/4 24-1/4
kg 11.0 11.0 11.0 11.0 11.0
Pipe
Connections
Liquid
Side
mm Φ9.52 Φ9.52 Φ9.52 Φ9.52 Φ9.52
inch Φ3/8 Φ3/8 Φ3/8 Φ3/8 Φ3/8
Gas
Side
mm Φ15.9 Φ15.9 Φ15.9 Φ15.9 Φ15.9
inch Φ5/8 Φ5/8 Φ5/8 Φ5/8 Φ5/8
Drain
Pipe
mm Φ25 Φ25 Φ25 Φ25 Φ25
inch Φ1 Φ1 Φ1 Φ1 Φ1
Power supply 1-phase 208-230V 60Hz
Fan
Type * Quantity Centrifugal*1 Centrifugal*1 Centrifugal*1 Centrifugal*1 Centrifugal*1
Driving
Mechanism Direct-driven Direct-driven Direct-driven Direct-driven Direct-driven
Motor Type BLDC BLDC BLDC BLDC BLDC
Motor
Power
Input
W 59 98 110 110 110
Motor
Running
Current
A 0.5 0.8 0.9 0.9 0.9
Rate(H/M/
L)
CFM 695/590/470 885/800/650 1000/825/650 1095/885/680 1095/885/680
m3/h 1180/1000/800 1500/1350/1100 1700/1400/1100 1860/1500/1150 1860/1500/1150
Sound Pressure Level(H/
M/L) dB(A) 38/36/33 40/38/35 41/38/36 43/41/38 43/41/38
Heat Exchanger
Air Filter PP PP PP PP PP
Insulation Material Foamed polystyrene
Refrigeration Control Device EXV EXV EXV EXV EXV
Protection Device Fuse Fuse Fuse Fuse Fuse
Panel name TC01 TC01 TC01 TC01 TC01
Photovoltaic Direct-driven VRF

9
for North America
PRODUCT
4.2.3 Features of Wall Mounted
Model GMV-N07G/A3A-
D(U)
GMV-N09G/A3A-
D(U)
GMV-N12G/A3A-
D(U)
GMV-N18G/A3A-
D(U)
GMV-N24G/A3A-
D(U)
Product code CM100N1480 CM100N1490 CM100N1500 CM100N1510 CM100N1520
Cooling Capacity Btu/h 7500 9500 12000 18000 24000
kW 2.2 2.8 3.5 5.2 7
Heating Capacity Btu/h 8500 11000 13500 20000 25500
kW 2.5 3.2 4 5.8 7.5
Galvanized Steel plate
Dimensions
(W×D×H)
outline
mm 843×180×275 843×180×275 940×200×298 940×200×298 1008×221×319
inch 33 1/5×7×10 5/6 33 1/5×7×10 5/6 37×7 7/8×11 3/4 37×7 7/8×11 3/4 39 2/3×8 5/7×12
5/9
Packaging
mm 973×258×370 973×258×370 1068×288×395 1068×288×395 1131×398×328
inch 38 1/3×10 1/6×14
4/7
38 1/3×10 1/6×14
4/7 42×11 1/3×15 5/9 42×11 1/3×15 5/9 44 1/2×15 2/3×13
Net Weight lbs. 22 22 27.6 27.6 33.1
kg 10 10 12.5 12.5 15
Gross Weight lbs. 27.6 27.6 33.1 33.1 40.8
kg 12.5 12.5 15 15 18.5
Pipe
Connections
Liquid Side mm Φ6.35 Φ6.35 Φ6.35 Φ6.35 Φ9.52
inch Φ1/4 Φ1/4 Φ1/4 Φ1/4 Φ3/8
Gas Side mm Φ9.52 Φ9.52 Φ12.7 Φ12.7 Φ15.9
inch Φ3/8 Φ3/8 Φ1/2 Φ1/2 Φ5/8
Drain Pipe mm Φ17 Φ17 Φ17 Φ17 Φ17
inch Φ2/3 Φ2/3 Φ2/3 Φ2/3 Φ2/3
Power supply 1-phase 208-230V 60Hz
Fan
Type * Quantity
Driving Mechanism Direct-driven
Motor Type PG
Motor Power
Input W 50 50 60 60 70
Motor Running
Current A 0.2 0.2 0.21 0.21 0.31
Rate(H/M/L)
CFM 295/247/206 295/247/206 370/324/283 370/324/283 440/353/294
m3/h 500/420/350 500/420/350 630/550/480 630/550/480 750/600/500
Sound Pressure Level(H/M/L) dB(A) 38/34/30 38/34/30 44/41/38 44/41/38 44/41/38
Heat Exchanger
Air Filter PP+10%BCM+FP03
Insulation Material Foamed polystyrene
Refrigeration Control Device EXV
Protection Device Fuse
4.3 Operation range
Cooling Outdoor temperature: （50 ~129 °F）
Heating Outdoor temperature: （-22 ~81°F）
5 PRODUCT CAPACITY CORRECTION
5.1 Instruction of Product Capacity Correction
Nominal cooling capacity and nominal heating capacity are tested under given conditions:
(1) Rated cooling or heating condition．
(2) No height difference between indoor unit and outdoor unit.
(3) Short connection pipe.
If the three conditions above have changed, the cooling and heating capacity will change correspondingly and correction is needed.
Photovoltaic Direct-driven VRF

10
for North America
PRODUCT
5.2 Capacity Code
Instruction of capacity code：
GMV-HY36WLT/A-T(U) and GMV-HY48WLT/A-T(U) are identical in components, systems and structure, etc.
5.3 Capacity Correction Formula5.1 Correction factor of indoor and outdoor temperature
5.3.1 Rated capacity of outdoor unit
Model GMV-HY36WLT/A-T(U) GMV-HY48WLT/A-T(U)
Rated cooling capacity kW(Btu/h) 10.5(36000) 14.1(48000)
Rated heating capacity kW(Btu/h) 13.2(45000) 15.8(54000)
5.3.2 Correction factor of indoor and outdoor temperature
(1) Correction factor of cooling capacity
󴖦󴖦󴖦󴖦󴖦󴖦󴖦󴖦󴖦
14 16 18 20 22 24 26
(57) (61) (64) (68) (72) (75) (79)
20
16
25
30
35
45
48
(68)
(61)
(77)
(86)
(95)
(113)
(118)
(2) Correction factor of heating capacity

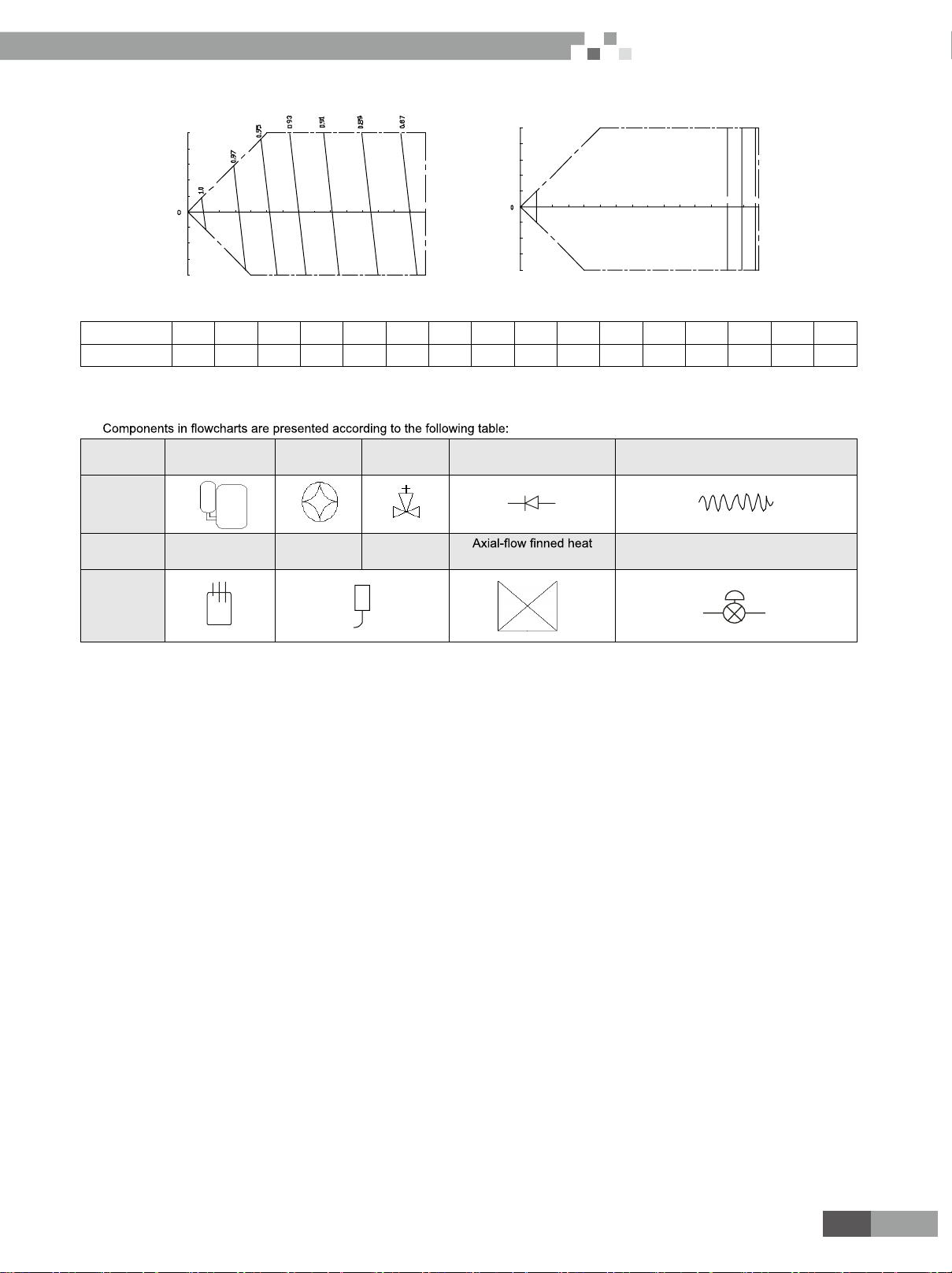

5.3.3 Correction factor of pipe length and height difference
(1) Symbol description:
Hp: Height difference in case indoor unit is below outdoor unit(m/feet);
Hm: Height difference in case indoor unit is above outdoor unit (m/feet);
L: Length of one-way equivalent pipe.
Below table shows the capacity variance ratio for 100% full load in standard working condition (thermostat setting is 16 oC(61oF) for
40 (104)
1.00 1.00
0.95 1.00 1.05
-20
-25
1.0 1.0 1.00 1.0
0.95
(-4)
(-13
Photovoltaic Direct-driven VRF
1.00

11
for North America
PRODUCT
cooling and 30oC(86oF) for heating).
Hm(m)
40
20
30
10
Hp(m)
20
10
10 20 30
30
40
50
6040 50 70 80 11090 1001 20 150
01.
99.0 970. 95.0
L(m)
1301 40
Hm(m)
40
20
30
10
Hp(m)
20
10
10 20 30
30
40
50
6040 50 70 80 11090 1001 20 150 L(m)
1301 40
Variance ratio of heating capacity Variance ratio of heating capacity
NOTE：
m 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
ft 0 33 66 98 131 164 197 230 262 295 328 361 394 427 459 492
6 PRINCIPAL OF OPERATION
Name Compressor 4-way valve Cut-off valve One-way valve Capillary tube
Symbol
Name Gas-liquid
separator
Pressure
switch
Pressure
sensor exchanger Electronic expansion valve
Symbol
Photovoltaic Direct-driven VRF

12
for North America
PRODUCT
In cooling, the low-temperature and low-pressure refrigerant gas from each indoor heat exchanger will be merged and inhaled by the
compressor and then become high-temperature and high-pressure gas, which will later be discharged into outdoor heat exchangers. By
with indoor air, refrigerant wil become low-temperature and low-pressure gas again and repeat the circulation so as to realize the cooling
effect. In heating, 4-way valve will be energized to make refrigerant circulate in a reverse direction of cooling. Refrigerant will release heat in
indoor heat exchangers (electric heating elements will also work under certain circumstance and release heat) and absorb heat in outdoor
heat exchangers circularly so as to realize the heating effect.
Photovoltaic Direct-driven VRF
Compressor2Compressor2
EKVEKV
M
Compressor1Compressor1
EXVEXV
AccumulatorAccumulator
Liquid-gasLiquid-gas
separatorseparator
4-way4-way valvevalve
M
SolenoidSolenoid valvevalve

13
for North America
CONTROL
CONTROL
Photovoltaic Direct-driven VRF

14
for North America
CONTROL
CONTROL
1 Units’ Control
1.1 Schematic diagram of units’ control
Air conditioning units can be divided into indoor unit and outdoor unit. A maximum of 16 sets of indoor units
can be connected to an outdoor unit. 2-core (3-core pin header) communication cable is used for the connection
between indoor unit and outdoor unit. Indoor unit is connected to display board via 4-core communication cable. In
engineering installation, address dial-up of the display board and the mainboard of indoor unit shall be dialed. The
address dial-up of the mainboard of indoor unit must be identical with that of the display board of the same indoor
unit. Address dial-up of different indoor unit must vary. Multi VRF indoor unit is applicable to all digital or inverter
outdoor units.
Controller of outdoor unit falls into two categories in terms of its function, i.e. main control system and
inverter drive control system
Photovoltaic Direct-driven VRF

15
for North America
CONTROL
2 Wired Controller
2.1 Control panel
Fig. 1.1 Appearance of wired controller
Fig. 1.2 LCD graphics of wired controller
LCD Display Instruction
Table 1.1 LCD display instruction
No. Symbols Instructions
1Up and down swing function
2Left and right swing function
3
It's valid under Save mode and displays during setting process.
Temperature lower limit for Cooling: Limit the minimum temperature value under Cooling or Dry mode.
Temperature upper limit for Heating: Limit the maximum temperature value under Heating, Space Heating or 3D
Heating mode.
4Auto mode (Under Auto mode, the indoor units will automatically select their operating mode as per the temperature
change so as to make the ambient comfortable.)
5It shows the setting temperature value(In case the wired controller is controlling a Fresh Air Indoor Unit, then the
temperature zone will display FAP)
Photovoltaic Direct-driven VRF

16
for North America
CONTROL
6 Cooling mode
7Dry mode
8Fan mode
9Heating mode
10 When inquiring or setting project number of indoor unit, it displays "NO." icon
11 Floor Heating mode (When Heating and Floor Heating simultaneously shows up, it indicates 3D Heating is
activated.)
12 Display "SET" icon under parameter setting interface
13 Space Heating mode
14 Display "CHECK" icon under parameter view interface
15 Outdoor unit operates under Save mode/upper limit of system capacitor less 100%/remote Save status
16 Sleep status
17 Current set fan speed (including auto, low speed, medium-low speed, medium speed, medium-high speed, high
speed and turbo seven status)
18 Air status
19
20 Quiet status (including Quiet and Auto Quiet two status)
21 Allow auxiliary electric heating On icon
22 Light On/Off function
23 X-fan function
24 Health function
25 Fresh air status
26 Out function
27 Outdoor unit defrosting status
28 Gate-control function
29 Shielding status
30 Child Lock status
31 One wired controller controls multiple indoor units
32 Save status of indoor unit
33 It indicates the current wired controller is the slave wired controller (address of wired controller is 02)
34 Memory status (The indoor unit resumes the original setting state after power failure and then power recovery)
35 Invalid operation
36 Current wired controller connects master indoor unit
37 Timer zone:Display system clock and timer status
Note: When wired controller is connected with different indoor units, some functions will be different
Photovoltaic Direct-driven VRF

17
for North America
CONTROL
Button Graphics
Fig. 1.3 Button graphics
2.2 Installation and removal
2.2.1 Installation dimensions
Unit:mm
112 22
5
3
8 5.2
0 4
11 2
42.5
.3R3
6R -
27 .
22
Unit:mm
Fig.2.1.1 Dimension of wired controller
mm 112 22 2.7 3.3 5 42.5 40 82.5
inch 4.41 0.87 0.11 0.13 0.20 1.67 1.57 3.25
2.2.2 Installation method
10
1 2 3 4
67
8 9
2H1H
2H1H
2H1H
5
Fig. 2.2.2 Installation diagram for wired controller
Above is a simple installation method of wired controller. Please pay attention to the following:
1) Before installation, disconnect power of the indoor unit. Do not operate when power is connected.
2) 2-core twisted pair cable from the installation hole on the wall and lead it through the hole on the back plate of wired controller.
3) Place the wired controller on wall and secure its back plate on wall with screw M4X25.
4) Connect the 2-core twisted pair cable to terminal H1 and terminal H2. Tighten up the screws.
5) Stick the cable in the slot that is left of the terminals and buckle the wired controller’s panel with its back plate.
point 5, strip some of the sheath of the communication cable to meet the installation requirement.
Photovoltaic Direct-driven VRF

18
for North America
CONTROL
2.2.3 Removal method
1 2 3 4
H1H2
H1H2
Fig.2.1.3 Removal of Wired Controller
2.2.4 Connection of communication cord
There are 4 ways to connect wired controller with indoor units’ network:
D1D2H1H2
D1 D2
Indoor unit
Outdoor unit
D1D2H1H2
D1 D2
Outdoor unit
Indoor unit
Fig. 2.2.4.1 One wired controller
controls one indoor unit
Fig. 2.2.4.2 Two wired controllers
control one indoor unit
D1D2 H1H2
D1 D2H1 2 H
D1D2H1H2
D1 D2
Indoor unit 1 Indoor unit 2 Indoor unit 16
Outdoor unit
Fig. 2.2.4.3 One wired controller controls multiple indoor units simultaneously
Photovoltaic Direct-driven VRF
