Gree GWA2107BM User manual

Window type Air Conditioner
Models: GWA2107BM GWA2107BR
GWA2109BM GWA2109BR
GWA2112BM GWA2112BR
GWA2118BM GWA2118BR
GWA2124BM GWA2124BR

Thank you for choosing air conditioner. Our design is based on the best efficiency and the lowest
noise operation and it can keep the room comfortable. Please read this operating manual carefully before
operating the unit and keep it for consultation.
CONTENTS
Function
Operating condition
power requirement
Installation
Notes for installation
Part identification 8
Air direction adjustment 8

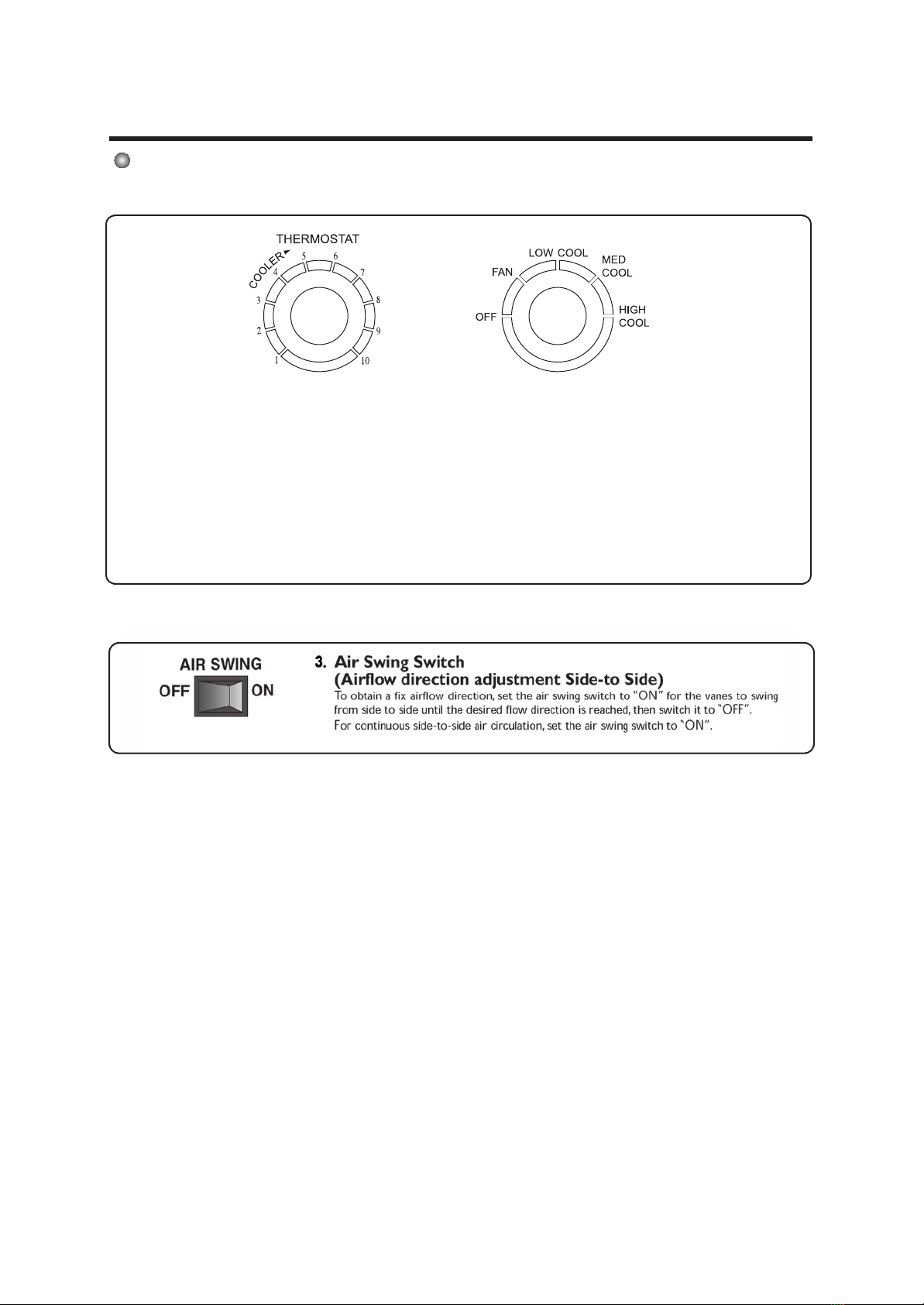

Main switch operation procedure 9
Remote control panel
Operation tips
15
16
Caution 17
Care and maintenance 18
Trouble shooting guide 19
Remote control operation procedure 10
Operation procedure
Structure mechanism and Installation
Care and maintenance
3
3
4
7
2
Precautions 1
After service 20
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Please read this operating manual carefully before operating the unit.
for reference.
The figures in this manual may be different with the material objects, please refer to the material objects
The appliance shall be installed in accordance with local regulations
or similarly qualified persons in order to avoid a hazard.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
NOTICE:

Explanation of Symbols
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
WARNING
CAUTION
DANGER
N OTIC E

- 1 -
Precautions
Working temperature range
※Operating Temperature Range
Indoor side DB/WB(°C)
Maximum cooling 32/23 43/-
Maximum heating 27/- 24/18
Outdoor side DB/WB(°C)
The operating temperature range (outdoor temperature) for cooling only unit is
18°C~ 43°C; for heat pump unit is -7°C~ 43°C.
Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause
electric shock.
Do not repair air conditioner by yourself. It may cause electric shock or damage.
Please contact qualified service agent when you need to repair air conditioner.
Maintenance must be performed by qualified professionals.Otherwise, it may cause
injury or damage.
The appliance is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction.
●
●
●
●
● Children being supervised not to RSHUDWH the appliance.
Please install the devices for short-circuit protection and electrical leakage protection
when installing the air conditioner.
According to the local safety regulations, use qualified power supply circuit and circuit
break.
Children should not operate the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The air conditioner should be installed in accordance with local regulation.
Air Conditioner should be properly grounded. Incorrect grounding may cause electric
shock.
Do not connect air conditioner to multi-purpose socket.Otherw
hazard.
Do install the air switch. If not, it may cause malfunction.
Do not spill water on the remote controller, otherwise the remote controller may
be broken.
Do not extend fingers or objects into air inlet or air outlet. It may cause personal
injury or damage.
Do not step on air conditioner, or put heavy objects. It may cause damage or
personal injury.
●
●
ise, it may cause fire
●
●
● Do not spray water on air conditioner. It may cause electric shock or malfunction.
●
●
●Do not block air outlet or air inlet. It may cause malfunction.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Warning

- 2 -
Function
Introduction
Autumn
SpringWindow type room air conditioners can regulate the room
temperature and dry the room. It is convenient for your work,study
and life. It can be widely used in residence, shop, hotel, office, library
and laboratory, and so on.
Summer Winter
Dry
Heating in winter
(Only for heat unit)
In cold winter, Air conditioner can heat up room air.
Fresh Air
Room
temp.
Wind
direction
Dehumidifying in rainy or
humid season
Without reducing the room temp., air conditioner can
dehumidify and make the room air dry and
comfortable.
Cooling in summer
In hot summer, Air conditioner can cool down
the room air by transferring heat out.
Exchange fresh air
Open ventilation lever to keep the fresh air in the
room.

-3-

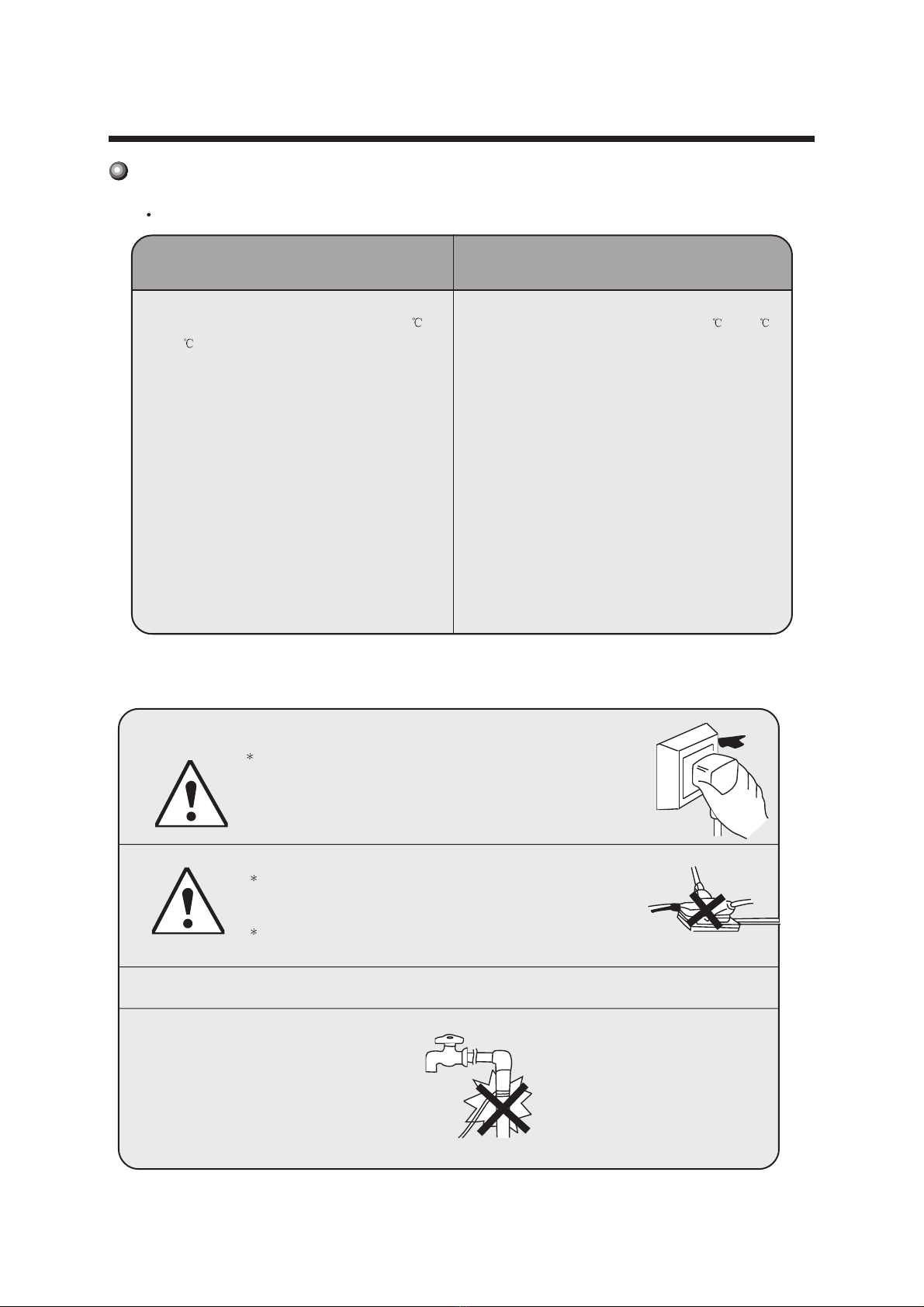

Operating Condition
Please operate air conditioner in the correct conditions as following.
Power requirement
COOL mode operation
DRY mode operation
Outdoor temperature should be in range of 18 to 43 ,
otherwise it is possible for air conditioner to breakdown.
Outdoor temperature should be in range of 18
to 43 , otherwise it is possible for air conditioner
to breakdown.
Room humidity should be lower than 90%.
Otherwise, it is possible for air conditioner to dew
at air conditioner surface and even drop water af-
ter running for so much time. But this is normal.
Water pipe
The electric components will be damaged when the voltage is too high.
If the voltage is too low, the compressor will vibrate violently to dam-
age the refrigerant system and easily cause the compressor and elec-
tric components not work.
The ground must be connected.
Special socket must be used. Furthermore, the socket and wiring
must conform to the wiring regulations. And the earthing method
must be reliable.
In fixed circuit, there must be electricity leakage protection switch
of enough power capacity and air switch with enough space.
Earth wire To ensure the reliable earthing, please do not connect earth wire to the following places:

-4-

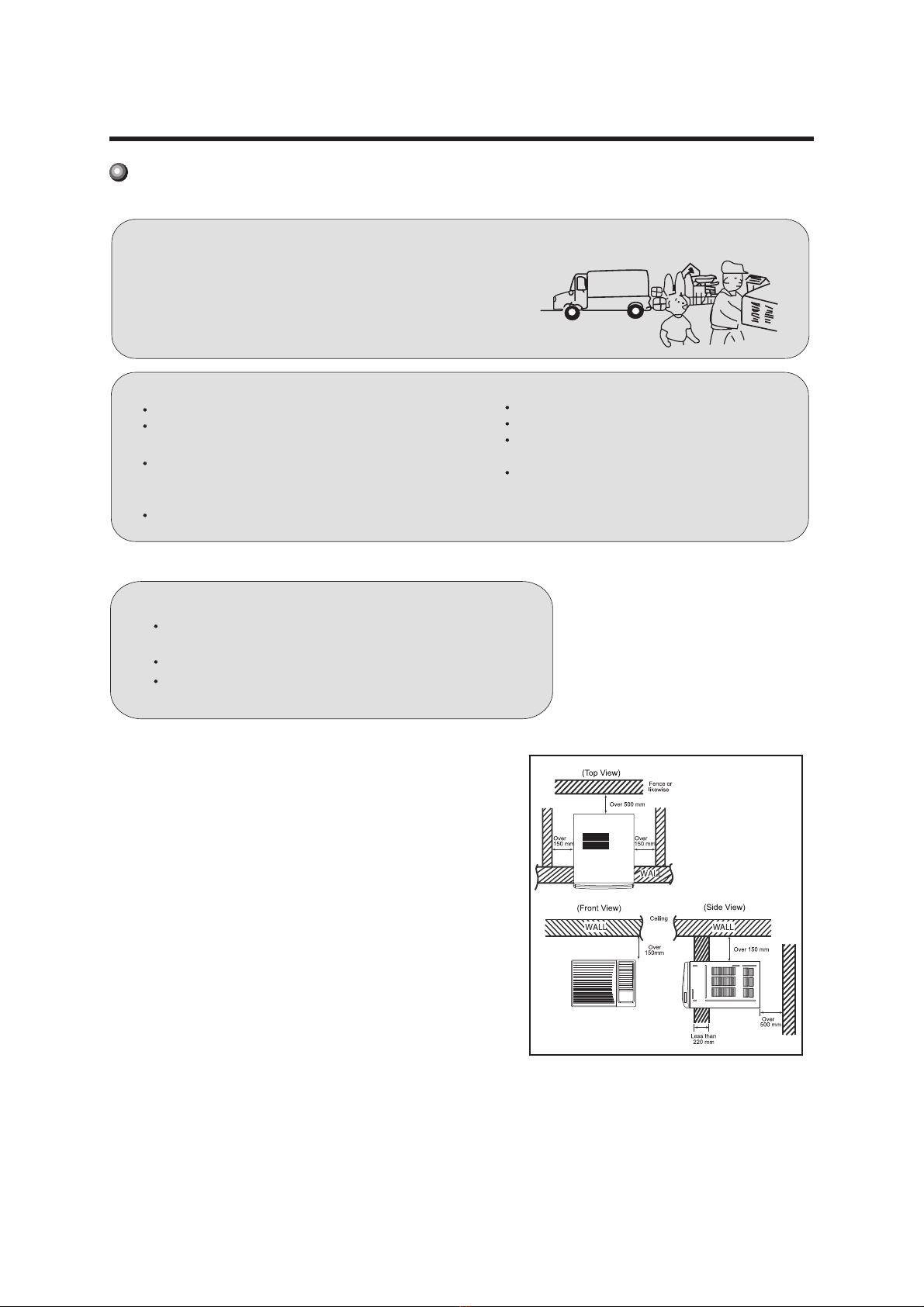

Installation
Installation precaution:
Window type conditioner is so valuable and the improper installa-
tion of it will cause a lot of damage! Please associate the profes-
sional technician to install the unit and don’t install it by yourself.
Otherwise, we are not responsible for the damage due to the
improper installation.
Location:
The condensation water must be drained away conveniently.
Install air conditioner unit far away from TV set or radio
etc. to avoid disturbing video or voice.
In salt and coastal area or place where is near thermal springs
and polluted by sulphurous gas, or other special areas, please
contact the seller before use.
Avoid a place where is possible for inflammable gas to leak out.
How to install:
Choose a location where there are no any obstacle surrounding
the unit, and the plug is accessible.
Prepare the installation hole slightly bigger than unit size.
Choose the installation space according to the following diagram.
Avoid other heat sources or direct sun light.
Avoid a place where is easy for children to touch.
Don't use the unit in the immediate surroundings of
a laundry, a bath, a shower or a swimming pool.
For window type air conditioner with remote
control, install in a location where is strong elec-
tromagnetic disturbance, you should contact the
seller in advance to avoid the malfunction in use.

-5-

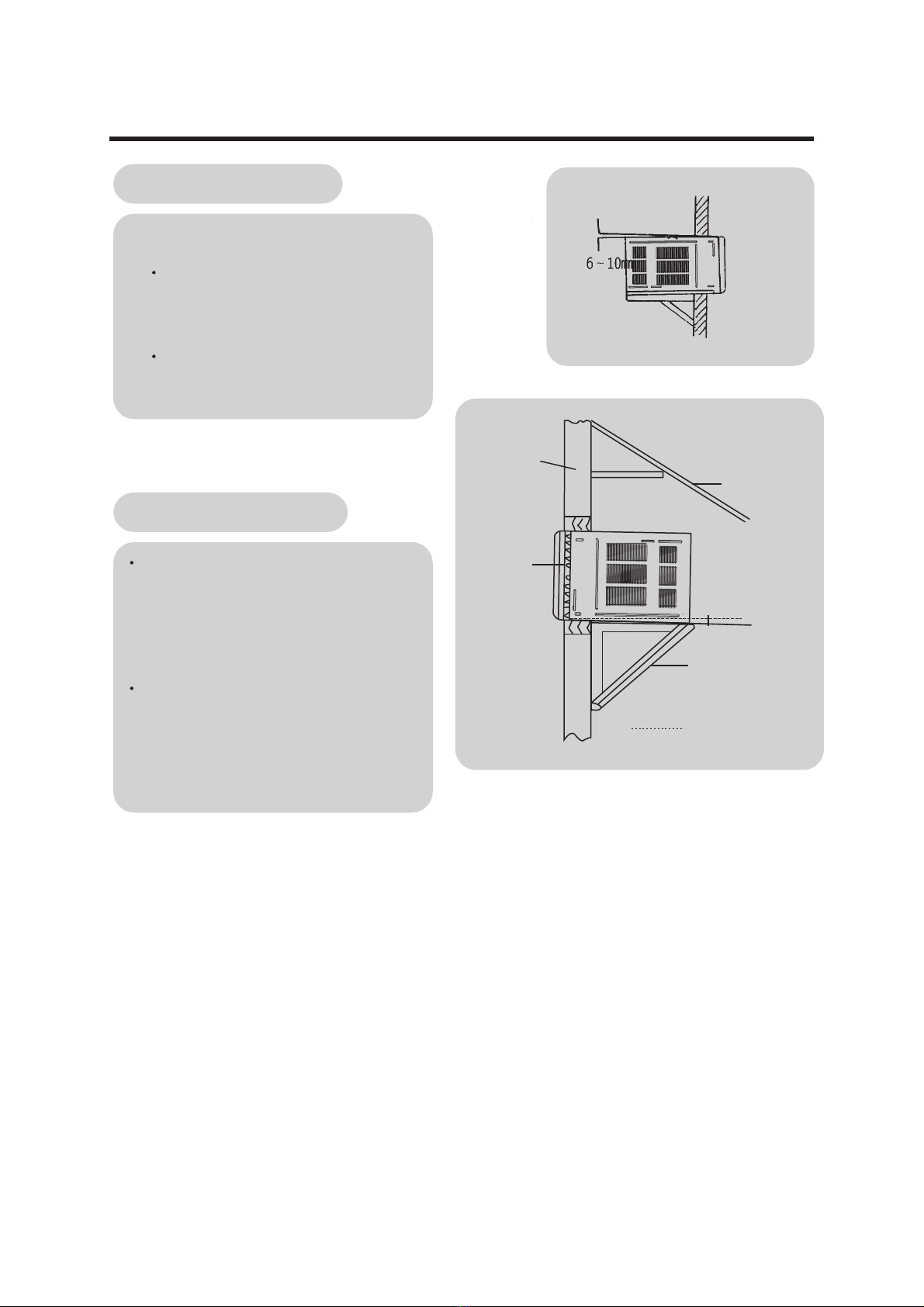

Installation procedure:
Wall
Sunshade board
Rubber plate
3)
Installation assistance:
Horizontal line
Use iron support
The installation hole should be strong enough to
support the air conditioner. If it cannot, iron sup-
port has to be used outdoors.
Iron support should be fixed on the building (Shown
at right figure.)
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover
on it, you should contact the seller for installing
the sunshade board. When installing the sunshade
board, don’t let it block the air inlet at the side grille.
1)
2)
6-10mm
Support
Remove the sticker from the front panel.
Put the unit into the installation hole.
When installing the unit, it should be slanted
down to the back to avoid the enlargement of
noise or vibration. (Slant between 6-10mm.)
(Shown at right figure.)
The installation place should be strong enough
to avoid the enlargement of noise or vibration.
Fill up sews in the cabinet with sponge or foam.
Horizontal line

- 6 -

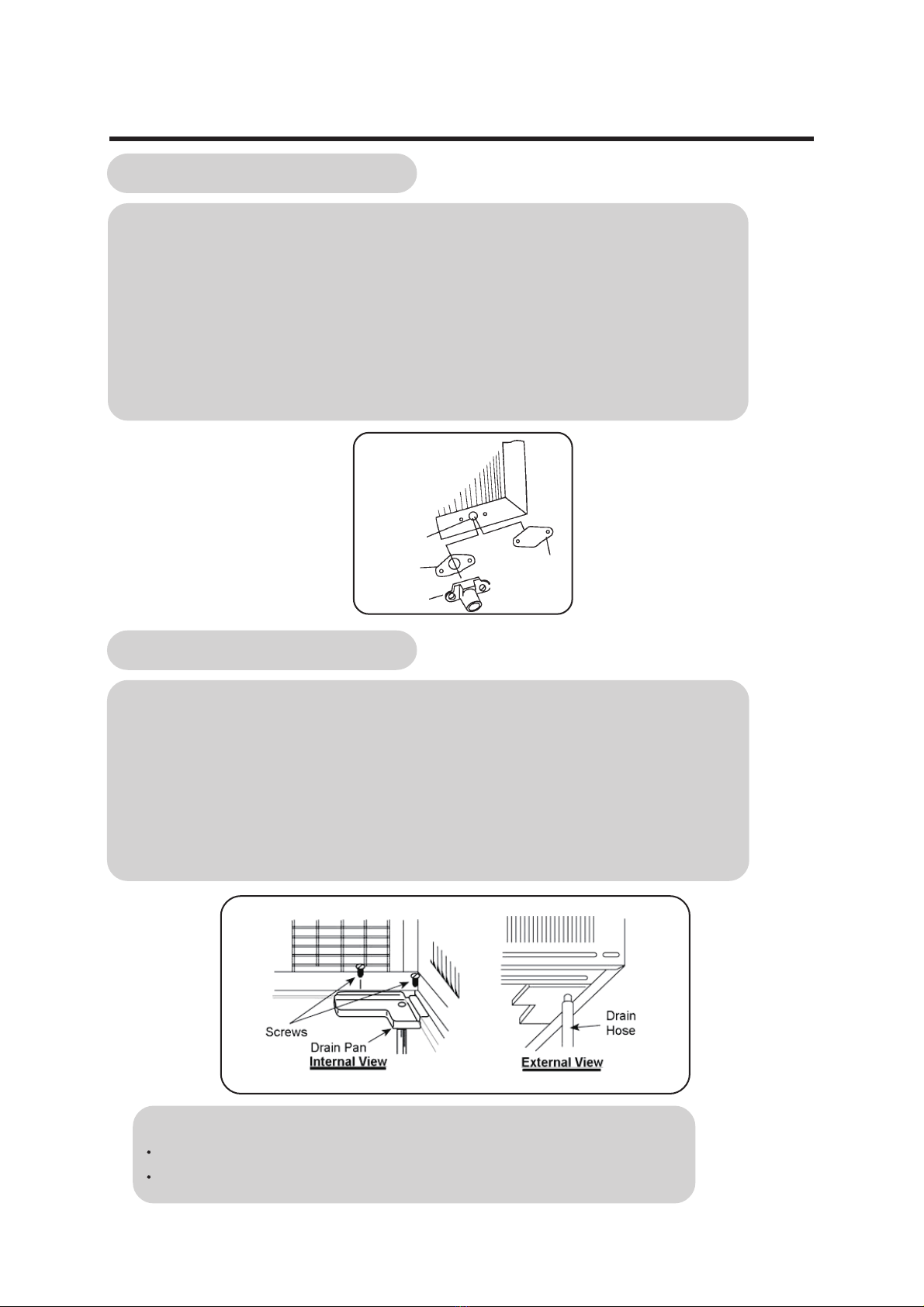

Note:
Drain pan and drain hose must be installed before using reverse cycle models.
Drain hose or tubing can be purchased locally to satisfy your particular needs.
Drain water for another style:
Drain water for one style:
Drainage outlet
Washer
Drainage joint
Install
Cover
Remove
To get the maximum cooling efficiency, the air conditioner is designed to splash the condensate on the
condenser coil.
If the splashing sound annoys you, you can provide an outside drain by using the following procedure,
which may cause a small loss of performance.
1. There is a drainage outlet at the back of the unit.
2. Remove cover from the drainage outlet, and then connect drainage joint to it with screw.
3. Connect the drain hose to the outlet.
Note:
Drain hose or tubing can be purchased locally
to satisfy your particular needs.
To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on the
condenser coil.
To the cooling only unit, If the splashing sound annoys you, you can provide an outside drain by using the
following procedure, which may cause a small loss of performance.
1. Slide out the chassis from the cabinet.
2. Remove the rubber plug from the body base plate.
3. Install the drain pan to the corner of the cabinet with 2 screws.
4. Connect the drain hose to the outlet on the drain pan bottom.
5. Slide the chassis into its original place in the cabinet.

- 7 -
Notes for installation
Remove
Before removing air conditioner to the other place, you should
contact the seller firstly.
Then it must be done under the direction of the professional
technician. In addition, the charge of this must be paid.
Noise
Electric wiring
Must connect with ground reliably.
The exclusive circuit must be used. But removable socket can’t be used because poor
contact of it can cause over heat or fire.
Don’t pull the power cord strongly.
In fixed circuit, there must be electricity leakage protection switch and leakage current
is less than 30mA.
Connecting method between air conditioners and power cord and interconnecting method
of each individual element with one another should accord with wiring diagram on the unit.
The air conditioner should be installed in accordance with local regulation.
An all-pole disconnection switch having a contact separation of at least 3mm in all poles
should be connected in fixed wiring
Air switch (thermal-magnetic breaker) should be installed in the circuit
If the supply cord is damaged, it must be replaced by the manufacturer o. r your dealer
or a qualified person to avoid a hazard.
All the electrical work must be done according to the local wiring regulations.
Shall be installed in the circuit of miniature circuit switch and it has a capacity of 10A (GWA2107BM/R
, GWA2109BM/R, GWA2112BM/ R),16A (GWA2118BM/R ) or 25 A(GWA2124BM/R)；
Fixed line shall be greater than 1.5mm2(GWA2107BM/R, GWA2109BM/R, GWA2112BM/R) and 2.5mm2
(GWA2118BM/R,GWA2124BM/R);
Install in a location where is firm enough to avoid the enlargement of noise
and vibration.
Don’t put anything in front of the outlet of the unit to avoid increasing
noise.
Be sure that hot air or noise will not inconvenience neighbors.
Please contact the seller as soonas thereisstrange noise during operation.
Please use the safety support.

Panel outlook picture, just for reference, please take the real unit as standard.
Panel outlook picture, just for reference, please take the real unit as standard.
Vertical airflow direction vane
(Airflow direction adjustment up and down).
The vertical airflow direction vane is controlled by
positioning the vane to discharge the air upwards,
downwards or straight out.
Air direction adjustment
-8-
Part identification

Main switch operation procedure
1.Main Control Knob
Set to Low Cool, Med Cool or High Cool as desired (FAN setting operates the fan only.)
2.Thermostat control Knob
Set the thermostat control knob to your desired setting (Usually 6-7 is recommended), If the room temperature is
not as desired after a reasonable period, turn the thermostat. When the thermostat control knob is set to 10, moisture
may freeze onto evaporator fins and the thermostat control knob counter clockwise. This will quickly defrost the
evaporator fins so that normal cooling can be resumed.
CAUTION: If the main control knob is turned off of changed to a fan setting from a cooling operation setting.
WAIT at least 3 minutes before resetting to cooling operation.
-9-

Buttons on remote controller
Introduction for icons on display screen
21
3
4 5
6 7
1
3
5
2
4
6
7
ON/OFF button
MODE button
+/- button
FAN button
SWING button
SLEEP button
TIMER button
Timer on Timer off
Sending signal
swing operation
sleep operation
lock
set speed
Set timeSet temperature
heat operation
fan operation
dry operation
cool operation
auto operation
-10 -
Remote control operation procedure

Note:
● When power is connected (stand by condition), you can operate the air conditioner
through the remote controller.
●
When unit is on, each time you press the button on remote controller, the sending
signal icon " " on the display of remote controller will blink once. If the air con-
ditioner gives out a beep sound, it means the signal has been sent.
● When unit is off, set temperature will be displayed on the remote controller (If the
light of the unit display is turned on, the corresponding icon will be displayed);
When unit is on, it will display the icon of the on-going function.
Press this button to turn unit on/off.
ON/OFF button
1
Pressing this button once can select your required mode circularly as below (the
corresponding icon " " will be lit up after the mode is selected):
●
When selecting auto mode, air conditioner will operate automatically according to
ambient temperature. Set temperature can't be adjusted and won't be displayed
either. Press FAN button to adjust fan speed.
● When selecting cool mode, air conditioner will operate under cool mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
● When selecting dry mode, air conditioner will operate at low fan speed under dry
mode. In dry mode, fan speed can't be adjusted.
● When selecting fan mode, air conditioner will operate in fan mode only. Then
press FAN button to adjust fan speed.
● When selecting heat mode, air conditioner will operate under heat mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
(Cooling only unit can’t receive heating mode signal. If set HEAT mode by remote
controller, press ON/OFF button can’t turn on the air conditioner.)
AUTO COOL DRY FAN HEAT(Only Applicable for Model with Heating Function)
MODE button
2
● Pressing + or - button once will increase or decrease set temperature by 1°F(°C).
Hold + or - button for 2s, set temperature on remote controller will change quickly.
Release the button after your required set temperature is reached.
● When setting Timer On or Timer Off, press + or - button to adjust the time. (See
TIMER Button for setting details)
+ / - button
3
● This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.
- 11 -
Introduction for buttons on remote controller

Press this button to turn on left & right air swing.
SWING button
5
Under Cool, Heat mode, press this button to turn on Sleep function. Press this button
to cancel Sleep function. Under Fan, Dry and Auto mode, this function is unavailable.
SLEEP button
6
TIMER button
7
Note:
● Under Auto speed, air conditioner will select proper fan speed automatically acc-
ording to ambient temperature.
● Fan speed can't be adjusted under Dry mode.
FAN button
4
Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( ),
SPEED 2 ( ) , SPEED 3 ( ), SPEED 4 ( ) (unavailable in this air conditioner.
Speed 4 is the same with speed 3.).
AUTO
SPEED 1 (equals to low fan speed)
SPEED 3 (equals to high fan speed) SPEED 4 (equals to high fan speed)
SPEED 2 (equals to mid fan speed)
● When unit is on, press this button to set Timer Off. T-OFF and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer Off. Pressing
+ or - button once will increase or decrease the time by 0.5h. Hold + or - button
for 2s, time will change quickly. Release the button after your required set time
is reached. Then press TIMER button to confirm it. T-OFF and H icon will stop
blinking.
● When unit is off, press this button to set Timer On. T-ON and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer On. Pressing
+ or - button once will increase or decrease the time by 0.5h. Hold + or - button
for 2s, time will change quickly. Release the button after your required set time
is reached. Then press TIMER button to confirm it. T-ON and H icon will stop
blinking.
● Cancel Timer On/Off: If Timer function is set up, press TIMER button once to
review the remaining time. Within 5s, press TIMER button again to cancel this
function.
- 12 -
Introduction for buttons on remote controller

Note:
●Range of time setting is: 0.5~24h.
● The interval between two motions can't exceed 5s, otherwise the remote con-
troller will exit setting status.
Function introduction for combination buttons
Press “+” and “-” buttons simultaneously can turn on or turn off child lock function.
When child lock function is started up, LOCK indicator on remote controller is ON.
If you operate the remote controller, remote controller won’t send signal.
Child lock function
Temperature display switchover function
Under OFF status, press “-” button and “MODE” button simultaneously can switch
between °C and °F.
Operation guide
1. After putting through the power, press "ON/OFF" button on remote controller to
turn on the air conditioner.
2. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,
HEAT(Only Applicable for Model with Heating Function).
3. Press "+" or "-" button to set your required temperature. (Temperature can’t be
adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto, low, medium and high
speed.
- 13 -
Introduction for buttons on remote controller

1. Press the mark “ ” on back cover of batteries box cover for remote controller with
fingers as shown in the fig, and then remove the batteries box cover along the arrow
direction. Battery
Cover of battery box
Remove
Reinstall
2. Replace with two (AAA 1.5V) dry batteries.
Make sure positions for “+” pole and “-” pole are
correct.
3. Reinstall batteries box cover.
●The distance between signal sender and receiving window should be no more
than 8m, and there should be no obstacles between them.
●
conditioner when using the remote controller.
●Replace new batteries of the same model when replacement is required.
●When you don’t use remote controller for a long time, please take out the
batteries.
NOTICE
- 14 -
Replacement of batteries in remote controller

• • • • • •••••• • • • •••••• • • •
• • • • • •••••• • • • •••••• • • •
- "OPEN" position,the ventilation
door opens to allow air,smoke or
odors to be expelled from the
room.
- "CLOSE" position,the ventilation
door is closed and the air will be
circulated inside the room and
conditioned.
VENTILATION LEVER
Ventilation Lever
When the slider at the: When the slider at the:
Remote control panel
Note:
If wireless remote controller is lost, open the surface panel and operate
manually.
1
2
3
5
6
7
15
SIGNAL RECEIVER
MODE BUTTON
Select the operation mode AUTO,COOL,FAN, DRY.
FILTER BUTTON
This feature is a reminder to clean the Air Filter (See
Care and Cleaning) for more efficient operation and
cooling. The LED (light) will illuminate after 250 hours
of operation. To reset after cleaning the filter, press the
"Check Filter" button and the light will go off.
4
ON/OFF BUTTON
Operation starts when pressing this button, and stops
when pressing this button again.
SWING BUTTON
Activate the automatic air swing function.
FAN BUTTON
Select the fan speed HIGH, MID, LOW and AUTO in sequence.
TIME/TEMP BUTTON
Press the keypad to increase the set (operating) temperature of the unit. and
Press the keypad to decrease the set (operating) temperature of the unit.
The temperature setting range is from 16~30°C.Press the keypad also to
increase the selected time in 0.5 hour increments, and Press the keypad to
to decrease the selected time in 0.5 hour decrements, The time setting range
is from 0~10 hours. Press the keypad also to increase the selected time in
1 hour increments, and Press the keypad to decrease the selected time in
1 hour decrements, The time setting range is from 10~24 hours.

Operation Tips
Operation for comfort and economy
Do not overcool the room
temperature.
This is not good for health and
wastes electricity.
Keep blind or curtains closed.
Do not let sunshine enter the
room directly when the air con-
dition is in operation.
Keep the room temperature
Adjust the vertical
and horizontal airflow direction
to ensure temperature consiste
consistent.
-nt in the room.Air-inlet cannot
discharge the air flow.
Make sure the doors and win-
dows are tightly closed. Avoid open-
ing doors and windows as much as
possible to keep air conditioning in the
room.
Clean the air filter regularly.
Blockages in the air filter re-
duce effects. Clean the air
filter at least once every two
weeks.
Ventilate the room occasionall.y
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
When starting the unit, curtains or
windows should be closed to pre-
vent the heat/cool leakage.
16
room

17

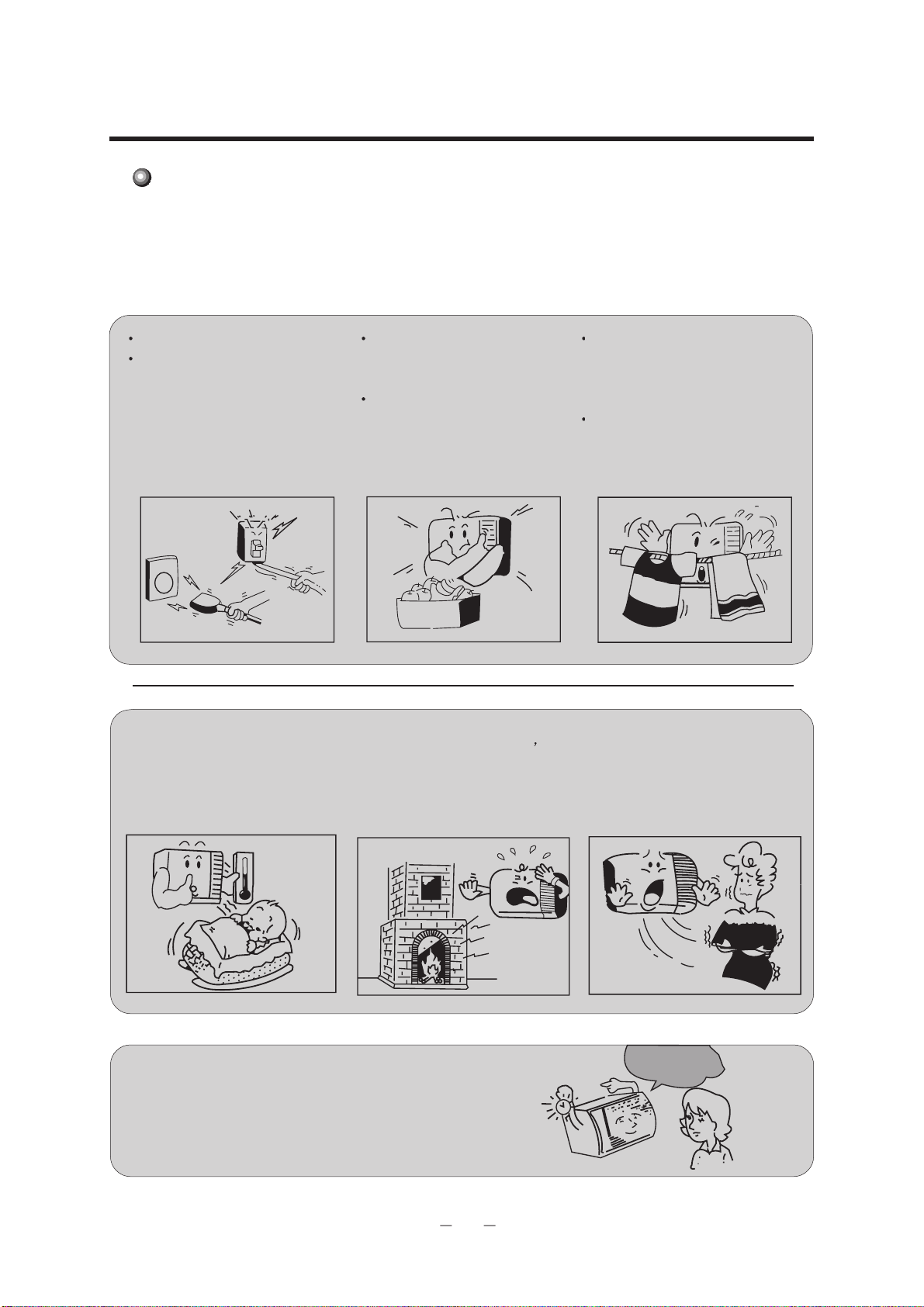

Caution
Do not use the air conditioner
for other purposes except for
cooling the room.
Do not use the air conditioner
for other purposes such as
drying clothes, preserving
foods, or cultivating
vegetables.
Do not block the air intake and
outlet vents
This causes lowered perfor-
mance and irregular operation.
Do not insert sticks or other
objects into these vents as it is
dangerous to touch the electric
components and the fan.
Always wait at least 3 minutes before switching the
air conditioner on again after you have switched it
off during cooling or heating.
Always wait
at least 3 minutes
Do not pull out the power cord.
Damage to the cord may result
in serious electric shocks.
Avoid exposing the body directly to
a continuous unidirectional air flow
for long periods.
This is not recommended for health
reason.
Select the most appropriate
temperature.
Pay attention to adjust the tempera-
ture to suit the conditions.
Rooms occupied by infants, elders or
kept at
an appropriate temperature.
the patient should be
Do not use heating apparatuses
nearby. The air conditioner s
plastic parts will melt if exposed to
excessive heat environment.
Operations for safety and health
1) The plug must be accessible after the appliance is positioned.
2) Do not use this appliance in the laundry.
3) If the power cord is damaged, it must be replaced by the manufacturer or its service agent against any hazard.
