Gree FP-34B D-K Series User manual

Change for life
Fan Coil Unit Wall Mounted Type
Owner's Manual
Original Instructions
Commercial Air Conditioners
Models:
FP-34BXX/D-K
FP-51BXX/D-K
FP-68BXX/D-K
FP-85BXX/D-K
FP-34BXN/A-K
FP-51BXN/A-K
FP-51BWXN/A-K
FP-68BXN/A-K
FP-85BXN/A-K
FP-85BWXN/A-K
FP-34BXN/B-D
FP-51BXN/B-D
FP-68BXN/B-D
FP-85BXN/B-D
FP-102BXN/B-D
FP-34BXX/D-K(E)
FP-51BXX/D-K(E)
FP-68BXX/D-K (E)
FP-85BXX/D-K(E)
FP-34BXN/A-K (E)
FP-51BXN/A-K (E)
FP-51BWXN/A-K (E)
FP-85BXN/A-K (E)
FP-85BWXN/A-K (E)
(Note: “X” represent codes for A~Z,“N” represent codes for 1~N)
(E)Models applicable to EU

To Users
Thank you for selecting Gree’s product. Please read this instruction manual carefully before installing
and using the product, so as to master and correctly use the product. In order to guide you to correctly
install and use our product and achieve expected operating e󰀨ect, we hereby instruct as below:
(1) This equipment should be installed, operated or maintained by the qualied servicemen who have had
specic training. During operation, all safety issues covered in the labels, User’s Manual and other
literature should be followed strictly. This equipment is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
(2) This product has gone through strict inspection and operational test before leaving the factory. In order
to avoid damage due to improper disassembly and inspection, which may impact the normal operation
of unit, please do not disassemble the unit by yourself. You can contact our designated dealer or local
service center for professional support if necessary.
(3) When the product is faulted and cannot be operated, please contact our designated dealer or local
service center as soon as possible by providing the following information.
yContents of nameplate of product (model, cooling/heating capacity, product No., ex-factory date).
yMalfunction status (specify the situations before and after the error occurs).
(4) All the illustrations and information in the instruction manual are only for reference. In order to make
the product better, we will continuously conduct improvement and innovation without further notice.

Contents
Safety Notices (Please be sure to abide ) .............................................................. 1
1. Product Introduction............................................................................................ 5
1.1 Working Principle.............................................................................................................. 5
1.2 Main Parts ........................................................................................................................ 5
1.3 Working Conditions .......................................................................................................... 6
2. Installation Instructions....................................................................................... 7
2.1 Installation Dimension Diagram........................................................................................ 7
2.2 Installation of the Rear Panel ........................................................................................... 7
2.3 Piping Holes for Installation.............................................................................................. 8
2.4 Installation of the Drain Pipe ............................................................................................ 8
2.5 Installation of the Connection Pipe................................................................................... 9
2.6 Installation of the Water Damper .................................................................................... 10
2.7 Electric Wiring ................................................................................................................ 10
3. Commissioning and Maintenance .....................................................................11
3.1 Inspection after Installation..............................................................................................11
3.2 Trial Operation.................................................................................................................11
3.3 Maintenance................................................................................................................... 12
4. Troubleshooting ................................................................................................. 14
4.1 Error List......................................................................................................................... 14
4.2 Error Codes .................................................................................................................... 16

Fan Coil Unit Wall Mounted Type
1
Safety Notices (Please be sure to abide )
WARNING: If not abide strictly, it may cause severe damage to the unit or the people.
NOTE: If not abide strictly, it may cause slight or medium damage to the unit or the people.
This sign indicates that the operation must be prohibited. Improper operation may cause severe
damage or death to people.
This sign indicates that the items must be observed. Improper operation may cause damage to
people or property.
WARNING
Please perform installation in
accordance with this manual
and read it carefully prior to
startup and service.
Installation should be done
by sales agents or qualified
servicemen. Do not do it
personally, as incorrect
installation would lead to water
leakage, electrocution, fire
hazards etc.
Before installation, check
for power supply and see if
it complies with that on the
nameplate. Besides, check for
safety of the power supply.
This unit should be grounded
and there should be grounding
lines for the power socket so
as to prevent electrocution. Do
not connect the grounding lines
to the gas lines, water lines,
lightning rod or telephone
lines.
Specialized
Fittings
Specialized components
and parts should be used
for installation; otherwise it
would lead to water leakage,
electrocution, re hazards etc.
Specialized
Size of the power lines should
be large enough. Power lines
and other electric connection
lines should be replaced by
specialized cables.
When wiring of power lines is
nished, remember to install a
electric box to prevent safety
accidents.
When installation is finished,
check for connection of drain
lines, water lines and electric
lines, as incorrect connection
would lead to water leakage,
electrocution, re hazards etc.
Do not start or stop the unit by
drawing out or plugging in the
power plug.
Do not let the children play
with this unit.
Do not operate this unit with
wet hands.
Do not clean this unit until the
unit is turn off and the power
supply is cut off, otherwise it
would lead to electrocution or
personal injury.

Fan Coil Unit Wall Mounted Type
2
Do not spray or rinse this unit
with water, as it would lead to
malfunction or electrocution.
Do not let this unit exposed
to moist, wet or corrosive
environment.
Volatile liquid like thinner or
petroleum would damage
appearance of this unit. (Only
soft dry cloth and cloth with
neutral detergent can be used
to clean the outer casing of
this unit.)
Do not make the set point too
low under the cooling mode.
Entering and leaving water
lines, condensate lines and
valves should be thermal
insulated so as to prevent from
dewing in summer.
Do not repair this unit by
yourself, as incorrect repair
would lead to electrocution or
fire hazards. Please contact
GREE after-sales center and
repair should be done by the
qualied servicemen.
Never splice the power cord or
use an extended cord.
It can cause overheating or
re.
Don’t insert your hands or stick
into the air intake or outlet
vents.
Don't block the air intake
of the FCU.It can decrease
the FCU capacity or cause a
malfunction.
Keep combustilble spray away
from the units more than 1.5m.
It can cause a re or explosion.

Fan Coil Unit Wall Mounted Type
3
NOTE
During operation, do not insert
fingers or other objects into
the moving parts, which would
lead to unnecessary injuries.
Please cut o󰀨 the power supply
when this unit is not used for
long time in consideration of
safety.
When there is something
unusual (like unusual smell,
burning smell, smoke etc.),
please turn o󰀨 the unit and cut
off the main power supply at
once, and then contact GREE
after-sales servicemen. If
unusual conditions go on, this
unit would burn out, or even it
would lead to electrocution or
re hazards.
Wiring of power lines and
electric connection lines should
be secure enough. Terminals
also should be tightly fastened.
The connection line should
not su󰀨er external forces. For
the unit equipped with the
wired controller, the controller
would be powered on firstly;
otherwise it would be out of
normal use.
The filter should be cleaned
periodically in case that heat
exchanging effect would be
a󰀨ected.
Please do freeze protection in
winter to prevent copper tubes
from cracking.
Don’ t leave windows and
doors open for a long time
while operating the FCU. It can
decrease the FCU capacity.
Don’t blow the wind to animals
and plants directly. It can
cause a bad inuence to them.
Don’t use the FCU for other
purposes, such as drying
clothes, preserving foods, etc.
Don’t place a space heater
near the FCU.

Fan Coil Unit Wall Mounted Type
4
This appliance is intended to be used by expert or trained users in shops, in light industry and on farms,
or for commercial or household use by lay persons.
Installing the unit in the following places may cause malfunction. If it is unavoidable,please consult the
local dealer:
(1) The place with strong heat sources,vapors, ammable or explosive gas,or volatile objects spread in the
air.
(2) The place with high-frequency devices (such as welding machine,medical equipment).
(3) The place near coast area.
(4) The place with oil or fumes in the air.
(5) The place with sulfureted gas.
(6) Other places with special circumstances.
(7) Do not use the unit in the immediate surroundings of a laundry, a bath, a shower or a swimming pool.
DISPOSAL: This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this product
for environmental safe recycling.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.

Fan Coil Unit Wall Mounted Type
5
1. Product Introduction
1.1 Working Principle
The cold (hot) water entering the heat exchanger will do heat exchanging with air passing through the
surface of the heat exchanger to condition the air temperature and humidity. There is no (cold) hot source
for this product itself. The running mode depends on the environment temperature and the running mode of
the main unit.
Protection against hot air
Under the cooling mode, when the water temperature is too high, the fan will be stopped to avoid the
unit from blowing out hot air.
Protection against cold air
Under the heating mode, when the water temperature is too low, the fan will be stopped to avoid the unit
from blowing out cold air.
Memory function
Upon power failure, some statuses can be memorized, including: mode setting, fan speed setting, fan
swing setting, temperature setting etc.
1.2 Main Parts

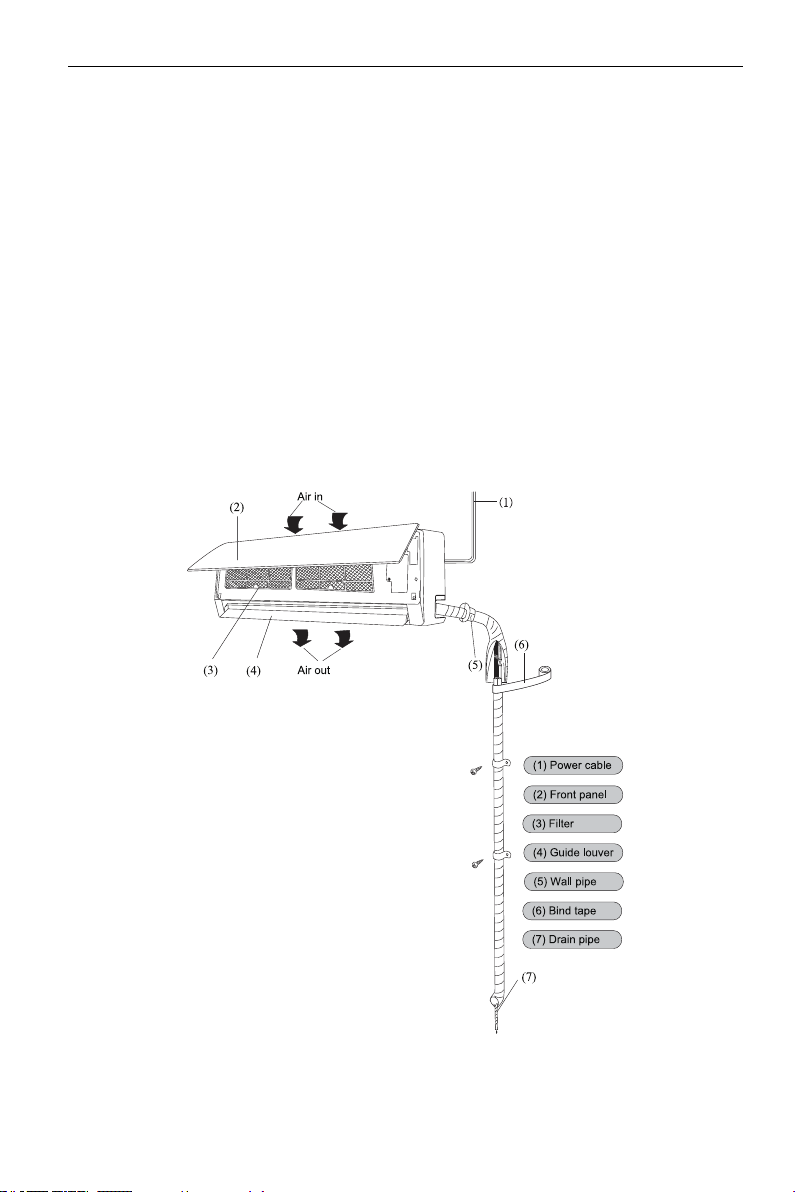

Fig. 1

Fan Coil Unit Wall Mounted Type
6
1.3 Working Conditions
(1) The entering water temperature for cooling is suggested to be no less than 5℃,otherwise it woule lead
to condensate; the entering water temperature for heating is suggested to be not higher than 60 ℃,
otherwise it would lead to corrosion of copper tubes or abnormal noise.
(2) The suggested working environment temperature for cooling ranges 16 ～40℃and ranges 10 ～35℃
for heating. Beside, the relative humidity is or less than 80%.
(3) This product is a kind of comfort air conditioning, and is not allowed to be installed where there are
corrosive, explosive and inammable substances or smog; otherwise it would lead to operation failure,
shortened service life, ve hazard or even severe injuries. Special air conditions are required for where
mentioned above.
(4) The A-weighted sound pressure level is below 70dB.
(5) The temperature exchange e󰀩ciency and enthalpy exchange e󰀩ciency are tested under these testing
conditions as below:
yCooling capacity: air 27°C DB , 19°C WB, water temperature intake 7°C, outlet 12°C.
yHeating capacity: air 20°C DB , For the tow-row coils applicable to EU, the entering/leaving water
temperature is 45°C and 40°C; and for the four-row coils, the entering/leaving water temperature is
65°C/55°C.
yFreeze-up : air 27°C DB, 24°C WB , water temperature 6°C intake , 10°C outlet .
ySound power level according to ISO 5151. Sound pressure level are calculated at the below of air-
outlet 1m and 1m distance. The noise are tested before leaving factory.

Fan Coil Unit Wall Mounted Type
7
2. Installation Instructions

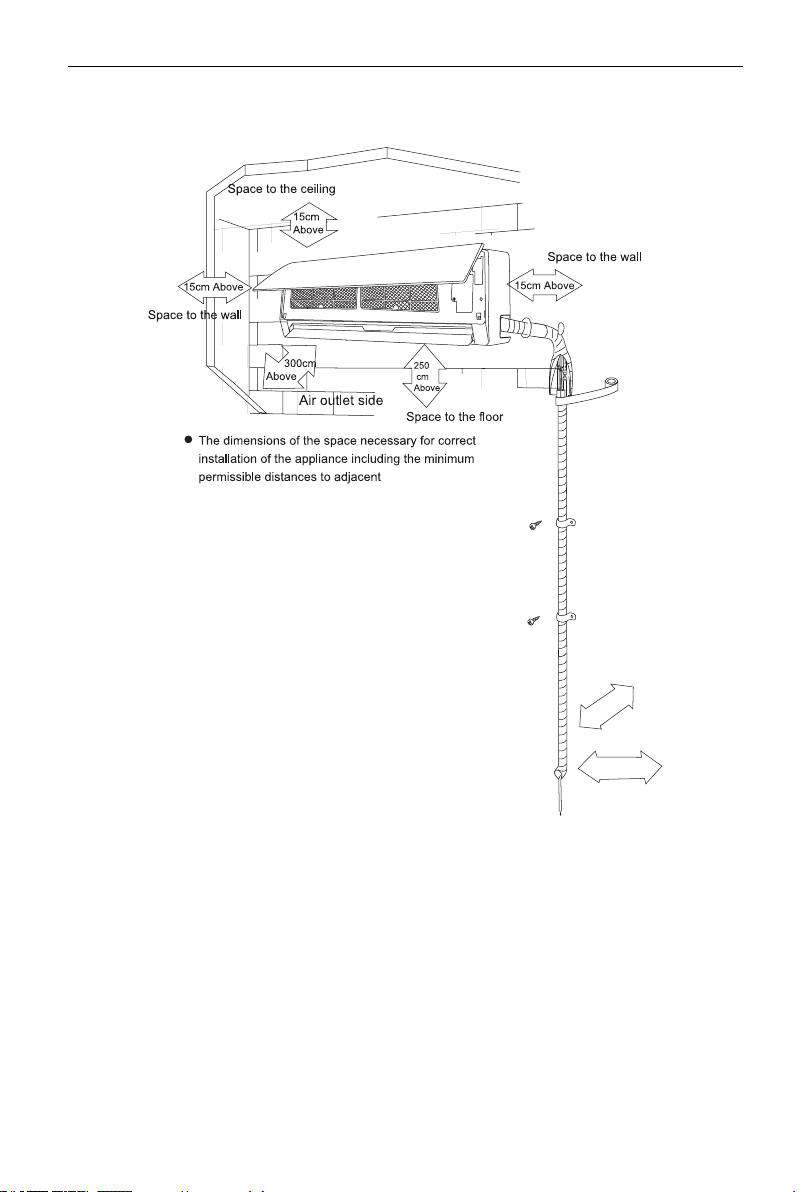

2.1 Installation Dimension Diagram
structures.
50cm
30cm
Fig.2
2.2 Installation of the Rear Panel
(1) Always mount the rear panel horizontally. Due to the water tray of the unit has been adopted the both-
way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is
to take the outlet of the water tray as the center of a circle, the included angle between the evaporator
and level should be 0 or more, that is good for condensing water drainage.
