Greenheck Exhaust Fan SMD-302M User manual

Model SMD-302M meets the requirements for
smoke dampers established by:
National Fire Protection Association
NFPA Standards 92A, 92B, 101 & 105
IBC International Building Codes
New York City (MEA listing #260-91-M)
CSFM California State Fire Marshal
Leakage (Smoke) Damper Listing (#3230-0981:104)

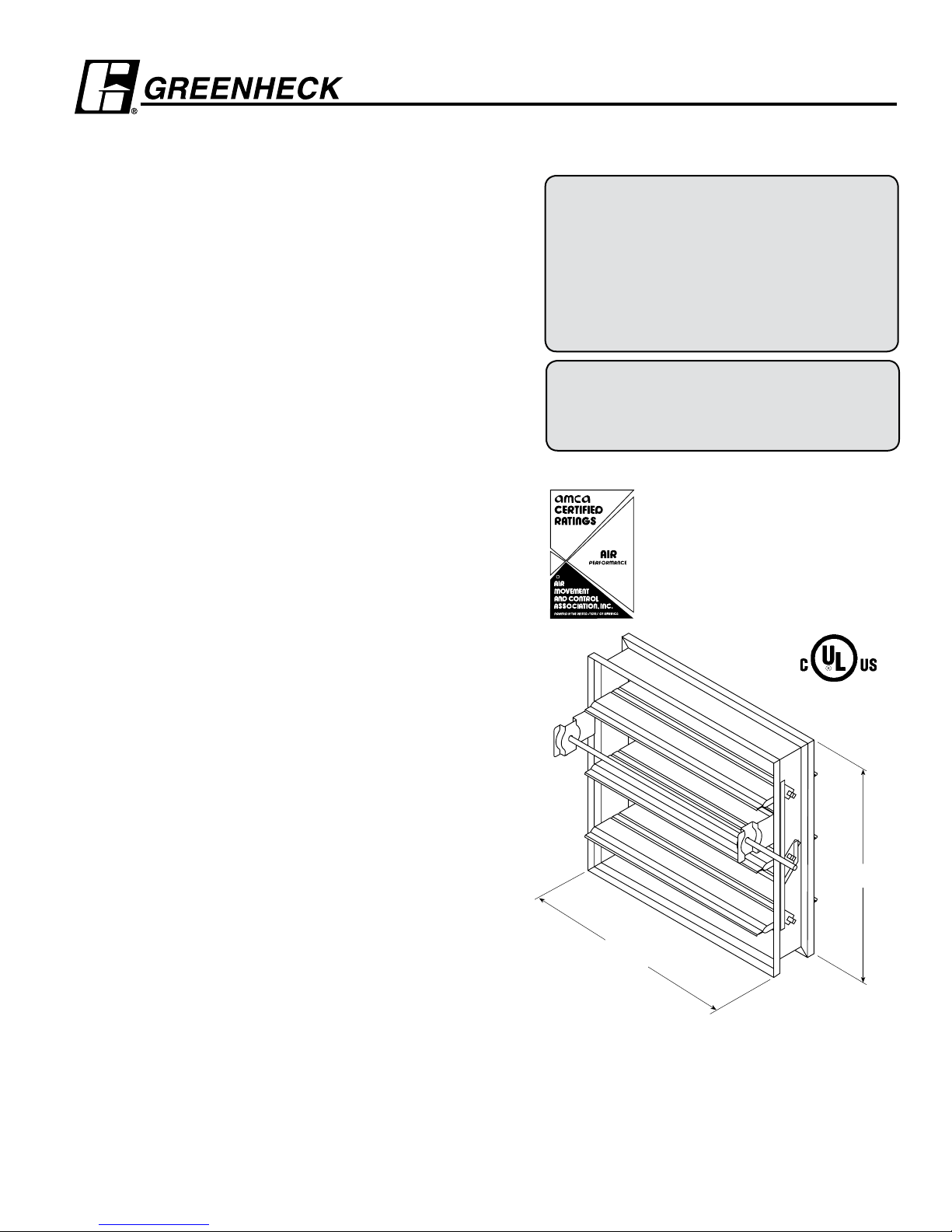

APPLICATION
Model SMD-302M is a leakage rated modulating smoke damper
with class II leakage. The SMD-302M serves the function of both
a control damper and smoke damper. High strength airfoil blades
insure lowest resistance to airflow in HVAC systems with velocities
to 2000 fpm (10.2m/s) and 4 in. wg (1 kPa) Model SMD-302M may
be installed vertically (with blades running horizontal) or horizontally
and is rated for airflow and leakage in either direction.
UL 555S Leakage Rating
Leakage Class: II
Operational Rating
Maximum Velocity: 2000 fpm (10.2m/s)
Maximum Pressure: 4 in. wg (1 kPa)
Maximum Temperature: 250ºF (121ºC)
STANDARD CONSTRUCTION
Frame: 5 in. x 1 in. (127mm x 25mm)
galvanized steel hat channel with
reinforced corners. A low profile
head and sill are used on sizes less
than 17 in. (432mm) high to
maximize free area and
performance.
Blades: Double skin airfoil shape of
galvanized steel with full length
structural reinforcement. 14 ga.
(2 mm) equivalent thickness.
Seals: Extruded silicone rubber blade
seals. Flexible stainless steel jamb
seals.
Linkage: Concealed in jamb.
Axles: 1/2in. (13mm) dia. plated steel.
Bearings: Bronze sleeve type.
SIZE LIMITATIONS:
Minimum Size: 8 in. W x 6 in. H
(203mm W x 152mm H)
Maximum Size:
Single Section: 32 in. W x 50 in. H
(813mm W x 1270mm H)
Multiple Section: 128 in. W x 100 in. H
(3251mm W x 2540mm H)
Optional Features:
• Galvanized steel sleeves.
• Stainless steel bearings
• OCI (Open closed indication switches)
• Electric or pneumatic actuators to accomplish smoke
management and system functions.
• Transitions (R, C, O)
• POC retaining angles
• Momentary Switch
• Smoke detectors
• Sealed transitions and sleeves
Model SMD-302M
Smoke Dampers
Steel Airfoil Blades
UL 555S Leakage Class II
*W&H dimensions furnished approximately 1/4 in. (6mm) undersize.
Right hand drive is shown. Left hand drive is available upon request.
Damper also may be rotated 180° in the field for opposite side drive.
(Add sleeve thickness for overall sleeved damper dimension)
H*
W*
LH
RH
“UL CLASSIFIED (see complete marking on
product)”
“UL CLASSIFIED to Canadian safety standards
(see complete marking on product)”
Standard 555S (Listing #R13317)
Greenheck Fan Corporation certifies that the
model SMD-302M shown herein is licensed
to bear the AMCA Seal. The ratings shown
are based on tests and procedures performed
in accordance with AMCA Publication 511
and comply with the requirements of the
AMCA Certified Ratings Programs. The
AMCA Certified Ratings Seal applies to air
performance ratings only.
R
Installation instructions available at www.greenheck.com

Pressure Drop Data SMD-302M
This pressure drop testing was conducted in accordance with AMCA Standard 500-D using the three configurations shown. All
data has been corrected to represent standard air at a density of .075 lb/ft3 (1.201 kg/m3).
Actual pressure drop found in any HVAC system is a combination of many factors. This pressure drop information along with an
analysis of other system influences should be used to estimate actual pressure losses for a damper installed in a given HVAC
system.

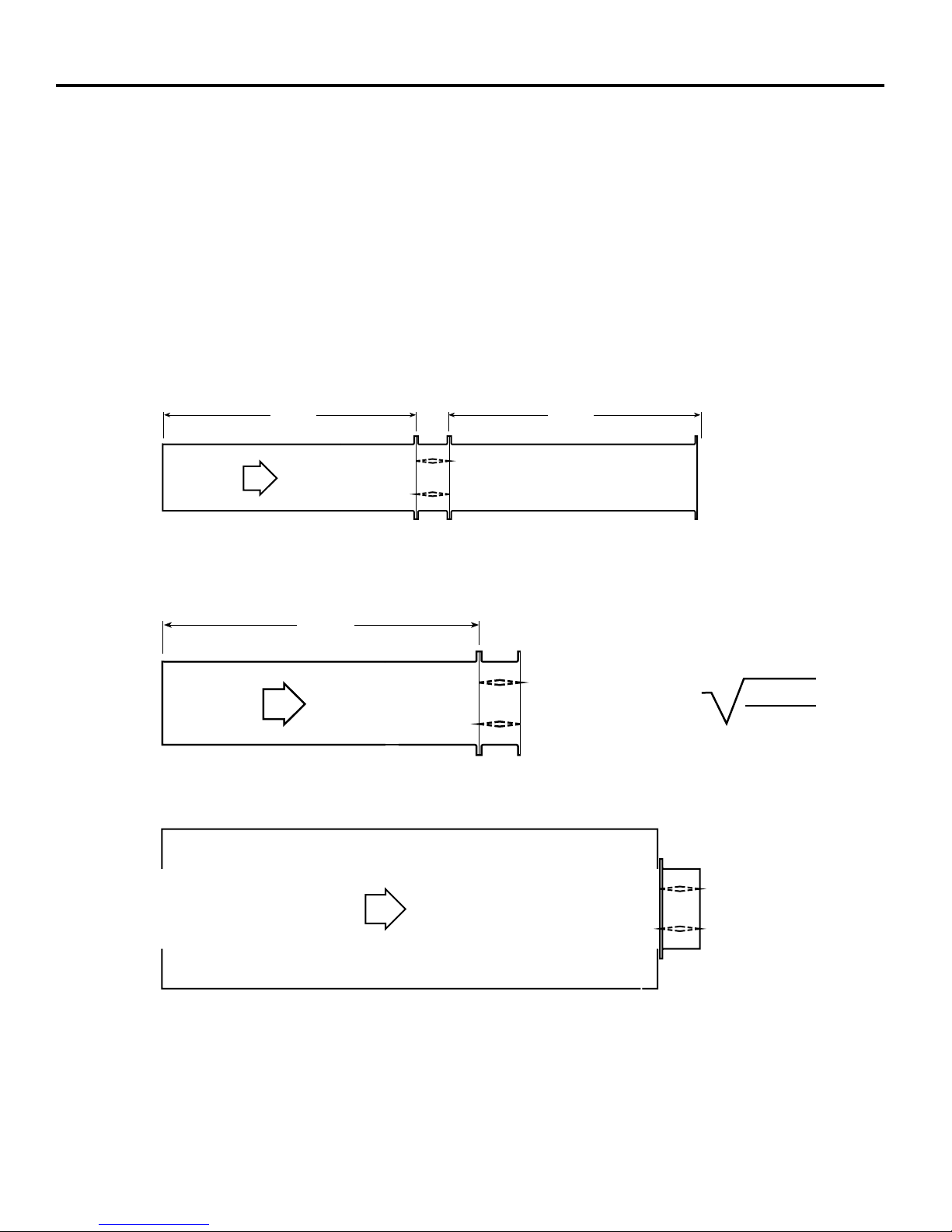

AMCA Test Figures
Figure 5.3 Illustrates a fully ducted damper. This configuration has the lowest pressure drop of the three test configurations
because entrance and exit losses are minimized by straight duct runs upstream and downstream of the damper.
Figure 5.2 Illustrates a ducted damper exhausting air into an open area. This configuration has a lower pressure drop than
Figure 5.5 because entrance losses are minimized by a straight duct run upstream of the damper.
Figure 5.5 Illustrates a plenum mounted damper. This configuration has the highest pressure drop because of extremely high
entrance and exit losses due to the sudden changes of area in the system.
5D 6D
5D
D4 (W) (H)
3.14
Figure 5.3
5D 6D
5D
D4 (W) (H)
3.14
Figure 5.5
Figure 5.2
5D 6D
5D
D4 (W) (H)
3.14

12x12
48x12
24x24
36x36
12x48

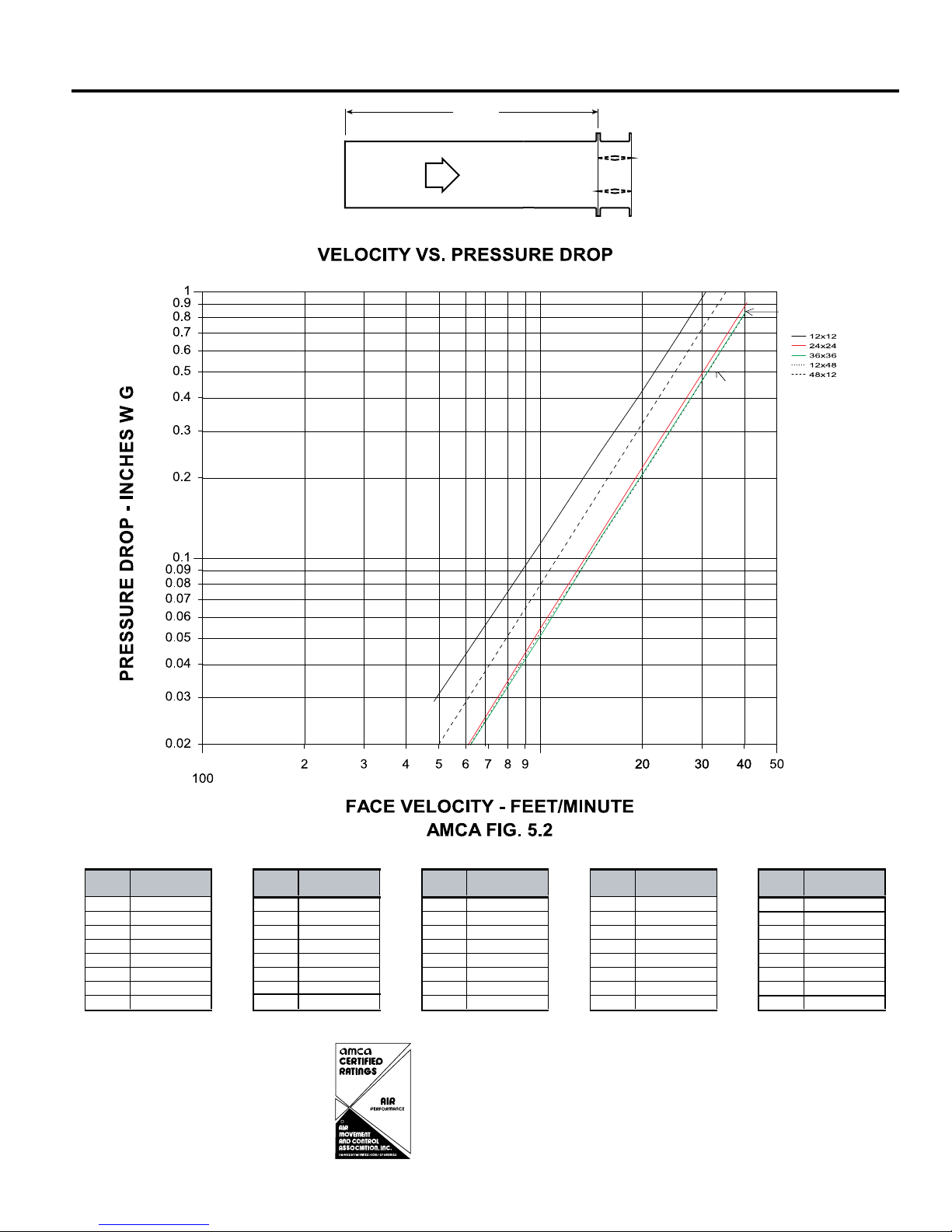

AMCA 5.2 Pressure Drop SMD-302M
5D 6D
5D
D4 (W) (H)
3.14
Velocity
(fpm)
Pressure Drop
(in. wg)
Velocity
(fpm)
Pressure Drop
(in. wg)
Velocity
(fpm)
Pressure Drop
(in. wg)
Velocity
(fpm)
Pressure Drop
(in. wg)
Velocity
(fpm)
Pressure Drop
(in. wg)
500 0.03 500 0.01 500 0.01 500 0.01 500 0.02
1000 0.12 1000 0.06 1000 0.061000 0.051000 0.08
1500 0.26 1500 0.12 1500 0.121500 0.12 1500 0.18
2000 0.46 2000 0.22 2000 0.222000 0.21 2000 0.33
2500 0.72 2500 0.34 2500 0.342500 0.332500 0.51
3000 1.04 3000 0.49 3000 0.493000 0.483000 0.74
3500 1.41 3500 0.67 3500 0.673500 0.653500 1.00
4000 1.84 4000 0.87 4000 0.884000 0.854000 1.31
12in. X 48 in.
(
305mm x 1219mm
)
48 in. x 12 in.
(
1219mm x 305mm
)
24 in. x 24 in.
(
610mm x 610mm
)
36in. x 36 in.
(
914mm x 914mm
)
12 in. x 12 in.
(
305mm x 305mm
)
* Sizes are in inches.
Greenheck Fan Corporation certifies that the
model SMD-302M shown herein is licensed
to bear the AMCA Seal. The ratings shown
are based on tests and procedures performed
in accordance with AMCA Publication 511
and comply with the requirements of the
AMCA Certified Ratings Programs. The
AMCA Certified Ratings Seal applies to air
performance ratings only.
R

* Sizes are in inches.
12x12
48x12
12x48
24x24
36x36

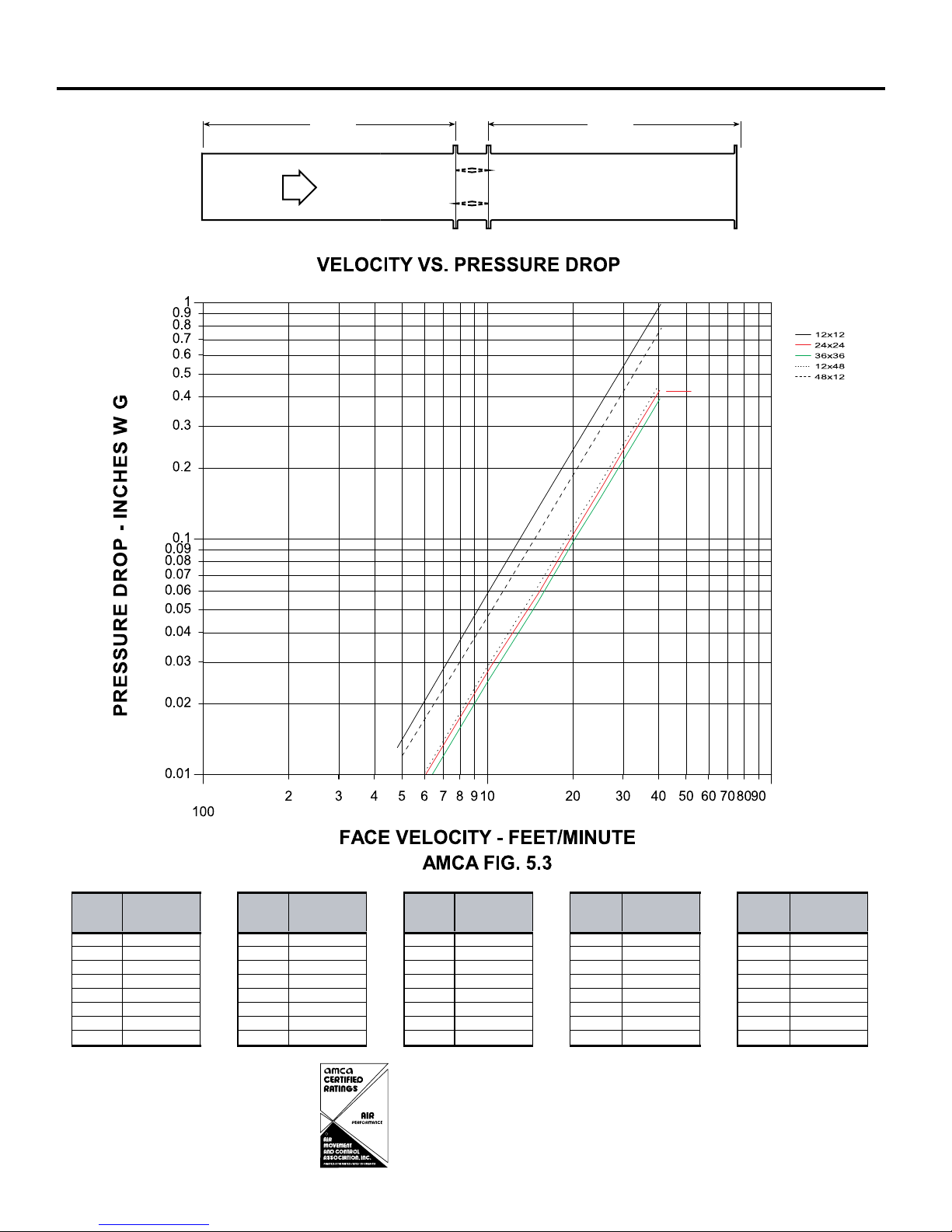

AMCA 5.3 Pressure Drop SMD-302M
5D 6D
5D
D4 (W) (H)
3.14
Velocity (fpm)
Pressure Drop
(in. wg) Velocity (fpm)
Pressure Drop
(in. wg) Velocity (fpm)
Pressure Drop
(in. wg)Velocity (fpm)
Pressure Drop
(in. wg)Velocity (fpm)
Pressure Drop
(in. wg)
500 0.01 500 0.01 500 0.01 500 0.01 500 0.01
1000 0.06 1000 0.02 1000 0.02 1000 0.02 1000 0.04
1500 0.13 1500 0.06 1500 0.05 1500 0.06 1500 0.10
2000 0.23 2000 0.10 2000 0.09 2000 0.10 2000 0.18
2500 0.37 2500 0.16 2500 0.14 2500 0.16 2500 0.29
3000 0.53 3000 0.23 3000 0.21 3000 0.24 3000 0.42
3500 0.73 3500 0.32 3500 0.29 3500 0.33 3500 0.57
4000 0.95 4000 0.42 4000 0.38 4000 0.43 4000 0.74
24 in. x 24 in.
(
610mm x 610mm
)
36in. x 36 in.
(
914mm x 914mm
)
12in. X 48 in.
(
305mm x 1219mm
)
48 in. x 12 in.
(
1219mm x 305mm
)
12 in. x 12 in.
(
305mm x 305mm
)
Greenheck Fan Corporation certifies that the
model SMD-302M shown herein is licensed
to bear the AMCA Seal. The ratings shown
are based on tests and procedures performed
in accordance with AMCA Publication 511
and comply with the requirements of the
AMCA Certified Ratings Programs. The
AMCA Certified Ratings Seal applies to air
performance ratings only.
R

12x12
48x12
24x24
12x48
36x36

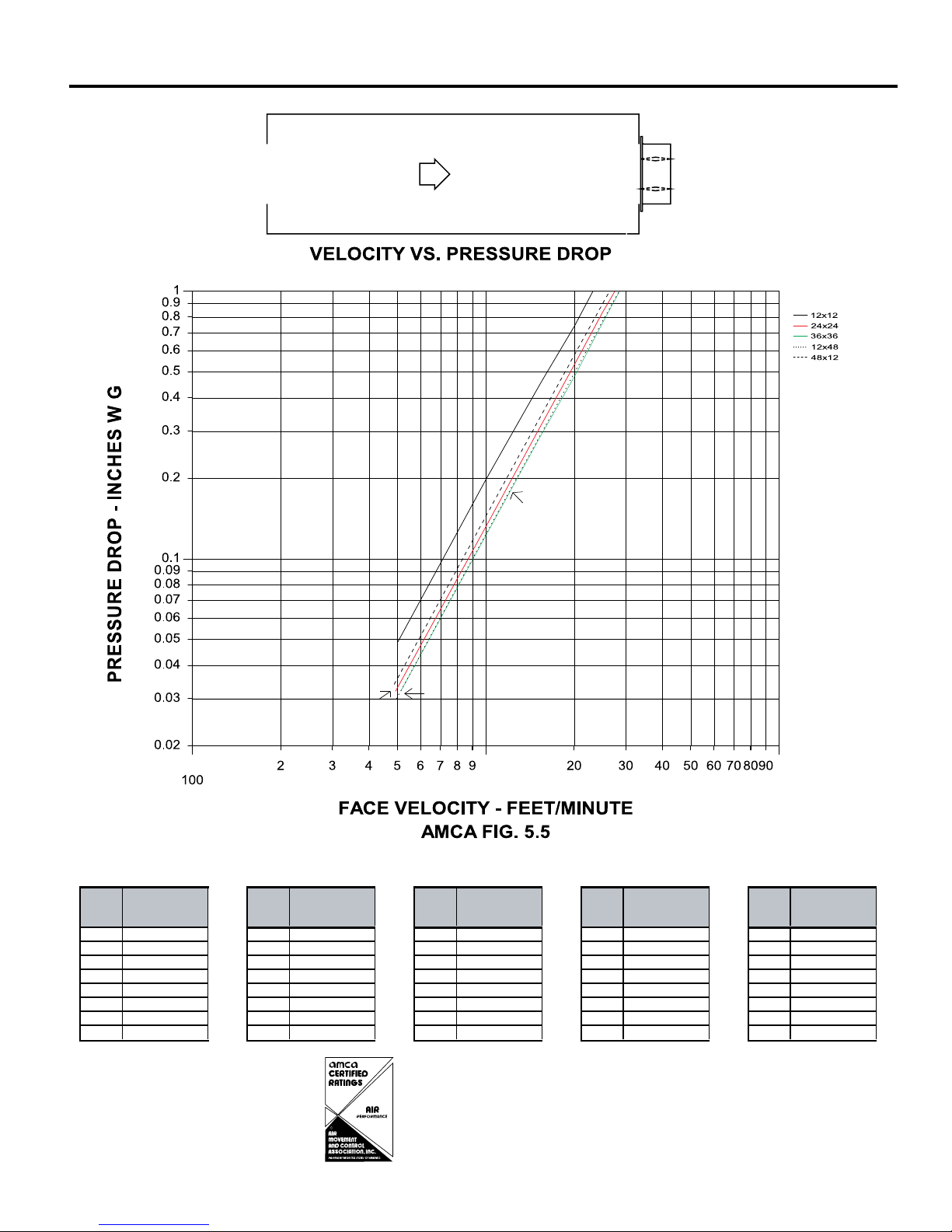

AMCA 5.5 Pressure Drop SMD-302M
5D 6D
5D
D4 (W) (H)
3.14
Velocity
(fpm)
Pressure Drop
(in. wg)
Velocity
(fpm)
Pressure Drop
(in. wg)
Velocity
(fpm)
Pressure Drop
(in. wg)
Velocity
(fpm)
Pressure Drop
(in. wg)
Velocity
(fpm)
Pressure Drop
(in. wg)
500 0.04 500 0.03 5000.03500 0.03 5000.03
1000 0.18 1000 0.13 1000 0.12 1000 0.12 1000 0.14
1500 0.42 1500 0.29 1500 0.27 1500 0.27 1500 0.32
2000 0.75 2000 0.52 2000 0.48 2000 0.49 2000 0.57
2500 1.17 2500 0.81 2500 0.75 2500 0.77 2500 0.89
3000 1.68 3000 1.17 3000 1.08 3000 1.11 3000 1.28
3500 2.29 3500 1.60 3500 1.48 3500 1.51 3500 1.75
4000 2.09 4000 2.14 4000 1.93 4000 1.97 4000 2.29
24 in. x 24 in.
(
610mm x 610mm
)
36in. x 36 in.
(
914mm x 914mm
)
12in. X 48 in.
(
305mm x 1219mm
)
48 in. x 12 in.
(
1219mm x 305mm
)
12 in. x 12 in.
(
305mm x 305mm
)
Greenheck Fan Corporation certifies that the
model SMD-302M shown herein is licensed
to bear the AMCA Seal. The ratings shown
are based on tests and procedures performed
in accordance with AMCA Publication 511
and comply with the requirements of the
AMCA Certified Ratings Programs. The
AMCA Certified Ratings Seal applies to air
performance ratings only.
R

Space Envelopes Required for Actuators
and Accessories
Externally mounted actuators always require space
outside of the damper sideplate or sleeve. The “S” dimen-
sion illustrates the clearance required for various available
actuators.
On dampers less than 18 in. (457mm) high, actuators may
also require clearances above and/or below the sideplate
or sleeve. “B” and “T” dimensions are worst case clear-
ance requirements for some dampers less than 18 in.
(457mm) high. All damper sizes under 18 in. (457mm) high
do not require these worst case clearances. If space avail-
ability above or below the damper sleeve is limited, each
damper size should be individually evaluated.
Application Data
53/8"
5"
Right hand drive is shown
Left hand drive available upon request
LH RH
A
Sleeve Length
Varies
6"
33/4"
11/2" max.
B*
S
T*
A
5 in.
12 in.**
6in.
53/8in.
5 in.A
Sleeve Length
Varies
33/4in.
11/2in. max.
53/8"
5"
Right hand drive is shown
Left hand drive available upon request
LH RH
A
Sleeve Length
Varies
6"
33/4"
11/2" max.
B*
S
T*
Sideplate
Sleeve

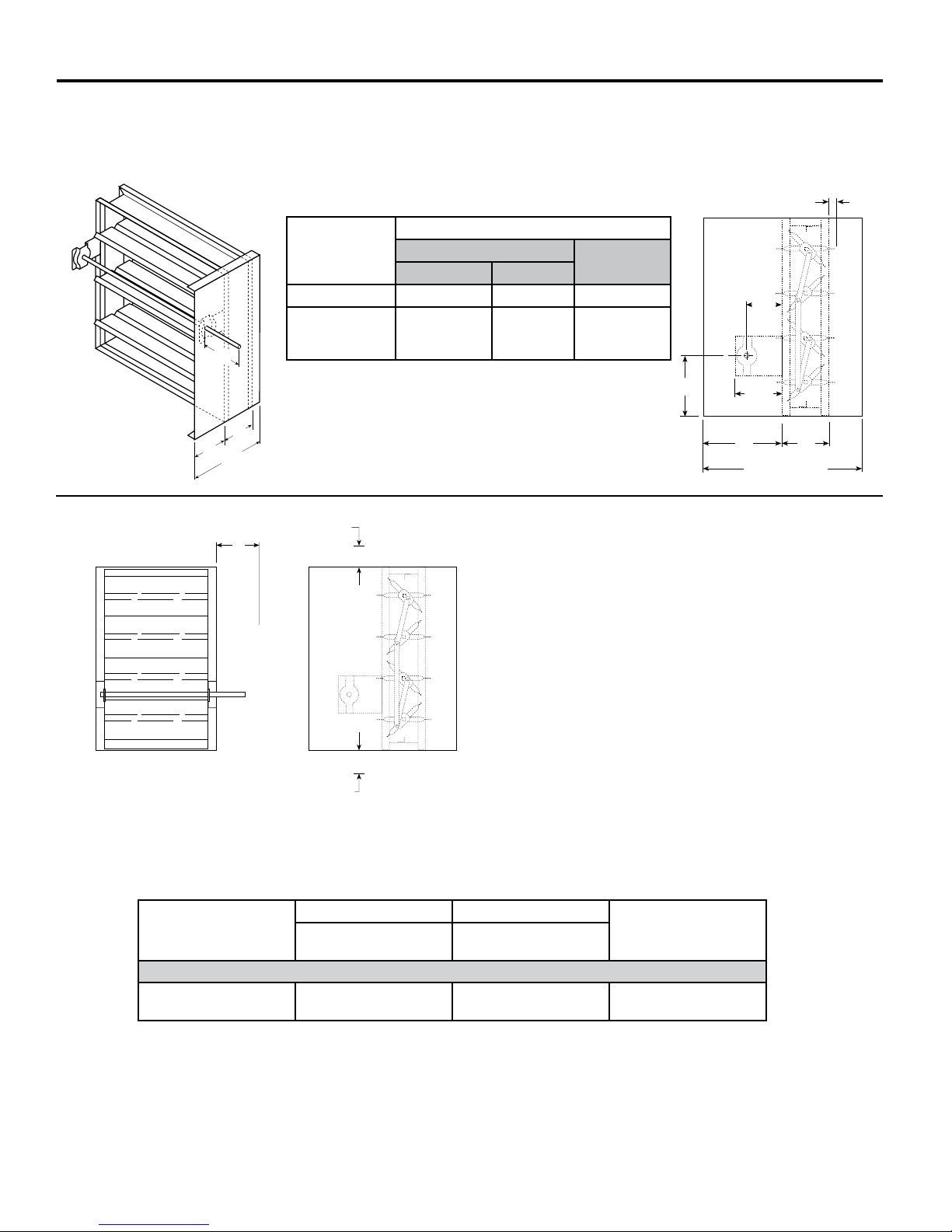

Damper Sideplate and Sleeve Dimensional Data
The drawings below illustrate the factory standard sideplate and sleeve mountings for the SMD-302M. The standard "A" di-
mensions listed in the table provide adequate space for the mounting of actuators and controls.
If space constraints are a problem the "A" dimension can be varied between 53/8 in. (136mm) and 12 in. (305mm).
* For dampers 18 in. (457mm) or more in height these dimensions are 0 in.
Actuator Type/Model
B* T*
S
With OCI, RRL,
or TOR
With OCI, RRL,
or TOR
24 Volt AC
MS7520A2015/B
MS7520A2213/B 6 in. (152mm) 3/8 in. (10mm) 6 in. (152mm)
*With the exception of dampers 11 in. (279mm) high or less (12 in.
(305mm)high or less if width is greater than 64 in. (1625mm)) with OCI
option.
** On dampers 11 in. (279mm) high or less (12 in. (305mm)high or less if
width is greater than 64 in. (1625mm)) with OCI option, sideplate is 16 in.
(406mm)
in. (mm)
"A" Dimension
Sleeve Sideplate
Standard Maximum
All Dampers* 7 3/16 (183) 12 (305) 6 3/16 (157)
When height is
11 in. (279) or
less with OCI
11 3/16
(284)
12
(305)
10 3/16
(259)

50 in.
32 in. (813mm)
32 in. (813mm) 64 in. (1626mm)
50 in.
96 in. (2435mm)
50 in.
100 in.
(1270mm)
32 in. (813mm)
(2540mm)
(1270mm)
32 in. (813mm)
128 in. (2540mm)
(1270mm)
50 in.
(1270mm)

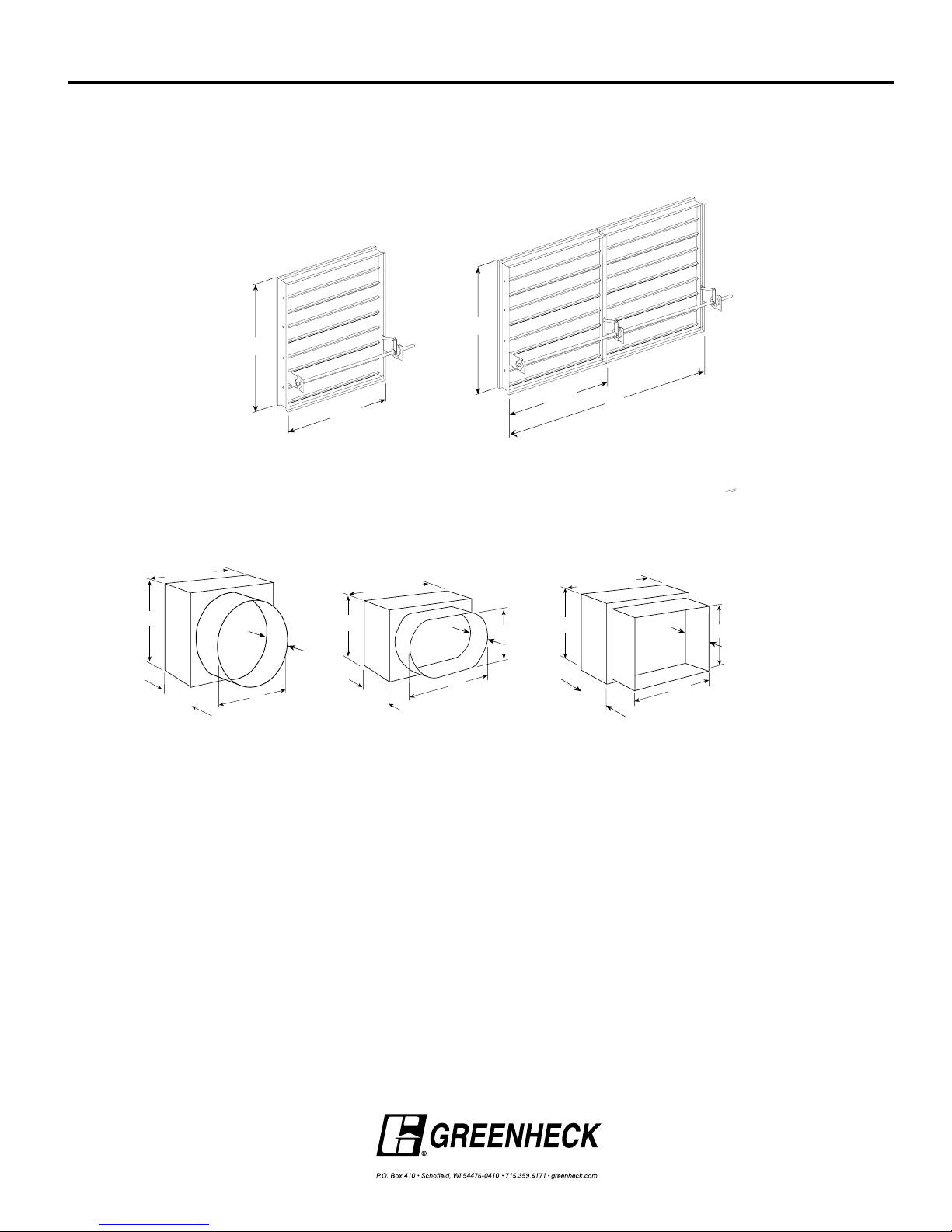

Transitioned Damper
Dimensions
When a fire/smoke damper is being used in conjunction with round or oval ductwork, the
SMD-302M can be supplied in a factory sleeve with round or oval transitions on both ends of
the sleeve. Dampers should be ordered to the duct dimensions. Drawings below show overall
damper size.
* These dimensions are furnished
approximately 1/4in. (6mm) undersize,
except round and oval dimensions
which are approximately 1/8in. (3mm)
undersize.
Ts = (2)(Sleeve Thickness)
Smoke Dampers meeting the following specifications shall
be furnished and installed where shown on plans and/or as
described in schedules. Dampers shall meet the require-
ments of NFPA 92A, 92B, 101, and 105 and further shall
be tested, rated and labeled in accordance with the latest
edition of UL Standard 555S. Smoke dampers shall be of low
leakage design qualified to UL 555S Leakage Class II.
Each damper /actuator combination shall have a UL555S
elevated temperature rating of 250°F (121º C) minimum and
shall be rated to operate at maximum design air flow at its
installed location. Each damper shall be supplied with an
appropriate actuator installed by the damper manufacturer
at the time of damper fabrication. Damper actuator shall be
(specifier select one of the following) electric type for 24 Volt
operation.
Damper blades shall be of the double skin airfoil type and
shall have an equivalent metal thickness of 14 ga. (2mm)
Damper frame shall be galvanized steel formed into a struc-
tural hat channel shape with reinforced corners. Bearings
shall be sintered bronze sleeve type rotating in extruded
holes in the damper frame. Blade edge seals shall be sili-
cone rubber designed to inflate and provide a tighter seal
against leakage as pressure on either side of the damper
increases. Jamb seals shall be stainless steel compression
type with silicone rubber backing. Blades shall be complete-
ly symmetrical relative to their axle pivot point, presenting
identical resistance to airflow in either direction or pressure
on either side of the damper.
Damper must be rated for mounting vertically (with blades
running horizontal) or horizontally and be UL 555S rated for
leakage and airflow in either direction through the damper.
The basis of design is Greenheck Model SMD-302M.
Damper Sizing Information
Dampers larger than maximum single section size are supplied as a factory assembly of two or more sections of equal size.
The following figures show damper sections and assemblies that have been qualified for operation with a single actuator.
Larger sizes can be accommodated using multiples of these assemblies.
Specifications
D*+ 2 in. (51mm) +T s
D*
TYPE R
16 in. (406mm)
Min.
2
1
/
8
in.
D* + 2 in. (51mm)+T s
TYPE O
W
*
H*
W*
+ 2 in. (51mm)+T
s
H*+ 2 in. (51mm)+T
s
W*
H*
TYPE C
H* + 2 in. (51mm)+T
s
(54mm)
16 in. (406mm)
Min.
2
1
/
8
in.
(54mm)
16 in. (406mm)
Min.
W*+ 2 in. (51mm)+T
s
(54mm)
2
1
/
8
in.
Single Section
Double Section
Copyright ©2007 Greenheck Fan Corporation
SMD-302M Rev. 6 April 2007
