Greenmaster X-FIT1 PRO User manual

USER’S MANUAL
GREENMASTER X-FIT1 PRO
MOTORIZED TREADMILL
MODEL NUMBER: X-FIT1 PRO
USER WEIGHT LIMITATION: 136kgs. (300lbs.)
SERIAL NUMBER (found on frame):

X-FIT1 PRO MOTORIZED TREADMILL
2
PRECAUTIONS
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important
precautions and information before operating the treadmill. It is the responsibility of the owner to ensure that all
users of this treadmill are adequately informed of all warnings and precautions.
Use the treadmill only as described in this manual.
Place on a level surface, with 2 meters (6 feet) of clearance behind it. Do not place the treadmill on any
surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the
treadmill.
When choosing a location for the treadmill make sure that the location and position permit access to a plug.
Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered
patio, or near water.
Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
Keep children under the age of 12 and pets away from the treadmill at all times.
The treadmill should not be used by persons weighing more than 136kgs. (300lbs.)
Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support
clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in sandals.
When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should
be on the same circuit.
Always straddle the belt and allow it to start moving before stepping onto the belt.
Always examine your treadmill before using to ensure all parts are in working order.
Allow the belt to fully stop before dismounting.
Never insert any object or body parts into any opening.
Follow the safety information in regards to plugging in your treadmill.
Keep the power cord away from the incline wheels and do not run the power cord underneath your
treadmill. Do not operate the treadmill with a damaged or frayed power cord.
Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be
performed by an authorized service representative, unless authorized and/or instructed by the
manufacturer. Failure to follow these instructions will void the treadmill warranty.
Never leave the treadmill unattended while it is running.

X-FIT1 PRO MOTORIZED TREADMILL
3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS
TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH
THE PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED
ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage
spikes, surges and noise interference can result from weather conditions or from other appliances being turned on or
off. To reduce the possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge
protector with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage
rating of 400V or less and an electrical rating 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance
for electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an
equipment-grounding conductor and a grounding plug. Always plug the power cord into a surge protector, and plug
the surge protector into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the
drawing below.

X-FIT1 PRO MOTORIZED TREADMILL
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are
included in the boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this
product to be assembled properly. If you are missing any parts or have any assembly questions call the
manufacturer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require
to assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly
quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another
person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 136kgs (300lbs.) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit
shown here. This product is not intended to support users whose weight exceeds this limit.

X-FIT1 PRO MOTORIZED TREADMILL
5
HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to
help you identify those items that may be unfamiliar to you.
NO.
DESCRIPTION
QTY.
4
M6 x 20mm Allen Head Bolt
4
7
M8 x 10mm Bolt
4
8
#8 x 19mm Screw
16
9
#8 x 25mm Screw
14
21
½” x 68mm Bolt
2
22
Rubber Spacer
4
23
½” Nylon Nut
2
24
Fix Pin
4
28
M8 x 25mm Bolt
6
38
4 x 13mm Washer
8
106
Plastic Bracket
2
107
M6 x 15mm Screw
2
A
13 x 17 x 19mm Wrench
1
B
5mm Wrench
2
C
Wrench
1
D
6mm Allen Wrench
1
MILIMETERS

X-FIT1 PRO MOTORIZED TREADMILL
6
PARTS LIST
NO.
DESCRIPTION
QTY.
ORDER NO.
NO.
DESCRIPTION
QTY.
ORDER NO.
1
Console
1
X-FIT1 PRO-01
29
M6 x 55mm Screw
2
X-FIT1 PRO -29
2
Safety Key
1
X-FIT1 PRO-02
30
M14 x 113mm Bolt
2
X-FIT1 PRO-30
3
Console Support Tube
1
X-FIT1 PRO-03
31
Bushing
4
X-FIT1 PRO-31
4
M6 x 20mm Allen
Head Bolt
4
X-FIT1 PRO-04
32
Level Adjuster
4
X-FIT1 PRO-32
5
M5 x 12 Screw
1
X-FIT1 PRO-05
33
Base Frame
1
X-FIT1 PRO-33
6
Motion Control Sensor
2
X-FIT1 PRO-06
34
Running Deck Fixed
Tube Sleeve
2
X-FIT1 PRO-34
7
M8 x 10mm Bolt
4
X-FIT1 PRO-07
35
Cushion
2
X-FIT1 PRO-35
8
#8 x 19mm Screw
16
X-FIT1 PRO-08
36
6 x 13mm Washer
6
X-FIT1 PRO-36
9
#8 x 25mm Screw
14
X-FIT1 PRO-09
37
#8 x 15mm Screw
32
X-FIT1 PRO-37
10
Handlebar Rear End
Cap - Left#1
1
X-FIT1 PRO-10
38
4 x 13mm Washer
8
X-FIT1 PRO-38
11
Handlebar Rear End
Cap - Left#2
1
X-FIT1 PRO-11
39
Fixed Tube
1
X-FIT1 PRO-39
12
Handlebar Rear End
Cap - Right#1
1
X-FIT1 PRO-12
40
Shock Top Cover
2
X-FIT1 PRO-40
13
Handlebar Rear End
Cap - Right#2
1
X-FIT1 PRO-13
41
Upright Plastic Shroud
Left#1
1
X-FIT1 PRO-41
14
Handlebar - Left
1
X-FIT1 PRO-14
42
Upright Plastic Shroud
Left#2
1
X-FIT1 PRO-42
15
Handlebar - Right
1
X-FIT1 PRO-15
43
Upright Plastic Shroud
Right #1
1
X-FIT1 PRO-43
16
Hand Pulse Sensor
2
X-FIT1 PRO-16
44
Upright Plastic Shroud
Right #2
1
X-FIT1 PRO-44
17
Handlebar Front End
Cap
2
X-FIT1 PRO-17
45
Side Cover - Left
1
X-FIT1 PRO-45
18
M8 x 15mm Screw
2
X-FIT1 PRO-18
46
Side Cover - Right
1
X-FIT1 PRO-46
19
Left Upright
1
X-FIT1 PRO-19
47
Power Switch Set
1
X-FIT1 PRO-47
20
Right Upright
1
X-FIT1 PRO-20
48
M5 X 10mm Screw
2
X-FIT1 PRO-48
21
½” x 68mm Bolt
2
X-FIT1 PRO-21
49
Motor Hood
1
X-FIT1 PRO-49
22
Rubber Spacer
4
X-FIT1 PRO-22
50
Front Foot Platform
1
X-FIT1 PRO-50
23
1/2" Nylon Nut
2
X-FIT1 PRO-23
51
#8 x 50mm Screw
2
X-FIT1 PRO-51
24
Fix Pin
2
X-FIT1 PRO-24
52
Side Rail
2
X-FIT1 PRO-52
25
M6 x 12mm Screw
2
X-FIT1 PRO-25
53
Running Belt
1
X-FIT1 PRO-53
26
Suspension System
Hardware Assembly
2
X-FIT1 PRO-26
54
Rear Cover - Left
1
X-FIT1 PRO-54
27
Upright Support
Tube-Bottom
2
X-FIT1 PRO-27
55
Rear Cover - Right
1
X-FIT1 PRO-55
28
M8 x 25mm Screw
6
X-FIT1 PRO-28
56
Deck Rubber Cushion
8
X-FIT1 PRO-56

X-FIT1 PRO MOTORIZED TREADMILL
7
PARTS LIST
NO.
DESCRIPTION
QTY.
ORDER NO.
NO.
DESCRIPTION
QTY.
ORDER NO.
57
M8 x 25mm Bolt
10
X-FIT1 PRO-57
85
Motor Hood Side
Cover - Right
1
X-FIT1 PRO-85
58
Running Deck
1
X-FIT1 PRO-58
86
Frame Side Cover - Left
1
X-FIT1 PRO-86
59
Cushion
10
X-FIT1 PRO-59
87
Frame Side
Cover - Right
1
X-FIT1 PRO-87
60
M10 x 35mm Bolt
9
X-FIT1 PRO-60
88
Plastic Clamp -Top
2
X-FIT1 PRO-88
61
M5 x 15mm Screw
2
X-FIT1 PRO-61
89
Plastic Clamp - Bottom
2
X-FIT1 PRO-89
62
Clip
2
X-FIT1 PRO-62
90
Bracket
2
X-FIT1 PRO-90
63
Elevation Motor
1
X-FIT1 PRO-63
91
M8 x 25mm Screw
4
X-FIT1 PRO-91
64
M10 Nut
3
X-FIT1 PRO-64
92
Rear Roller
1
X-FIT1 PRO-92
65
Washer
2
X-FIT1 PRO-65
93
Rear Roller Shaft
1
X-FIT1 PRO-93
66
Rubber Cushion
1
X-FIT1 PRO-66
94
M8 x 43mm Bolt
2
X-FIT1 PRO-94
67
M10 X 135mm Bolt
1
X-FIT1 PRO-67
95
M8 Nut
2
X-FIT1 PRO-95
68
Driving Motor
Bracket
1
X-FIT1 PRO-68
96
Deck Wheel
2
X-FIT1 PRO-96
69
Driving Motor
1
X-FIT1 PRO-69
97
Spring Washer
10
X-FIT1 PRO-97
70
M8 x 15mm Screw
2
X-FIT1 PRO-70
98
M8 Nut
10
X-FIT1 PRO-98
71
Spring Washer
2
X-FIT1 PRO-71
99
Elevation Support Tube
Side Cover - Left
1
X-FIT1 PRO-99
72
8*16*T3.0 Washer
2
X-FIT1 PRO-72
100
Elevation Support Tube
Side Cover - Right
1
X-FIT1 PRO-100
73
M10 x 136mm Bolt
1
X-FIT1 PRO-73
101
Elevation Support Tube
1
X-FIT1 PRO-101
74
M10 x 63mm Bolt
1
X-FIT1 PRO-74
102
Motor Belly Pan
1
X-FIT1 PRO-102
75
Motor Drive Belt
1
X-FIT1 PRO-75
103
#8 x 35mm Screw
3
X-FIT1 PRO-103
76
Control Board
1
X-FIT1 PRO-76
104
Transport Wheel
Bracket - Left
1
X-FIT1 PRO-104
77
Transfer Board
1
X-FIT1 PRO-77
105
Transport Wheel
Bracket - Right
1
X-FIT1 PRO-105
78
Front Roller
1
X-FIT1 PRO-78
106
Plastic Bracket
2
X-FIT1 PRO-106
79
Front Roller Shaft
1
X-FIT1 PRO-79
107
M6 x 15mm Screw
2
X-FIT1 PRO-107
80
Deck Frame
1
X-FIT1 PRO-80
81
Micro Switch
1
X-FIT1 PRO-81
82
M8 x 70mm Bolt
3
X-FIT1 PRO-82
83
8*16*T2.0 Washer
3
X-FIT1 PRO-83
84
Motor Hood Side
Cover - Left
1
X-FIT1 PRO-84

X-FIT1 PRO MOTORIZED TREADMILL
8

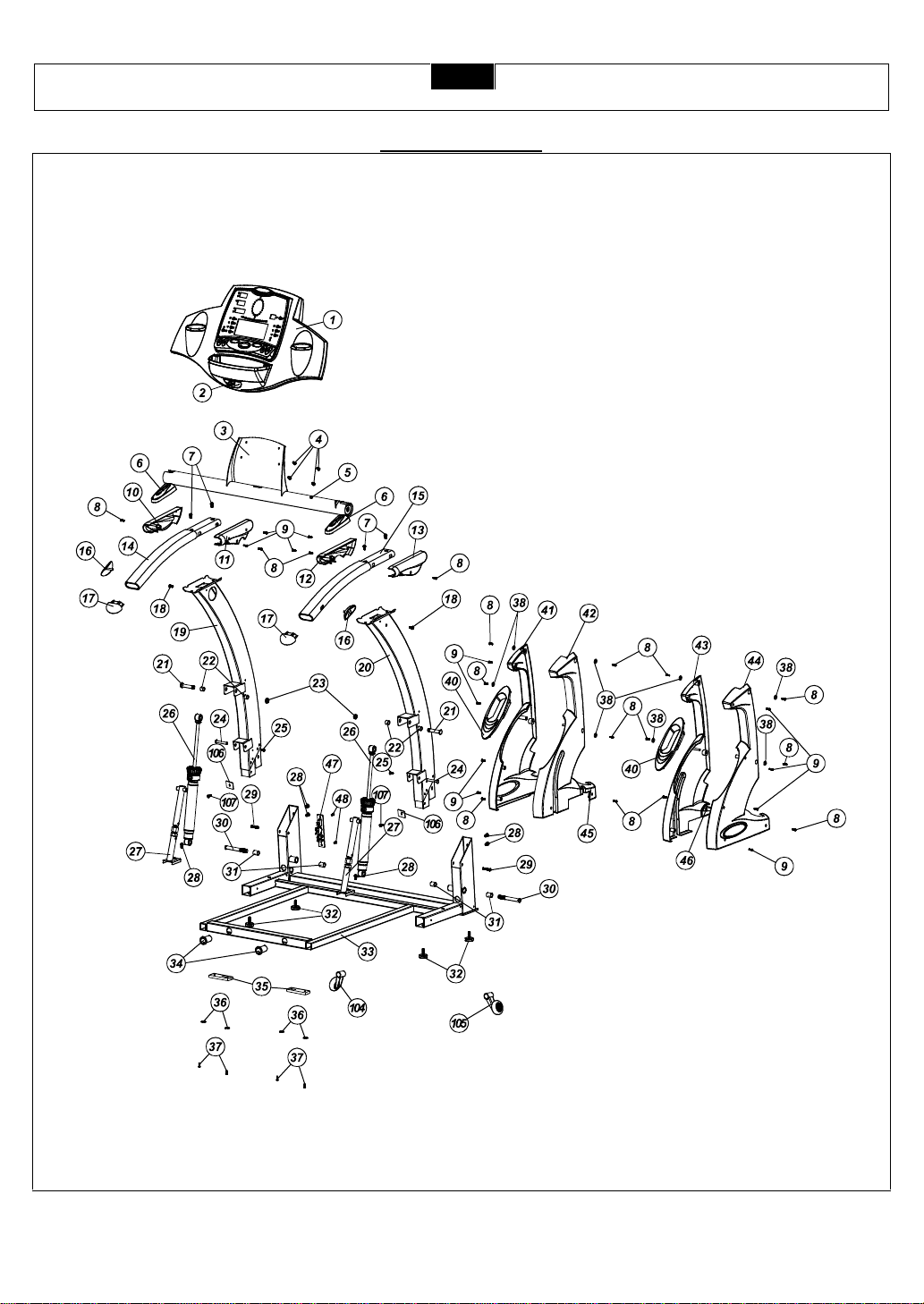

PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

X-FIT1 PRO MOTORIZED TREADMILL
9
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

X-FIT1 PRO MOTORIZED TREADMILL
10
ASSEMBLY
STEP 1:
Remove your treadmill from the carton as shown in FIG.1.

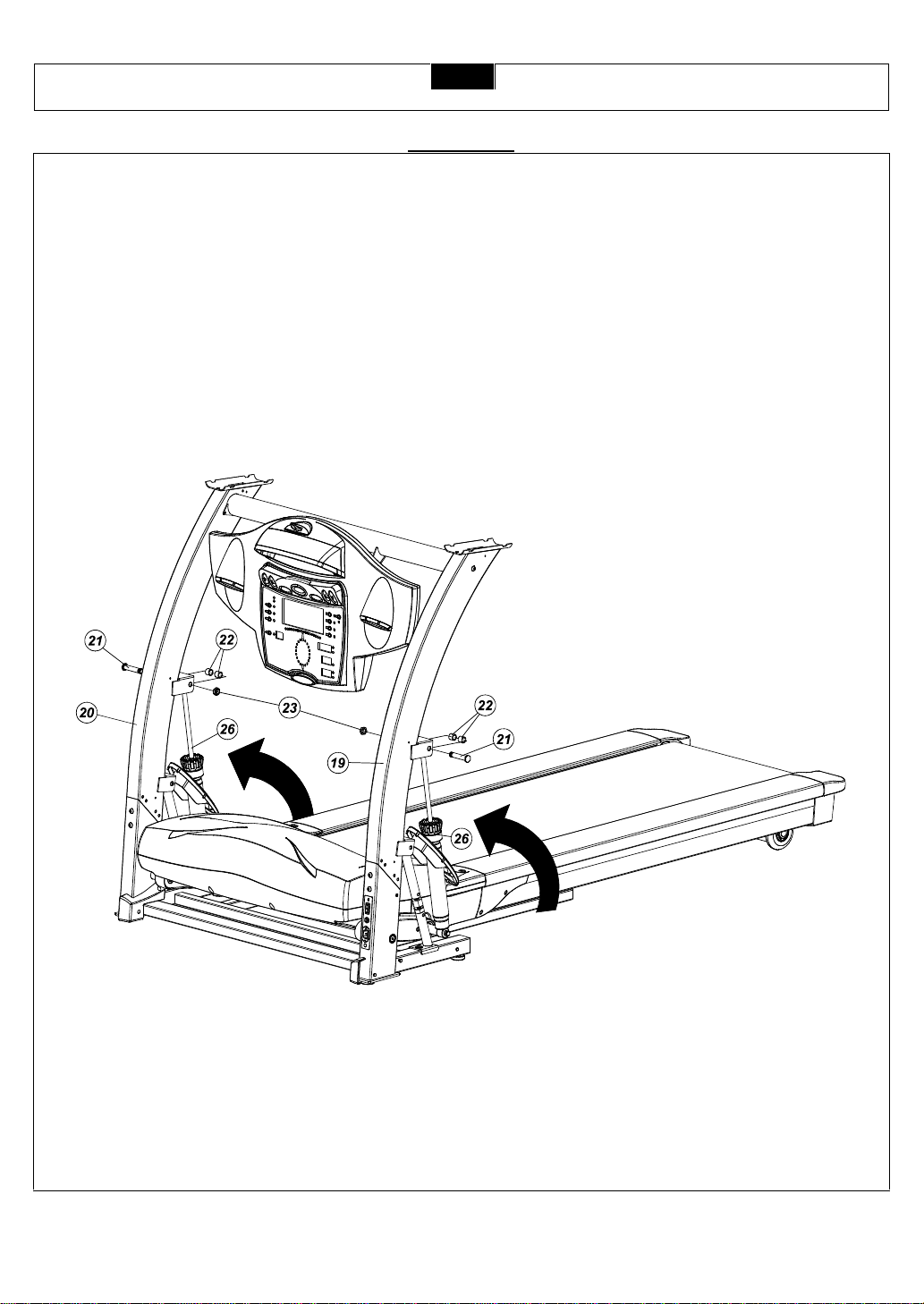

Raise the Left and Right Uprights (19 and 20) and secure with Screws (28).
FIG.1

X-FIT1 PRO MOTORIZED TREADMILL
11
ASSEMBLY
STEP 2:
Secure the Console (1) to the Console Support Tube (3) using Bolts (4).

X-FIT1 PRO MOTORIZED TREADMILL
12
ASSEMBLY
STEP 3:
Attach the Plastic Bracket (106) to the Left Upright (19) and secure with Screw (107). Repeat the procedure on the
Right Upright (20).

X-FIT1 PRO MOTORIZED TREADMILL
13
ASSEMBLY
STEP 4:
Attach the Upright Support Tube-Bottom (27) to the Left Upright (19) and secure with Fix Pin (24) and Screws (25
and 28). Repeat the procedure on the Right Upright (20).
NOTE: To stiffen the suspension rotate the Upright Support Tube Knob (27-1), located above the Upright Support
Tube Bottom (27-2), to the Right as shown in FIG.2. To loosen rotate it to the Left.
FIG.2

X-FIT1 PRO MOTORIZED TREADMILL
14
ASSEMBLY
STEP 5:
Rotate up the Suspension System Hardware Assembly (26) and secure to the Left Upright (19) using Bolt (21),
Rubber Spacers (22) and Nut (23). Repeat this procedure on the Right Upright (20).

X-FIT1 PRO MOTORIZED TREADMILL
15
ASSEMBLY

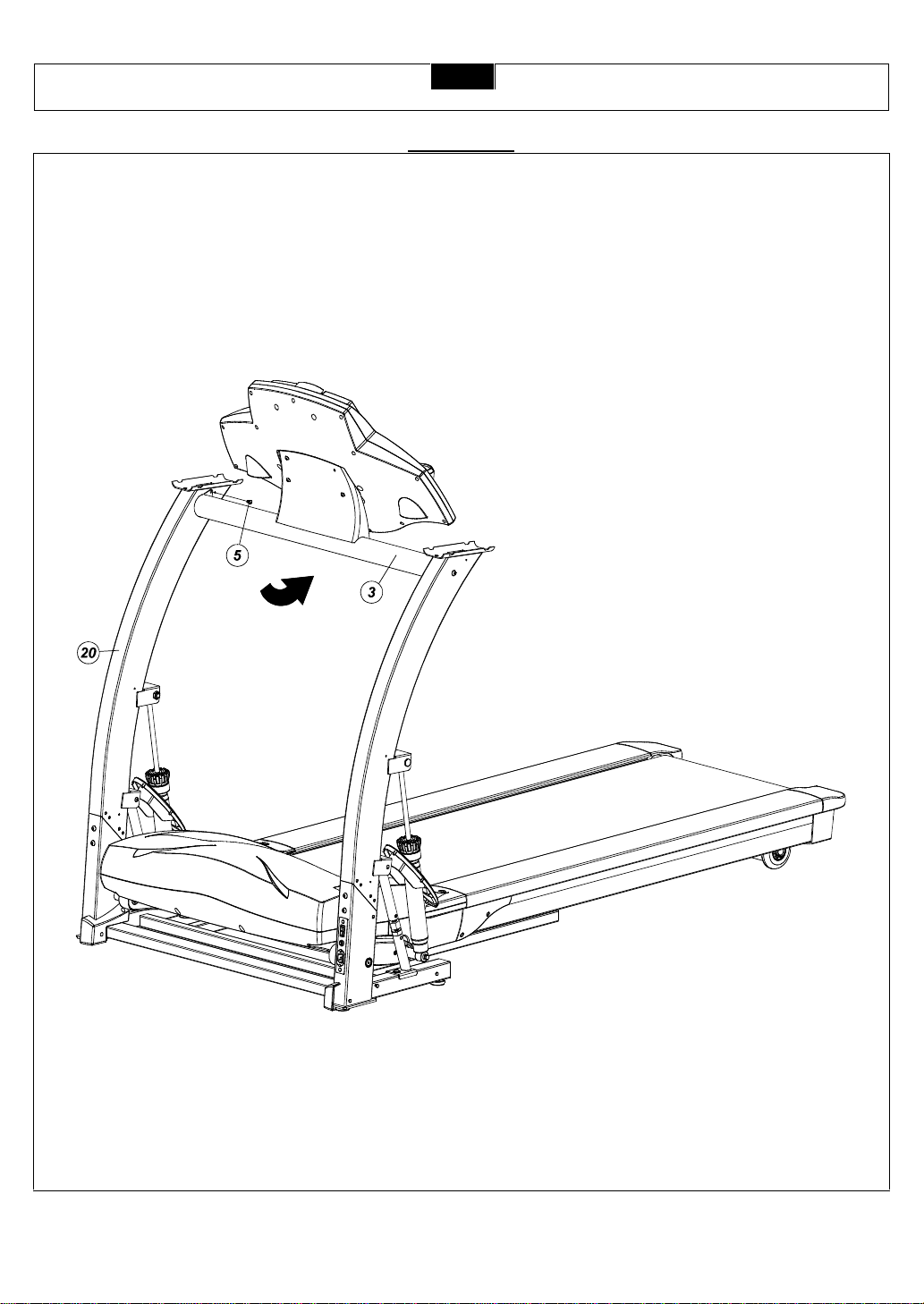

STEP 6:
Rotate up the Console Support Tube (3) to it’s proper location and secure it to the Right Upright (20) using Screw (5).

X-FIT1 PRO MOTORIZED TREADMILL
16
ASSEMBLY

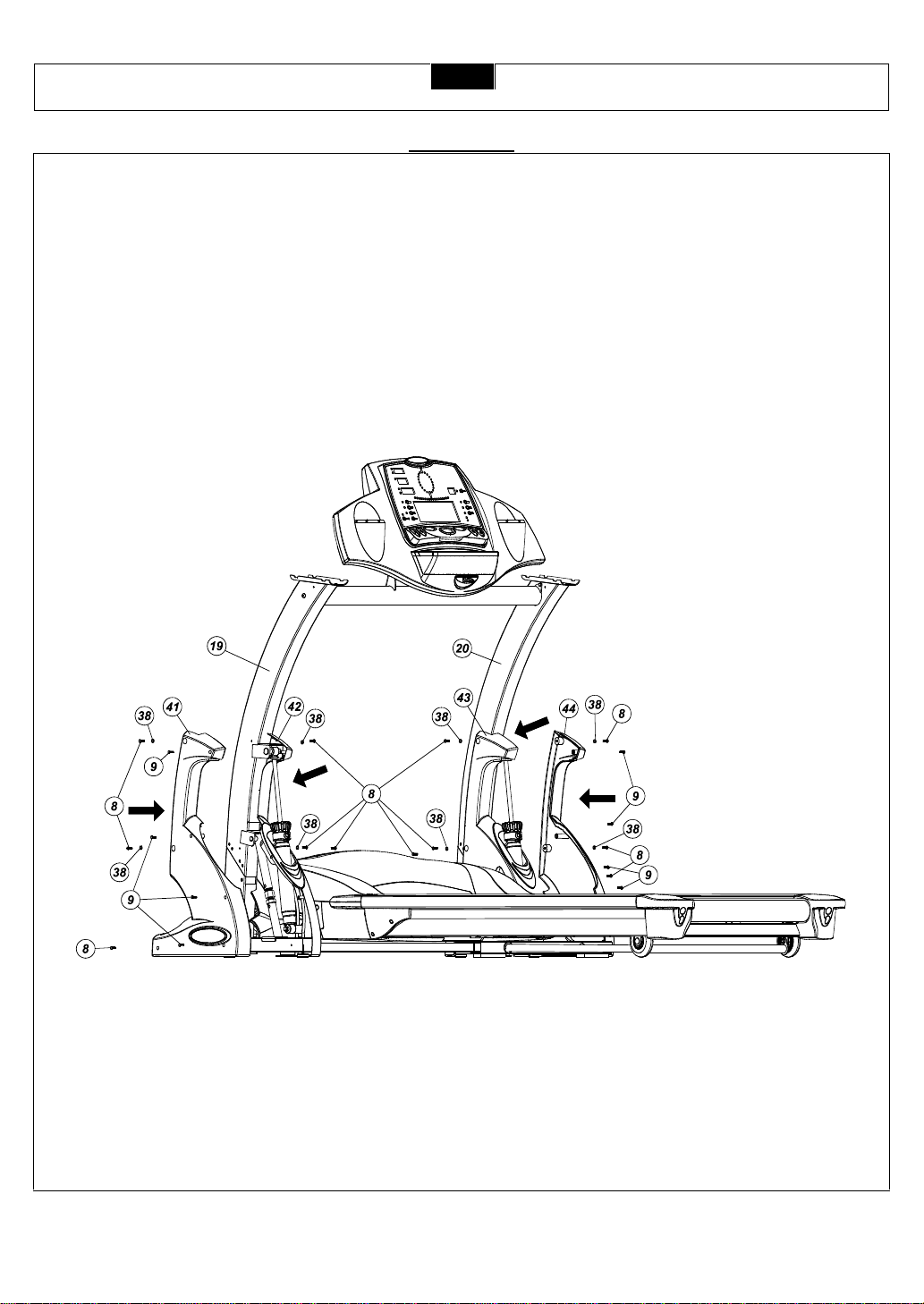

STEP 7:
Attach the Upright Plastic Shroud Left #1 (41) and Upright Plastic Shroud Left #2 (42) to the Left Upright (19) and
secure with Washers (38) and Screws (8 and 9). Repeat on the Right Upright (20) with the Upright Plastic Shroud
Right #1 (43) and Upright Plastic Shroud Right #2 (44).

X-FIT1 PRO MOTORIZED TREADMILL
17
ASSEMBLY
STEP 8:
NOTE: Make sure to connect the Sensor Wires before attaching the Left and Right Handlebars (14 and 15) as
shown in FIG.3.
Connect the Handlebar – Left (14) to the Left Upright (19) and secure with Bolts (7). Repeat the procedure with the
Handlebar – Right (15) and Right Upright (20).
FIG.3

X-FIT1 PRO MOTORIZED TREADMILL
18
ASSEMBLY
STEP 9:
Attach the Handlebar Rear End Cap – Left #1 (10) and the Handlebar Rear End Cap – Left #2 (11) to the Left Upright
(19) and secure with Screws (8 and 9). Repeat the procedure on the Right Upright (20) using Handlebar Rear End
Cap – Right #1 (12) and Handlebar Rear End Cap – Right #2 (13).

X-FIT1 PRO MOTORIZED TREADMILL
19

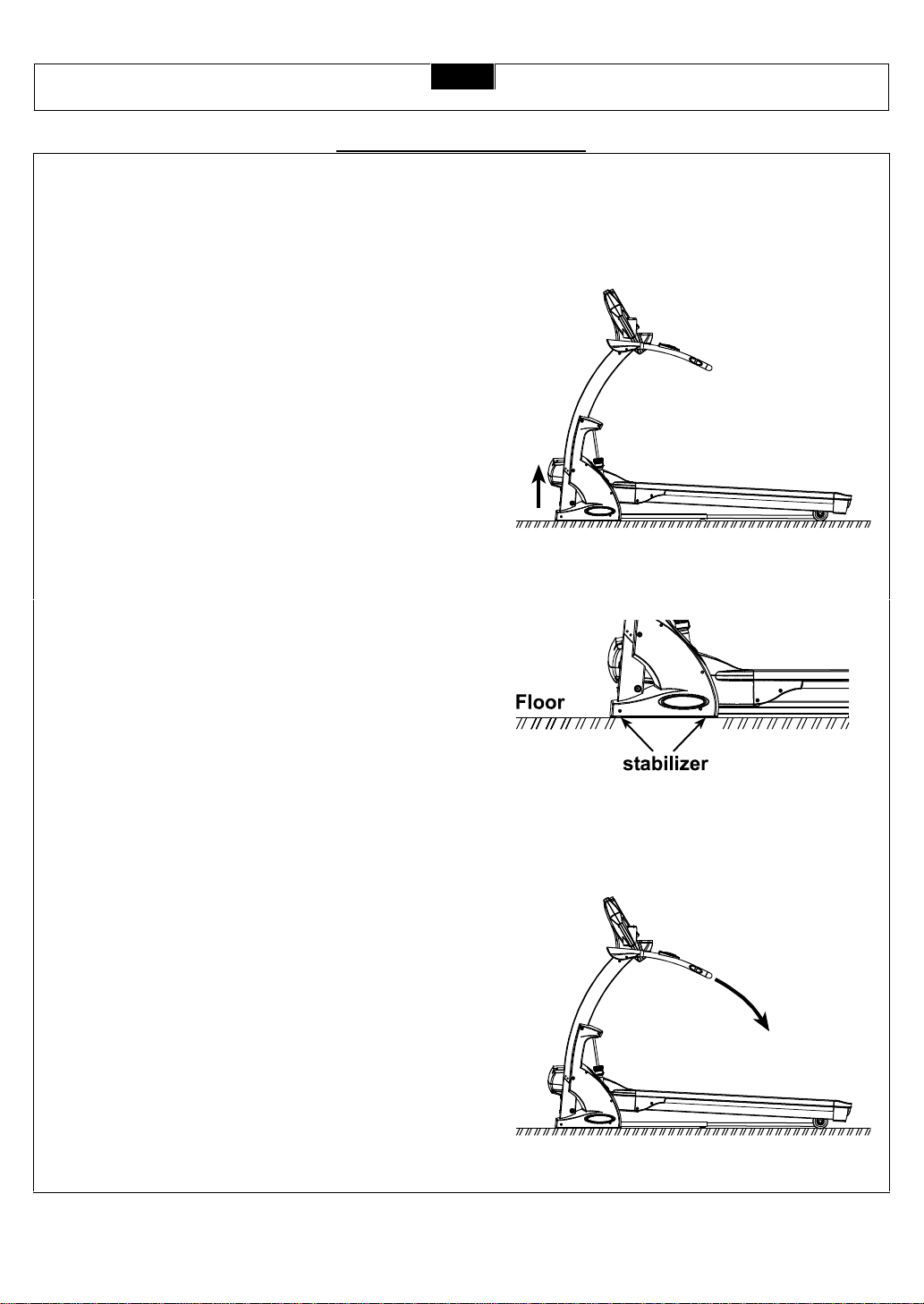

STABILIZER ADJUSTMENT
How to level the treadmill:
An uneven floor or improper stabilizer level can cause the treadmill to wobble during use as well as the incline
adjustment to function incorrectly. Please follow the procedure described below to make sure the treadmill stabilizer
is adjusted correctly prior to use. You may need the assistance of another person to perform this adjustment.
1. To perform the stabilizer adjustment you first need
to bring the treadmill to the highest incline level as
shown in figure 1. After you’ve completed the
assembly procedure plug in the power cord and
switch on the POWER SWITCH. Insert the Safety
Key and press the START button to quick start the
treadmill. Press the INCLINE UP button until L12
shows on the console. This is the highest incline
level. Now press the STOP button and pull out the
Safety Key. Switch off the POWER SWITCH and
unplug the power cord.
1. Raise deck to highest incline level.
2. Inspect the four stabilizers (two per side) located
underneath the base frame. The treadmill should
sit on the floor with all 4 stabilizers resting firmly on
the floor as shown in figure 2. Shake the
handlebars back and forth to check if they are
resting firmly on the floor. If they are not, pull the
handlebar backward to adjust the two front
stabilizers and push the handlebar forward to
adjust the two rear stabilizers as shown in figure C.
Simply turn the stabilizers like a screw to adjust
their heights. Repeat this until all 4 stabilizers sit
firmly on the floor.
2. Check position of stabilizers and cushions.
3. Tilt treadmill to access stabilizers.

X-FIT1 PRO MOTORIZED TREADMILL
20
ADJUSTING HYDRA SUSPENSION
How to adjust the Hydra Suspension:
Simply rotate the Suspension Knobs to the right to stiffen the suspension, or to the left to soften.
